5 Gallon Barrel Mouth Neck Labeling Machine Automatic High precision Exquisite appearance Good quality cheap industrial machine
- Category: >>>
- Supplier: Zhangjiagang V Pack Machinery Co. Ltd.
Share on (1600728392353):
Product Overview
Description
Our Products
Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant proteindrink, etc.); Barrel filling line(1-5 gallon); Water treatment machines, Labeling & packing machines, Semiautomatic/ Full automatic PET Bottle blowing machines, and Injection molding machines. Labeling machine, Bottle shrink packing machine, Carton packing machines ,Conveyor system , Juice processing system , Sterilizer and so on.
Product Description

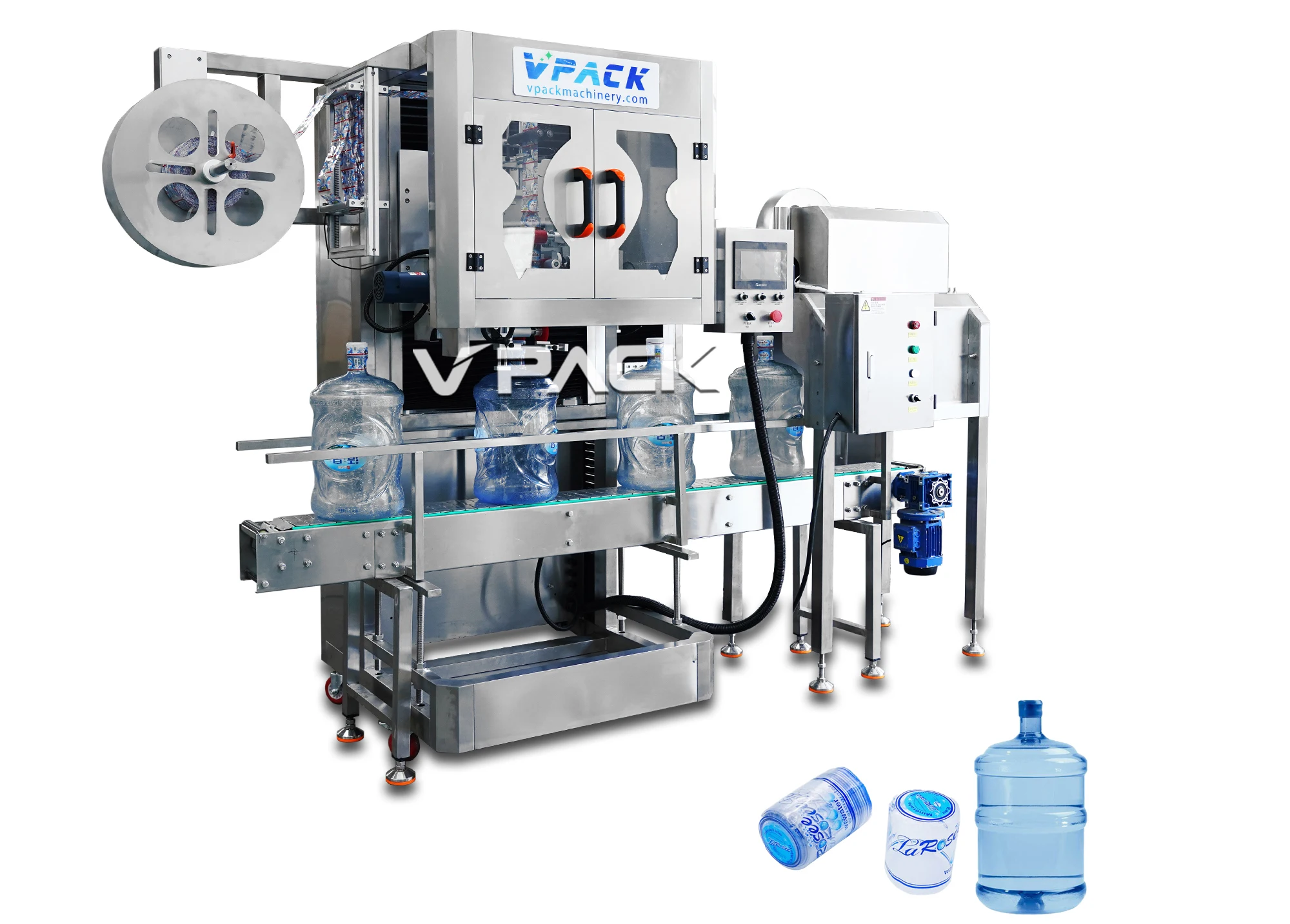

Automatic shrink sleeve labeling machine
This machine adopts international advanced technology;cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body is designed.
This machine's structure is compact,and suitable for the production line of different direction and different height.
The machinery part adopts combination designing of modularization,and makes the machine resonable.The height
adjustment adopts motor fluctuating;it is convenient to replace the material.The special cutter head designing,make the film-rolling cut more correct and reliable.

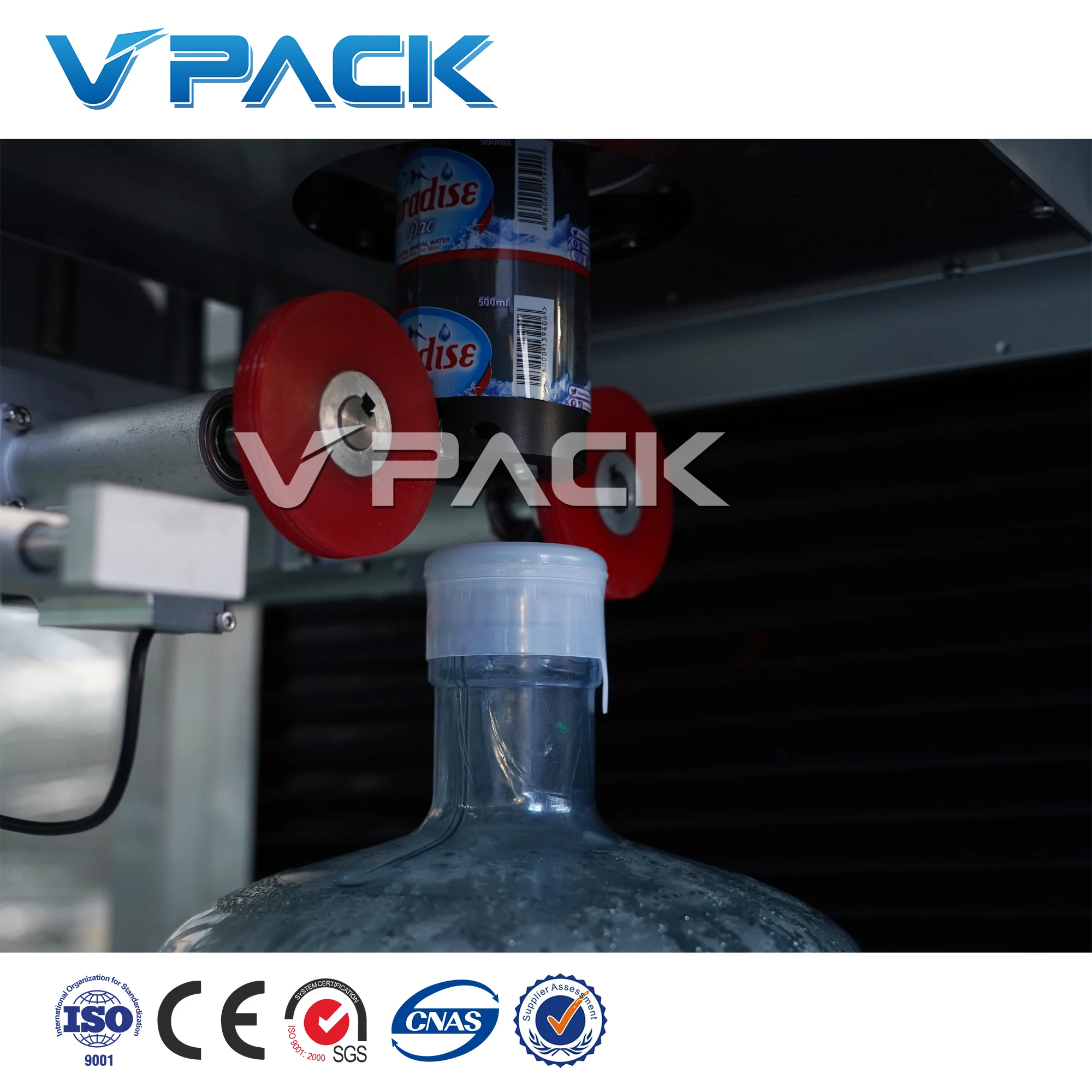

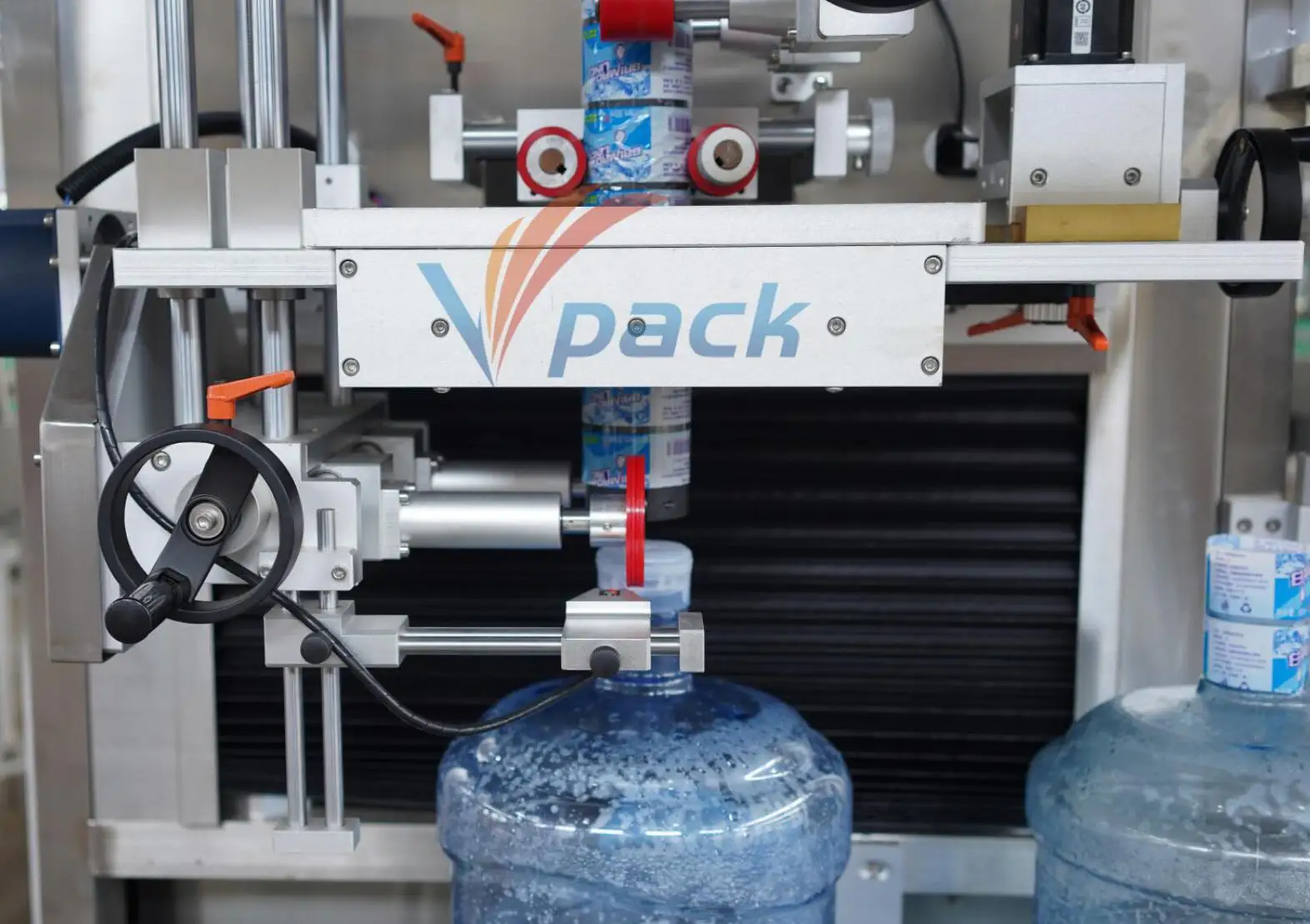

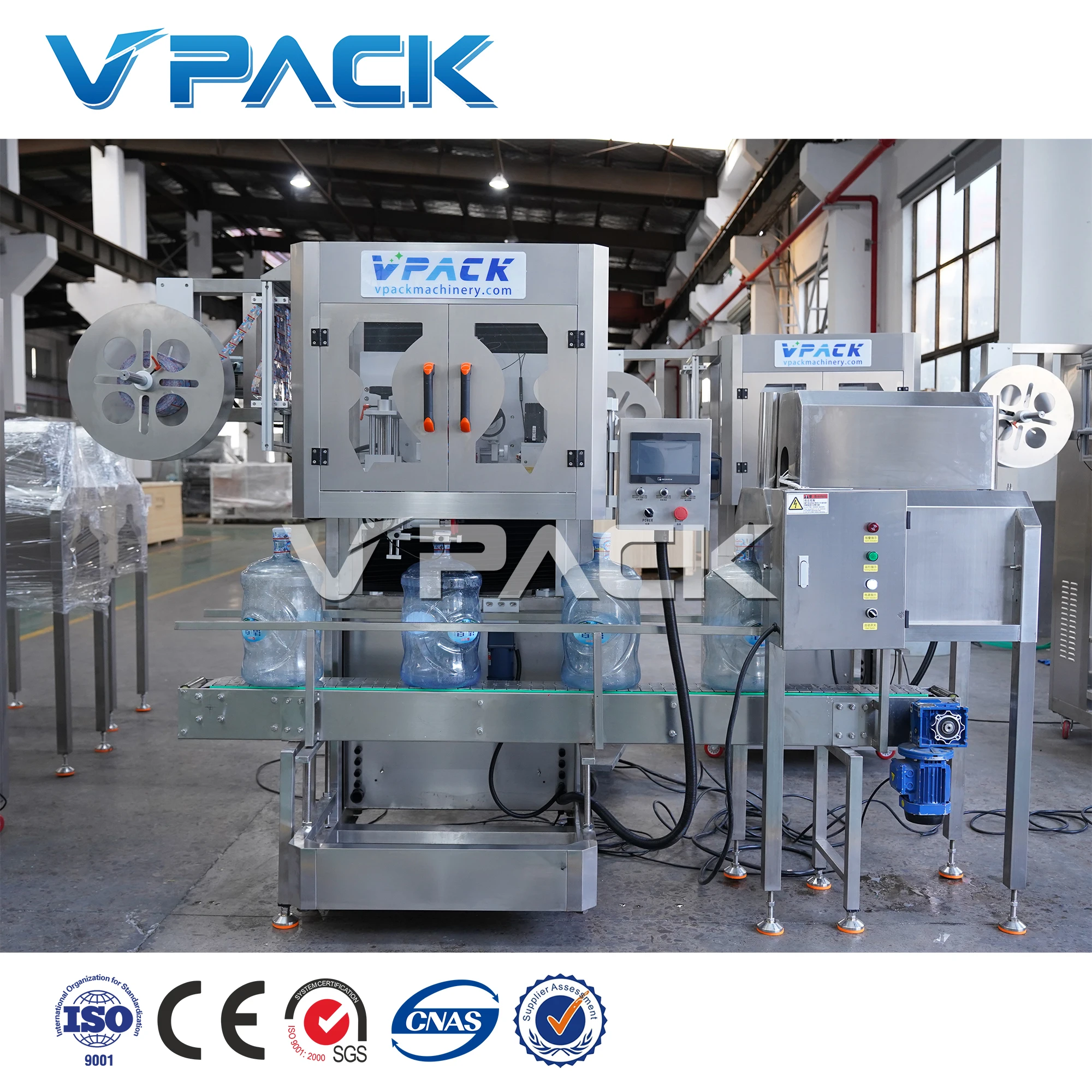

5 Gallon Bottle Neck Label Shrink Tunnel
Final Products
Product Paramenters
Model parameters | TB-100 | ||||
capacity | 6000B/H | ||||
Label type | φ50-97mm | ||||
Bottle diameter | φ50-97mm | ||||
Sleeve length | 40-150mm | ||||
Label thickness | ≧0.035mm | ||||
Label material | PVC/PET | ||||
Main power | 2.5KW(380V,50HZ) | ||||
Diemsion | 2440*890*2200mm | ||||
Weight | 650KG | ||||

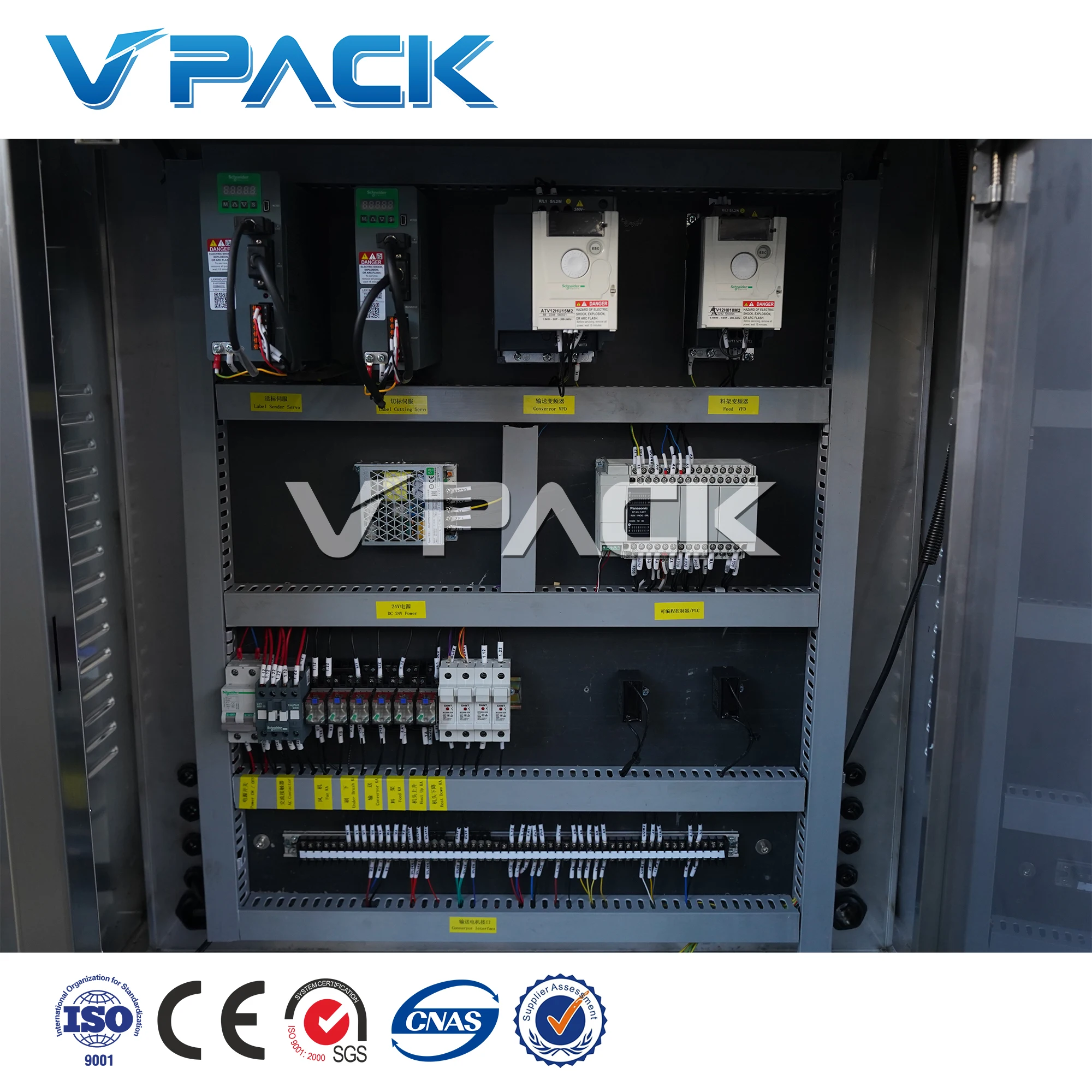

Electric Power

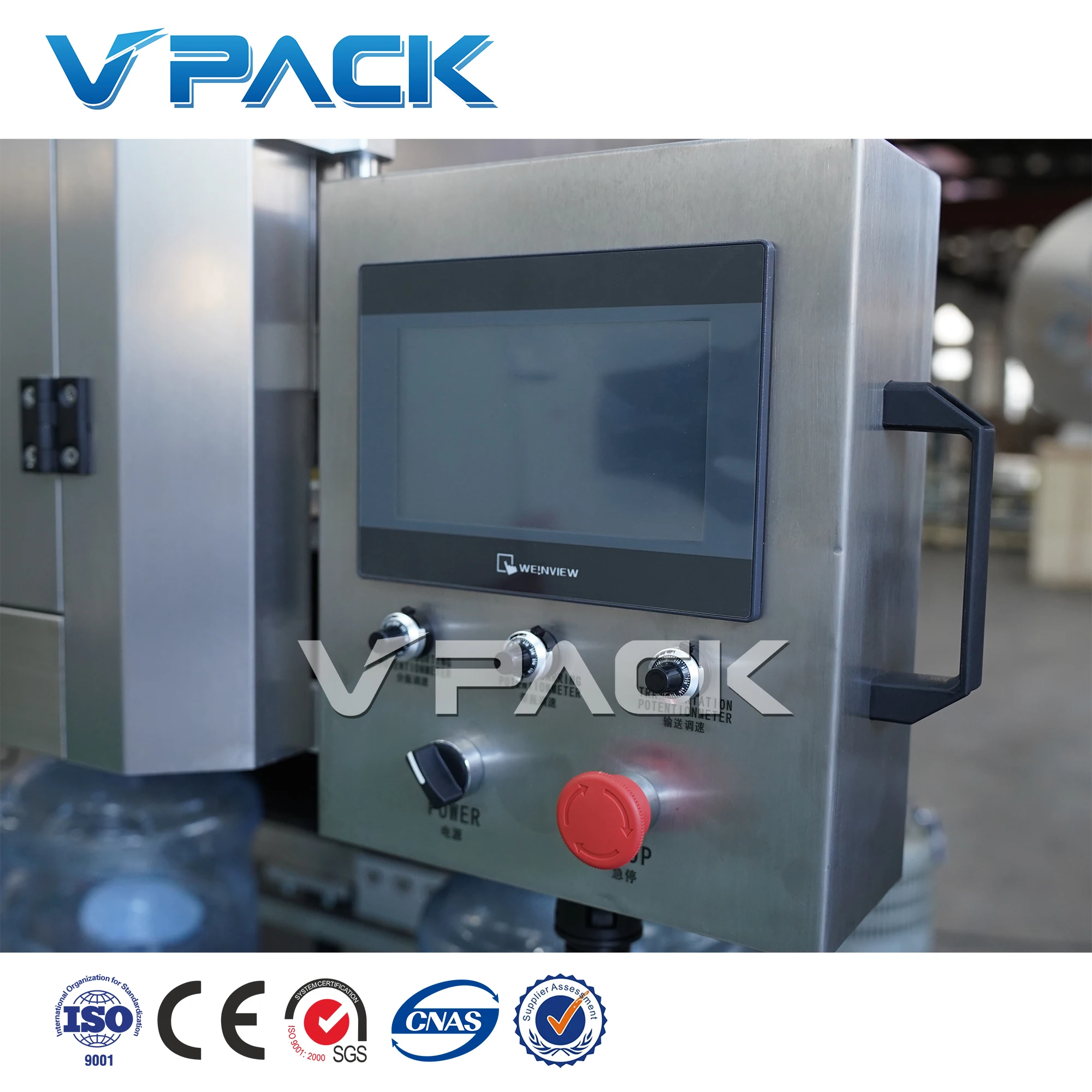

Control Screen
Detailed Images

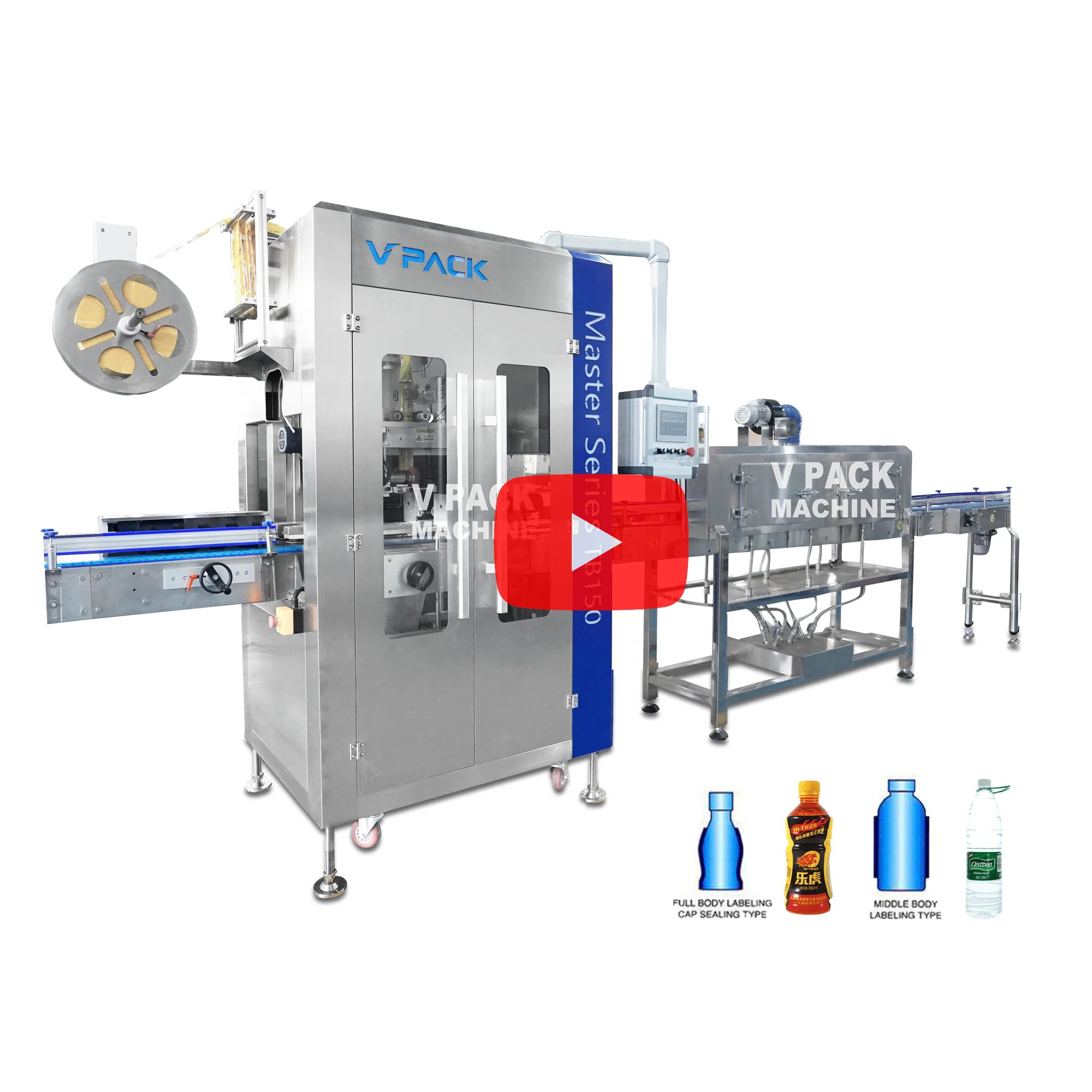

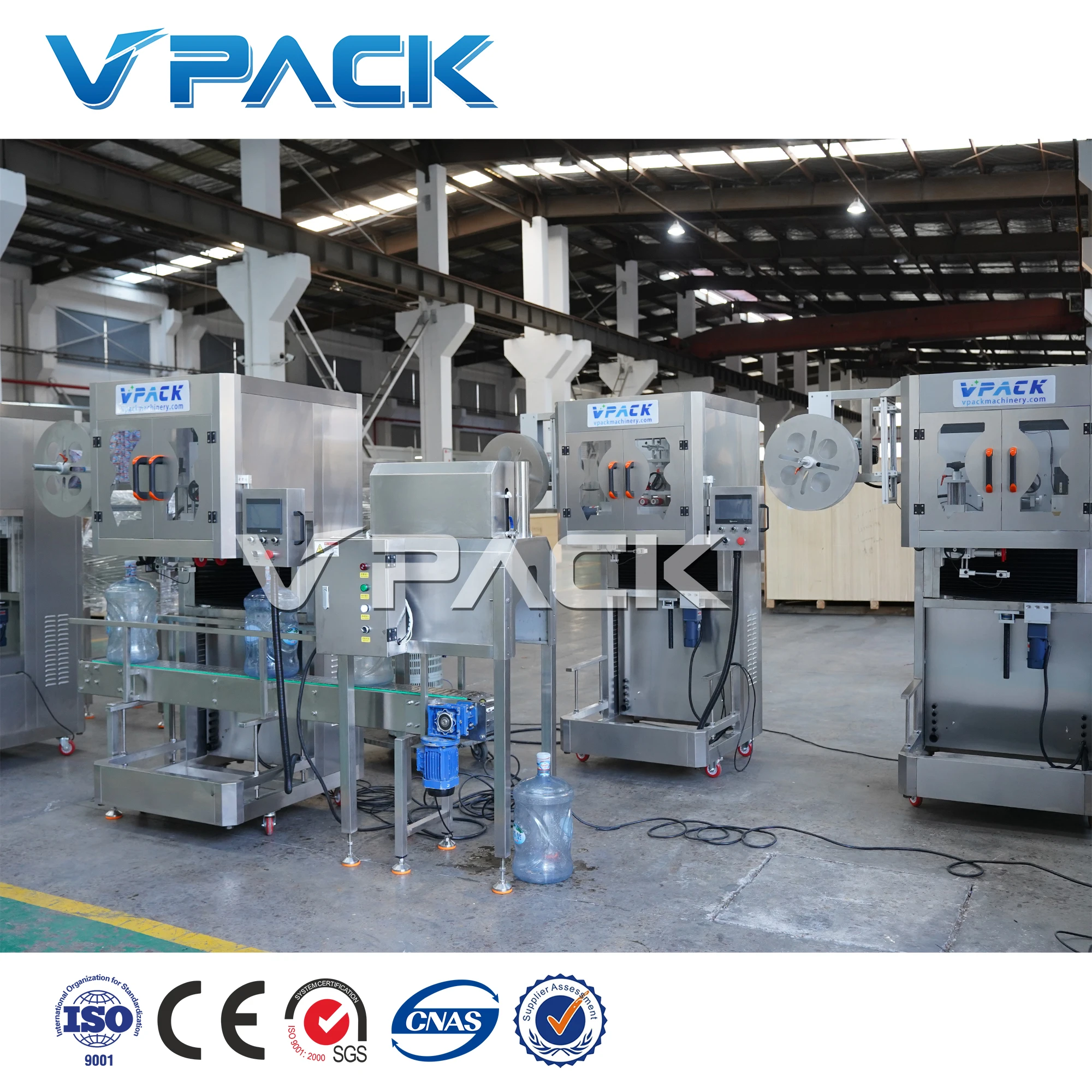

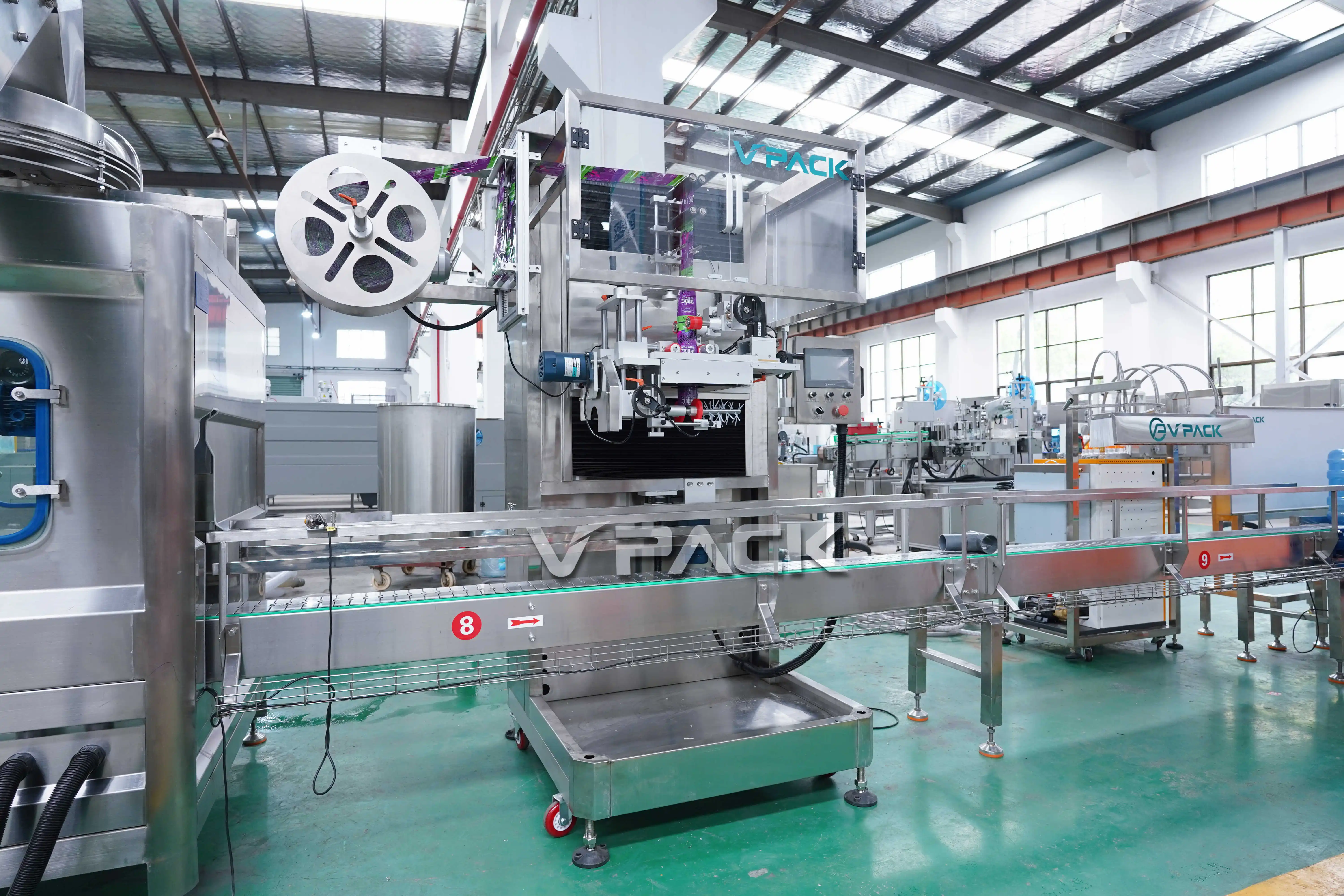

Sleeve Labeling Machine & Shrink Tunnel in Production Line

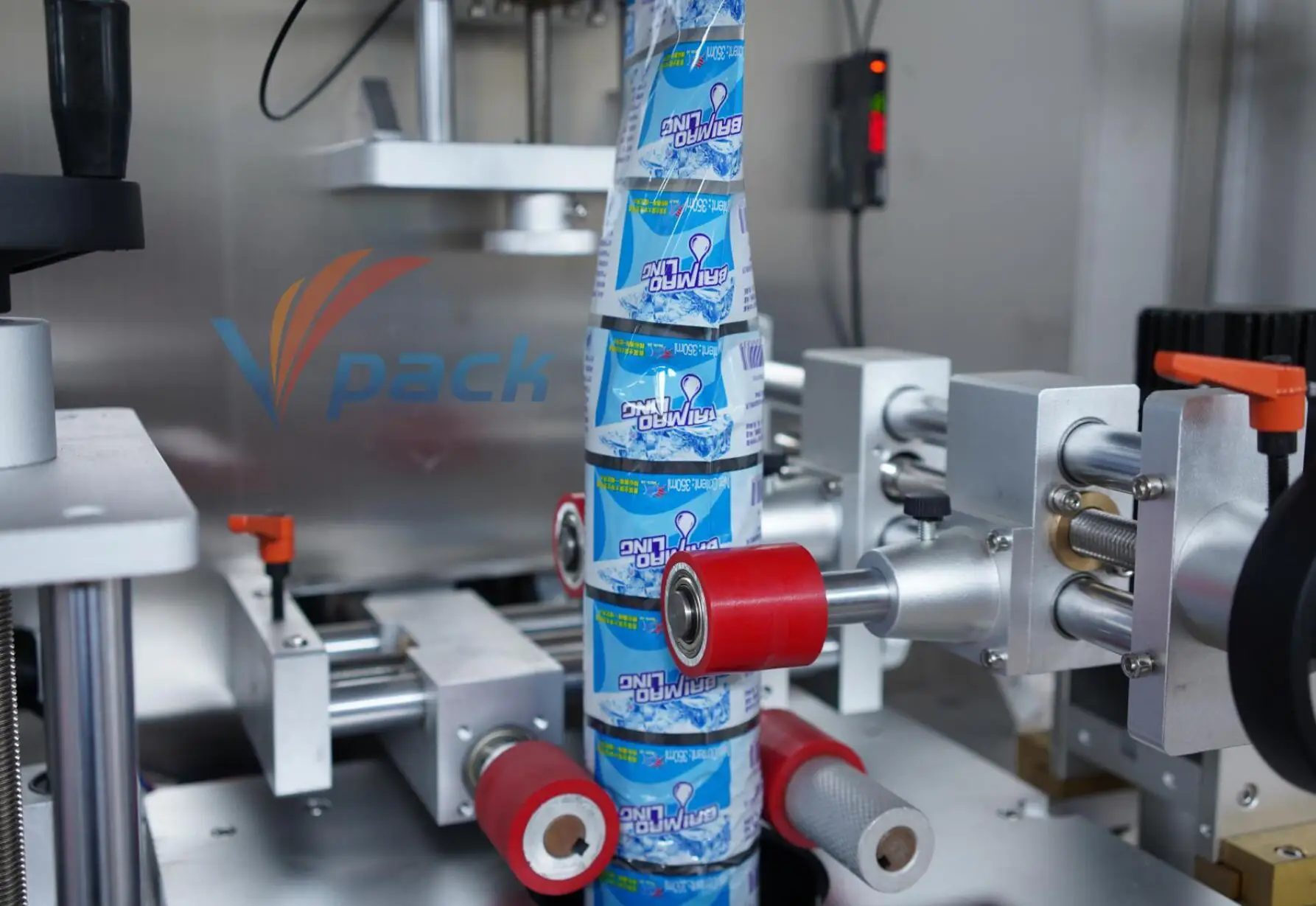

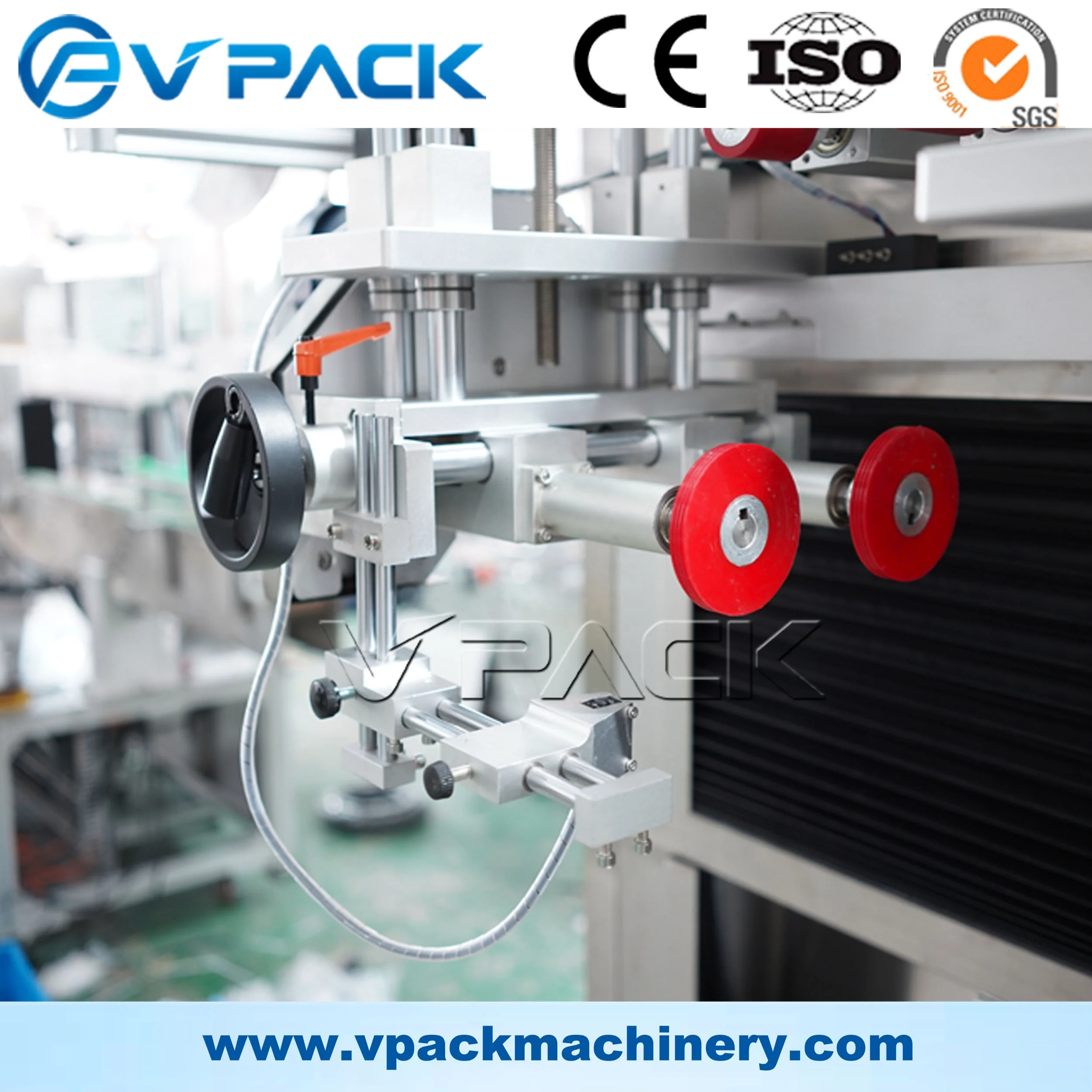

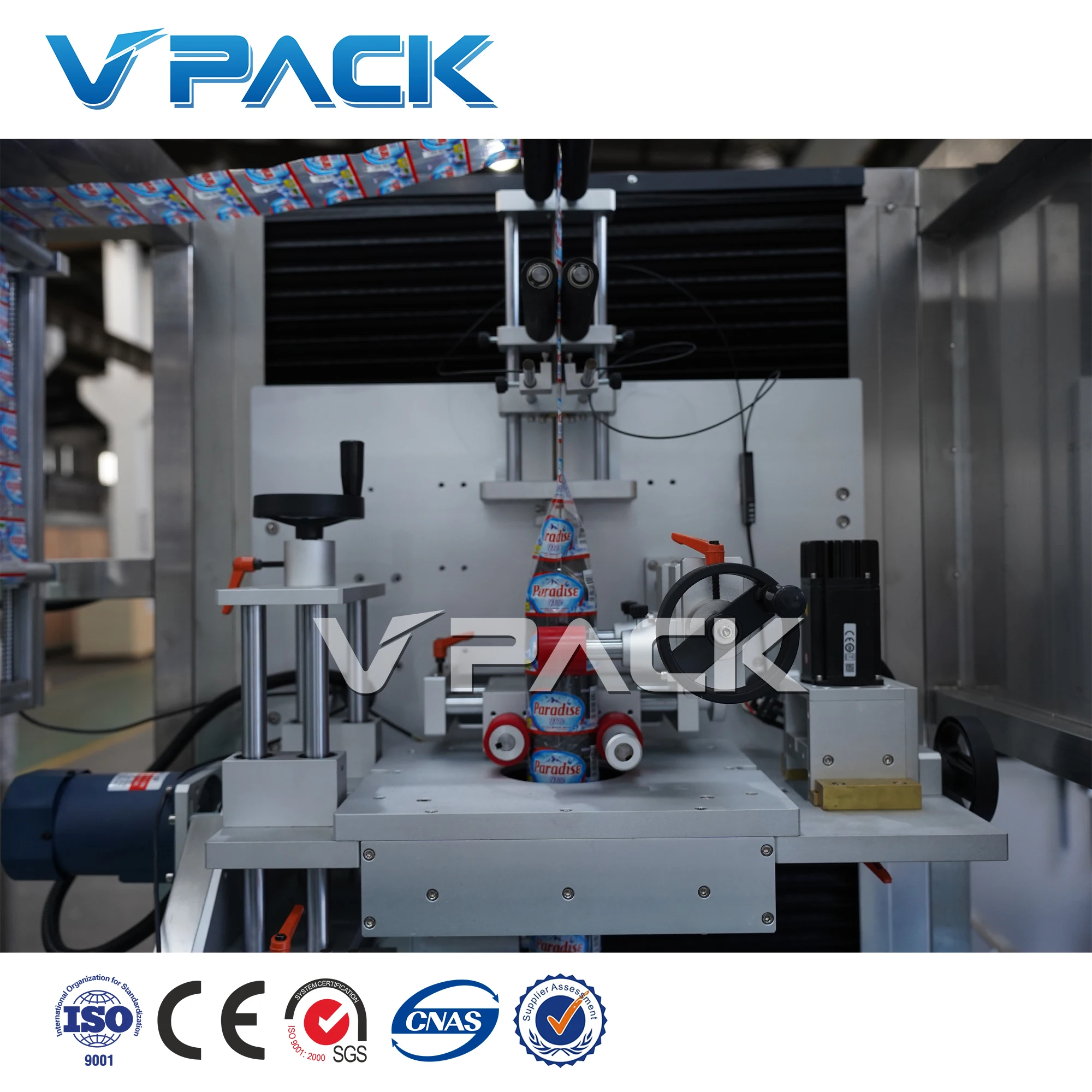

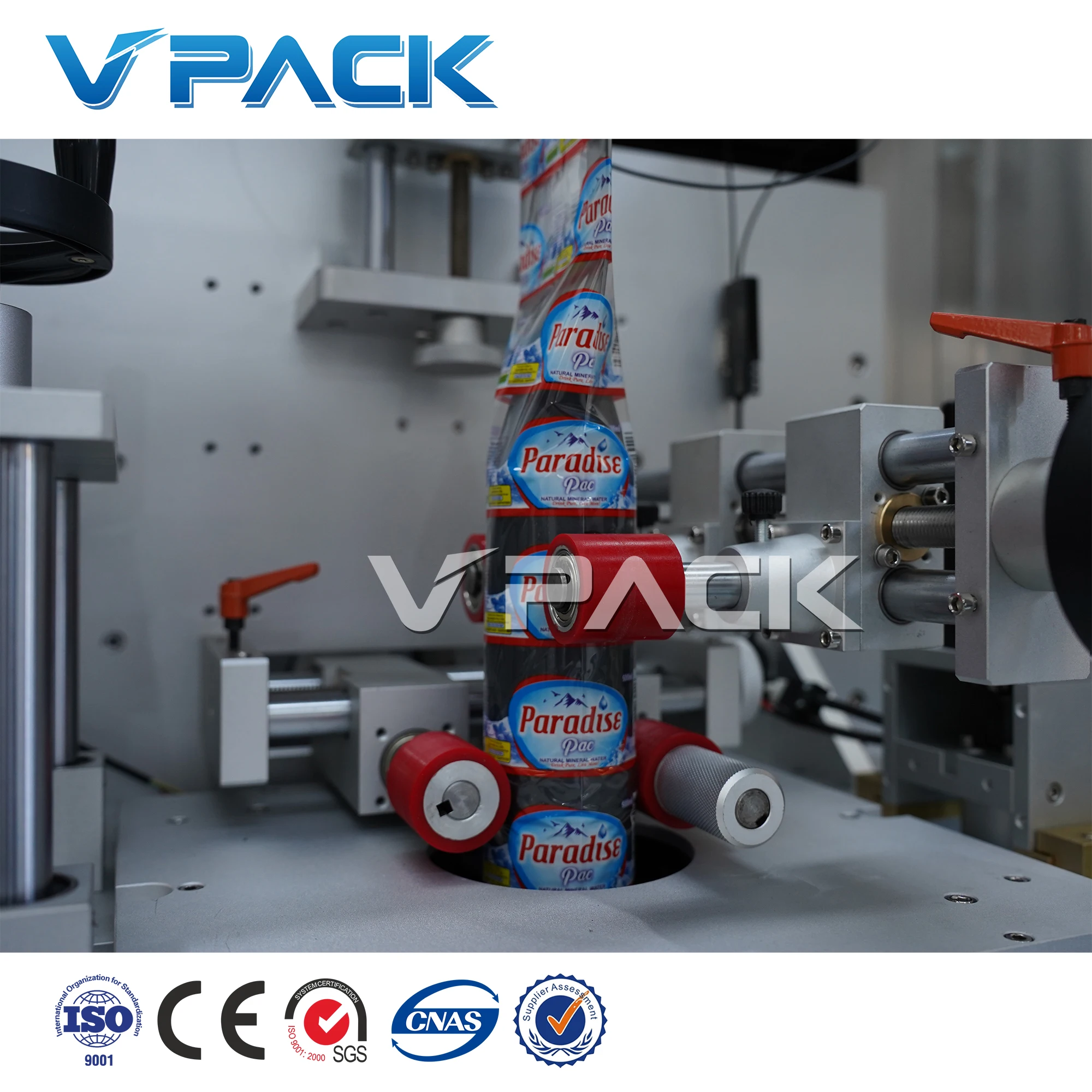

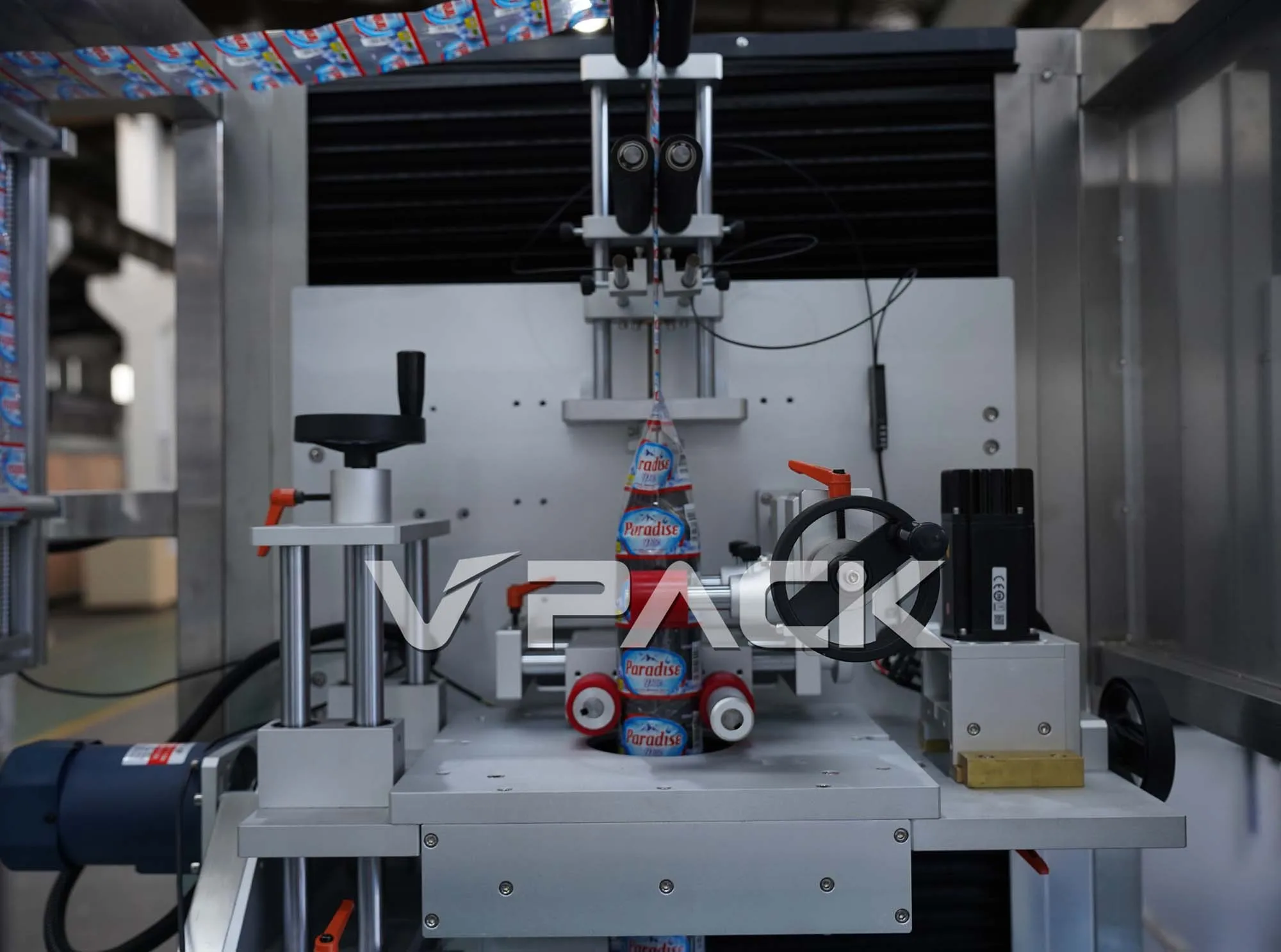

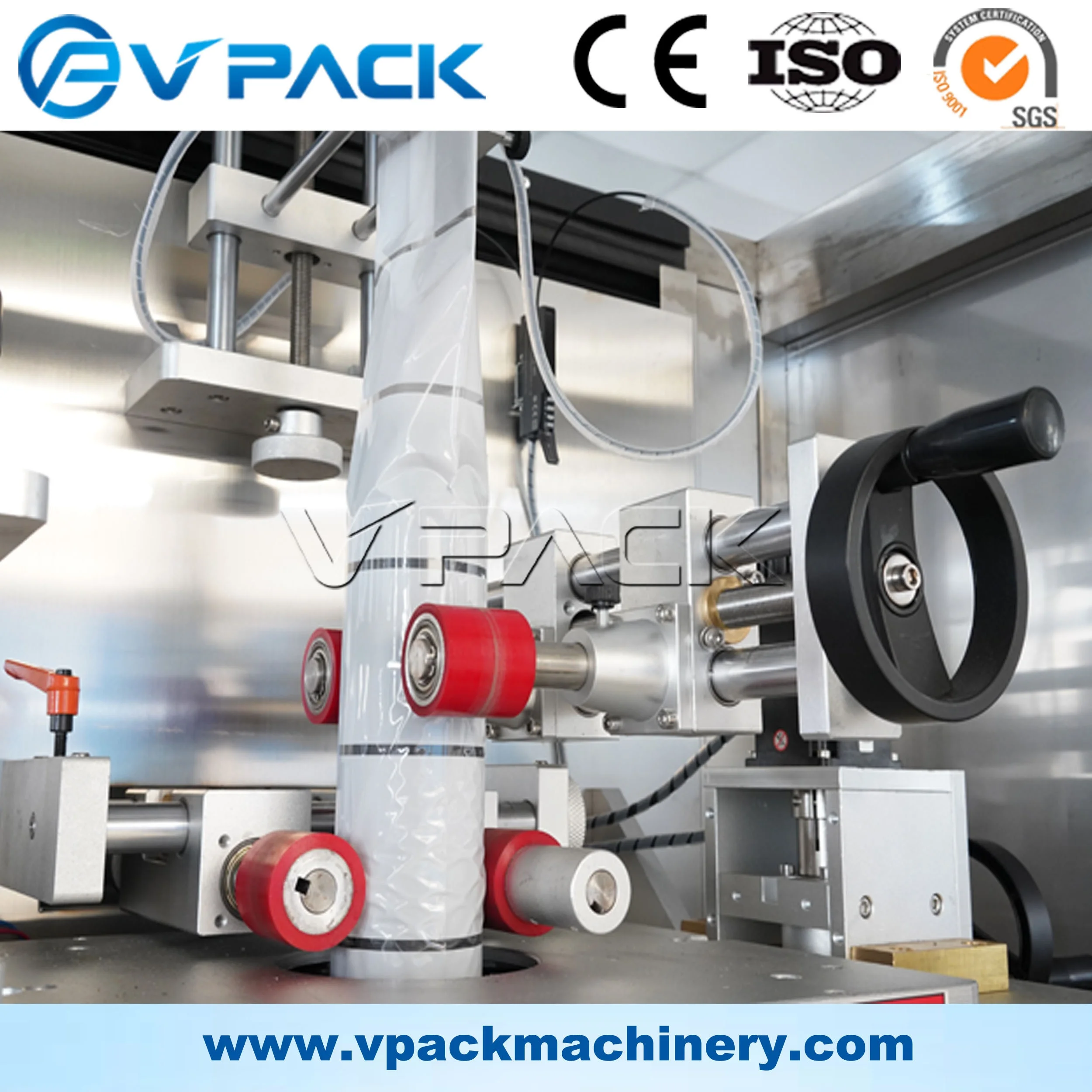

Cutter Heat Unit
The new style cutting knife drived by servo motor, with high speed, more stable and precise, shrink perfectively. Synchronous locating device enables the tolerable error to ±1mm. Unit cutter head plane design in China which apply to the container of ∮30mm—∮130mm.
Cutter head original transducer is inside the cutter head and when you take down cutter head, you donot need to correct the synchronous belt. It also has unique light touch human-machine screen. The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink. Compatible with the label synchronous location structure, the error of cutting place is within 1mm.
It adopts rotary potentiometer which enable the label feeding stable and fluent and avoid the error label length, label block and other problem when label feeding servo convey the label.
Related Products
Small Bottle Sleeve Shrink Labeling Machine
This machine adopts international advanced technology;cover the circle label on the PET bottle. And then hot shrinking to fix on
the position which bottle body is designed.
This machine's structure is compact,and suitable for the production line of different direction and different height.
The height adjustment adopts motor fluctuating; it is convenient to replace the material.The special cutter head designing, make the film-rolling cut more correct and reliable.
the position which bottle body is designed.
This machine's structure is compact,and suitable for the production line of different direction and different height.
The height adjustment adopts motor fluctuating; it is convenient to replace the material.The special cutter head designing, make the film-rolling cut more correct and reliable.

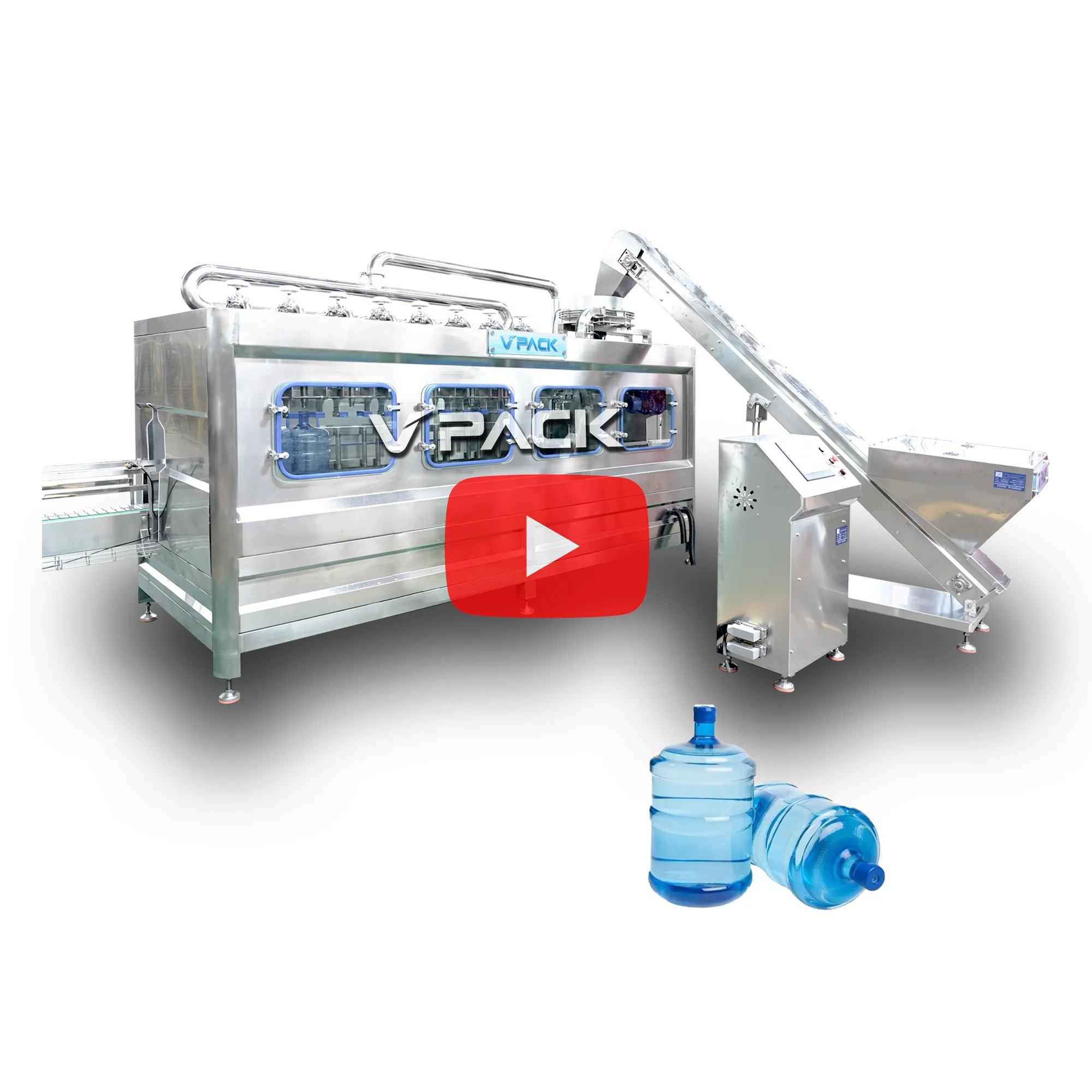

5 Gallon Water Prodection Line
The filling line special for 3-5 gallons barreled drinking water, with type of QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200.It integrates bottle washing,filling and capping into one unit. In order to chineve the purpose of washing and sterilizing.The washing machine uses multi-washing liquid spray.This thimerosal can be used circularly. The capping machine can automatic.This line equips with water spraying device in order to ensure those caps sterile and clean.It also can automatic carry out barrel.
