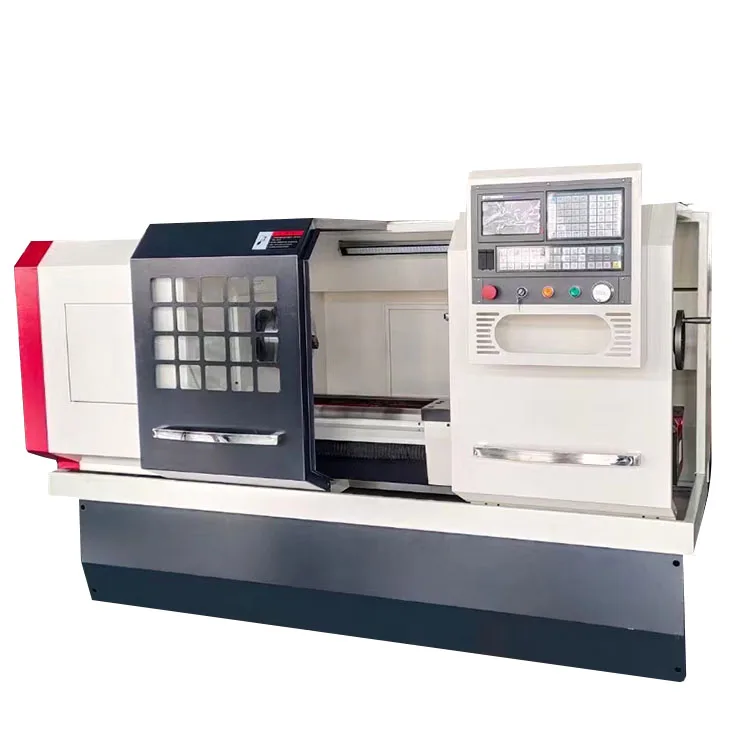

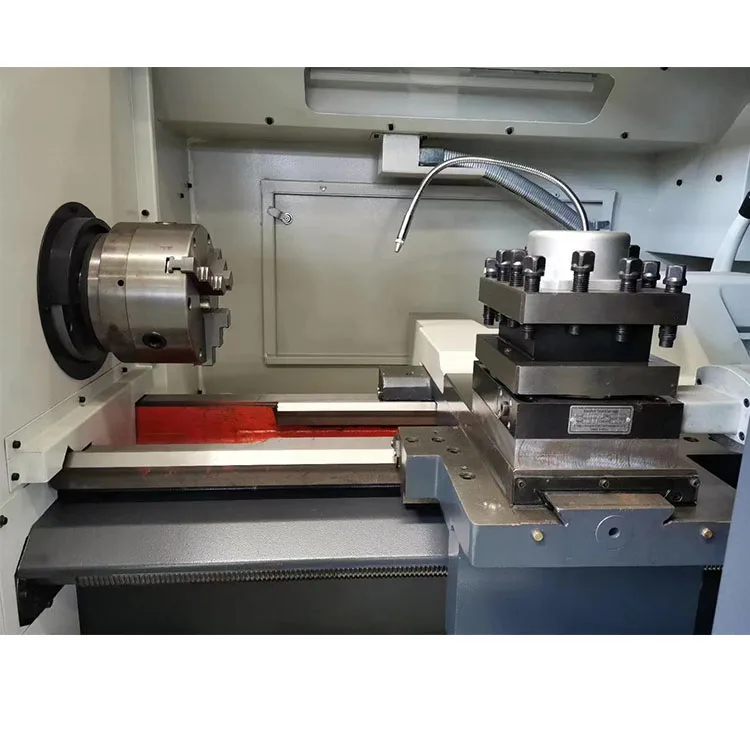

High quality CK6140 automatic 2 axis cnc lathe machine with fanuc control price
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600728412967):
Product Overview
Description
Products Description
Feature
1.High precision of control system machine cnc lathe gsk china automatic lathe, high precision double ball bearing support, low noise, high precision and good stability.
2.Control system machine cnc lathe gsk china automatic lathe can be used to peel various rotating surfaces such as cylindrical surface, tapered surface, special surface, etc., and can be used for cutting grooves, threading, boring, hinge processing, high efficiency and strong applicability.
3.The bed guide rail is refined by ultrasonic quenching, high hardness and good rigidity.

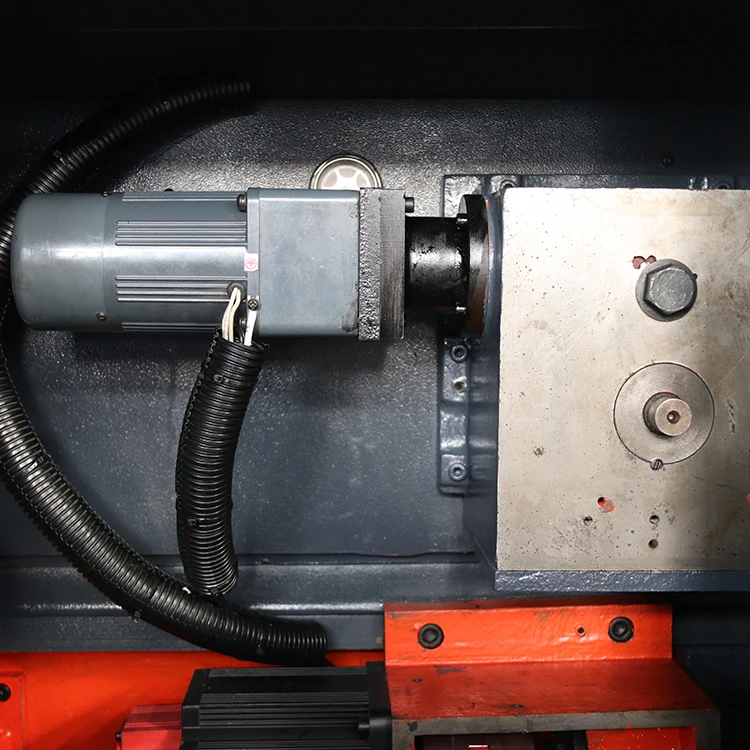

4.The ball screw is used in the whole inner loop wire rod, with the diagonal contact ball bearing support and pretension.The guide rail and screw are used for automatic lubrication, which has the characteristics of flexible movement, reducing heat deformation and stability.

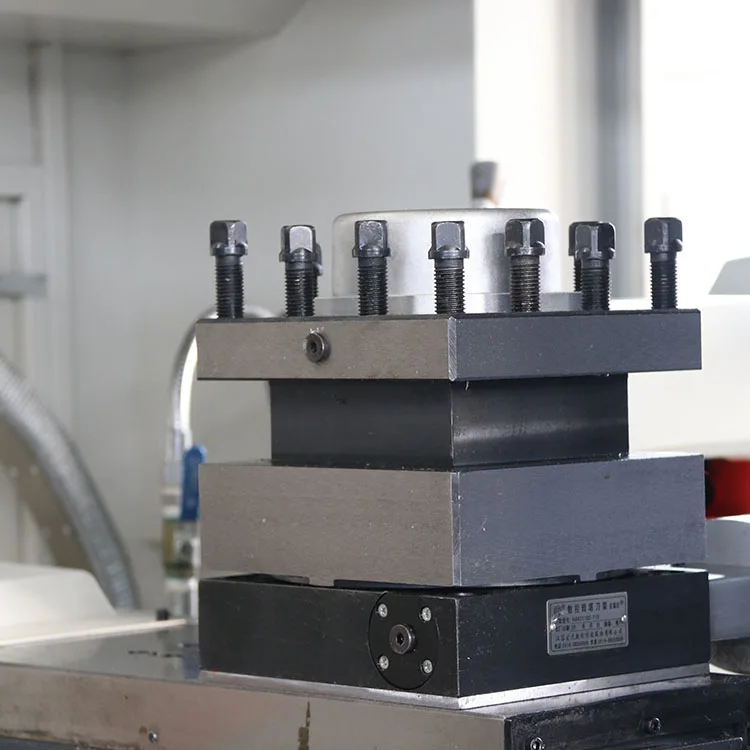

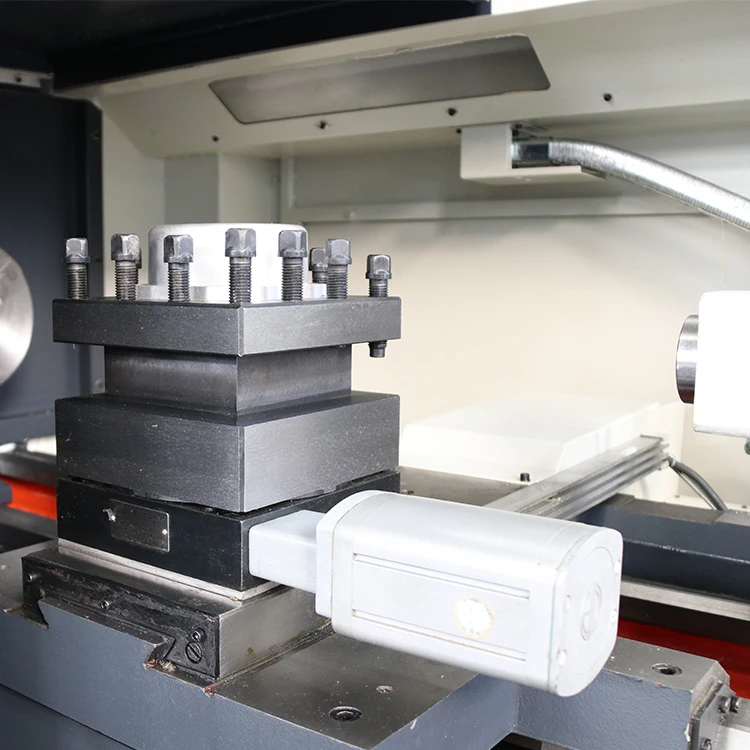

5.The electric four-position tool holder is positioned with precise tooth disk, and the positioning accuracy is high.

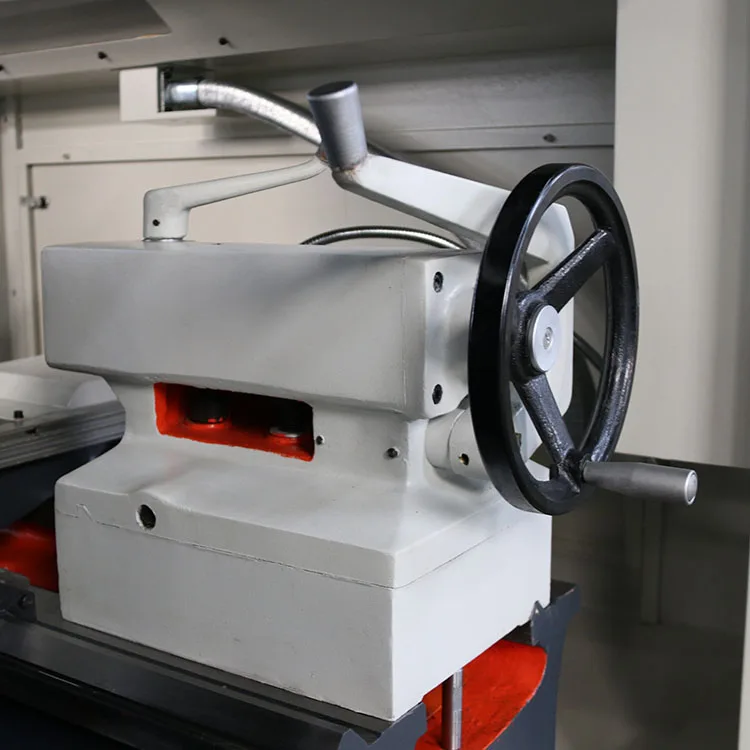

6.The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
7.The CNC system of control system machine cnc lathe gsk china automatic lathe adopts famous products, which can be used to drive or ac servo motor driven by hybrid stepper, and other systems can be selected according to users' requirements.
8.Easy to operate, especially suitable for complex parts or machining of high-precision mass parts. It is also the first choice for numerical control teaching.
2.Control system machine cnc lathe gsk china automatic lathe can be used to peel various rotating surfaces such as cylindrical surface, tapered surface, special surface, etc., and can be used for cutting grooves, threading, boring, hinge processing, high efficiency and strong applicability.
3.The bed guide rail is refined by ultrasonic quenching, high hardness and good rigidity.
4.The ball screw is used in the whole inner loop wire rod, with the diagonal contact ball bearing support and pretension.The guide rail and screw are used for automatic lubrication, which has the characteristics of flexible movement, reducing heat deformation and stability.
5.The electric four-position tool holder is positioned with precise tooth disk, and the positioning accuracy is high.
6.The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
7.The CNC system of control system machine cnc lathe gsk china automatic lathe adopts famous products, which can be used to drive or ac servo motor driven by hybrid stepper, and other systems can be selected according to users' requirements.
8.Easy to operate, especially suitable for complex parts or machining of high-precision mass parts. It is also the first choice for numerical control teaching.
Specification
SPECIFICATIONS | CK6140 |
Max. swing dia. over bed | Φ400mm |
Max. swing dia. over cross slide | Φ225mm |
Processing length | 750mm/1000mm |
Dia. of spindle | Φ60mm |
Spindle taper | MT6 |
Spindle speed | 150-2500rpm |
Tool holder | 4 station |
Tool bar section | 20*20mm/25*25mm |
Main motor power | 5.5KW |
X/Z axis torque | 5/7.5N.M |
X/Z axis fast feeding speed | 6/8 M/MIN |
Tailstock sleeve travel | 120mm |
Tailstock taper | MT4 |
weight | 1800/1950kg |
Dimension | 2120/2370*1400*1700mm |
Details Images

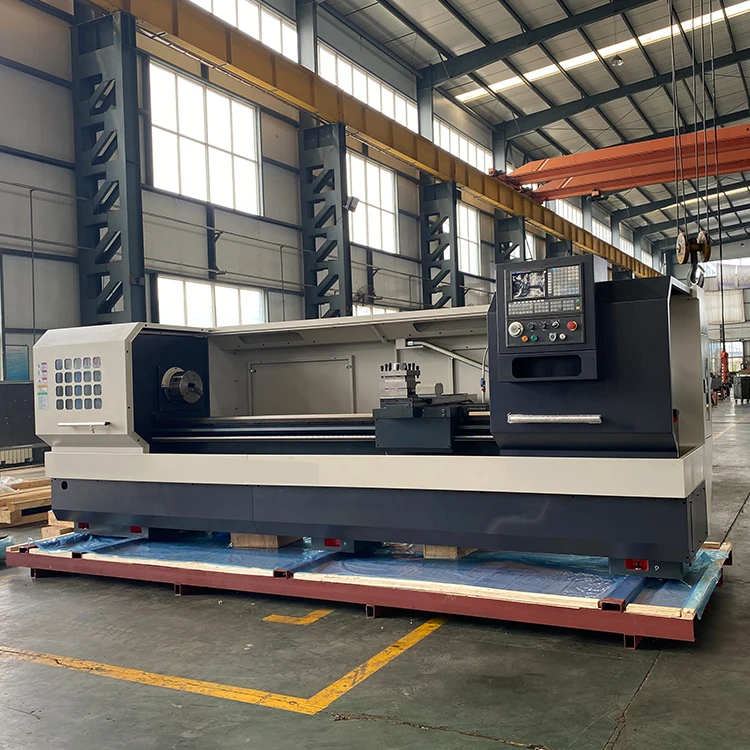

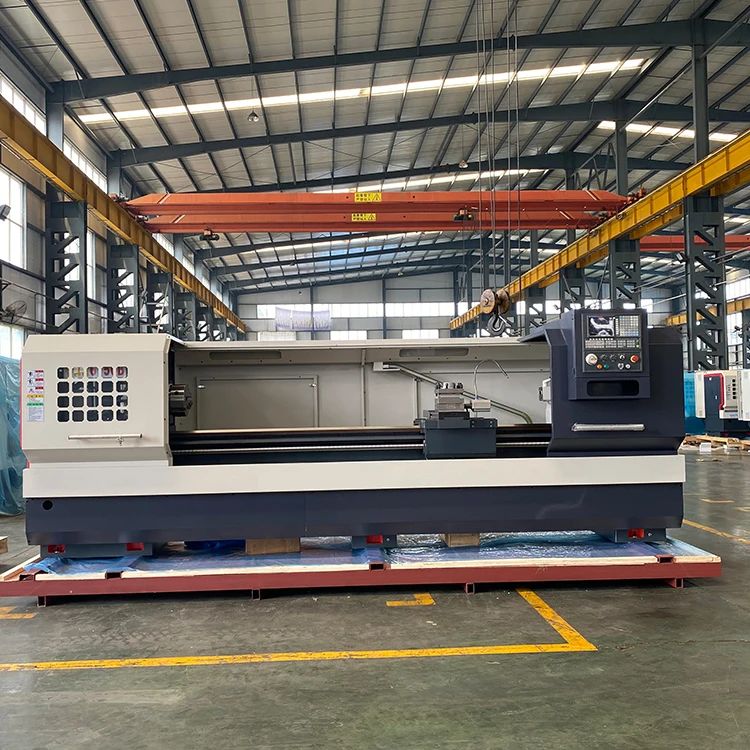

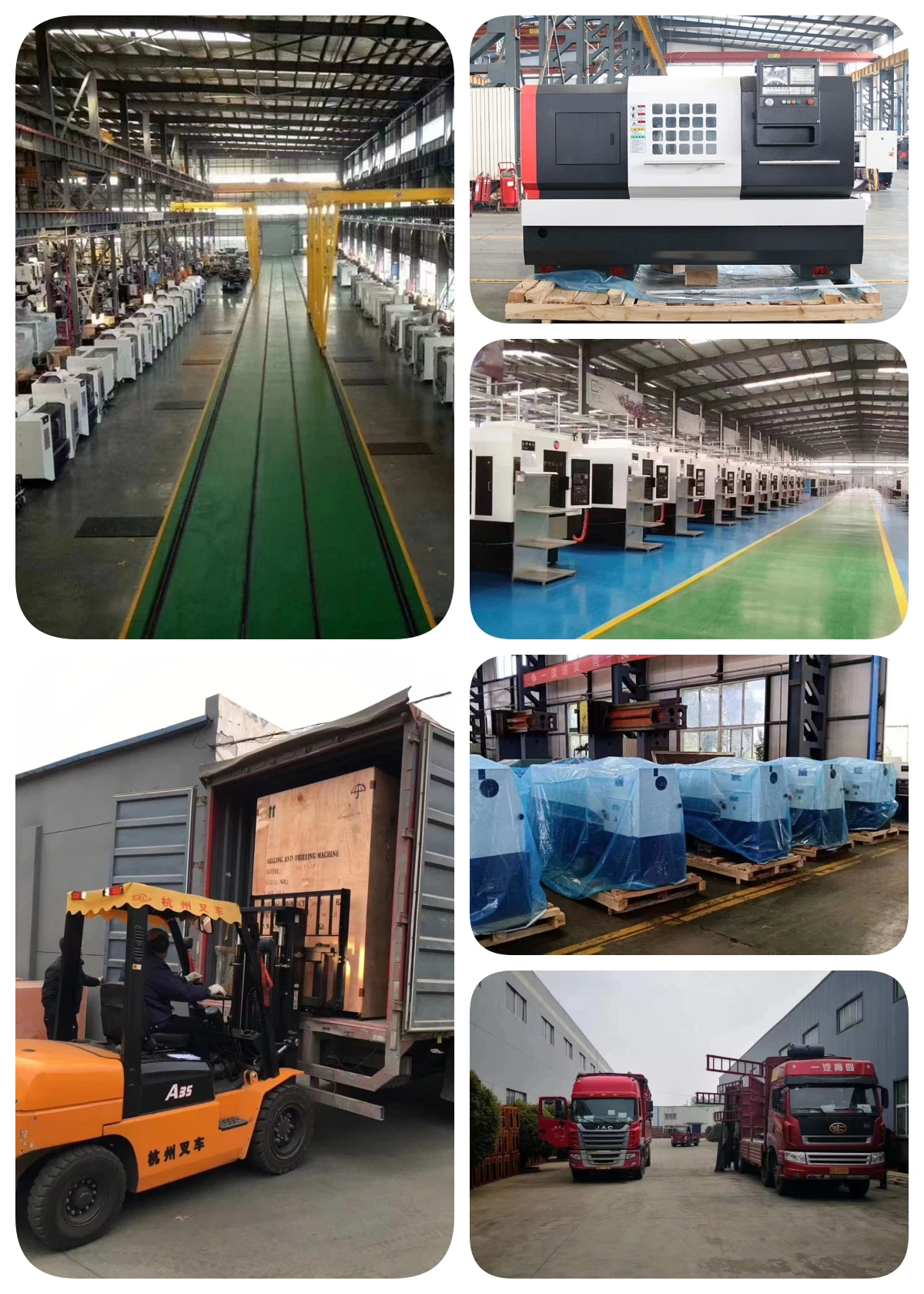

Workshop Overview
Packaging & Shipping
Why Choose Us
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
