China High quality swiss type Machine Automatic Torno Flat Bed cnc lathe machine CT 1000B sliding head cnc lathe
- Category: >>>
- Supplier: Hangzhou Techmax Precision Machinery Co. Ltd.
Share on (1600728480465):
Product Overview
Description
■Electronic handwheel for manual travel of X- and Y-axis come standard

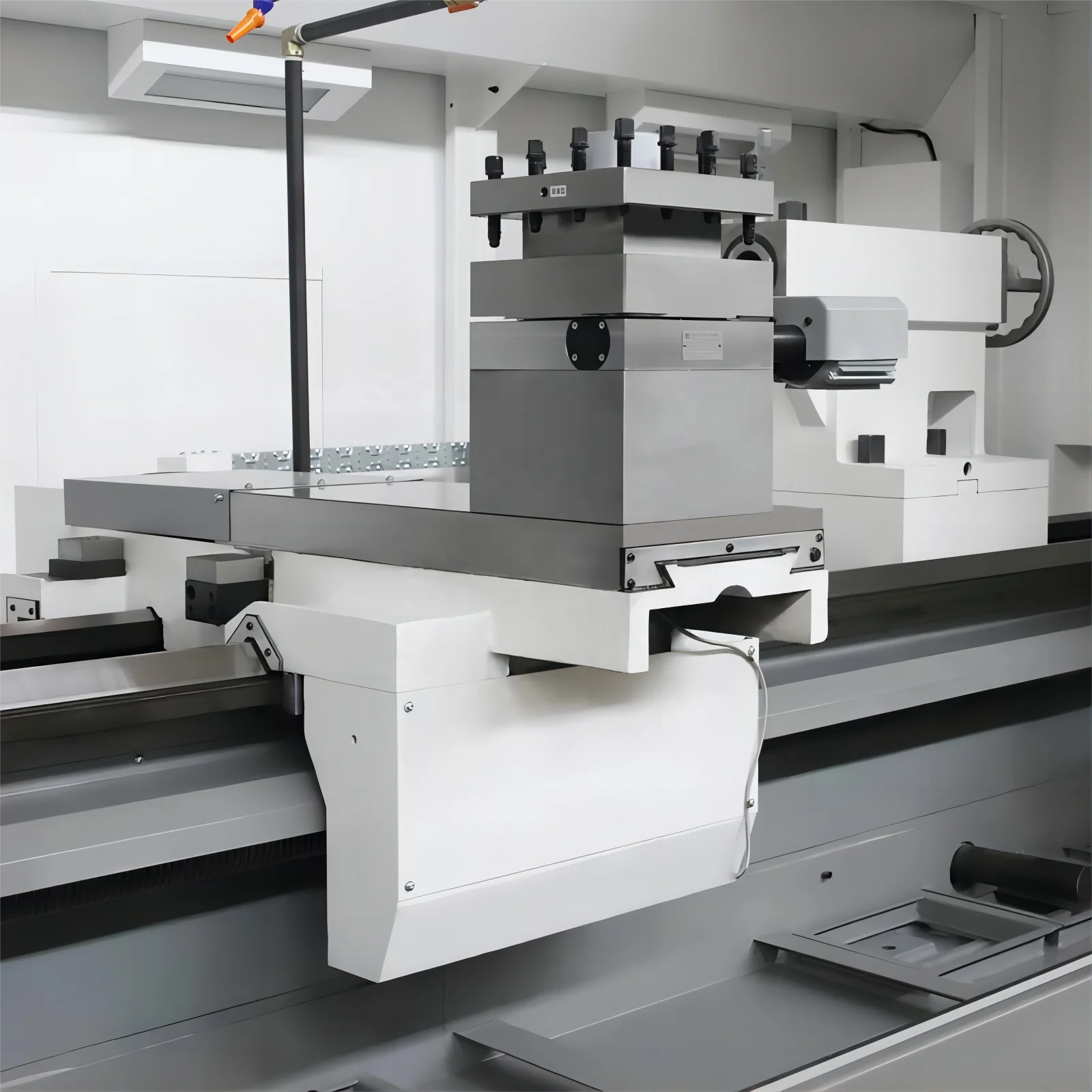

■Wide cross slide allows mounting of various tool post holders

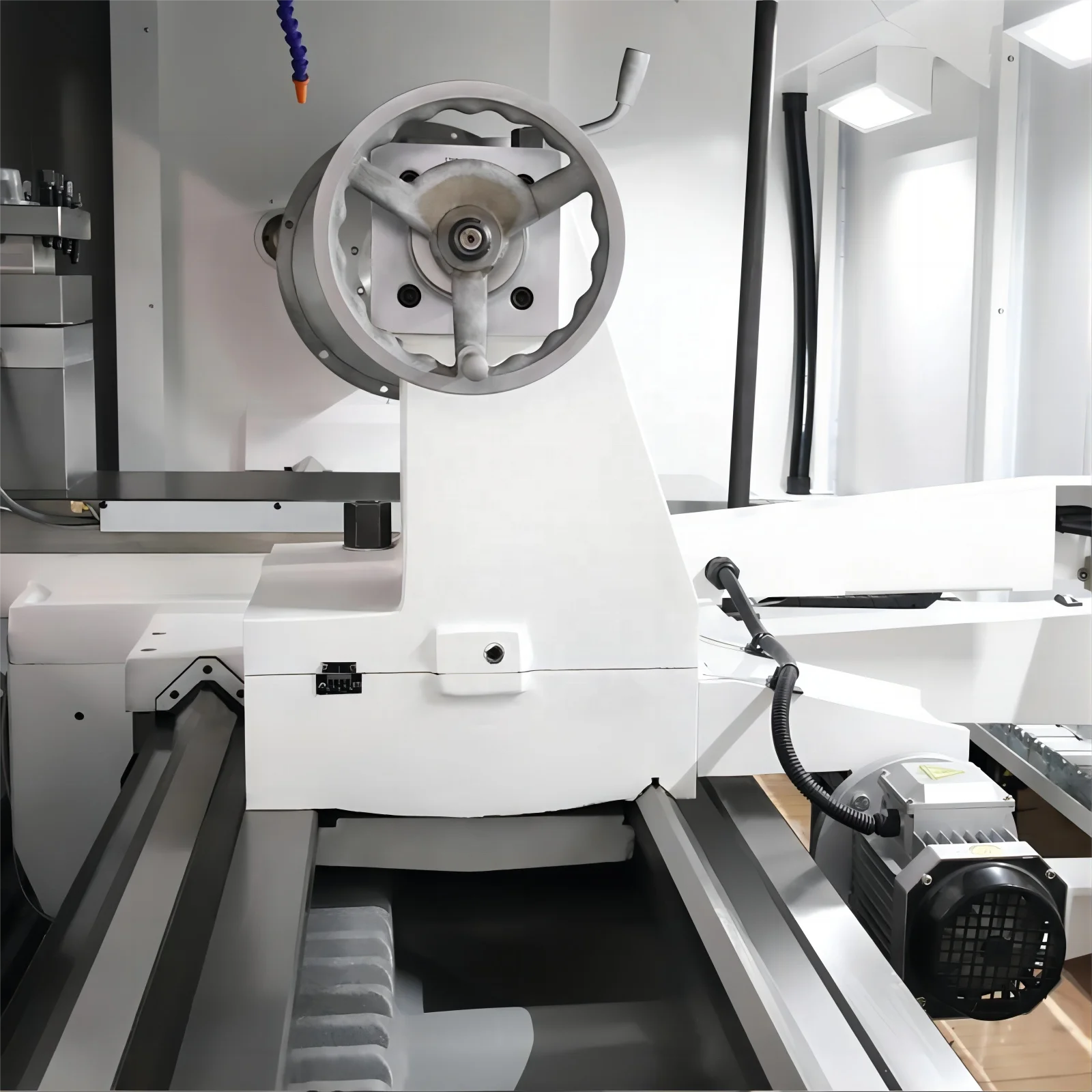

■Stable tailstock with hydraulically adjustable tailstock spindle
possible accuracy
■User-friendly, easy-to-understand Fanuc control 0i TF (5)
■Solid headstock features precisely bedded main spindle (spindle bore Φ104 mm)
■Wide cross slide allows mounting of various tool post holders
■Stable tailstock with hydraulically adjustable tailstock spindle
■High rapid feed allows significant reduction of downtime.
■Main spindle features pre-tightened high-quality angular bearings, guarantees best possible accuracy
■User-friendly, easy-to-understand Fanuc control 0i TF (5)
■Solid headstock features precisely bedded main spindle (spindle bore Φ104 mm)
Model | CT-910B CNC | CT-1000B CNC |
CAPACITY: | ||
Swing over bed | Φ910 mm | Φ1000 mm |
Swing over cross slide | Φ530 mm | Φ620 mm |
Distance between centers | 1500/2000/3000/4000 mm | 1500/2000/3000/4000 mm |
Max. turning length | 1350/1850/2850/3850 mm | 1350/1850/2850/3850 mm |
Manual chuck dia. | 15" (380) /(mm) | 15" (380) /(mm) |
Hydraulic chuck dia. | 15" (380) /(mm) | 15" (380) /(mm) |
TRAVEL: | ||
Cross slide travel (X-axis) | 520 mm | 520 mm |
Longitudinal travel (Z-axis) | 1500/2000/3000/4000 mm | 1500/2000/3000/4000 mm |
X/Z-axis guide rails | sliding type | sliding type |
Bed width | 600 mm | 600 mm |
SPINDLE: | ||
Spindle speed | 10-90; 20-180; 40-320; 80-630 rpm | 10-90; 20-180; 40-320; 80-630 rpm |
Spindle step | 4 steps | 4 steps |
Spindle taper | D11/120 1:20 | D11/120 1:20 |
Spindle bore | Φ104 mm | Φ104 mm |
TOOL: | ||
Tool station number | 4; 6; 8; 12 pcs | 4; 6; 8; 12 pcs |
Tool section size | 40×40 mm | 40×40 mm |
TAIL STOCK: | ||
Tailstock quill taper | МK-5 | МK-6 |
Tailstock quill diameter | Φ100 mm | Φ100 mm |
Tailstock quill travel | 250 mm | 250 mm |
SPEED: | ||
X/Z-axis rapid traverse | 8/10 m/min | 8 / 10 m/min |
COOLANT: | ||
Coolant pump power | 0.37 kw | 0.37 kw |
POWER: | ||
Main motor power | 15; 18.5 kw | 15; 18.5 kw |
Main motor torque | 98; 120 N.m | 98; 120 N.m |
Spindle torque | 2130; 2608 N.m | 2130; 2608 N.m |
DIMENSIONS: | ||

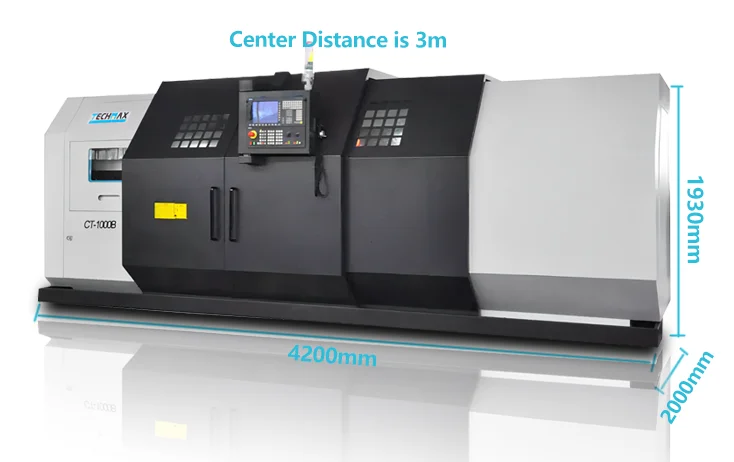

Overall dimensions (L×W×H) | 4200×2000×1930 (length 3 m) mm | 4200×2000×1930 (length 3 m) mm |
Weight approx. | 6600 (length 3 m) kg | 6600 (length 3 m) kg |
Configuration
Standard Configuration | Optional Configuration |
Siemens controller with a MPG unit for lathe setting | CNC system Fanuc 0i TF |

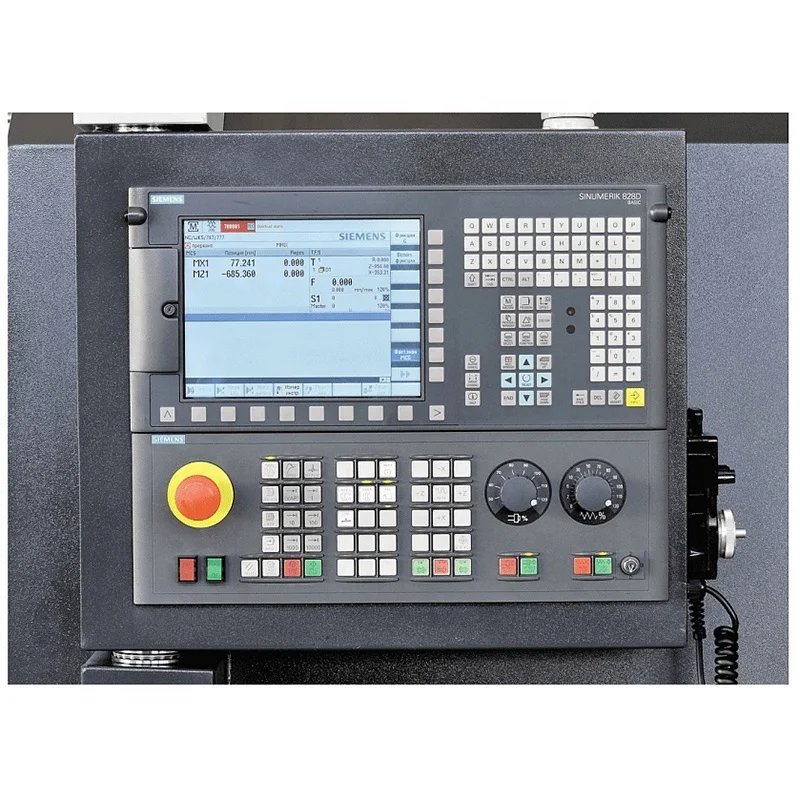

Siemens 828D controller | Shop Turn for Siemens 828D CNC system |
4-position automatic tool post | 6-12 position tool post |
104mm spindle bore | 3-jaw hydraulic chuck - 12/15 inches |
3 jaw chuck - 12inches | Hydraulic tailstock |
Alarm Lamp (3 color status light) | Fully enclosed cover |
Manual tail stock | Chip conveyor and a chip cart |
Coolant and lubrication system | Other configuration changes as agreed with the client |

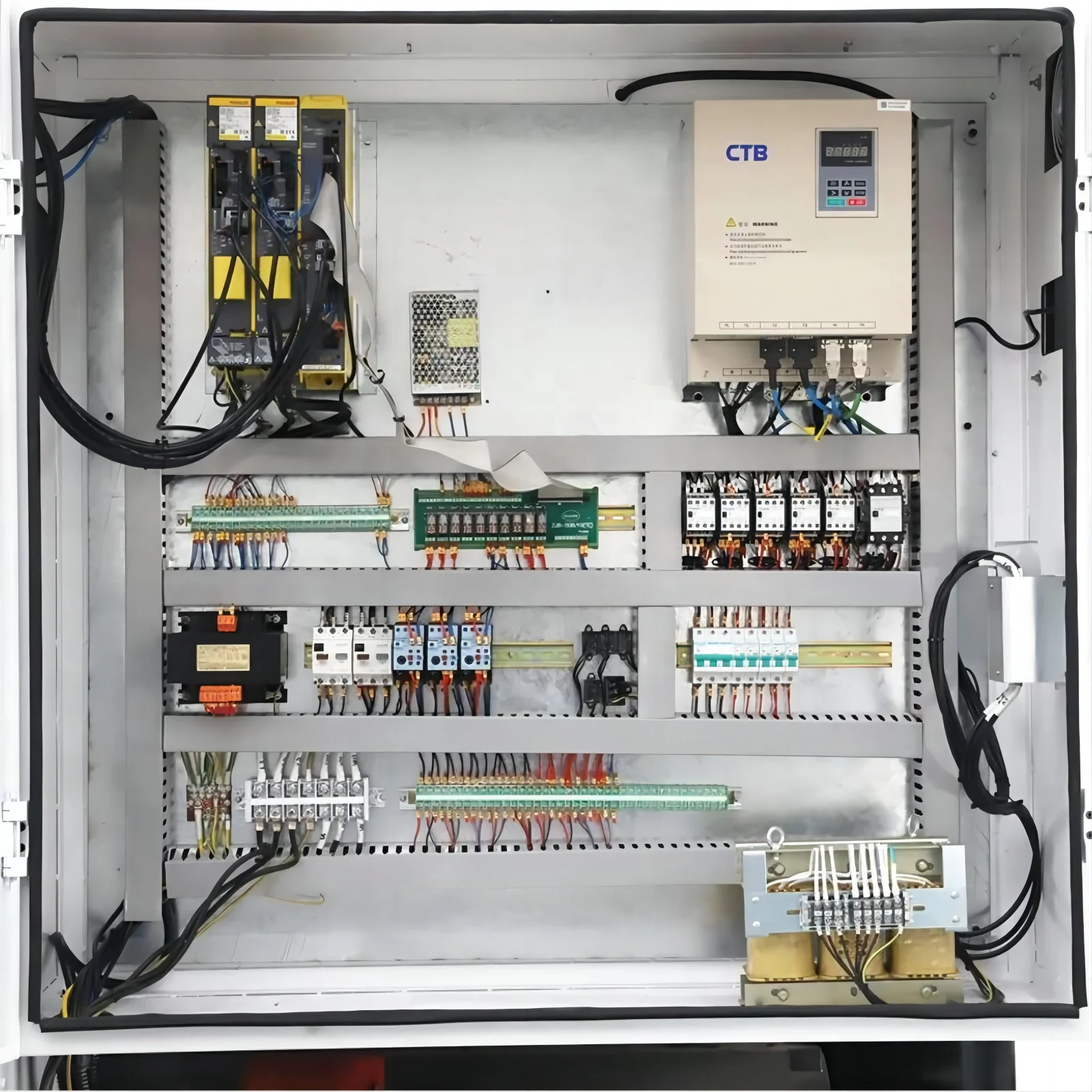

Heat exchanger for electrical cabinet | |
LED Work light | |
Dead Centre | |
Maintenance tool kit |
1. How can I choose the most suitable machines ?
Re: Please tell us your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
You can also send us the products drawing ,we will choose the most suitable machines for you.
2. What's your main products of your company?
Re: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on.
3. What kinds of inspection you will do for each machine?
Re: For each assembly procedure, there is geometric accuracy test. After assembly, spindle accuracy will be tested by dynamical balance testing instrument; 3 axes accuracy will be tested by Ball bar. And laser interferometer to inspect positioning and repositioning accuracy. Then the inspection team will make full test before delivery and test piece will be done on each machine. Each workpiece will be inspected by CMM, so each machine performance can be checked and kept in record.
4. Can you supply turn-key solution?
Re: Of course, we have professional team of technical service & after sale service department, who can give you the perfect solution and meet your processing requirement. Besides, we also cooperated with professional fixture company and support with us.
5. What is the warranty time of machine?
Re: We have 14 months warranty after delivery. Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts from free. Even beyond the period, we will still supply the replacing parts with cost price.
6. What is the delivery time, and what is the package?
Re: Normally the delivery time is about 45-60 days. All our machines are packed with the seaworthy wooden case/pallet, also applied with anti rust measures in advance. View drawing together if any parts disassembled.
