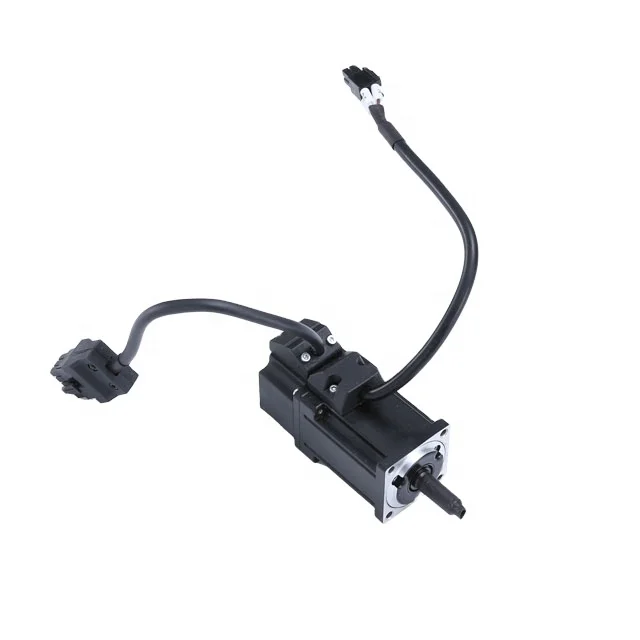

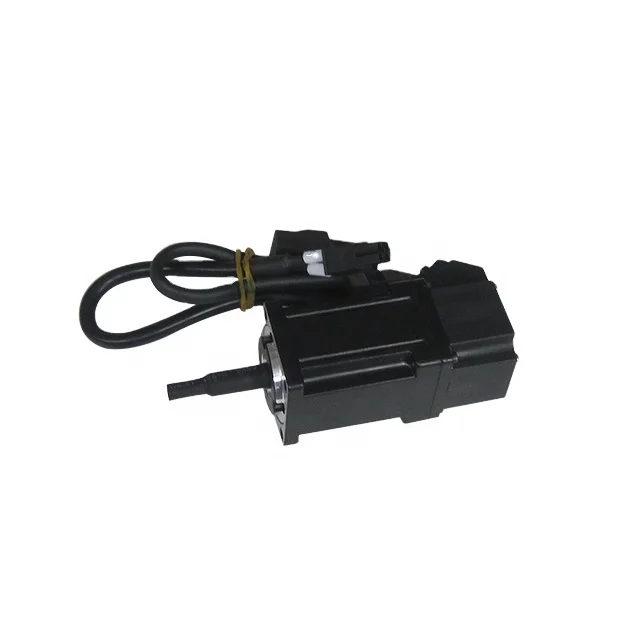

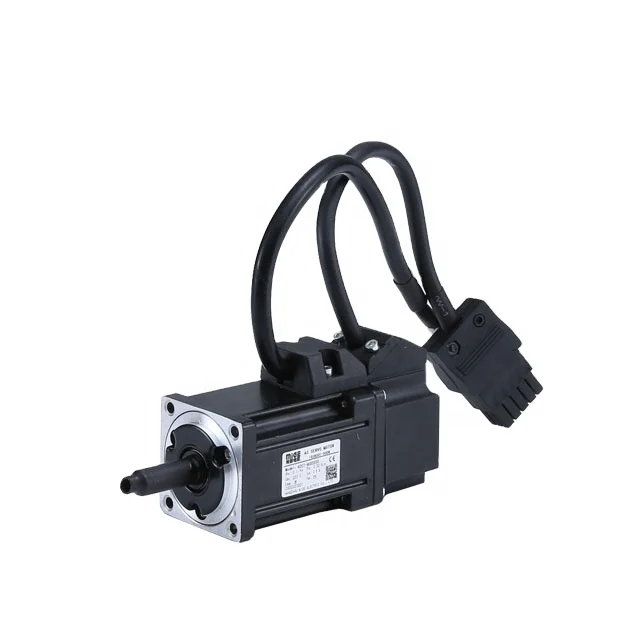

NEW 40mm DC48v 3000rpm 100w Nema17 miniature servo motor for robot
- Category: >>>
- Supplier: Hangzhou Mige Electric Co. Ltd.
Share on (1600728487596):
Product Overview
Description
We MiGE Electric is a professional manufacturer of high technology,we focus in the
research ,develepment,production and sales of AC motors,hybrid stepper motor and
drive for the customers worldwide.
Every year we invests 8% of sales income for R&D expenditure. And the company has
16 patents (including patents for inventions)up to now .
MiGE 40series ,this light power motors are used for robot and marking machine and so on.
If you have other special requirements please contact us.
Motor Model | 40ST-M00330 | ||||||||||||||||||
Rated power (KW) | 0.1 | ||||||||||||||||||
Rated voltage (V) | 48 | ||||||||||||||||||
Rated current (A) | 2.5 | ||||||||||||||||||
Rated speed (rpm) | 3000 | ||||||||||||||||||
Rated torque (N.m) | 0.32 | ||||||||||||||||||
Peak torque (N.m) | 0.95 | ||||||||||||||||||
Voltage constant (V/1000r/min) | 8.2 | ||||||||||||||||||
Torque coefficient (N.m/A) | 0.128 | ||||||||||||||||||
Rotor inertia (Kg.m2) | 0.051*10-4 | ||||||||||||||||||
Line-line Resistance (Ω) | 2.2 | ||||||||||||||||||
Line-line Inductance (mH) | 3 | ||||||||||||||||||
Electrical time-constant (ms) | 1.36 | ||||||||||||||||||
Weight (Kg) | 0.47 | ||||||||||||||||||
Encoder line (PPR) | 2500 P | ||||||||||||||||||
Insulation class | Class F | ||||||||||||||||||
Safety class | IP65 | ||||||||||||||||||
The operating of Environmental Conditions | Temperature: -20℃ ~ +40 ℃ Humidity: Below 90%RH No dewing | ||||||||||||||||||
Power connector | Signal | U | V | W | PE | ||||||||||||||
| Pin No. | 2 | 3 | 4 | 1 | ||||||||||||||
Encoder connector | Signal | PE | 5V | 0V | A | B | Z | A- | B- | Z- | U | V | W | U- | V- | W- | |||
| Pin No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | |||
From semi-products to finished products
workshop
warehouse
scanning
CE Certificate
Application
Inspection
Our advantages
We own and operate our own factory in hangzhou,we can give you factory direct pricing.
Perfect quality system
Large-scale production
customization
If you have any need, please do not hesitate to connect us.
FAQ
Q1. Are you factory?
Yes, we are factory and we produce stepper motor/driver, Servo motor/driver and spindle servo motor for more than 14 years in China. MIGE is our registered brand.
Q2. What are your products can be use to?
A: Our products can be use in CNC routers ,CNC milling machine ,engraving machine, packaging machine, filling machine, cutting machine, printing machine, laser machine, carving machine, labeling machine, textile machine and so on.
Q3: What kind of shipping methods do you use?
A:1)For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch, ocean shippinga shipment is recommended .
Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK .
For mass production , the lead time depend on the quantities you need .
Q5: What is your warranty time?
A:12 months. And we provide life-long technical service and after-sale service.
