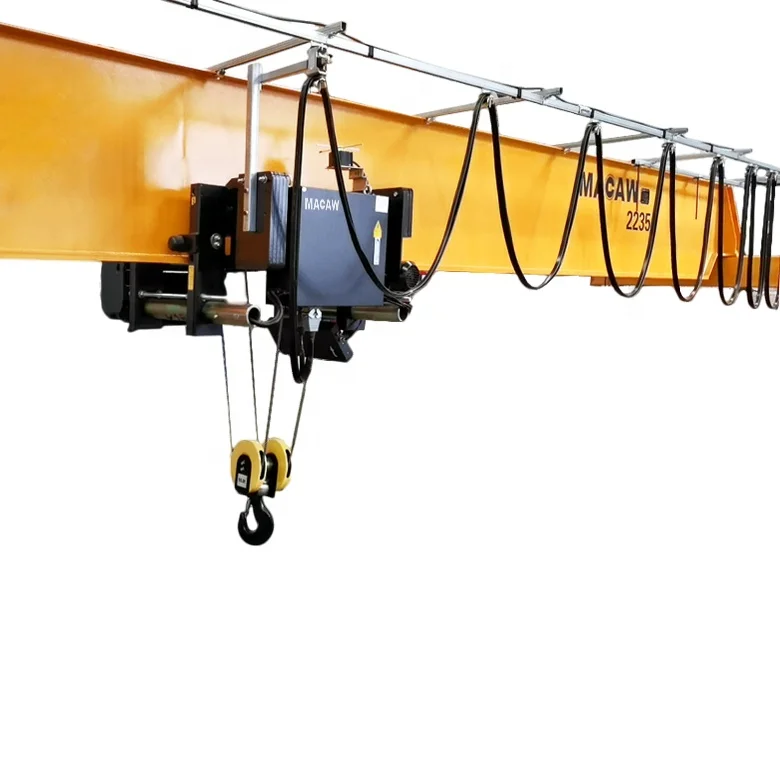

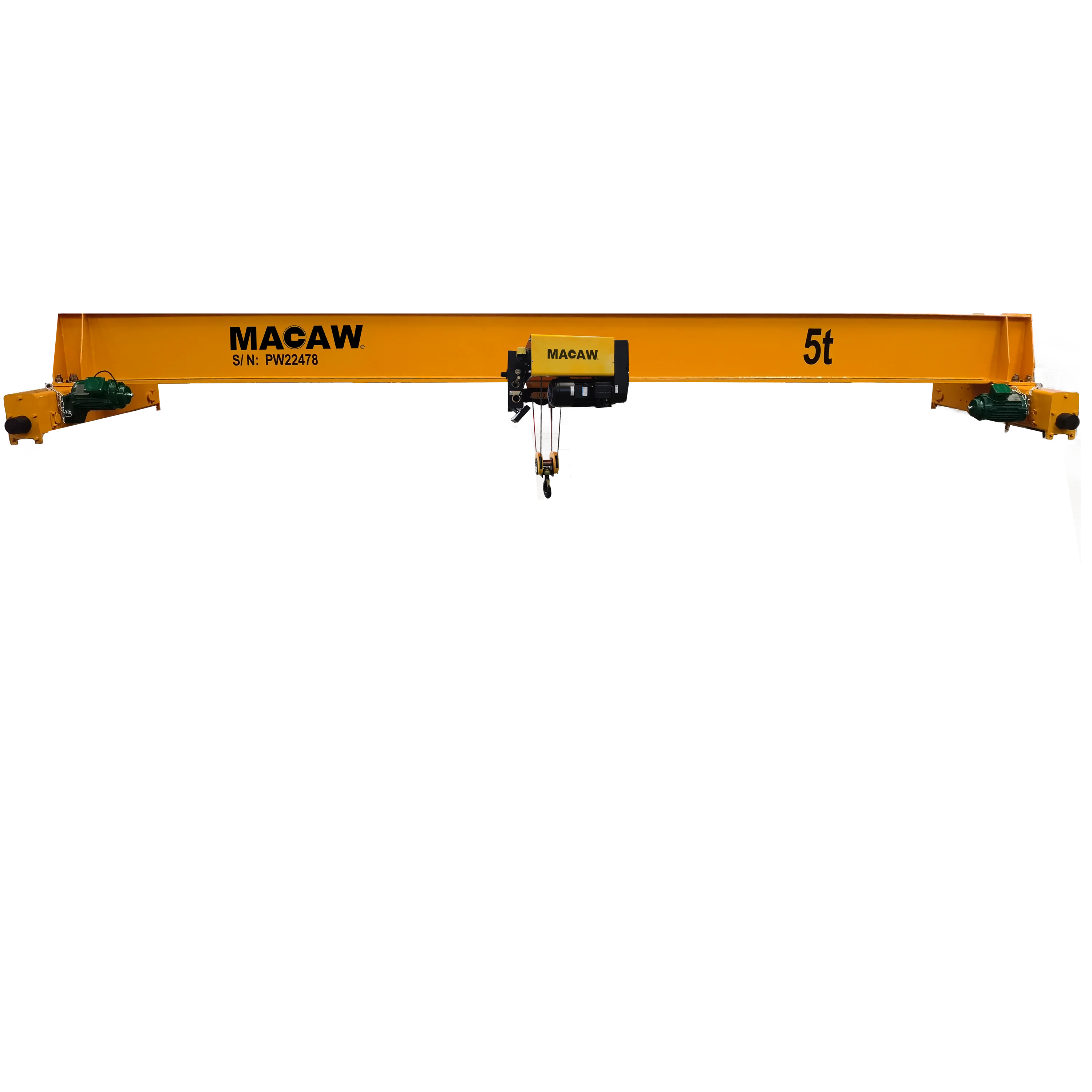

Professional Factory Lifting Equipment 5t Overhead Bridge Crane Single Girder Puente Grua Roof Crane 5t
- Category: Engineering & Construction Machinery >>>
- Supplier: Toptech,Machinery,Wuxi,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Recommend Products
SG Wire Rope Hoist DG Wire Rope Hoist SG Overhead Crane DG Overhead Crane
Technical Paremeter
Basic Data | ||||||||||||||||
Crane Span (m) | 7.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | ||||||||
Crane Weight (t) | 1.56 | 2.01 | 2.82 | 3.69 | 4.77 | 5.77 | 6.81 | 8.9 | ||||||||
Trolley Weight (t) | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | 0.36 | ||||||||
Max.Wheel Load (KN) | 27.5 | 32.4 | 32.4 | 34.7 | 37.4 | 39.8 | 42.4 | 47.7 | ||||||||
Min.Wheel Load (KN) | 5.2 | 6.9 | 6.9 | 8.8 | 11.3 | 13.8 | 16.2 | 21.1 | ||||||||
Crane Wheel Quantity (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | ||||||||
Recommend Crane Rail | P22 | P22 | P22 | P22 | P22 | P22 | P22 | P22 | ||||||||
Operation Speed (m/min) | ||||||||||||||||
Lifting Speed | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | 5:0.8 | ||||||||
Trolley Speed | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 | ||||||||
Bridge Speed | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | 8~32 | ||||||||
Driven Motor Power (KW) | ||||||||||||||||
Lifting Motor | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | 6.1/1 | ||||||||
Trolley Motor | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | 0.64 | ||||||||
Bridge Motor | 0.44*2 | 0.64*2 | 0.64*2 | 0.64*2 | 0.64*2 | 0.64*2 | 0.96*2 | 0.96*2 | ||||||||
Crane Power | 7.62 | 8.02 | 8.02 | 8.02 | 8.02 | 8.02 | 8.66 | 8.66 | ||||||||
Main Dimension (mm) | ||||||||||||||||
Top of rail height (mm) b | 9000 (or specified by clients) | |||||||||||||||
Top Clearance (mm) h | ≥200 （GB/T 14405-2011） | |||||||||||||||
Hook to crane Top (mm) c | 904 | 984 | 994 | 1108 | 1236 | 1419 | 1539 | 1586 | ||||||||
Rail to crane Top (mm) a | 600 | 600 | 750 | 750 | 850 | 950 | 950 | 1000 | ||||||||
Lifting height (mm) h | 8552 | 8502 | 8645 | 8557 | 8353 | 8281 | 8603 | 8340 | ||||||||
Ceiling to floor height (mm) c | 9800 | 9800 | 9950 | 9950 | 10050 | 10150 | 10150 | 10200 | ||||||||
Girder Bottom Height (mm) f | 8950 | 8900 | 9043 | 8953 | 8814 | 8742 | 8999 | 8848 | ||||||||
Hook Approach L.(mm) h1 | 450 | 450 | 540 | 540 | 690 | 690 | 690 | 710 | ||||||||
Hook Approach R.(mm) h2 | 410 | 410 | 490 | 490 | 540 | 540 | 540 | 560 | ||||||||
Rail Center to left wall (mm) dL | 206 | 206 | 208 | 230 | 232 | 232 | 232 | 246 | ||||||||
Rail Center to right wall (mm) dR | 206 | 206 | 208 | 230 | 232 | 232 | 232 | 246 | ||||||||
Bridge Wheel Base (mm) W | 1800 | 1800 | 1800 | 2200 | 2700 | 3100 | 3800 | 4500 | ||||||||
Trolley Rail Guage (mm) Lx | / | / | / | / | / | / | / | / | ||||||||
Buffer Height (mm) H2 | 100 | 100 | 100 | 100 | 150 | 150 | 150 | 150 | ||||||||
Crane Width (mm) B | 2096 | 2096 | 2156 | 2556 | 3150 | 3550 | 4290 | 5010 | ||||||||
Guiding (contact) Force (KN) S | 9.5 | 10.5 | 11.5 | 12.5 | 13.5 | 14.9 | 15 | 15.1 | ||||||||
Buffer Force (KN) Bf | 11 | 15 | 19 | 23 | 27 | 32 | 36 | 40 | ||||||||
Note:
Cranes have many kinds of specifications to choose,the data in this table base on 9M top of rail.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
1.Light weight structure,excellent performance, advanced design concept, effectively improve space utilization.
2.Made of high quality steel, durable and corrosion resistant.
3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.
3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.

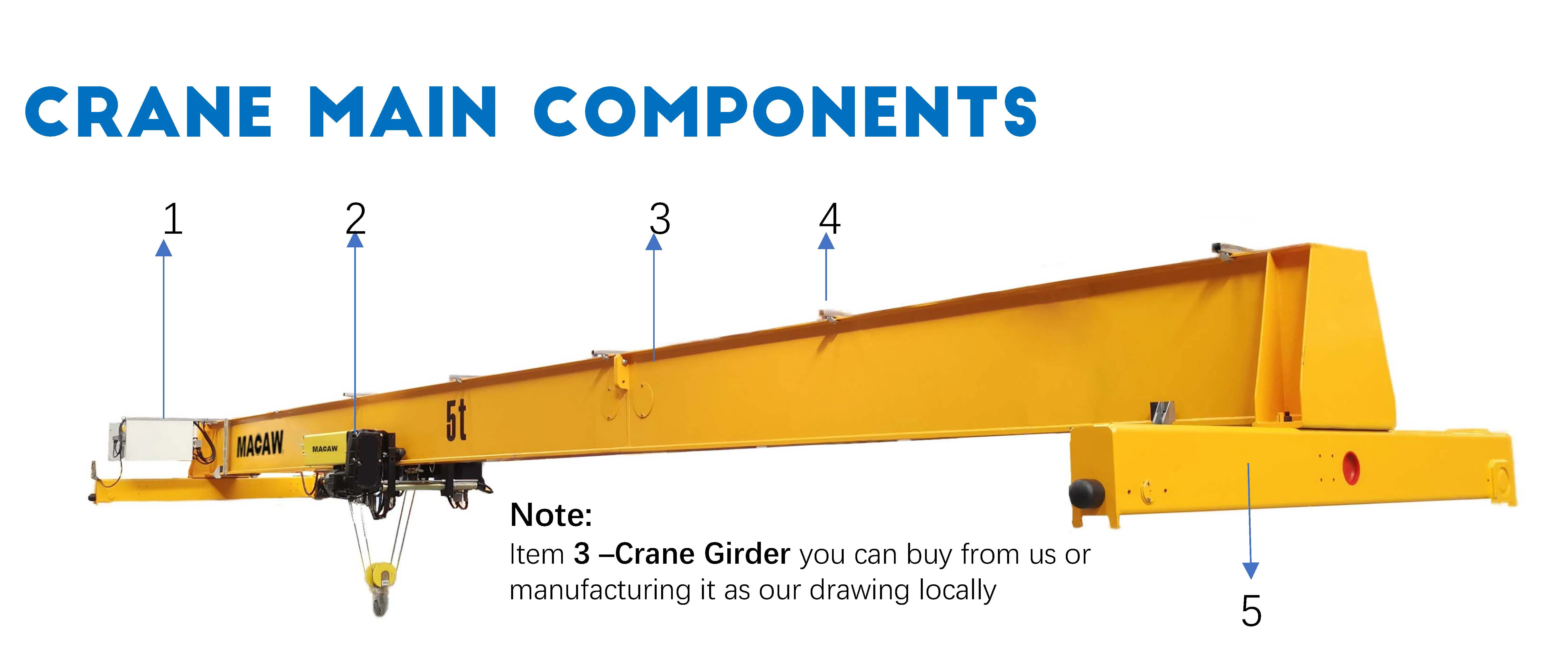

Crane Control Panel
Electric Hoist
Power Supply
Remote Control
End Carriages with driven motor
Crane Limit Switch
Packaging & Delivery
Electric overhead crane girder part
Electric hoist part
Wire Rope Hoist Workshop
Crane Girder workshop
FAQ
1.What's information should I provide to get the price?
More parameters, such as lifting capacity, lifting height, span, power supply, etc. And if you can give us your design drawing, that will be very helpful.
2.Which kind crane can you provide?
With products of single girder & double girder overhead cranes, gantry cranes, general overhead cranes, Eurosystem light cranes, jib cranes, explosion-proof cranes and etc, Eurocrane is able to provide you with complete competitive solutions for material handling based on your demands.
3. What services can you provide?
We have a complete pre-sales & after-sales service system, including consultation, repair, maintenance, modernization, training, inspection and etc. Our engineers are available overseas.
4.Which brand are the accessories and electronic components in your cranes? We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have world-leading processing machines which are imported from Japan and Germany.
5. Do you provide spare parts?
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
Yes, of course, we can provide motors, reducers, brakes, drums,wire ropes and any other spare parts in connection with the cranes and hoists.
