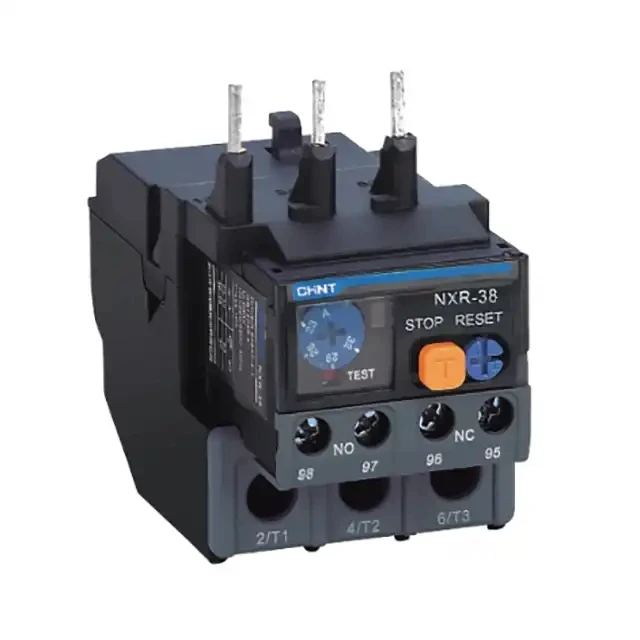

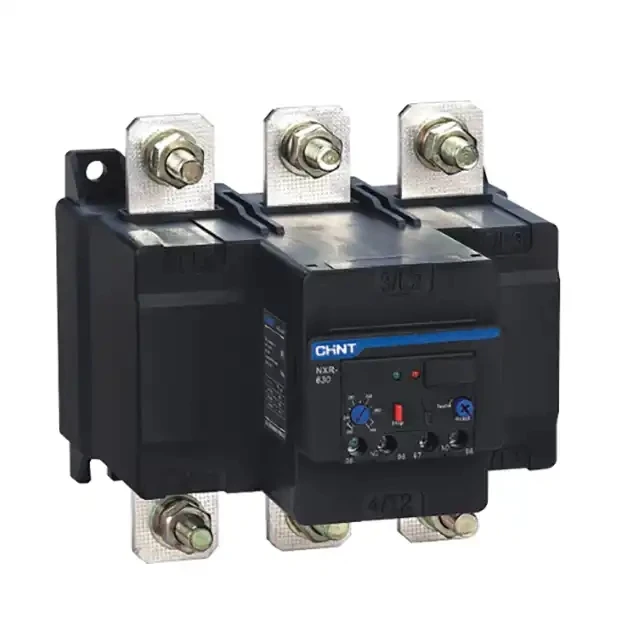

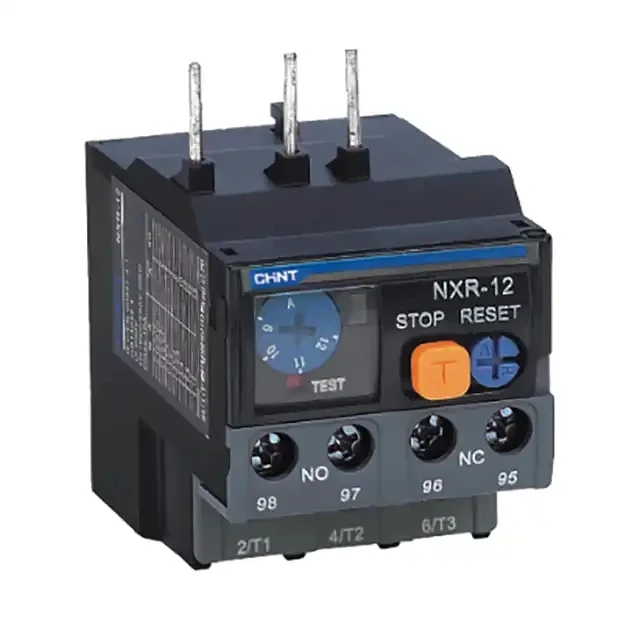

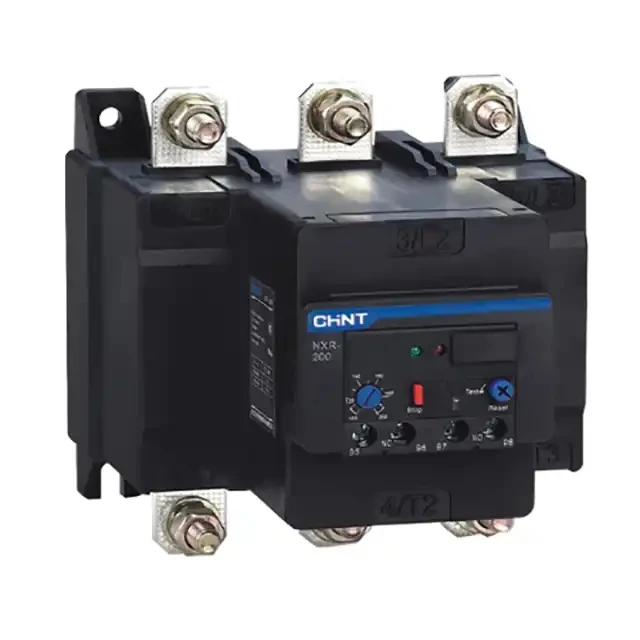

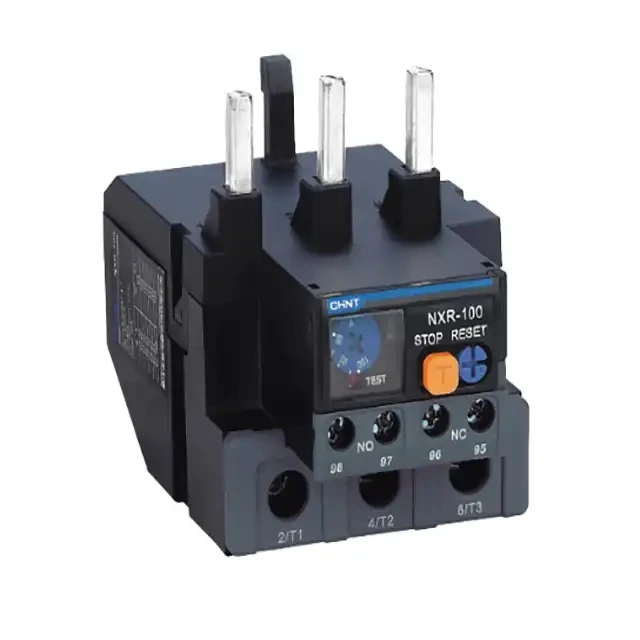

CHINT NXR 25 series electronic high current Thermal overload relay motor switch New original in used for power cabinet
- Category: >>>
- Supplier: Anshan Fenghui Continuous Caster Machine Manufacture Co. Ltd.
Share on (1600728505159):
Product Overview
Description
Product Description
Overview
Applicable scopeNXR thermal overload relays (hereinafter abbreviated as thermal relays) are suitable for overload and phase loss
protection for uninterrupted or intermittent AC motors with AC frequency of 50 Hz/60 Hz, a voltage up to 690 V, and a current of
(0.1-630)A. The thermal relays also provide temperature compensation, action indication, automatic and manual reset, stop, and
testing functions. The products are characterized by stable and reliable performance. The thermal relays can be plugged into
contactors or installed independently.
Compliant standards: IEC/EN 60947-4-1, IEC/EN 60947-5-1.
Structural characteristics
▪ Three-phase bi-metal sheet type or electronic type (NXR-200, NXR-630), with a tripping level of 10A
▪ With phase loss protection
▪ With a device for continuous adjustment of setting current
▪ With temperature compensation ▪ With action indication
▪ With testing mechanism
▪ With stop bottom
▪ With manual and automatic reset button (NXR-200 and NXR-630 only have manual reset)
▪ With one NO contact and one NC contact that are electrically separable
▪ Installation method: Plugged into contactor (NXR-12, 25, 38,100) or installed independently (NXR-200, 630)
▪ Protection characteristics
Applicable scopeNXR thermal overload relays (hereinafter abbreviated as thermal relays) are suitable for overload and phase loss
protection for uninterrupted or intermittent AC motors with AC frequency of 50 Hz/60 Hz, a voltage up to 690 V, and a current of
(0.1-630)A. The thermal relays also provide temperature compensation, action indication, automatic and manual reset, stop, and
testing functions. The products are characterized by stable and reliable performance. The thermal relays can be plugged into
contactors or installed independently.
Compliant standards: IEC/EN 60947-4-1, IEC/EN 60947-5-1.
Structural characteristics
▪ Three-phase bi-metal sheet type or electronic type (NXR-200, NXR-630), with a tripping level of 10A
▪ With phase loss protection
▪ With a device for continuous adjustment of setting current
▪ With temperature compensation ▪ With action indication
▪ With testing mechanism
▪ With stop bottom
▪ With manual and automatic reset button (NXR-200 and NXR-630 only have manual reset)
▪ With one NO contact and one NC contact that are electrically separable
▪ Installation method: Plugged into contactor (NXR-12, 25, 38,100) or installed independently (NXR-200, 630)
▪ Protection characteristics
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | CHINT |
Model Number | NXR-25 |
Theory | Solid State Relay |
Usage | PROTECTIVE |
Size | Miniature |
Protect Feature | Epoxy |
Contact Load | Low Power |
Usage | General Purpose |
Condition | 100% Original |
