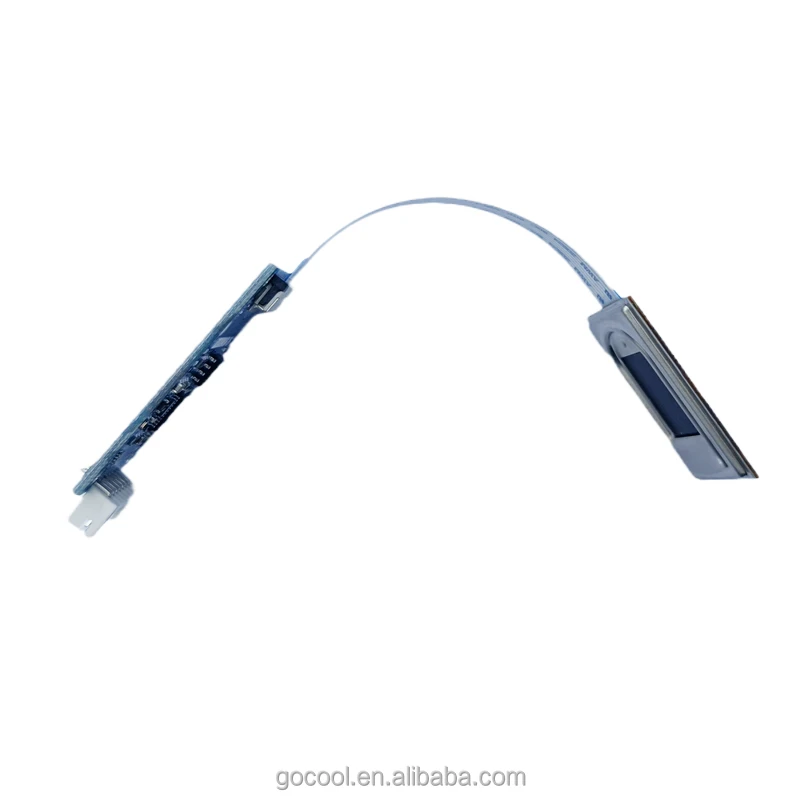

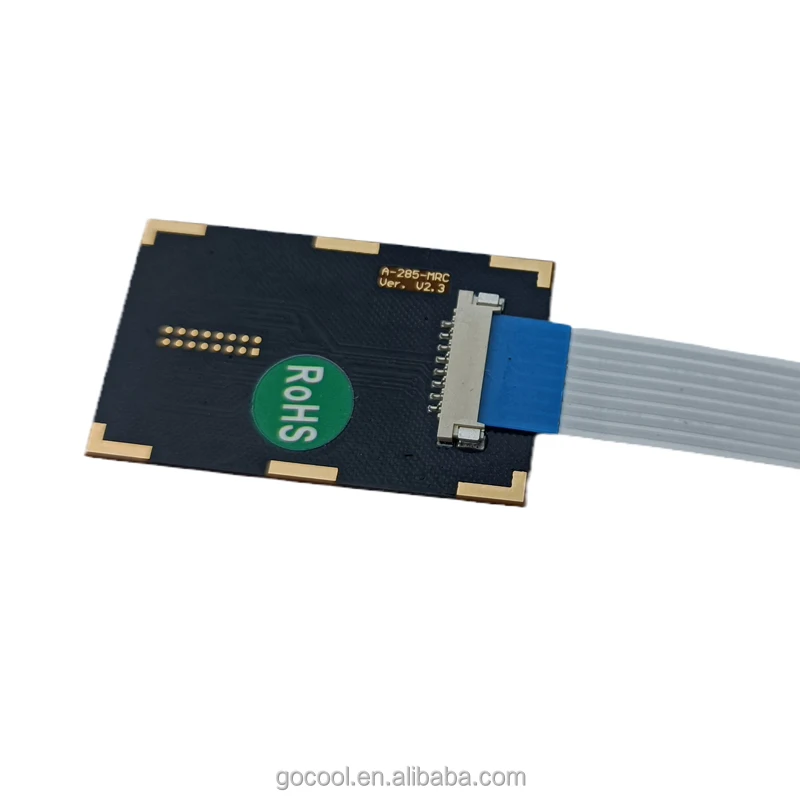

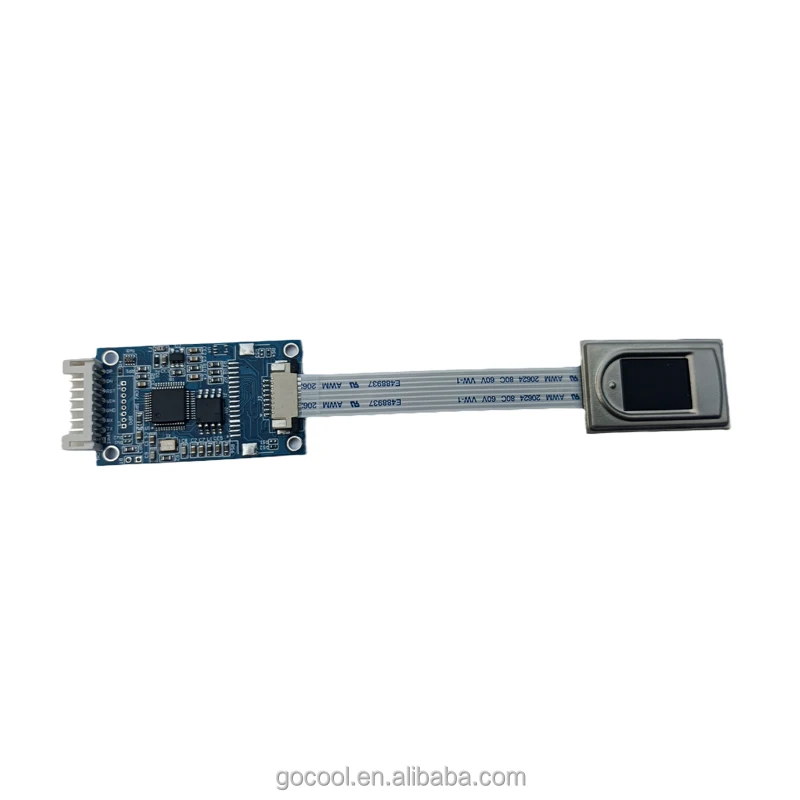

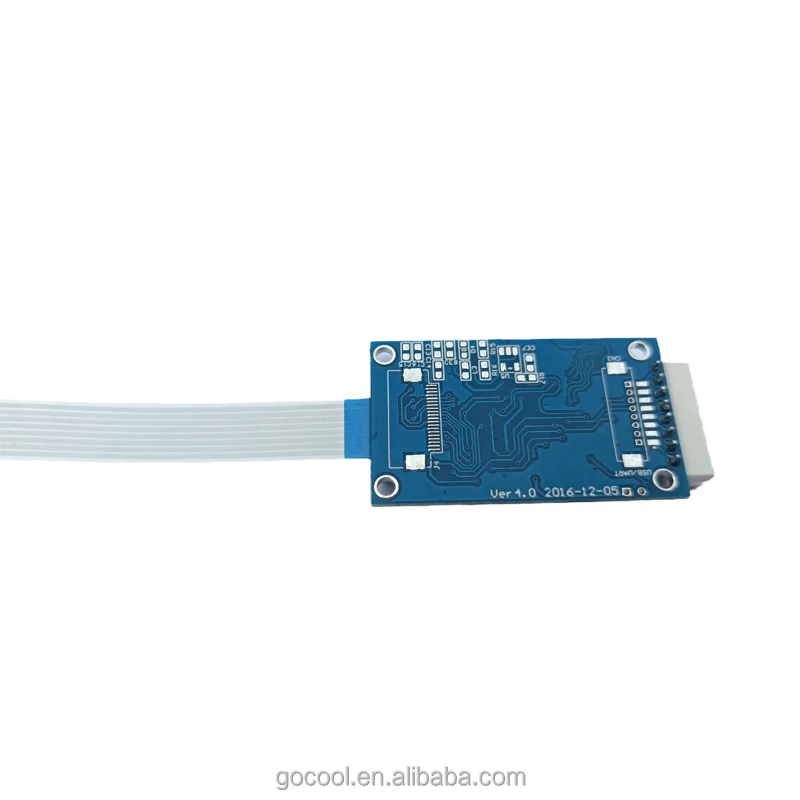

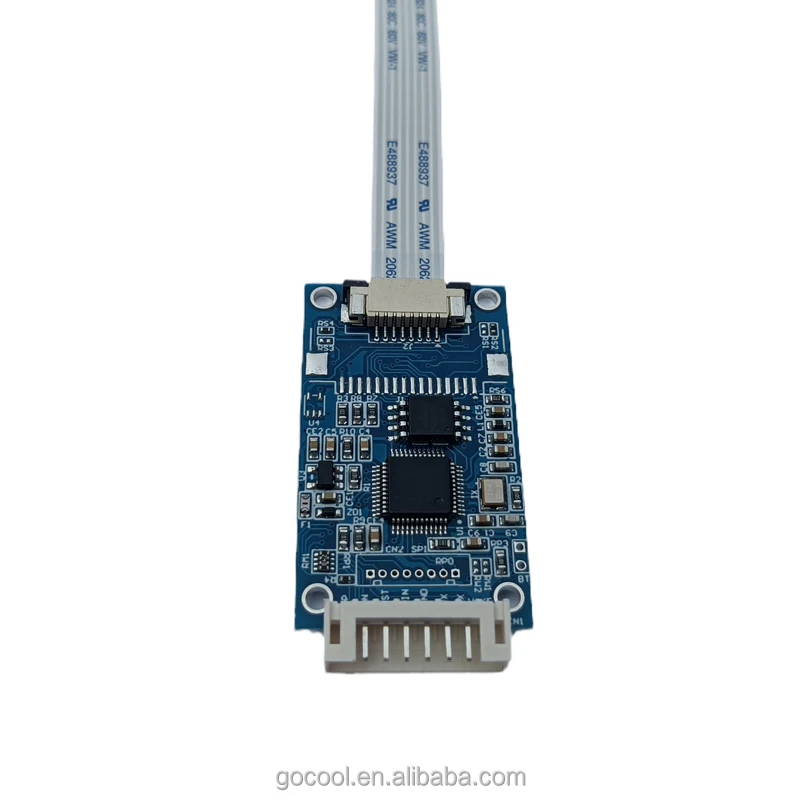

ID1028 fingerprint module capacitive semiconductor fingerprint sensor 3000 capacity 288*208 pixels for fingerprint smart lock
- Category: >>>
- Supplier: Guangzhou Gouku Technology Co. Ltd.
Share on (1600728590141):
Product Overview
Description
Product Description
ID1028 high-performance security fingerprint module is a semiconductor fingerprint recognition module independently developed by us, which supports Windows, Android, and embedded devices. With our fingerprint algorithm, semiconductor fingerprint sensor and high-performance high-speed ID808 processor as the core, it has the characteristics of small size, low power consumption, fast acquisition speed, good adaptability to wet and dry fingers, and strong anti-counterfeiting ability. It adopts standard UART/USB communication and cooperates with the development package to meet the fingerprint identification requirements of customers such as fingerprint entry, image processing, template generation, and fingerprint comparison. The fingerprint image has a large effective area and high security. We have many years of deep technical accumulation in the fingerprint field. As a leader in the field of fingerprint identification, the comprehensive strength of technology and products has reached the advanced level of the industry. Our fingerprint algorithm is constantly performing rapid iterations of performance improvement based on market demand and user feedback, and its market share ranks in the forefront. Our fingerprint recognition algorithm has stable, accurate, fast and reliable performance characteristics, as well as easy-to-use advantages such as deep self-learning, self-adaptation, and 360° arbitrary angle recognition. It can accurately collect and recognize various fingerprints, including rough, dry, and damaged fingerprints. Fingerprint, each fingerprint feature extraction and recognition can be completed quickly.
Products Show
Product Paramenters
project | description |
Model | ID1028 |
CPU | ID808 |
Fingerprint sensor | Capacitive fingerprint sensor 508dpi pixel: 288×208 |
Fingerprint capacity | 3000 pieces |
FAR | <0.001% (Security Level is 3) |
FRR | <2% (Security Level is 3) |
Comparison method | 1:N and 1:1 comparison |
Fingerprint template size | 498 bytes Byte |
Security level setting Level | 1 to Level 5 can be set, factory setting value: Level 3 |
Processing speed | Fingerprint feature extraction time <1 seconds |
1:N comparison time (when 170 pieces are fully registered) <0.8 seconds | |
Communication interface | UART, 3.3V-TTL level |
Baud rate | The baud rate is 9600, 19200, 38400, 57600, 115200 (bps) |
Factory setting: 115200bps | |
Operating Voltage | Win voltage: DC3.3V±10% |
Working current | ＜40ma |
working environment | Working temperature: -20℃-80℃ |
Relative humidity: 20%-80% |
Company Profile
Guangzhou Gouku(sounds like GO COOL) Technology Co., Ltd. is located in Guangzhou, one of the four major cities in China.
The company was founded in 2016 by three scientists who graduated from Sun Yat-sen University, one of China's top universities, and the best in south China.
Focusing on the original technology of fingerprint recognition, our company is a leading fingerprint recognition high-tech enterprise in China, and provides fingerprint algorithms, fingerprint modules and technical services to global customers.
At present, Gouku Technology has developed advanced fingerprint modules, whose recognition speed and efficiency are in the world's leading level.
The company was founded in 2016 by three scientists who graduated from Sun Yat-sen University, one of China's top universities, and the best in south China.
Focusing on the original technology of fingerprint recognition, our company is a leading fingerprint recognition high-tech enterprise in China, and provides fingerprint algorithms, fingerprint modules and technical services to global customers.
At present, Gouku Technology has developed advanced fingerprint modules, whose recognition speed and efficiency are in the world's leading level.
Why choose us?
1. Strong scientific research ability
We are one of the best fingerprint module development companies all over the world.
We have tens of engineers who are experienced with the research of the biological recognition.
We have the ability for your technology support.
2. Focus, professional
We focus on developing and producing the fingerprint module, so we are so professional on the fingerprint identification.
3. Insist on high quality and good service
Our fingerprint modules have three characteristics: 1) Good recognition effect; 2) Fast reaction speed; 3) Stable quality.
1. Strong scientific research ability
We are one of the best fingerprint module development companies all over the world.
We have tens of engineers who are experienced with the research of the biological recognition.
We have the ability for your technology support.
2. Focus, professional
We focus on developing and producing the fingerprint module, so we are so professional on the fingerprint identification.
3. Insist on high quality and good service
Our fingerprint modules have three characteristics: 1) Good recognition effect; 2) Fast reaction speed; 3) Stable quality.
Exhibition
Certifications
Good Development Ability
Our fingerprint module is independently developed by us, and the algorithm is written by ourselves, which is in the world's leading level.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.
FAQ
1. Are you a factory or a trader?
We are a profession high tech company who focus on developing bio identification technology, especially fingerprint identification technology.
We are one of the best fingerprint identification development companies in China.
2. What are your company's strengths?
Our company was founded by several scientists who graduated from China’s top university; they led a professional team to develop the fingerprint algorithms, which makes our fingerprint modules to be fast speed, high stability, low power consumption and self-learning.
Because of the advantages of our products and technology, some the top security companies in the world use our products.
3. What is the MOQ?
The MOQ of all products is 1,000 pieces, and if you order less than 1,000 pieces, please let me know and we will produce that with other orders, and the lead time maybe a litter longer.
4. Do your modules have samples?
Yes, most of our modules have samples, and you can take an order of the samples, we will send them to you as soon as possible.
5. How will you send the products?
We will send them by express. You can choose which express company to do that.
6. Can your modules be used in ESP32 or Arduino?
Yes.
It’s no matter which platform you are using; we have the communication protocol for you, and the example code.
Our module is a passive serial port device, as long as the master can provide a serial communication interface.
Call our communication protocol directly, and the module will work.
A lot of our customers who use ESP32 and Arduino can use it.
7. What is the waterproof rating of the fingerprint module?
The module as a whole is not waterproof because of the exposed electronics on the back.
The surface (and only the surface) of the module has a waterproof rating of IP67, specifically, only the surface.
We are a profession high tech company who focus on developing bio identification technology, especially fingerprint identification technology.
We are one of the best fingerprint identification development companies in China.
2. What are your company's strengths?
Our company was founded by several scientists who graduated from China’s top university; they led a professional team to develop the fingerprint algorithms, which makes our fingerprint modules to be fast speed, high stability, low power consumption and self-learning.
Because of the advantages of our products and technology, some the top security companies in the world use our products.
3. What is the MOQ?
The MOQ of all products is 1,000 pieces, and if you order less than 1,000 pieces, please let me know and we will produce that with other orders, and the lead time maybe a litter longer.
4. Do your modules have samples?
Yes, most of our modules have samples, and you can take an order of the samples, we will send them to you as soon as possible.
5. How will you send the products?
We will send them by express. You can choose which express company to do that.
6. Can your modules be used in ESP32 or Arduino?
Yes.
It’s no matter which platform you are using; we have the communication protocol for you, and the example code.
Our module is a passive serial port device, as long as the master can provide a serial communication interface.
Call our communication protocol directly, and the module will work.
A lot of our customers who use ESP32 and Arduino can use it.
7. What is the waterproof rating of the fingerprint module?
The module as a whole is not waterproof because of the exposed electronics on the back.
The surface (and only the surface) of the module has a waterproof rating of IP67, specifically, only the surface.
