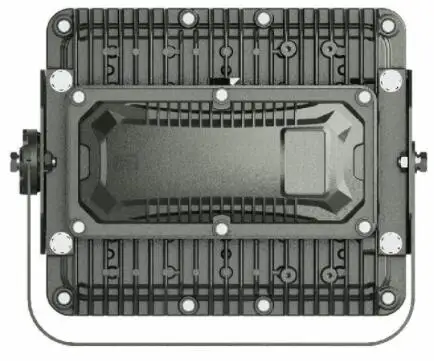

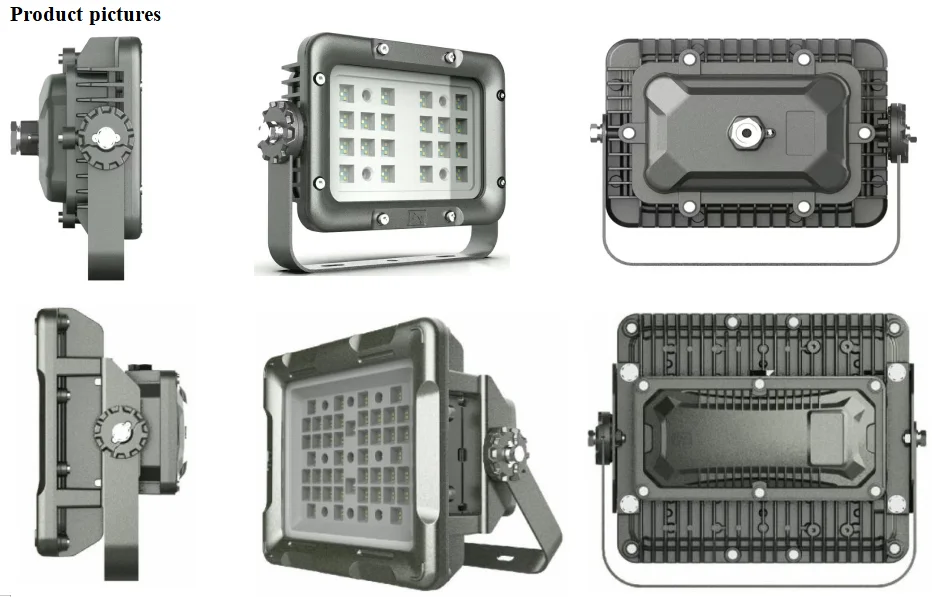

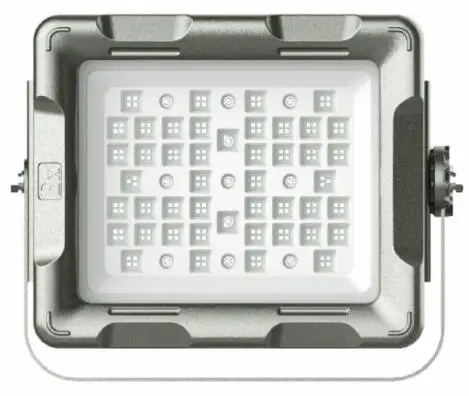

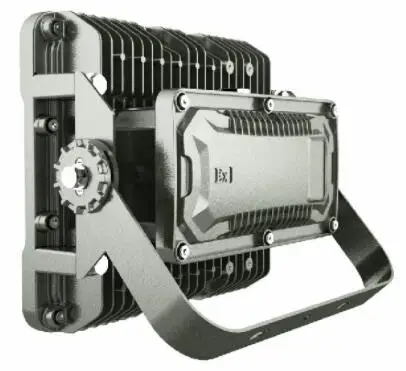

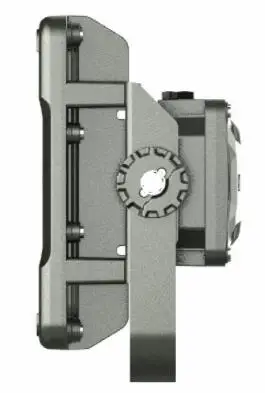

Good Prices LED Flame Proof Light IP67 LED Flameproof Flood Light Fittings 240W Explosion Proof Light

Product Overview

Description

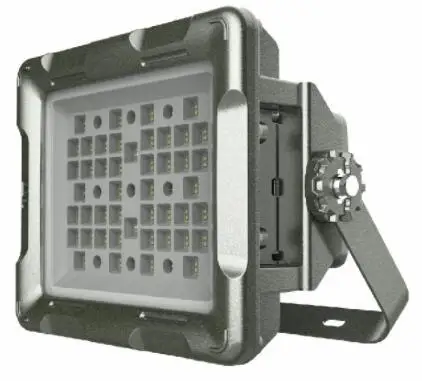

Good Prices LED Flame Proof Light IP67 LED Flameproof Flood Light Fittings 240W Explosion Proof Light

Data sheet

Model	PL-FL-CL63
Power	50/60/70/80W	90/100/110/120W	120/150/180/200W	200/240W
Dimension	300X186X137mm	300X186X174mm	324X276X174mm	425X315X175mm
Luminous Flux	120±5% lm/w
LED Source	50/60/70/80 PCS 3030smd	90/100/110/120 PCS 3030smd	120/150/180/184 PCS 3030smd	200/240 PCS 3030smd
Input Voltage	AC200~277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20%  (Typical : 10%)
Color Temperature	3000-6500K
Color Rendering Index	CRI>70
Explosion-proof mark	Ex d IIC T6 Gb

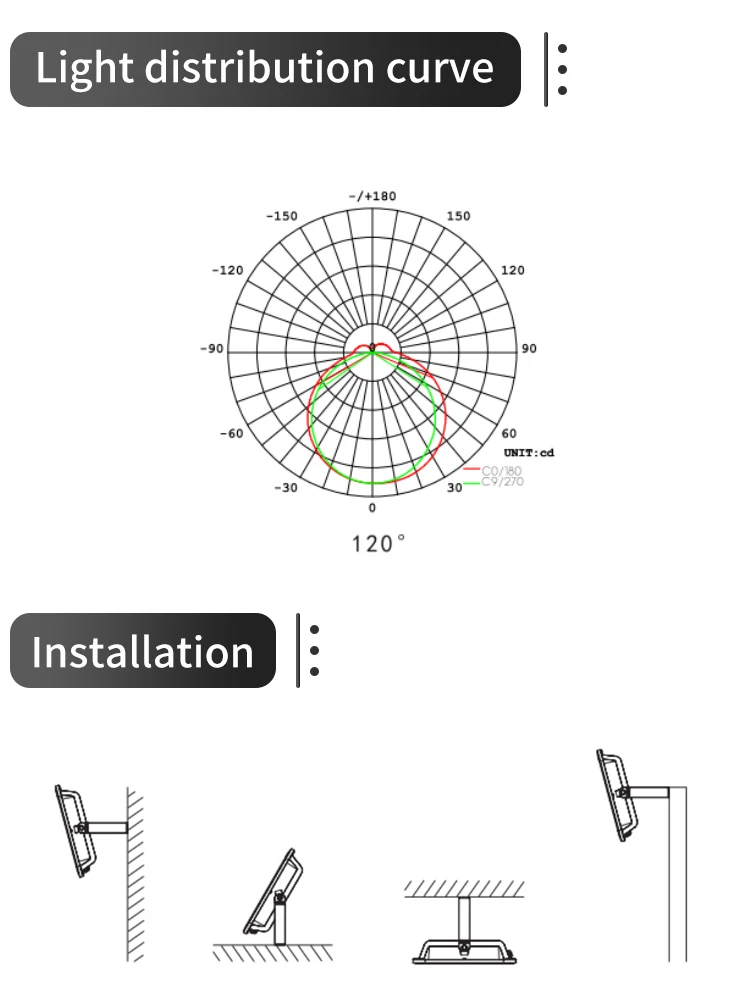

Beam Angle	90°
Housing Color	Gray
Working Life	>50,000 hours
Warranty	5 years
Working Environment	-30ºC~+50ºC, 10%~90% RH
Body & Shade Material	Aluminum housing & Tempered glass

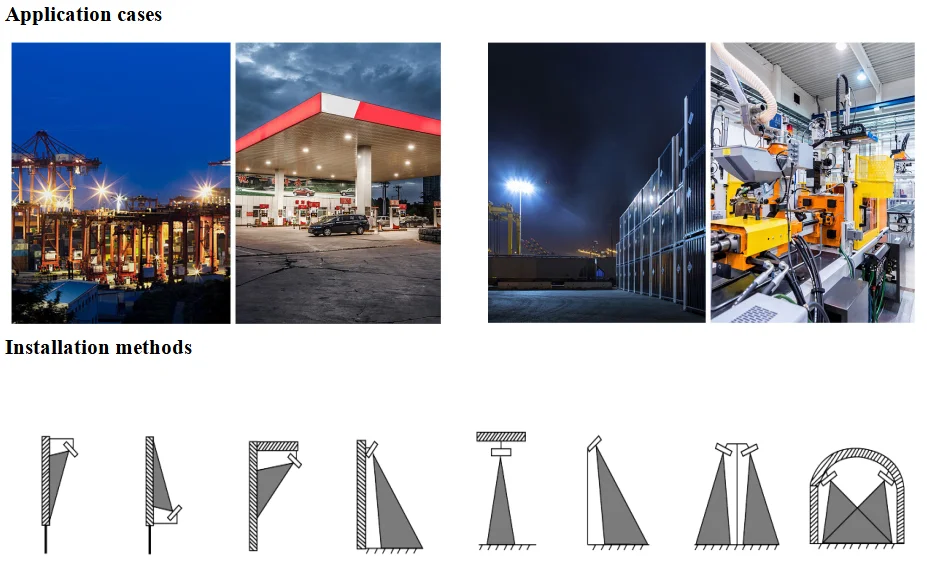

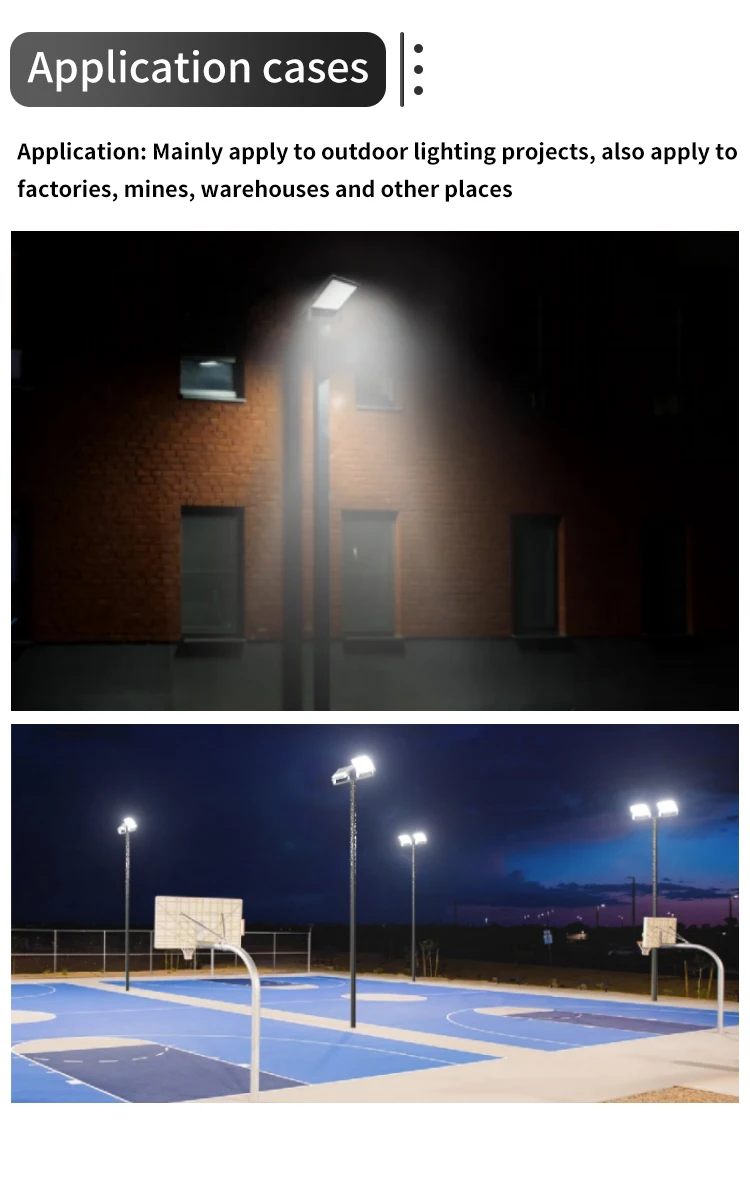

Where Can Use	Applicable for flammable and explosive places such as petroleum, chemical industry, and ships; cable trenches, underground passages, tunnels, workshops, installation areas, passages, transfer stations, combined station cabins and other areas are used for fixed lighting.



FAQ



Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
