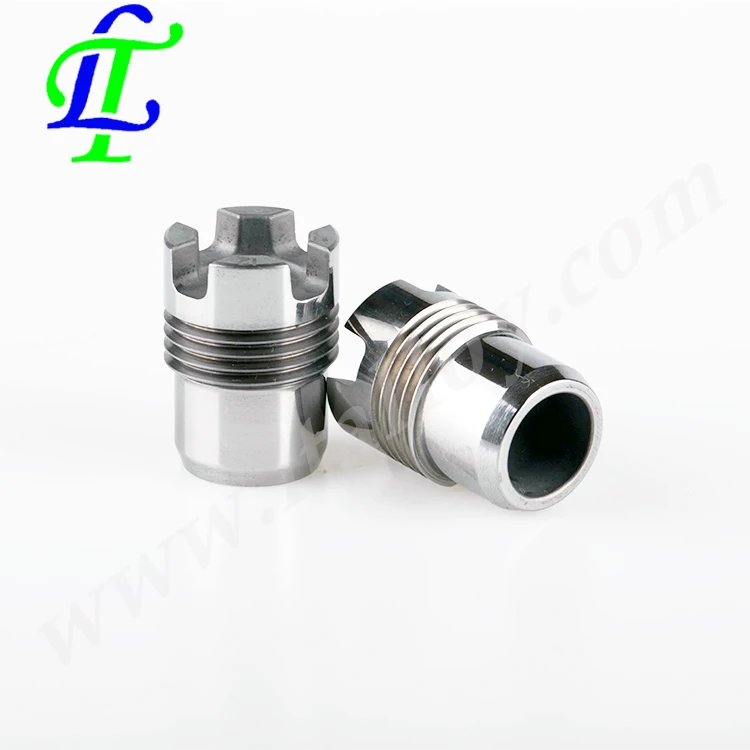

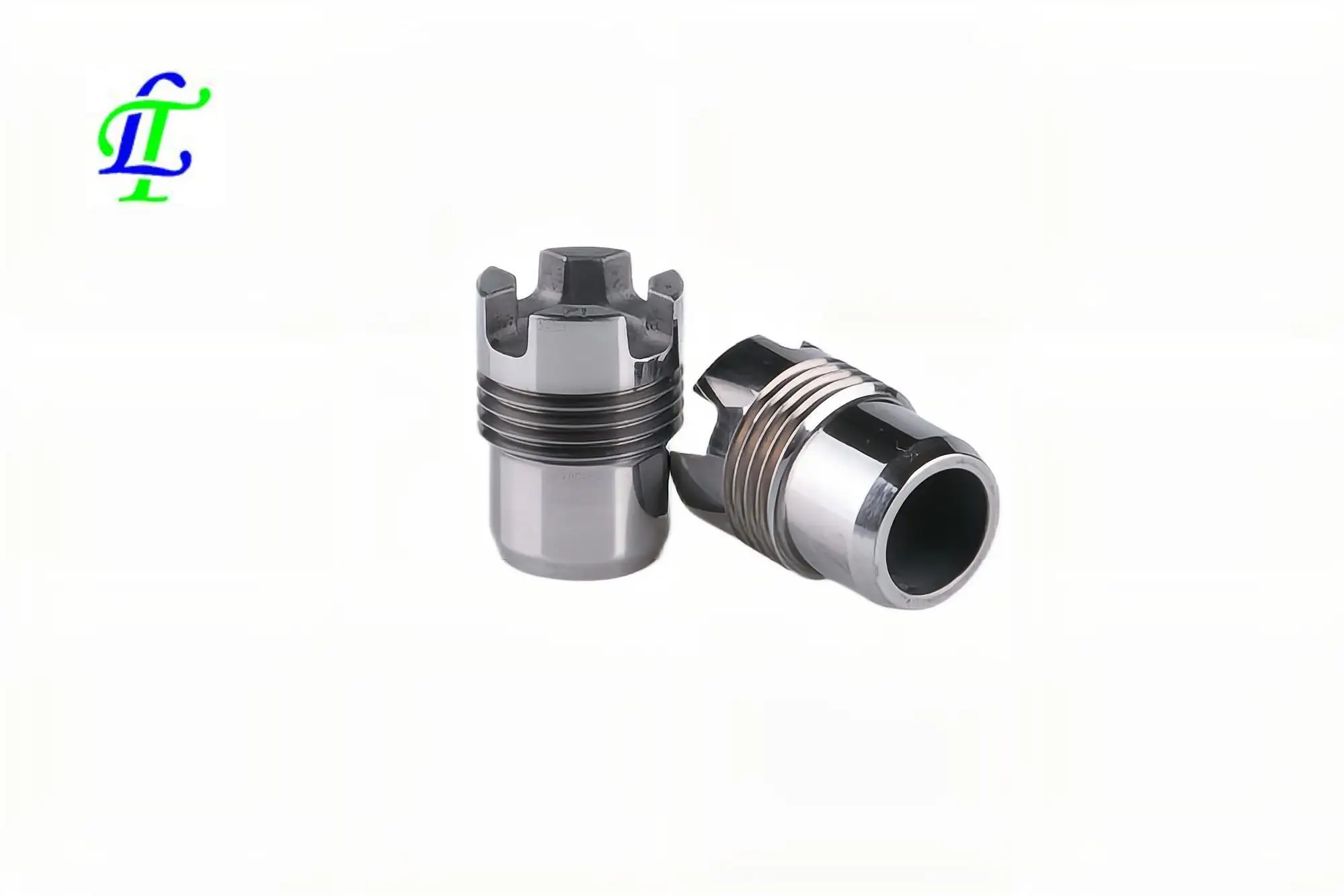

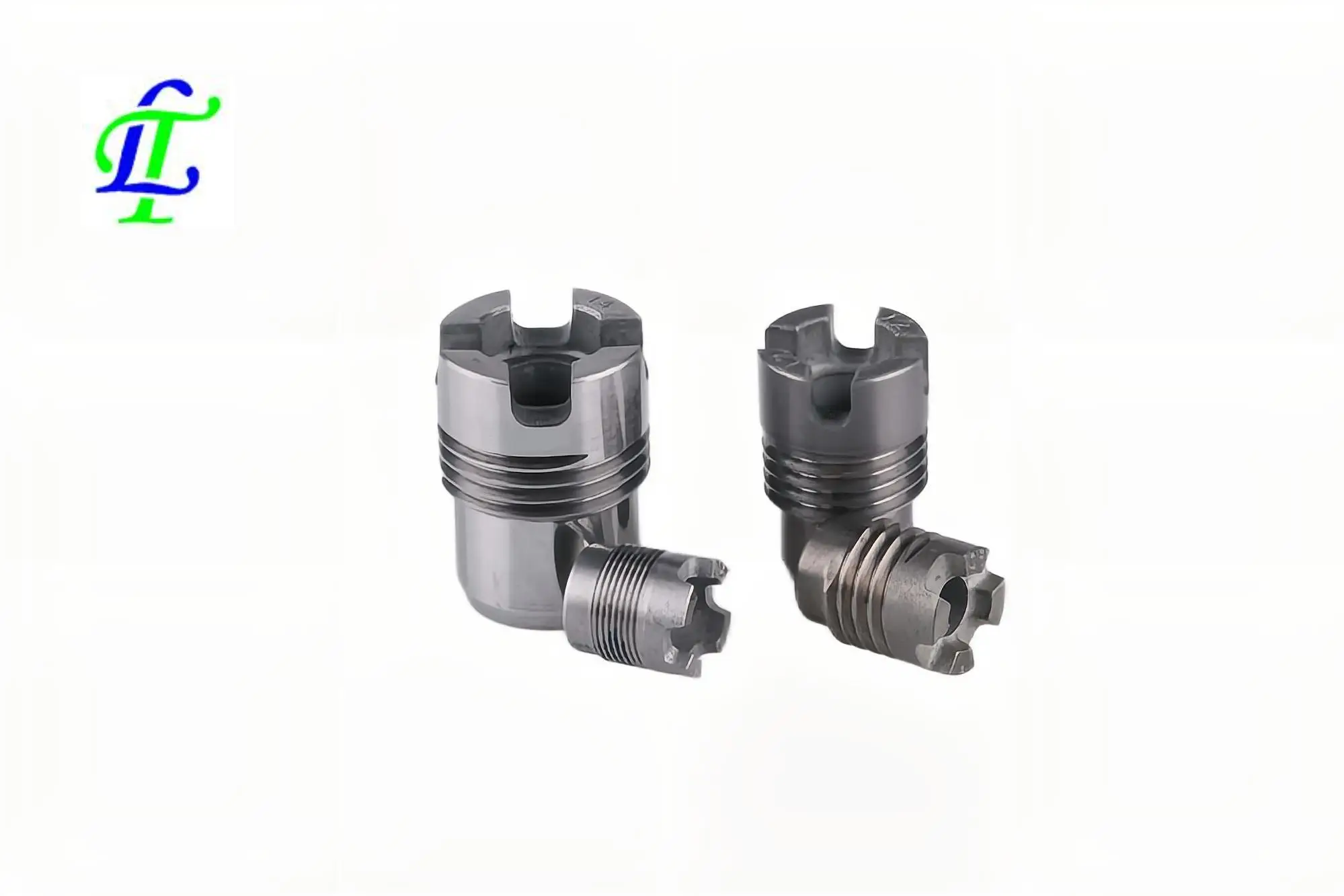

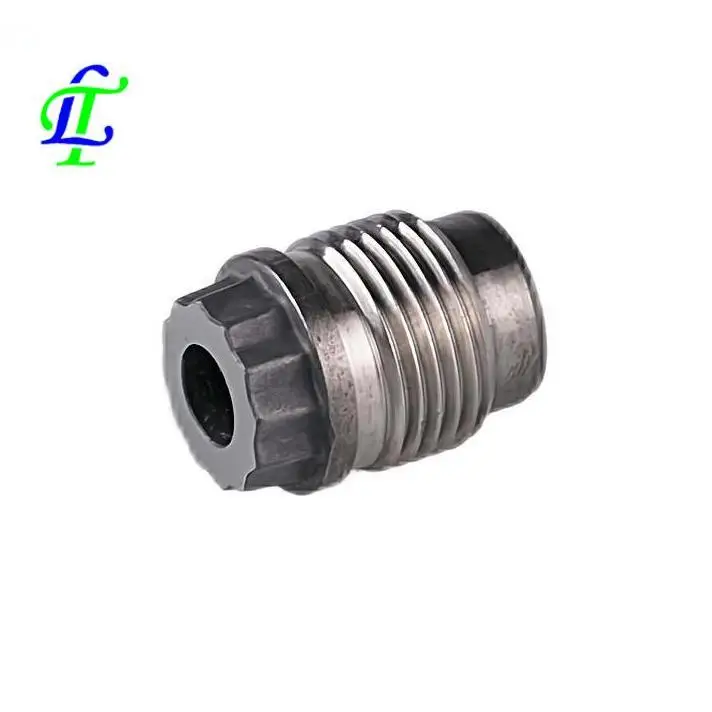

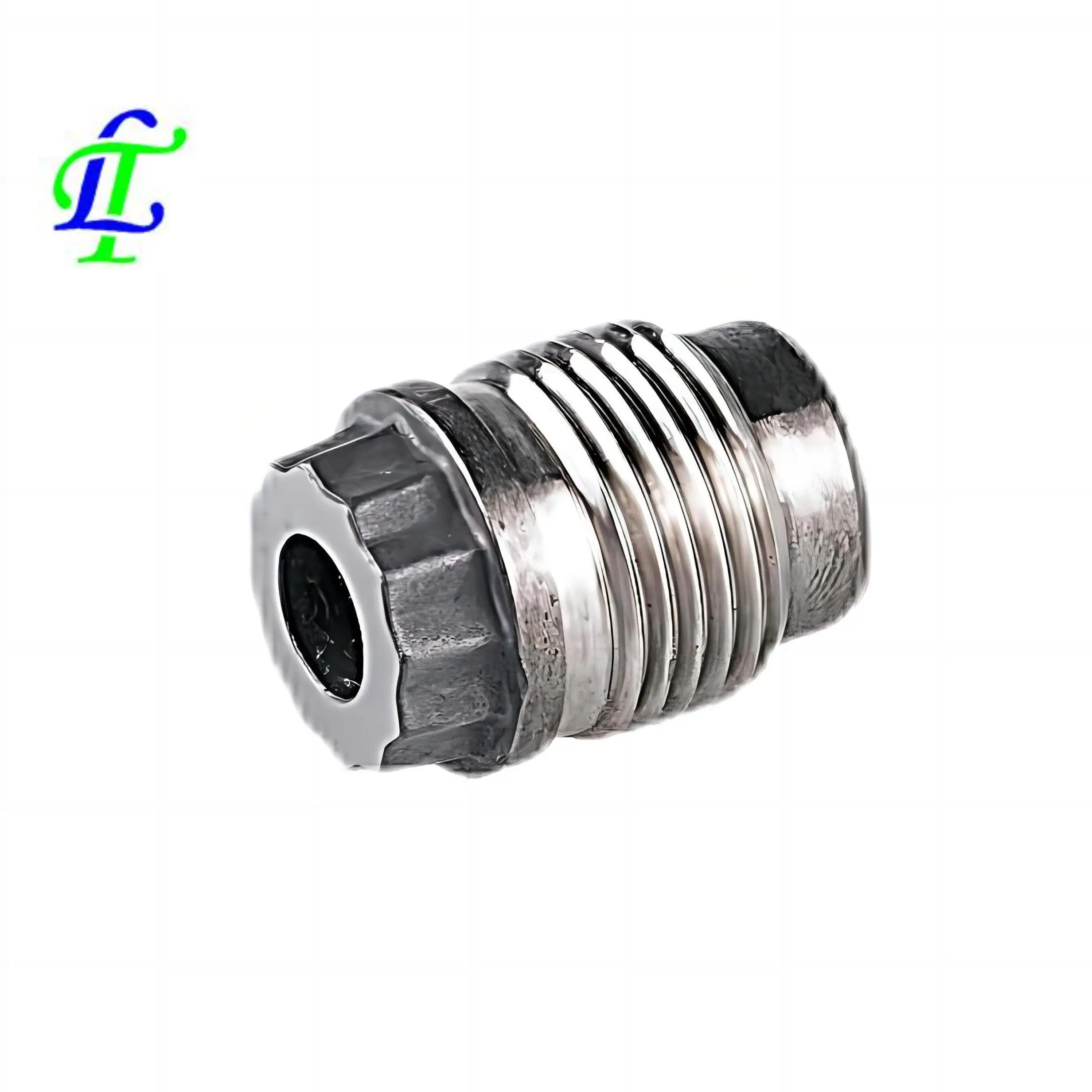

Cemented Carbide Thread Nozzles of PDC Drilling Bit Hexagonal Wrench Series
- Category: >>>
- Supplier: Zigong Lituo New Material Go. Ltd.
Share on (1600728723877):
Product Overview
Description
Cemented Carbide Thread of PDC Drilling Bit-Hexagonal Wrench Series
Product Description
The products have good wear and impact resistance. The thread can be made of solid cemented carbide or used brazing and setting technology. We possess many patented techniques and are the approved major supplier of Halliburton.
Mechanic Properties of Common Cemented Carbide Grades for Precision Wear Parts
Grade | Hardness HRA | Transverse Rupture Strength N/mm2 | Impact Toughness (N.m/cm2) | Material features and recommended applications |
YG5 | 93.1 | 2500 | 4.7 | Superior wear resistance, good comprehensive properties, suitable for making non-standard structure components with higher wear resistance. |
YG15 | 87.5 | 3300 | 5.5 | Good strength andf impact toughness, suitable for making non-standard structurer and mechanic components in working conditions of large stress. |
YG9C | 88 | 3000 | 6.5 | Good wear resistance, high strength, suitable for nozzles and sleeves of water spray hole of PDC drill bits and cone roller bits. |
YG11C | 87.3 | 3100 | 6.8 | Better wear resistance, good impact resistance, suitable for high pressure nozzles in the petroleum, chemical and chenic industries. |
YG20C | 83.5 | 2600 | 8.5 | Optimal strength and impact, toughness, suitable for making non-standard structure and mechanic components in working conditions of very large stress. |
ZLT10 | 89.5 | 2000 | 5.5 | Good wear, corrosion and thermal shock resistance, non-magnetism, light specific gravity, high pumping effect, suitable for making valve ball, valve seat of back pressure valve of oil raising pump. |
ZK30 (YG8) | 90.2 | 3000 | 3.2 | Good wear resistance and higher strength, suitable for making non-standard structure and mechanic components under working conditions of normal stress. |
| ZK35.5 | 87.3 | 2900 | 5.2 | Good corrosion resistance and strength, suitable for impact resistant seal-ring. |
ZN106G | 91.5 | 2500 | 4.8 | Good wear and corrosion resistance, suitable for making parts of corrosion resistant submerged oil pump and acid proof pump. |
| ZN109G | 90.5 | 2800 | 5.4 | Good wear and corrosion resistance, suitable for making parts of the drink water pump. |
| ZN211G | 88.6 | 3000 | 5.1 | Good corrosion resistance, high strength, suitable for making parts of corrosion and impact resistant submerged oil pump. |
| ZK10F-1 | 92 | 2900 | 3.9 | Good wear resistance and strength, suitable for making parts of standard and deep-sea submerged oil pump. |
ZK10F-1 | 91.7 | 3100 | 7.6 | Higher wear resistance and strength, suitable for making impact resistant non-standard structural and mechanic components. |
Technic Parameters
| Accuracy of dimensions | Perpendicularity | Coaxality | Position deviation | Circular Runout | Surface Roughness | Thread Accuracy |
| ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | 1.6-0.4 | ASTM class 3, Metric class 6 |
PACKAGE:
Standard export packing (carton box, plastic box, plywood box). We are responsible for the damage caused in the course of transportation.
DELIVERY TIME:
20-30 days after advance payment, detail delivery date should be decided according to
products requirements and order quantity.
TRANSPORTATION:
1. by sea (Shenzhen ports, Shanghai ports, Chongqing port, Qingdao port, etc.)
2. by air freight (Chengdu airport, Chongqing airport, etc.)
3. by express: International express (TNT, UPS, FedEx, DHL, EMS, etc.), Domestic express(SF, DHL, Deppon, etc.), customer can tracking the logistic information on their official website.
Main products of Cemented Carbide Nozzle

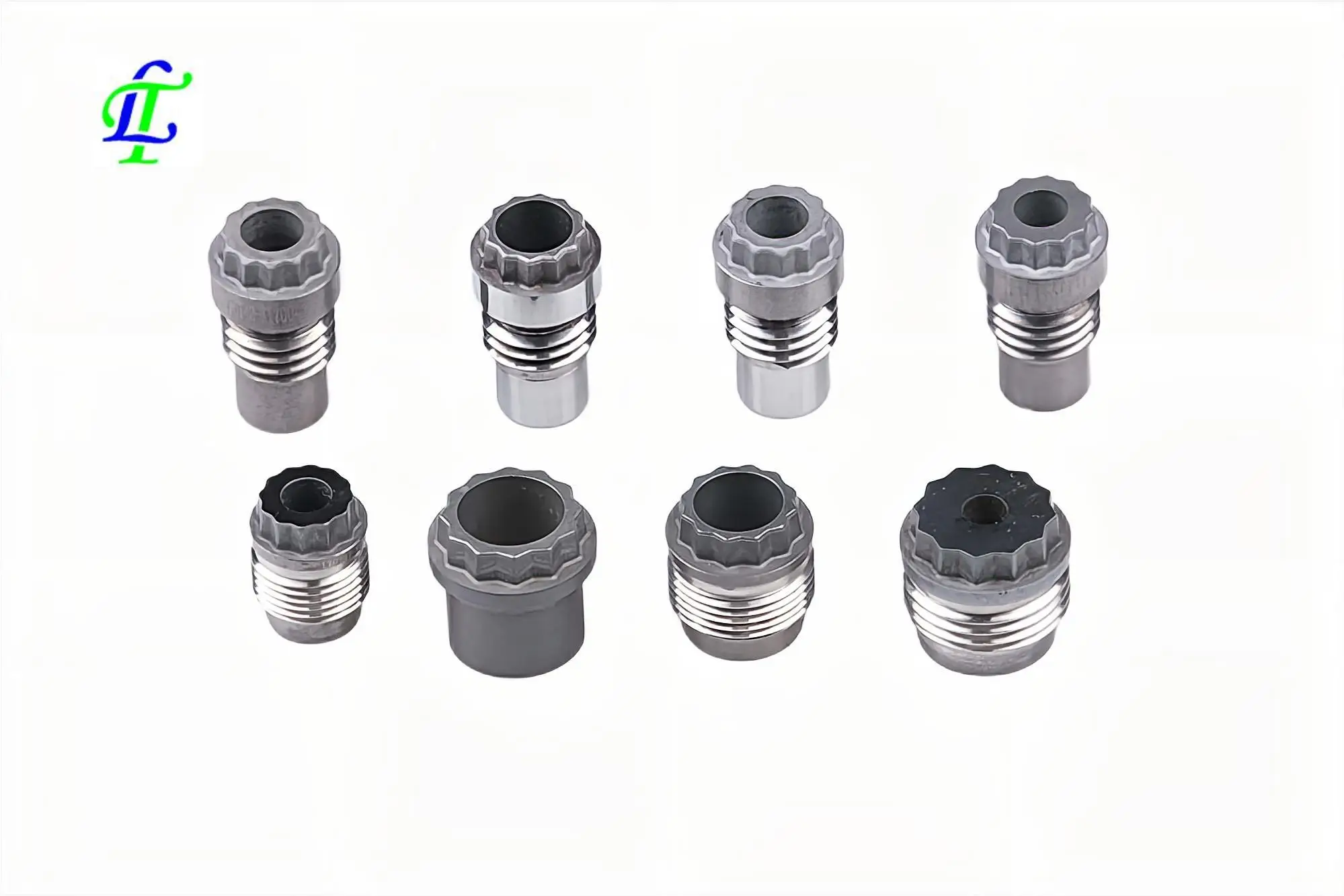

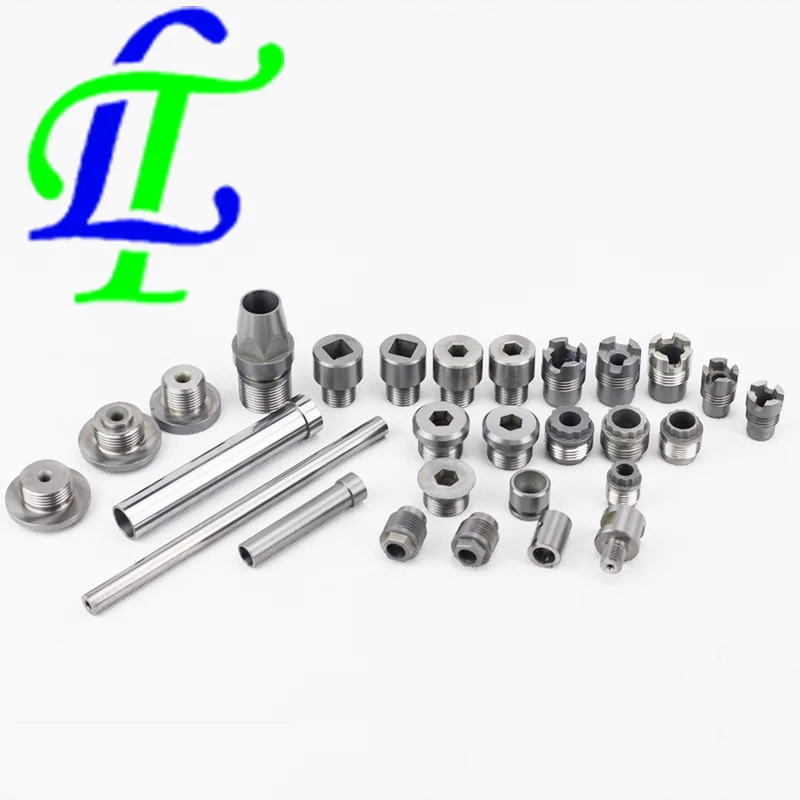

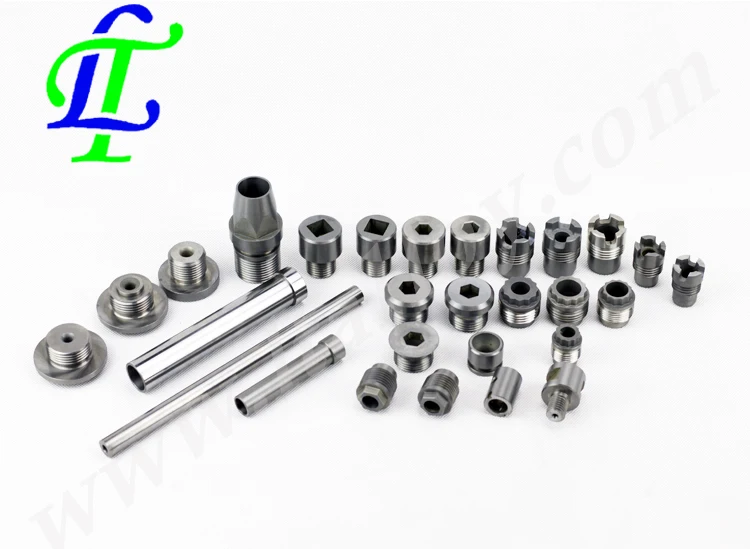

The Cemented Carbided Nozzle includes Cross groove Thread Nozzles, Plum Blossom Type Thread Nozzles, Outer Hexagonal Thread Nozzles, Internal Hexagonal Thread Nozzles, Y Type (three grooves) Thread Nozzles, Cone Roller Bit Nozzles and Press Fracyuring Nozzles. There are various sizes and types of the products. We can recommend, design, develop, produce and supply the products according to the drawing and requirements of the customers.
Applications
The cemented carbide nozzle will be used mainly to PDC drill bits and cone roller bits for flushing, cooling and lubricating drill bit tips and cleaning stone chips in the well bottom with drilling liquid in the working conditions of high pressure, vibration, sand and slurry impacting during oil and natural gas prospecting.
Company Information
Certifications
We got certificates of ISO9001:2015/ OHSAS18001:2007/ ISO14001:2015, and we have independent foreign trade rights. Contact us to get clear scaned version certificates.
Our Advantages
High Quality---- Quality Raw Material, Profesinoal testing team, High accuracy.
High Productivity-300000 fine processing parts, 30 tons carbide blanks.
Fast Delivery-only need 10 days(blanks), fine processing parts only 20 days.
Leading Level R & D Department (more than 20 patents)
Experienced Foreign Trade Manager-help customer import procedure complete successfully.
Professional Design Department-offer custom-made service
Accept OEM & ODM
Excellent After-sales Service-after-sales support, technology support.
