Automatic 3 in 1 drinking Water PET bottle filling capping machine or bottling plant machine equipment production line
- Category: >>>
- Supplier: Qingzhou Gofar Packaging Machinery Co. Ltd.
Share on (1600728794890):
Product Overview
Description

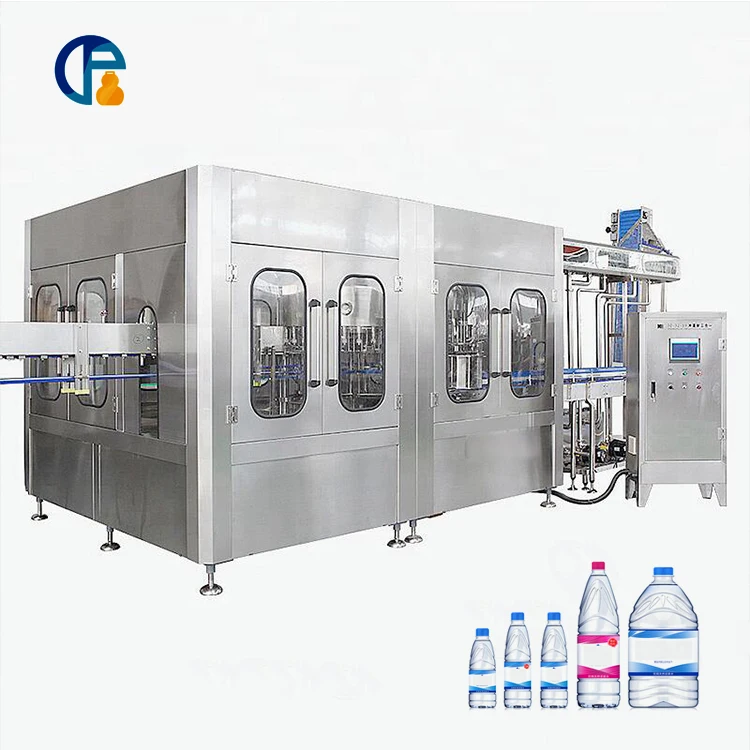

Automatic 3 in 1 drinking Water PET bottle filling capping machine or bottling plant machine equipment production line
Product Description

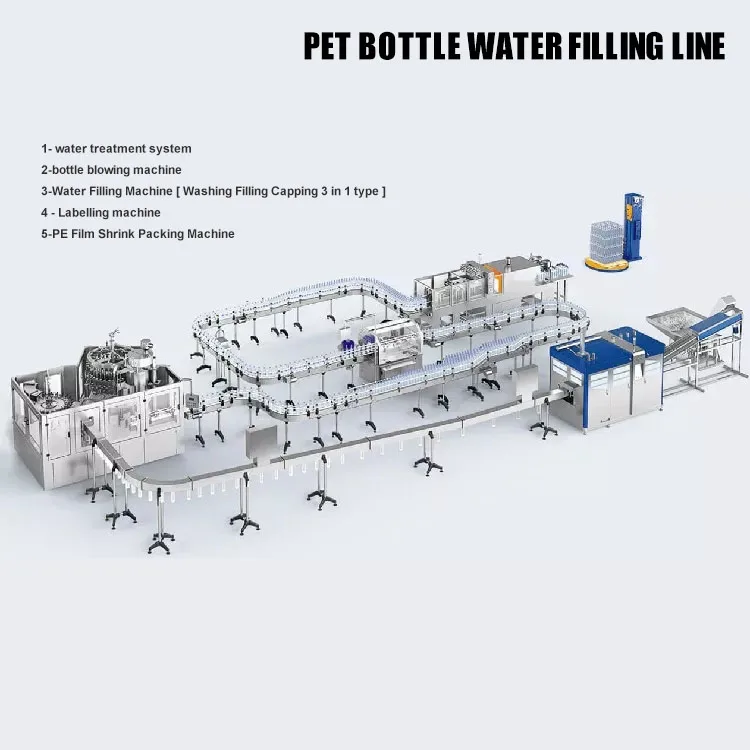

PET Bottle Water Filling Line
This Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, other non-gas beverage machinery. Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.The Complete Bottled Mineral Water / Pure Water Production Line used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
Technical parameter | ||||||||||
Model | CGF8-8-3 | CGF14-12-5 | CGF18-18-6 | CGF24-24-8 | CGF32-32-8 | |||||
Capacity(for 500ml) | 2000 | 3000-4000 | 4000-6000 | 8000-10000 | 10000-12000 | |||||
Suitable bottle shapes | PET circular or square | |||||||||
Bottle diameter(mm) | Dia50-Dia115mm | |||||||||
Bottle height (mm) | 160-320mm | |||||||||
Compressor air | 0.3-0.7Mpa | |||||||||
Washing meidium | Aseptic water | |||||||||
Rinsing pressure | >0.06Mpa <0.2Mpa | |||||||||
Application | pure water, mineral water, spring water | |||||||||
Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | |||||
Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | |||||
Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | |||||
Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | |||||

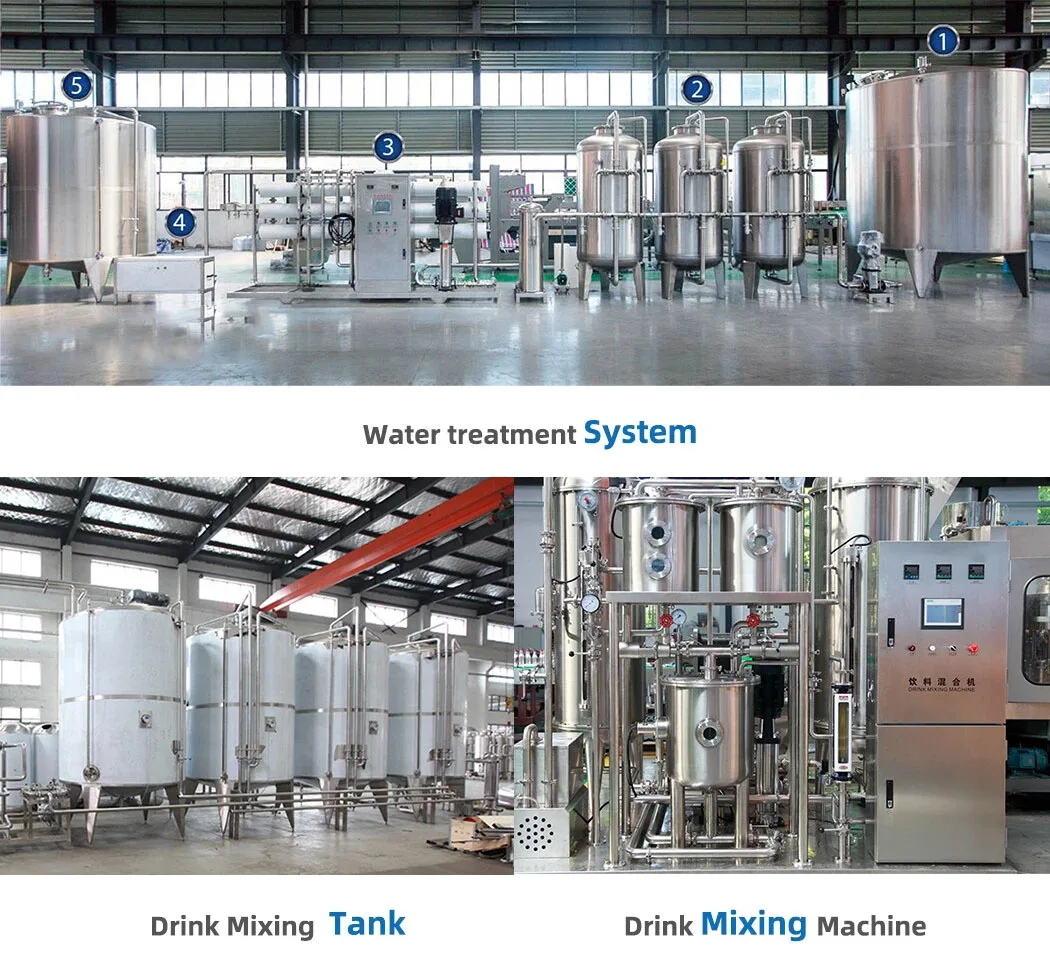

Water Treatment
/Raw water tank + Raw water pump
/ Silica sand filter + Active carbon filter + Sodium ion Exchanger + Precision filter + Security filter
/ Reverse Osmosis (one level)
/UV sterilizer
/ Finished water tank + Pure water pump
/ Silica sand filter + Active carbon filter + Sodium ion Exchanger + Precision filter + Security filter
/ Reverse Osmosis (one level)
/UV sterilizer
/ Finished water tank + Pure water pump

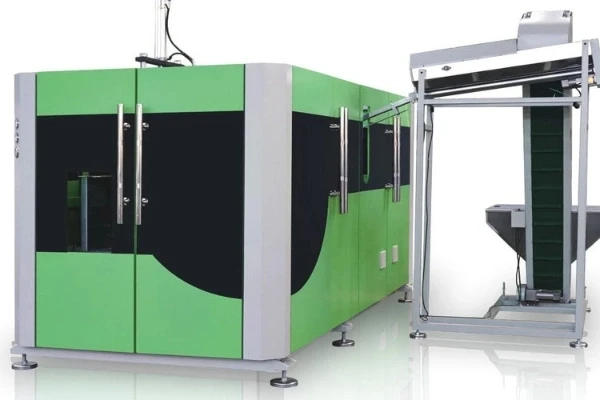

Bottle Blowing Machine
The complete set contains:
Main automatic blowing machine
high &low pressure compressor
high pressure air storage tank
air filters
air cooling dryer
water chiller
Bottle mould follow the sample to design
The complete set contains:
Main automatic blowing machine
high &low pressure compressor
high pressure air storage tank
air filters
air cooling dryer
water chiller
Bottle mould follow the sample to design

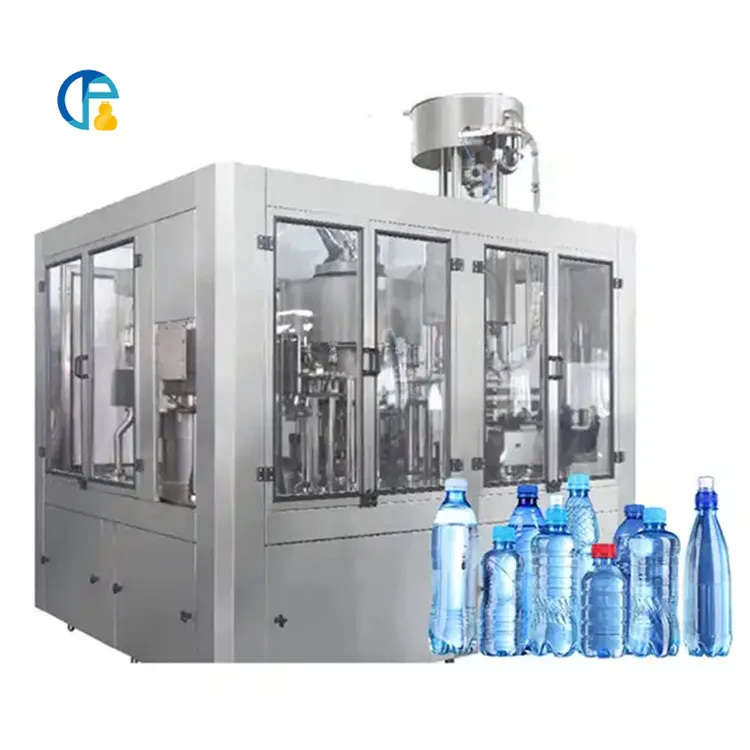

Water Filling Machine [ Washing Filling Capping 3 in 1 type ]
/ All 304/316 stainless steel material, water spray style inject design, more save water consumption and more clean
/ Filling volume adjustable in fine rank, same filling liquid level .No bottle no filling,no bottle no capping
/ Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
/ Hygiene improvement through volume control and contactless filling
/ Automatic dummy bottles: Safer, easier cleaning procedures
/ Automatic bottle changeover improves uptime
/ All 304/316 stainless steel material, water spray style inject design, more save water consumption and more clean
/ Filling volume adjustable in fine rank, same filling liquid level .No bottle no filling,no bottle no capping
/ Sustainable solution: Reduced filler enclosure and servomotors reduce resource consumption
/ Hygiene improvement through volume control and contactless filling
/ Automatic dummy bottles: Safer, easier cleaning procedures
/ Automatic bottle changeover improves uptime
Production details

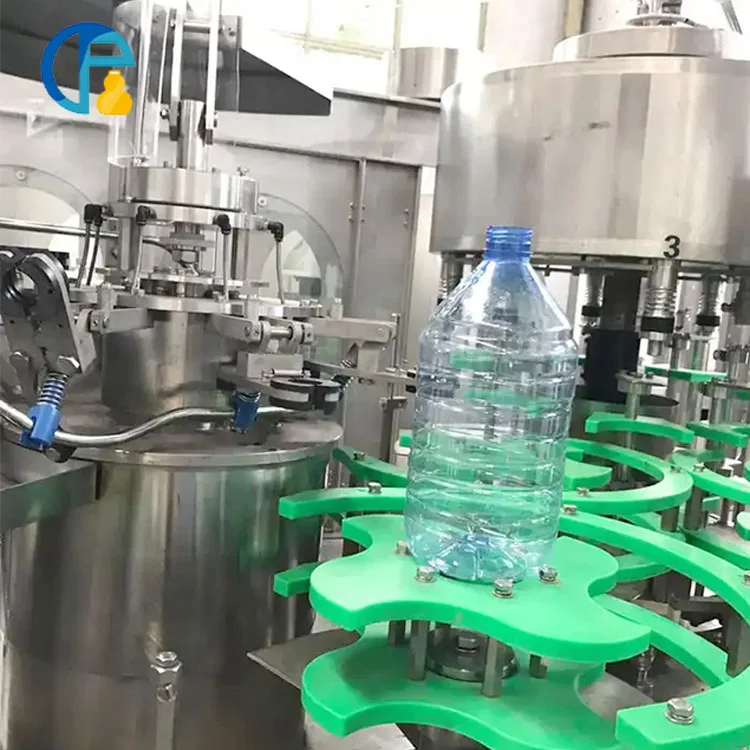

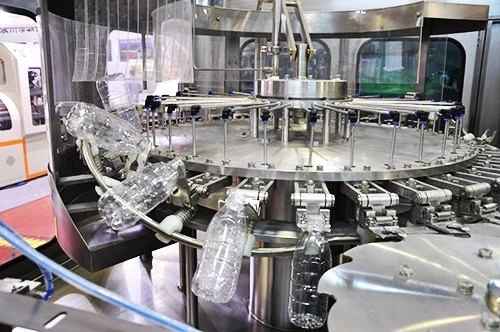

I All 304 stainless steel rinsing heads, water spray style inject design, save water consumption & more clean

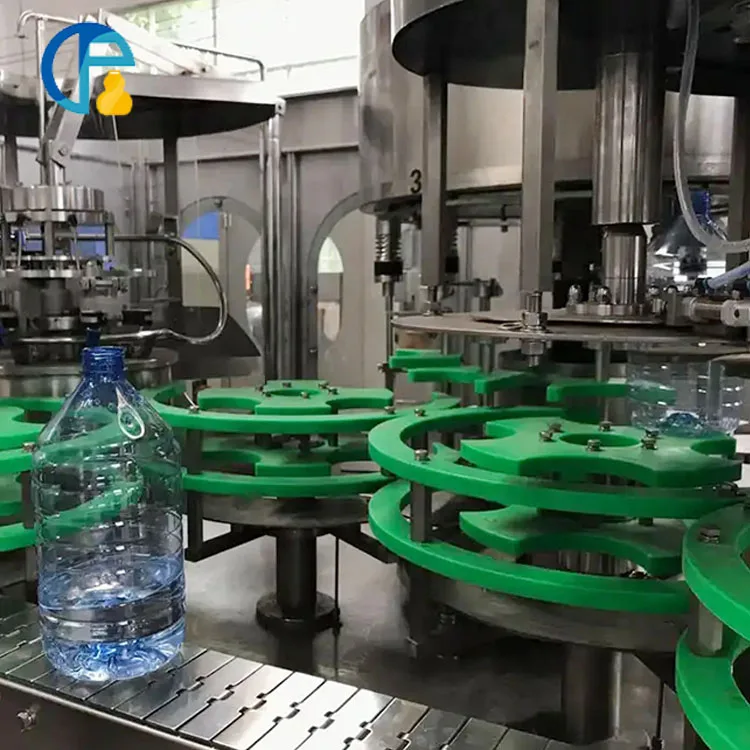

Il 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
III 304 stainless steel washing pump

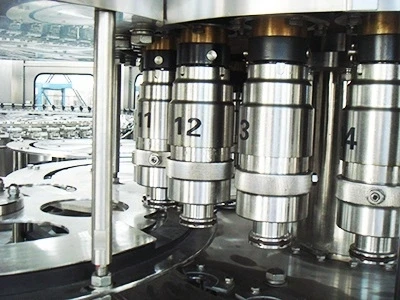

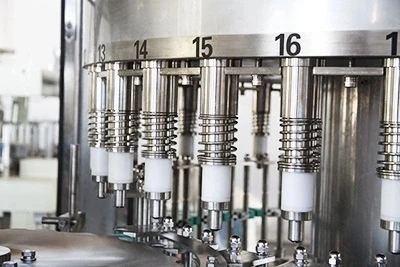

I High precision filling nozzle, PLC variable sighal control, ensure high filling precision & filling smoothly &steadily,
ll Filling volume adjustable in fine rank, same liquid level after filling
III All 304 stainless steel contact parts &
liquid tank, fine polish, no death corner, easy to clean
liquid tank, fine polish, no death corner, easy to clean
IV 304 stainless steel filling pump
V no bottle no filling
I Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
Il All 304stainless steel construction
III No bottle no capping
IV Automatic stop when lack of bottle

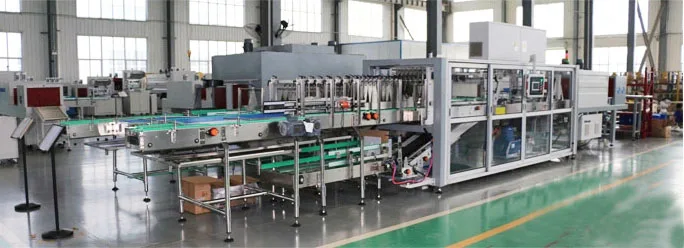

Labeling & Packing Part
This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most
economical models in cost to make mass production and inter grated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate
or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.
economical models in cost to make mass production and inter grated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles. Whether from the replacement of star wheel, guide plate
or manual speed adjustment to automatic speed control, for example changing the label is only needed to change the program, the products concept of that the equipment is designed for users is embodied in everywhere.

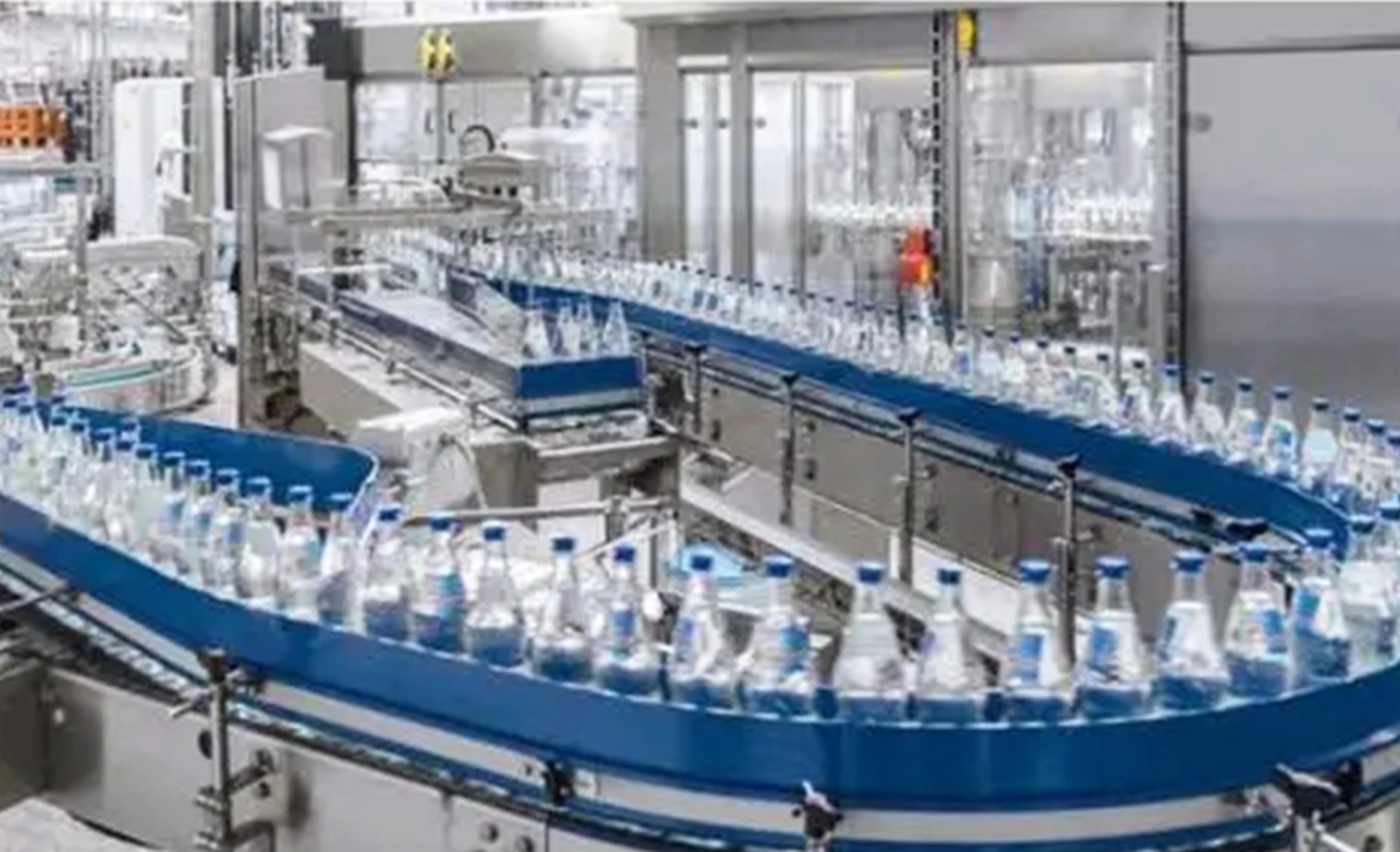

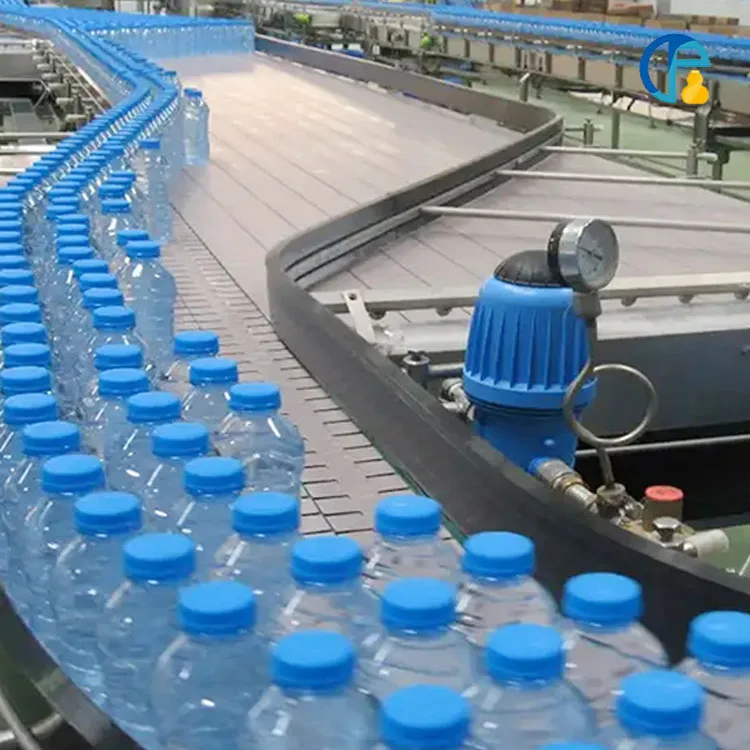

Flat Conveyor.
- Energy saving. High efficient. Adapt to customer factory layout
- Special lubrication system, keep products clean, health, safety
- Extended service life
- Electric eyes design keep whole line running safety and quickly
- Overload protection mechanism to effectively ensure the safety of the machine
What can be produced？
Applicable products: pure water, mineral water, mountain spring water, etc.
Applicable products: pure water, mineral water, mountain spring water, etc.
Applicable container: PET bottles of various capacities and shapes
Filling system: gravity filling
Qingzhou Gofar Packaging Machinery Co.,Ltd is a professional manufacturer of liquid packing solutions with 10 years experiences. We specialized in wine filling production line, spirit filling production line,detergent production line,sauce filling production line, oil filling production line,water treatment etc. The most of our products have passed the ISO9001 and CE certificated. And we also have professional technical team to provide the professional solution for you according to your requirements.
In recent years,our company has introduced series of advanced equipments, including laser cutting machine, CNC tapping machine and machining centers, to make the per part more precision. All the parts will be via checking and testing before assembly to guarantee the quality. All the machines will be tested and debugging again and again to make sure without problems. And the staff will have be trained regularly. We bring in technicians per year. The timely after-sale service,spare parts support and technical support will be provided at anytime. With professional team,hope we will bring you the excellent service and satisfaction.
Our machine is mainly made of good quality SUS304 stainless steel and equipped with brand parts. It has the advantage of easy operation,positioned accuracy, reasonable price etc. It's widely used in wineries,beverage,brewing,food, medicine, cosmetics, electronics, chemical pharmaceutical factories etc. With excellent quality and good reputation, we have exported to Europe, North America, South America, the Middle East, Southeast Asia, Africa more than 40 countries. We are sincerely looking forward to cooperate with you. Welcome to visit our factory.
Our Advantages
01 POWERFUL FACTORY
10 Years Manufacturing Experiences & 8 Years Exporting Experiences, not reseller, not tradingcompany.
02 ODM&OEM
Customized solutions are supported.
03 PROFESSIONAL TEAM AND SUPERIOR SERVICEH
Have an professional team and the staff will have be trained regularly.
04 REASONABLE PRICE
Easy operation, positioned accuracy, reasonable price.
05 QUALITY ASSURANCE
Improve your working efficiency and help you resolved the problem of difficult employment and high labor costs.
06 ONLINE INSTRUCTION
Online conferences product explanation, technical guidance, factory inspection etc are supported.
07 AFTER-SALES SERVICE
The job site installation, training, guidance are supported. The staff will have be trained regularly.
02 ODM&OEM
Customized solutions are supported.
03 PROFESSIONAL TEAM AND SUPERIOR SERVICEH
Have an professional team and the staff will have be trained regularly.
04 REASONABLE PRICE
Easy operation, positioned accuracy, reasonable price.
05 QUALITY ASSURANCE
Improve your working efficiency and help you resolved the problem of difficult employment and high labor costs.
06 ONLINE INSTRUCTION
Online conferences product explanation, technical guidance, factory inspection etc are supported.
07 AFTER-SALES SERVICE
The job site installation, training, guidance are supported. The staff will have be trained regularly.
Certifications
We have passed :sealing machine CE certification, filling machine CE certification, ISO9001,SGS and other certification, to ensure the quality of products.
Exhibition
Packing &Shipping
1.Packing:
The finished well machines products immediately outside the anti-rust treatment,
and the use of plastic packaging for further protection, delivery using thick wood, steel frame protection,and other diversified packaging conditions to ensure that products in the long sea is not affected.
2. Delivery time:
Even though our machines are customzied as bottles size and shape, our plant also will reserve some parts on warehouse,such as electronic parts,frame,pump,SUS materials etc to shorten the delivery time.
3. Shipping:
The finished well machines products immediately outside the anti-rust treatment,
and the use of plastic packaging for further protection, delivery using thick wood, steel frame protection,and other diversified packaging conditions to ensure that products in the long sea is not affected.
2. Delivery time:
Even though our machines are customzied as bottles size and shape, our plant also will reserve some parts on warehouse,such as electronic parts,frame,pump,SUS materials etc to shorten the delivery time.
3. Shipping:
The normally used is by sea. If you are urgent, we can ship by air or express. In short, we will choose an economic shipping way for you.
4. Port:
4. Port:
Qingdao, Shanghai etc,if you have forwarder in China,we can transport the washing machine to him directly.
FAQ
Q1.How long will take for the delivery of product?
10 days for standard model, if machine in stock, will delivery immediately, customized model depend on customer requirements,usually about 20~30 days.
Q2.What's the insurance of after-sale service after purchase?
All our products, will be totally tested by QC department before delivery, with strict quality control process. The product is cost-effective during use, stable and reliable. One year warranty service for all machine, please feel free to contact us if you have any questions.
Q3.When the machine arrives at the work site, is it easy to install?
How to solve the problem of quick installation and use?
How to solve the problem of quick installation and use?
All machine model with installation video, to show the installation process more intuitively, and we will provide remote video technical support to solve your doubts and ensure that your installation is correct.
Q4:During the use of the machine, how to get after-sale service?
We have professional foreign installation and commissioning engineers, which have many years of experience in foreign debugging with deeply recognized by customers. We will provide on-site installation and commissioning services for foreign customers, and we will guide your workers directly.
Q5:Will the accessories change frequently with machine?
The service life of the accessories is related to the daily maintenance. When ordering, we will give you free wearing parts and provide you with daily maintenance strategies.
