WL 4000FS Wire Stripping and Rubber Seals Crimping Machine
WL-4000FS Wire Stripping and Rubber Seals Crimping Machine
WL-4000FS Wire Stripping and Rubber Seals Crimping Machine
WL-4000FS Wire Stripping and Rubber Seals Crimping Machine
WL-4000FS Wire Stripping and Rubber Seals Crimping Machine
WL-4000FS Wire Stripping and Rubber Seals Crimping Machine
WL-4000FS Wire Stripping and Rubber Seals Crimping Machine

WL 4000FS Wire Stripping and Rubber Seals Crimping Machine

Share on (1600728796793):


Price:

Quantity:


Product Overview

Description



Specification


Model
WL-4000FS
Applicable wire diameter
φ1.0mm - 4.0mm
Processing capacity
1200-1500PCS/H
The shortest stripping length of sheathed cable
22mm
Stripping length
1.0mm-10.0mm
Cutting tolerance
0.05mm-0.1mm
Cutting tolerance
0.05mm-0.1mm
Terminal type
open continuous terminal - horizontal
Crimping force
2T(4T can be customized)
Stroke
40mm
Power supply
single phase 200V~240V, 50/60Hz, 1500W
Air source
0.4-0.6mpa（Please use dry and clean air）
Dimensions
950*850*1650 mm
Weight
250KG


Product Description

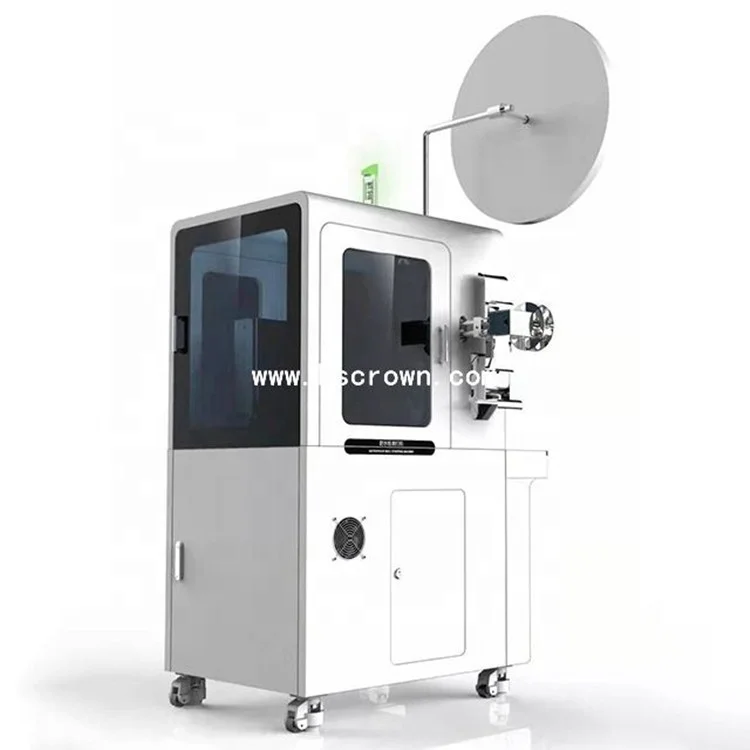

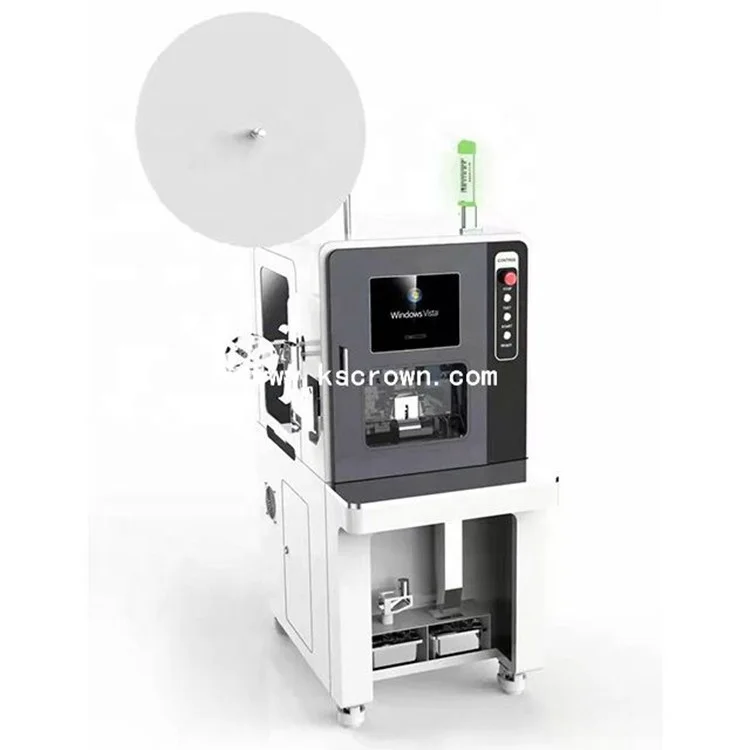

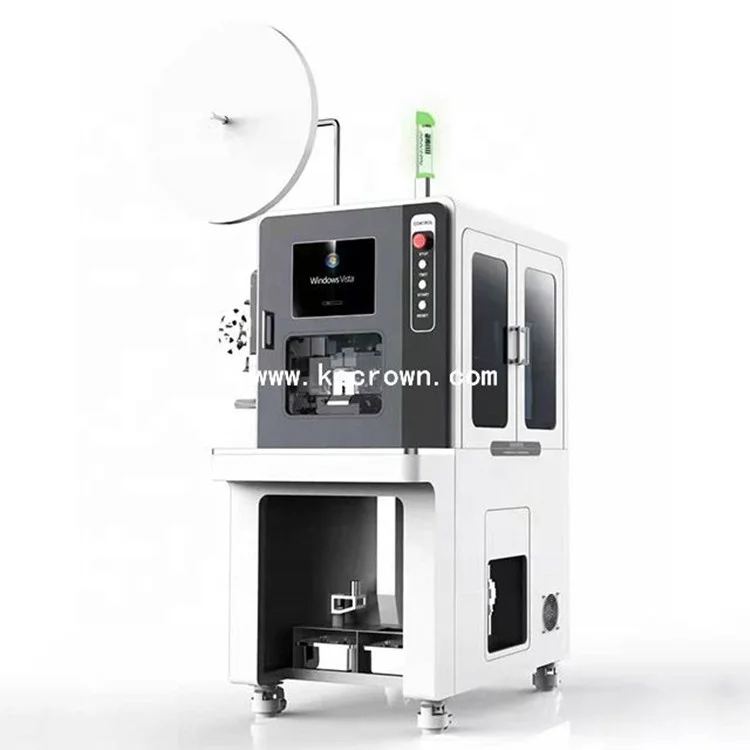

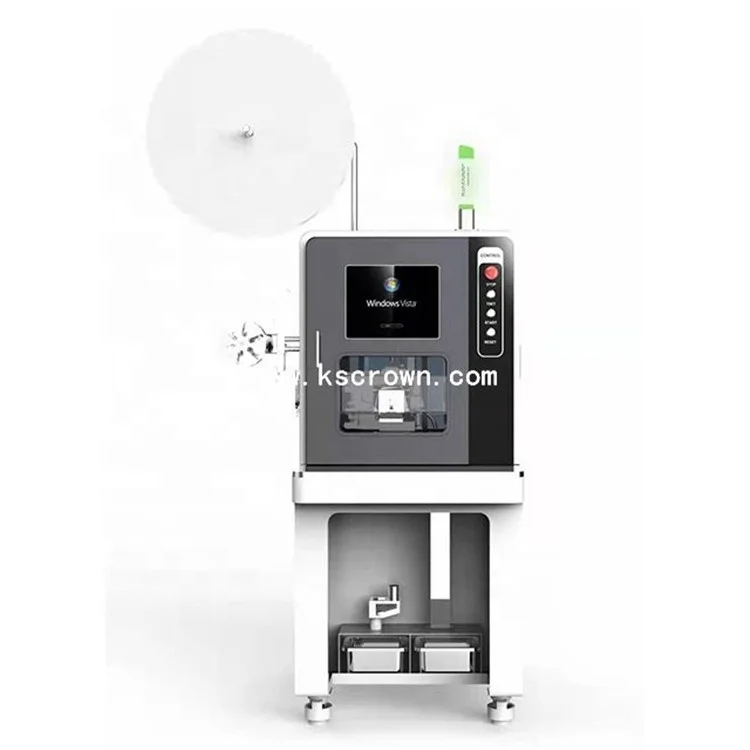

This is a semi-automatic wire stripping and rubber seals crimping machine. It is able to strip the wire, insert rubber seals and crimp terminals automatically.

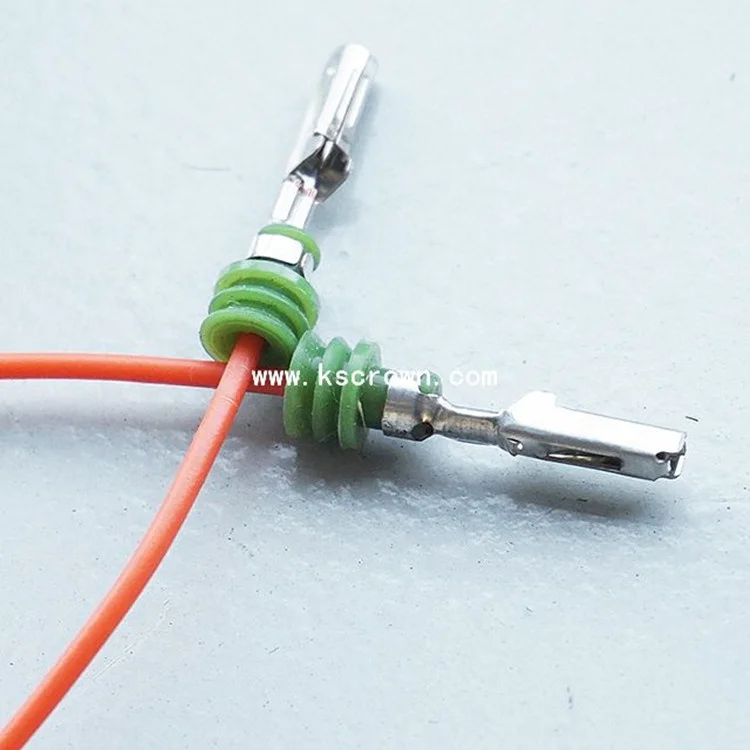

○ Function: wire stripping + rubber seals inserting + terminal crimping

○ Applicable wire: AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV, Teflon, fiber cable, etc.






Packing & Delivery




Company Profile




Suzhou Crown Electronic Technology Co., Ltd. was founded in 1998 in Kunshan City, Jiangsu Province, China.
It is a modern high-tech enterprise integrating R&D, production and sales. Our company has passed ISO9001 international quality system certification and ISO14001 environmental management system certification, and fully implemented 6S modern enterprise management


FAQ


Q1. How to contact you?
Contact us via trade manager directly. Send an inquiry to us via alibaba or email address. We also have wechat whatsapp and skype.+8618912707568

Q2. What payment methods can you accept?
We accept T/T, L/C, Western Union, PayPal…

Q3. Do you have manual?
Manuals will go with machines.
If you have any problem with operation, please feel free to contact us.

Q4. How about the shipment time?
Normally 5-7 days. Large order need to be negotiated.

Q5.What is your warranty?
We have 12 month warranty.
