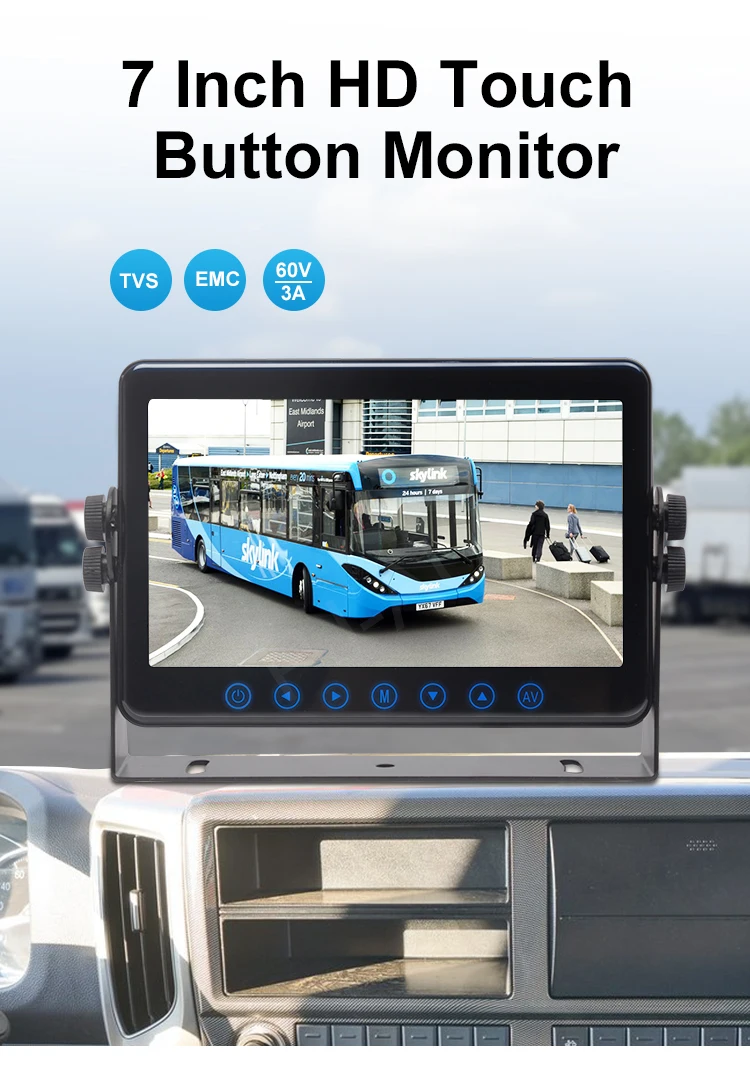

PJAUTO 7 Inch AHD Heavy Duty Monitor Rear View Touch Button Monitor Full Glass Surface Van RV Bus Monitor
- Category: >>>
- Supplier: Guangzhou Pj-Auto Electronic Technology Limited
Share on (1600728798584):
Product Overview
Description
Product Description
Features:
Technology Features:

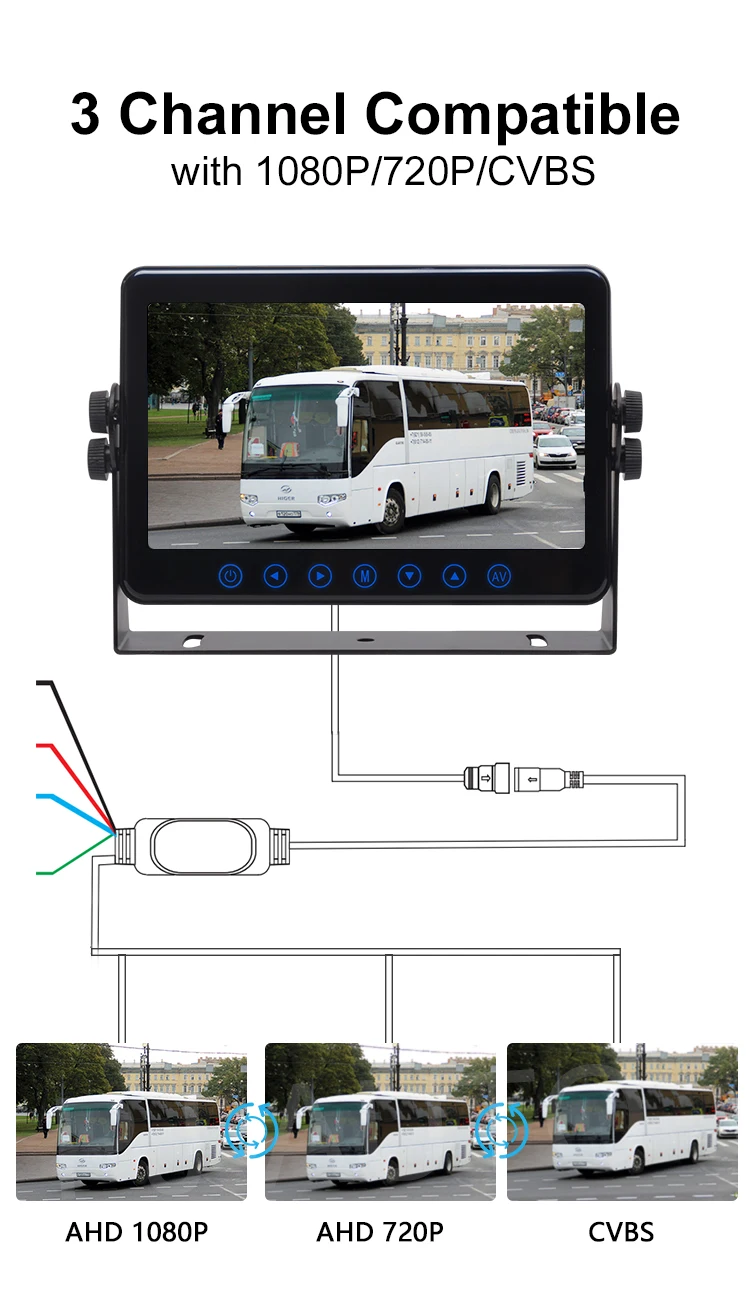

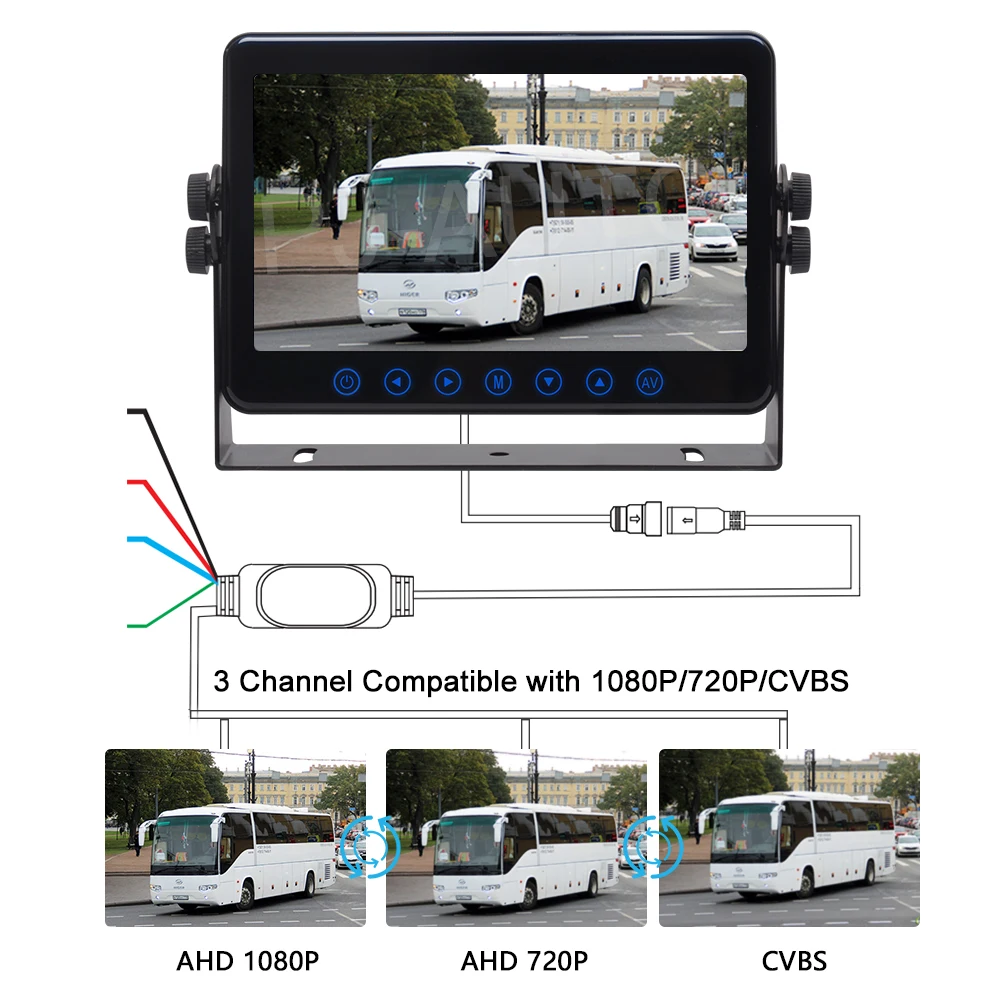

* Full compatibility with AHD 720P/1080P & CVBS(NTSC/PAL)
* Support mixing connection of cameras of different formats
* High brightness and high resolution display

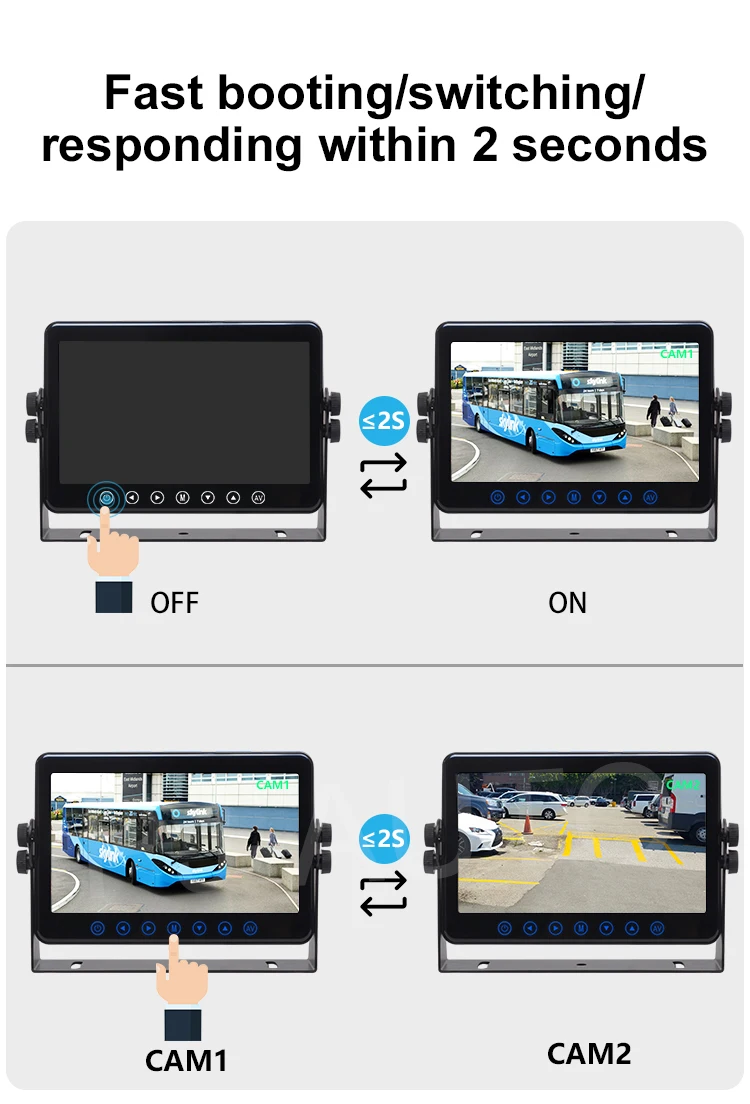

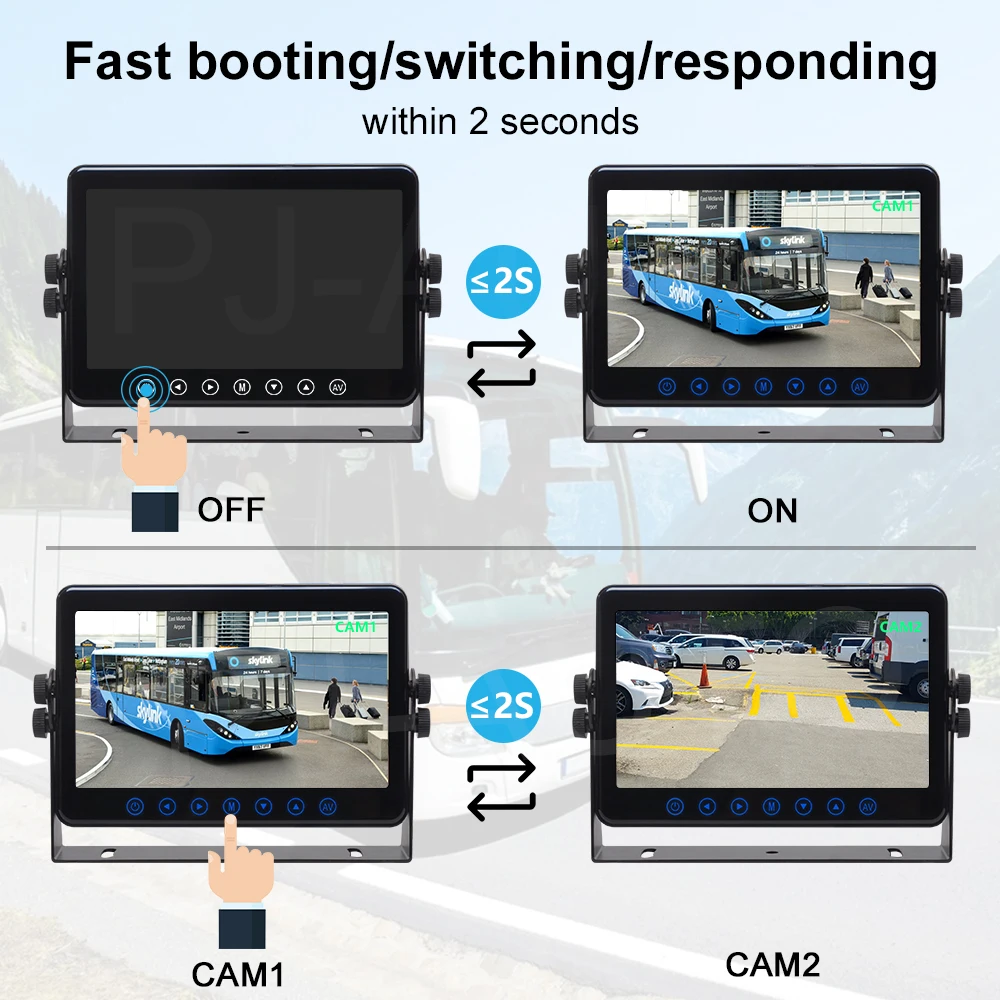

* Fast boot up and fast switching by button or trigger(<2 seconds)
* DC 12-36V wide voltage range,industrial level PCB design with protection against over-voltage,under-voltage,reverse polarity,static and surge,etc.

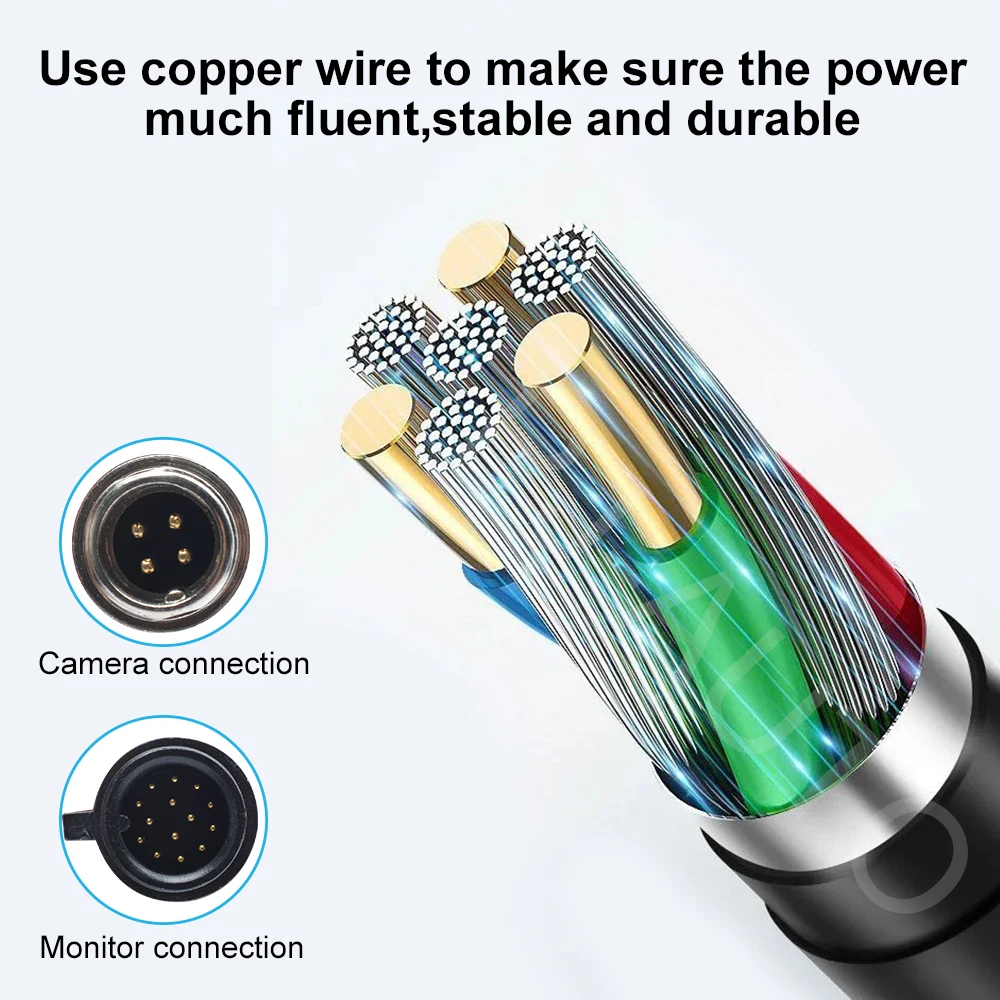

* 4-pin aviation connector with waterproof cover

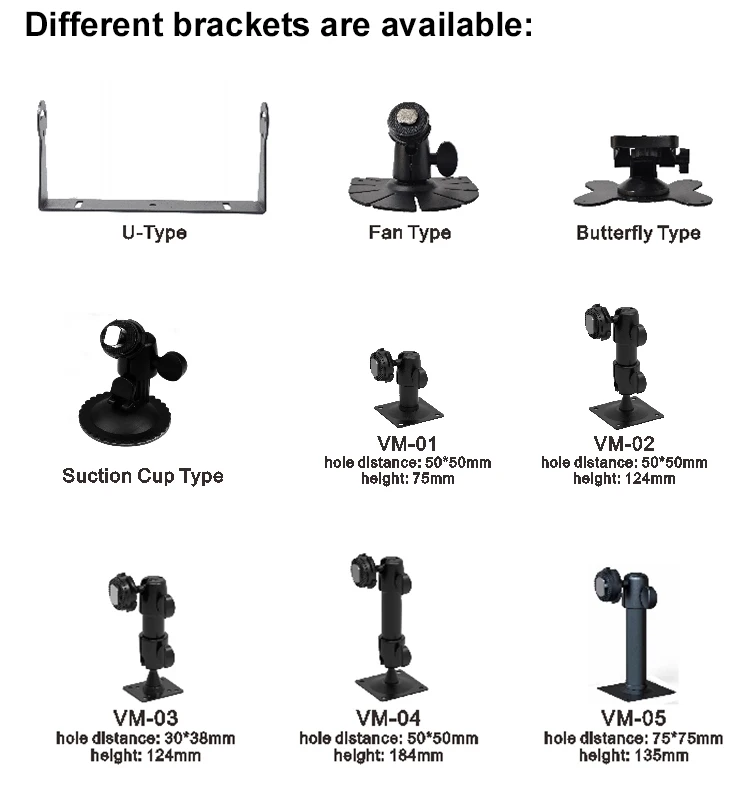

* Various bracket optional

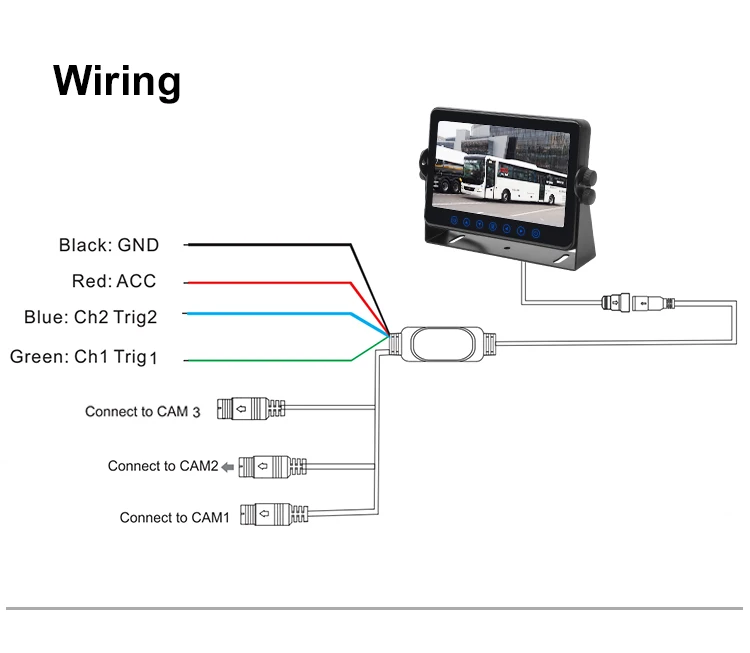

* Up to 3 x video/audio/trigger inputs customizable
Product Features:

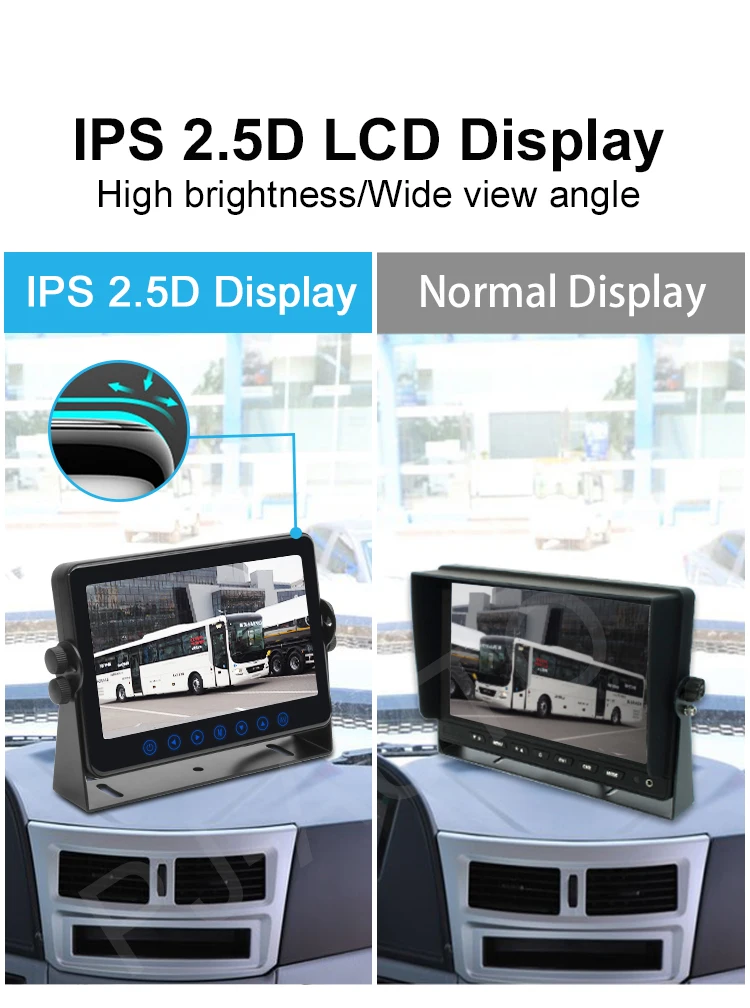

* IPS panel for wide & bright screen view

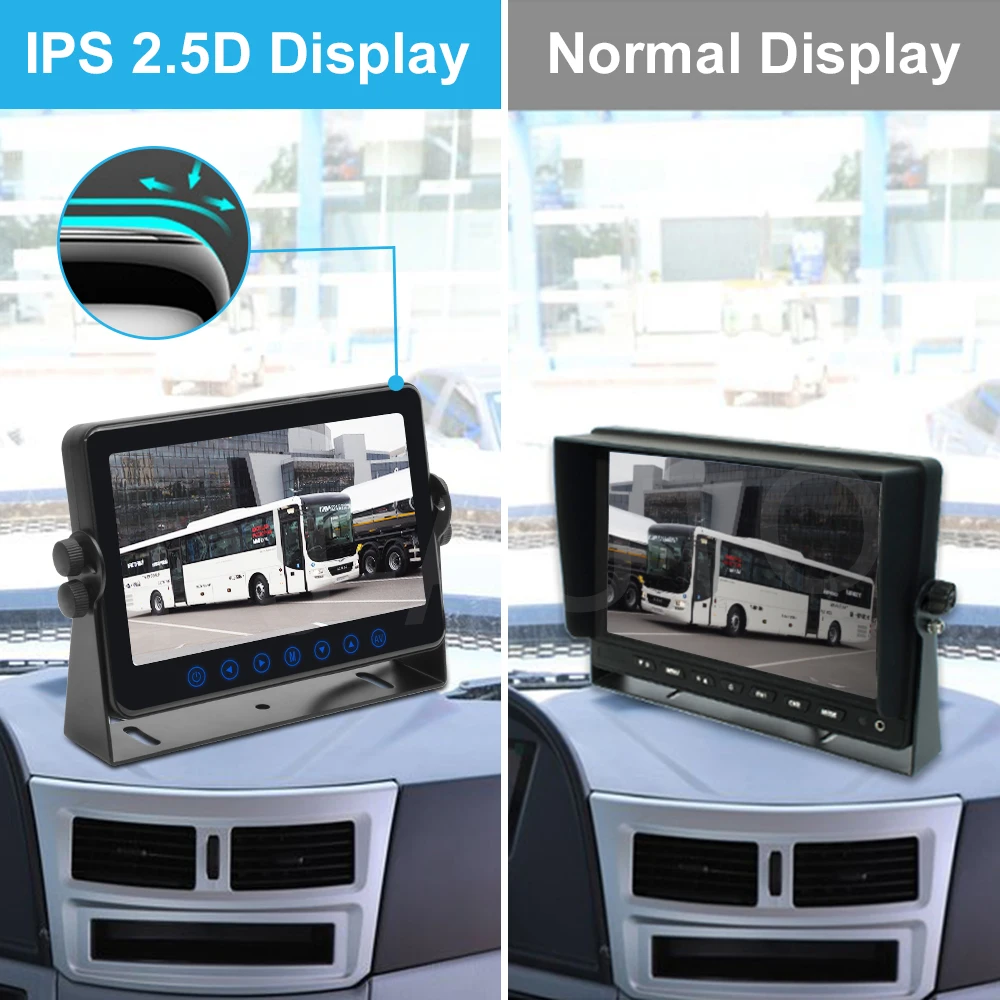

* Full glass surface with 2.5D rounded corner

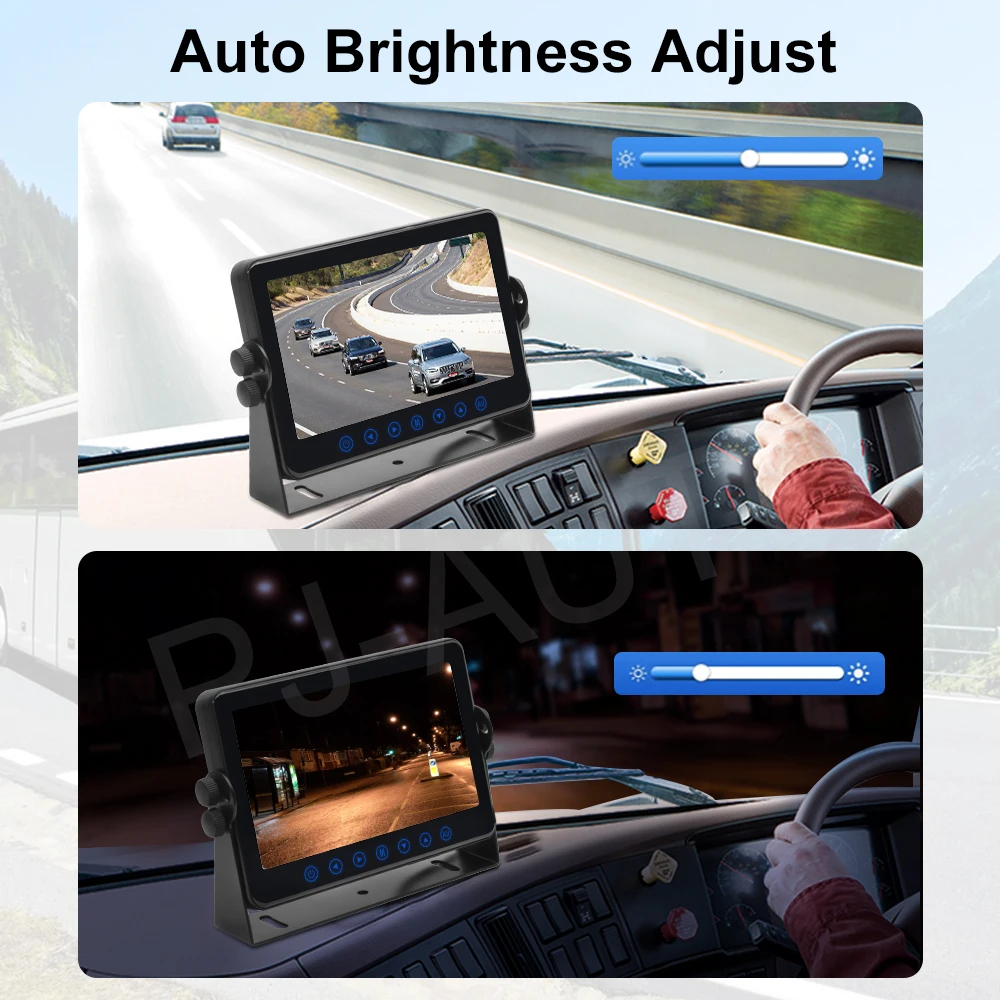

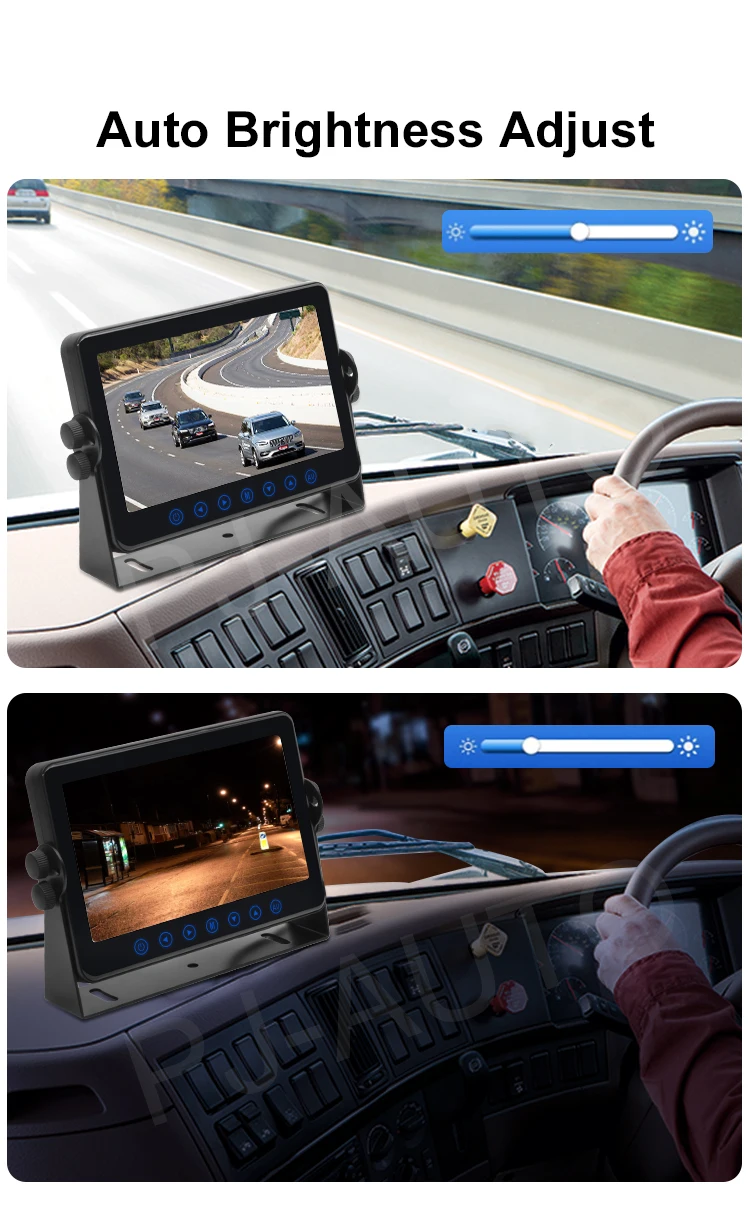

* Auto dim for night mode

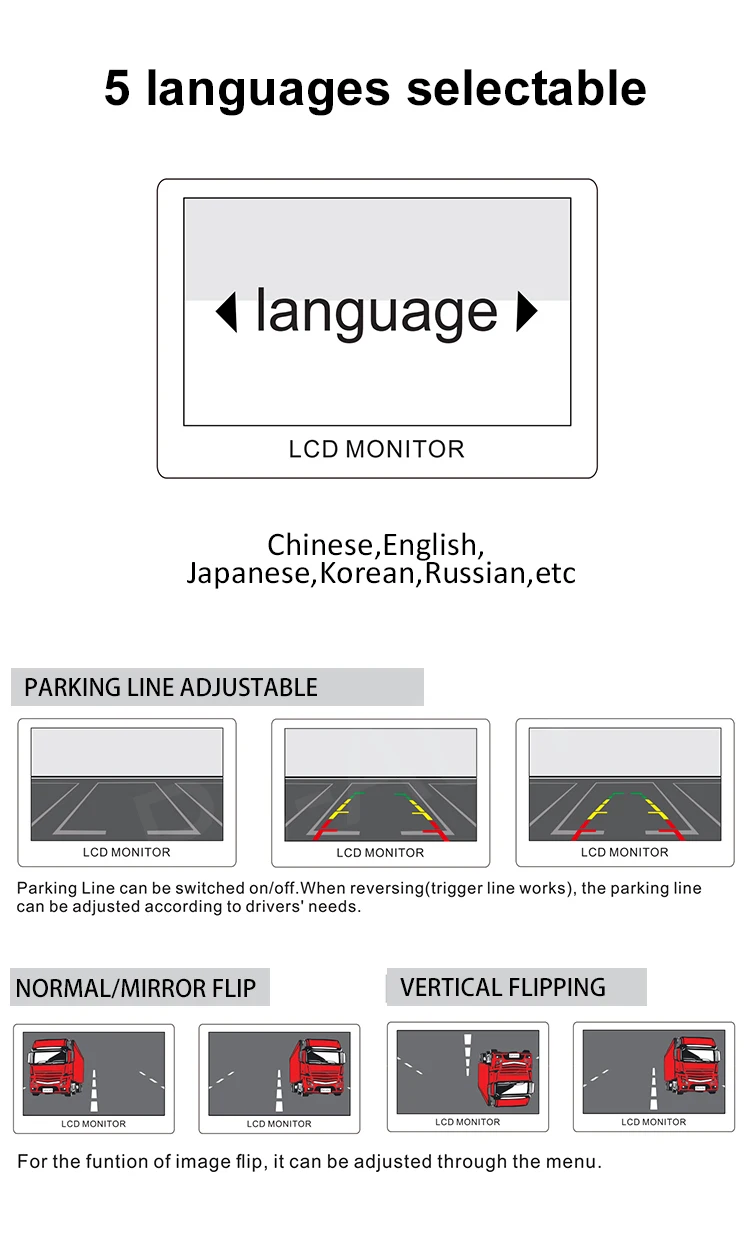

* OSD menu for setting of languages,mirror image,parking grid on/off,etc.
* Full compatibility with AHD 720P/1080P & CVBS(NTSC/PAL)
* Support mixing connection of cameras of different formats
* High brightness and high resolution display
* Fast boot up and fast switching by button or trigger(<2 seconds)
* DC 12-36V wide voltage range,industrial level PCB design with protection against over-voltage,under-voltage,reverse polarity,static and surge,etc.
* 4-pin aviation connector with waterproof cover
* Various bracket optional
* Up to 3 x video/audio/trigger inputs customizable
Product Features:
* IPS panel for wide & bright screen view
* Full glass surface with 2.5D rounded corner
* Auto dim for night mode
* OSD menu for setting of languages,mirror image,parking grid on/off,etc.
Specification:
Panel | 7’’ IPS | Aspect Ratio | 16:9 |
Resolution | 1024x3(RGB)x600 | Operating Temperature | -20~+70℃ |
Brightness | 500 cd/m² | Storage Temperature | -30~+80℃ |
Contrast | 700:1 | Power Consumption | Max.25W |
Viewing Angle | 85 /85 /85 /85 (L/R/U/D) | Power for Cameras | Max. 4×600mA, 12V |
Voltage Range | DC 12V-36V | Operating Pressure | 10~110g |
Standard Inputs | 3 x video OR 2 x video/audio | Initializing Time | <2 seconds |

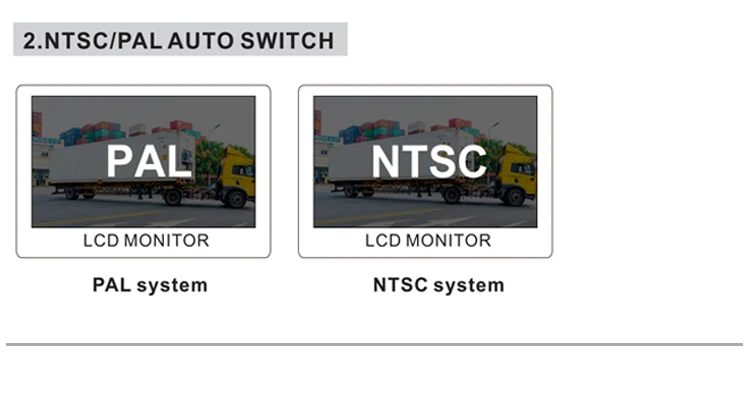

TV System | PAL / NTSC | Switching Time | <2 seconds |
Certifications
Company Profile
FAQ
Q1: Are you a factory or a trading company?
A1: We are a factory with R&D
Q2: Can you make OEM & ODM?
A2: Sure. We have more than 10 years of experience. We could offer you professional suggestion according to your needs.
Q3: What's your moq for OEM?
A3: MOQ is 300pcs to make the program to your own needs
Q4: What's your warranty and after sale service?
A4: 12 months warranty. We will get back to all your afte-sale problem within 24 hours.
Q5: Can you offer certification of the products in our country?
A5: Please inform us the certification you request first.We will send it to you if we have now. If not, we will offer sample for
your test.
Q6. What is your terms of delivery?
A6: EXW, FOB, CIF.
Q7. How about your delivery time?
A7: Generally, it will take 8 to 15 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q8. Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q9. Do you test all your goods before delivery?
A9: Yes, we have 100% test before delivery.
A1: We are a factory with R&D
Q2: Can you make OEM & ODM?
A2: Sure. We have more than 10 years of experience. We could offer you professional suggestion according to your needs.
Q3: What's your moq for OEM?
A3: MOQ is 300pcs to make the program to your own needs
Q4: What's your warranty and after sale service?
A4: 12 months warranty. We will get back to all your afte-sale problem within 24 hours.
Q5: Can you offer certification of the products in our country?
A5: Please inform us the certification you request first.We will send it to you if we have now. If not, we will offer sample for
your test.
Q6. What is your terms of delivery?
A6: EXW, FOB, CIF.
Q7. How about your delivery time?
A7: Generally, it will take 8 to 15 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q8. Can you produce according to the samples?
A8: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q9. Do you test all your goods before delivery?
A9: Yes, we have 100% test before delivery.
