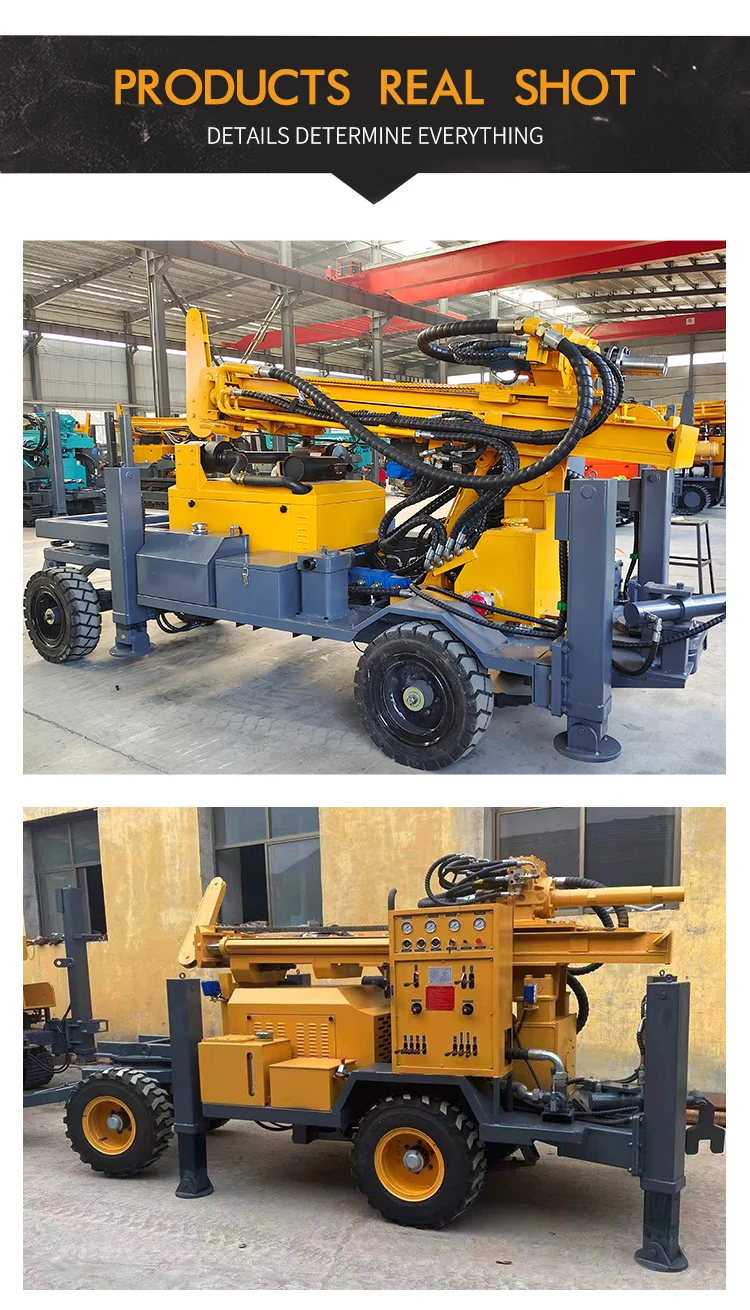

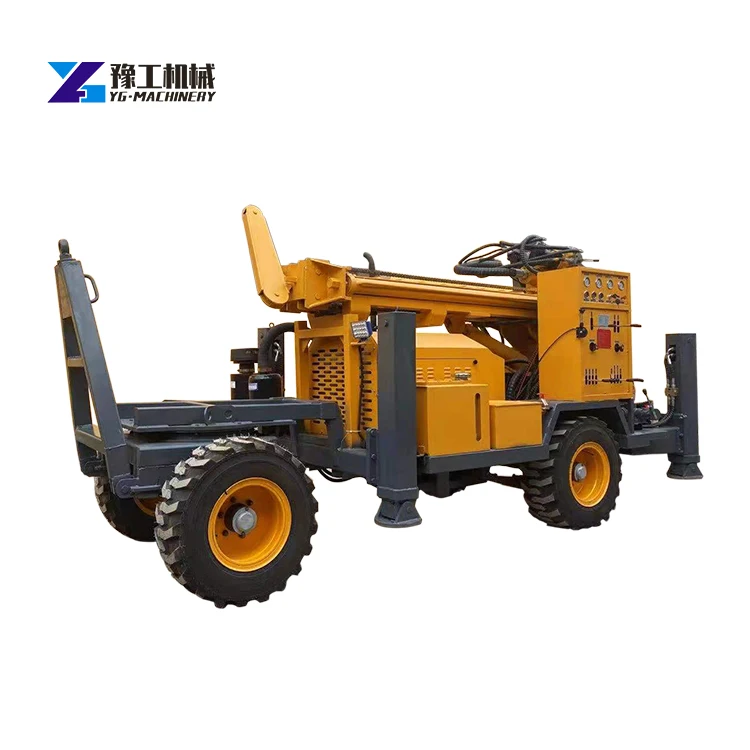

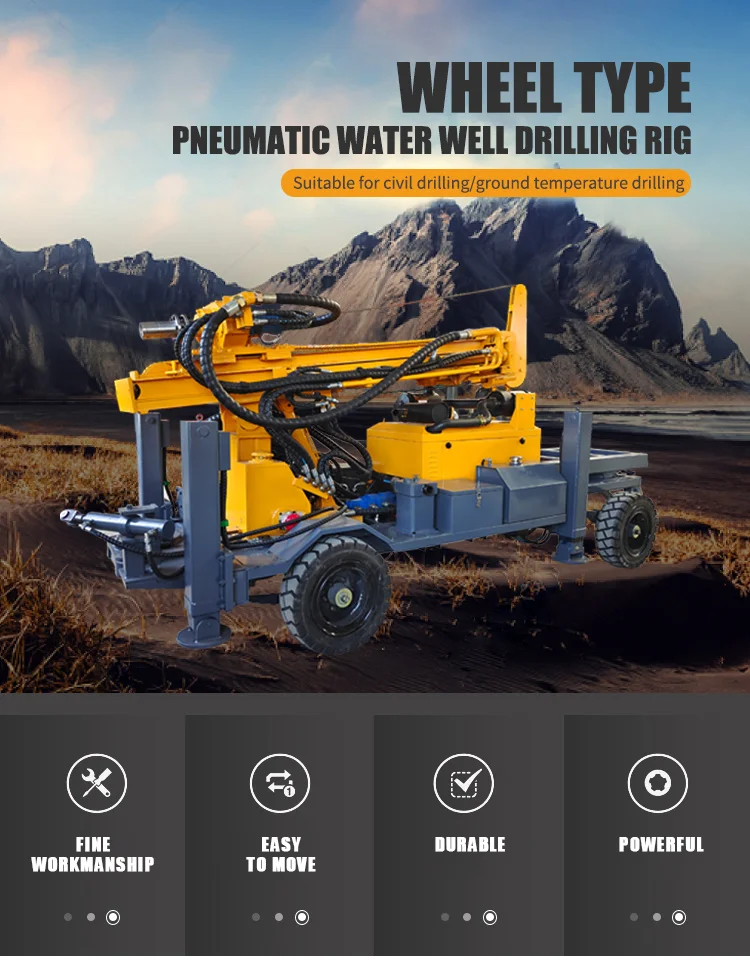

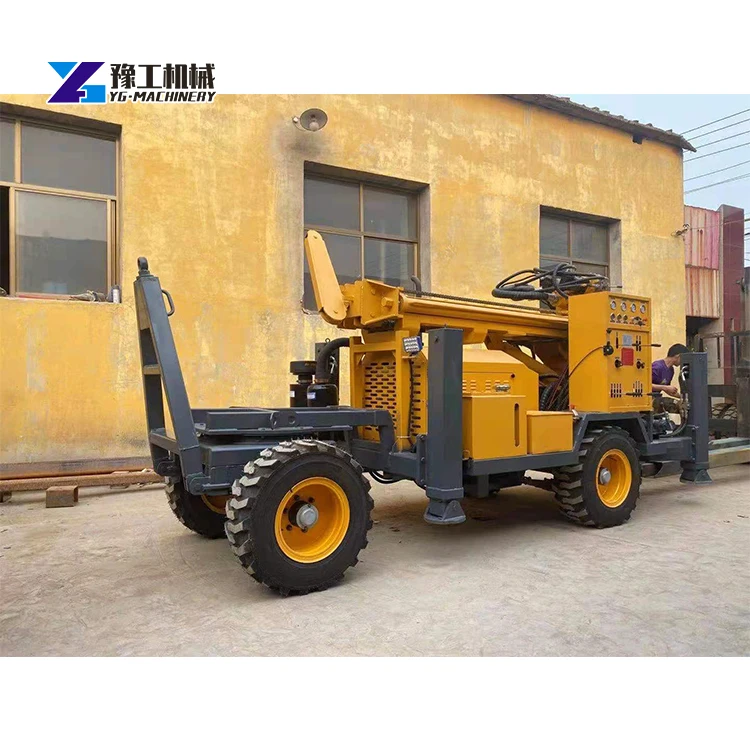

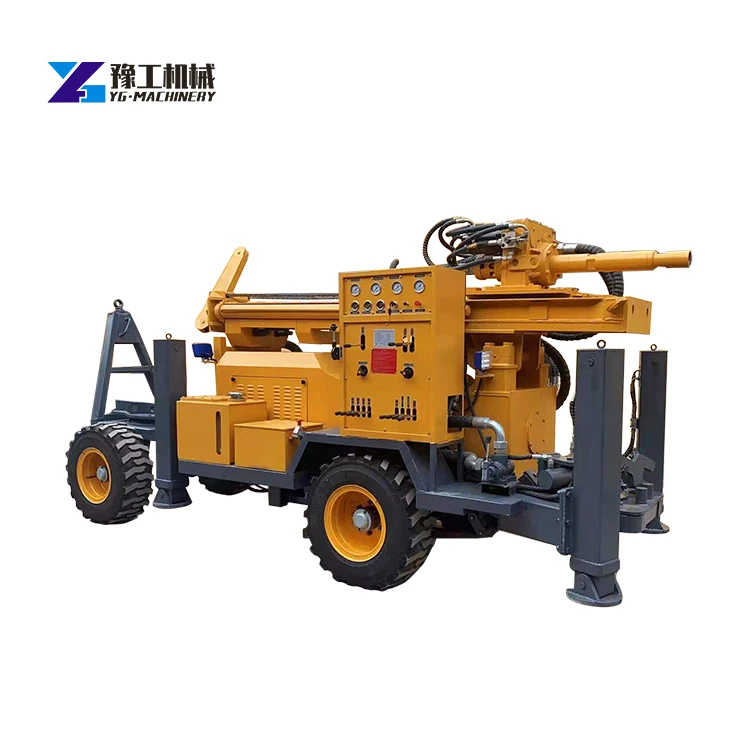

Water Well Drilling Rig with Diesel Engine Mine Drilling Rig Power Building Anchor Technical Rotary Table Drilling Rig

Product Overview

Description

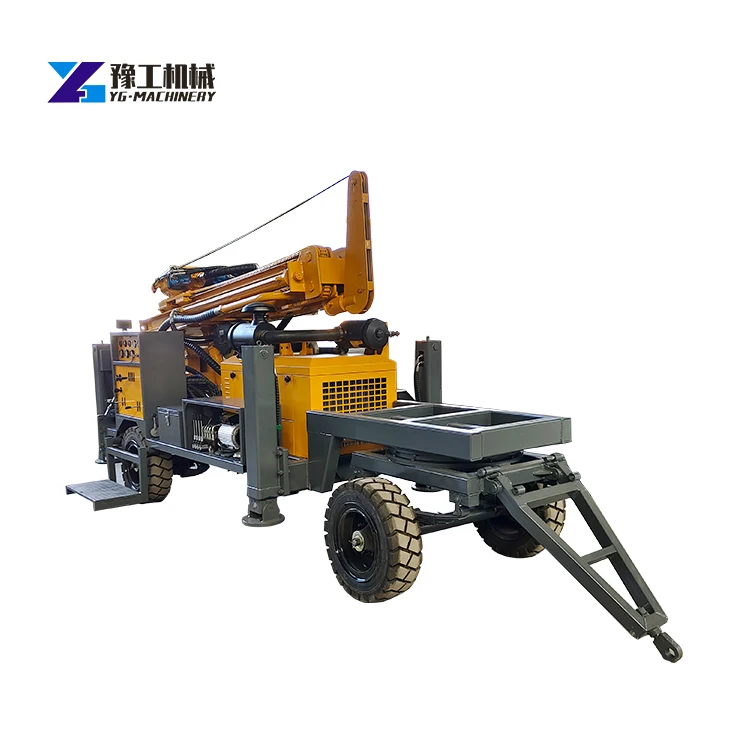

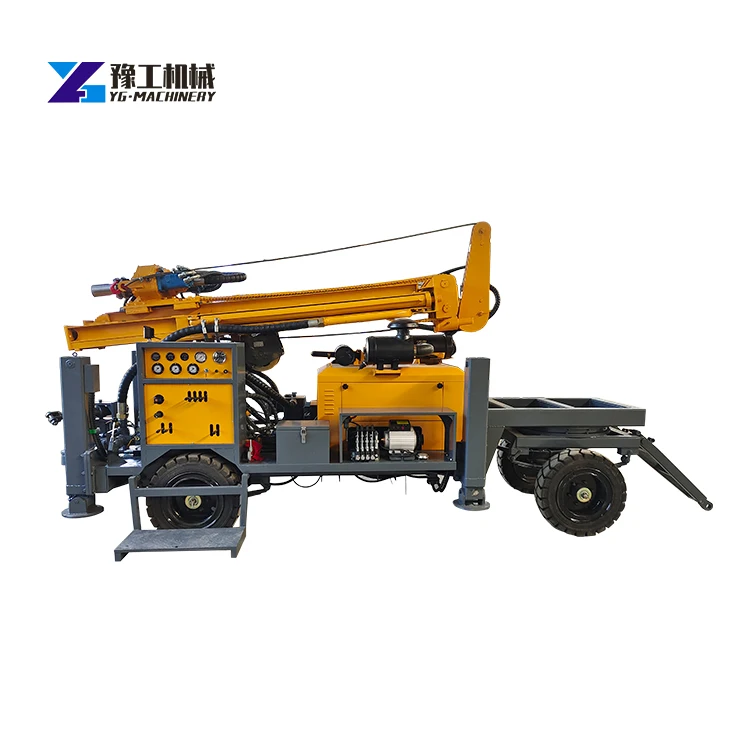

YG made deep water well drilling rig using newest model & advanced hydro technology, with high torque hydraulic motor rotation and large cylinder hydraulic cylinder advancement.

Our water well drilling machine are mainly used for drilling resource exploration hydrology wells, civil usage water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas.

Made from high quality materials, with fashion and compact design, which keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, rigs have received the real market validation as the majority of our customer’s positive feedback.



Feature

1.Hydraulic oil pump; parallel transmission design (patent) oil pump single body, power supply adequate distribution reasonable, hydraulic system unique design, simple maintenance cost small.
2.Used with air compressor, can drill 130M, 200M etc.

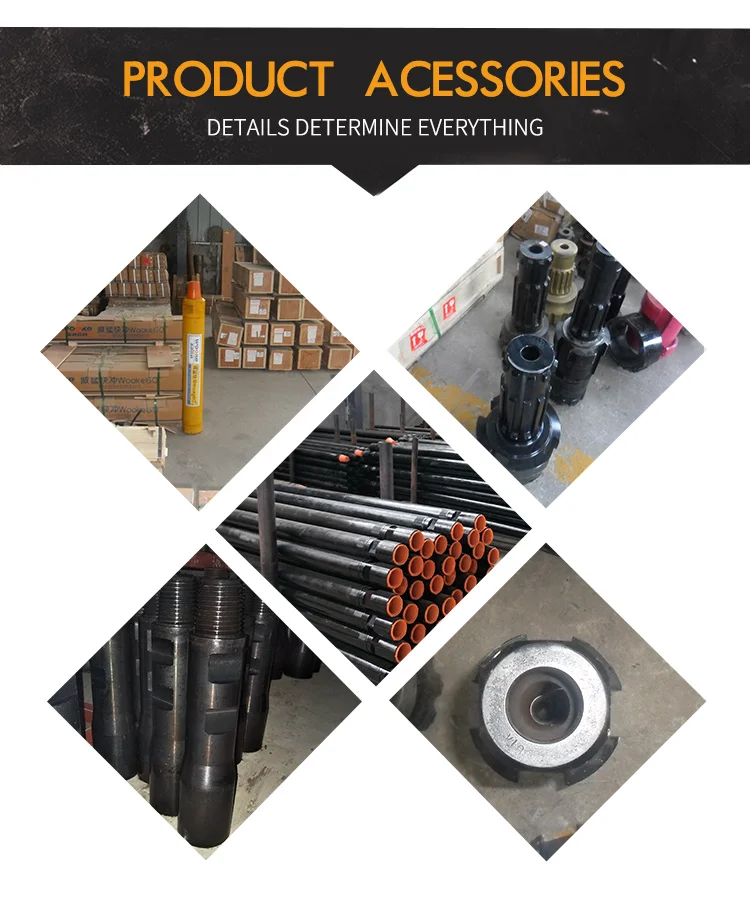

3.Usually drilling diameter is 6‘’, 8'', 10'', 12'', 14'',etc. According to your needs, we can configure the suitable drill pipe, drill bit and the right model.

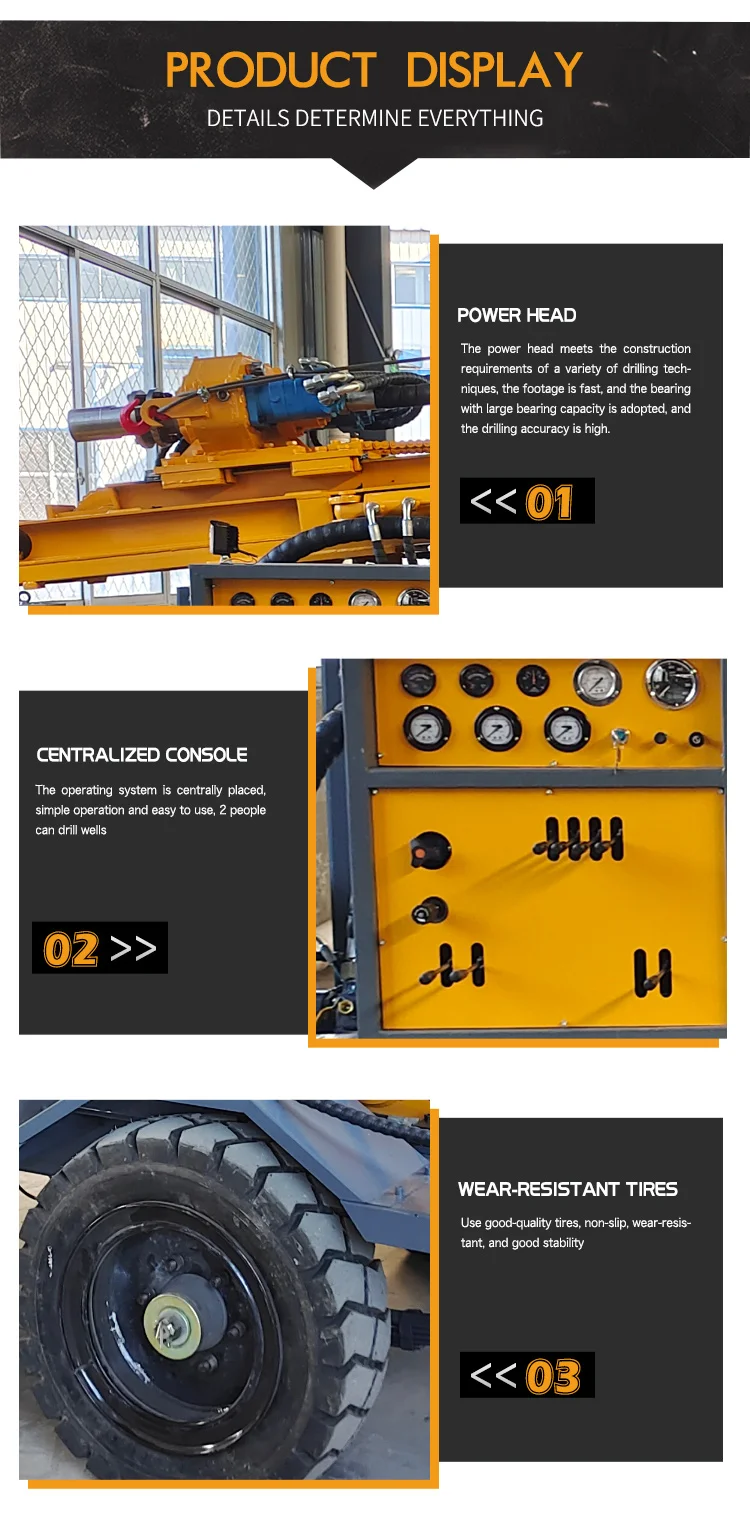

4. Power head device; gearbox casting, double motor power supply, torque, durability, maintenance costs are small.
5. Drilling rig chassis; Professional excavator chassis, durable, heavy load bearing, wide chain board, little damage to hard road surface.

Model	YG-W130
Max Drlling Depth	130-200m
Hole Diameter	Φ90-219mm
Drilling Pipe Diameter	Φ76/89mm
Drilling Pipe Length	1.5/2/3m
Rig Lifting force	6Ton
Rapid rise speed	0.5-5m/min
Fast feeding speed	23m/min
Climbing angles	30°
Rotating torque	2200-3000Nm
Rotating speed	40-65r/min
Engine power	Diesel, 23KW
Working air pressure	1.45-2.5MPa
Air consumption	15-29m3/min
Penetration efficiency	10-35m/h
High leg stroke	0.6m
Machine Dimensions	3850×1560×2050mm
Weight	3000kg
