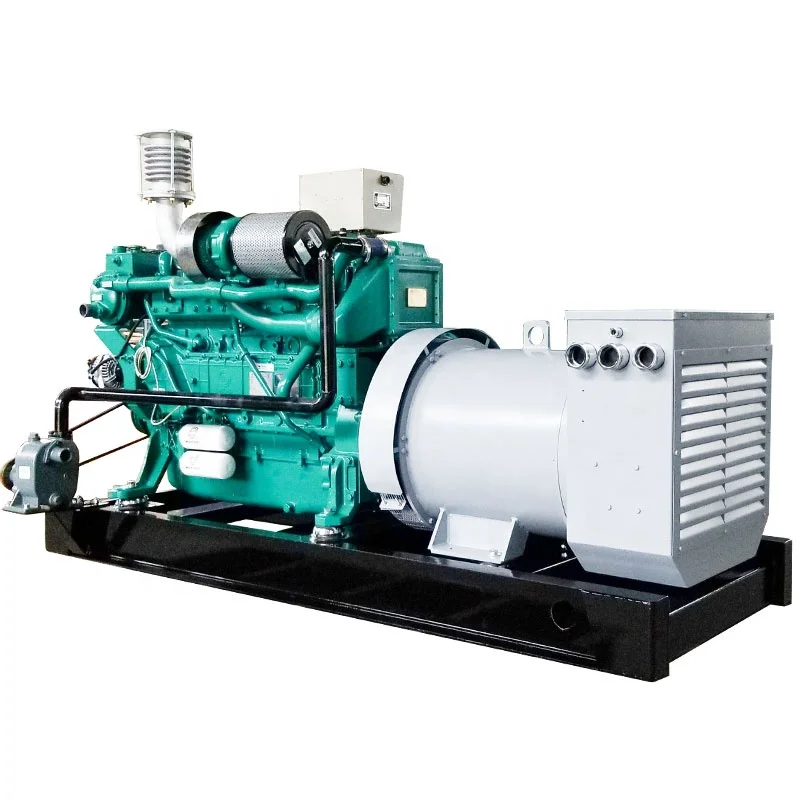

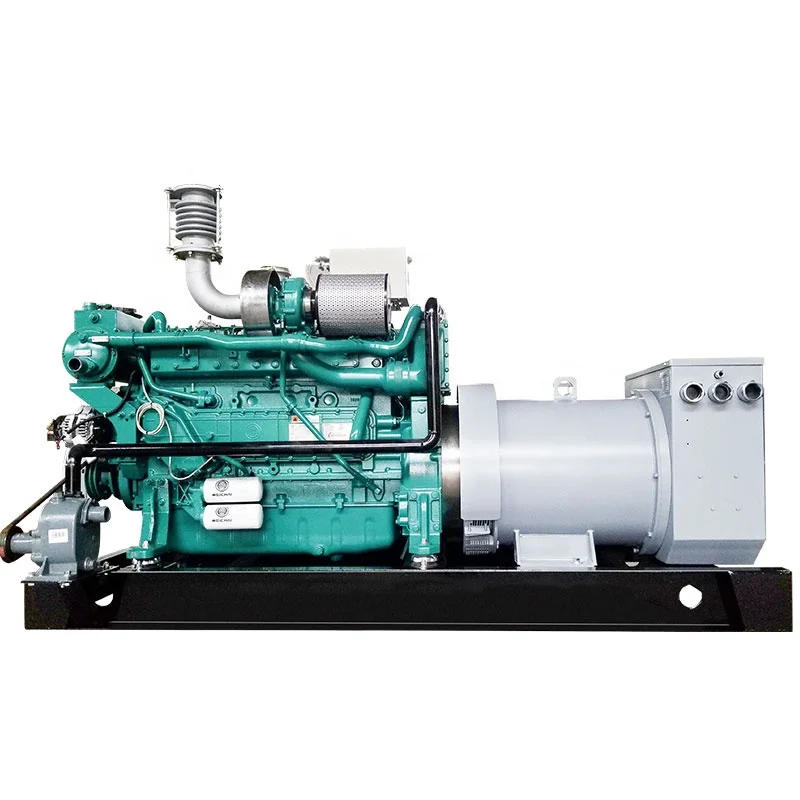

New CCS certificate powered by Cummins engine NTA855 D(M) 220kw marine diesel generator

Product Overview

Description

50HZ 220KW/275KVA Marine diesel generator set with Cummins engine NTA855-D(M).

Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-CCFJ220JC	400V/230V-3P	50	0.8	242 KW	220 KW	3180 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Cummins engine, Wellpower alternator and DeepSea/ComAp/SmartGen control panel

Parts Description

Control panel: DeepSea/ComAp/SmartGen Relay brand: Siemens APT Connect: Engine+Alternator-Terminal-Control panel Key+Emergency stop+Light: Famous brand, perfect quality

Engine Spec

Engine model	NTA855-D(M)
Engine manufacturer	Cummins
Number of Cylinders	6 cylinders in line
Cycle	4 stroke
Aspiration	Turbocharged
Bore×Stroke	140mm x152mm
Displacement	14 L
Compression ratio	14 : 1
Prime Power	284 KW
Standby Power	312 KW
Steady speed droop	≤ 1%
Voltage	400 V
Fuel Consumption	61.18 L/h
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Alternator model	Stamford / Leroy Somer/ Wellpower
Prime power	220 KW
Frequency/speed	50HZ/1500RPM
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three Phases

Control Panel

Model	Deepsea/ComAp/SmartGen
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts

Standard Accessories

Standard Accessories	Open type	Silent type
Sound-proof & Weather-proof Canopy	N/A	√
Daily base fuel tank. 8 hours capacity	N/A	√
Single-bearing generator again drops	√	√
Intelligent LED display control panel	√	√
Speed governor	√	√
Electric start and 24v charger	√	√
Standard air filter, oil filter, fuel filter	√	√
Cooling water tank	√	√
High-efficient silencer.	√	√
Exhaust elbow	√	√
Storage battery	√	√
Steel base-frame against vibration	√	√
Soft pipe for fuel and handle for lube going-out	√	√
Operation& Maintenance manual.	√	√



About us

Jiangsu Wellpower generator Co.,Ltd which is one of the largest diesel generator set manufacturers in China mainland. Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of Cummins, Volvo penta, Perkins, Deutz, Daewoo, Mtu, Shangchai, Fawd, Weichai, Jichai and other engines to equip with Stamford, Marathon, Leroy somer, Mecc alte, Simens, Engga... Our gensets mainly use Deepsea and SmartGen control panel. According to your requests, they can be open type, silent type, trailert type and container type. Our goal is to provide our users the best and most effective power solution. Customers needs are the direction of our efforts, customer satisfaction is our pursuit.

Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to cantact us.
