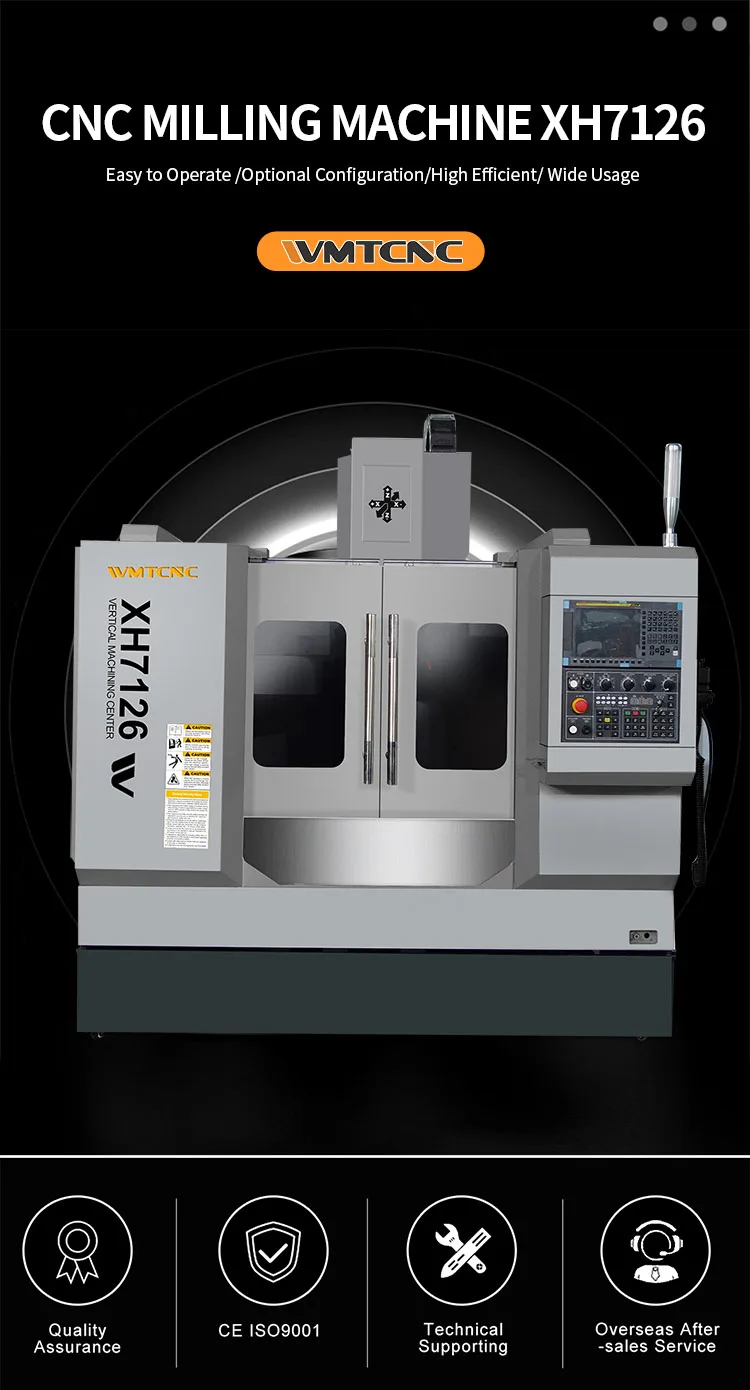

high precision cnc milling machine XH7126 3 axis cnc milling machine
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1600729071912):
Product Overview
Description
Product Description
CNC Milling Mahcine Main Features:
1. High precision hard guideway and screw.

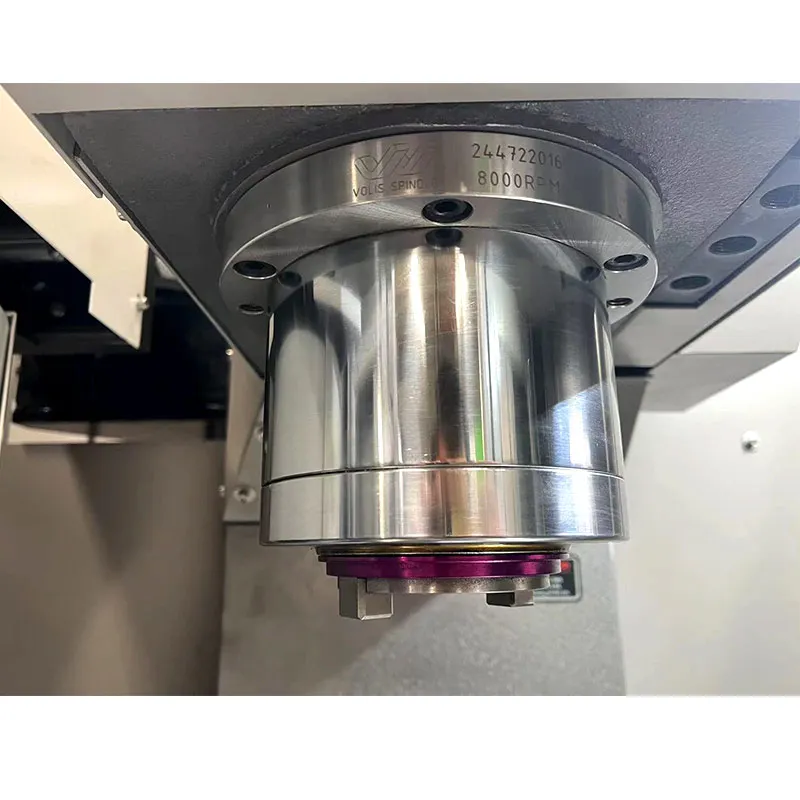

2. Taiwan-made spindle unit, 6000, 8000rpm speed available.

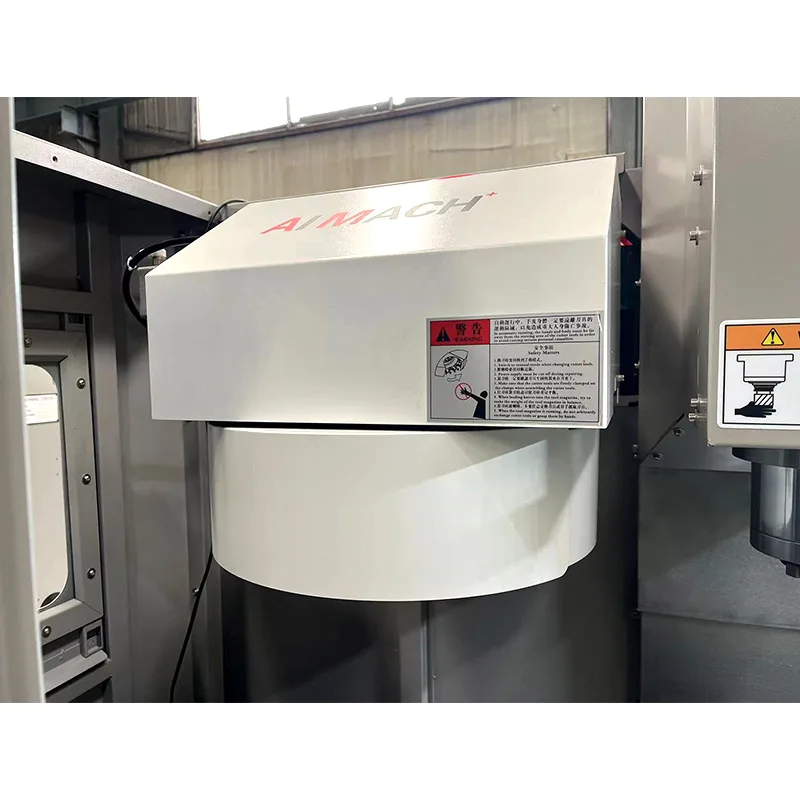

3. Taiwan brand 10T/12T ATC can be choosen.

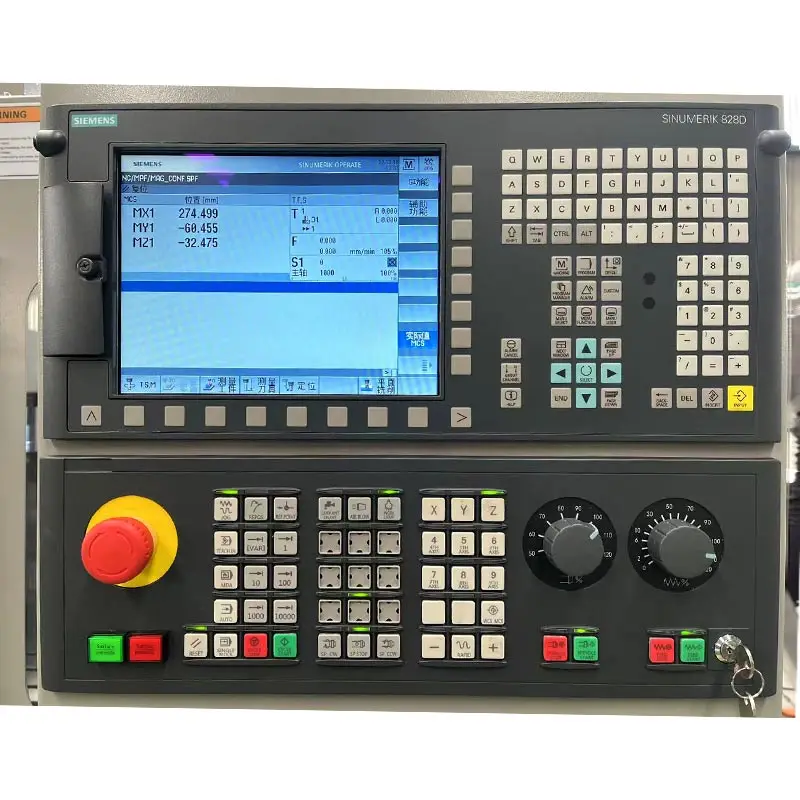

4. Reliable Control System: Fanuc, Siemens, Mitsubishi, GSK.

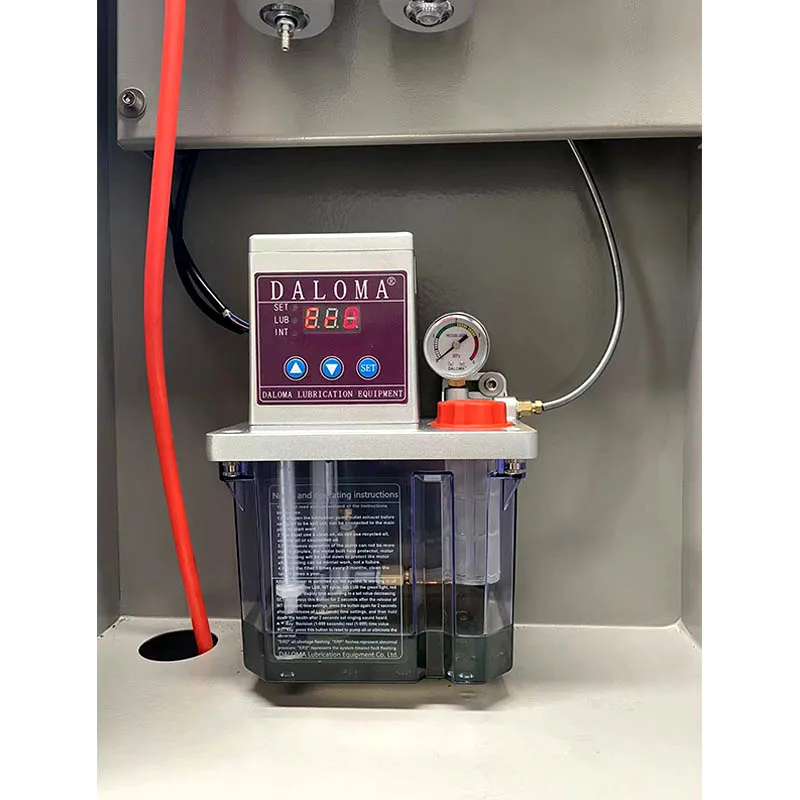

5. Automatic Central Lubrication System.
1. High precision hard guideway and screw.
2. Taiwan-made spindle unit, 6000, 8000rpm speed available.
3. Taiwan brand 10T/12T ATC can be choosen.
4. Reliable Control System: Fanuc, Siemens, Mitsubishi, GSK.
5. Automatic Central Lubrication System.
Specification | Unit | XH7126 | ||
Controller | GSK980MDC | |||
Worktable | Worktable size(L x W) | mm | 800X260 | |
T-slot(NxWxD) | mm | 3x14x80 | ||
Travel | X/Y/Z axis travel | mm | 450/320/450 | |
Capacity | Distance from spindel center to column | mm | 360 | |
Distance from spindle nose to worktable surface | mm | 90-470 | ||
Spindle | Spindle taper | BT40 | ||
Spindle power | KW | 5.5 | ||
Max.spindle speed | rpm | 8000 | ||
Feed | Rapid feed speed (X/Y/Z) | m/min | 15/15/15 | |
Ball screw | X/Y/Z axis ball screw | Chinese brand | ||
Tool magazine | Tool magazine capacity | T | 12 | |
Positioning accuracy | Positioning accuracy(X/Y/Z) | mm | 0.02 | |
Re-Positioning accuracy(X/Y/Z) | mm | 0.01 | ||
Machine dimension | LxWxH | mm | 2100x1800x1960 | |
Machine weight | N.W | kg | 2400 | |
Detailed Images
Company Profile
Professional Service
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
