Products Description

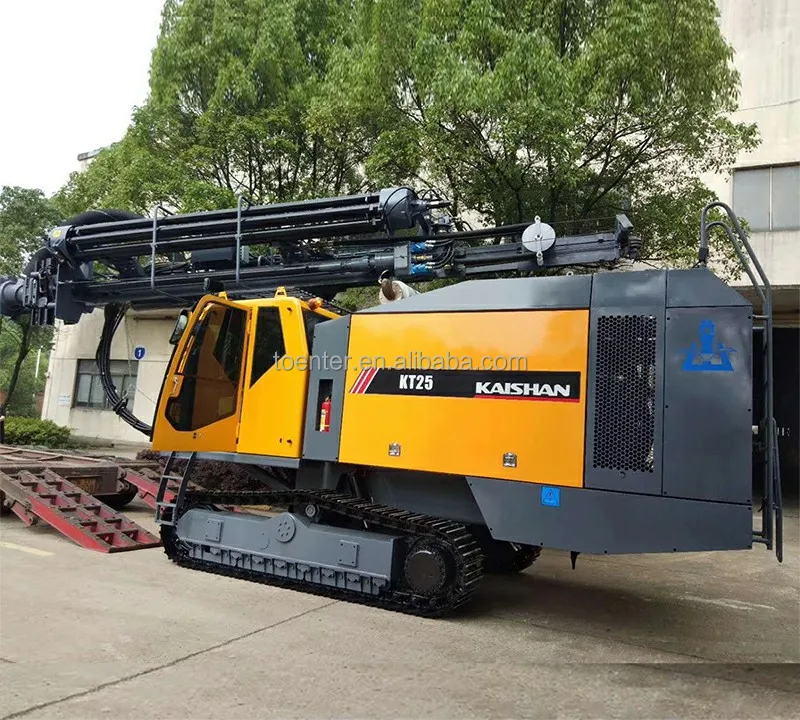

KT25 Integrated Down the hole Drill Rig for Open Use
The drill rig is equipped with the automactic rod handling system,drill pipe floating joint module,drill pipe lubrication
module,drill pipe sticking prevention system,hydraulic dry dust collection system,air conditioning cab,etc.optional drilling angle and depth indication function.The drill rig is characterized by excellent integrity,high automation,efficient drilling,environment-friendliness,energy conservation,simple operation,flexibility and travelling safert,ect.




The KT25 integrated down the hole drill rig for open use can drilling vertical,inclined and horizontal holes,mainly used for
open-pit mine,stonework blast holes and pre-splitting holes,It is driven by the Caterpillar diesel engine and two-terminal output can drive the screw compression system and hydraulic transmission system.




Products paramenters


KT25 Technical Parameters
Drilling hardness
f=6-20
Drilling diameter
152-203mm
Depth of economical drilling(Depth of automatic extension rod
35m
Travelling speed
3.0Km/h
Climbing capacity
25º
Ground clearance
430mm
Power of complete machine
328Kw
Diesel engine
Caterpillar C13
Displacement of screw compressor
26m³/min
Discharge pressure of screw compressor
25bar
Outer dimensions(L*W*H)
12200*2840*3620mm
Weight
25800kg
Revolving speed of gyrator
0-118r/min
Rotary torque
6100N*m
Maximum feed force
65KN
Tilt angle of beam
125º
Swing angle of carriage
Right37º，Left37º
Swing angle of drill boom
Right42º，Left15º
Leveling angle of frame
Up10º，Down10º
Compensation length
1800mm
DTH hammer
K5.K6
Drilling rod(φ*length of drilling rod)
φ102*5000mm
Method of dust removal
Dry(hydraulic cyclonic laminar flow)/wet(optional)
Method of extension rod
Automatic unloading rod
Method of automatic anti-jamming
Electro-hydraulic control anti-sticking
Method of drilling rod lubrication
Automatic oil injection and lubrication
Protection of thread of drilling rod
Equipped with the floating joint to protect the thread of drilling rod
Drilling display
Real-time display of drilling angle and depth






Company Profile

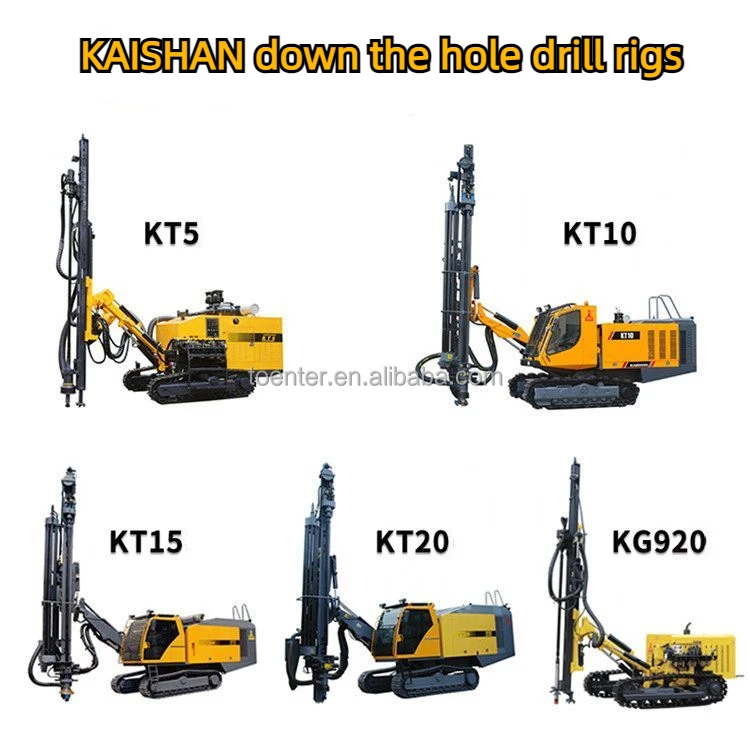

Recommend other Models
