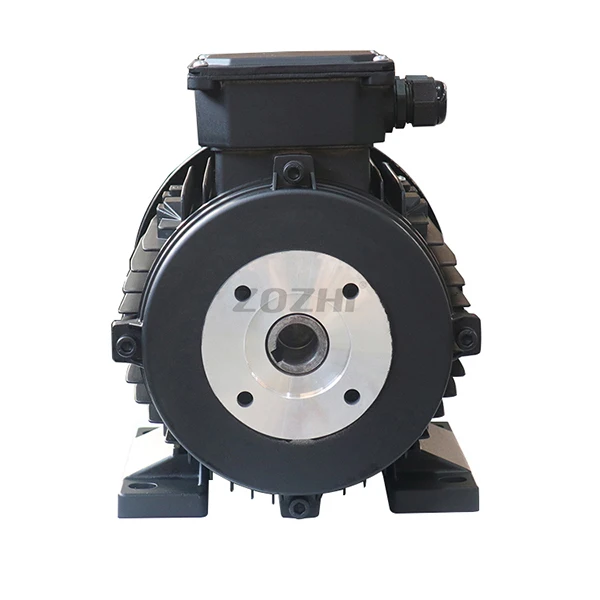

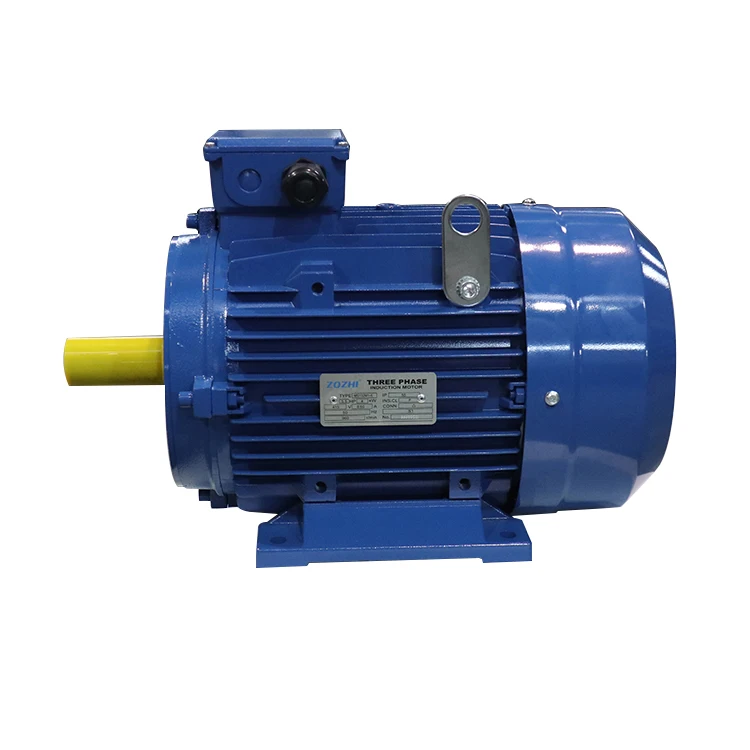

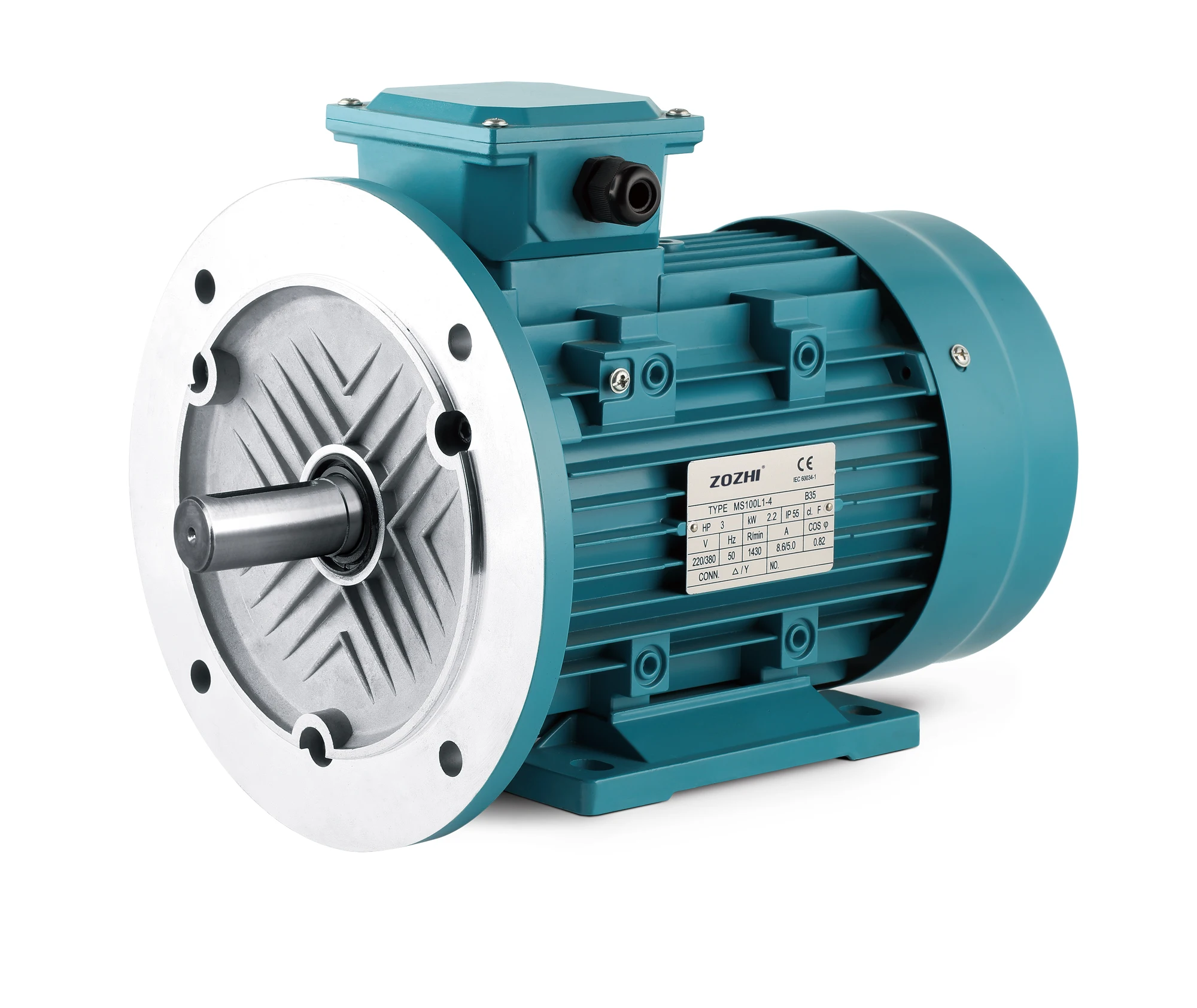

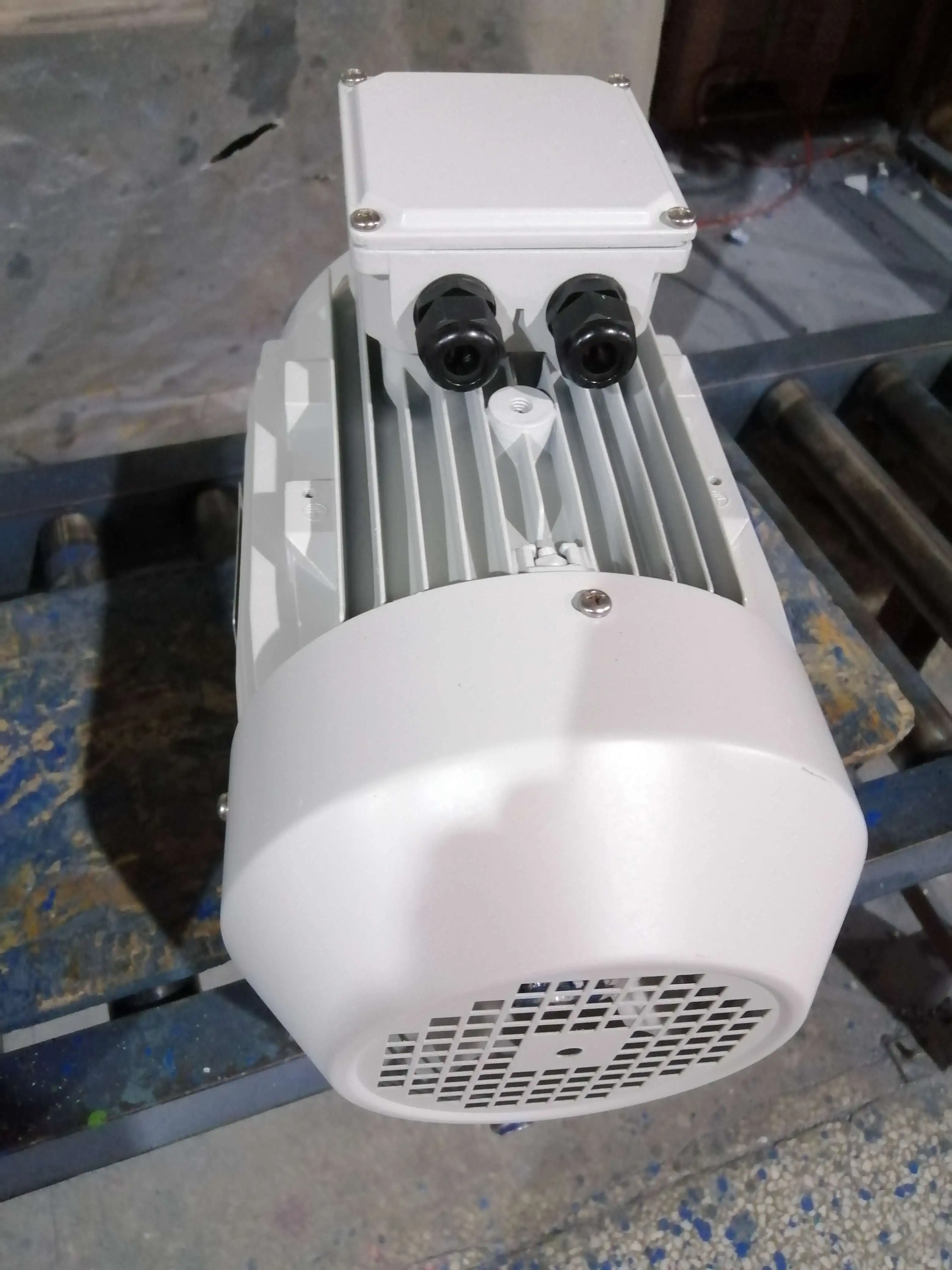

ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3
ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3
ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3
ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3
ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3
ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3
ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3

ZOZHI 7.5kw 3 Phase Aluminum AC Electric High Power Motor for Ms Series IE1 IE2 IE3

Share on (1600729129454):


Price:$30.00

Quantity:


Product Overview

Description



Product Description



ZOZHI motors are designed with the new European standard IEC60034-30 for hIgh efficiency.

Three phase, MS (IE1/IE2/IE3) series aluminum housing motors that can be used in a multitude of applications in the commercial, industrial, building service, water treatment and agricultural fields whter superior quality, and reliability is demanded

MS series is designing and manufacturing according to the parameters of the new eruopean classification standard for high-efficiency IE1, IE2&IE3

IE3 series Super high-efficiency motor is according to IEC 60034-1 part 1: energy efficiency classification and performance of rotating motor and IEC 60034-2-1 part 2-1: losses and testing method of rotating motor, which is the most authoritative efficiency classification standard in the world. These motors are also in compliance with the efficiency standards covered by USA NEMA, CANADA CSA Premium efficiency,AUSTRALIA AS, NEW ZEALAND NZS, CEMEP, JIS,and Chinese GB motor standard.

Working Condition

Ambient temperature : -15℃≤~≤40℃
Altitude: not exceed 1000m
Insulation Class: F
Rated voltage: ±5%

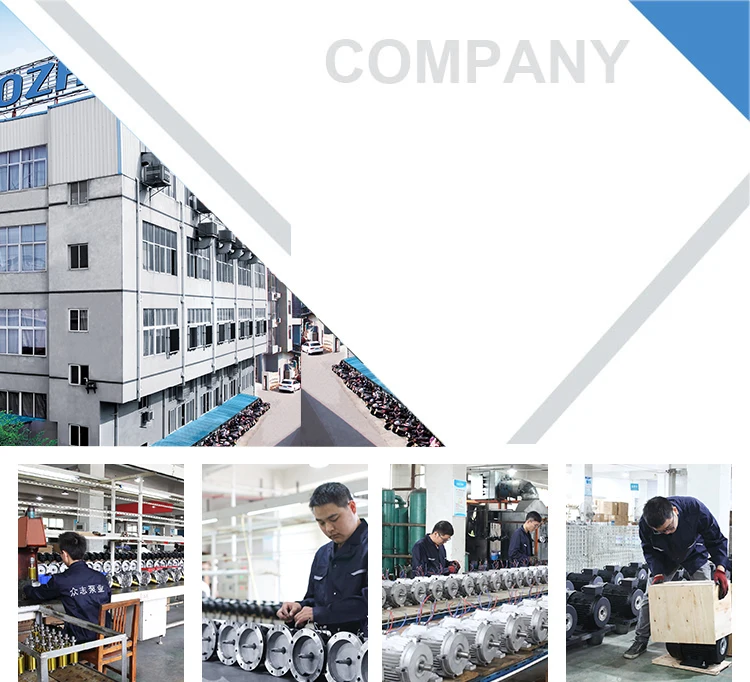

Company Profile
























Technology Data


FRAME
POWER
KW        HP
Voltage
(V)
Current
(A)
Speed (r/min)
              EFF.%
50%          75%            100%
P.F.
IE3 MS801-2
0.75
1
230/400
2.82/1.63
2820
79.7
81
80.7
0.831
IE3 MS802-2
1.1
1.5
230/400
4.0/2.3
2820
81.5
82.9
82.7
0.836
IE3 MS90S-2
1.5
2
230/400
5.23/3.02
2840
84
85
84.2
0.857
IE3 MS90L-2
2.2
3
230/400
7.44/4.3
2840
86
86.5
85.9
0.865
IE3 MS100L-2
3
4
230/400
9.9/5.72
2850
88.2
87.3
87.1
0.873
IE3 MS112M-2
4
5.5
400/690
7.48/4.32
2870
88
88.4
88.1
0.88
IE3 MS132S1-2
5.5
7.5
400/690
10/5.8
2900
89.1
89.6
89.2
0.89
IE3 MS132S2-2
7.5
10
400/690
13.5/7.8
2900
90
90.5
90.1
0.892
IE3 MS160M1-2
11
15
400/690
19.5/11.3
2920
89.8
91.3
91.2
0.896
IE3 MS160M2-2
15
20
400/690
26.2/15.1
2920
91.6
92
91.9
0.805
IE3 MS160L-2
18.5
25
400/690
31.9/18.4
2920
92.1
92.5
92.4
0.91
IE3 MS802-4
0.75
1
230/400
2.97/1.72
1400
81
82.7
82.5
0.77
IE3 MS90S-4
1.1
1.5
230/400
4.25/2.45
1420
82.6
84.3
84.1
0.775
IE3 MS90L-4
1.5
2
230/400
5.68/3.28
1420
83.8
85.4
85.3
0.778
IE3 MS100L1-4
2.2
3
230/400
8.0/4.62
1440
84.3
86.7
86.7
0.798
IE3 MS100L2-4
3
4
230/400
10.8/6.2
1440
86
87.6
87.7
0.801
IE3 MS112M-4
4
5.5
400/690
7.97/4.6
1450
88.3
88.8
88.6
0.821
IE3 MS132S-4
5.5
7.5
400/690
10.8/6.2
1450
89
89.7
89.6
0.825
IE3 MS132M-4
7.5
10
400/690
14.4/8.32
1450
90.1
90.6
90.4
0.834
IE3 MS160M-4
11
15
400/690
20.8/12.0
1460
90.5
91.5
91.4
0.838
IE3 MS160L-4
15
20
400/690
27.9/16.1
1460
91.5
92.5
92.1
0.847
IE3 MS90S-6
0.75
1
230/400
3.42/1.97
910
77.5
94.4
78.9
0.7
IE3 MS90L-6
1.1
1.5
230/400
4.8/2.78
910
80.2
81.3
81
0.71
IE3 MS100L1-6
1.5
2
230/400
6.35/3.66
930
81.3
82.6
82.5
0.72
IE3 MS112M-6
2.2
3
230/400
8.98/5.2
940
83.2
85
84.3
0.73
IE3 MS132S-6
3
4
230/400
11.9/6.87
960
84.5
85.8
85.6
0.74
IE3 MS132M1-6
4
5.5
400/690
9.0/5.2
960
85.3
86.9
86.8
0.745
IE3 MS132M2-6
5.5
7.5
400/690
12.1/7.0
960
86.9
88.2
88
0.75
IE3 MS160M-6
7.5
10
400/690
16.1/9.3
970
87.5
89
89.1
0.76
IE3 MS160L-6
11
15
400/690
22.9/13.2
970
89
90.2
90.3
0.77




Application




Hot Products




Our Customer




Exhibition




FAQ


Q1 Are you a manufacturer or a trading company? We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance , balance before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
