Система навигации на тракторе JY305, система gps навигации ag, система автоматического рулевого управления, система авторулевого управления с антенной
- Category: Navigation & GPS >>>
- Supplier: SZFP (Shenzhen) Technology Limited
Share on (1600729136546):
Product Overview
Description
Product Description
What is Agriculture Navigation System
Agriculture navigation system is born for intelligent farming which help farmer enhance the productivity. There are Guidance system,land leveling system and auto steering system for options
Auto steering system is positively introduced because its creative technology for agriculture.

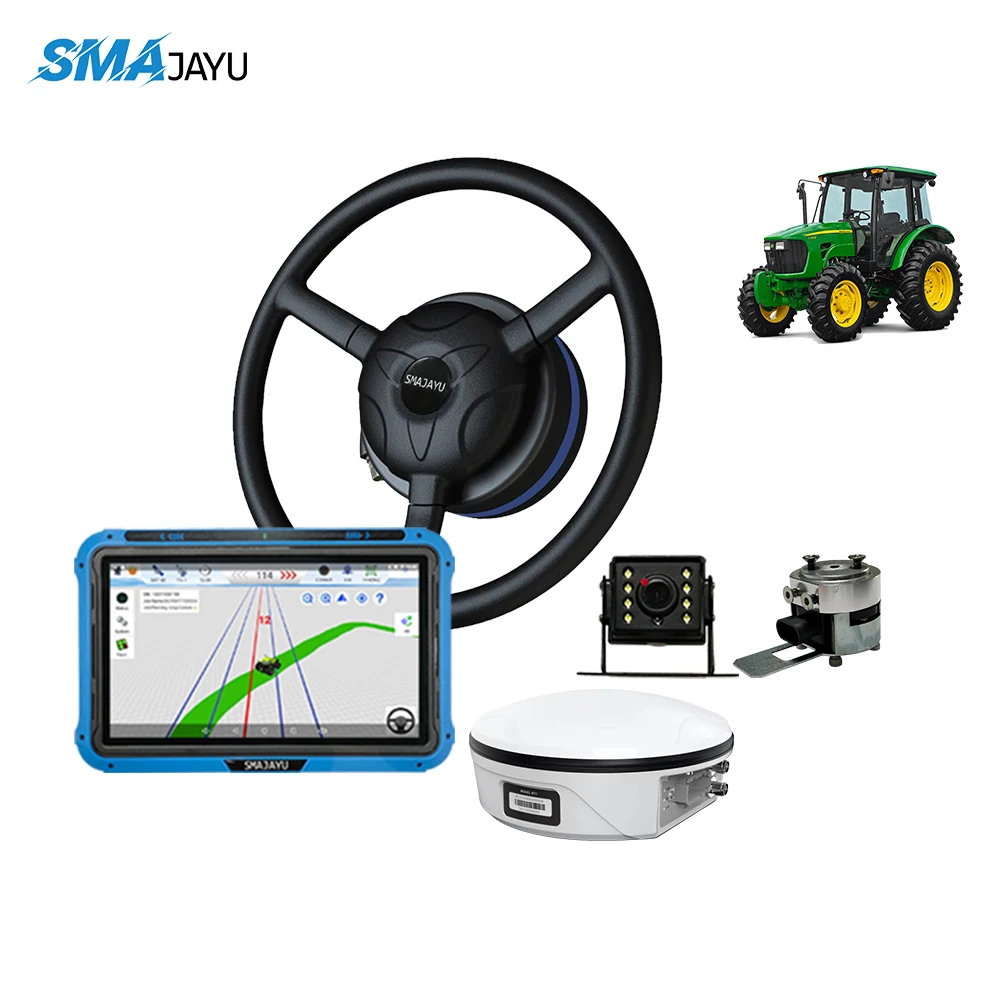

The system consists of a base station and a vehicle control part.
The vehicle control part includes a control tablet integrated with a high - precision GNSS board , a steering wheel motor with a built-in controller , and an angle sensor. It can be widely used for tractor guidance, land leveling, sowing , cultivating , trenching , ridging ,spraying pesticide , transplanting , land Angle Sensor consolidation , harvesting , and other work sceneries.
If you have a Tractor, you can install this system to make your tractor driveless on farm for precision farming.
Auto steering system is positively introduced because its creative technology for agriculture.
The system consists of a base station and a vehicle control part.
The vehicle control part includes a control tablet integrated with a high - precision GNSS board , a steering wheel motor with a built-in controller , and an angle sensor. It can be widely used for tractor guidance, land leveling, sowing , cultivating , trenching , ridging ,spraying pesticide , transplanting , land Angle Sensor consolidation , harvesting , and other work sceneries.
If you have a Tractor, you can install this system to make your tractor driveless on farm for precision farming.
Specification
JY302 | item | value |

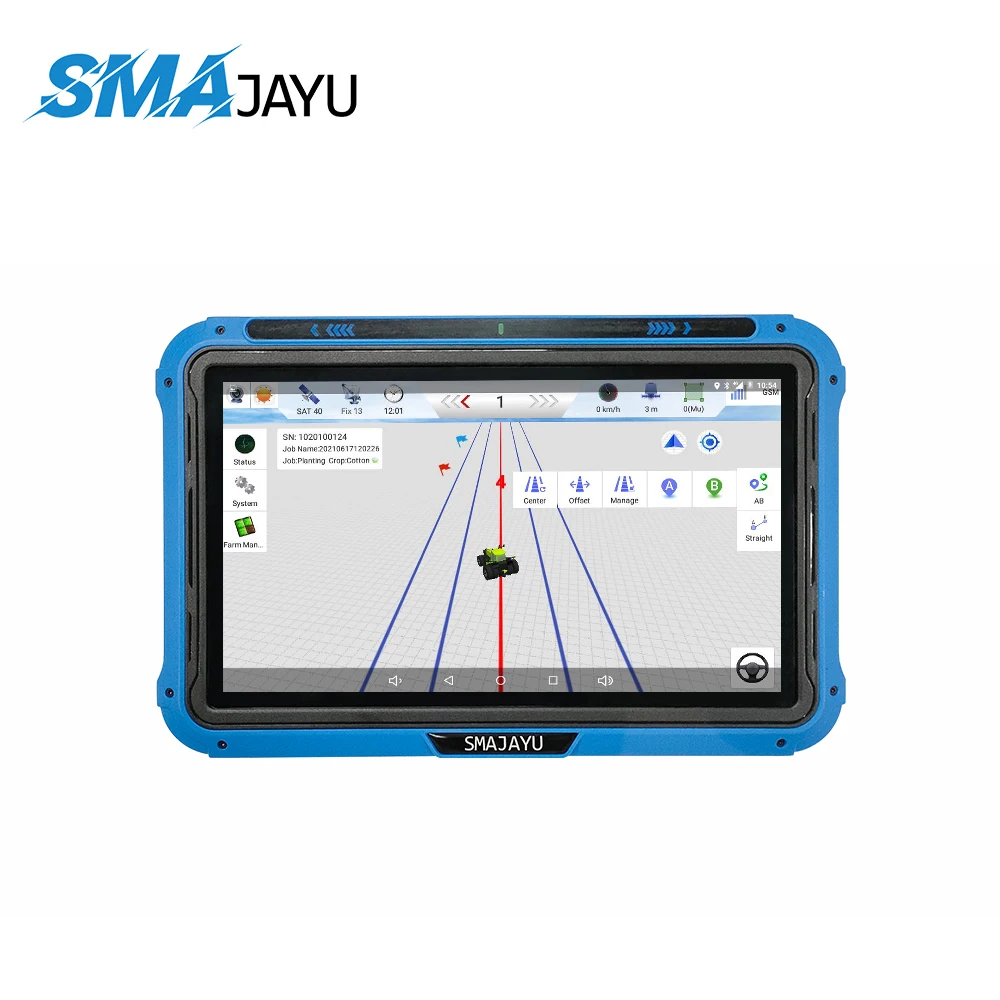

T100 Control Tablet | Operating System | Android |
CPU | Quad-Core 1.5GHz | |
Memory | 2GB RAM + 16GB ROM | |
External Flash | T-Flash, up to 64GB | |
LCD | 10.1’’ Capacitive Touch Screen | |
Resolution | 1024x600 pixels | |
Dimension | 281mmx181mmx42mm | |
Weight | 1.5kg | |

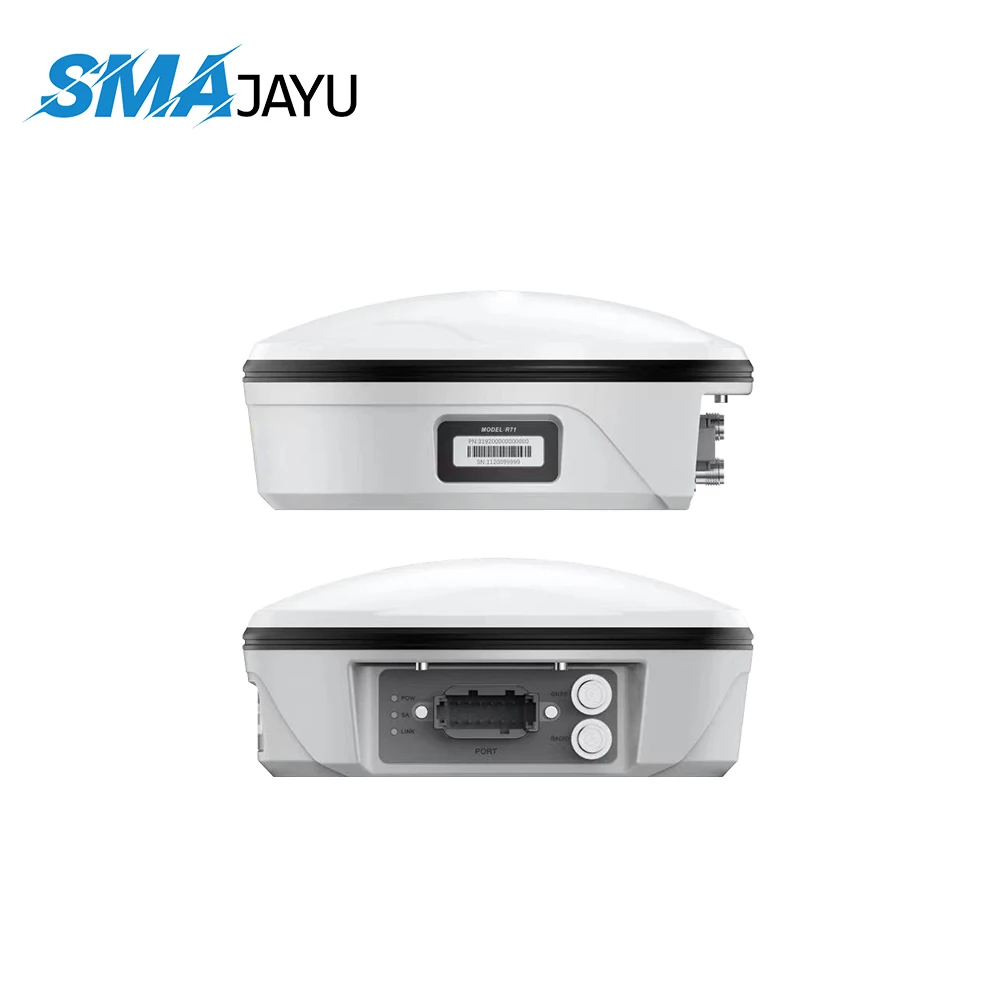

R70 Smart Antenna | Operating Temperature | -30℃~+70℃ |
Storage Temperature | -40℃~+85℃ | |
Physical Dimension | 179×179×69mm | |
Weight | 1.1Kg | |
Humidity | 95% No Condensation | |
lmpact and Vibration | Resistance for 2m drop | |

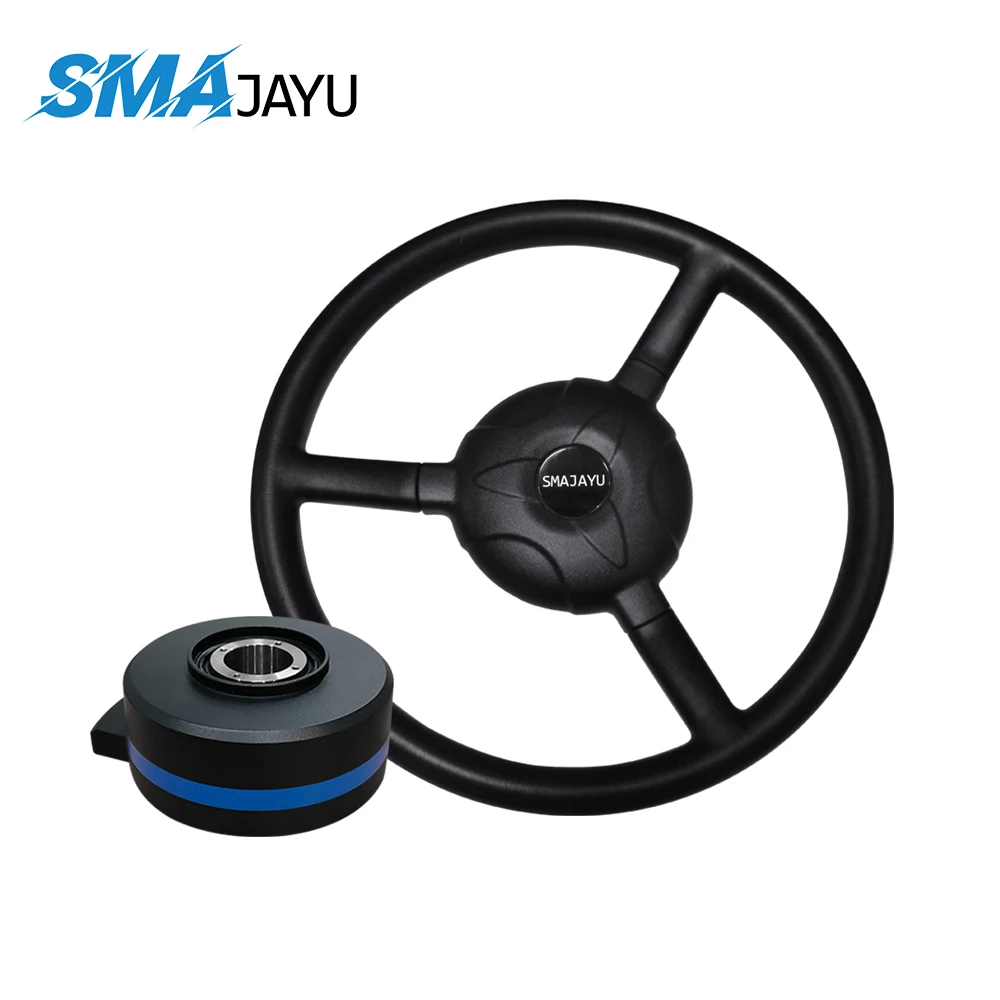

EMS2 Motor Wheel | Rated speed | 100 rpm |
Rated torque | 10 N-m | |
supply voltage | 8V~16V DC | |
Rated current | 10A | |
Stall current | 25A | |
Rated voltage | 12V | |
Dimension | 187x100.2mm (motor),410x32mm (steering wheel) | |
Weight | 6.35kg (motor only) | |
Material | Aluminum alloy |
