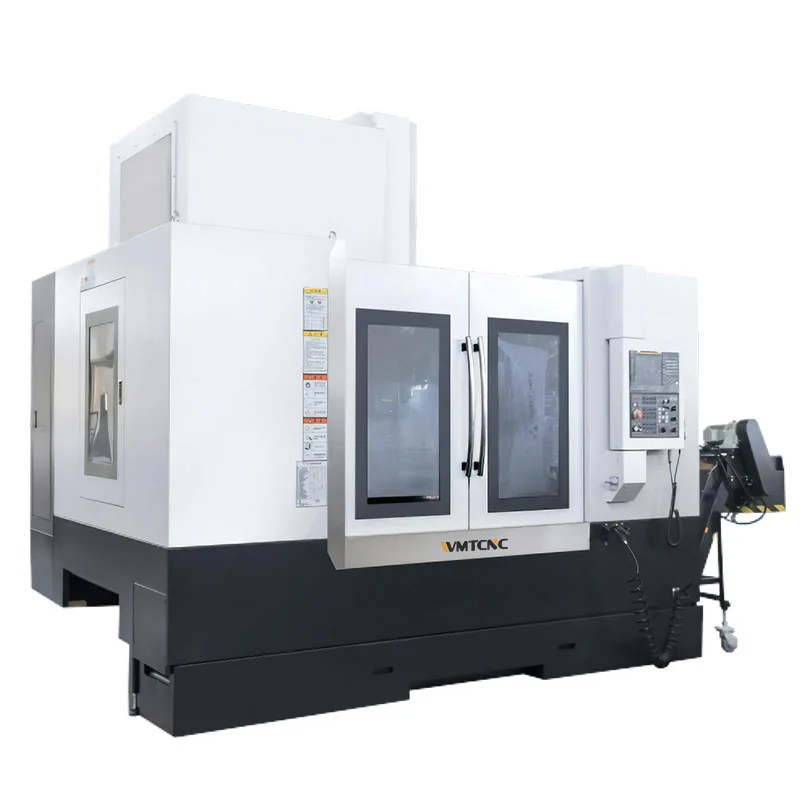

high speed cnc vertical machining center price VMC1570 5 axis vertical machining center with GSK/ Fanuc / Siemens control system
high speed cnc vertical machining center price VMC1570 5 axis vertical machining center with GSK/ Fanuc / Siemens control system
high speed cnc vertical machining center price VMC1570 5 axis vertical machining center with GSK/ Fanuc / Siemens control system

high speed cnc vertical machining center price VMC1570 5 axis vertical machining center with GSK/ Fanuc / Siemens control system

Share on (1600729144337):


Price:$95,000.00

Quantity:


Product Overview

Description



Product Description






VMC Vertical Machining Center VMC1570 Main Characteristics:
1. The major machine components apply finest gray cast iron which are of good shock resistance.
All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses.
So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
2. Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure the good intensity, rigidity and thermal stability.
3. The joint face of components are manually polished well, which guarantees the effective contacting area.


Specification
VMC1570
TABLE
WORKTABLE（LENGTH×WIDTH）
mm
1600x700
MAX.LOAD BEARING OF WORKTABLE
kg
1000
T SLOTS
mm
5-18*125
DISTANCE FROM TABLE SURFACE TO SPINDLE
mm
150-850
DISTANCE FROM COLUMN TO SPINDLE CENTER
mm
766
SPINDLE
SPINDLE HOLE TAPER
BT40
SPINDLE SPEED
rpm
20-12000
SPINDLE TRANSMISSIONOF METHOD
DIRECT
SPINDLE POWER OUTPUT
kw
11/15kw
SPINDLE OUTPUT
Nm
52.5
FEED
TRAVEL(X/Y/Z)
mm
1500/700/700
RAPID TRAVERSE RATE
m/min
24/24/24
MAX.FEED SPEED
mm/min
8000
ATC
NUMBER OF TOOL
T
24
MAX. TOOL DIAMETER
mm
78
MAX. TOOL LENGTH
mm
300
MAX. TOOL WEIGHT
kg
8
TOOL CHANGE TIME
s
2.5
POWER SUPPLY
AIR CONSUMPTION
kg
6~8
ELECTRIC POWER SUPPLY
KVA
40
POWER REQUIREMENT
380V±10% 50Hz
MACHINE
MACHINE DIMENSION
mm
5050*2965*3360
MACHINE WEIGHT
kg
10000
ACCURACY
X/Y/Z POSITION ACCURACY
mm
0.01
X/Y/Z RE-POSITION ACCURACY
mm
0.005


Details Images




Company Profile






Professional Service




FAQ


Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4: What’s the MOQ?
A4: One set only.

Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.

Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
