6 6 12mm thick tempered laminated glass for railing fence with SGCC ANSIZ97.1 TEST TO NORTH AMERICA and Europe
- Category: >>>
- Supplier: Qinhuangdao Yuntai Glass Co. Ltd.
Share on (1600729149256):
Product Overview
Description
3+3 4+4 5+5 6+6 8+8 10+10 12+12 15+15 19+19
polished edge
POLISHED EDGE extra clear tempered laminated glass
Product Description

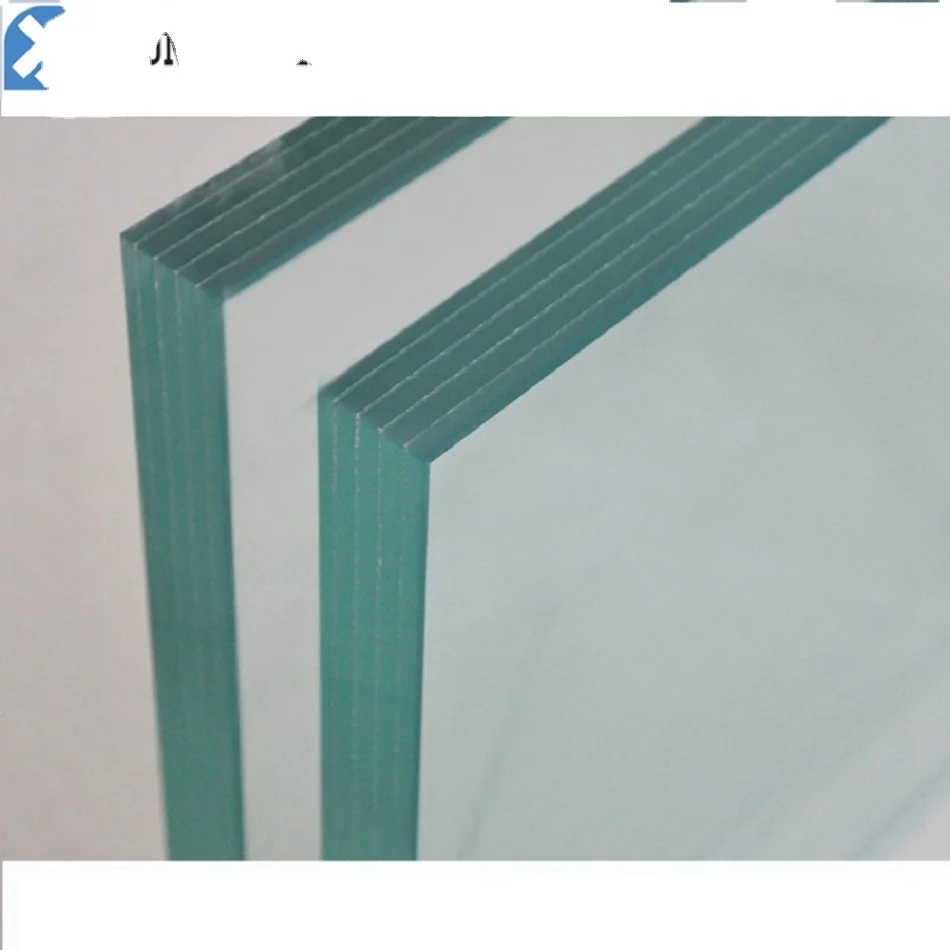

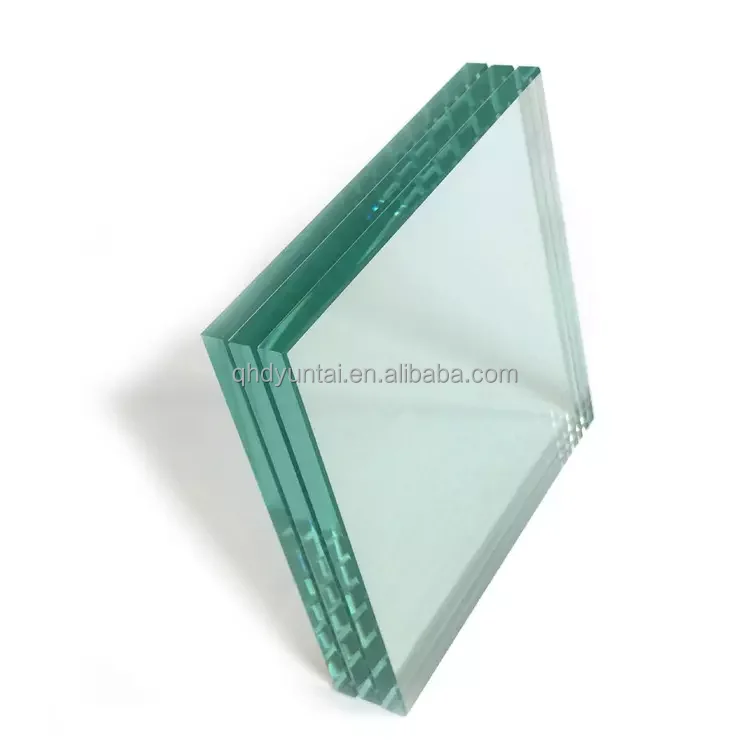

6+6 12mm thick tempered laminated glass for railing fence with SGCC ANSIZ97.1 TEST TO NORTH AMERICA and Europe

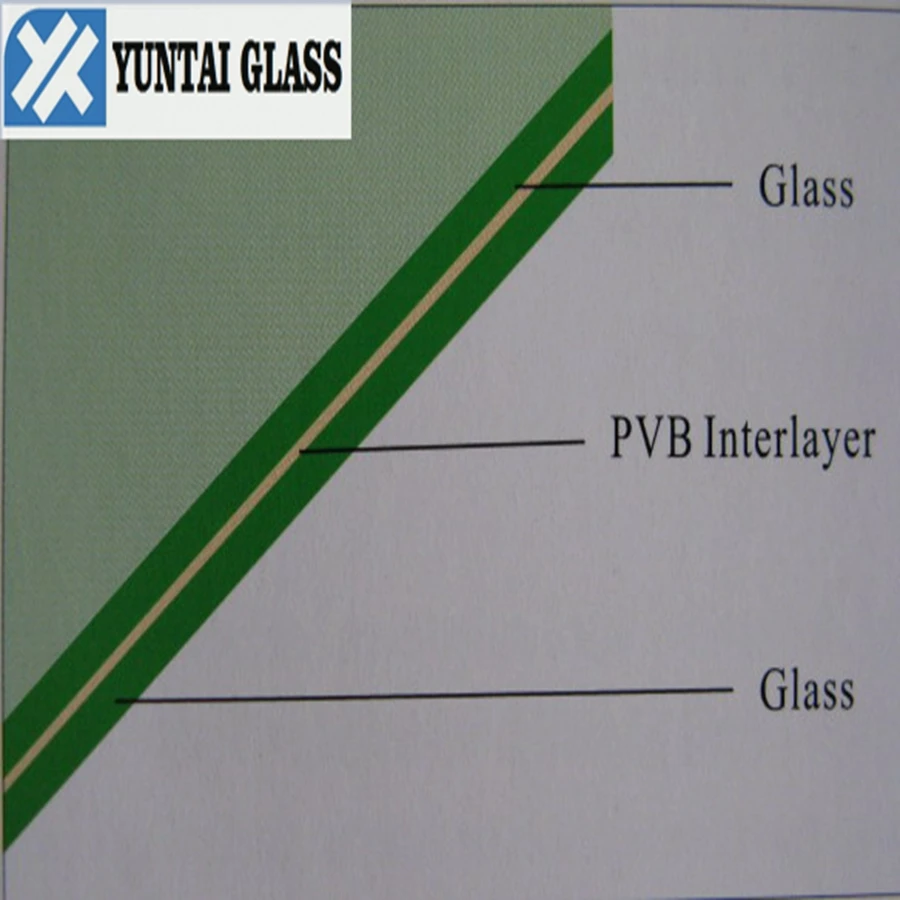

Laminated glass is by high quality adhesive interlayer and advanced bond technology. Tempered laminated glass is produced by
adhering two or more pieces of tempered glass together by inyerlayer film like PVB/SGP/EVA/UA. The interlayer film will continue
to hold the glass together in the event that it is struck or dropped.Compared with other glass, with shock resistance, anti-theft,
bullet-proof, explosion-proof, noise reduction, anti-ultraviolet and delay fire performance.
adhering two or more pieces of tempered glass together by inyerlayer film like PVB/SGP/EVA/UA. The interlayer film will continue
to hold the glass together in the event that it is struck or dropped.Compared with other glass, with shock resistance, anti-theft,
bullet-proof, explosion-proof, noise reduction, anti-ultraviolet and delay fire performance.
6+6 12mm thick tempered laminated glass for railing fence with SGCC ANSIZ97.1 TEST TO NORTH AMERICA and Europe | ||||||
Place of Original | big standard size 12mm 8mm 6mm hard toughened laminated glass price m2 cost cutting table to USA CANADAQinhuangdao,hebei,China | |||||
Thickness | Sheet Glass | 3,4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm,19mm | ||||
Laminated Glass | 4+4, 5+5, 6+6, 8+8, 10+10, 12+12, etc. | |||||
SIZE | Minimum Size | 250mm×350mm | ||||
Maximum Size | 10000mm×3300mm | |||||
PVB | Color | Clear, Ultra Clear, Black, Milk White, Red, Grey, F- green,blue,bronze,Dark grey,etc. | ||||
Thickness | 0.38mm, 0.76mm, 1.14mm, 1.52mm, 1.9mm, 2.28mm, etc. | |||||
Packing Details | 1. Interlay paper or plastic between two sheets | |||||
2. Seaworthy wooden crates | ||||||
3. Iron belt for consolidation | ||||||
Application | Railings, Balustrade, Balcony, Skylights, Escalators, Windows and Doors, Floor, curtain wall,ceiling etc. | |||||
Quality Standard | CE, ISO, SGS, CCC,AS/NZS 2208:1996-Safety glazing materials in buildings | |||||
Production Range | Tempered Glass(Clear&Tinted Color) | |||||
Tempered Glass(Clear&Tinted Color) | ||||||
Laminated Glass | ||||||
Low-E Glass | ||||||
Low-E Insulating Glass | ||||||
Fire-proof Glass | ||||||
Bullet-proof Glass | ||||||
Detailed Images

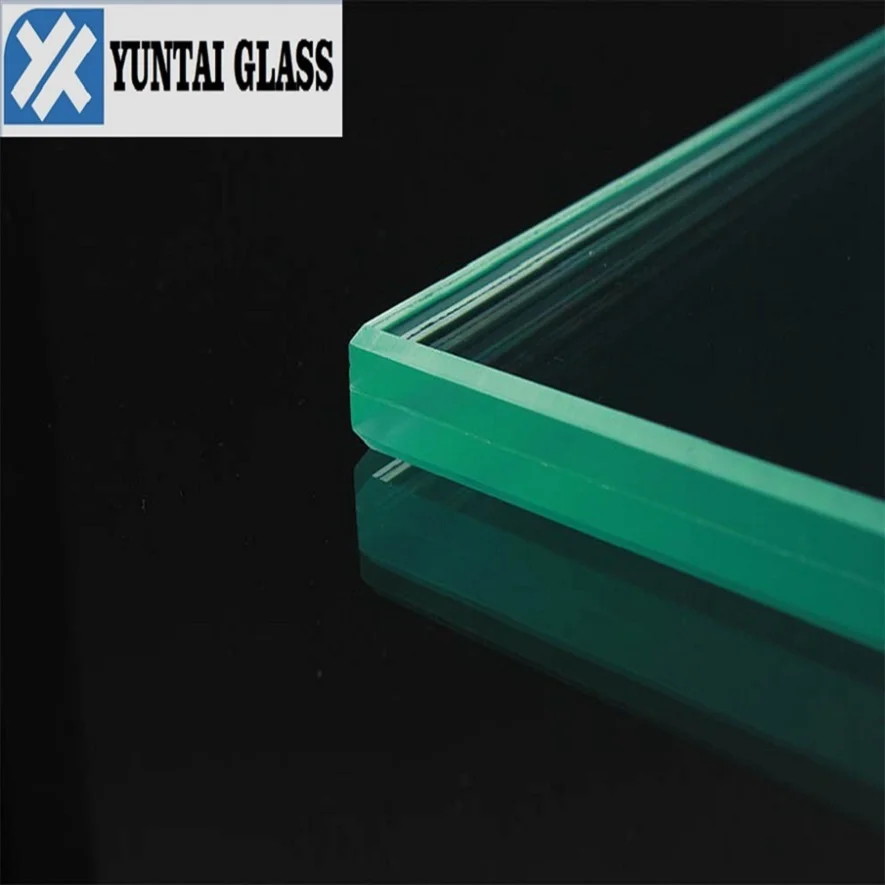

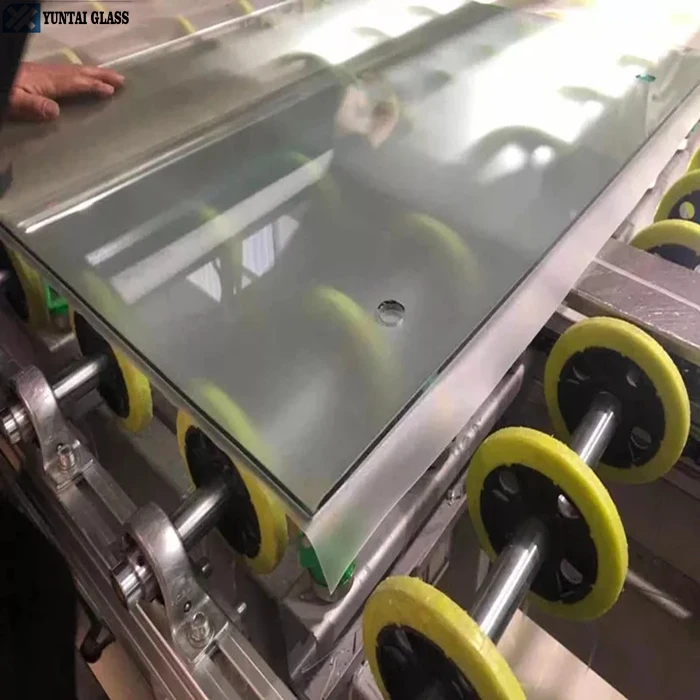

Flat polished edge
We can produce the polished edge,very smooth and fine

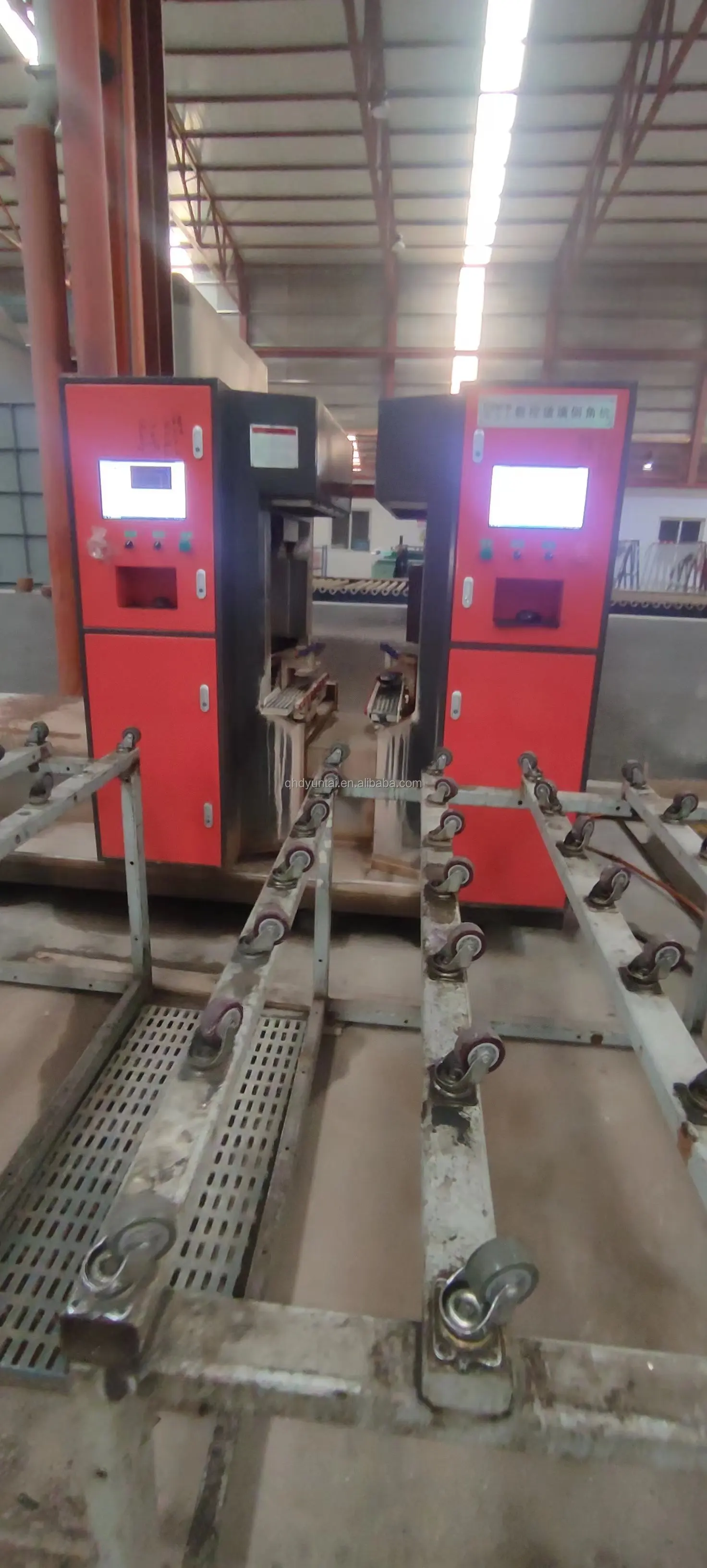

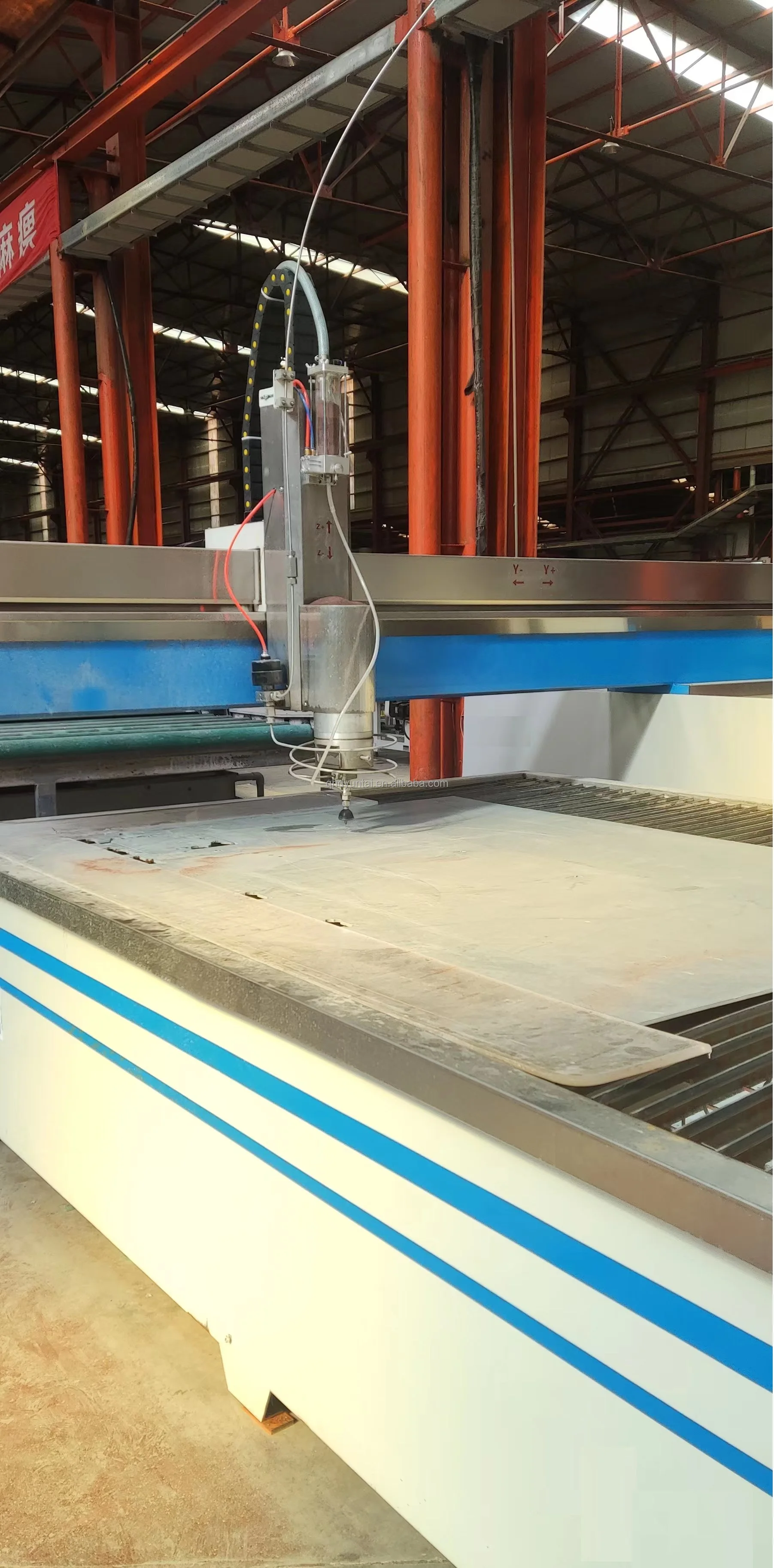

Drill holes
We have 8 holes machine to drill the smooth holes
holes edge
We can make the holes with chamfer ,there is no sharp
Feature
--Safety
--UV control
--Sound reduction
--Color clear or tinted
--Resists penetration and remains in glazing even if broken
--Extremely high safety
--Energy-saving building materials
--Create aesthetic sense to buildings
--Sound control
APPLICATION:
Laminated glass is safety glass, extensively applied in the places which has critical request of high mechenical strength and safety, such as glass door, curtain wall of building, indoor partition, elevator,showcase, door and window of building, furniture and household appliance etc.
Laminated safety glass for railing and balustrade
Laminated safety glass for balcony

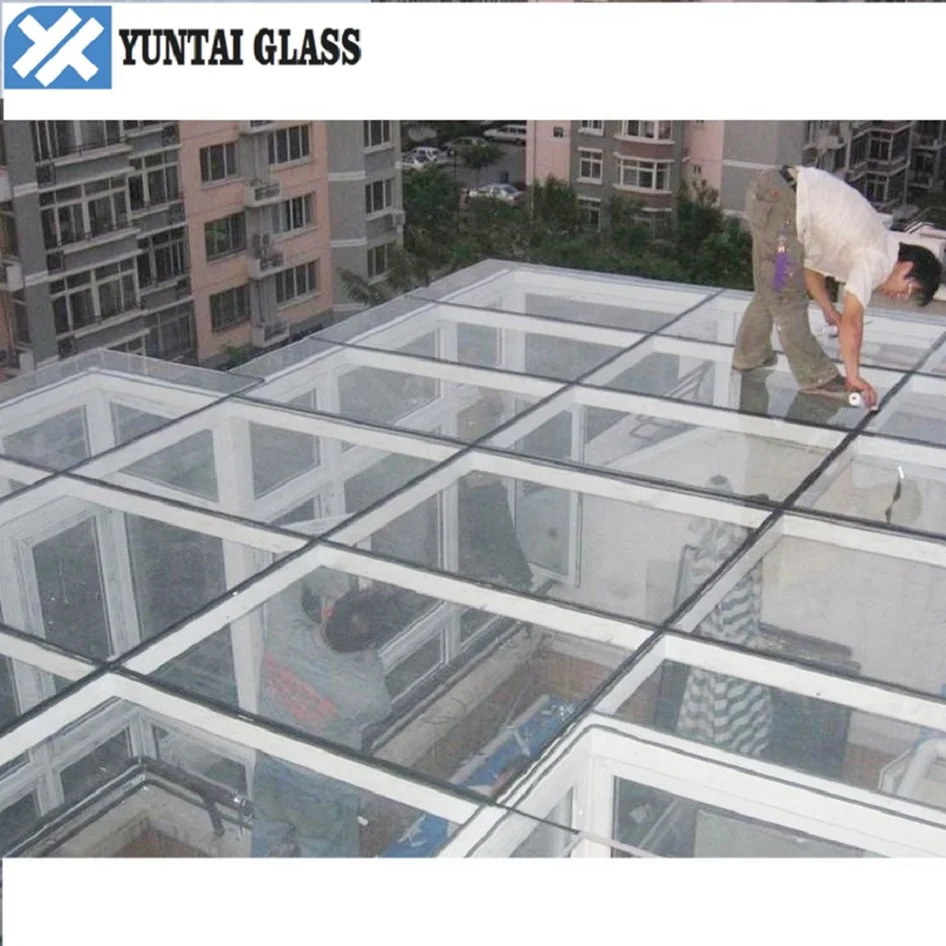

Laminated safety glass for skylight
Laminated safety glass for windows and doors
Laminated safety glass for partition wall
Laminated safety glass for building
Laminated safety glass for ceiling
Laminated safety glass for greenhouse
Laminated safety glass for office
Laminated safety glass for curtain wall
Advantage
Main Products
a.Laminated glass:3-19mm
b.Tempered glass:3-19mm
c.Silkscreen printing glass:3-19mm
d.LOW-E laminated glass
e.LOW-E tempered glass
f.Low-E tempered insulating glass
g.Curved tempered glass
3+3/4+4/5+5/6+6/8+8/10+10 and so on
PVB can be 0.38,0.76,1.14,1.52 and so on
33.1 44.1 55.1 66.1 88.2
Standard size: 2140*3300/2440*3300/1830*2440
Can produce it according customers demand sizes
Once the glass is broken,the PVB
Used in the curtain wall,office,fence,railing,balcony ,swimming pool,window,Stairs,elevators
3mm,5mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm
Color: Bronze/Euro-grey/Dark-grey/F- green/Ford-blue/super-white
Used in the window,door,furniture,shower enclosure/shelves and so on
4+6A+4 ;6+9A+6 ;8+12A+8 ;15+15A+15
Aluminum frame: 6A;9A;12A;15;16A
FLAT AND CURVED
FAQ
1.\tHow to get a quotation
We can calculate a exact price based on your more information
a. Which process and product type?
b. Material and Size.
c. Order quantity.
You can send me inquiry by alibaba or send me inquiry directly by email.
2. Want to place order
1). After confirmed quotation, we will issue proforma invoice for client to sign back.
2). Send the glass Technical Specification via email.
3). if need to make the sample confirmation, we will send the samples or take the sample photo to client for approved about 7 working days.
4). Production time will base on the order quantity. We will send notice email with product photo to client before delivery.
3. Do you accept small order
Any order quantity is welcome. But some type of products are high cost that not suitable small order.
4. What is the payment method
We accept paypal
Western Union
T/T 30% total USD amount as deposit, the balance 70% before shipment
5. Want to get free sample
Sure you can. Please send your request via email.
Buyers can get free samples through buyers' express account for freight collect, or transfer the dellivery charge to us for prepaid at your convenience. For some expensive samples, samples cost could be necessary.
6. What is the shipping methods
For small amount, usually send by air shipping. (DHL/UPS/Fedex) Take 4-5 working days.
For large amount, usually delivery by ship. LCL or FCL (FOB/CNF/CIF) Take around 25-30 working days(Depend on which country)
7.What is your delivery time?
Around 45 days depends on what kinds of products the customer order and when
8.Can you do the production as customized?
Yes, we could produce the glass depends on your requirements.
9.What's your glass package? Are they safe?
Wooden Crates are our glass package. Wooden Crates Worthy for Ocean and Land Carriage. The crates will be very strong and we send the loading pictures for you after we loading.
Certifications

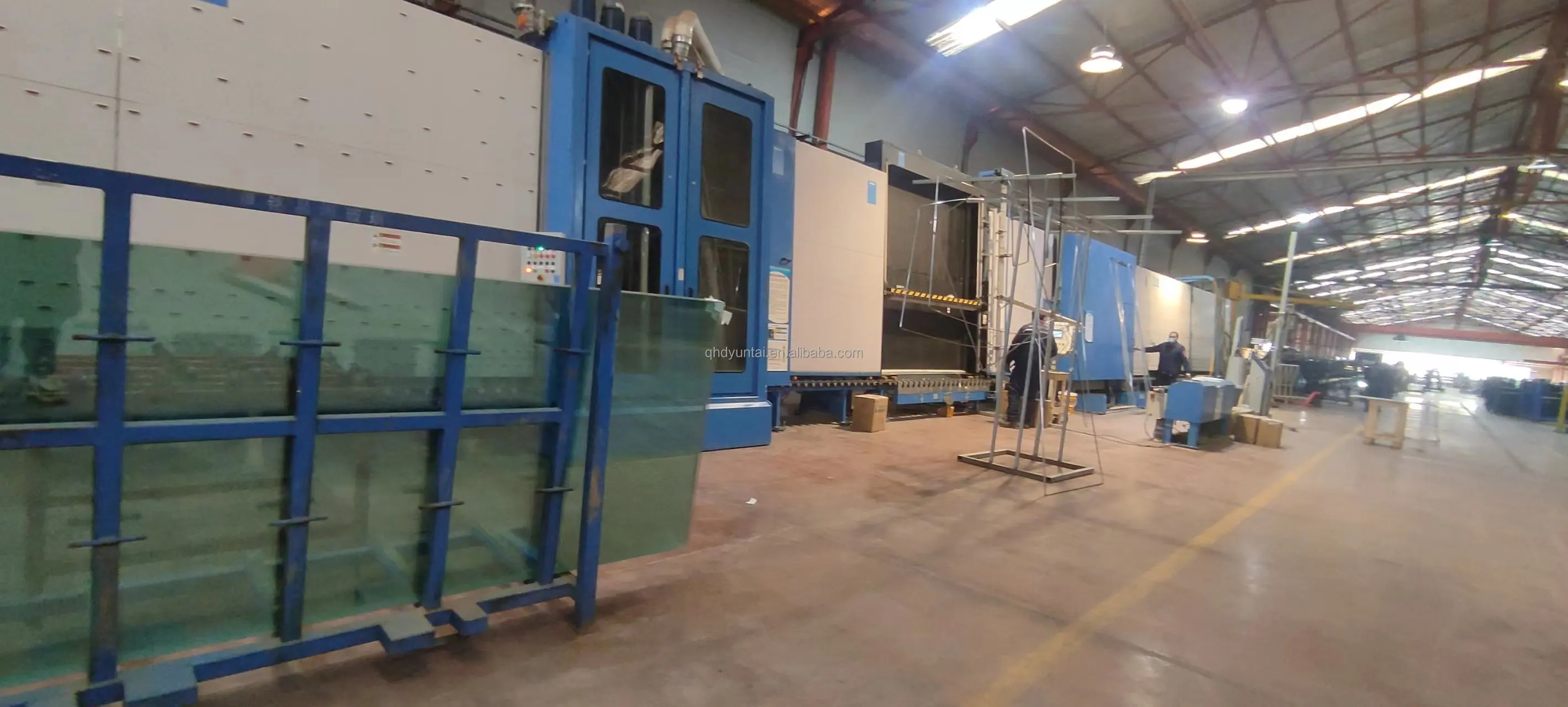

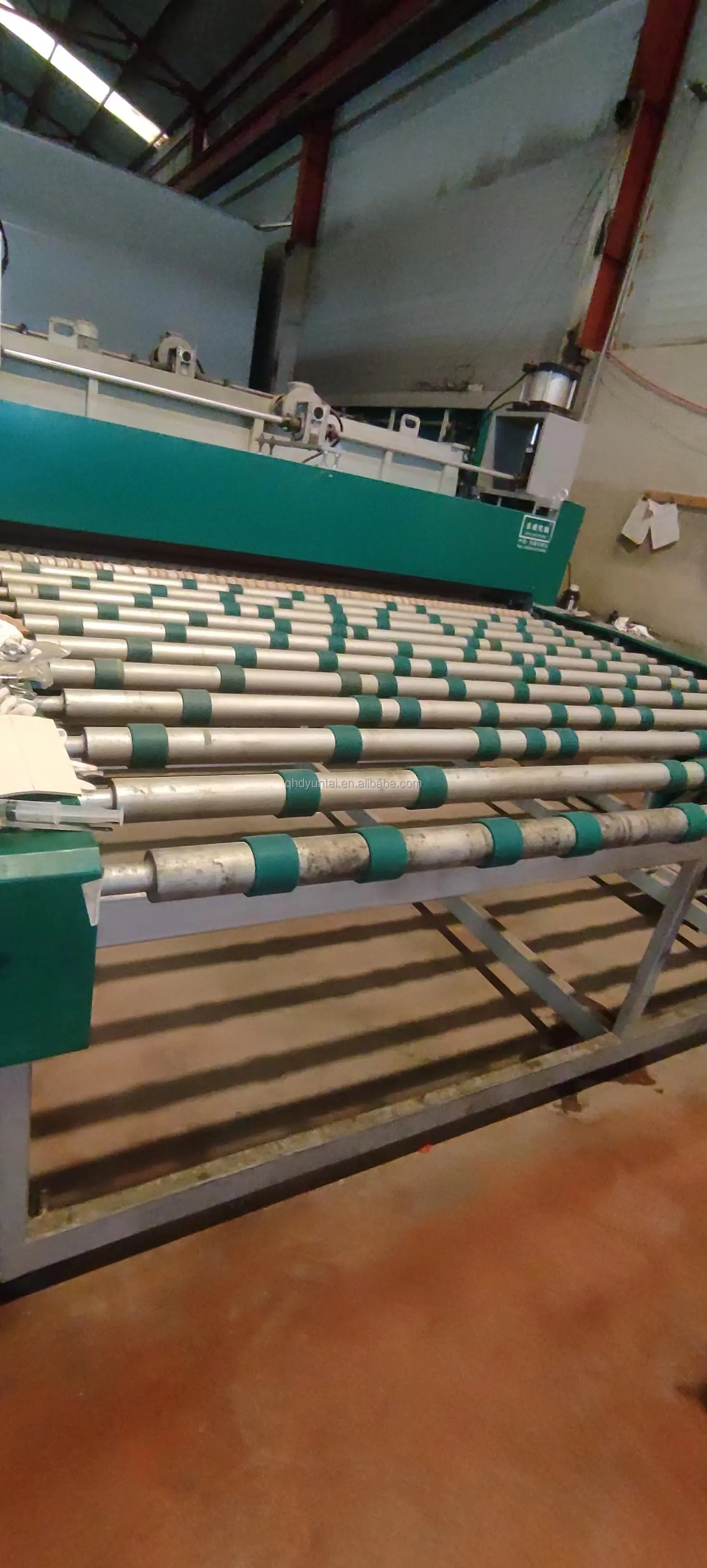

Main machine

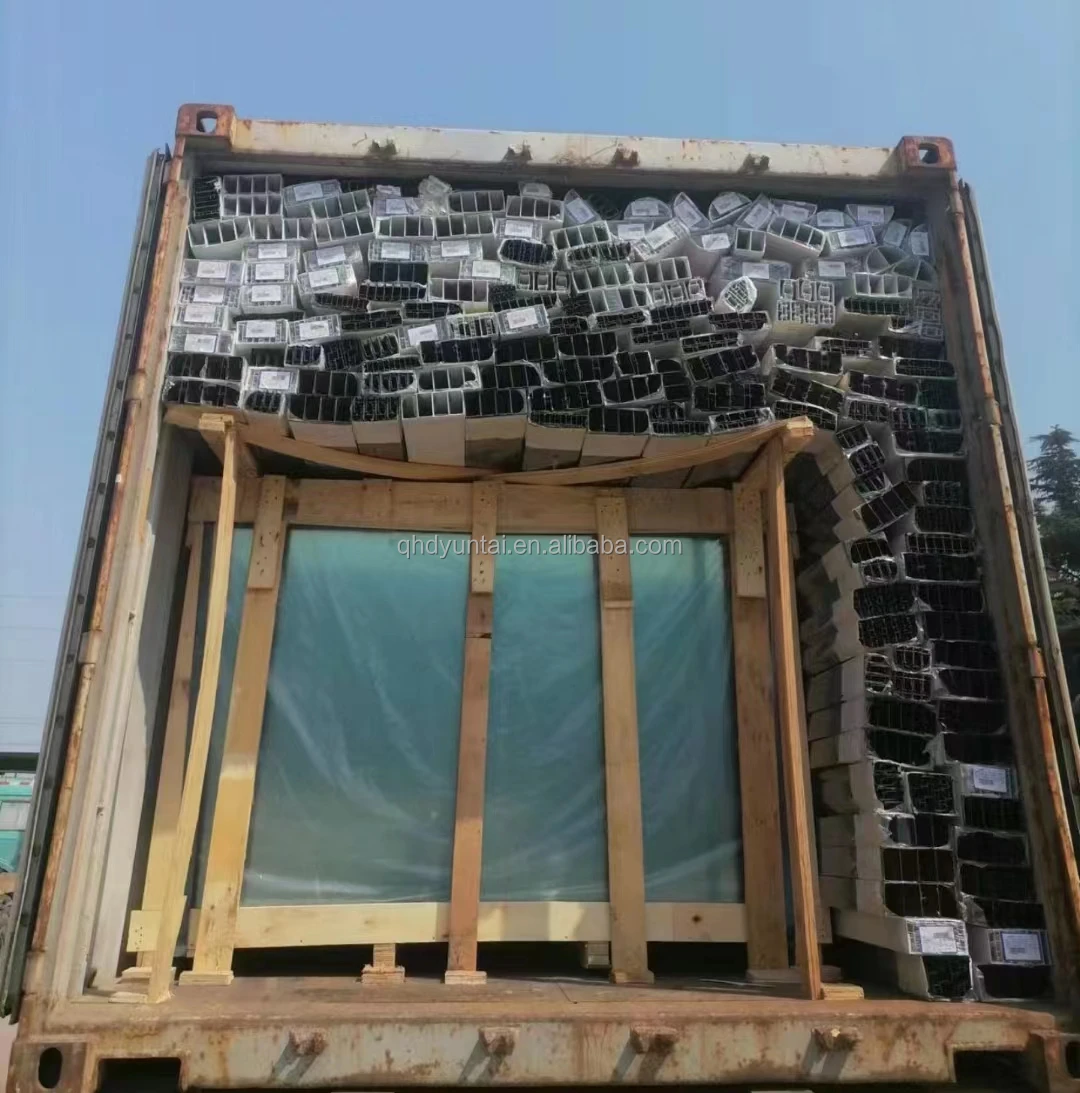

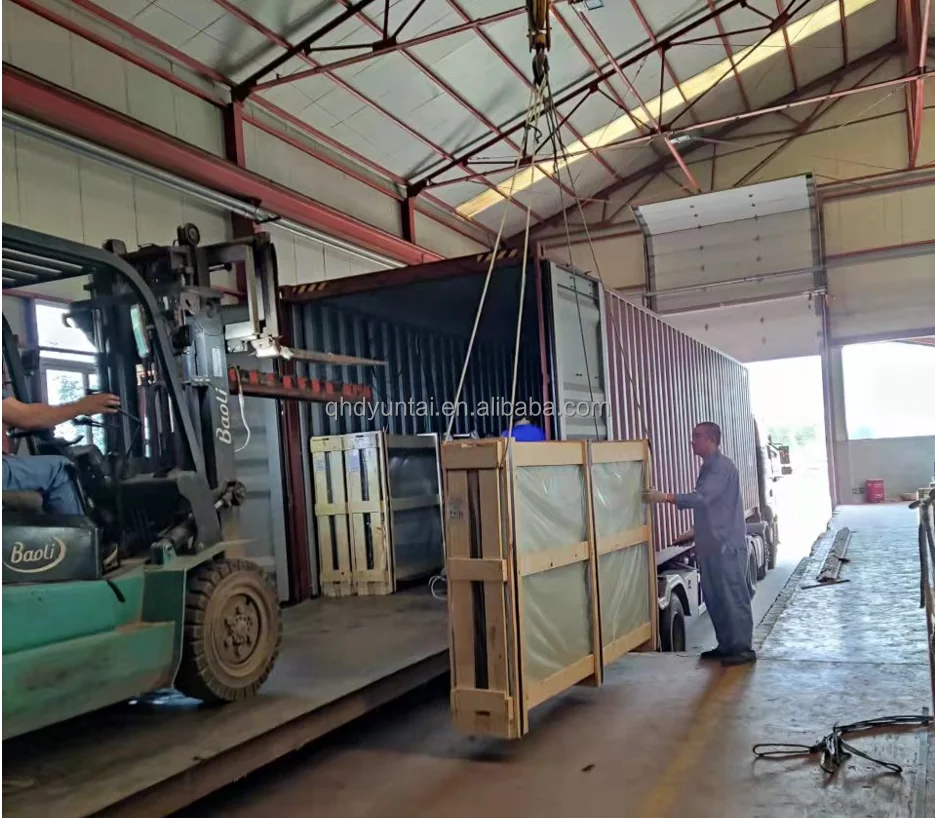

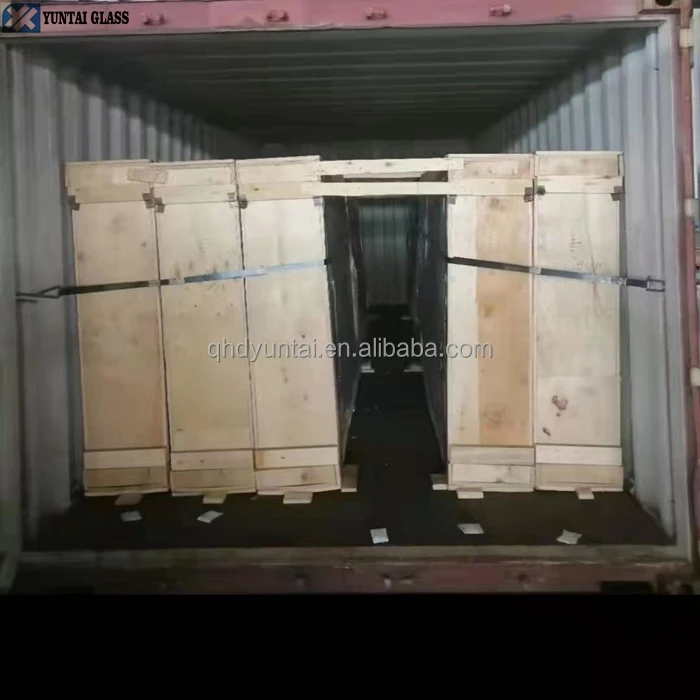

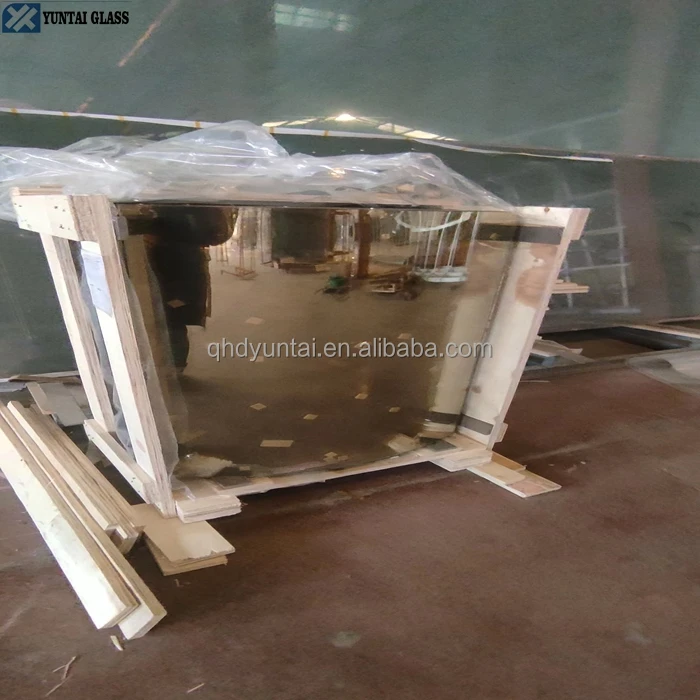

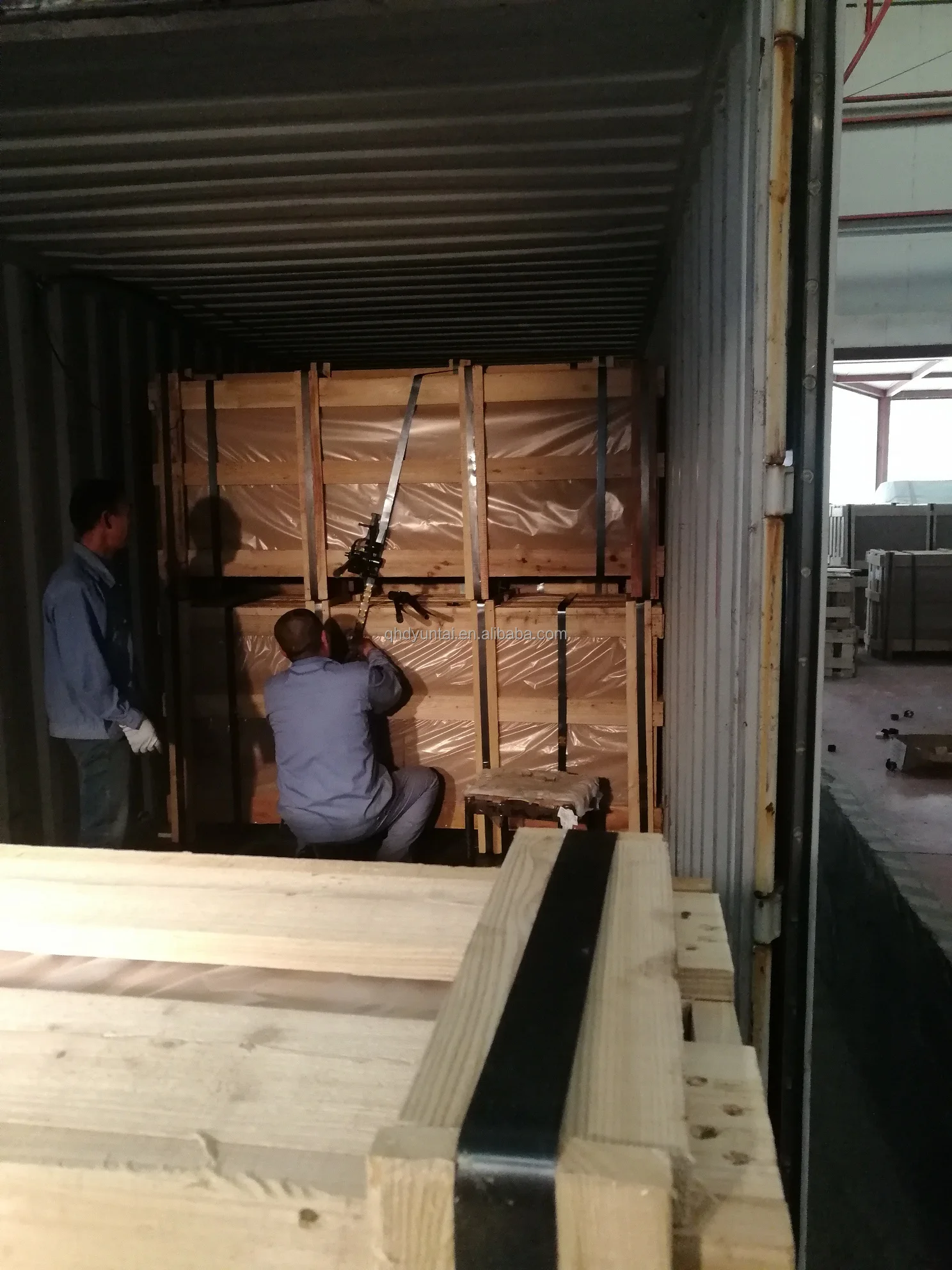

Packing & Delivery

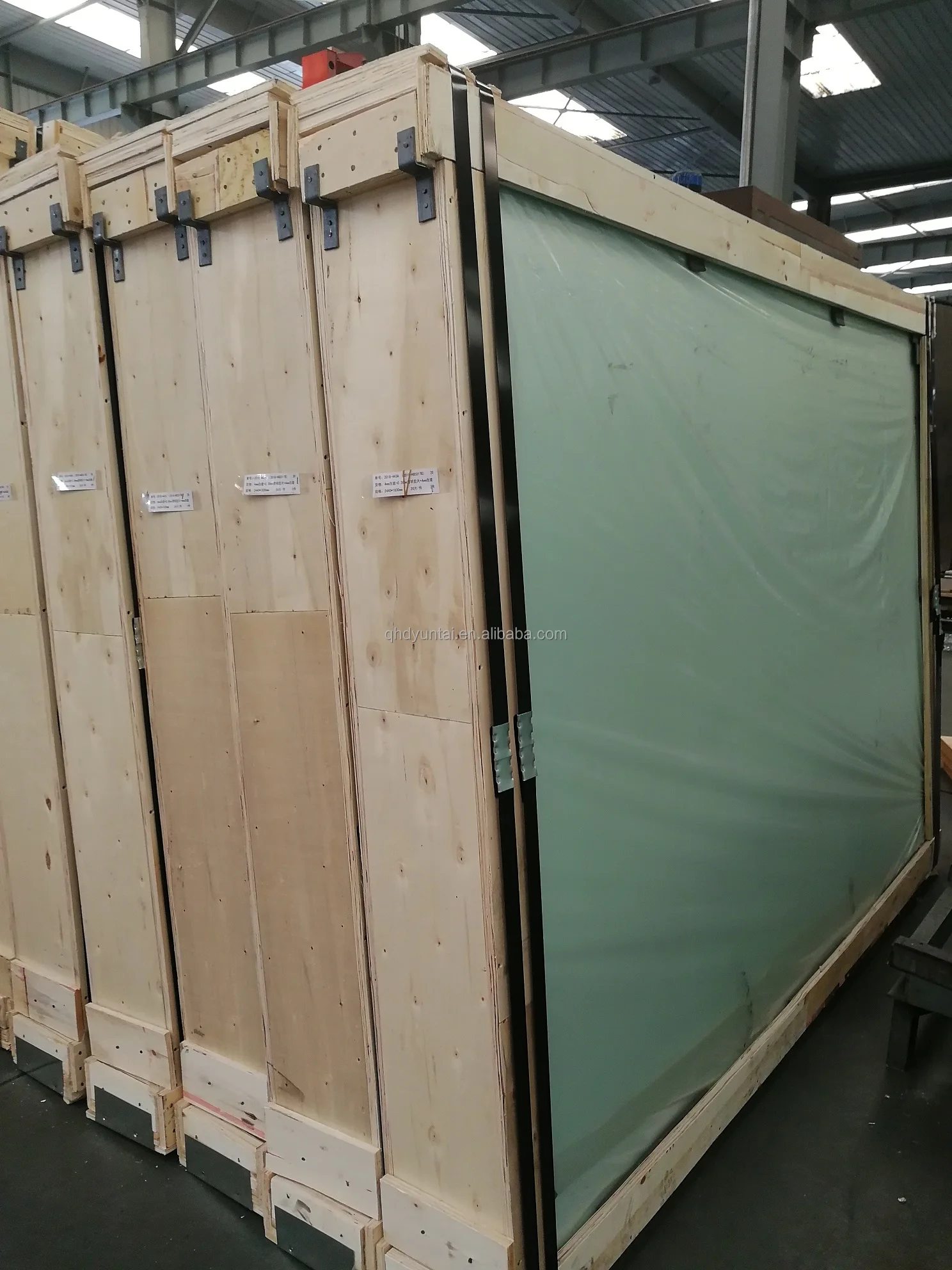

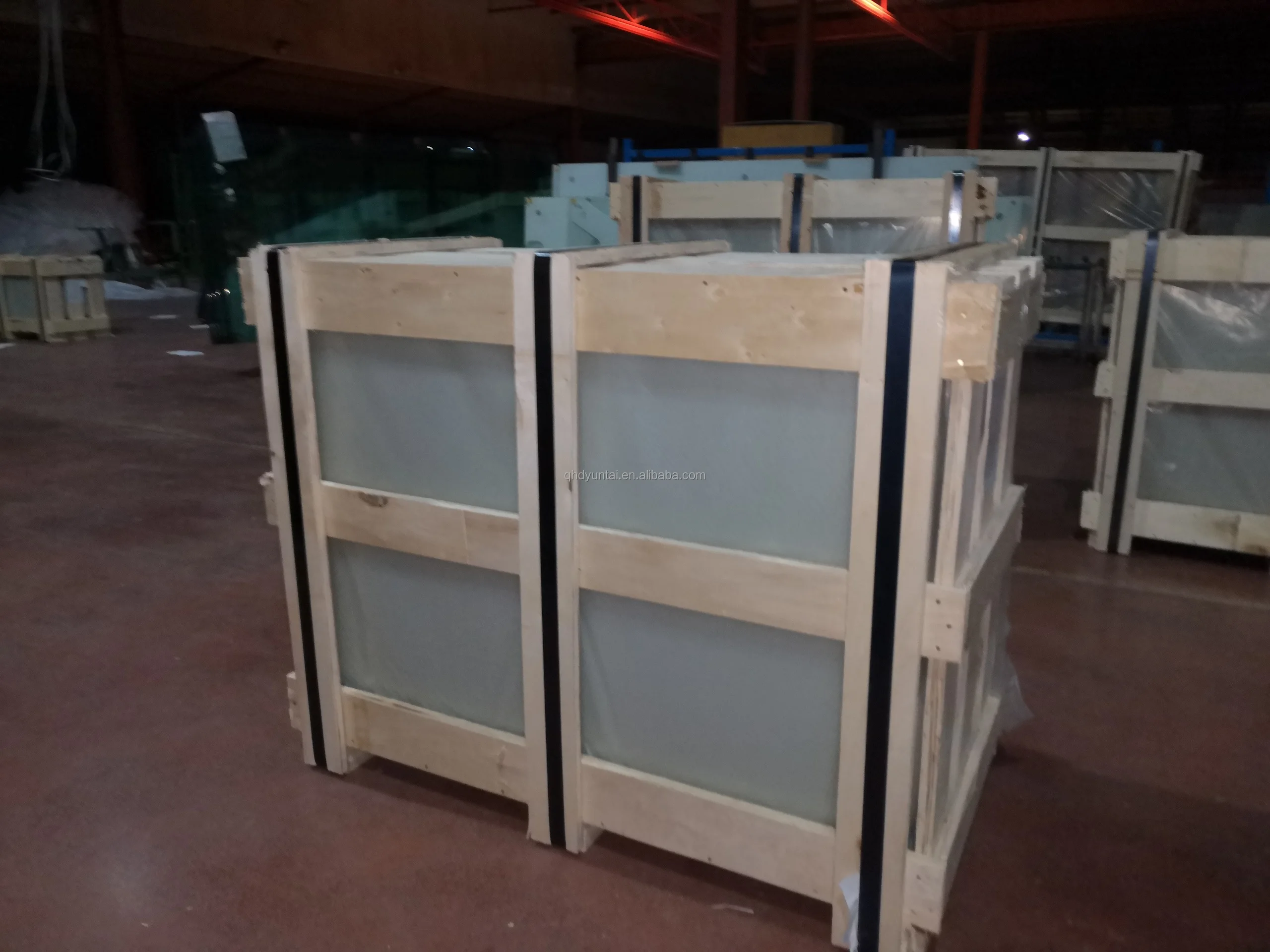

Packing:
6+6 12mm thick tempered laminated glass for railing fence with SGCC ANSIZ97.1 TEST TO NORTH AMERICA and Europe
2140*3300mm OR Customized sizes
6.38 25pcs/crate*10 crate/20'container
8.38 18pcs/crate*10 crate/20'container
10.38 15pcs/crate*10 crate/20'container
12.38 12pcs/crate*10 crate/20'container
big standard size 12mm 8mm 6mm hard toughened laminated glass price m2 cost cutting table to USA CANADA
WHY CHOOSE US
1. 12 years experiences on toughened glass manufacturing and exporting.
2.We have strong technical support and production capacity.
3.Our factory close to the sea port, transportation is very convenience.,CAN DO DOOR TO DOOR
4.Professional sales team, offering personalized and dedicated services
5.Unique designed strong wooden cases and container fixed method can solve the problems of breakage.
6.Top quality toughened glass with CE, ISO9001,CCC,SGCC,ANSIZ97.1-2015,AS/NZS 2208 Certificate.
7.OEM is feasible, and welcome to visit our factory.
8.Favorable price and reasonable payment terms;
9.We can guarantee the delivery time.
