1000kW Methane Gas Engine Power Generator

Product Overview

Description

1000kW Methane Gas Engine Power Generator

1000kW Methane Gas Engine Power Generator



Jinan Jichai Huanneng Gas Generating Equipment Co., Ltd (JCHN) is a high-tech sales &service subsidiary company of Jinan Diesel Engine Co., Ltd. JCHN offers project consultation and design, integrated OEM, equipment export, and spare parts supply.



Our products have exported to more than 50 countries and regions. Sales & Service centers have been established in Kazakhstan, Indonesia, United Emirates, Colombia, and Nigeria respectively to radiate the whole market coverage.





1.Main Specification of Generator set

Model of generating set	1000GF-T
Model of engine	16V190ZDT-2
Rated power(kw)	1000
Rated speed      r/min.	1000
Rated voltage (V)	415/240
Rated frequency (Hz)	50/60
Rated power factor	0.8
Supply method	3 phases 4 wires
Excitation method	brushless
Starting method	24V DC starter
Speed modulate method	Electronic control
Cooling method	Water cooling system
Net weight Net weight (kg)	11800

2.Main Specification of Alternator

Model	1FC5456-6TA42 (SIEMENS technology)
Rated power(kw)	500
Rated voltage(V)	415
Rated current(A)	870
Rated frequency(Hz)	50/60Hz
Power factor	COS=0.8(lagging)
Rated speed	1000 r/min
Efficiency	95 %
Phase	3
Connection	3 phases 4 wires
Excited method	brushless
Insulation class	F
Class of protection	IP23
Cooling	A fan at the drive end draws the cooling air
Working model	Continues working(S1)
Coupling	Elastic
Bearing	Rolling bearing, 2PCS

3.Main Specification of Engine

Model	16V190ZDT-2
Rated power(kw)	1000
Rated speed(r/min)	1000
No. and layout of cylinders	16-cylinder, 60° Vee
Type	Four stroke, water cooled, turbocharged and after-cooled, pre-combustion chamber type spark plug, mix before compressor
Type of combustion	Lean burn
Gas pressure(bar)	1-4
Gas consumption(Nm³/kwh)	0.3
Specific oil consumption (g/kwh)	1
Oil capacity (L)	200
Bore(mm)	190
Stroke(mm)	210
BMEP(bar)	9.26
Compression ratio	8:1
Total displacement(L)	71.5
High temperature water capacity (L)	250
Low temperature water capacity (L)	150
Emission	Meet IMO code
Exhaust temperature (before turbine ℃)	≤650
Direction of rotation	Counter-clockwise (facing to flywheel)
Intake air flow(m³/h)	2077
Exhaust gas flow(m³/h)	2227
Lubrication method	Pressure and splash lubrication
Overhauling time(H)	30000



1000kW Methane Gas Engine Power Generator

High Configuration:

• Ignition system:  ALTRONIC(USA)


• Starting system: DC24V electric motor.


• Mixer: IMPCO(USA)


• Sparking plug:STITT


• Engine Control System: Woodward(USA), HEINZMANN(Germany)


• Electric Control System: IG-NT(Czech Republic) ComAp(Czech), Deepsea(UK)


• Alternator: Siemens, LEROY-SOMER, Marathon

1000kW Methane Gas Engine Power Generator

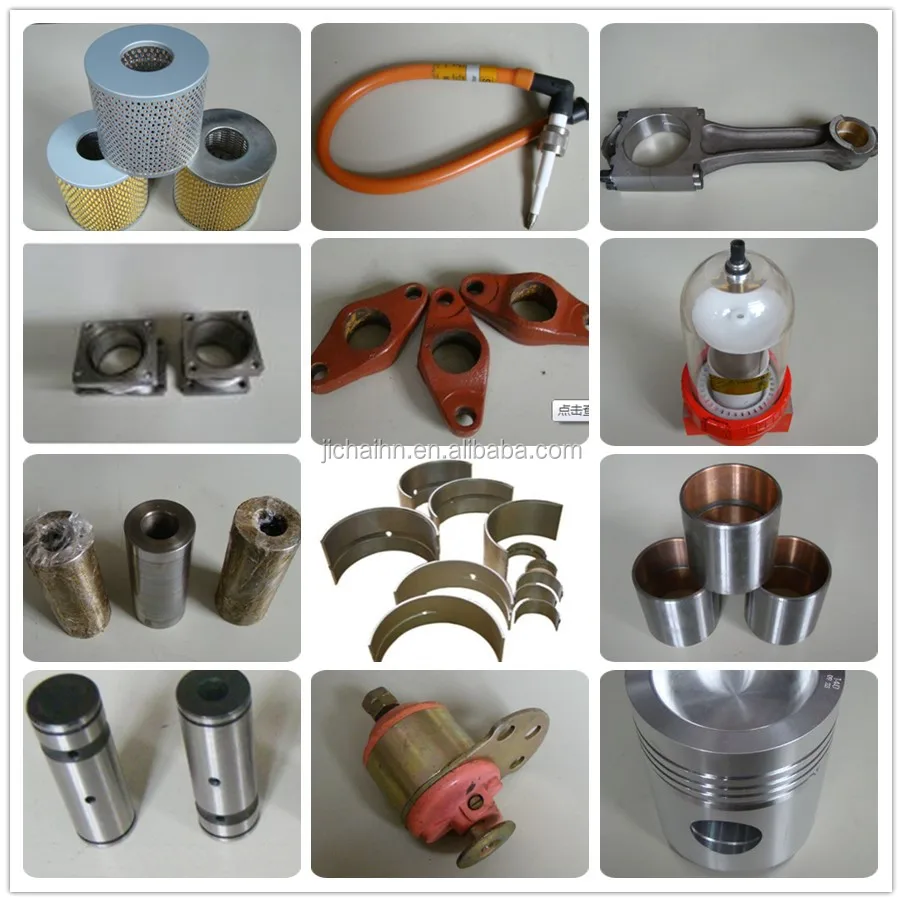

Spare Parts:

Advantage:

• Advanced configuration keep accurate ans stable working condition under high speed working speed


• High generalization, easy maintenance, low maintenance cost.


• Economical, low operating cost


• Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.


• Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.


• Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.


• Suitable for differnt concentration methane and propane, variety of quality gas.


• Precise air-fuel ratio rarefied combustion control and Generator speed/load control


• Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.



1000kW Methane Gas Engine Power Generator

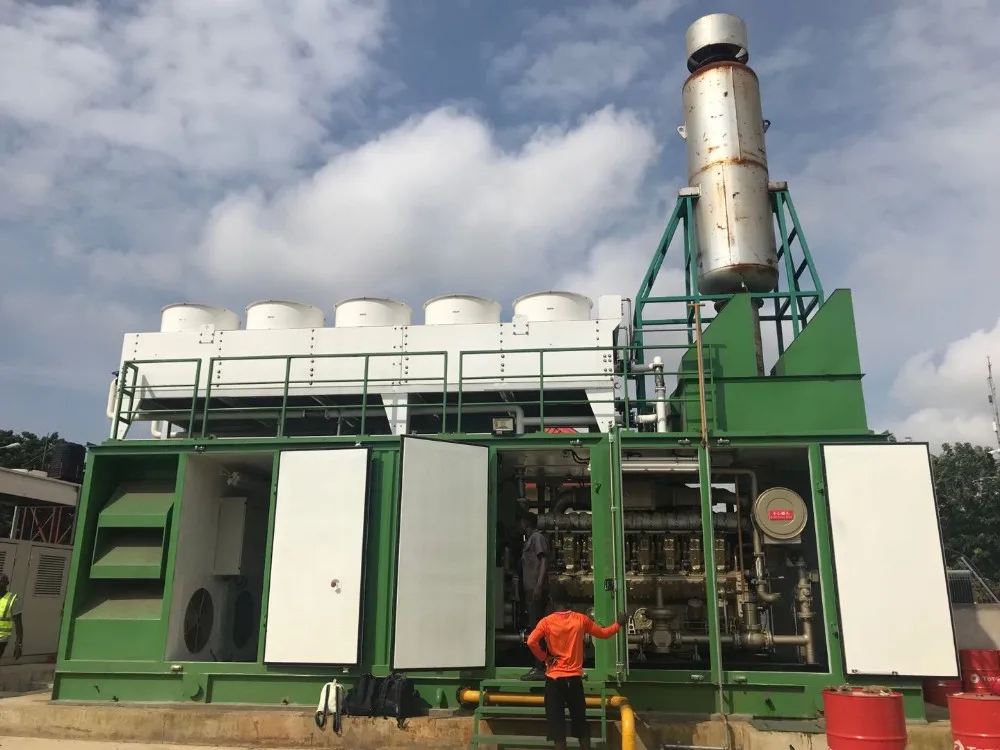

Project Cases:
