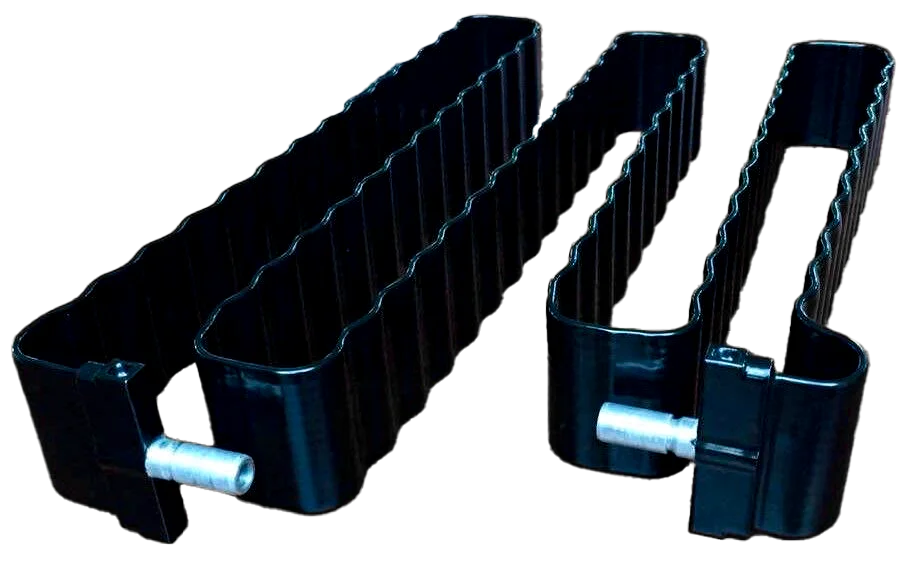

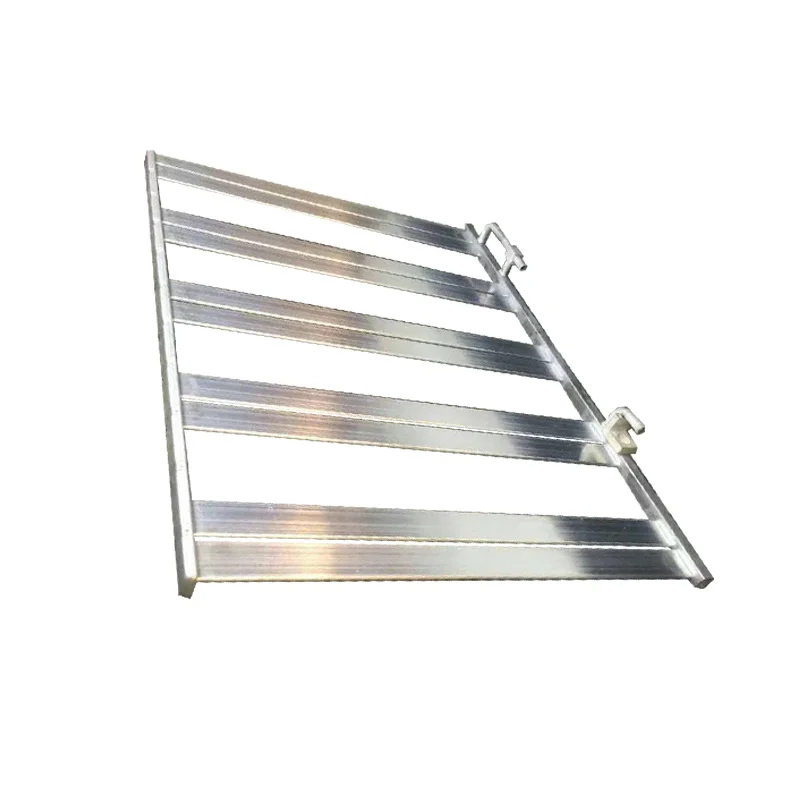

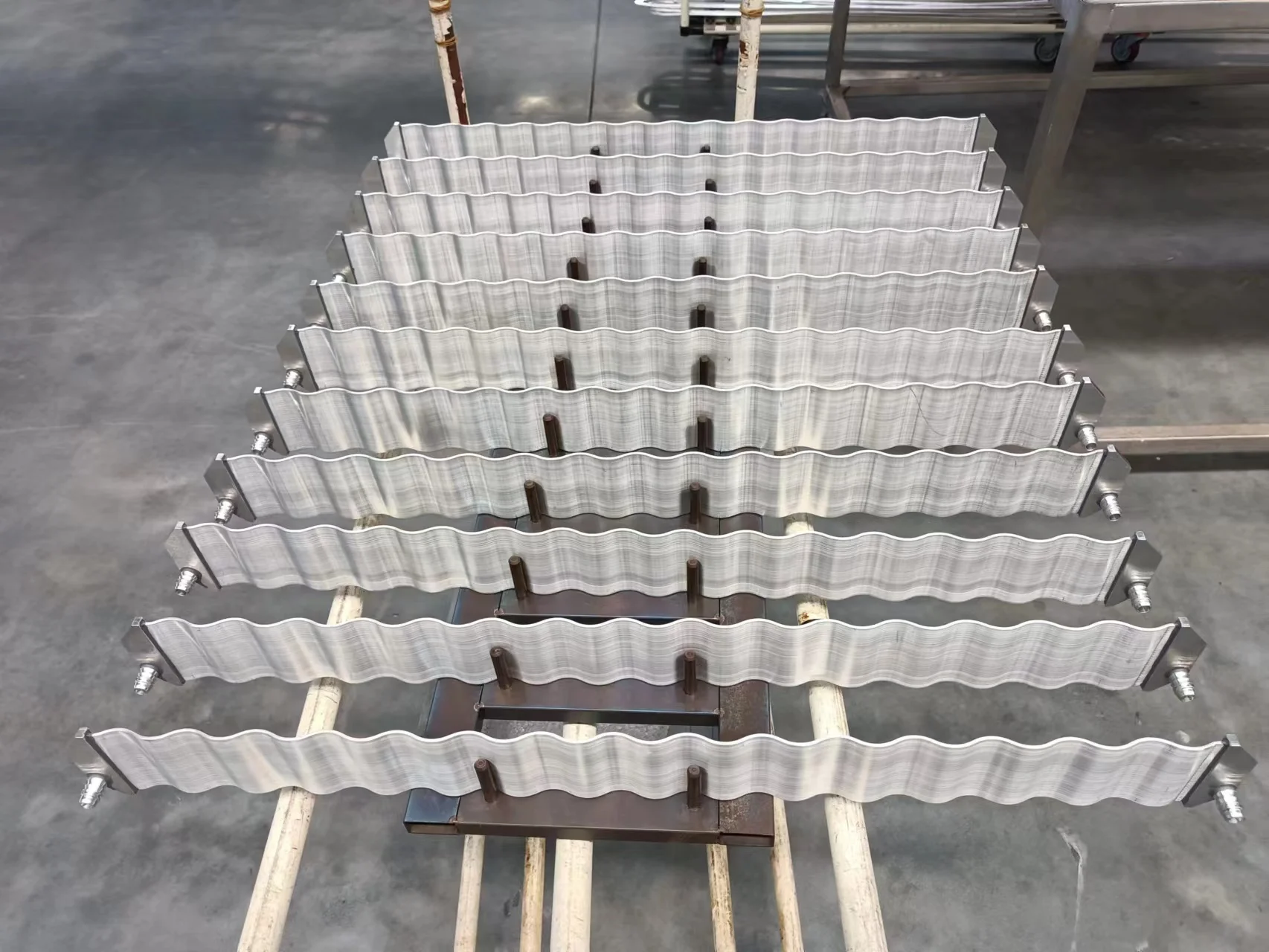

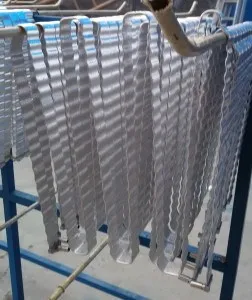

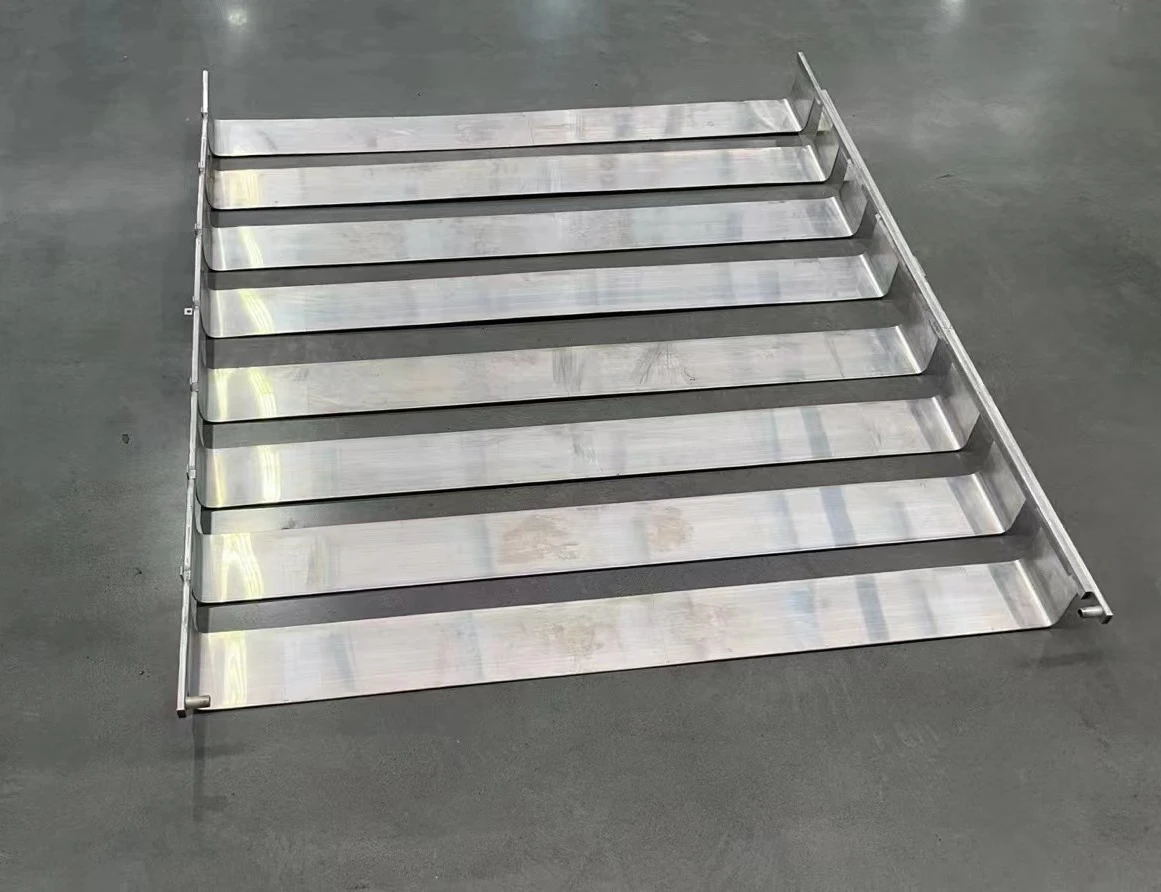

battery cooling snake tube heat exchanger
- Category: >>>
- Supplier: Nanjing Mstirling Technology Co. Limited
Share on (1600729200514):
Product Overview
Description
PRODUCT SPECIFICATION FOR WATER COOLING BLOCK | ||||||||
NO. | ITEM DESCRIPTION | CONTENT | ||||||
1 | Material | Aluminum alloy like 3003,6061 and 6063 or copper | ||||||
2 | Dimension LxWxH | 120x40x12 mm | ||||||
3 | Cooling capacity | 200 W | ||||||
4 | Surface roughness | Ra 3.2 um | ||||||
5 | Flatness | 0.1 mm | ||||||
6 | Working Pressure | At least 1 bar | ||||||
7 | Joining Method | Brazing, welding or other suitable techniques | ||||||
8 | Manufacturing technique for inner passage | CNC machining, extrusion or other suitable processes | ||||||
9 | Recommended Coolants | Deionized Water,Inhibited Glycol and Water,Dielectric fluid | ||||||
10 | Surface finish | Mill finish,anodizaiton or chemical coating | ||||||
11 | Place of Origin | China | ||||||
Product features and details
This water cooling block applicable to electric vehicle battery cooling.
✅Aluminum alloy material, lightweight,antirust, durable to use.
✅can be connected to an inner diameter of 7-8 mm water pipe.
✅The surface of the water-cooling block is polished, the inner flow channel is extruded or machined into an M-shaped flow channel, brazing or other suitable process joining parts into a whole module.
✅can be connected to an inner diameter of 7-8 mm water pipe.
✅The surface of the water-cooling block is polished, the inner flow channel is extruded or machined into an M-shaped flow channel, brazing or other suitable process joining parts into a whole module.
✅ Extremely high performance and thermal uniformity, very compact and Compatible with a range of coolants
Tube liquid cold plate
Nanjing M-stirling tube liquid cold plates feature copper or stainless steel tubing pressed into aluminium plates
* Cost effective liquid cooling solution;
* Better cooling performance than air heat sink;
* Standard and customized plates can be provided;
* Cost effective liquid cooling solution;
* Better cooling performance than air heat sink;
* Standard and customized plates can be provided;
Vacuum brazed liquid cold plate
Nanjing M-stirling vacuum brazing liquid cooling plate is made by two aluminum plates through vacuum brazing technology
* Lower pressure drop,evenly heat transfer;
* More extended heat transfer area;
* No shape limited;
* Lower pressure drop,evenly heat transfer;
* More extended heat transfer area;
* No shape limited;
Stamping liquid cold plate
Nanjing M-stirling stamping and brazing liquid cooling plate is suitable for large volume of batch order.Especially for EV battery
cooling.
* Stamping tooling invest once;
* High performance
* High production efficiency
* Unit price very low
cooling.
* Stamping tooling invest once;
* High performance
* High production efficiency
* Unit price very low
Value-added Components to achieve system assembly:
Radiator (heat exchanger), Pump, Hoses/Tubing, Connectors/Fittings, Fan
Heat exchangers (radiators)
Pumps
Hoses/tubing
Fittings/connectors
Liquid Cooling Plate
Heat Exchanger Material and Parts
Heat Exchanger
Heat Sink
Nanjing Mstirling-your ideal partner for thermal management and metal fabrication solutions
✅ Since 2008, Nanjing Mstirlinghas been focusing on thermal management field. Our capabilities cover a wide range that provide you one-stop solution quicker and easier. Our main capabilities include:
◇ Vacuum Brazing and Controlled Atmosphere Brazing
◇ CNC machining
◇ Welding
◇ Aluminum extrusion
◇ Aluminum die casting
◇ Sheet metal fabrication covering laser cutting, stamping, drawing and bending
◇ Surface coating
✅We emphasis prototype process. we use our vast experience in fluid dynamics, thermal performance, and material compatibility to optimize your design. To perform advanced thermal analysis, our engineers use simulation software like CFD, 6 Sigma. In addition
to providing expert thermal and mechanical design engineering, we ensure that your products fit DFM concept so that your products can be built to your exact specifications as well as meet your delivery schedule.
✅ We see quality aspects from manufacturing viewpoints. Focusing more on monitoring and minimizing process variable to keep stable quality level. Delivered products are performed 100% inspection or testing. Less worries of quality risk and loss
✅ Our lean manufacturing and continuous improvement program aim at eliminating all wastes that do not add values. Our customers do not need to pay for wastes. The cost will be more and more competitive that help grow up your business and build your success.
◇ Vacuum Brazing and Controlled Atmosphere Brazing
◇ CNC machining
◇ Welding
◇ Aluminum extrusion
◇ Aluminum die casting
◇ Sheet metal fabrication covering laser cutting, stamping, drawing and bending
◇ Surface coating
✅We emphasis prototype process. we use our vast experience in fluid dynamics, thermal performance, and material compatibility to optimize your design. To perform advanced thermal analysis, our engineers use simulation software like CFD, 6 Sigma. In addition
to providing expert thermal and mechanical design engineering, we ensure that your products fit DFM concept so that your products can be built to your exact specifications as well as meet your delivery schedule.
✅ We see quality aspects from manufacturing viewpoints. Focusing more on monitoring and minimizing process variable to keep stable quality level. Delivered products are performed 100% inspection or testing. Less worries of quality risk and loss
✅ Our lean manufacturing and continuous improvement program aim at eliminating all wastes that do not add values. Our customers do not need to pay for wastes. The cost will be more and more competitive that help grow up your business and build your success.
Vacuum Brazing Furnace
CNC Machine
Meeting Discussion with Customers
ISO9001 Certified
100% tested or Inspected
Thermal Simulation Analysis
