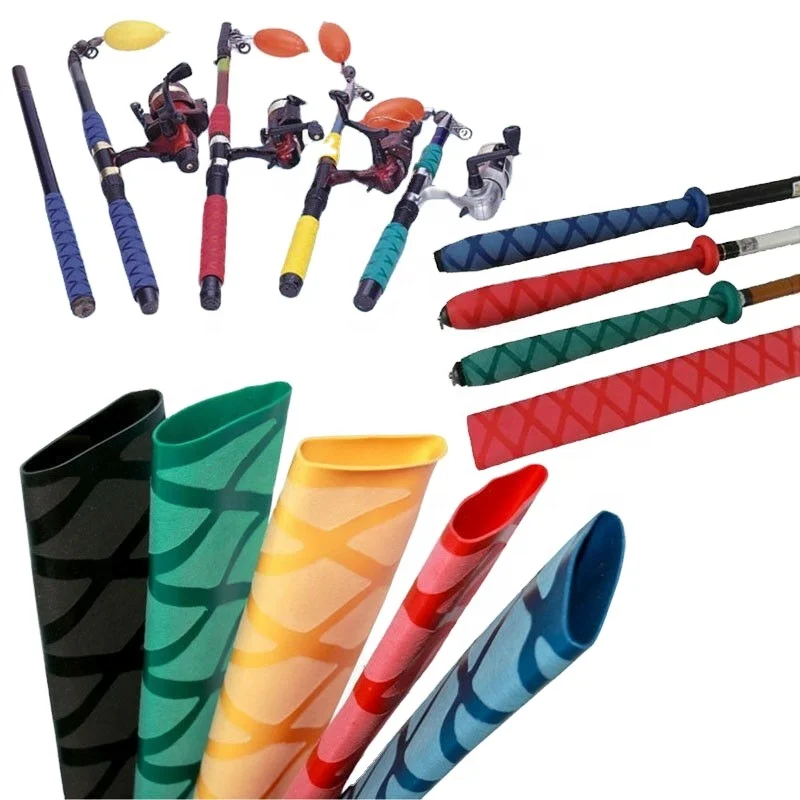

DEEM Fishing Rod Sleeve PE Anti skid fish scale Heat Shrink Tubing Non slip tubes
- Category: >>>
- Supplier: Deem Electronic & Electric Material Co. Ltd.
Share on (1600729208372):
Product Overview
Description
Technical Data
| Property | Test Method | Typical Data |
| Tensile Strength (Mpa) | ASTM D412 | 10.4 Mpa |
| Longitudinal Elongation(%) | ASTM D412 | ≤8 |
| Elongation(%) | ISO 1210 | 200% |
Dimensions
| Size | As Supplied (mm) | After Recovery (mm) | Standard length m/pcs | ||
| DM-SP mm. (D) | Inside Diameter Min. (D) | Wall Thickness Nominal. (T) | Inside Diameter Max. (d) | Wall Thickness nominal. (t) | |
| 15 | ≥15 | 0.45±0.15 | 8 | 0.85±0.15 | 0.8/1.0/1.6 |
| 20 | ≥20 | 0.50±0.15 | 11 | 0.90±0.15 | 0.8/1.0/1.6 |
| 22 | ≥22 | 0.50±0.15 | 12.5 | 0.90±0.15 | 0.8/1.0/1.6 |
| 25 | ≥25 | 0.50±0.15 | 14.5 | 1.00±0.15 | 0.8/1.0/1.6 |
| 28 | ≥28 | 0.50±0.15 | 15.5 | 1.00±0.15 | 0.8/1.0/1.6 |
| 30 | ≥30 | 0.60±0.15 | 17.5 | 1.20±0.15 | 0.8/1.0/1.6 |
| 35 | ≥35 | 0.60±0.15 | 20 | 1.20±0.15 | 0.8/1.0/1.6 |
| 40 | ≥40 | 0.60±0.15 | 23 | 1.20±0.15 | 0.8/1.0/1.6 |
| 45 | ≥45 | 0.65±0.15 | 25 | 1.25±0.15 | 0.8/1.0/1.6 |
| 50 | ≥50 | 0.65±0.15 | 28 | 1.25±0.15 | 0.8/1.0/1.6 |
