Automatic Horizontal Instant Noodle Pillow Cup Packing Machine For Food Beverage Factory
- Category: >>>
- Supplier: Liaoyang,Xianglong,International,Machinery,Trading,Co.,LTD
Share on:
Product Overview
Description
Product Description

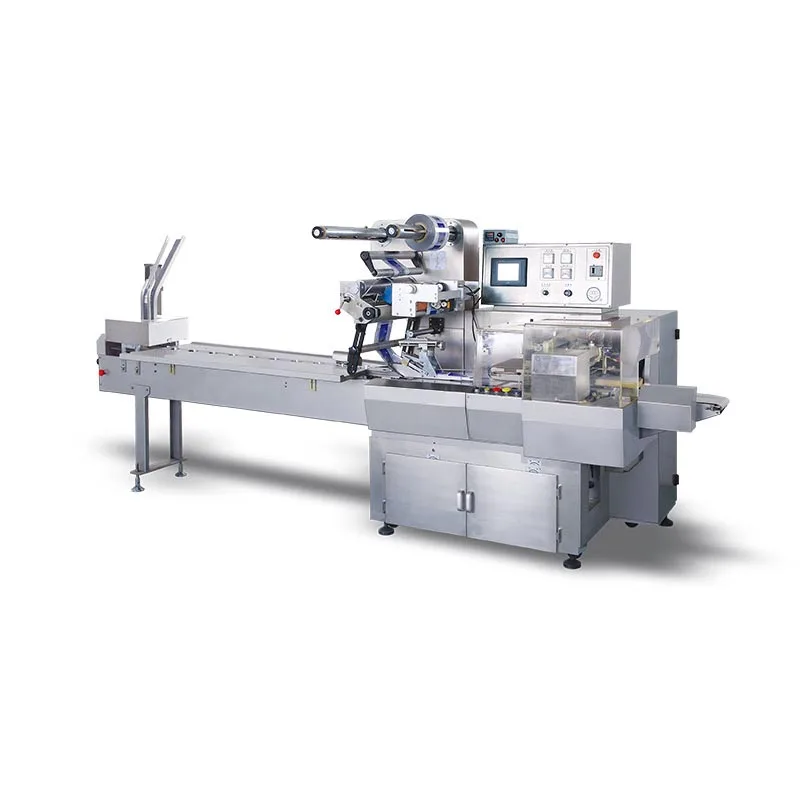

Multifunctional Pillow-Type Automatic Packing Machine
This machine is specially developed and manufactured by our scientific research personnel for a second packing of
aluminium-plastic drug plate in the pharmaceuticalindustry, this upgrading the damp proof performance of the packed
aluminium-plastic drug plate and keeping the drug away from light. This machine adopts PLC programmable controller to program operation of the whole machine and it is equipped with number printing lot No. of production, production Date and Term of Validity, etc. on the outer package during packing process. Our scientific research personnel has also designed a kind of automatic feeder suitable for aluminium-plastic tablet of various specifications, The apparatus of eliminate the pressed and bad plate. Raise the automaticity of the machine, carry on flow Production. Each Performance figure met the speeification requirements of GMP.
aluminium-plastic drug plate in the pharmaceuticalindustry, this upgrading the damp proof performance of the packed
aluminium-plastic drug plate and keeping the drug away from light. This machine adopts PLC programmable controller to program operation of the whole machine and it is equipped with number printing lot No. of production, production Date and Term of Validity, etc. on the outer package during packing process. Our scientific research personnel has also designed a kind of automatic feeder suitable for aluminium-plastic tablet of various specifications, The apparatus of eliminate the pressed and bad plate. Raise the automaticity of the machine, carry on flow Production. Each Performance figure met the speeification requirements of GMP.
Feature：
1.Controller to Program Operation: This machine adopts PLC Programmable Controller to program operation of the whole machine.
2.Human-Computcr Intcrface: The information of the speed of machine, the set bag-length and the actual bag length and the packing output will be clearly displayed on the screen of the touch panel.
2.Human-Computcr Intcrface: The information of the speed of machine, the set bag-length and the actual bag length and the packing output will be clearly displayed on the screen of the touch panel.
3.Adjustment of Bag Length: The packing length can be set directly on touch panel Screen Display and can be changed very easily and quickly without manual operation.
4.Two-way Compensation Colour Code Aligning: Detect the colour code with the imported Photoelectric Detecting Senor and conduct automatic compensating mechanism, thus making colour code aligning quick and accurate.
5.Four Sets of Automatic Temperature Controllers: It adopts Temperature Controller on every heating position for automatic temperature control so as to improve the sealing quality.
6.Automatic feeding of medicine plate: It is suitable for automatic feeding of various specification of aluminum-plastic medicine plates.
6.Automatic feeding of medicine plate: It is suitable for automatic feeding of various specification of aluminum-plastic medicine plates.
Specification
Production Capacity | 30-120 Bags/min Depending on packing materials |
Packing Size | L60-150mm,W30-110mm,H5-30mm (Designed accoding to users' requirements) |
Rated Frequency | 50Hz |
Rated Voltage | AC220V |
Total Power | 2kw |
Weight | 680kg |
Overall Dimension | L×W×H 3500×640×1600mm |
Note:The products of our company may always be updated, and are subject to change without (the real products shall prevail).
Other Products
DWB-500 Reciprocating Pillow-Type Packaging Machine
Features：
1.Easy Operation by touch screen.
2.AC Drive Motor with frequency inverter for stepless control.
3.Motorized cut off length set up quick and fine adjustment.
4.PID control for heater temperature with auto-tuning function.
5.Digital display for cut off length speed and pack counter.
6.Built-in LEDs for visual error check.
7.Precise automatic print registration set up and operation with eye-mark monitoring. 8.Easy maintenance design for drive components.
9.For easy operation, symmetrical type available.

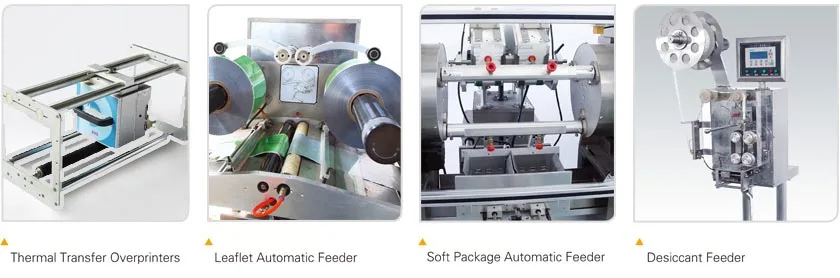

Pillow-Type Packing Machine Optional Feeder
Main Technical Parameters：
Production Capacity | 30-120 Bags/min(Vary with different specifications) |
Film Width | (Max) 450mm |
Cut Off Length | 75-400mm |
Product Size | (Max width)200mm,(Max height)60mm |
Weight | (about)1000kg |
Rated Voltage | AC220V/50Hz |
Total Power | 3.5kw |
Overall Dimension | (L×W×H) 3750×1200×1650mm |

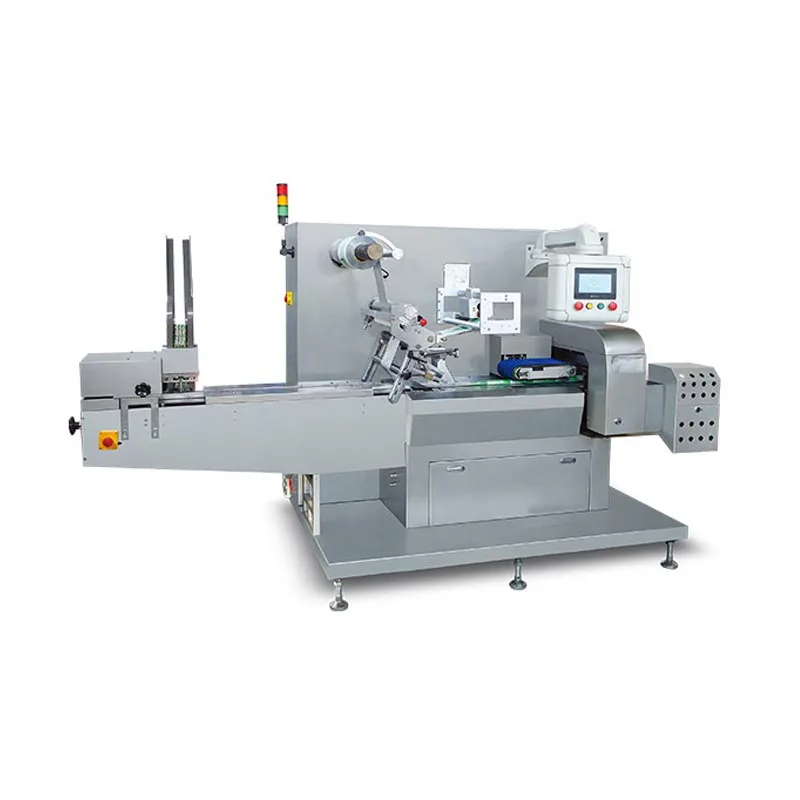

DWB-500G High Speed Reciprocating Pillow Type Packing Machine
This machine is our company scientific research personnel based on DWB-500 reciprocating pillow packaging machine, adopt all servo motor control structure and packing speed improvement and increase the number of detection and elimination, fault diagnosis, alarm and shutdown, remote control functions, which greatly improves the production efficiency, reduce personnel and production cost.
Features：
1.Touch screen control, simple operation.
2.The length of the bag of arbitrary choice, automatic adjustment, fast, accurate.
3.Reciprocating end sealing mechanism, servo motor drive firmer sealing, sealing cutting knife without loss.
3.Reciprocating end sealing mechanism, servo motor drive firmer sealing, sealing cutting knife without loss.
4.Drug aluminum plate servo feeding, one to five plate touch screen set arbitrarily.
5.The machine with photoelectric color code tracking, benchmarking the normal operation, in the operation process of bag material joint errors and synchronization failure on the plate, can be set the number of alarm shutdown.
6.The PLC module, six groups of temperature control, temperature control, temperature display, on the screen. 7.Packaging film tape joint automatic detection and rejection.
8.Coder Machine leakage automatic detection and rejection.
9.Medicine plate missing, automatically detect rejection.
10.Film lack alarm shutdown.
11.Menu functions of memory (with various parameters stored in different packagingproducts).
12.Ethernet Remote control, can modify the program.
Main Technical Parameters：
Production Capacity | 60-135 Bags/min(Vary with different specifications) |
Film Width | (Max) 450mm |
Cut Off Length | 80-300mm |
Product Size | (Length)60-200mm,(Width)35-200mm,(Height)5-55mm |
Weight | (about)1300kg |
Rated Voltage | AC220V/50Hz |
Total Power | 5.25kw |
Overall Dimension | (L×W×H) 3750×1200×1700mm |

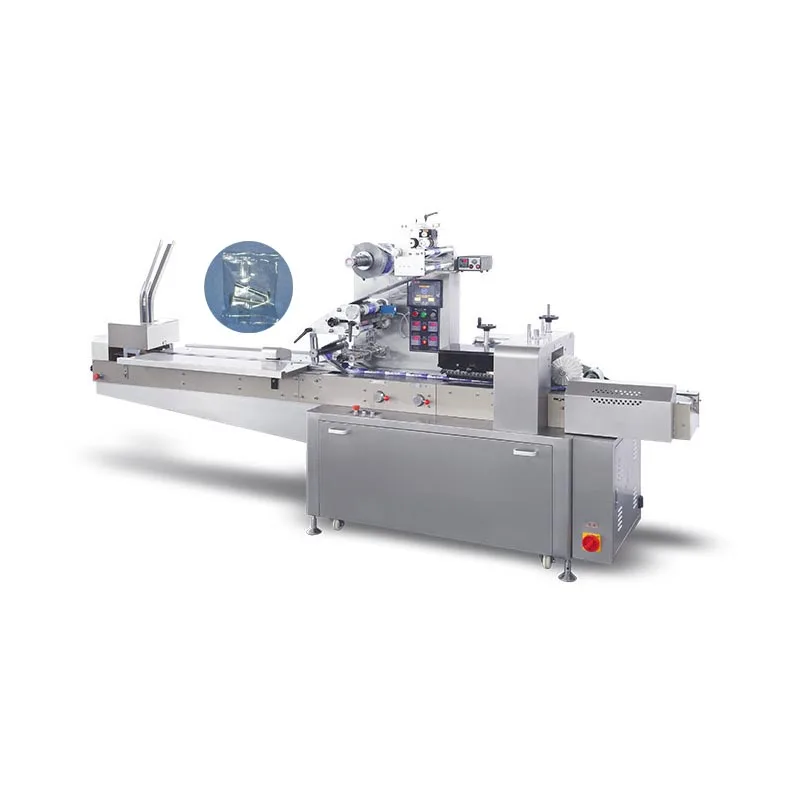

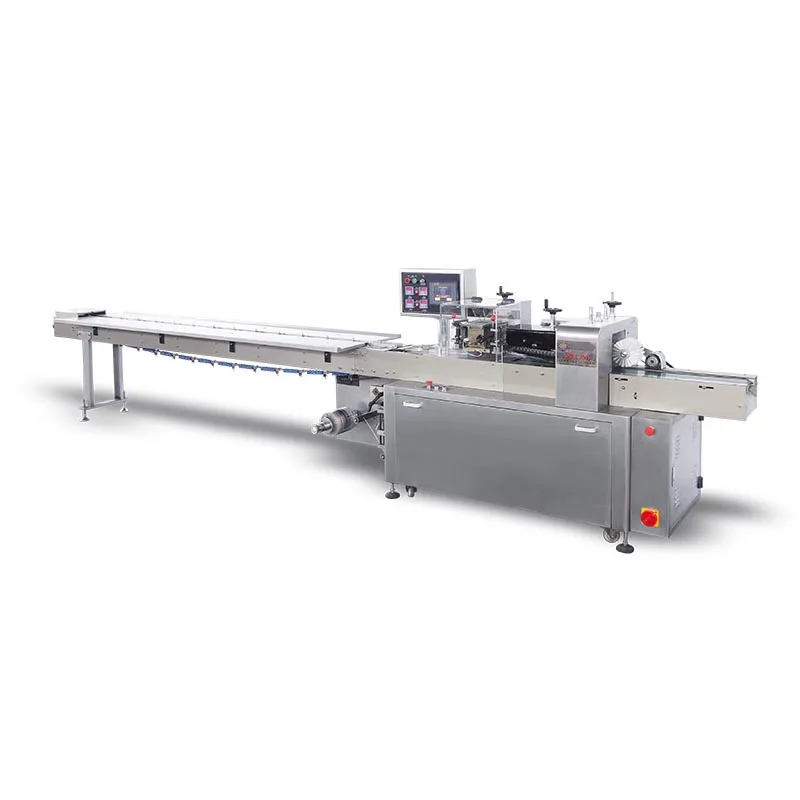

DWB-250C/400C/600C Multi-function pillow plate automatic packing machine
This machine is a kind of widely used packaging machine, it can be suitable for all kinds of film to biscuit, snow cake, chocolate, bread and all kinds of block object packaging. Programmable control: the use of PLC programmable controller, so that the whole machine operation program. Sponge transport index: using sponge material as traction power, to solve the problem of ultra-thin material and the packaging object overweight.
Main Technical Parameters：
Model | DZB-250C | DZB-400C | DZB-600C |
Production Capacity | 60-200 Bags/min | 30-180 Bags/min | 30-100 Bags/min |
Packing Size（L*W*H)(MM) | (60-150)*(30-110)*(5-30) | (80-180)*(30-180)*(5-55) | (150-300)*(100-270)*(5-70) |
Width of packing material | 80-250mm | 90-400mm | 250-600mm |
Total Power | 220V 50Hz 2kg | 220V 50Hz 2kg | 220V 50Hz 2.5kg |
Weight | 680kg | 750kg | 850kg |
Overall Dimension | 5100*640*1500mm | 5100*770*1600mm | 5200*1100*1600mm |

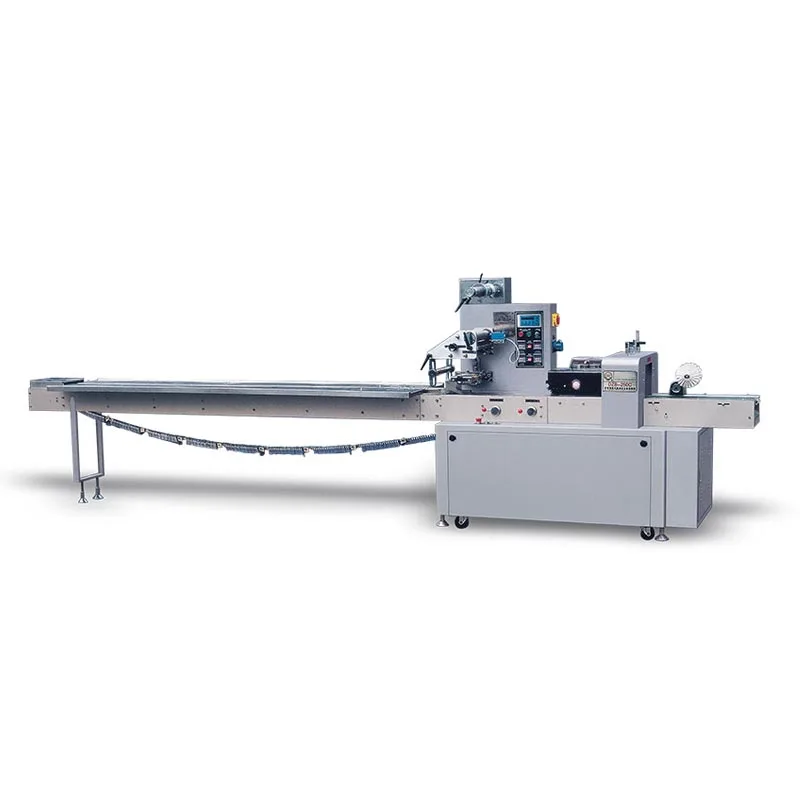

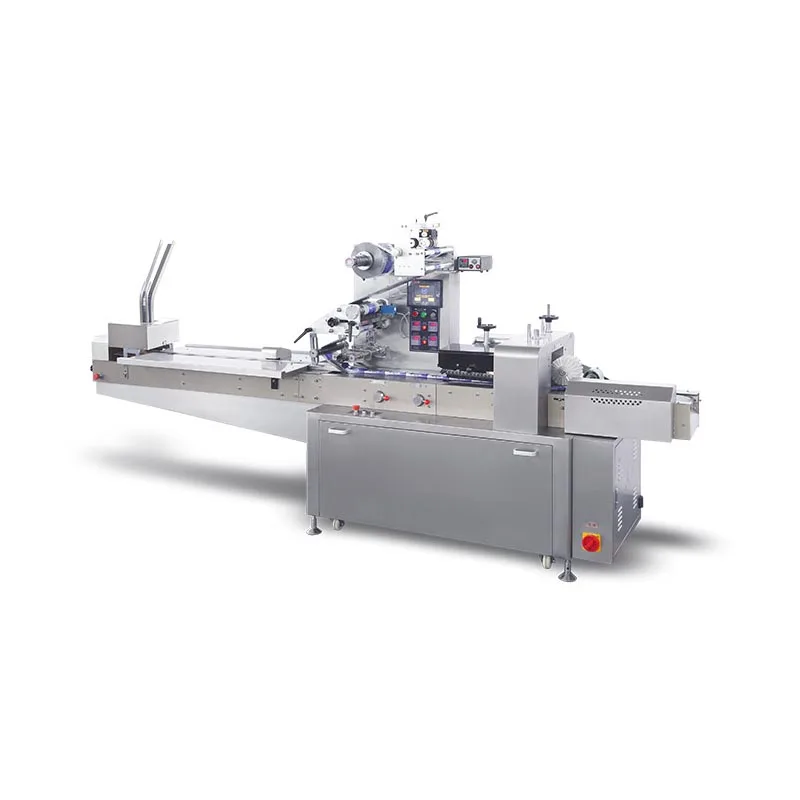

DZB-250/400 Multi-function pillow type automatic packing machine
This machine is specially designed for packing various special-shaped articles. The whole machine adopts PLC program control,
photoelectric version adjustment, electronic text display, four groups of automatic temperature control, host frequency conversion speed regulation, advanced technology, easy to use.
photoelectric version adjustment, electronic text display, four groups of automatic temperature control, host frequency conversion speed regulation, advanced technology, easy to use.
This machine has good sealing performance, clean and clean sealing, flexible and fast, smooth operation, low noise, high
efficiency. Scope of application: food industry (can be biscuits, snow cake, instant noodles, candy, pastry, bread and all kinds of moon cakes or tray type containers and other block food) for automatic film packaging.
efficiency. Scope of application: food industry (can be biscuits, snow cake, instant noodles, candy, pastry, bread and all kinds of moon cakes or tray type containers and other block food) for automatic film packaging.
Other industries such as: cosmetics, soap, paper towels, toys, hardware, medical equipment and other goods packaging can achieve the ideal effect.
Main Technical Parameters：
Model | DZB-250 | DZB-400 |
Production Capacity | 30-180 Bags/min | 30-180 Bags/min |
Packing Size（LW*H)(mm) | (80-180)*(30-110)*(5-30) | (100-300)*(30-180)*(5-55) |
Width of packing material | 80-230mm | 90-400mm |
Total Power | 220V 50Hz 2kg | 220V 50Hz 2kg |
Weight | 700kg | 750kg |
Overall Dimension | 5100*700*1200mm | 5200*860*1200mm |

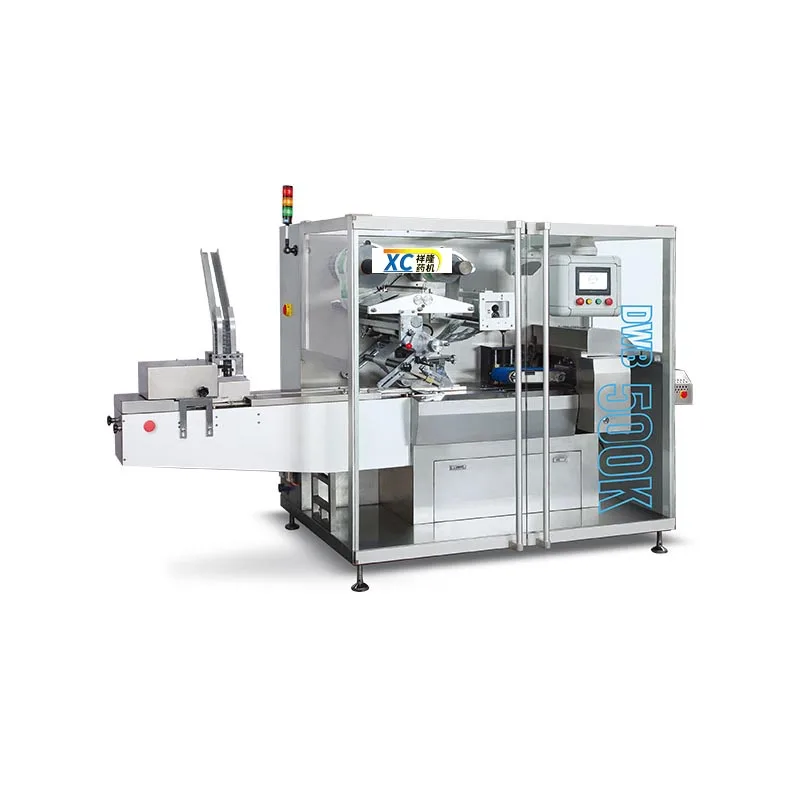

DWB-500K High Speed Reciprocating Pillow Type Packing Machine
This Machine is our company scientific research personnel based on DWB-500G High speed reciprocating pillow packing machine,adopt the integral safety door,all servo motor control structure and packing speed improvement and increase the number of detection and elimination,fault diagnosis,alarm and shutdown,remote control functions, which greatly improves the production efficiency,reduce personnel and production cost.
Features：
1.Touch screen control,easy to operate.
2.Bag length arbitrary optional,automatic adjustment,fast and accurate.
3.Reciprocating end sealing structure,servo motor drive,sealing more firmIy,sealing cutting knife without loss.
4.Aluminum PVC blister servo feeding,one to five blisters of touch screen arbitrary settings.
5.The main machine is equipped with photoelectric color remark tracking,remark detection running normally,in the process of operation,the packaging material joint if detection error and synchronizalion failure,can set the package number alarm stop.
6.PLC module,six groups of temperature control,control temperature, temperature settings are displayed on the touch screen.
7.Automatic detection and rejection of packaging film adhesive joint.
8.Automatic film joint connection device.
8.Automatic film joint connection device.
9.Automatic detection and rejection of printer missing printing.
10.Missing blister or multi blister automatic detection rejection.
11.Lack of film alarm shutdown.
12.Menu memory function(can store various parameters of different packaging products).
13.Ethernet Remote control,can modify the program.
Main Technical Parameters：
Production Capacity | 60-200 Bags/min(Vary with different specifications) |
Film Width | (Max)300mm |
Product size | (Length)60-200mm,(Width)35-200mm,(Height)5-50mm |
Cut off length | 80-300mm |
Weight | 1600kg |
Rated Voltage | AC220V/50Hz |
Total Power | 5.25kw |
Overall Dimension | (L×W×H) 3750×1200×1700mm |
