Automatic Winding Copper Wire Machine Oil Immersed Transformer Coil Winding Machine

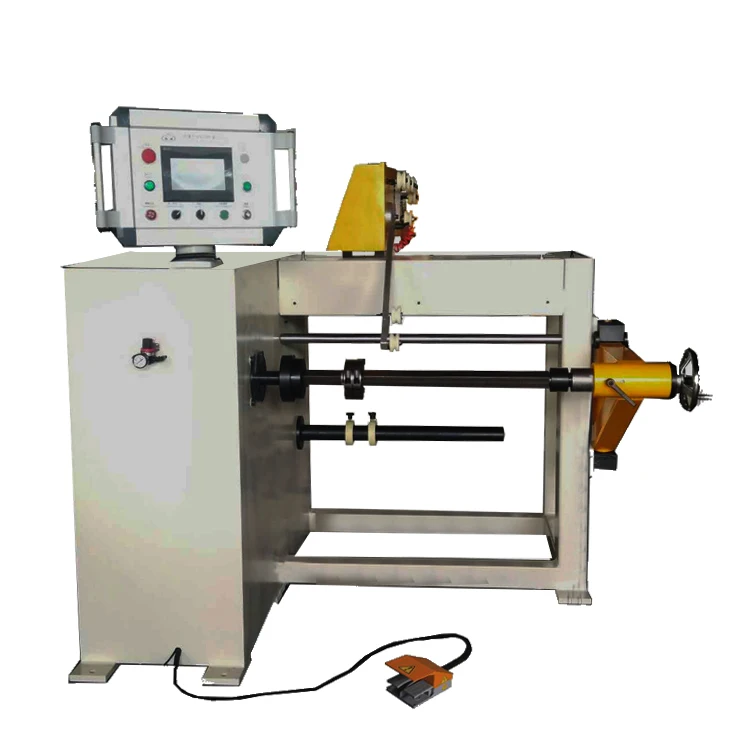

Automatic coil winding machine ZPX400, adopting automatic wire laying and tension technologies, is especially suitable for winding square and round coil. These coils can be used in small and medium-sized distribution transformers, reactors and other similar products. The winding machine is provided with main winding motor, automatic wire laying unit, layer insulation feeder unit, tension adjustable decoiler, pneumatic system, PLC control, and servo motors, etc. It features high automation, full functions, and strong driving force, etc.
Main Components
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters
Typical standard specifications of ZPX400 are shown below, however the machine can also be manufacutured as requested.
| Center height | 900mm |
| Max. winding width | 400mm |
| Winding power | 4kw |
| Winding speed | 0 ~ 200rpm |
| Speed regulation | stepless |
| Max. flat wire size | 5 x 12mm |
| Round wire diameter | 0.3 ~ 5mm |
| Max. coil OD | 600mm |
| Max. capacity | 600kg |
| Warranty period | 12months |
Packaging & Shipping
Similar Products
Company Information
FAQ
1) Q: Are you manufacturer or trading company?
A: We are both manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service oversea?
A:We provide both technical support online and on-site services
A:We provide both technical support online and on-site services
4) Q: How does your factory control product quality?
A:Besides we strictly control each production chain, all machines have to be tested before loading.
5) Q: How can I know the machines is OK before loading?
A: We can record the testing video for your reference if you need, or you can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture customized machines as requested.
