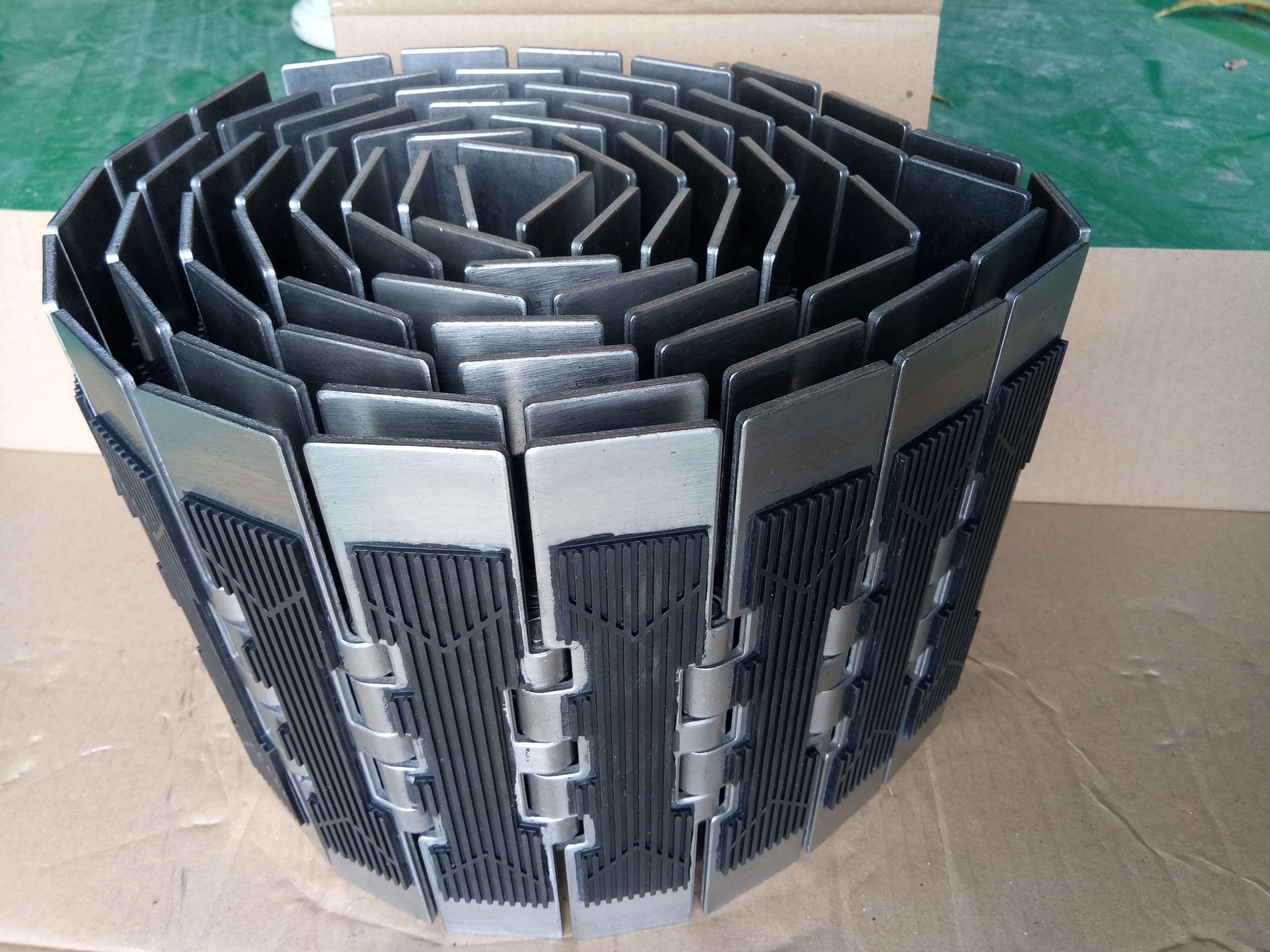

High Quality Double Hinge 802 Straight Run Stainless Steel Table Top Chain Conveyor Chain with rubber
- Category: >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (1600729263170):
Product Overview
Description
Short Description
Stainless Steel SS802 Table Top Chain double hinge straight running, with excellent high tensile strength which can be utilized for long conveyors or large heavy items, esp. conveying glass bottles crates and inline feeders.
with rubber on top can reduce friction and improve stability.
Material: Austenitic Stainless Steel AISI SS 304 316, Ferritic Stainless Steel 400, Carbon Steel, Extra Plus Stainless Steel,
Max Speed: 80m/min lubricated, 50m/min dry environment
Max Length: 15m, Work Strength: 3500N
Packaging: 80 links = 10 feet = 3.048 m, 26 pitches/meter

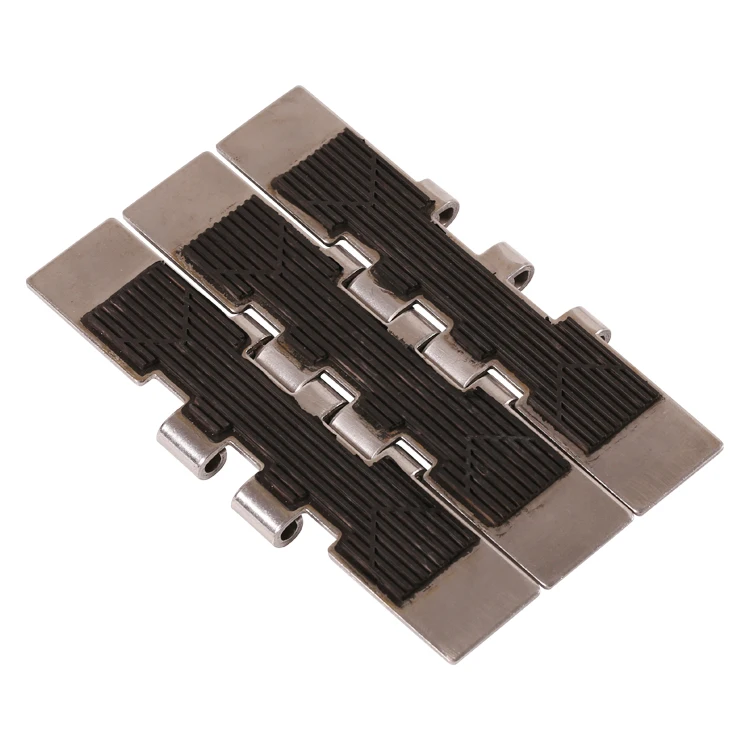

Ultimate Stainless Steel SS 802 Table Top Chain
with rubber on top can reduce friction and improve stability.
Material: Austenitic Stainless Steel AISI SS 304 316, Ferritic Stainless Steel 400, Carbon Steel, Extra Plus Stainless Steel,
Max Speed: 80m/min lubricated, 50m/min dry environment
Max Length: 15m, Work Strength: 3500N
Packaging: 80 links = 10 feet = 3.048 m, 26 pitches/meter
Ultimate Stainless Steel SS 802 Table Top Chain
Product Parameters
Chain Type | Plate Width | Working load(Max) | Ultimate tensile strength | Weight | ||||||||||
mm | inch | 304(kn) | 420 430(kn) | 304(min kn) | 420 430(min kn) | Kg/m | ||||||||
SS802-K750 | 190.5 | 7.5 | 6.4 | 5 | 16 | 12.5 | 5.8 | |||||||
SS802-K1000 | 254 | 10.0 | 6.4 | 5 | 16 | 12.5 | 7.73 | |||||||
SS802-K1200 | 304.8 | 12.0 | 6.4 | 5 | 16 | 12.5 | 9.28 | |||||||
Pitch ：38.1mm | Thickness：3.1mm | |||||||||||||
Material: austenitic stainless steel (non-magnetic); ferritic stainless steel (magnetic) Pin material：stainless steel. | ||||||||||||||
Maximum conveyor length: 15 meters. | ||||||||||||||
Max. Speed : lubricant 90m/min ; Dryness 60m/min. | ||||||||||||||
Packing: 10 feet=3.048 M/box 26pcs/m | ||||||||||||||

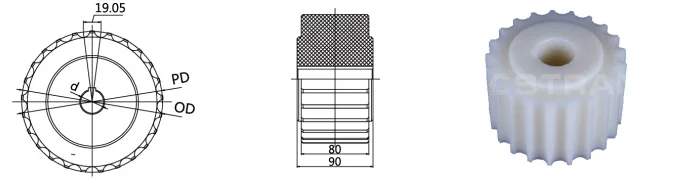

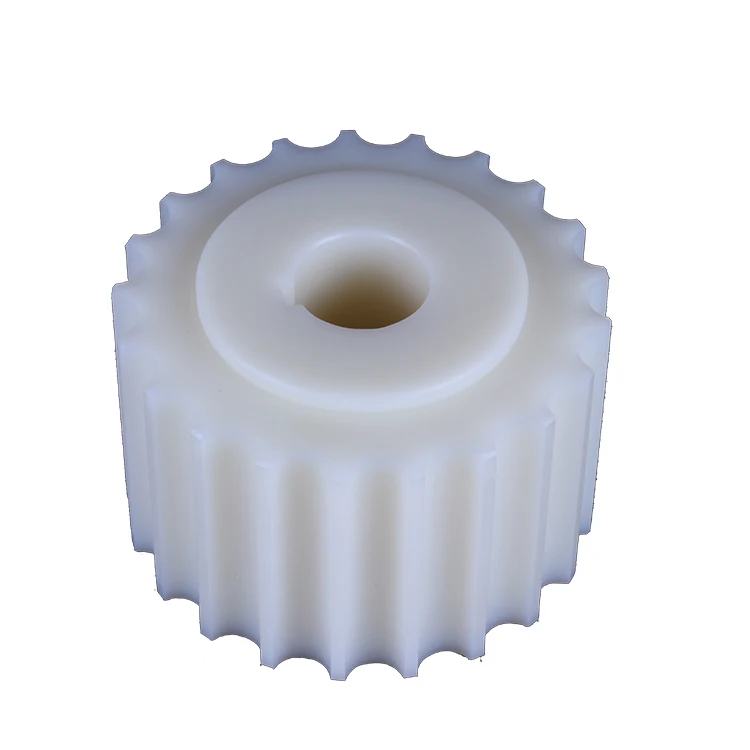

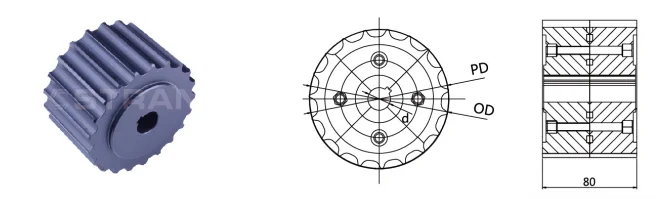

Machined Sprockets
Machine Sprockets | Teeth | Pitch Diameter(PD) | Outside Diameter(OD) | Center Bore(d) | ||||||||
mm | inch | mm | inch | mm | ||||||||
1-821-19-20 | 19 | 116.5 | 4.58 | 116.8 | 4.60 | 20 25 30 | ||||||
1-821-21-25 | 21 | 128.8 | 5.07 | 129.1 | 5.08 | 25 30 35 40 | ||||||
1-821-23-25 | 23 | 140.5 | 5.53 | 140.7 | 5.53 | 25 30 35 40 | ||||||
1-821-25-25 | 25 | 152.7 | 6.01 | 153.0 | 6.02 | 25 30 35 40 | ||||||
Material: Polyamide PA6 | ||||||||||||
Bore Tolerance: d: 0.02~008 | ||||||||||||

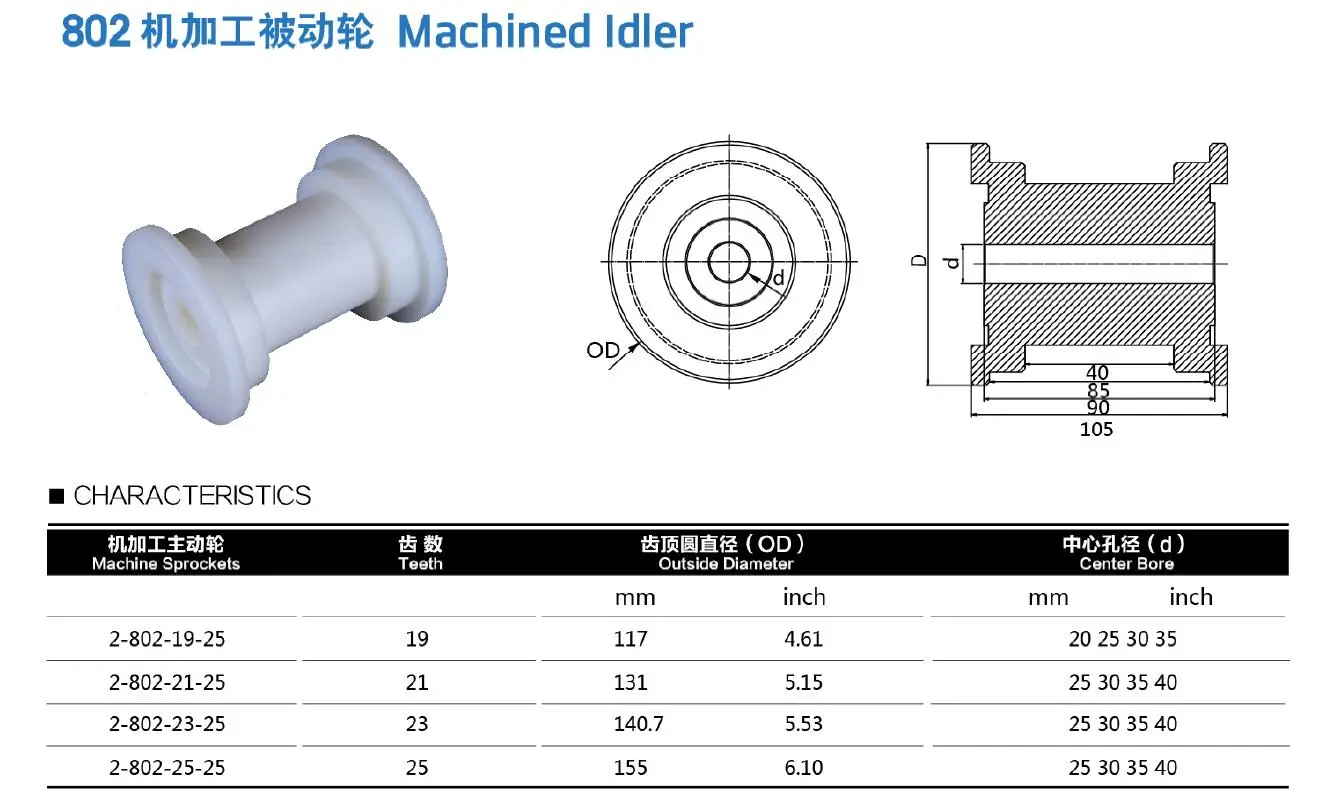

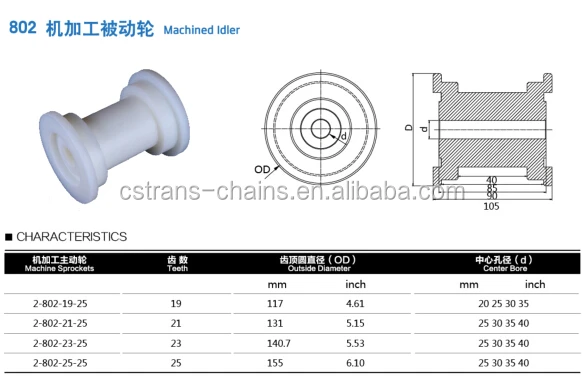

Machine Idler | Teeth | Pitch Diameter(PD) | Outside Diameter(OD) | Center Bore(d) | ||||||||
mm | inch | mm | inch | mm | ||||||||
2-802-19-25 | 19 | 117 | 4.61 | 117 | 4.61 | 20 25 30 35 | ||||||
2-802-21-25 | 21 | 131 | 5.15 | 131 | 5.15 | 25 30 35 40 | ||||||
2-802-23-25 | 23 | 140.7 | 5.53 | 140.7 | 5.53 | 25 30 35 40 | ||||||
2-802-25-25 | 25 | 155 | 6.10 | 155 | 6.10 | 25 30 35 40 | ||||||
Material: Polyamide PA6 | ||||||||||||
Bore Tolerance: d: 0.02~008 | ||||||||||||
Injection Sprockets | Teeth | Pitch Diameter(PD) | Outside Diameter(OD) | Center Bore(d) | ||||||||
mm | inch | mm | inch | mm | ||||||||
3-821-19-25 | 19 | 115.7 | 4.55 | 117 | 4.60 | 25 | ||||||
1-821-19-30 | 30 | |||||||||||
Material: Reinforced PA | ||||||||||||
Bore Tolerance: d: 0.02~008 | ||||||||||||
Application Industries
Application: SS802 Double straight chains widely used in all kinds of conveyor of bottle and heavy load such as metal. Especially applied to beer industry.

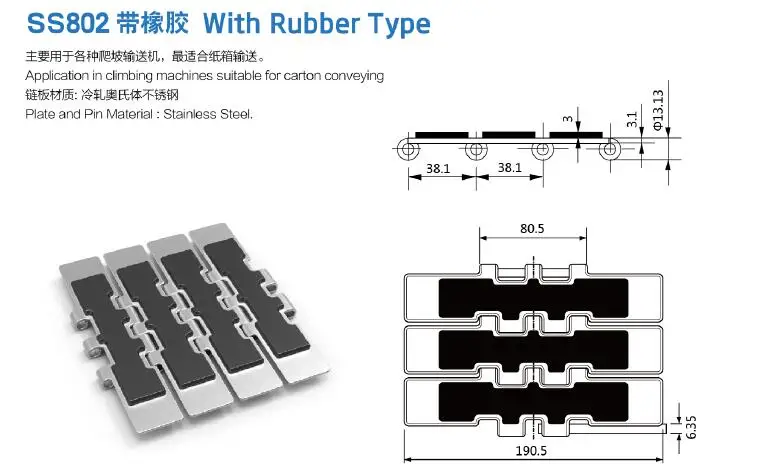

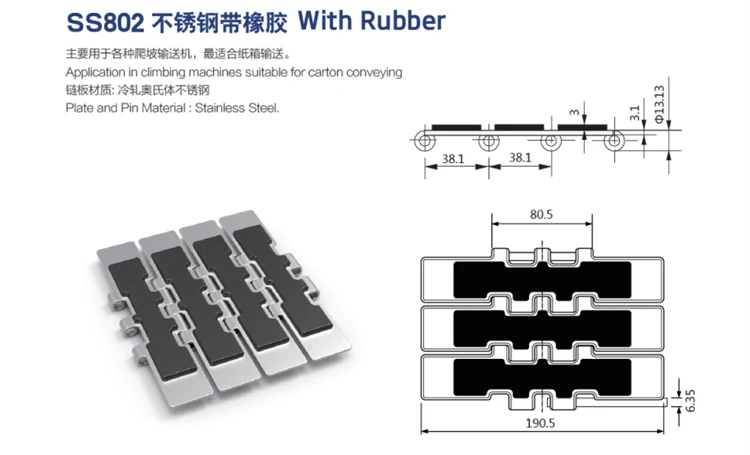

SS802F with rubber application in climbing machines, especially suitable for carton conveying.
SS802F with rubber application in climbing machines, especially suitable for carton conveying.
Ideal for the food, soft drinks, breweries, glass bottling filling, wine industry, dairy, cheese, beer production, incline conveying, canning and pharmaceutical packaging.
Suggestion: lubricant.
Suggestion: lubricant.
Advantage
Steel and Stainless Steel Flat Top Chains are produced in straight running and side
flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions forall conveying applications.
flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions forall conveying applications.
These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
