Product Overview
Description
Product Description
OPY Micro Solar Inverter

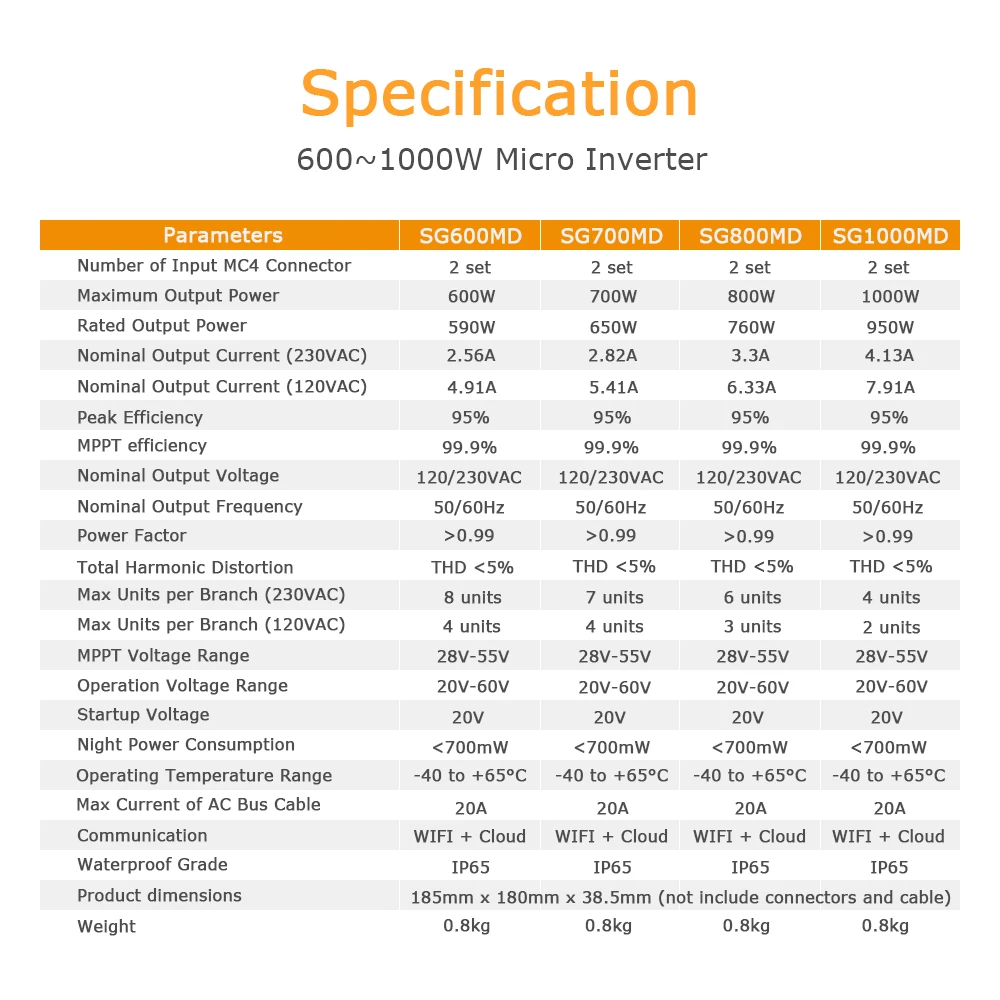

Item | SG300 MS | SG350MS | SG400MS | SG500MS | SG600MD | SG700MD | SG800MD | SG1000MD | |||||||
Brand Name | OPY or OEM brand | ||||||||||||||
Rated input voltage | 120 / 230Vac 50 / 60Hz | ||||||||||||||
Output voltage waveform | Pure sine wave | ||||||||||||||
Max output power (W) | 300W | 350W | 400W | 500W | 600W | 700W | 800W | 1000W | |||||||
Rated output power (W) | 295W | 330W | 380W | 480W | 590W | 650W | 760W | 950W | |||||||
Nominal output current (120VAC) | 2.5A | 2.75A | 3.16A | 4.16A | 4.91A | 5.41A | 6.33A | 7.91A | |||||||
Nominal output current (230VAC) | 1.3A | 1.43A | 1.65A | 2.17A | 2.56A | 2.82A | 3.3A | 4.13A | |||||||
Max Input Power | 300W | 350W | 400W | 500W | 2*300W | 2*350W | 2*400W | 2*500W | |||||||
Operation voltage range | 20V-60V | ||||||||||||||
Max Input Current (A) | 10 | 11.66 | 13.33 | 16.66 | 2*10 | 2*11.66 | 2*13.33 | 2*16.66 | |||||||
Peak Efficiency | 95% | ||||||||||||||
Nominal MPPT Efficiency | 99.9% | ||||||||||||||
Max Units per Branch (120VAC) | 8 | 7 | 5 | 4 | 4 | 4 | 3 | 2 | |||||||
Max Units per Branch (230VAC) | 16 | 14 | 11 | 9 | 8 | 7 | 6 | 4 | |||||||
Communication interface | WIFI With Cloud Monitoring | ||||||||||||||
Dimension (L*W*D) | 145mm x 140mm x 37mm | 185mm x 180mm x 38.5mm | |||||||||||||
Weight (kg) | 0.8kg | 1.5kg | |||||||||||||

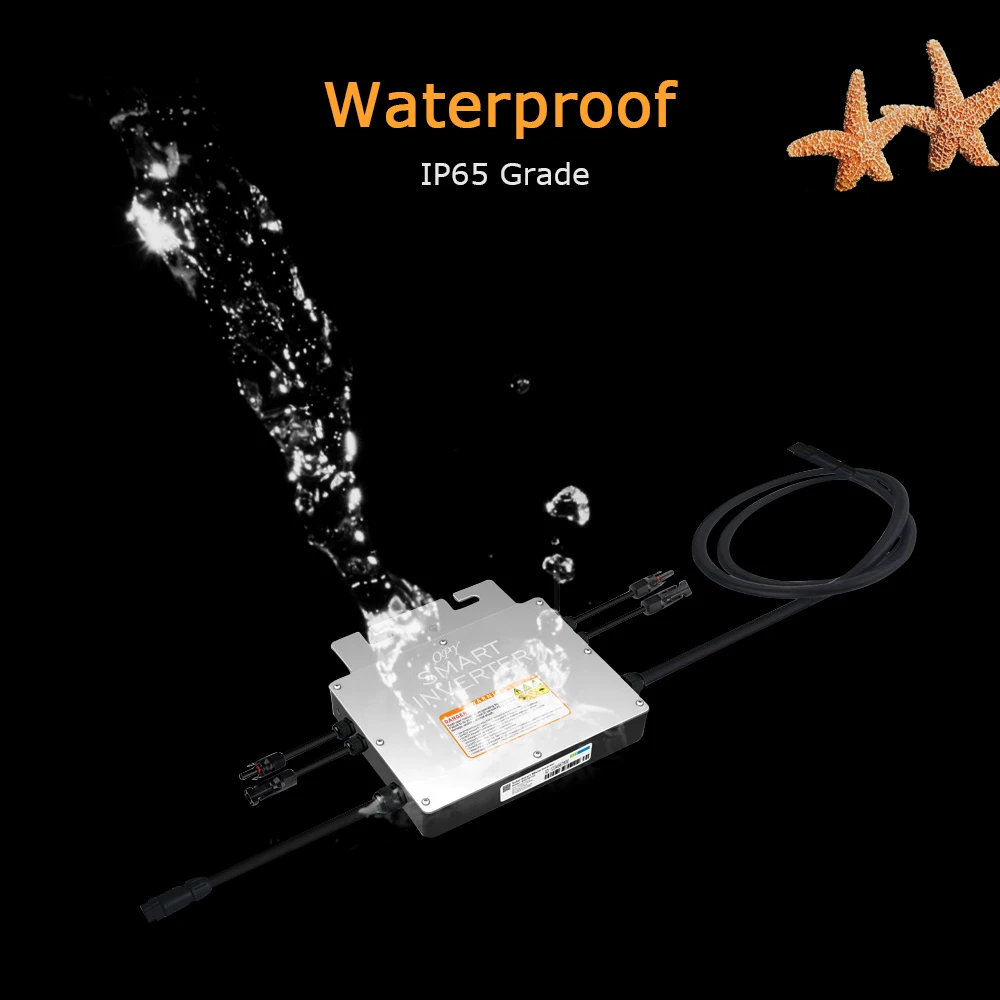

Waterproof Grade | IP65 | ||||||||||||||
Delivery Day | 3-15 days upon receipt of deposit | ||||||||||||||
Shipping Way | Express / Air Shiping / By Sea / By Train | ||||||||||||||

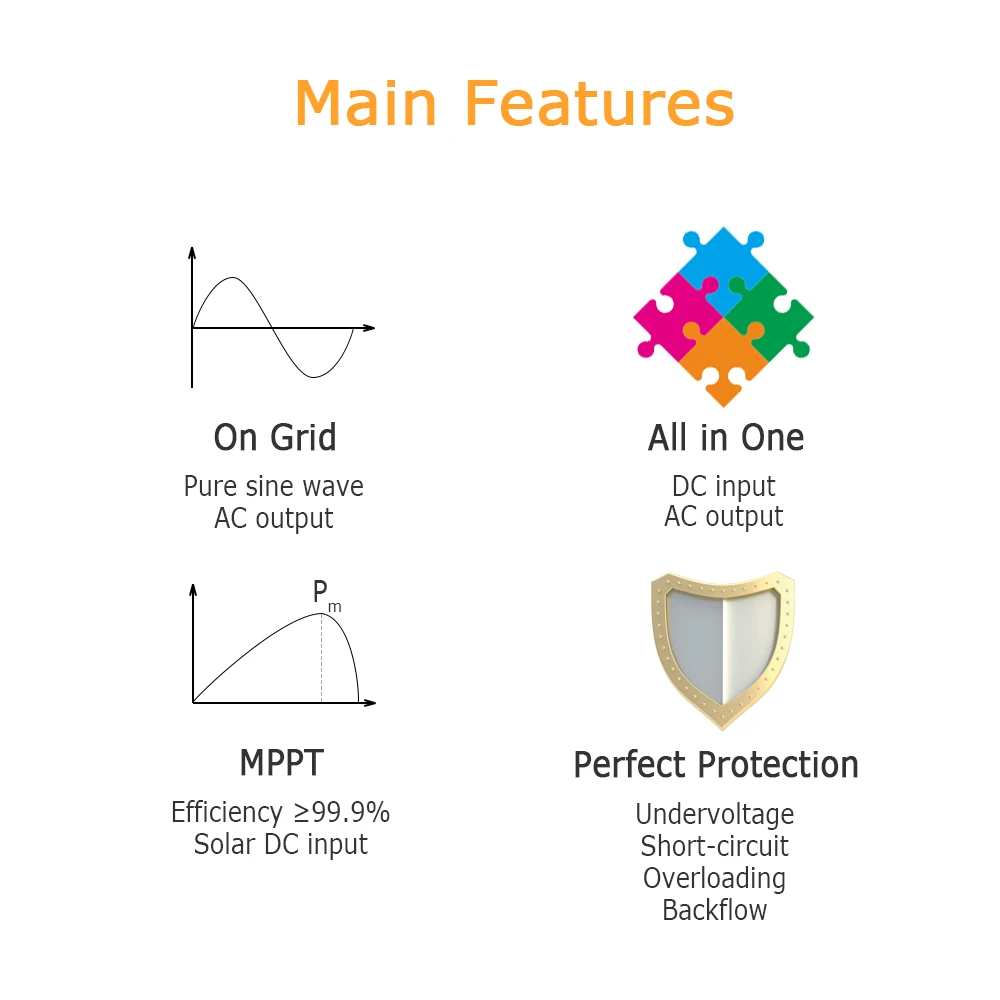

Main Featrures:
1. Pure sine wave solar inverter.

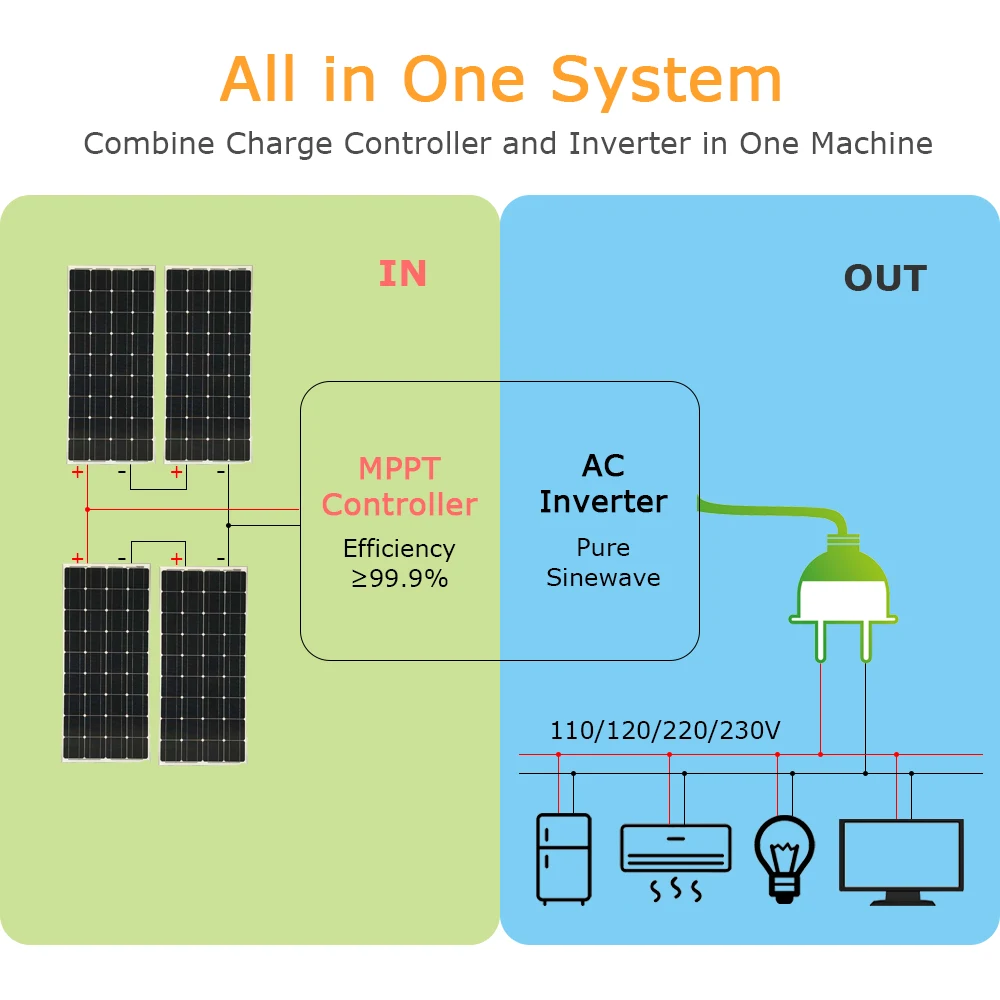

2. MPPT charger controller inside, efficiency ≥99.9%.

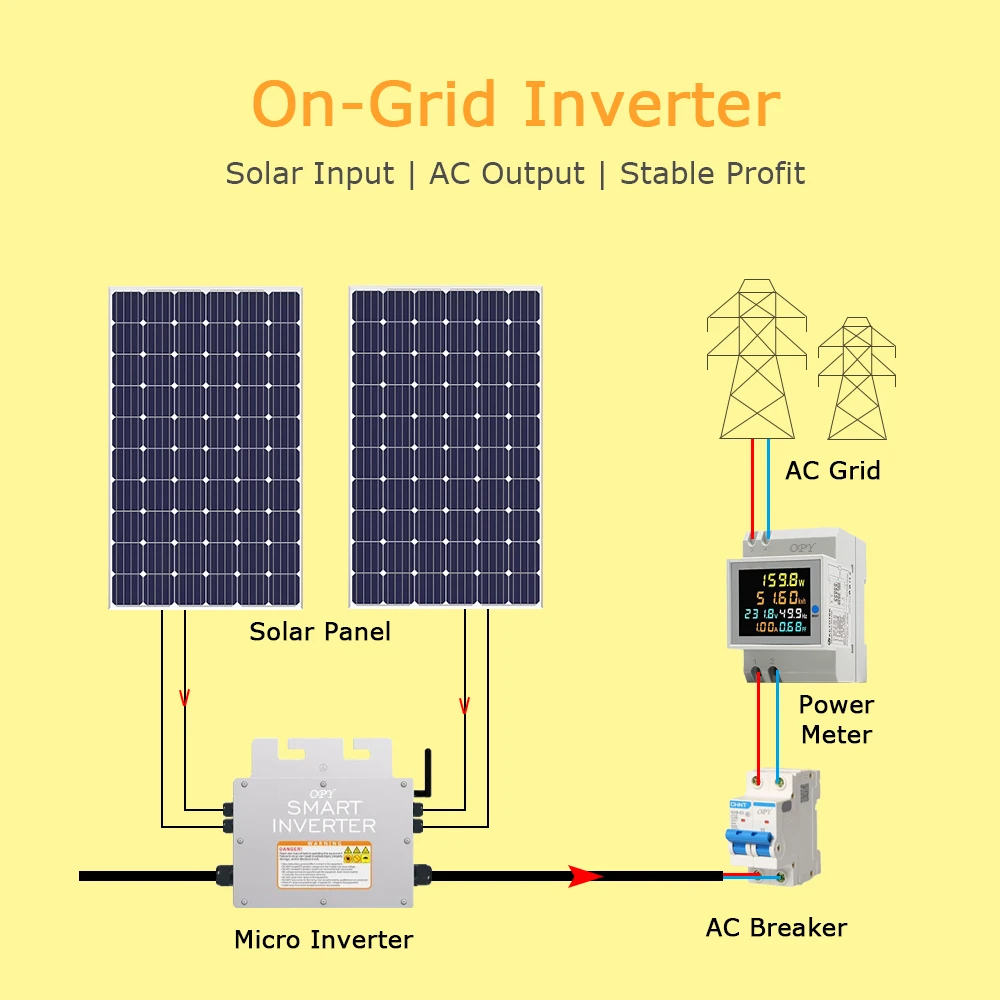

3. On grid output:
Selling power to grid for profit.
4. Two type output voltage:
4. Two type output voltage:
AC 110V/220V or DC 12/24V

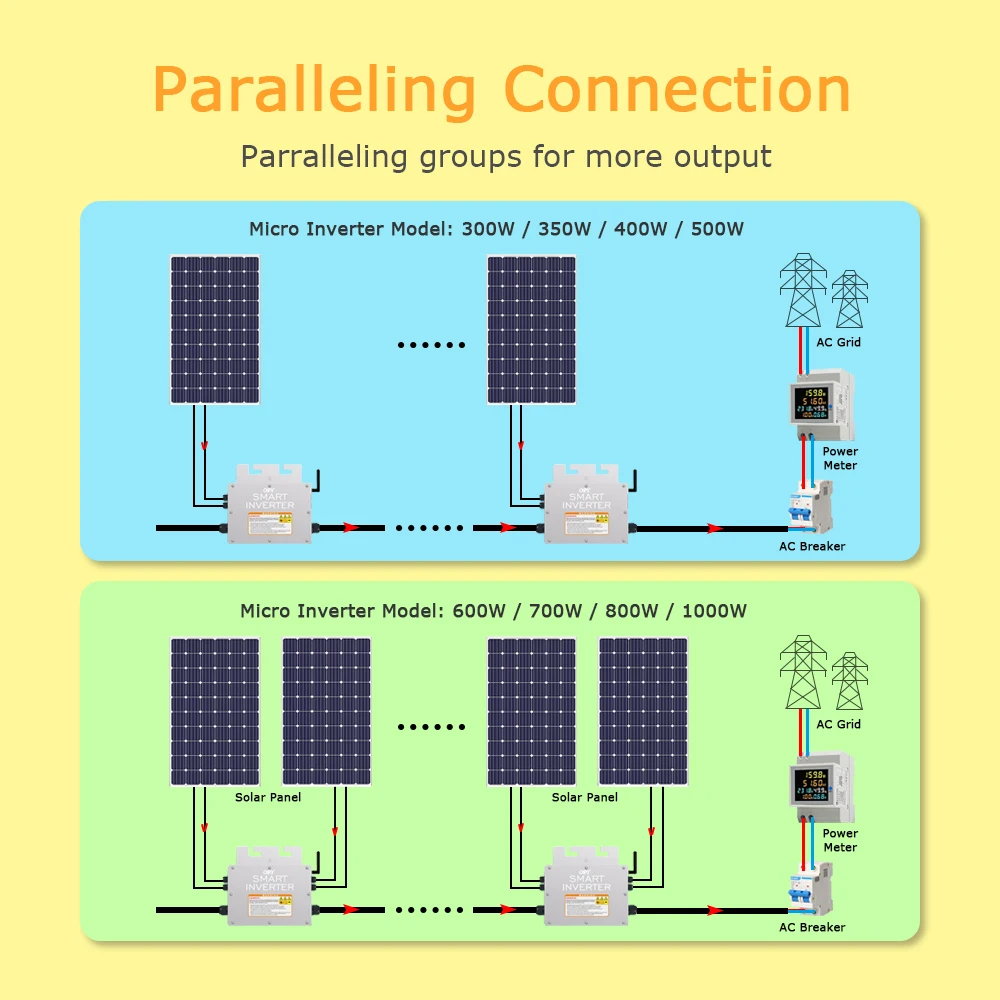

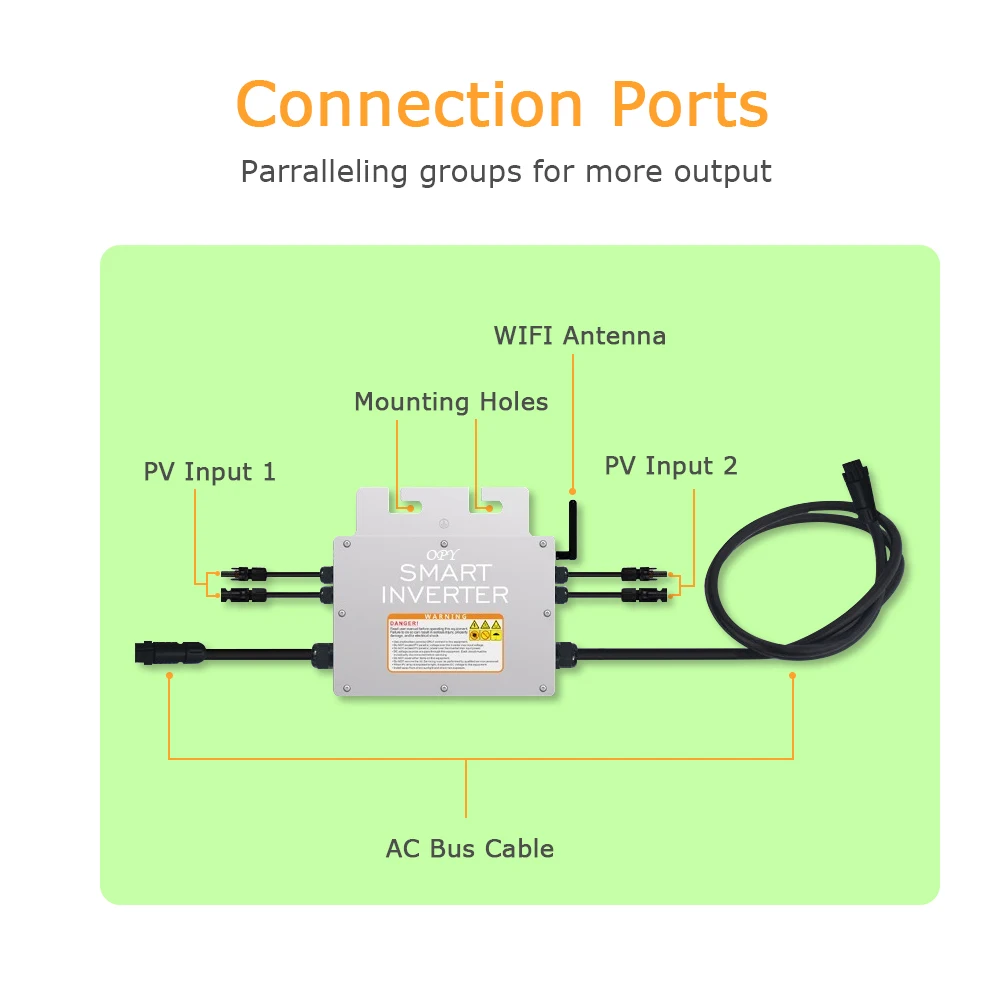

5. Paralleling connection for bigger output.
6. Perfect protection.
Undervoltage, short-circuit, overloading and backflow protection.

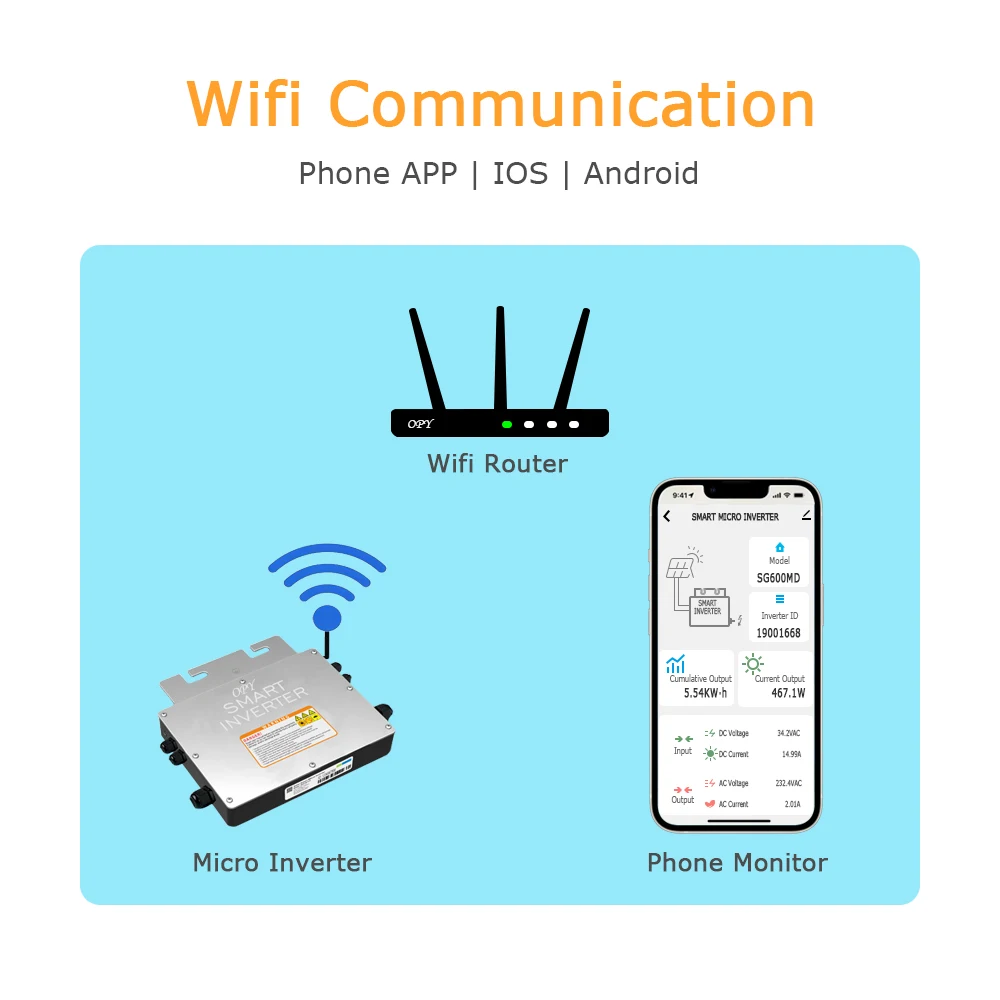

7. Wifi&GPRS available for mobile phone monitor.
5. Paralleling connection for bigger output.
6. Perfect protection.
Undervoltage, short-circuit, overloading and backflow protection.
7. Wifi&GPRS available for mobile phone monitor.

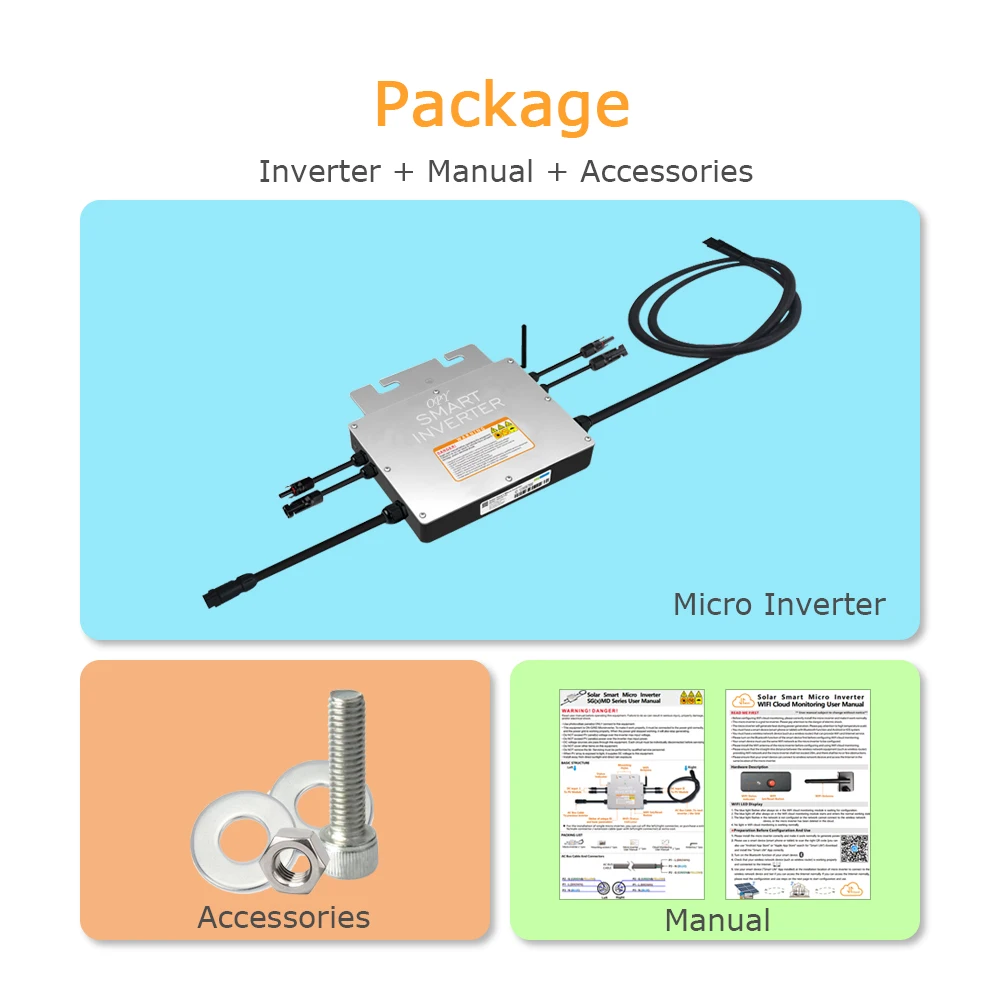

Package Detail
1. Plastic bag package per inverter
2. User manual and accessories
3. Paper carton
PS: OEM customized Package is available
Shipping Terms
1.Shipping out after finishing manufacture and received payment.2. Delivery time: 3-15 days against quantity and storage.
3. Flexible shipping way for you
A. Express by DHL/UPS/TNT/EMS/FeDex or special lines.
B. Air shipping is available to destination airport.
C. Sea shipping is available to destination sea port.
D. DDP by train or sea shipping to door.
2. User manual and accessories
3. Paper carton
PS: OEM customized Package is available
Shipping Terms
1.Shipping out after finishing manufacture and received payment.2. Delivery time: 3-15 days against quantity and storage.
3. Flexible shipping way for you
A. Express by DHL/UPS/TNT/EMS/FeDex or special lines.
B. Air shipping is available to destination airport.
C. Sea shipping is available to destination sea port.
D. DDP by train or sea shipping to door.
Quality Assurance
1. 100% high quality electronic components:
Reject any recycled or regrind components.
2. 1st test by inspector before mass production:
Ensure each batch is qualified components.
3. 2nd test by QC to check after assembling:
If fail, return back to worker to repair at once.
4. 3rd test for functions by inspector before package:
Ensure all functions can work normally.
5. Paper box and carton to avoid unexpected damage in shipping.
6. 4th test by inspector for package quality before delivery.
Recommend Products
Popular Solar Inverter
Our Company
OUR ADVANTAGE
SOLUTION
– Acquire new demand from customers
– Work out solution by our experts
– Testing sample by customer
– Modify and retest
– Confirmed by customer to mass production
PRODUCTION
– Follow ISO 9001 quality system
– Sophisticated processing technology
– Skilled workers and innovative technical team
QUALITY CONTROL (Q/C)
- ISO standards
– Precision testing instruments and method
– Internal inspection system
PACKAGE
– Standardized process
– Good packing machine
– Strict management
OUR SERVICE
– Response in 24 hours
– OEM/ODM is avalible
– Professional answers for your technical and bussiness questions.
– Fast delivery for samples.
– Warranty: 12 months started from the shipping date.
OUR LOGISTIC
– By sea
– Air freght: DHL, Fedex, TNT, UPS or others
PAYMENT
– Credit card
– Paypal
– T/T
– Acquire new demand from customers
– Work out solution by our experts
– Testing sample by customer
– Modify and retest
– Confirmed by customer to mass production
PRODUCTION
– Follow ISO 9001 quality system
– Sophisticated processing technology
– Skilled workers and innovative technical team
QUALITY CONTROL (Q/C)
- ISO standards
– Precision testing instruments and method
– Internal inspection system
PACKAGE
– Standardized process
– Good packing machine
– Strict management
OUR SERVICE
– Response in 24 hours
– OEM/ODM is avalible
– Professional answers for your technical and bussiness questions.
– Fast delivery for samples.
– Warranty: 12 months started from the shipping date.
OUR LOGISTIC
– By sea
– Air freght: DHL, Fedex, TNT, UPS or others
PAYMENT
– Credit card
– Paypal
– T/T
FAQ
1. What's the main difference between your company and others?
Professional. Many of our staffs come from big company in China, some worked in oversea before joining us. We always consider the customer benefit beyond others. Professional on R&D, professional on service, professional on sales and so on.
2. Could I order a sample to check your quality?
Yes, tell us interested products, and we'll deliver after payment as soon as possible.
3. How long will I receive my sample?
3 to 10 working days with express
4. Could you accept OEM/ODM?
Yes, we accept. Share your requirements and package design to finish the customization.
5. What's your product warranty terms?
1 year warranty.
6. How to place orders?
1. Email us the model, brand and quantity, consignee information, shipping way and payment terms.
2. Create Proforma Invoice for you.
3. Complete Payment after confirming PI.
4. Confirm Payment and arrange production.
5. Delivery to your assigned address.
7. How to contact your company?
Contact us below, we're glad to provide you best price!!!
