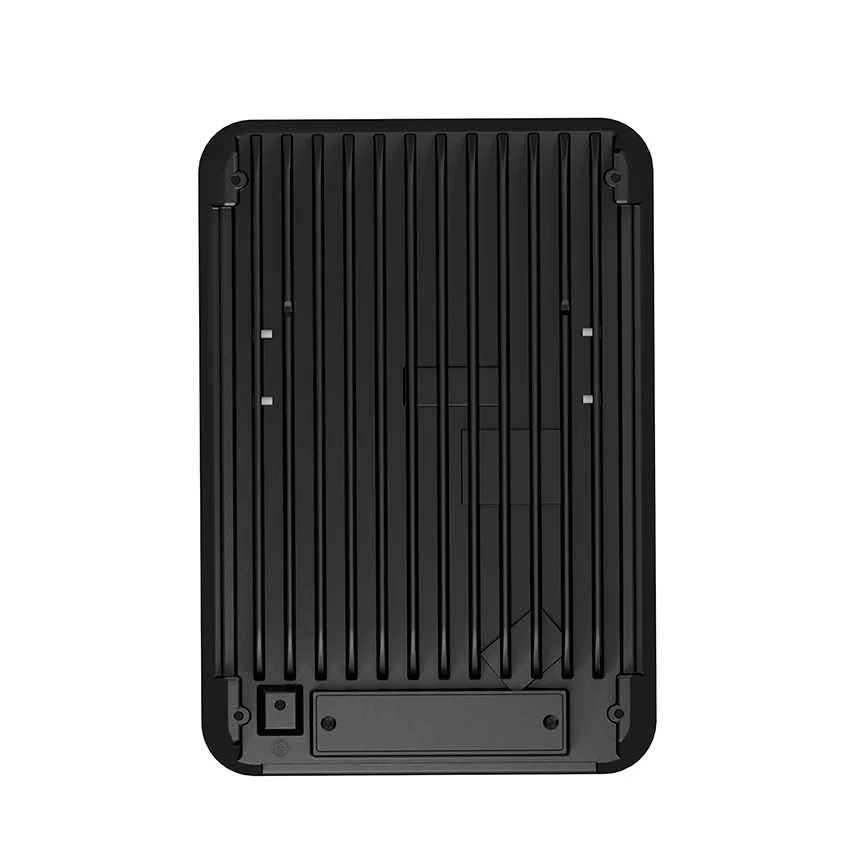

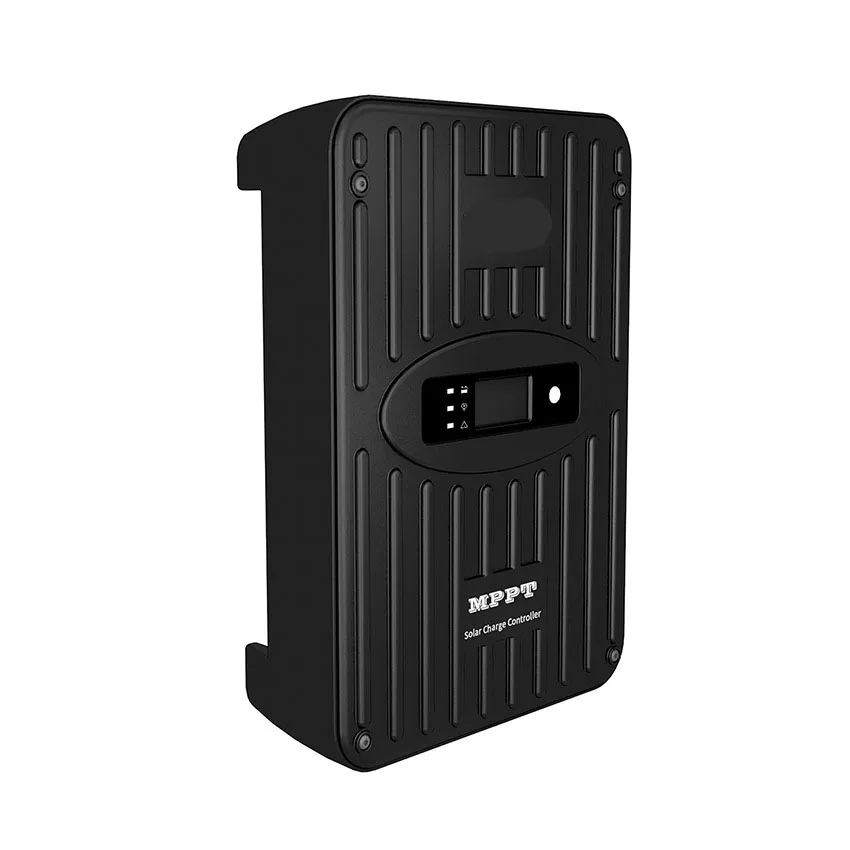

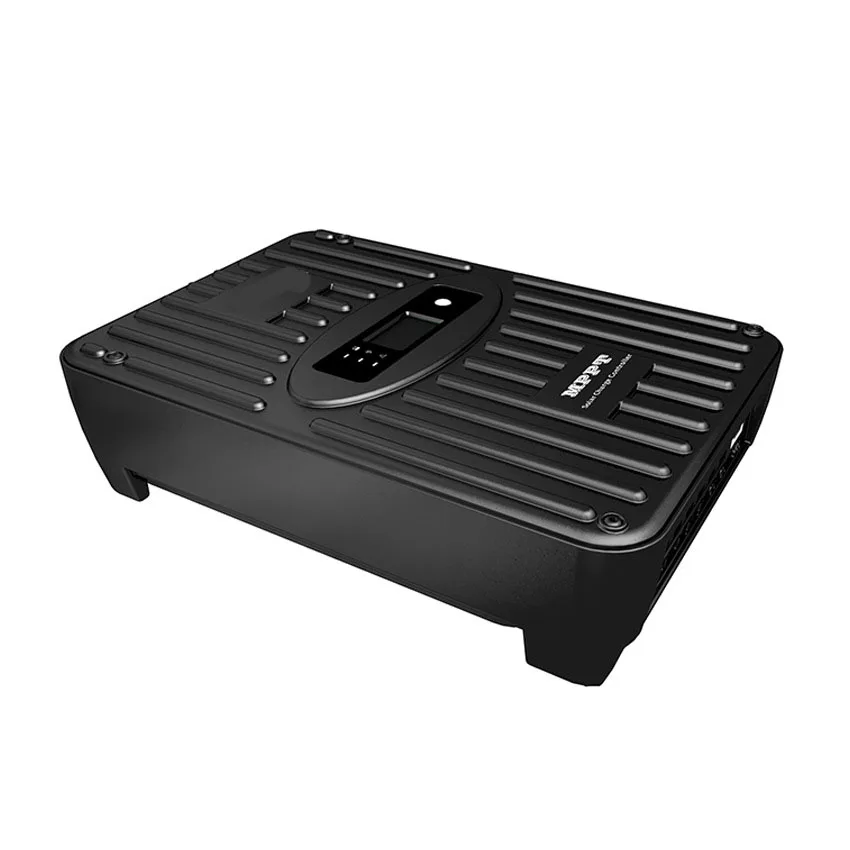

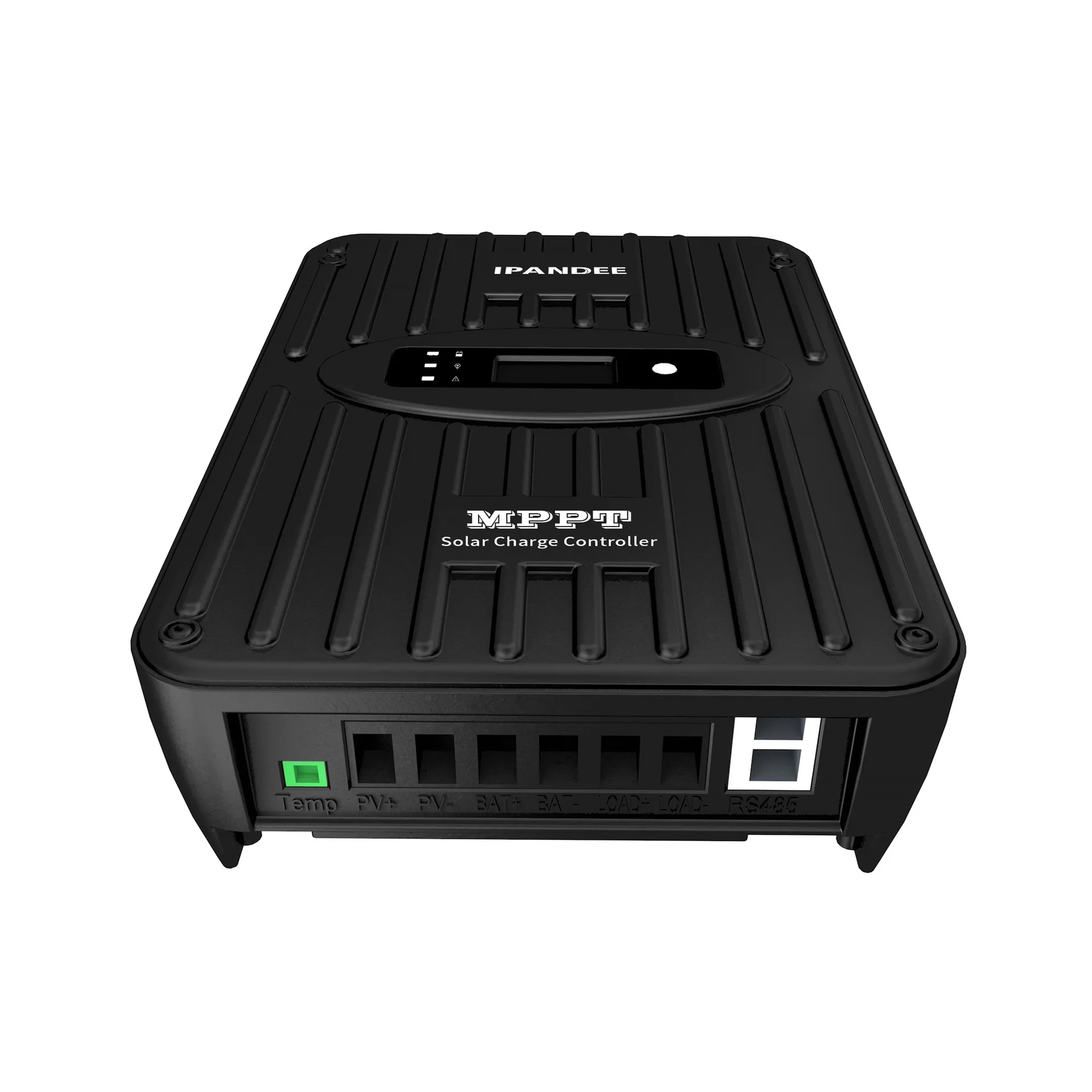

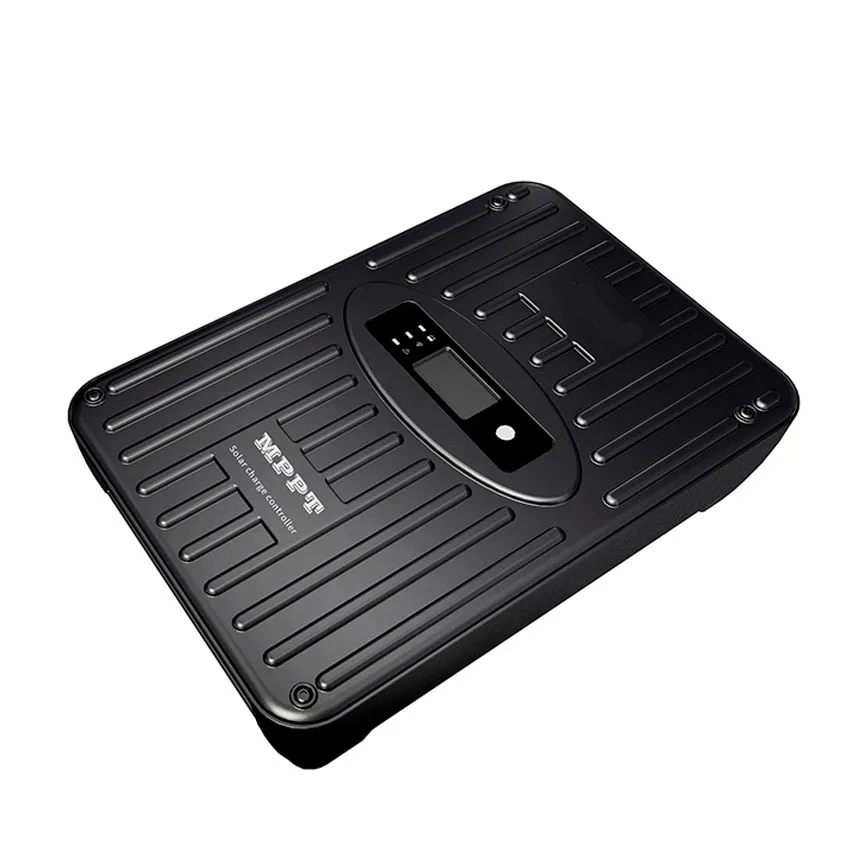

Price Solar Inverter With Mppt Solar Charge Controller 12v 24v Rechargeable Lithium Lead acid Battery Rv Controller
- Category: >>>
- Supplier: Hangzhou Qibu Industry And Trade Co. Ltd.
Share on (1600729285152):
Product Overview
Description
Maximum power point tracking efficiency | 99.50% | ||
Standby power consumption | 1W-1.8W | ||
Heat dissipation mode | All aluminum alloy shell self-cooling | ||
Lead-acid battery system | 12V system 9VDC-15VDC 24V system 18VDC-30VDC | ||
Lithium-ion battery system | 8VDC-30VDC | ||
Max input voltage (Vf.max) | 100V | 150V | |
Min MPPT voltage | Real-time battery voltage + 2V | ||
Starting charge voltage | Real-time battery voltage + 3V | ||
Input low voltage protection voltage | Real-time battery voltage + 2V | ||
Temperature compensation | -3mV/C/2V | ||
Charging mode | Setting mode 3 sections: CC(Kuaidi charging) -CV (constant voltage charging) -CF charging) | ||
Output voltage accuracy | s+0.2V | ||
Load voltage | Homogeneous battery voltage | ||
Rated negative wear current | 20A | 30A | |
Negative wear control mode | Normally on/normally off mode, light control mode, dual period control mode, light control delay mode | ||
Load low pressure protection | settable | ||

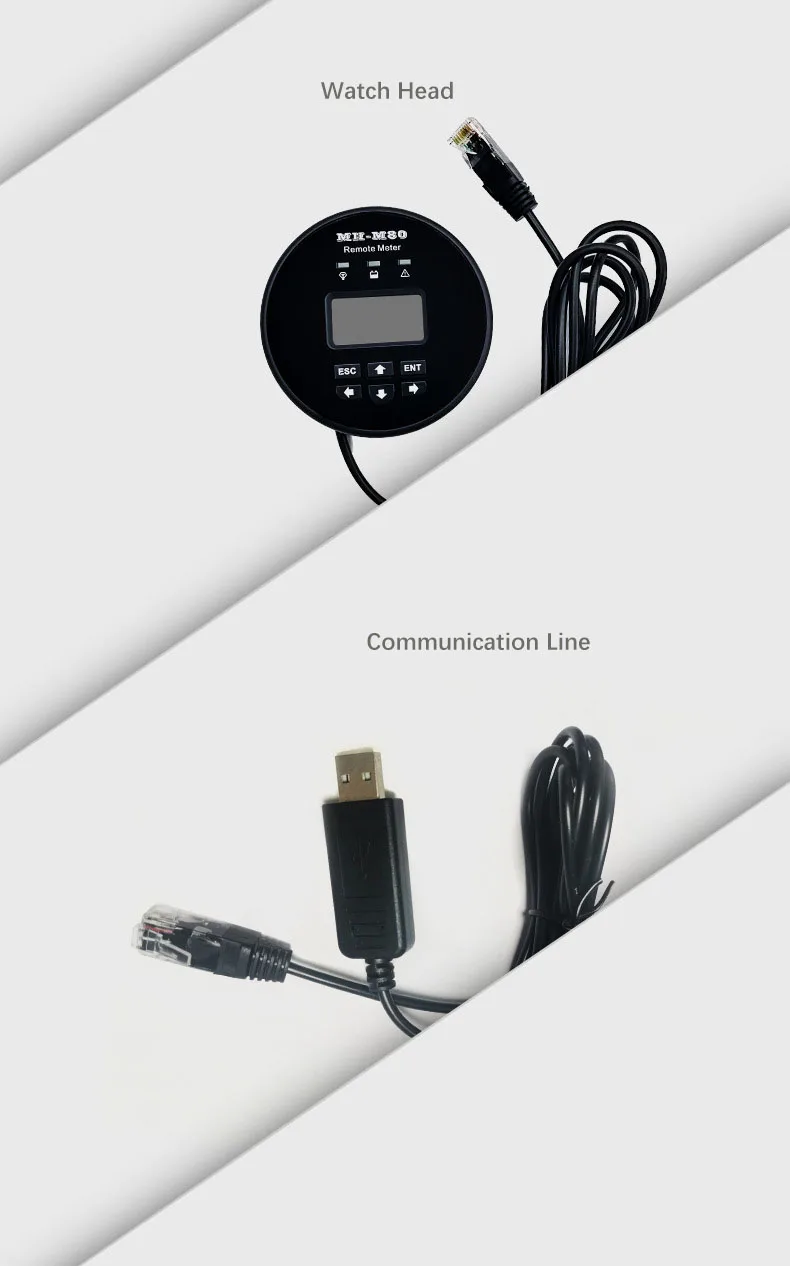

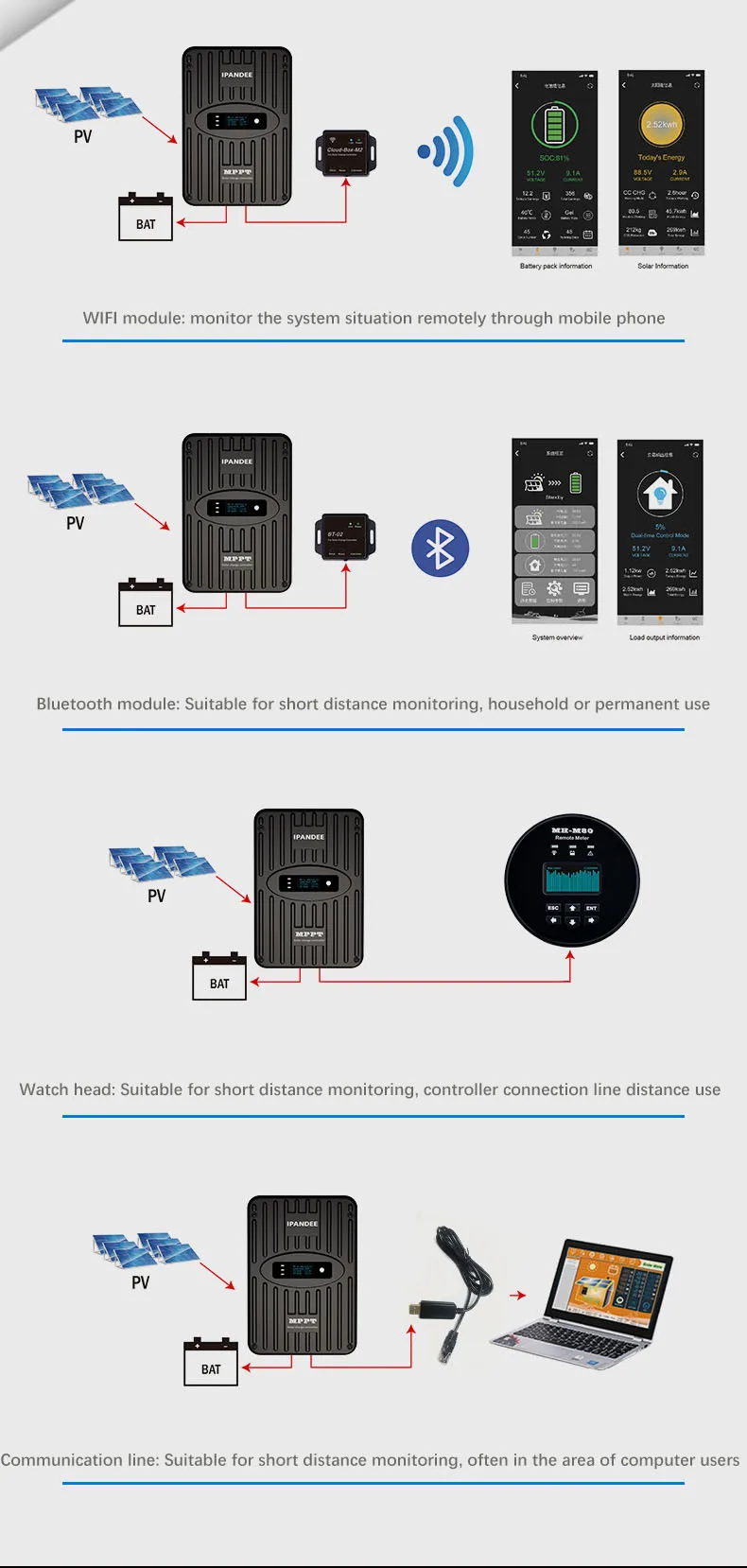

Setting mode | Upper computer /APP/ watch head/controller | ||
Storage temperature | -40°C-+75*C | ||
IP protection level | IP21 | ||
altitude | 0-3000m | ||
Maximum connection | 28mm | ||
Company Profile
FAQ
Q: How is the solar panel packing?
A: Every product packed in individual box.
Q: What is the regular lead time?
A: 7 days for samples, 15-20 days for mass order according to quantity.
A: 7 days for samples, 15-20 days for mass order according to quantity.
Q: What certification the solar panel have?
A: CE, Rohs. If you need other certification, please contact us for discussion.
Q: What is the solar panel warranty?
A: 1 year workmanship warranty. During 1 year if any quality issue verified, we will send new solar panels for replacement.
Q: Accept OEM/ODM orders?
A: We accept OEM/ODM orders. Please contact us if you have demand for this service.
Q: I am from USA. Can you provide DDP shipping option?
A: Yes we provide DDP shipping option, please contact me for more details.
