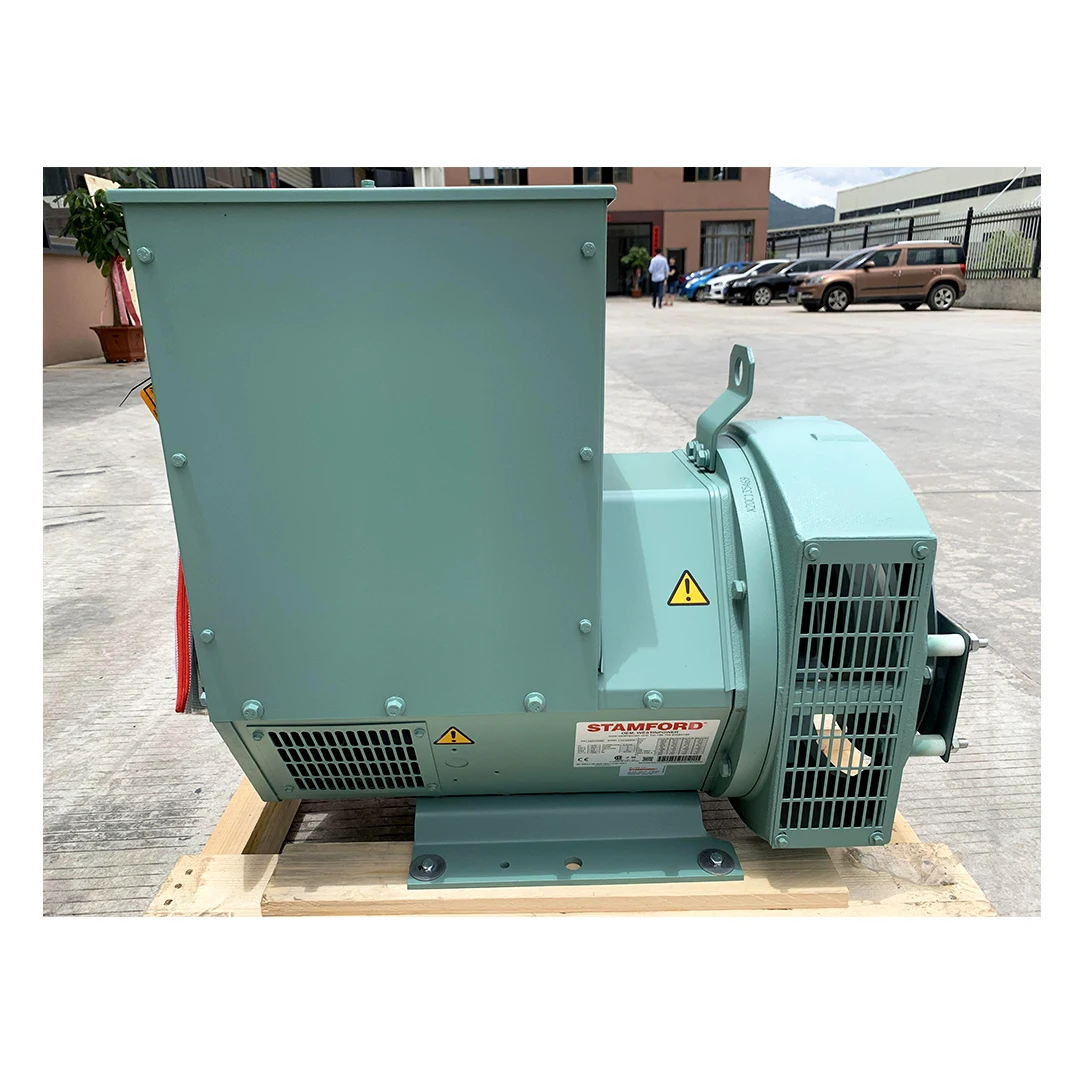

60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator
60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator
60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator
60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator
60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator
60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator
60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator

60 kva 60kw 80kva dynamo alternator generator 220v 380v low rpm alternator

Share on (1600729285454):


Price:$910.00 - $1,050.00

Quantity:


Product Overview

Description

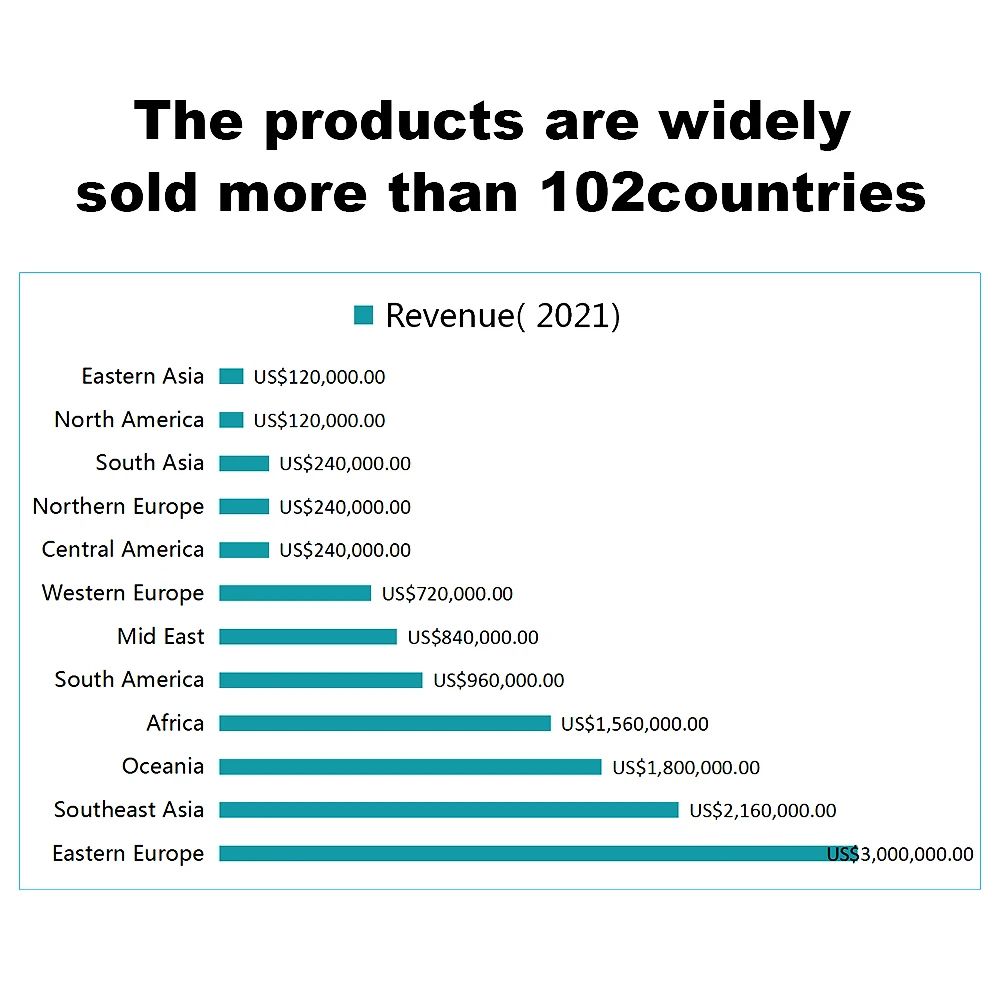

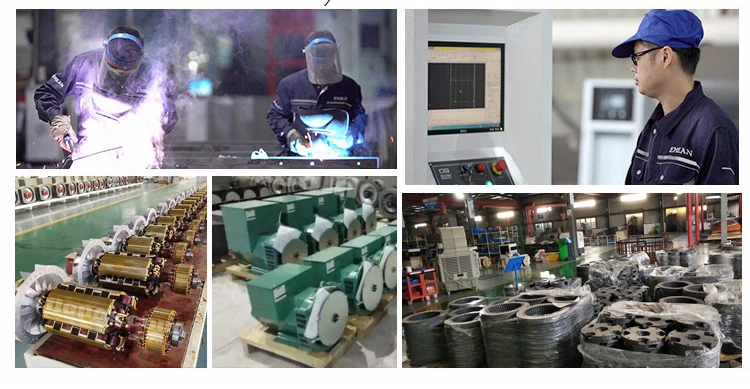

Emean company owned by Fujian Epos electric machinery co., Itd and Fuzhou Emean Electric Machinery Co.,Ltd LTD that is a high-tech enterprise integrating R&D, production and sales, and has always promoted high-quality power products to the international market. The products are widely sold more than 102 countries and regions such as Southeast Asia South America Middle east Africa and Furope. Etc


Product parameters

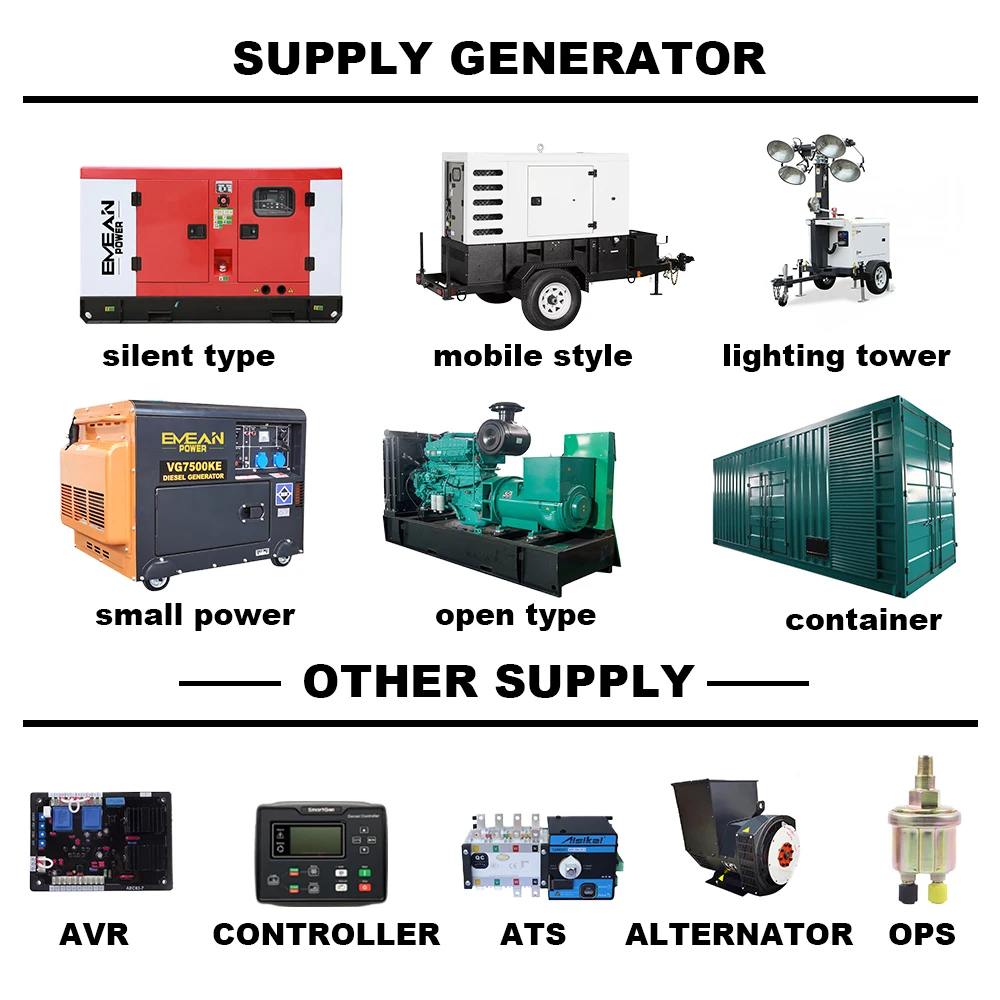

We have power from 3kw-2000kw,
any interesting please contact with us to quote the best price for you

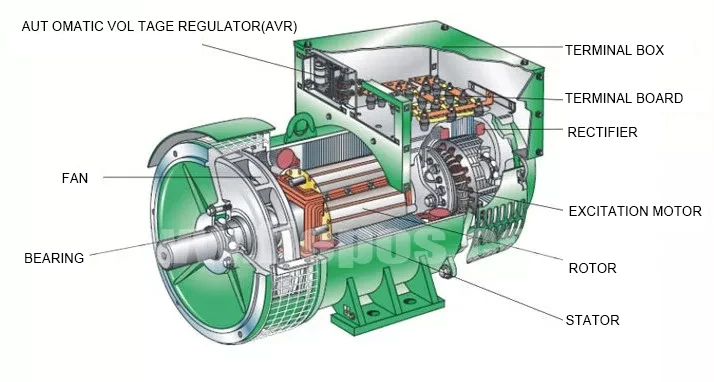

Brushless Alternator Specifications
3 phase H-Class Temperature-rise(125°C) Winding 311


Details
Alternator
Brand
China Stanford, original Stanford, Marathon, Lehua Somer
Power factor(COSΦ)
0.8
Type
Brushless sel-excited
Frequency (Hz)
50/60
Speed rpm
1500/1800
Insulation Grade
H
THF/TIF
THF≤2%, TIF≤50
Protection Grade
IP23
Terminal
12


Product catalogue


Three Phase/Single Phase H-class(125℃/40℃)

   Model
Rated Output

 Standard
 Core
 Length
   Standard
   SAE
   No.
Size Weight
50Hz
60Hz
N.W
G.W
Package Size
KW
KW
kg
kg
cm
VG-164A
6.8
8
L=65
4#7.5
85
95
53x55x59
VG-164B
8.8
10
L=80
4#7.5
90
100
53x55x59
VG-164C
10.8
12.8
L=100
4#7.5
96
106
53x55x59
VG-164D
12.8
16
L=115
4#7.5
99
109
53x55x59
VG-184ES
15
18
L=130
4#7.5
116
126
58x55x59
VG-184E
18
22
L=150
3#11.5
120
130
58x55x59
VG-184F
22
26
L=190
3#11.5
150
160
67x55x59
VG-184G
25
30
L=230
3#11.5
156
166
67x55x59
VG-184H
30
36
L=255
3#11.5
216
226
74x55x59
VG-184J
32
38
L=285
3#11.5
226
236
74x55x59
VG-224C
34
40
L=134
3#11.5
235
255
82x55x81
VG-224D
40
48
L=160
3#11.5
250
270
82x55x81
VG-224E
48
58
L=186
3#11.5
270
290
91x55x81
VG-224F
58
70
L=248
3#11.5
310
330
91x55x81
VG-224G
68
80
L=309
3#11.5
350
370
96x55x81
VG-274C
80
96
L=165
3#11.5
385
415
91x65x87
VG-274D
96
115
L=205
3#11.5
405
435
91x65x87
VG-274E
112
135
L=230
3#11.5
455
485
100x65x87
VG-274F
125
150
L=285
3#11.5
500
530
100x65x87
VG-274G
144
180
L=340
3#11.5
550
580
105x65x87
VG-274H
160
195
L=375
3#11.5
600
630
110x65x87
VG-274J
180
220
L=410
3#11.5
720
760
115x70x90
VG-274K
200
240
L=450
3#11.5
740
780
115x70x90
VG-444C
200
240
L=275
1#14
850.5
910
130x77x99
VG-444D
240
300
L=340
1#14
915.5
975
130x77x99
VG-444ES
260
320
L=410
1#14
995.5
1055
130x77x99
VG-444E
280
340
L=420
1#14
995.5
1055
130x77x99
VG-444FS
300
360
L=500
1#14
1123.5
1183
139x77x99
VG-444F
320
385
L=500
1#14
1123.5
1183
139x77x99
VG-544C
360
440
L=350
0#14
1250
1350
146x84x100
VG-544D
400
480
L=430
0#14
1358
1450
146x84x100
VG-544E
480
600
L=500
0#14
1498
1598
146x84x100
VG-544F
550
680
L=575
0#14
1653
1753
154x848100


Products Description




1.Overload protection for safe running
2.Top quality & Easy Maintenance
3.Stamford technology & high-quality materials
4.Single bearing or Double bearing
5.Easy to be connected with power networks or other generator sets
6.4 POLE, Brushless, Self-excited, H class insulation, IP23, A.V.R. 100% Copper
7.Farrand Series AC Brushless alternators are conformity to GB755, IECBS5000, VDE0530,NEMA MG1-22 & IEC34, C 22.2-100standards
8.The 2/3 pitch windings avoid excessive neutral currents, ensure low waveform distortion.
9.Low-frequency protection & exterior voltage adjustments.


Our Service

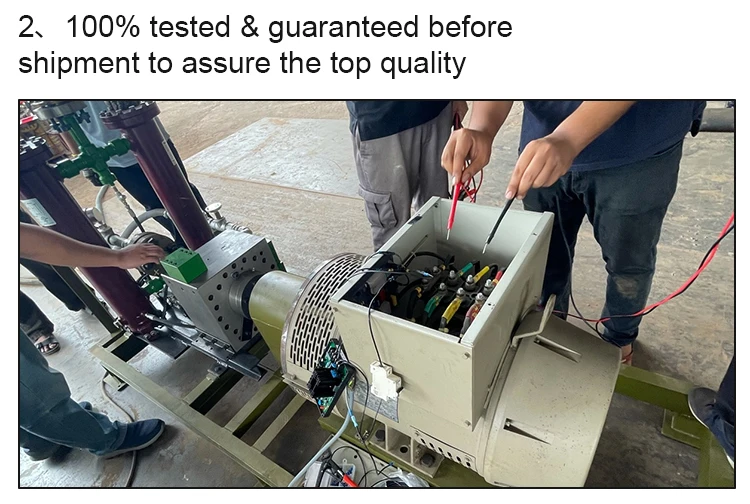

2、100% tested & guaranteed before shipment to assure the top quality

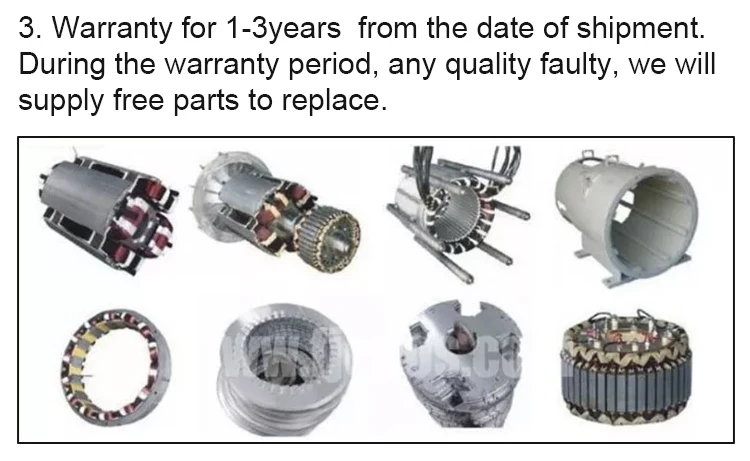

3. Warranty for 1-3years from the date of shipment.During the warranty period, any quality faulty, we will supply free parts to replace.
