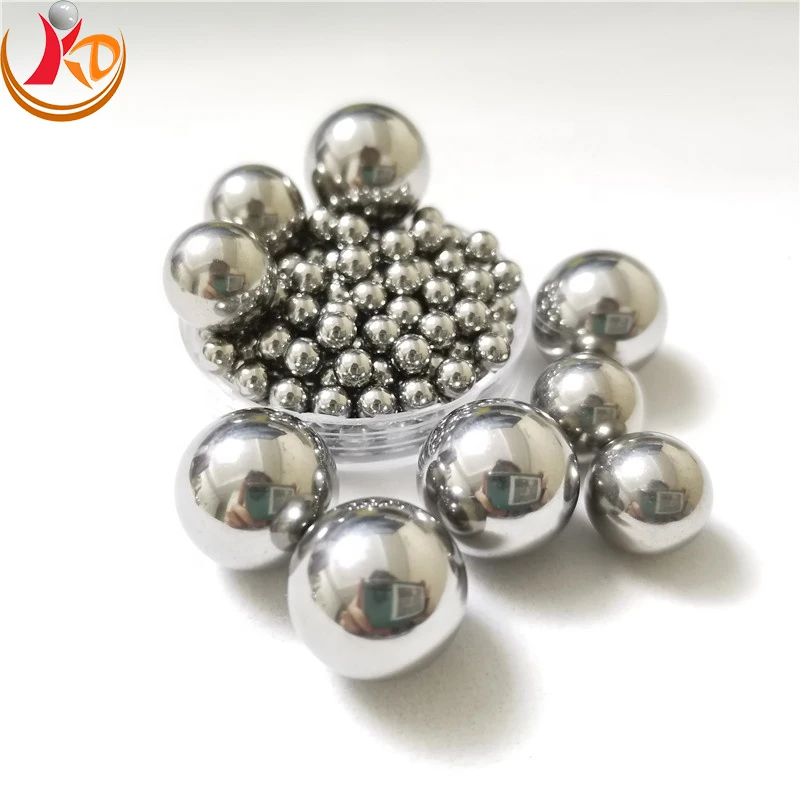

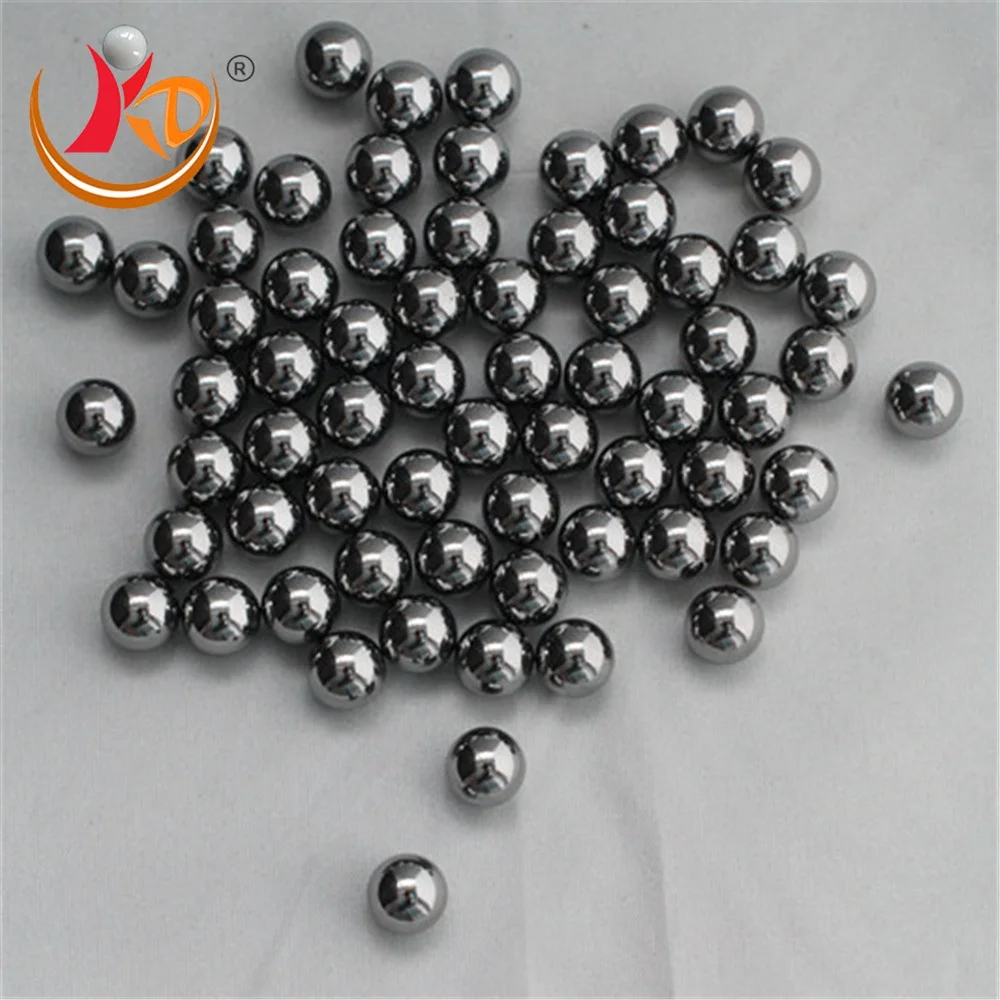

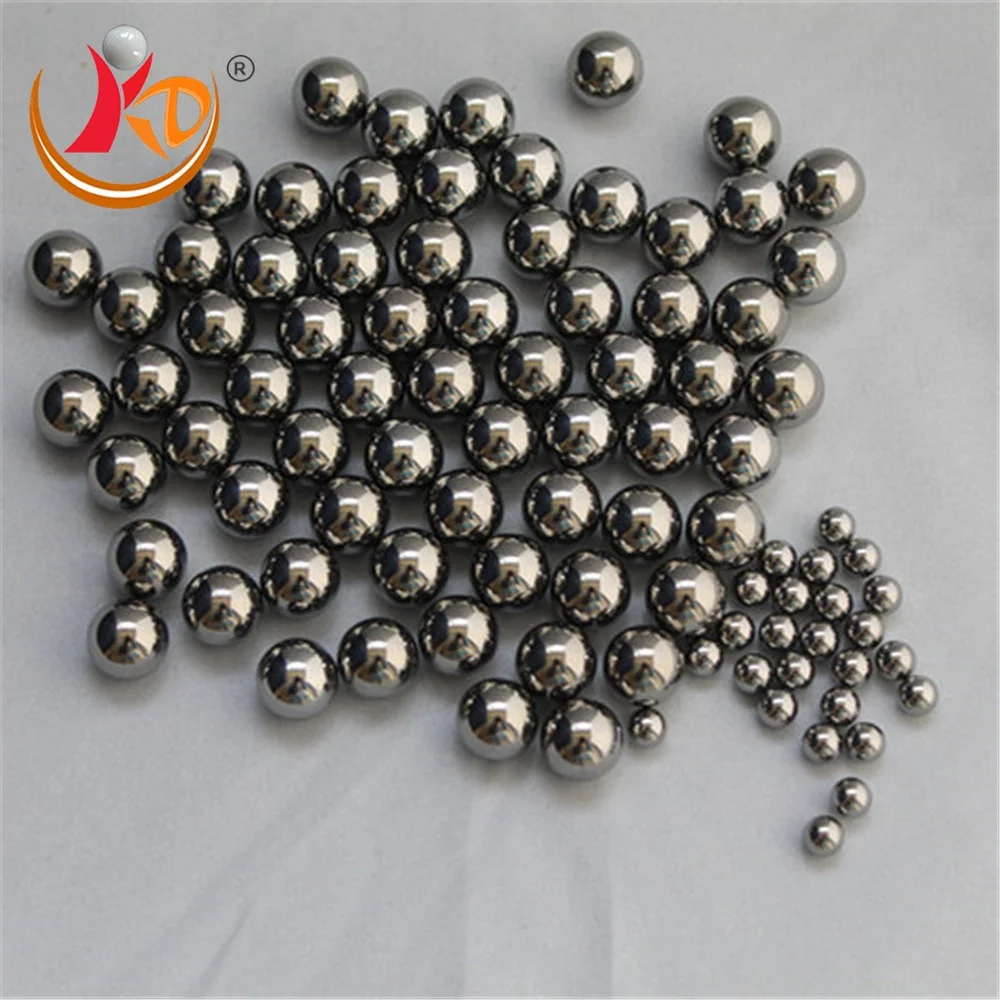

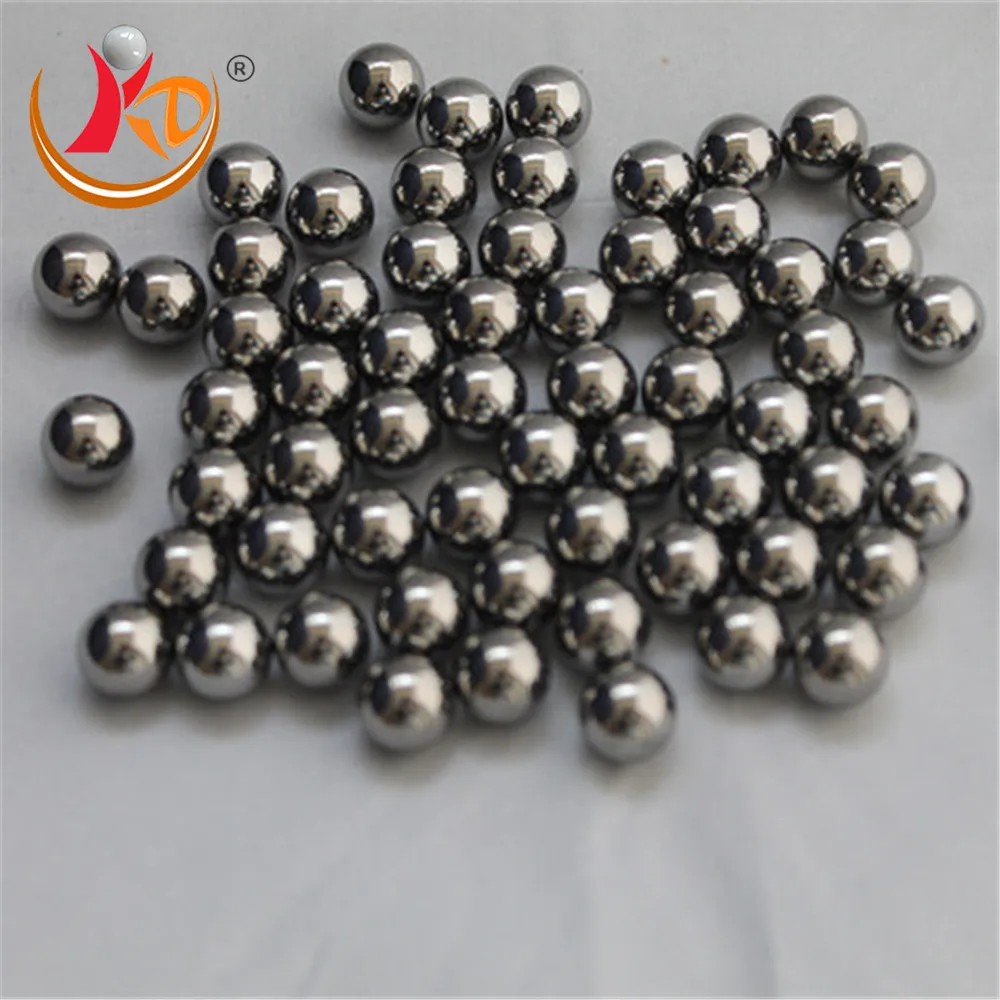

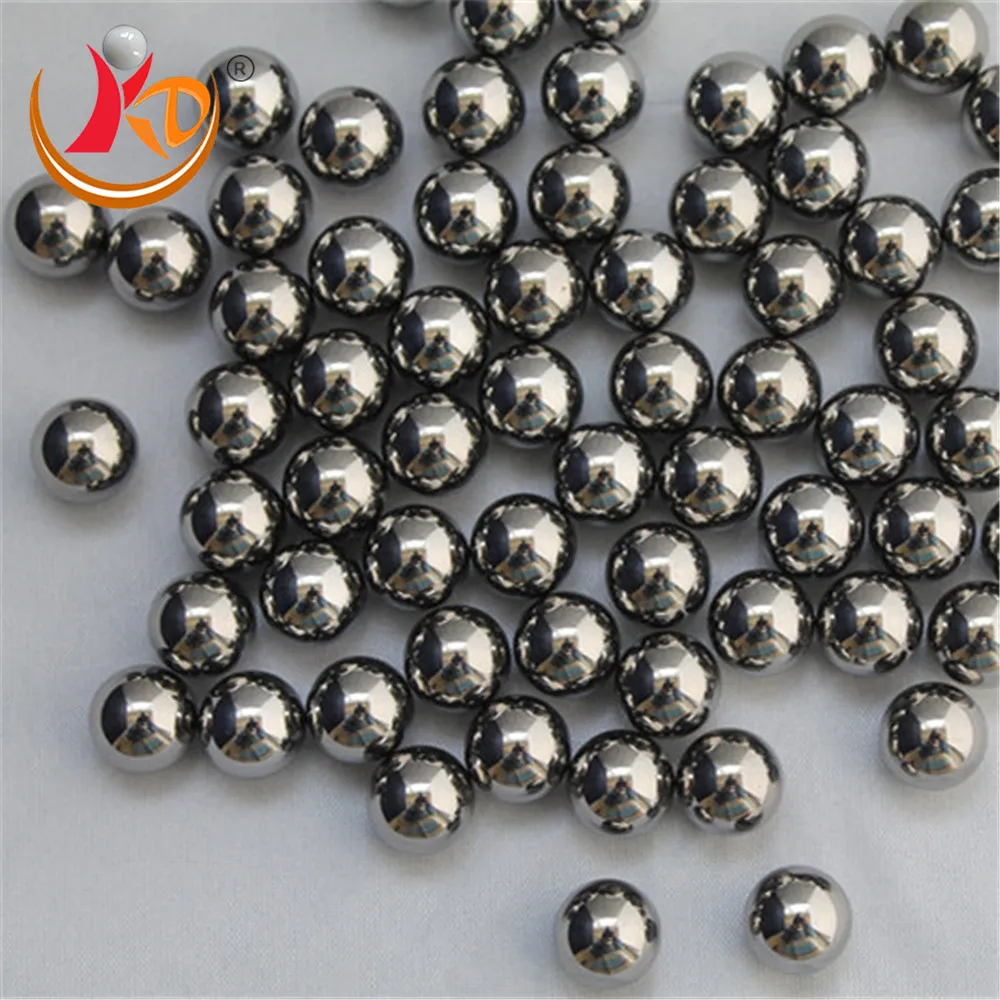

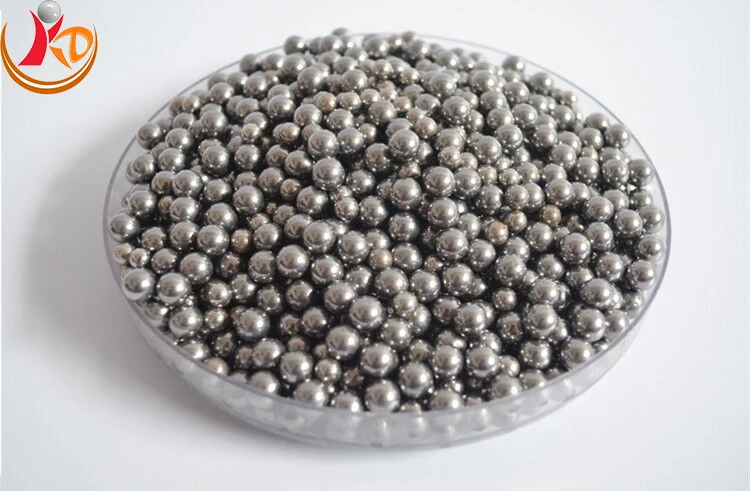

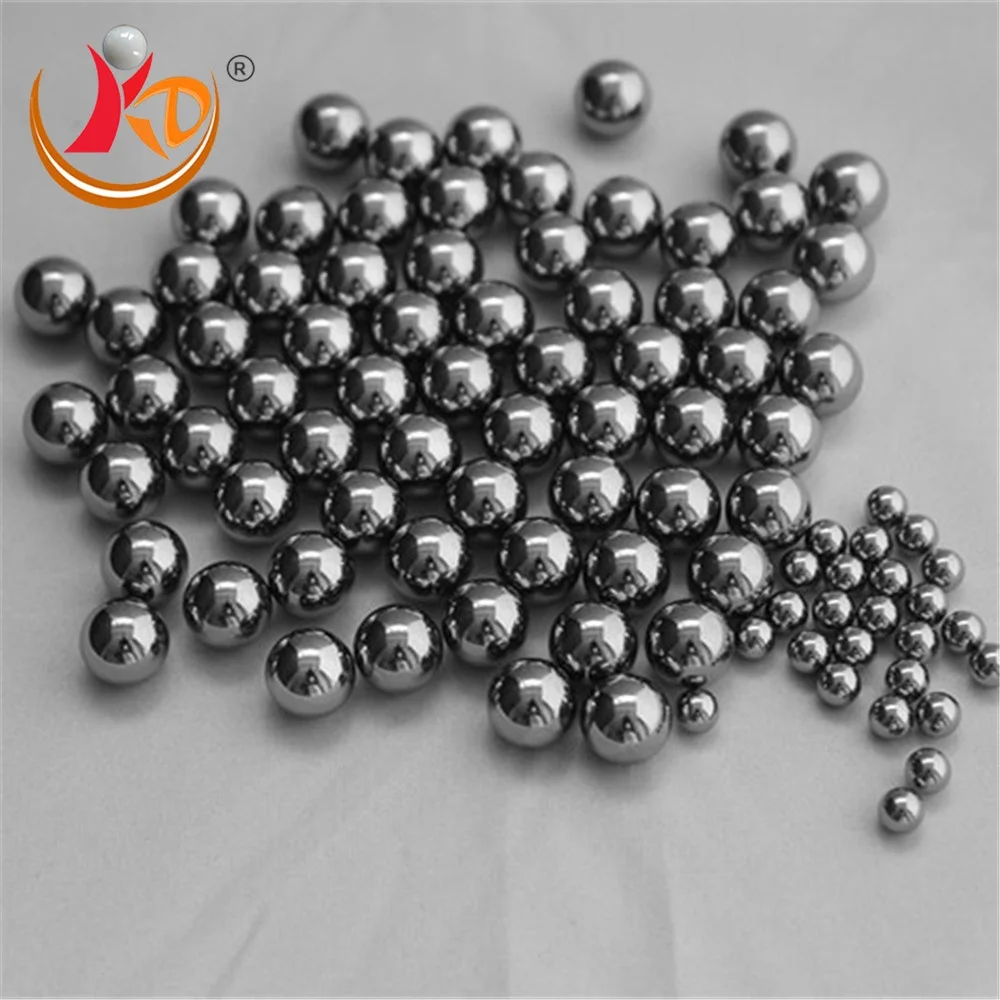

Factory Wholesale Commercial High density carbide ball Tungsten carbide sphere
- Category: >>>
- Supplier: Hunan Kingda Ceramic Materials Co. Ltd.
Share on (1600729287359):
Product Overview
Description
tungsten carbide ball grinding ball,sintering carbide ball
Product Description
The Basic Details of tungsten carbide ball:
— Diameter Range:0.6mm--70mm, and Undertake order of non-standard size work.
— The product tolerance can be reached as less than 0.001mm, and the grinding accuracy is between G5-G1000.
The Advantages for Tungsten carbide pen balls:
— Eco: Smooth writing & no leakage.
— Apply to advertising pen,promotion pen, ball pen, metal pen, office pen, commemorative pen etc.
— Using 100% virgin fine grain tungsten powder;
A.F.B.M.A Grades and Tolerances of tungsten carbide ball:
| Grade | Sphericity (inches) | Basic Diameter Tolerance (inches) | Maximum Surface Roughness |
| G3 | 0.000003" | +/- .00003" | 0.5 |
| G5 | 0.000005" | +/- .00005" | 0.8 |
| G10 | 0.000010" | +/- .0001" | 1.0 |
| G25 | 0.000025" | +/- .0001" | 2.0 |
| G50 | 0.000050" | +/- .0002" | 3.0 |
| G100 | 0.0001" | +/- .0005" | 5.0 |
| G200 | 0.0002" | +/- .0010" | 8.0 |
| G500 | 0.0005" | +/- .002" | |
| G1000 | 0.001" | +/- .005" |

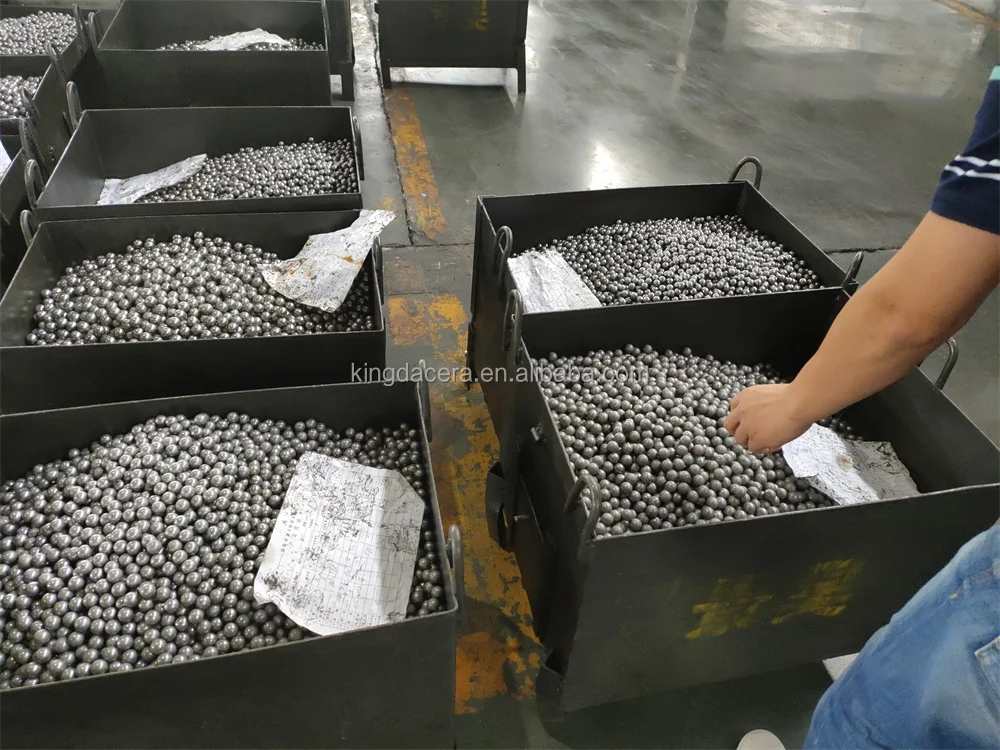

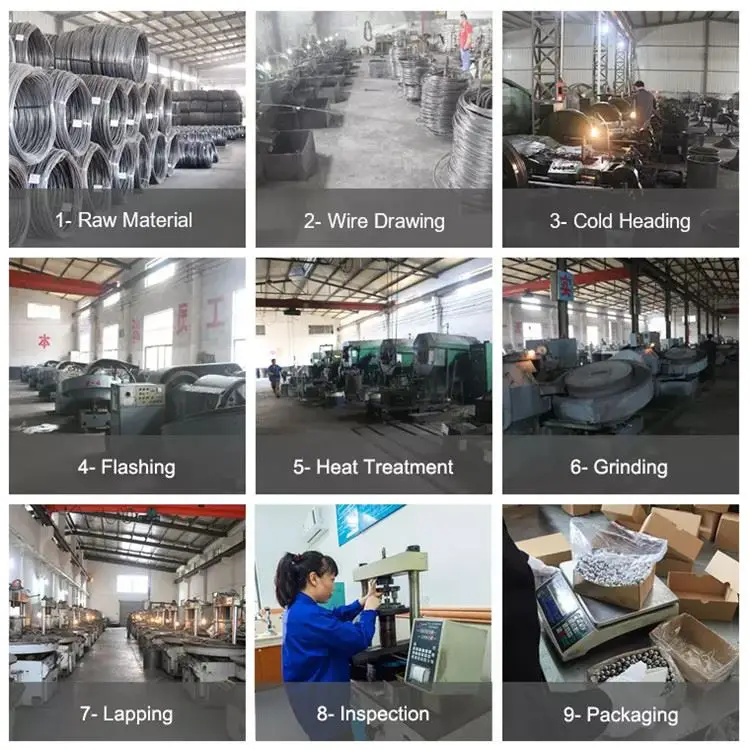

Production Flow
Features:
1, High hardness, crushing force with superior force and mixing;
2, With excellent wear resistance,the service life is dozens of times longer than steel ball;
3,High temperature resistant, at high temperatures of 1000 degrees can still maintain high hardness and other mechanical properties;
4, Corrosion resistance, resistance to corrosion of acid alkaline substances;
Application of carbide balls
Application for ball pen, ball-bearing, sealing valve, high precision instruments, hardness test machine, head pressure, mine, decorations and other special precision industry.
Packaging & Shipping
Our Services
FAQ
1.What's product your company supply?
A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,
high alumina ball, agate ball, tungstern carbide grinding ball, ball mill grinding jar,zirconium powder,
ceramic structual elements etc.
2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.
3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .
4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.
5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.
6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.
L/C at sight,Western Union, paypal,Visa,etc

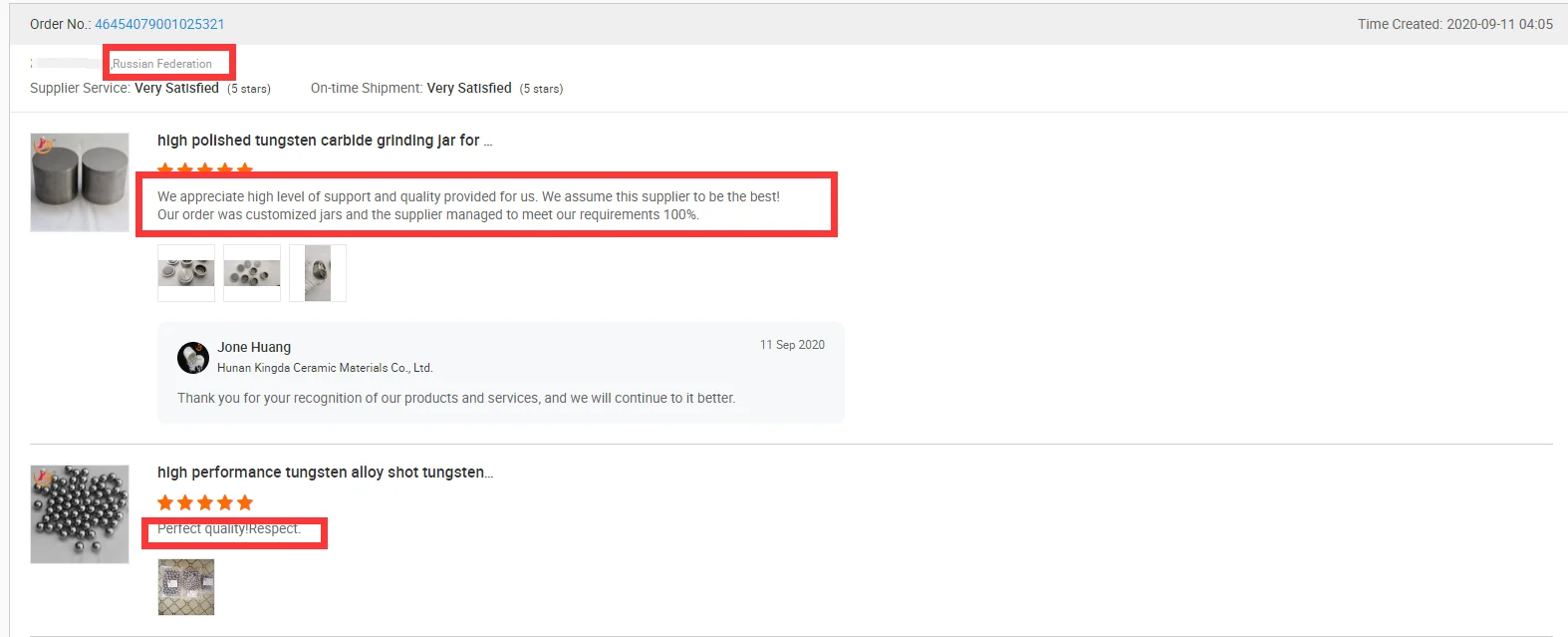

Buyer Feedback
