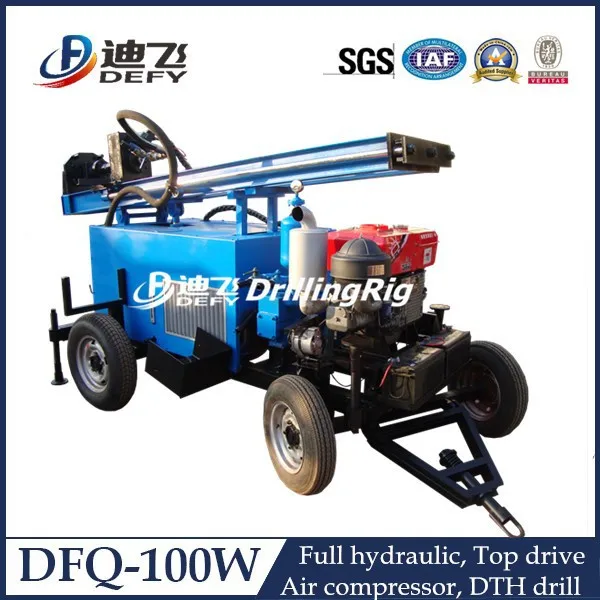

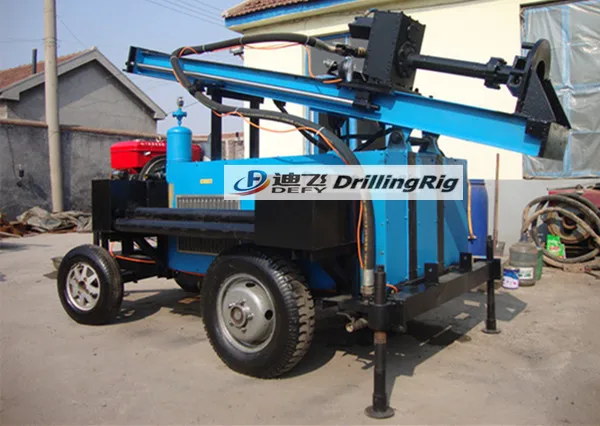

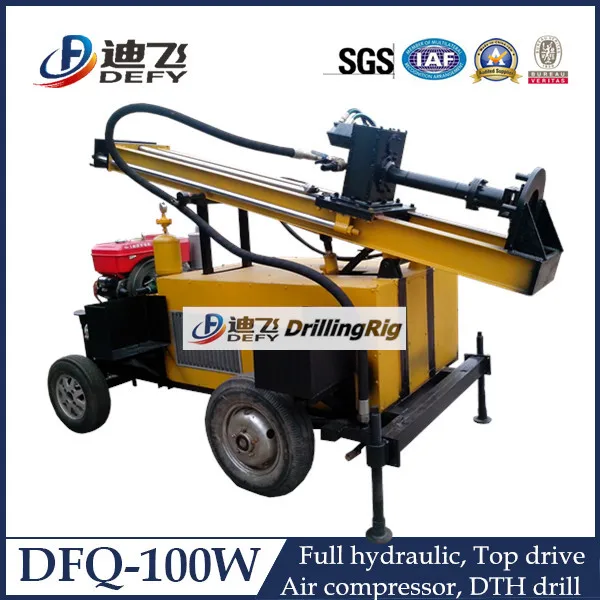

DFQ 100W 100m Pneumatic impact drill/Diamond Core Drill rig price on sale

Product Overview

Description

Model DFQ-100W DTH drill rig rotary head


I. Features
1. Fully hydraulic controlling system,highly automated,high working efficiency,saving labor force.
2. Powerful cylinder,strong propulsion and lifting force for drilling deep holes.
3. Innovative embedded idler pulley structure,carriage stroke is increased to handle the drill pipes more easily.
4. Four hydraulic support legs,can rise and fall automatically,easy for the rig to be loaded and unloaded.
5. Centralized control of the hydraulic control console, convenient to operate.
6. Chassis can be wheels,crawler or truck,as per your need.
7. Hammer rotary drilling method,making it more easily and efficiently to drill rock ground.

Remarks:
We provide Turn-Key solution for drilling equipment,including every small piece you may need.Please send us an inquiry for more details,we will respond and offer you Complete set of Drilling rigs as per your requirements.

II. Technical Parameters of DFQ-100W

No.	Item	Parameter
1	Drilling caliber	Φ105-150mm
2	Max. drilling depth	100m
3	Diameter of drill pipe	Φ60,Φ63.5
4	Unit Length of drill pipe	1500mm
5	Work pressure	1.05-2.0 MPa
6	Gas consumption	15~18 m³/min
7	Impacter	DHD340\\350
8	Impacting frequency	1200-1500Hz
9	Apply to rock hardness	f=6-12
10	Power	24Kw/2300rpm
11	Gradeability	25°
12	Walking speed	0~1.5 Km/h
13	Ground clearance	210mm
14	Leg cylinder stroke	600 mm
15	System pressure	20MPa
16	Propulsion	5.0 tonf
17	Lifting force	8.5 tonf
18	Speed of spindle	Fast  135 rpm
		Slow  91 rpm
19	Rotary torque	1050N.m
20	Weight	2200 Kg
21	Dimension	3200×1770×2050 mm
22	Mud pump	BW-100

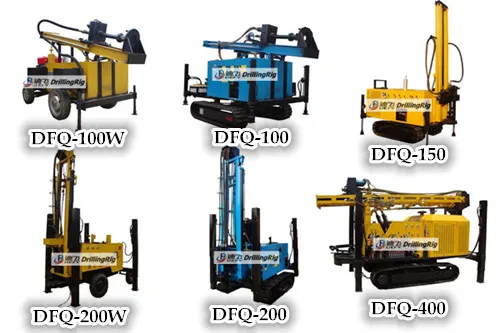

III. Drilling rig models for your choice:



Model	Movement	Borehole Diameter	Drilling Depth
DFQ-100	Crawler	105~150mm	100m
DFQ-100W	Wheel trailer	105~150mm	100m
DFQ-150	Crawler	105~203mm	150m
DFQ-150W	Wheel trailer	105~203mm	150m
DFQ-200	Crawler	115~203mm	200m
DFQ-200W	Wheel trailer	115~203mm	200m
DFQ-250	Crawler	115~254mm	250m
DFQ-300	Crawler	115~305mm	300m
DFQ-400	Crawler	115~400mm	400m

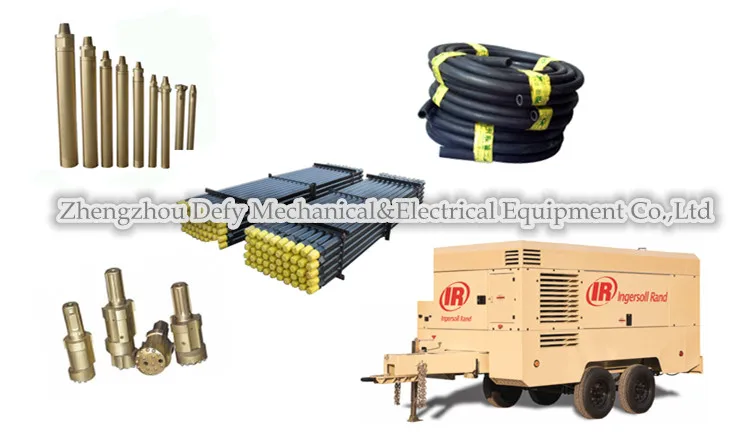

IV. Accessories are available all Year around~

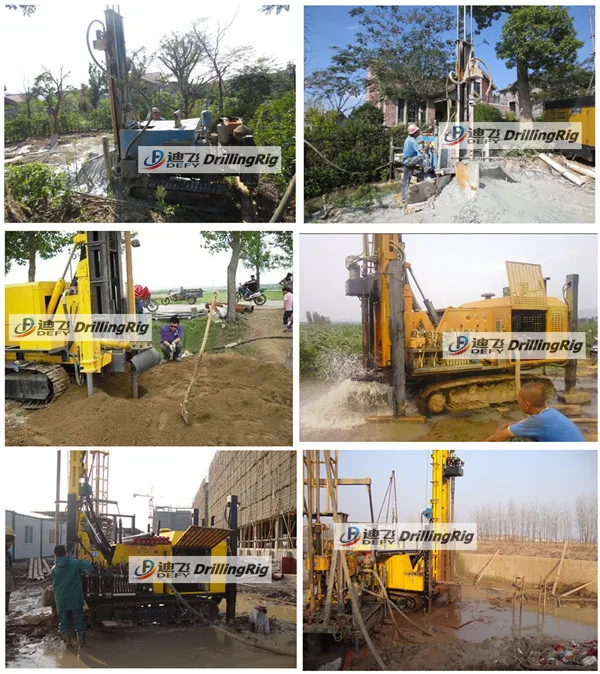

 V. Working on site for your reference:

 Certificates:



Please contact us for the price quotation and details of the drilling equipment according to your requirements. Different drilling rig models and Accessories are at Factory Price all year around ^_^
