Bolida&Rotex YGKJ560 1.5 2TON/H wood sawdust pellet production line biomass pellet press machine
- Category: >>>
- Supplier: Shandong Bolida Machinery Co. Ltd.
Share on (1600729339339):
Product Overview
Description
Product Description
wood sawdust pellet production line biomass pellet press machine
The new generation vertical wood sawdust pellet production line biomass pellet press machine(also wood pellet mill) is the latest pellet machinery in China. The biomass wood pellet machine adopts a large modulus hard toothed helical gearbox, strengthened spindle, strong power output, equipment stable operation, low failure rate, low production cost.
wood sawdust pellet production line biomass pellet press machine suitable for: eucalyptus, pine, birch, poplar, fruit, crop straw, bamboo chips, rice husk, waste wood plate, etc
The finished pellets is biomass energy as biofuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.
wood sawdust pellet production line biomass pellet press machine suitable for: eucalyptus, pine, birch, poplar, fruit, crop straw, bamboo chips, rice husk, waste wood plate, etc
The finished pellets is biomass energy as biofuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.
Specification
Model | Main Power(kw) | Capacity(t/h) | Dimension(L*W*H) | Weight(t) |
YGKJ560 | 132 | 1.5-2 | 2200*1300*1600 | 5.8 |
YGKJ700 | 160 | 2-3 | 2400*1400*1800 | 7.8 |
YGKJ880 | 220 | 3-4 | 3000*1500*2200 | 13 |
Details Images

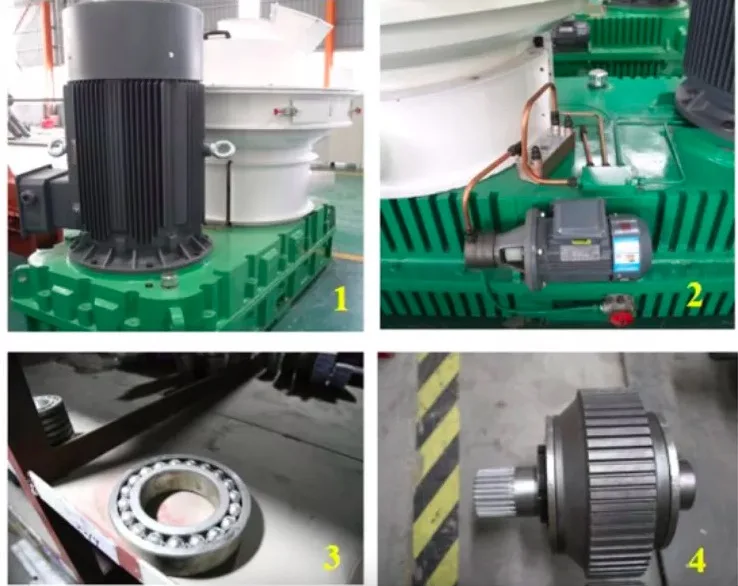

Stainless Steel Mould
Stainless steel whole carburizing die,high wear resistance, good stability,discharge area increase,enhance capacity and reduce cost.Double layer, both side can be used, reduce cost.
Roller
the roller adopts wear-resistant alloy welding process, without lock nut structure design, less grease consumption, which greatly extends the bearing life, then reducing cost.
Siemens Motor
The motor of wood sawdust pellet production line biomass pellet press machine is frequency, with thick copper coil, It won’t be burned due to instantaneous current.
Reducer
Reducer drive of wood sawdust pellet production line biomass pellet press machine strengthen with 3 level.,module increased , gear strengths increased, carrying more and more ability.The service life increased 8-10 times than the traditional reducer,greatly increase the service life.
Air Cooling System
Adopt air cooling, circulation cooling, cooling gear oil inside the gear box
Automatic oiling system
Reducer and main shaft bearing chamber adopts loop closed industrial gear oil lubrication,make lubrication effect more outstanding,reduce the cost of traditional grease lubrication, add a circulating waste cooling oil temperature cooling device, reduce the oil temperature in reducer, protect bearings.
Raw Material and Application
What kind of raw materials can be used to make biomass pellets?
There are many different raw materials can be used in the biomass wood pellet production line, for example wood log, wood chips, wood sawdust, rice hush, straw, palm shell, EFB, wet or dry grass, alfalfa, hemp, tire fiber, organic fertilizer, waste paper, and so on.
Application of wood pellets
Applications: Make Biomass Pellets,Biomass Industry,Burning,Making Wood Fuel et

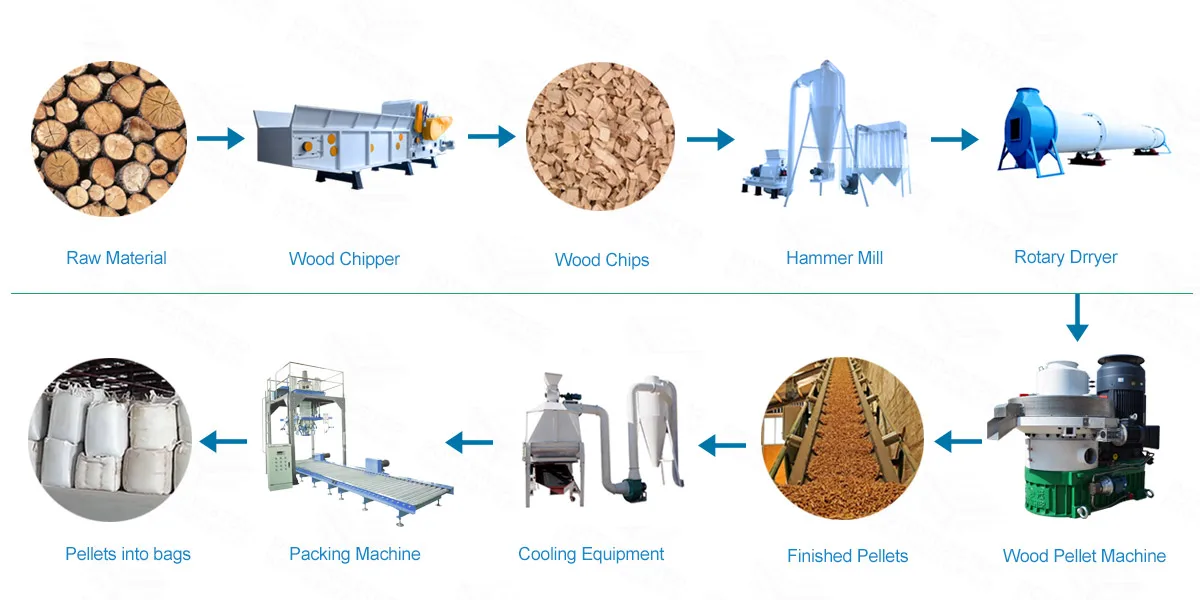

Main Process to Press Wood Pellets
Different material need different machine. Take wood log as a example,the whole process include:
Durm wood chipper-To make wood log into small size wood chips.
Hammer mill/Crusher-To make wood chips into sawdust
Dryer-To dry the higg moisture content of sawdust into 12-15%
Durm wood chipper-To make wood log into small size wood chips.
Hammer mill/Crusher-To make wood chips into sawdust
Dryer-To dry the higg moisture content of sawdust into 12-15%

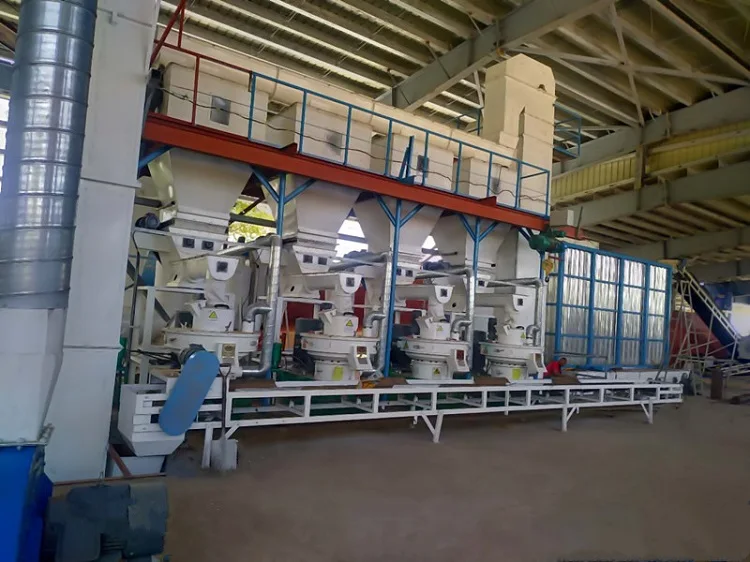

Customer Photos
10tph Pellet Line in Philippines
20t/h Pellet Production Line in Asia
5-6t/h Wood Pellet Line in Malaysia
8-10t/h Pellet Plant
New Wood Pellet Machine Cases
New Wood Pellet Machine Cases
Packing & Delivery
Bolida can provide clients delivery service, we are professional in helping each clients
Company Profile
Shandong Bolida Machinery Co., Ltd. is a manufacturer focusing on design, production, integrating scientific research, sales and service.
It mainly produces biomass equipment, crushing, shredding, chipping, pellet machinery, dryring, cooling, packing and other related products. All equipment has passed CE, SGS, ISO9000 and other related technical appraisals and approvals.
Founded in 2017 and based in Jinan, Shandong Province, China, covering an area of more than 60 acres, Bolida Machinery belonges to the Group company with RotexMaster.
Since the establishment, the equipment produced by Bolida has been exported to more than 60 countries and regions in the world. The Crushing series and pellet production line have become the world's best-selling products and have been recognized by the world.
At Bolida, we believe that improvement of product quality is always a top priority. Each year, Bolida will invest 6~8% of its sales revenue into R&D, making it possible to expand the product capacity and increase the technology level. There are 20 R&D engineers, among them 10 senior engineers with more than 10 years' experience. And we have formed a comprehensive business pattern for project-design, new-product research, machinery manufacturing, quality-inspection, installation and debugging, technical training and after-sales service.
It mainly produces biomass equipment, crushing, shredding, chipping, pellet machinery, dryring, cooling, packing and other related products. All equipment has passed CE, SGS, ISO9000 and other related technical appraisals and approvals.
Founded in 2017 and based in Jinan, Shandong Province, China, covering an area of more than 60 acres, Bolida Machinery belonges to the Group company with RotexMaster.
Since the establishment, the equipment produced by Bolida has been exported to more than 60 countries and regions in the world. The Crushing series and pellet production line have become the world's best-selling products and have been recognized by the world.
At Bolida, we believe that improvement of product quality is always a top priority. Each year, Bolida will invest 6~8% of its sales revenue into R&D, making it possible to expand the product capacity and increase the technology level. There are 20 R&D engineers, among them 10 senior engineers with more than 10 years' experience. And we have formed a comprehensive business pattern for project-design, new-product research, machinery manufacturing, quality-inspection, installation and debugging, technical training and after-sales service.
FAQ
1. Are you manufacturer of trading company?
We are manufacturer, also with marketing department and R&D center.
2. Do you offer installation and training?
Yes. We can dispatch technicians to customers' site to help install equipment and train how to operate.
3.How can you guarantee the after-sales service?
We have professional After-sales service center with experienced and skillful engineers. When problem of equipment occurs, our engineers will be assigned to your site to solve problems timely. Also spare parts can be provided timely due to oversea warehouses.
4. What is your work flow?
Inquiry—Quotation—Communication—Order Confirm & Payment Received—Production—Production Tracing & Inspection—Check Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Debugging
5. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) We can negotiate specific payment terms with our client.
6. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle
We are manufacturer, also with marketing department and R&D center.
2. Do you offer installation and training?
Yes. We can dispatch technicians to customers' site to help install equipment and train how to operate.
3.How can you guarantee the after-sales service?
We have professional After-sales service center with experienced and skillful engineers. When problem of equipment occurs, our engineers will be assigned to your site to solve problems timely. Also spare parts can be provided timely due to oversea warehouses.
4. What is your work flow?
Inquiry—Quotation—Communication—Order Confirm & Payment Received—Production—Production Tracing & Inspection—Check Every Product—Book Vessel & Arrange Delivery—Documents Post/Telex Release—Customs Clearance—Arrange Delivery to Clients` Site—Discharge Goods—Arrange Installation & Debugging
5. How do I pay to you?
(1) 30% deposit of the total amount to be paid by T / T in 5 working days after signing the sales contract, the balance of 70% will be paid before the goods leave the factory.
(2) We can negotiate specific payment terms with our client.
6. How long is the delivery time?
For standard machines, that would be 25-30 working days; For non-standard machines and customized machines according to customers' specific requirements, it would be about 30 working days. we work with the biggest freight forwarder in North China. if you need to appoint other freight measures, we can arrange them because we have rich experience and sufficient funds to handle
