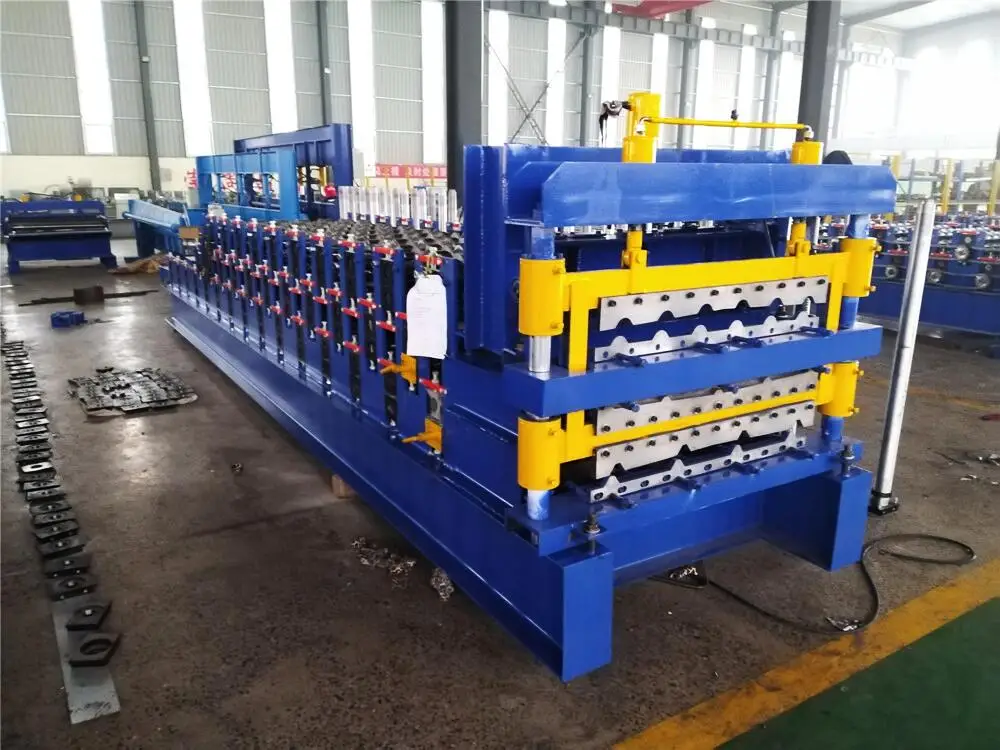

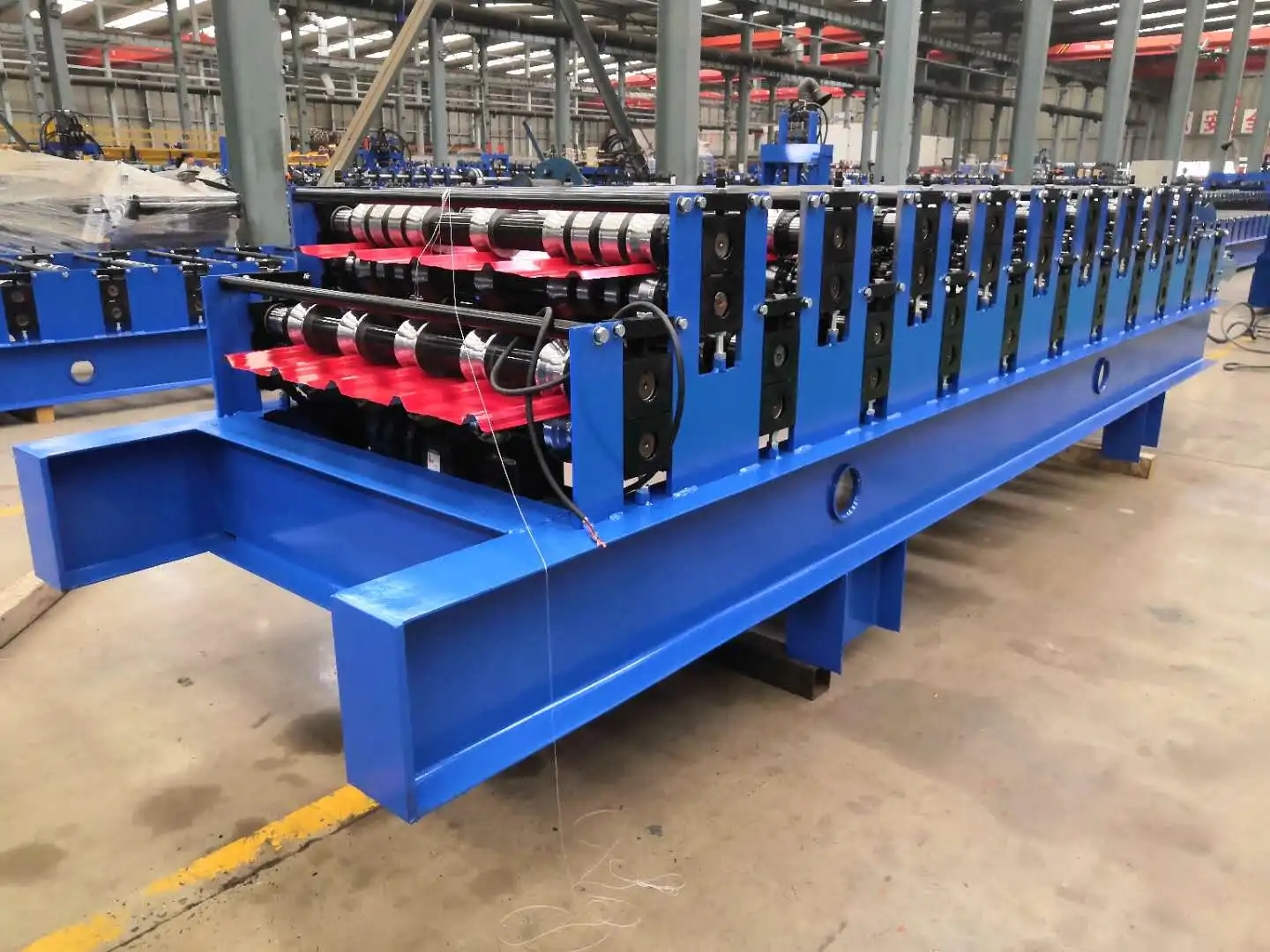

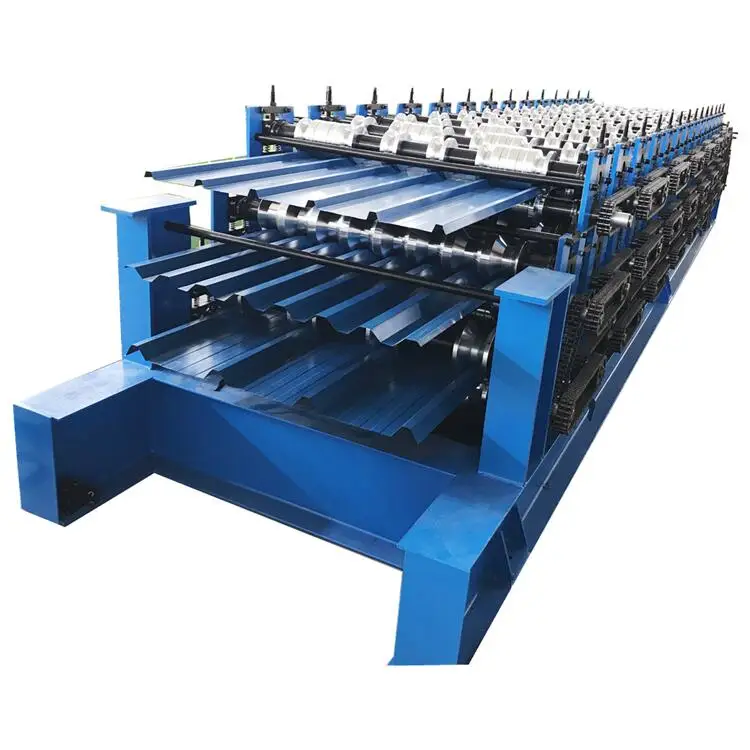

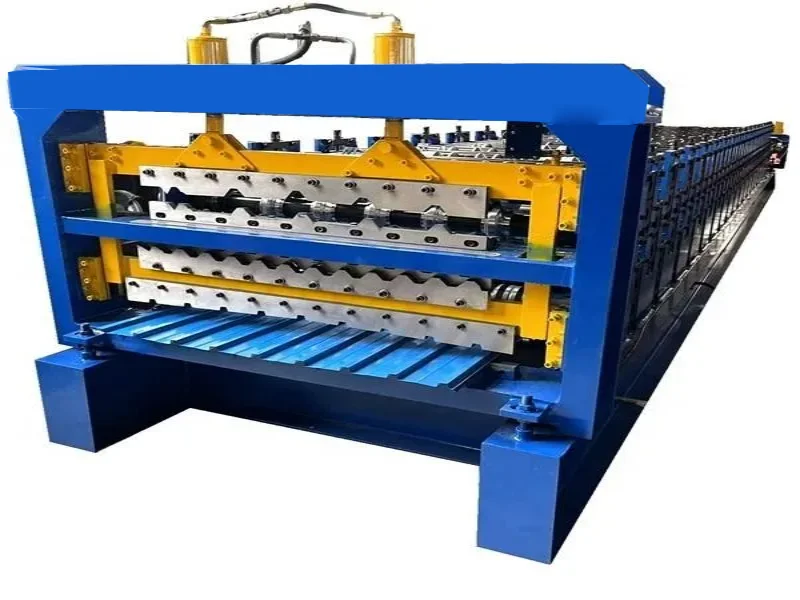

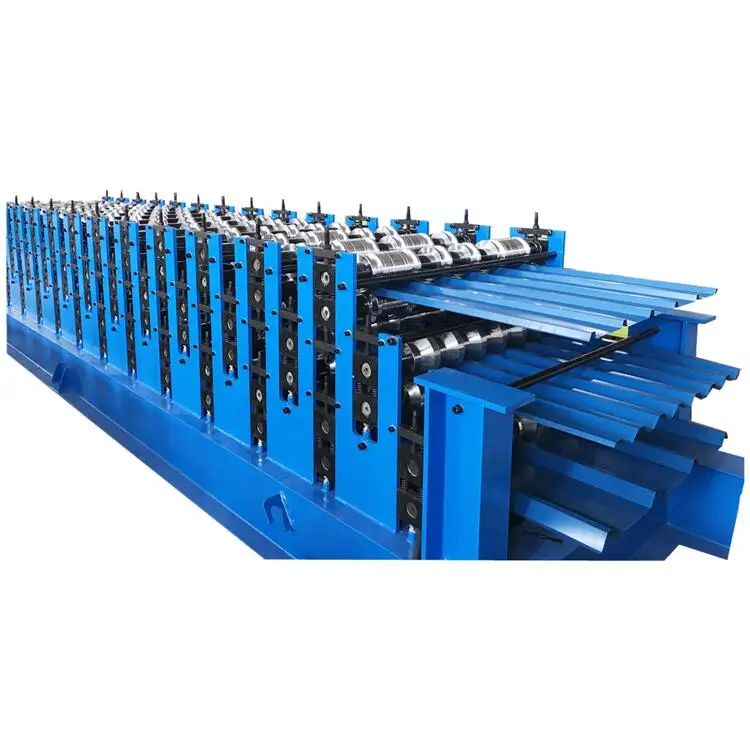

Layer Roll Forming Machine Three Layer Roll Panel Aluminium Zinc Complete Sheet Metal Tile Making Roof Forming Machine
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600729339369):
Product Overview
Description
Products Description
Brief Introduction

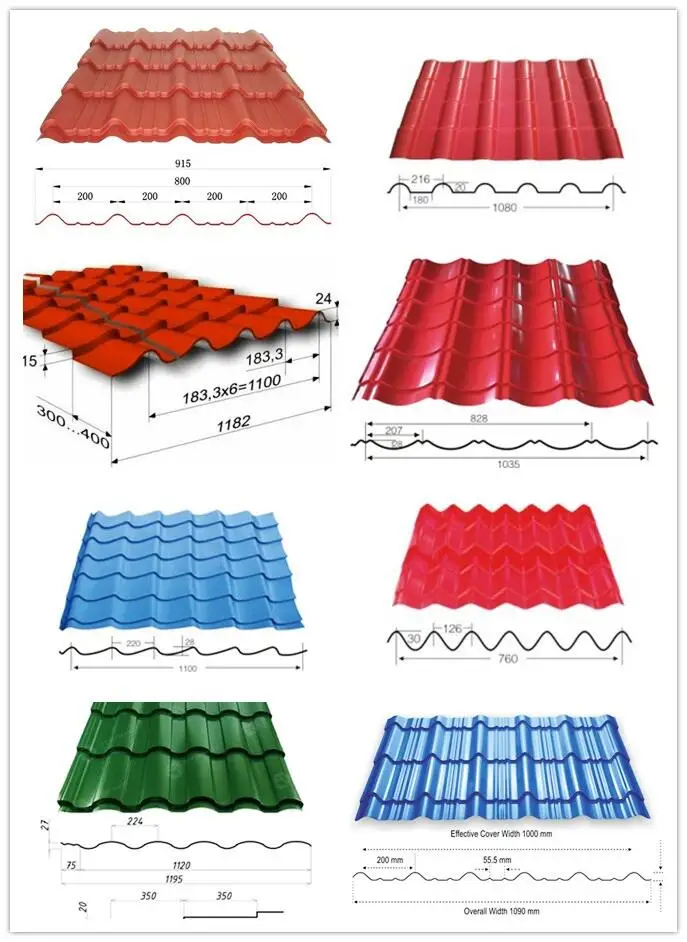

Roof roll forming machines has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product.It has advantage of pretty appearance, durable using and so on.
Features for window and door making machine
1.Famous Brand, quality is guaranteed.

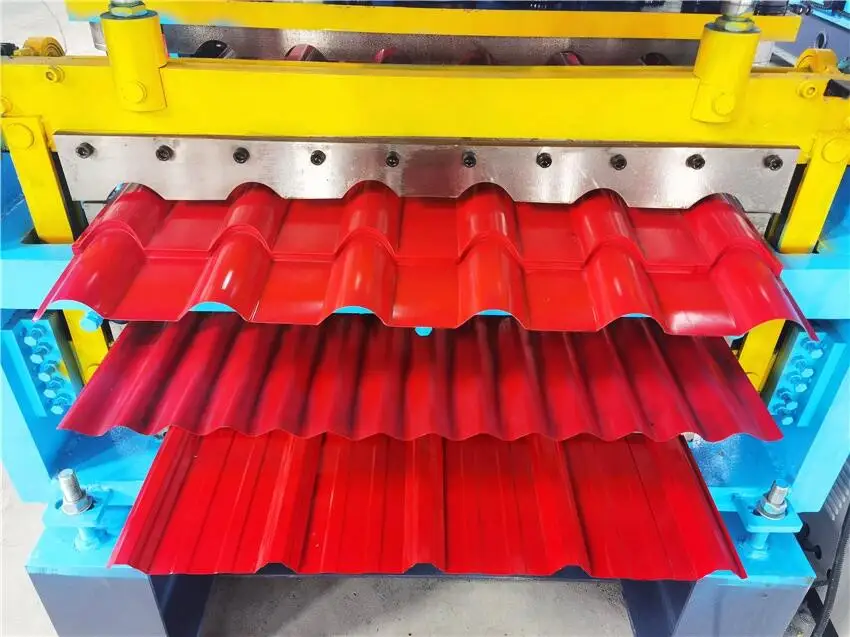

2. It can be produce Two kinds Profile can satisfy the client demand for spend less and Multi-purpose.
3. Full Automatic Computer Control make easy to operation.

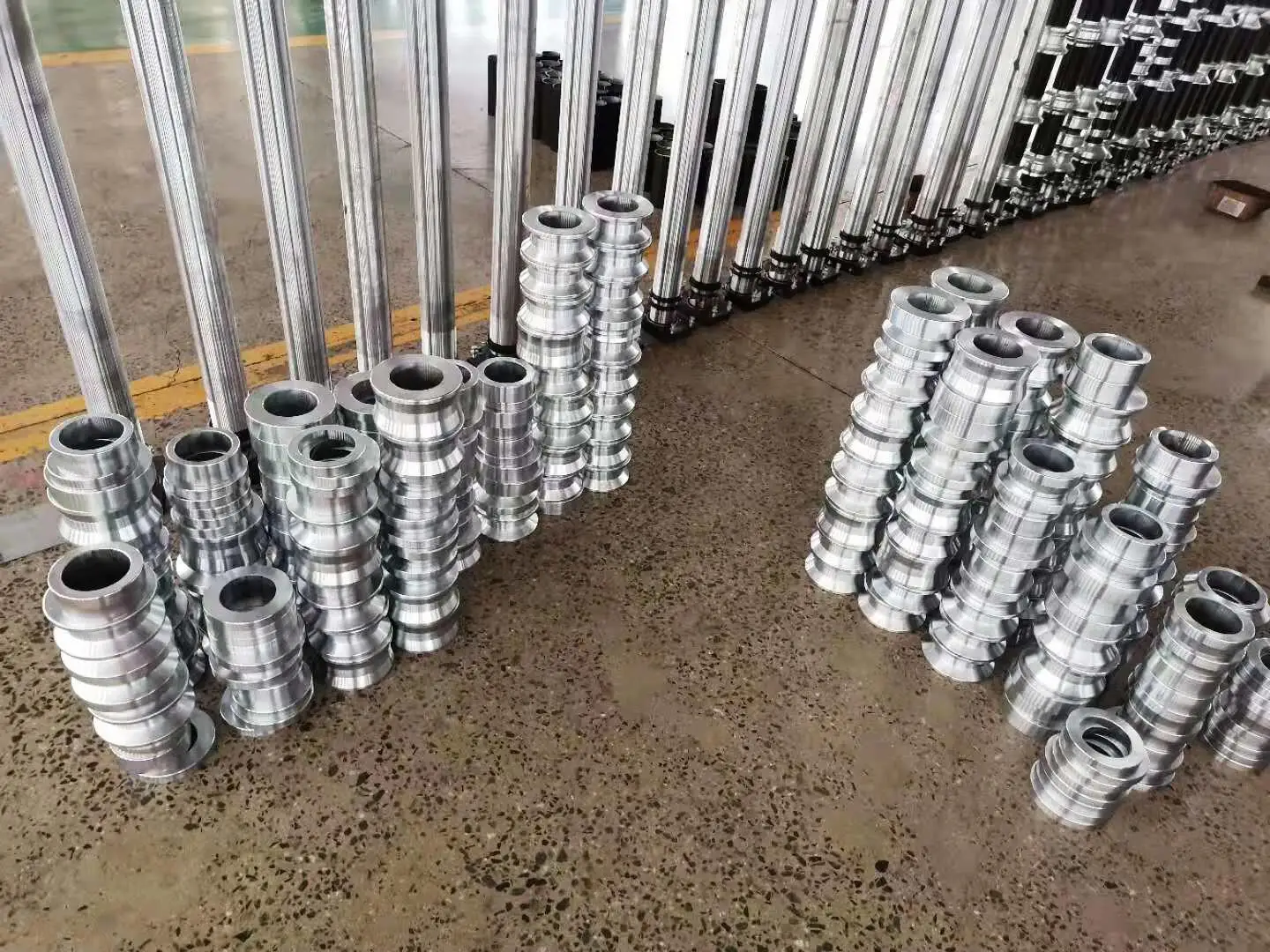

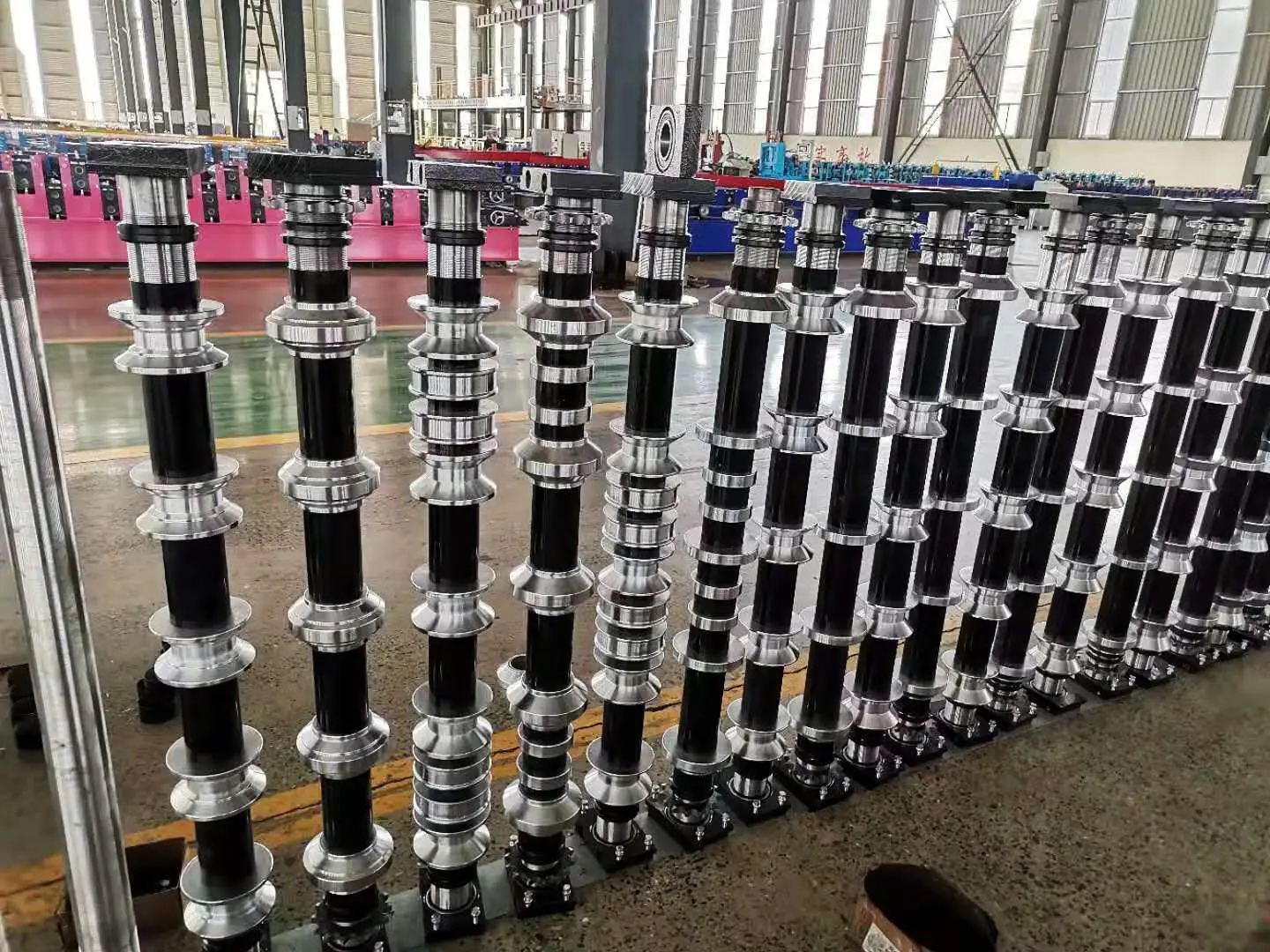

4. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heattreatment 58℃-62℃ . The product quality is durable and long service life .
2. It can be produce Two kinds Profile can satisfy the client demand for spend less and Multi-purpose.
3. Full Automatic Computer Control make easy to operation.
4. Machine roller and shaft is produced by exact demands and control . The roller material processing method is by CR12 MOV heattreatment 58℃-62℃ . The product quality is durable and long service life .

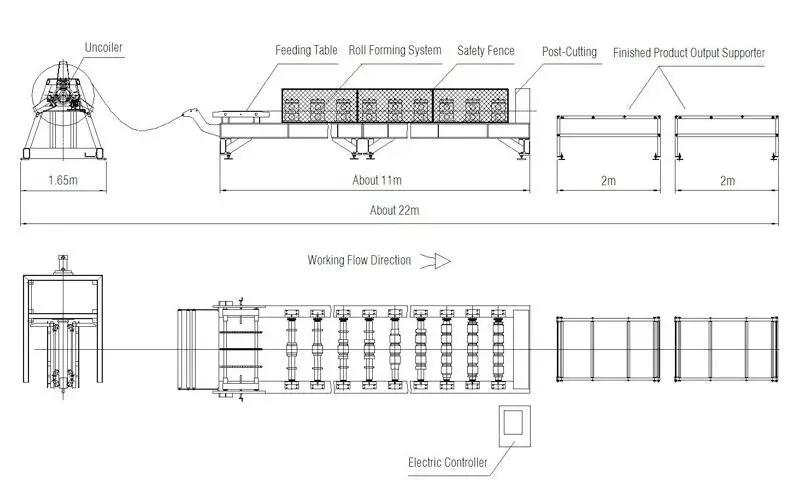

Working Process
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism
-----Automatic Shearing Mechanism ----- Products Receiving Tables
-----Automatic Shearing Mechanism ----- Products Receiving Tables
Specification

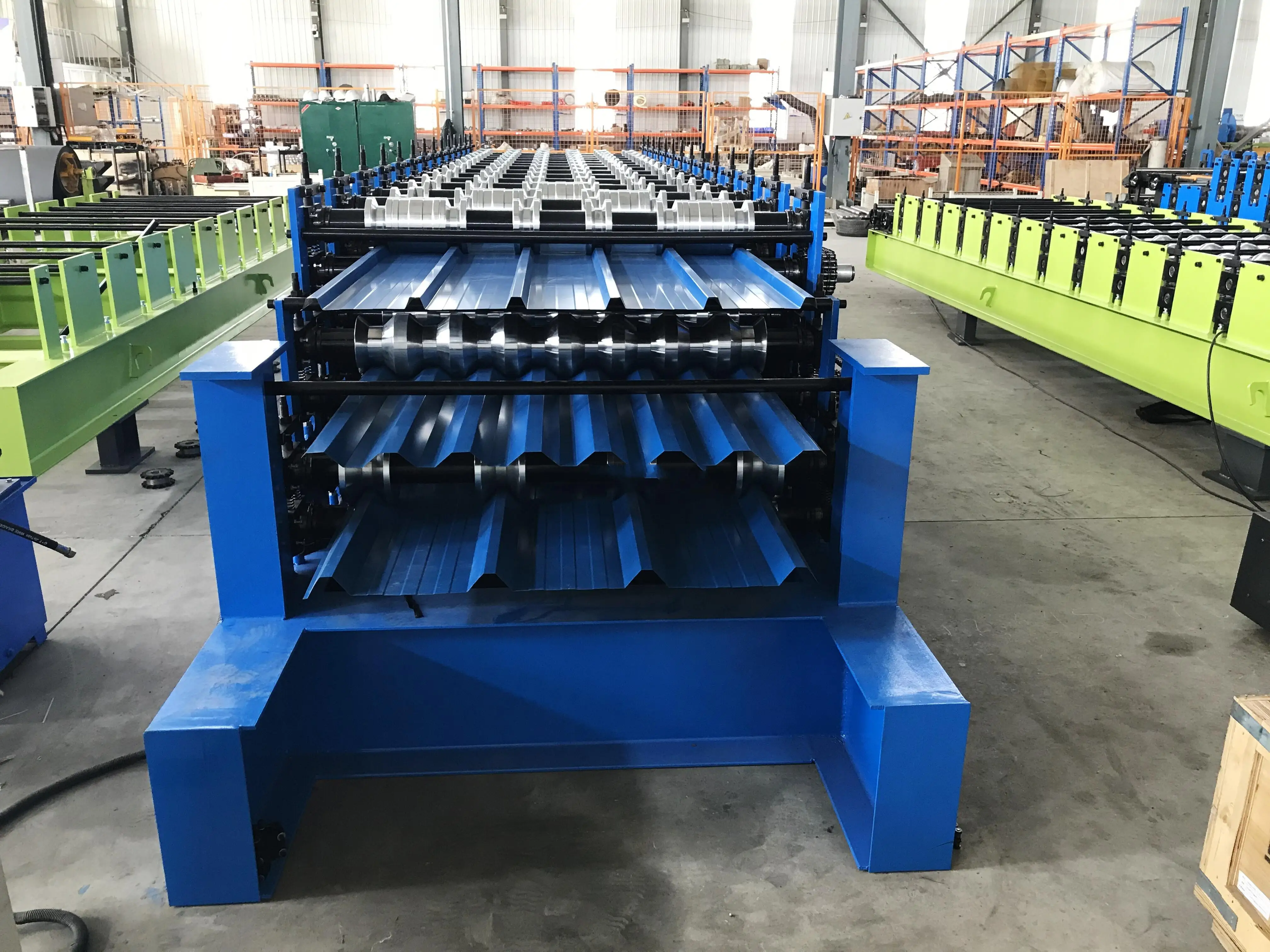

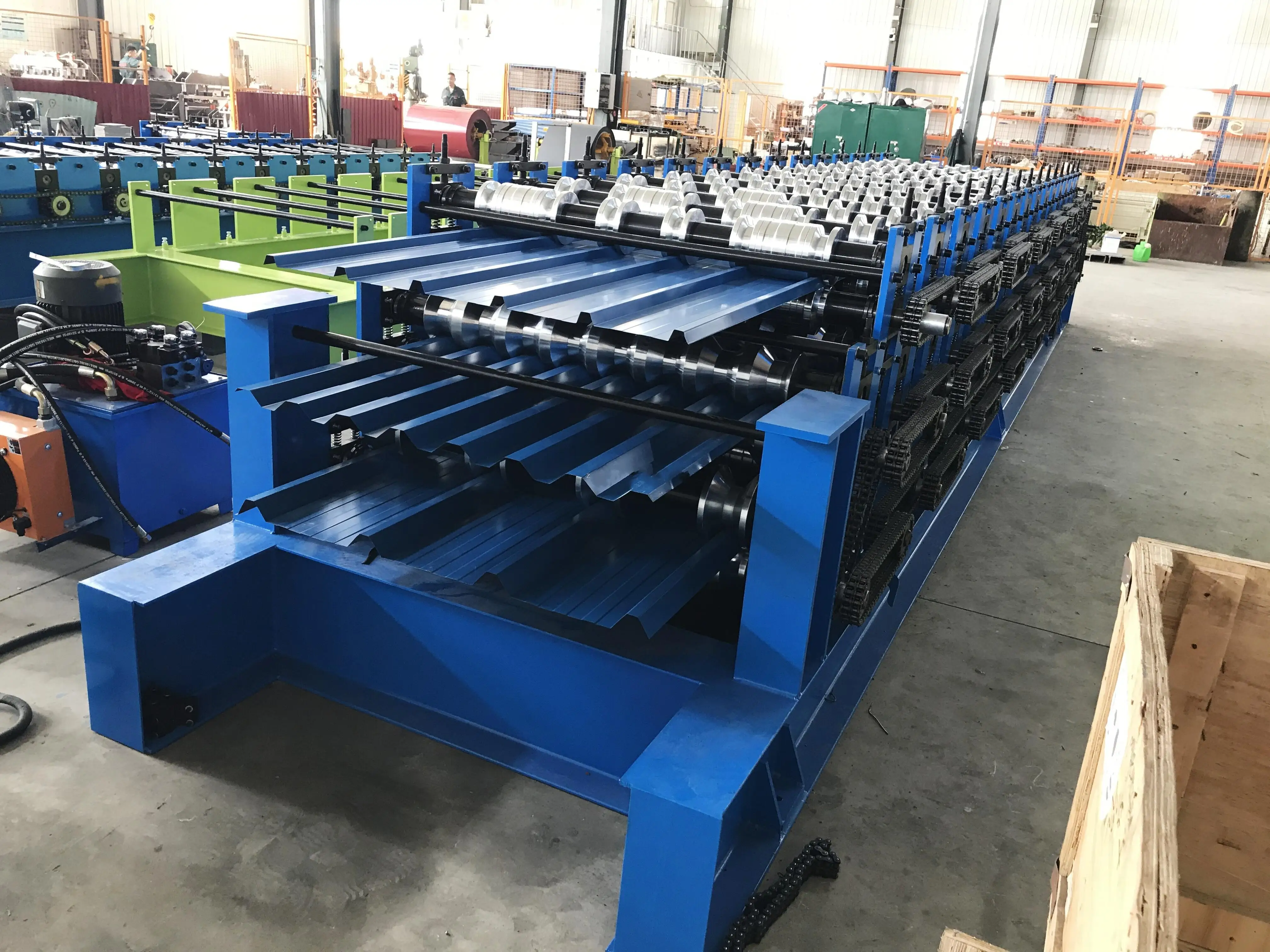

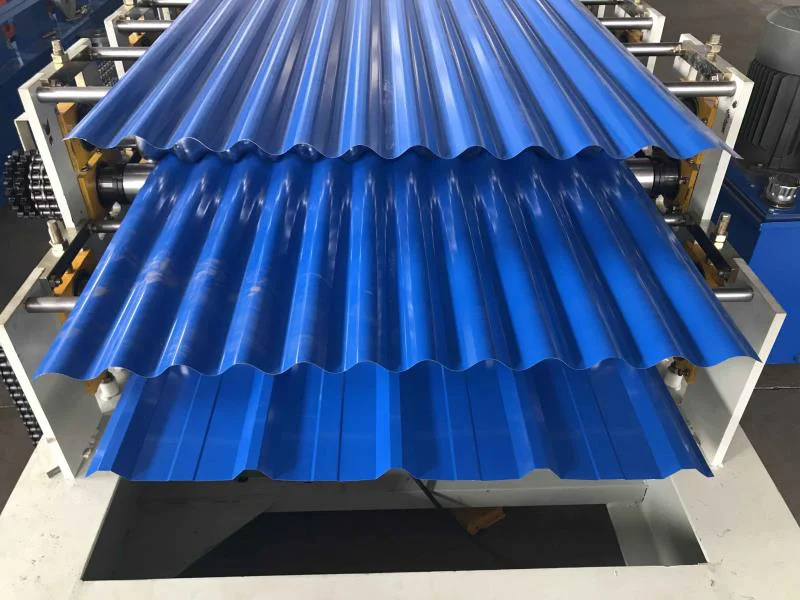

Hi Rib metal roof 3 layer full automatic triple layer roll forming machine for roofing and wall panel | ||||||
1 | Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm Width:1000mm/1250mm(customized) | |||

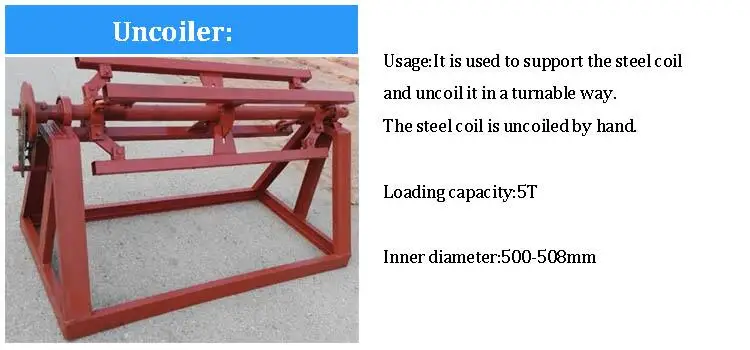

2 | Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | |||

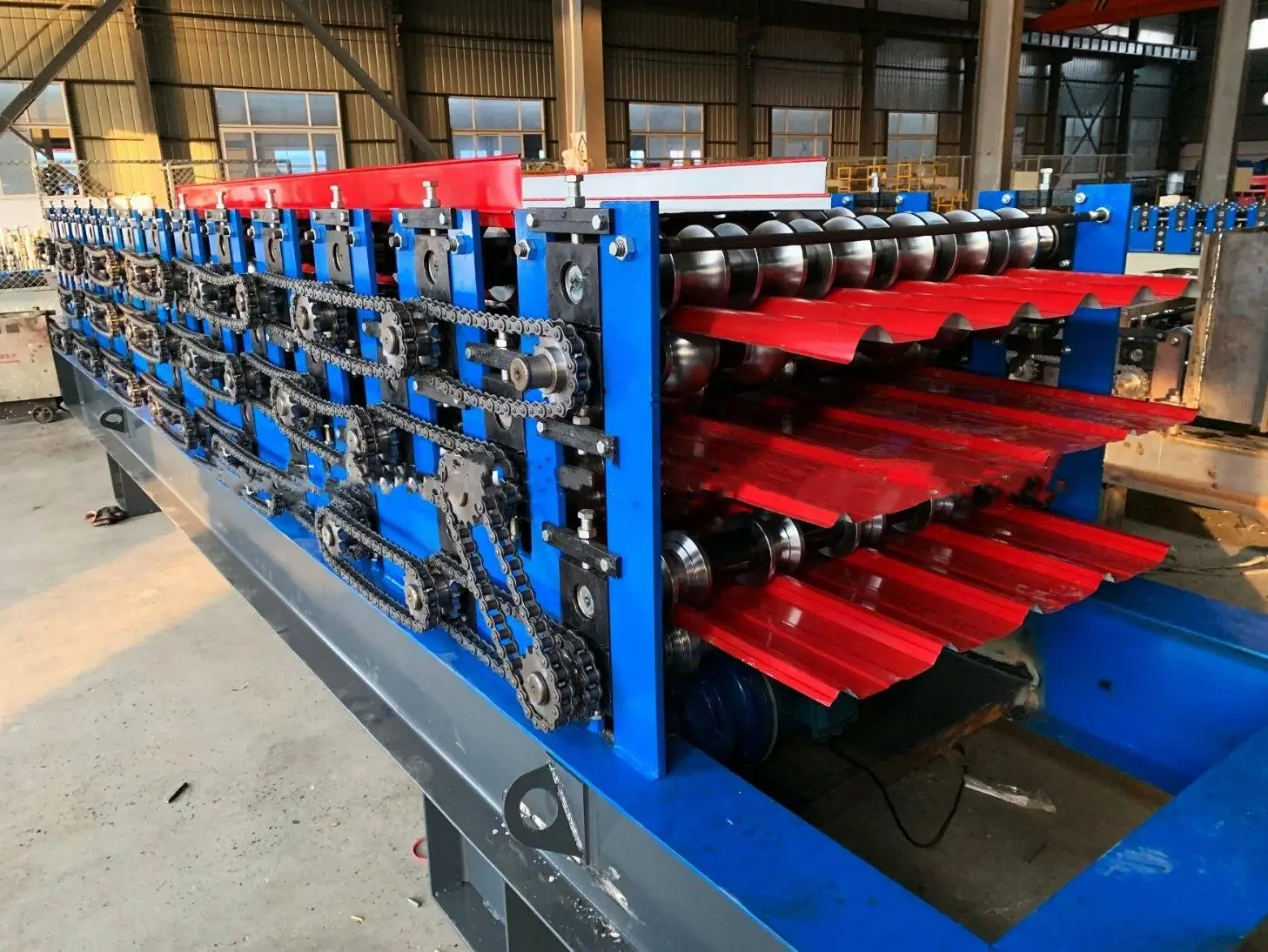

3 | Main body | Roller station | 16+17+18 stations(As per the profile drawing) | |||
Diameter of shaft | 80mm solid shaft | |||||
Material of rollers | 45# steel, hard chrome plated on the surface | |||||
Machine body frame | 350 H steel | |||||

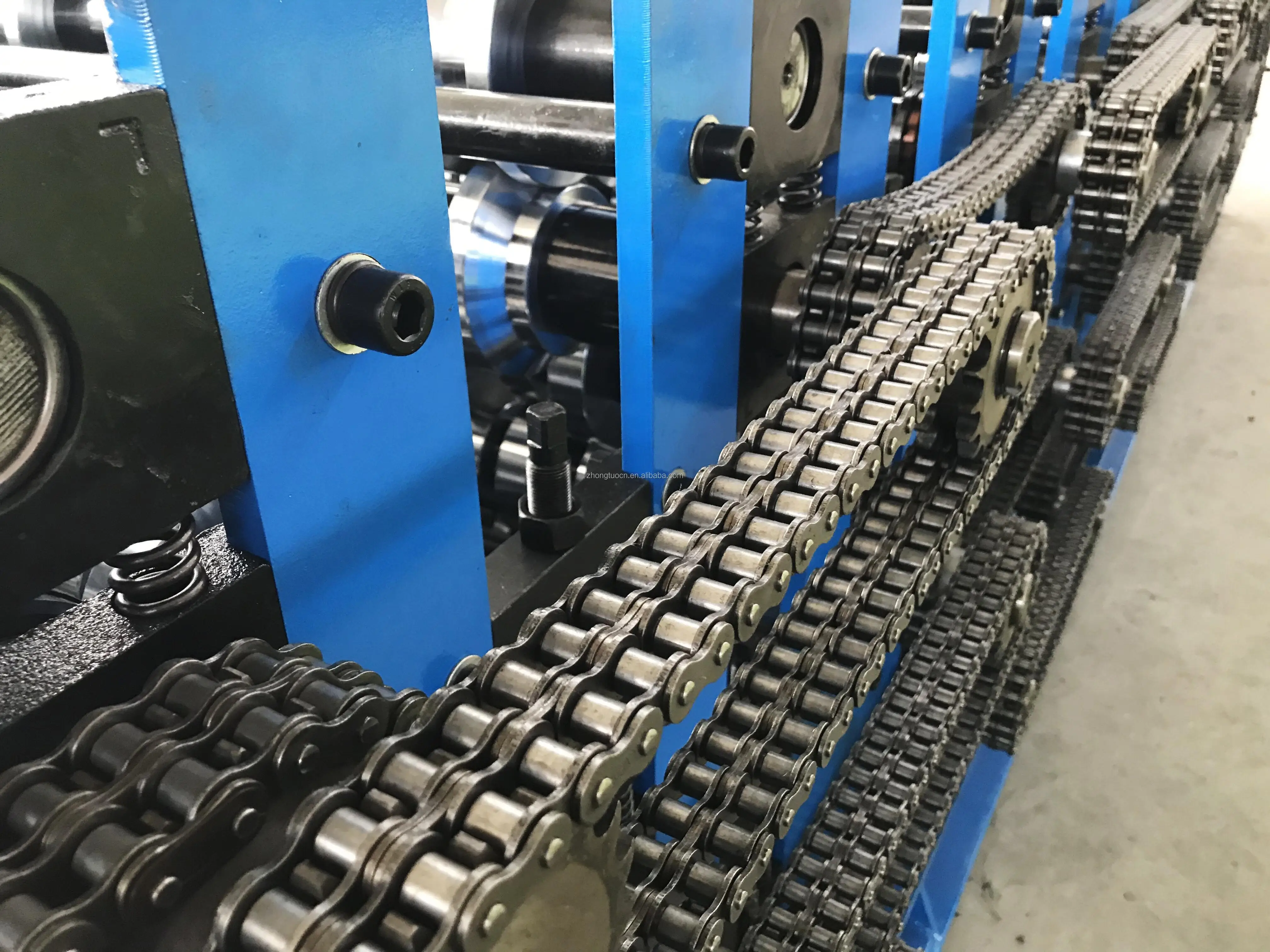

Drive | Chain transmission | |||||
Dimension(L*W*H) | 9500*1600*2100(customize) | |||||
Weight | 14.5T | |||||
4 | Cutter | Automatic | cr12mov material, no scratches, no deformation | |||
5 | Power | Motor Power | 7.5KW | |||

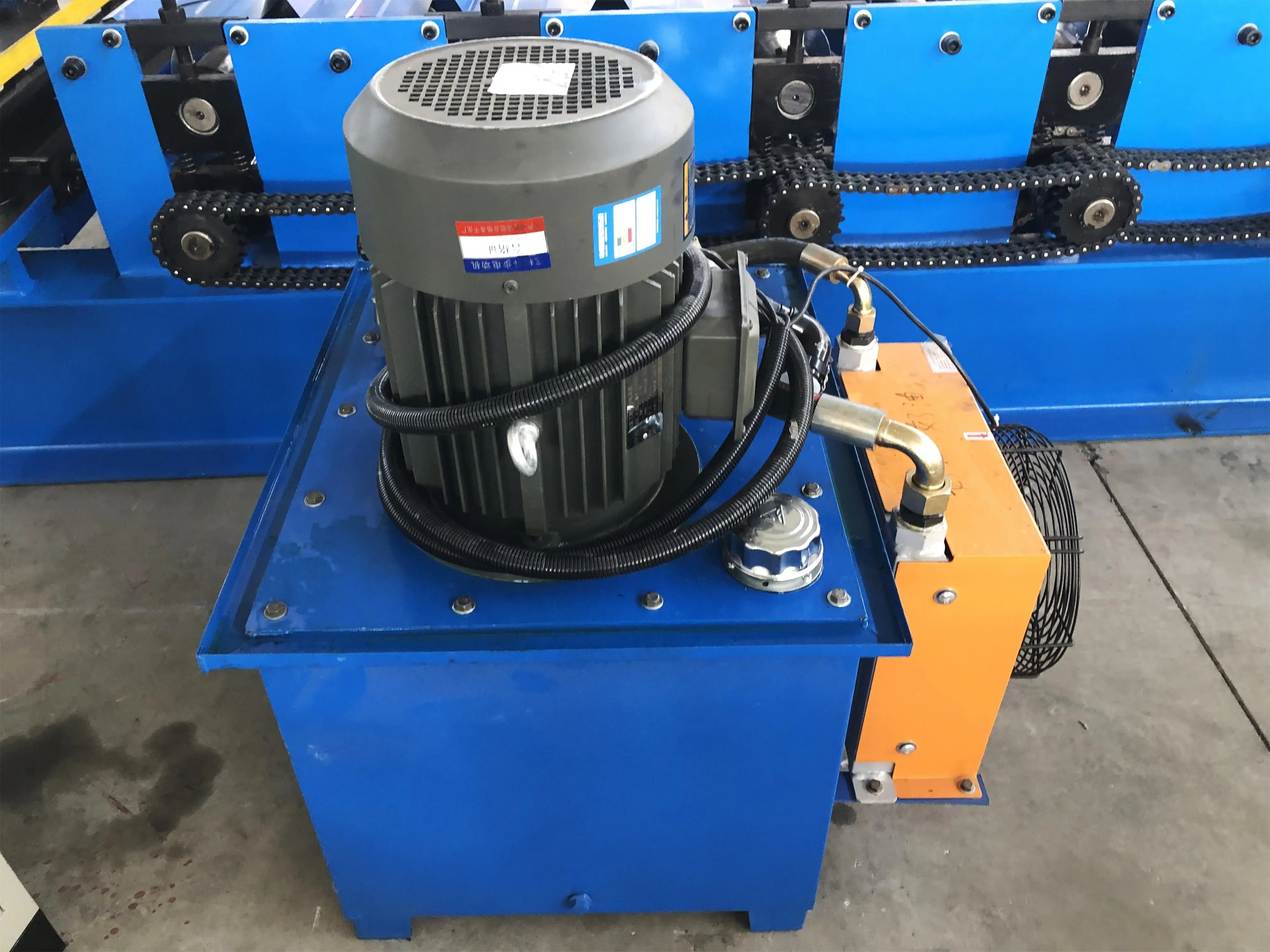

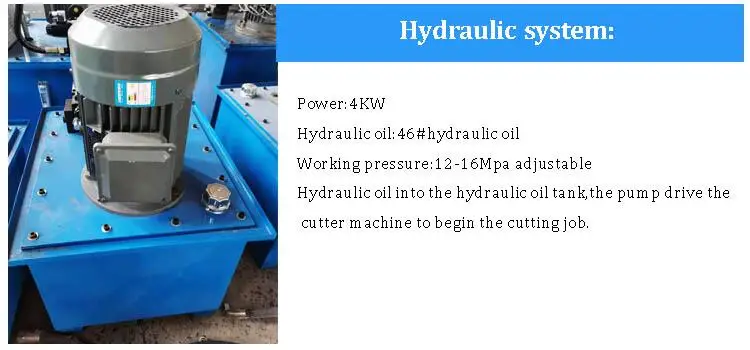

Hydraulic system power | 5.5KW | |||||
6 | Voltage | 380V 50Hz 3Phase | As your requirement | |||

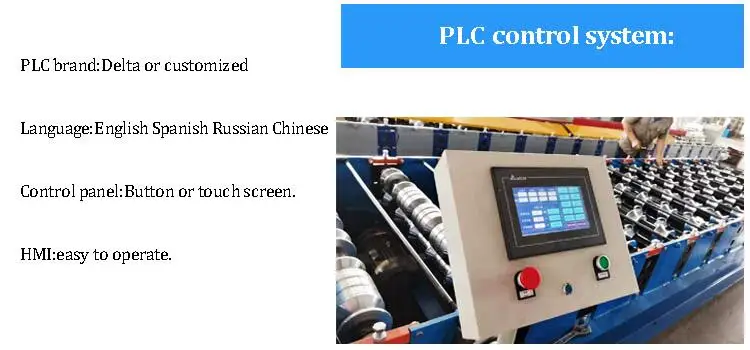

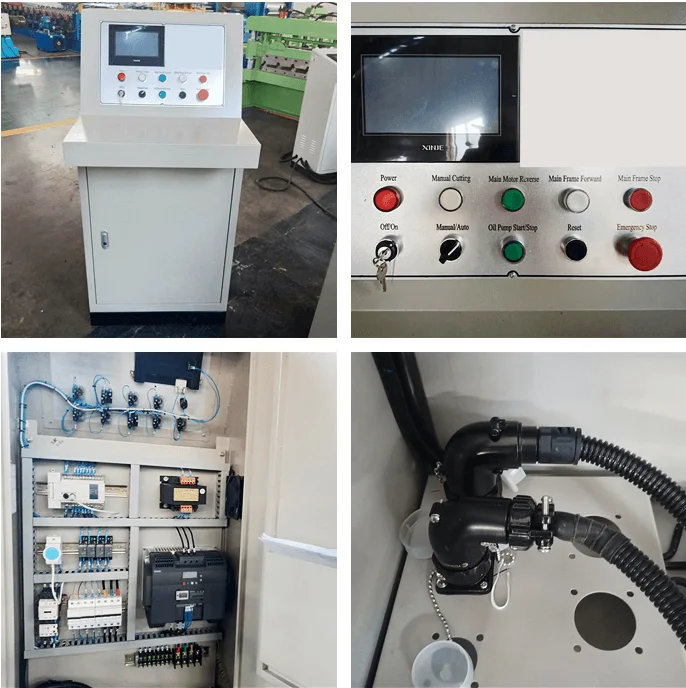

7 | Control system | Electric Box | Customized(famous brand) | |||
Language | English(Support multiple languages) | |||||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||
8 | Forming Speed | 15-20m/min | The speed depends on the shape of the tile and the thickness of the material. | |||
No. | Item | Unit | Qty |
1. | Decoiler | set | 1 |
2. | Main Roll Forming Machine | set | 1 |
3. | Cutting System | set | 1 |
4. | Oil Pump | set | 1 |
5. | PLC control Box | set | 1 |
6. | Output | set | 1 |
7. | Tools | set | 1 |

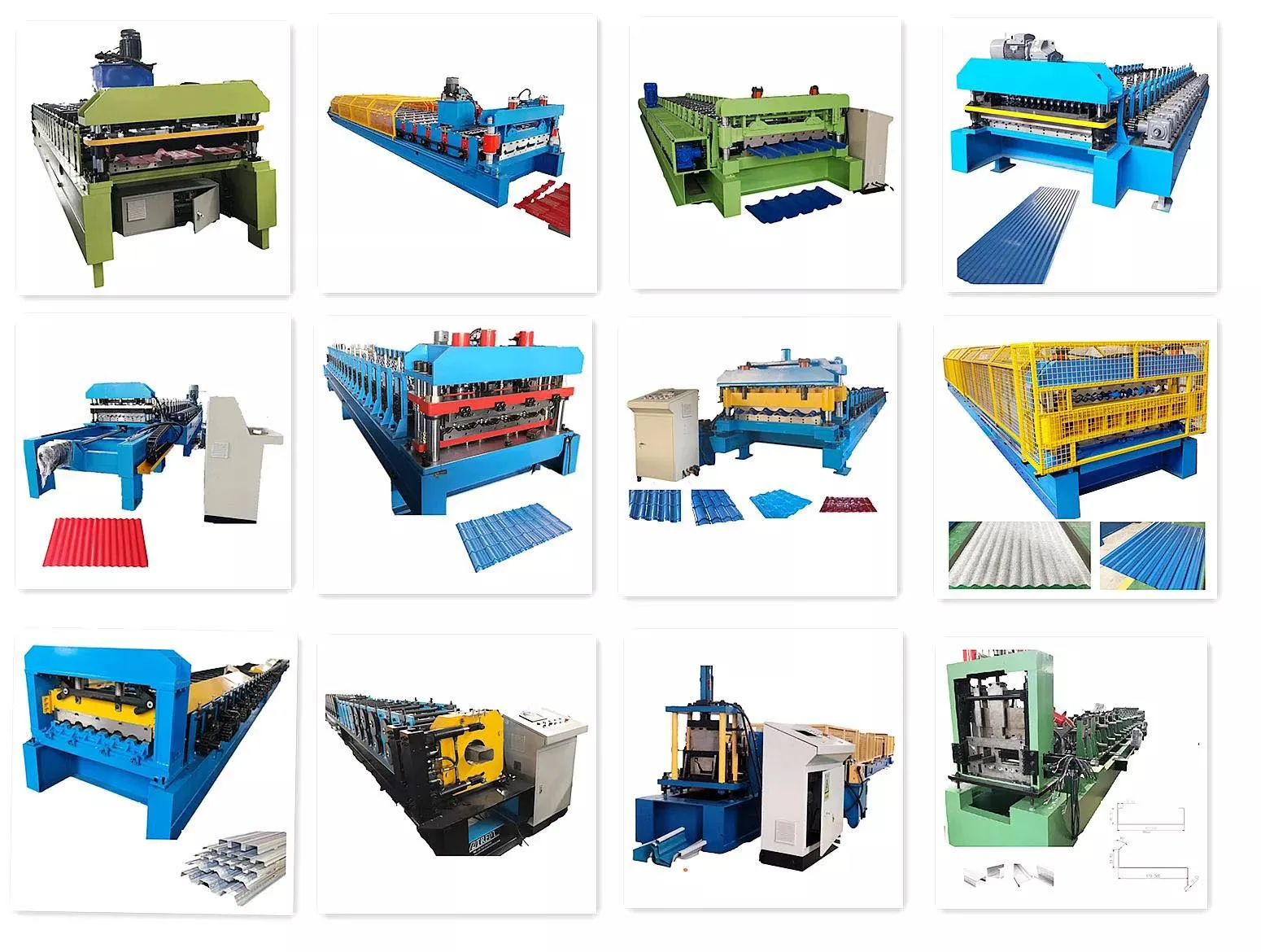

Related Product
Packaging & Shipping
Why Choose Us
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
