Video Doorbell camera intercom system for Villa 2023 new arrival Tuya APP 10.1 LCD noise suppression and echo cancellation
- Category: >>>
- Supplier: Shenzhen Ccdcam Technology Co. Limited
Share on (1600729376535):
Product Overview
Description
Product Description
Product Name | IP door phone wireless kit for Villa |
Master Station | 10.1 inch touch screen master station with 1280*800 HD |
Video Door Bell | 2pcs Wireless doorbell, waterproof, Poe |
Video IP Camera | 2pcs Wireless camera, 2mp, IR cut |

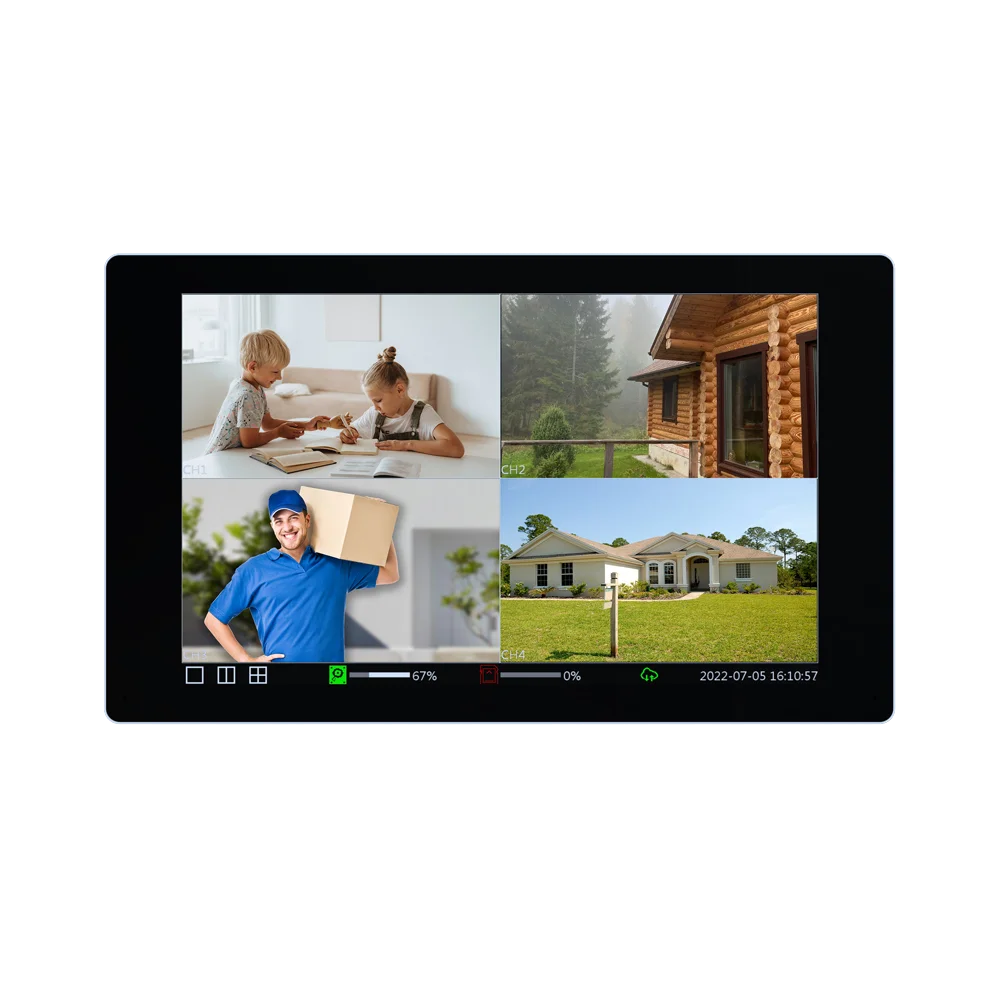

- DK8354-W Master Station
▪ 10-inch Touch-Screen Master Station
▪ 1280*800 HD Resolution
▪ WIFI，12VDC
▪ TF card,max 512G
▪ Built-in 64G SSD
▪ 2-ch alarm input,1-ch alarm output
▪ Support Tuya APP
▪ Remote unlocking on APP
Model | DK8354-W Master Station |
Image Signal Processor | SOC |
Operating System | LINUX |
LCD | 10.1-inch TFT LCD |
Resolution | 1280*800 |
Operation method | Capacitance touch screen |
Operation interface | Flat style UI interface, easy to operate |
Outdoor camera | Max support 4*Outdoor camera |
Indoor Extension Station | Max support 2*Indoor Extension Station |
Video Compression | H265/H264 |
Record | Support scheduled recording and event recording |
Storage | Built-in 64GB SSD |
TF Card | 1 * TF Card ,max 512G |
USB Interface | 1 * USB 2.0 |
Audio Input | Built-in microphone |
Audio Output | Built-in speaker |
Audio Compression Standard | G.711U |
Audio Compression Rate | 64Kbps |
Sound Quality | Supports noise suppression and echo cancellation |
APP | Support tuya APP,Support remote intercom and unlock |
Network Interface | 1 RJ-45 10/100M self-adaptive |
Alarm output | 2-ch |
Alarm Output | 1-ch |
Power Supply | DC12V |
Power Consumption | ＜10W |
Working Temperature | -10℃ ～55℃ |
Working Humidity | 10%～90% |
Dimensions | 270mm*165mm*30mm |

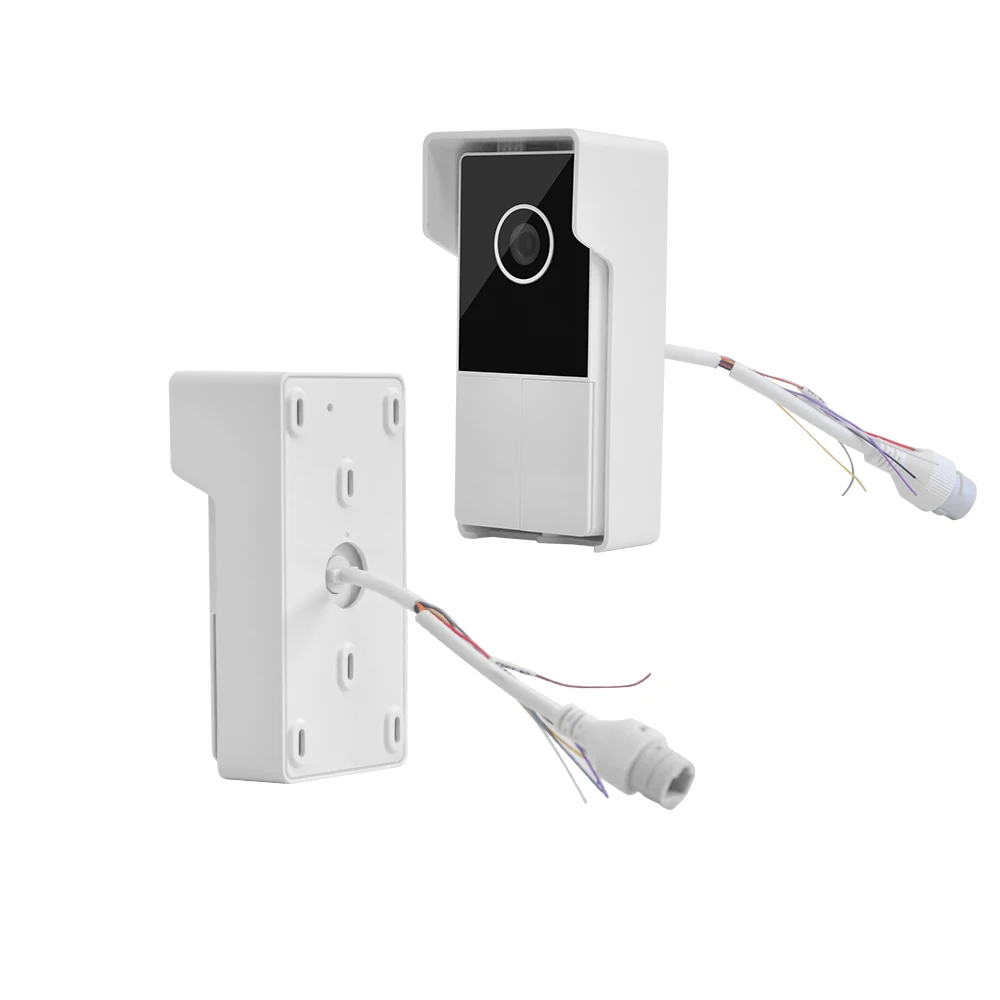

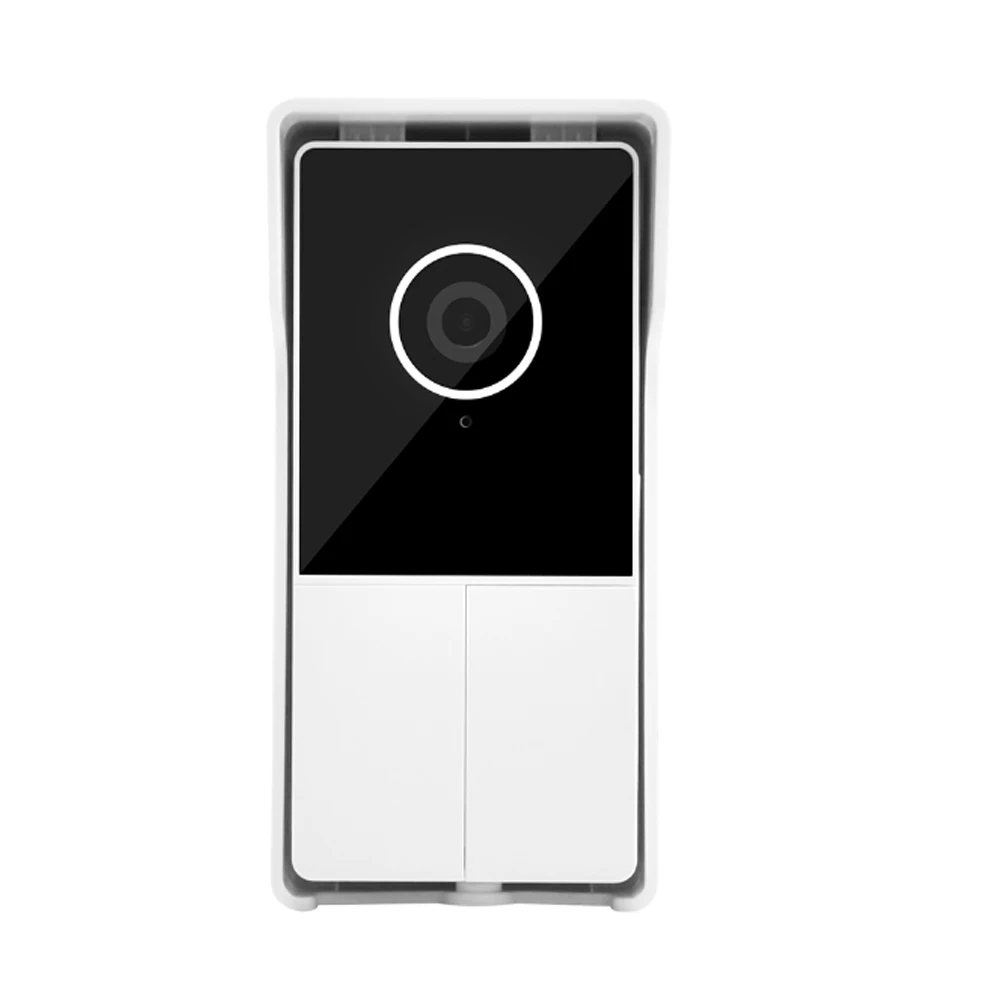

- DK8354-W Plastic Doorbell
▪ Support accept the unlocking command of the indoor unit for remote unlocking；
▪ Support adaptive infrared light compensation；
▪ Adopts advanced hardware noise suppression and echo cancellation technology to ensure clear voice
quality and adjustable intercom volume
▪ Equipped with a standard waterproof cover, which can be installed by the user；
▪ Equipped with alarm function, which supports anti disassembly alarm；
▪ Support adaptive infrared light compensation；
▪ Adopts advanced hardware noise suppression and echo cancellation technology to ensure clear voice
quality and adjustable intercom volume
▪ Equipped with a standard waterproof cover, which can be installed by the user；
▪ Equipped with alarm function, which supports anti disassembly alarm；
Model | DK8354-W Plastic Doorbell |
System | LINUX,Single core 32-bit DSP, hard compression, watchdog, 8MB FLASH, built-in 64MV DDR |
Camera | 3MP 1/2.7" CMOS,colour 2.0Lux@F2.0,B/W 0 Lux@F2.0;Integrated IR cut driver,support Sensor+IR-CUT +LED Linkage control of light supplement, Day/Night |
Video Compression | H.265+/H.265/H.264 code format,Double stream ,PAL/NTSC |
Frame Rate | 3MP@15fps |
Image Output | Main stream:2304×1296，1280×720 |
Sub stream:640×360 | |
Audio Interface | 1*MIC input,1*loudspeaker output; |
Audio Compression | G.711,Support two-way voice intercom function and audio and video synchronization; |
Network | 10/100M Base-TX Ethernet, RJ45 Connector HTTP,TCP/IP,IPv4,DHCP,NTP |
Protocols | HTTP,TCP/IP,IPv4,DHCP,NTP |
Signal Interface | 1*IRCUT interface, support the control of IR-CUT and image linkage; |
Upgrade Maintenance | Support OTA upgrade |
Business Functions | Support OSD, real-time video transmission, mobile detection and human shape detection |
ONVIF | UnSupport |
Remote Unlock | Support |
Power Supply | DC12V |

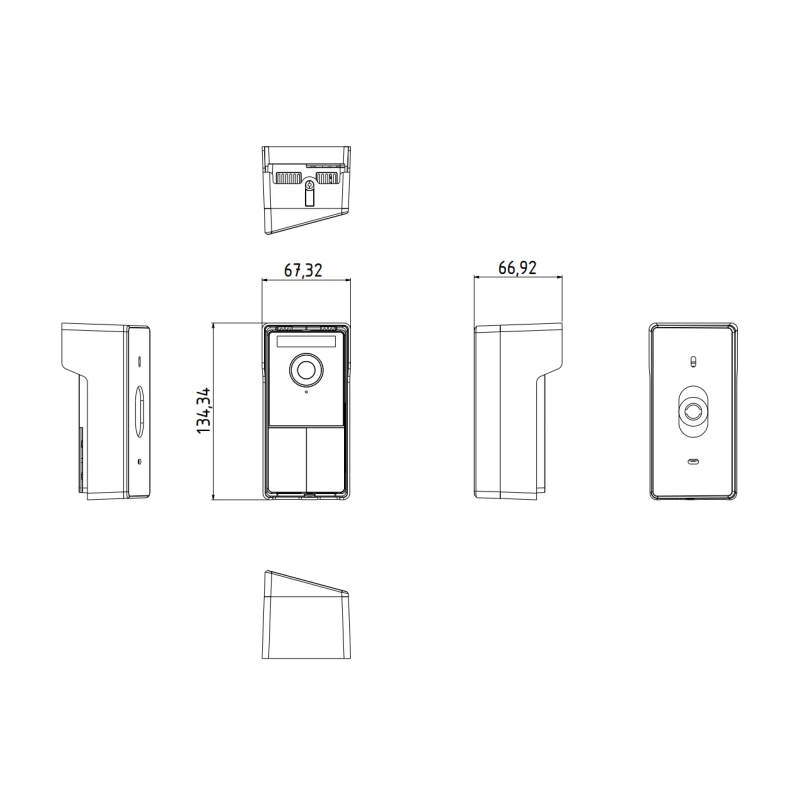

Dimensions | 67.32mm×66.92mm×134.34mm（W×D×H） |
Working Temperature | -10℃～+70℃ |
• 3MP 1/2.7" CMOS Sensor
• High resolution : 2304*1296
• 3.6mm fixed lens
• Support adaptive infrared light compensation
•Support two way audio
• High resolution : 2304*1296
• 3.6mm fixed lens
• Support adaptive infrared light compensation
•Support two way audio

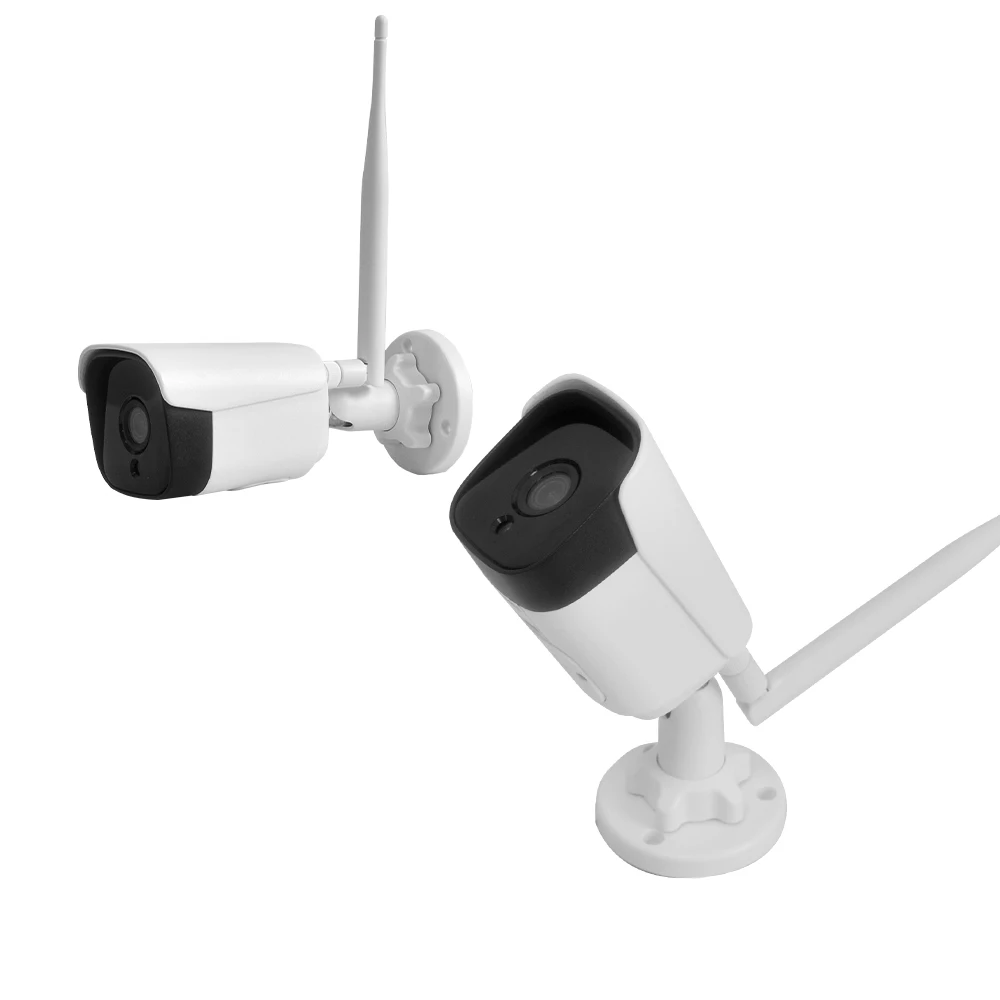

Model | DK8354-W Camera |
System | LINUX,Single core 32-bit DSP |
Camera | 3MP 1/2.7" CMOS,colour 2.0Lux@F2.0,B/W 0 Lux@F2.0;Integrated IR cut driver,support Sensor+IR-CUT +LED Linkage control of light supplement, Day/Night |
Video Compression | H.265+/H.265/H.264 code format,Double stream ,PAL/NTSC |
Frame Rate | 3MP@15fps |
Image Output | Main stream:2304×1296，1280×720 |
Sub stream:640×360 | |
Audio Interface | 1*MIC input,1*loudspeaker output; |
Audio Compression | G.711,Support two-way voice intercom function and audio and video synchronization; |
Network | 10/100M Base-TX Ethernet, RJ45 Connector HTTP,TCP/IP,IPv4,DHCP,NTP |
Protocols | HTTP,TCP/IP,IPv4,DHCP,NTP |
WIFI | 1*DC3.3V WiFi mode,2.4G |
Signal Interface | 1*IRCUT interface, support the control of IR-CUT and image linkage; |
Upgrade Maintenance | Support OTA upgrade |
Business Functions | Support OSD, real-time video transmission, mobile detection and human shape detection |
ONVIF | UnSupport |
Power Supply | DC12V,≤2.5w |
Dimensions | 69mm×68mm172mm（W×D×H） |
Working Temperature | -10℃～+60℃ |
