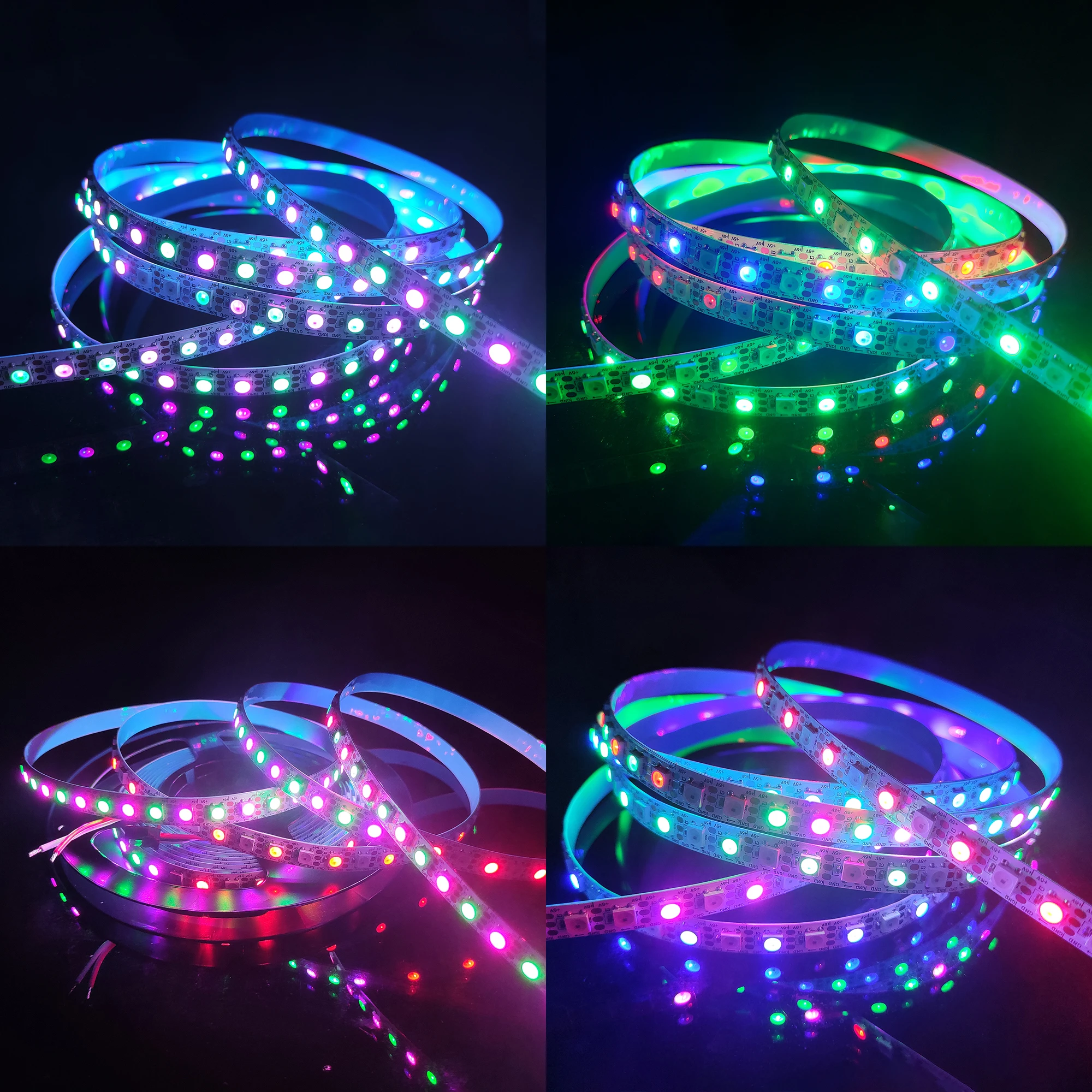

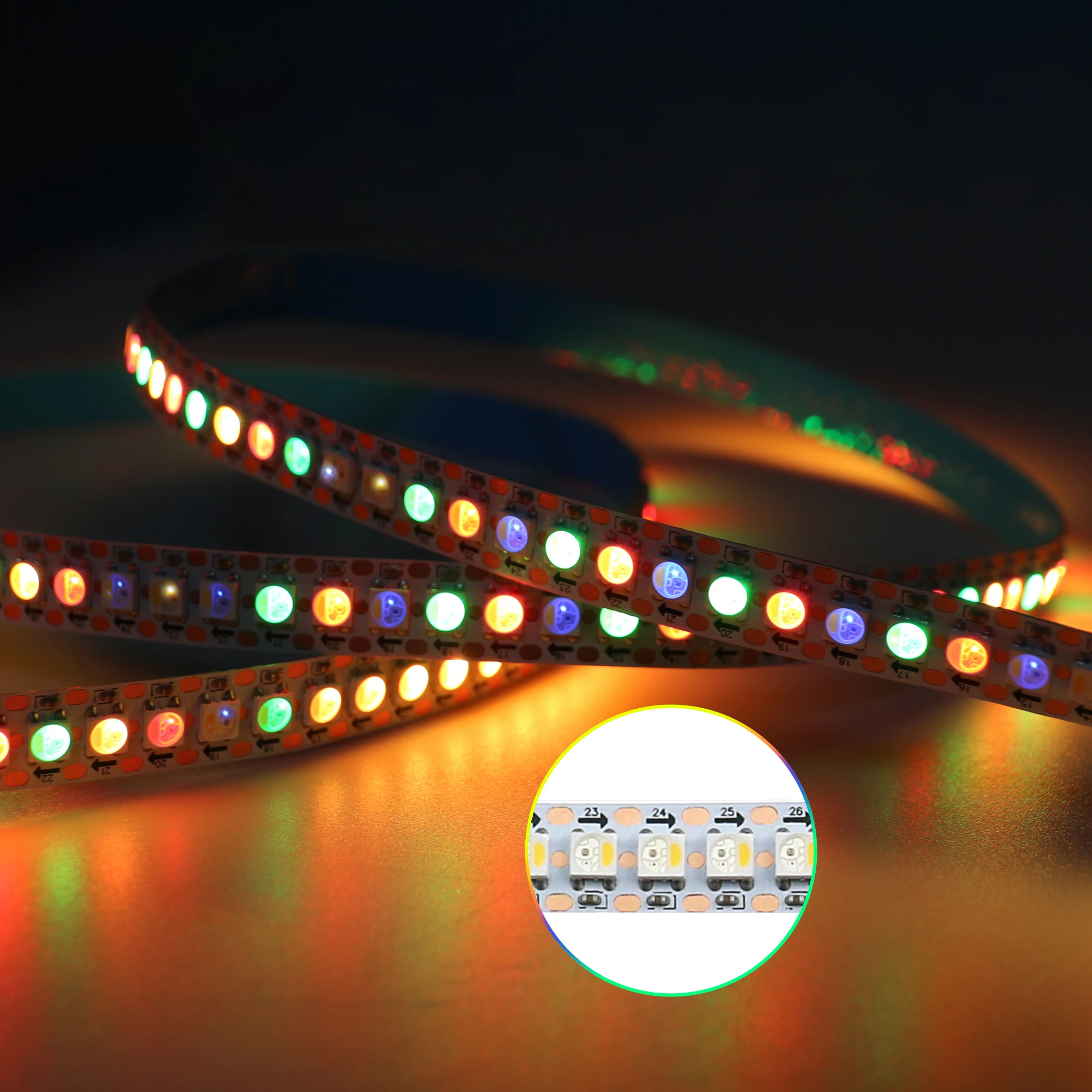

Dream Color Roll 24v 12v 5v 60 120 144 led/m Smd 5050 Rgbic Rgbw IC Sk6812 WS2812B Individually Addressable Rgb Led Strip Light
- Category: >>>
- Supplier: Shenzhen Hongtai World Lighting Co. Ltd.
Share on (1600729469036):
Product Overview
Description
Why Choose Us
Product Description
The model | HTD-60IC-5050RGB-SK6812IC |
The power | 19.2W/M |
The voltage | DC12V DC24V |
LED Quantity | 60led/m |
IC Type | SK6812 |
IC Quantitiy | 60pc/m |

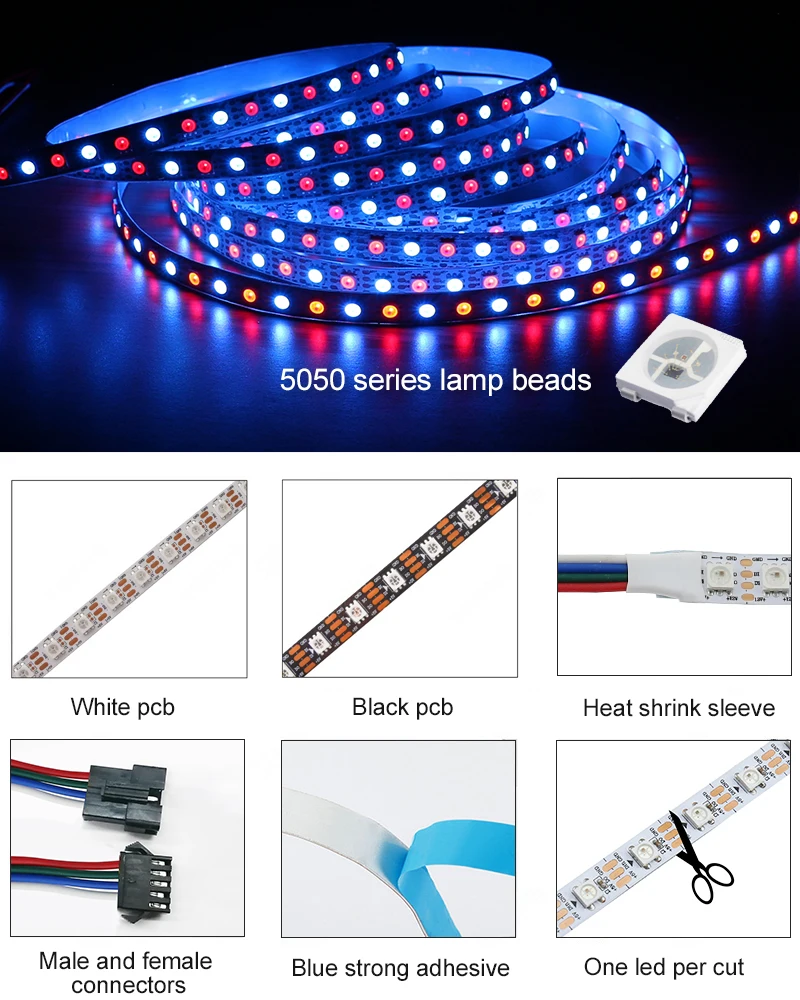

PCB Color | Back/white |
External IC LED strip | a IC control 3leds or 6leds, so 3leds or 6leds are a pixel |
LED Type | WS2812 | WS2813 | SK6812 | SK6812 |
LED Quantity (led/m) | 30/60/96/144 Customized | 30/60/96/144 Customized | 30/60/96/144 Customized | 30/60/96/144 Customized |
LED Color | RGBIC/RGBW | RGB/RGBW | RGB/RGBW | RGB/RGBW |
Work Voltage | DC5V 12V | DC5V 12V | DC5V 12V | DC5V 12V |
Power | 6W/12W/18W/20W | 6W/9W/12W | 7.2W/14.4W/20W | 6W/14/W24W/48W |
PCB Size | 8/10mm | 10/12mm | 10/12mm | 8/10MM |
Features:
Low consumption, high brightness.
Energy-saving and environmentally friendly, is conducive to recycling.
Low heat generating, no UV or IR light radiation. Seismic, impact resistance, non-thermal radiation, safe and stable, reliable.
Very low heat generating, besides saving light power.
Save power more than ordinary bulbs. It has a long lifespan, no hazardous materials.
Thoroughly solve your trouble of frequent replacing bulbs.
Thoroughly solve your trouble of frequent replacing bulbs.
Instant start, no flashing, solid state, shockproof.

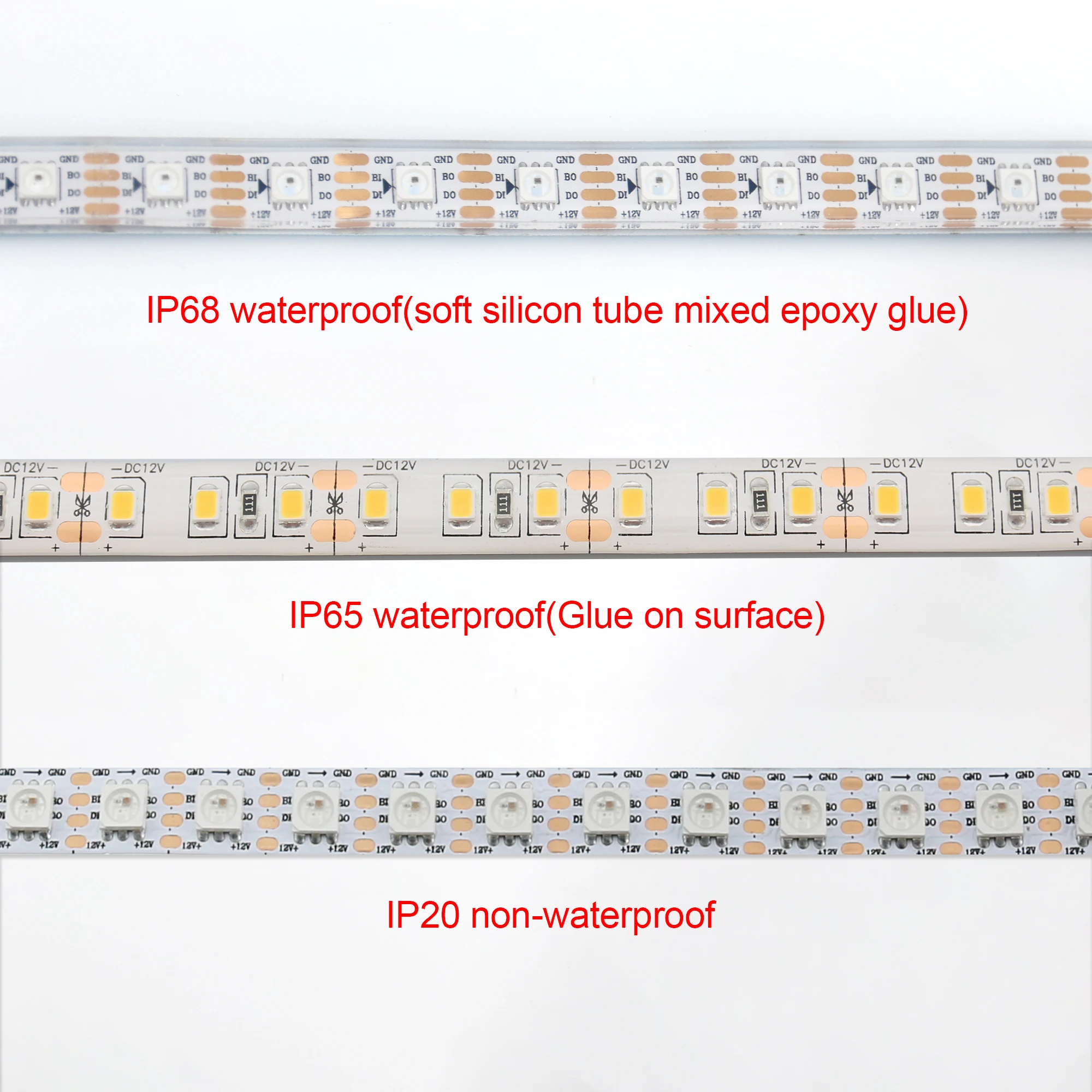

* The kinds of IP20 and drop glue product’s specifications is L1000mm*W10mm*H2.5mm, IP68 and silica tube is wide 12mm/ 5.5mm high waterproof casing.

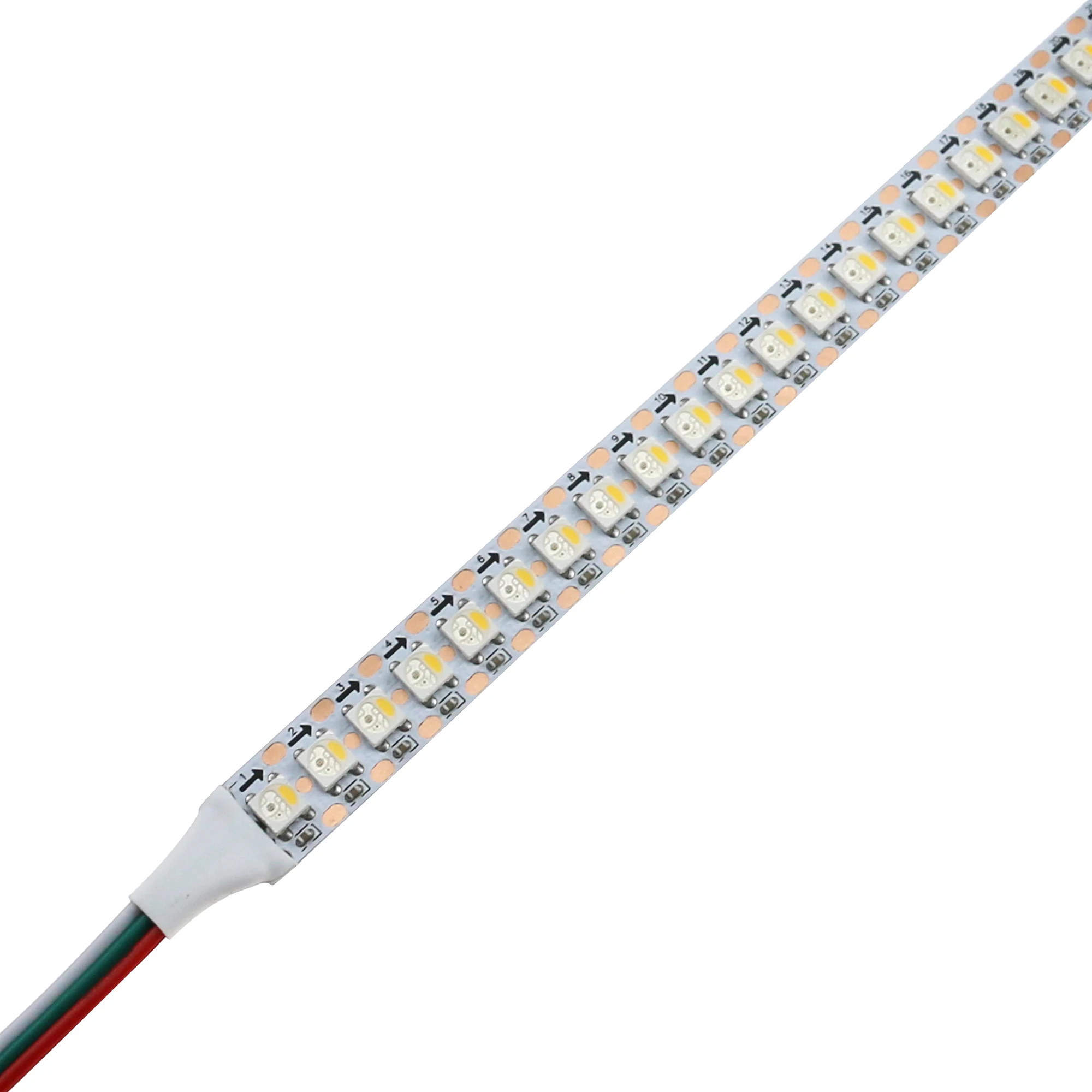

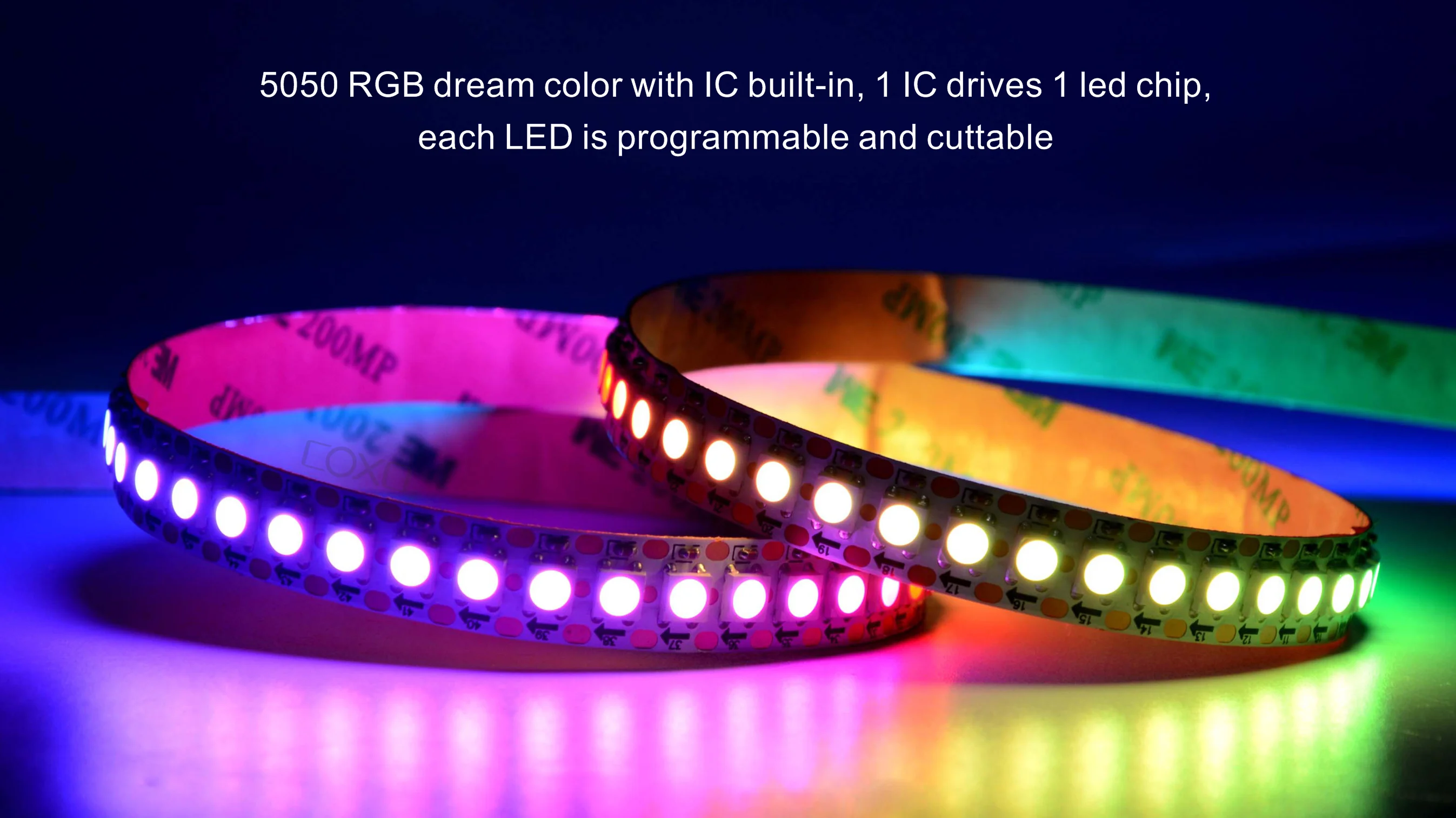

* Per meter built-in 60/96/120/144 pixels (144LED built-in 144IC/meters, Each LED controlled by 1IC); connection controller can achieve more than 1200 kinds of patterns, through ingenious combination can achieve fantastic results (including water, chase, and scan based effect).
* Working voltage and power: DC5V/57.6W/M
* LED working current：2400mA/M
* LED angle beam:120°/Flood beam 160°

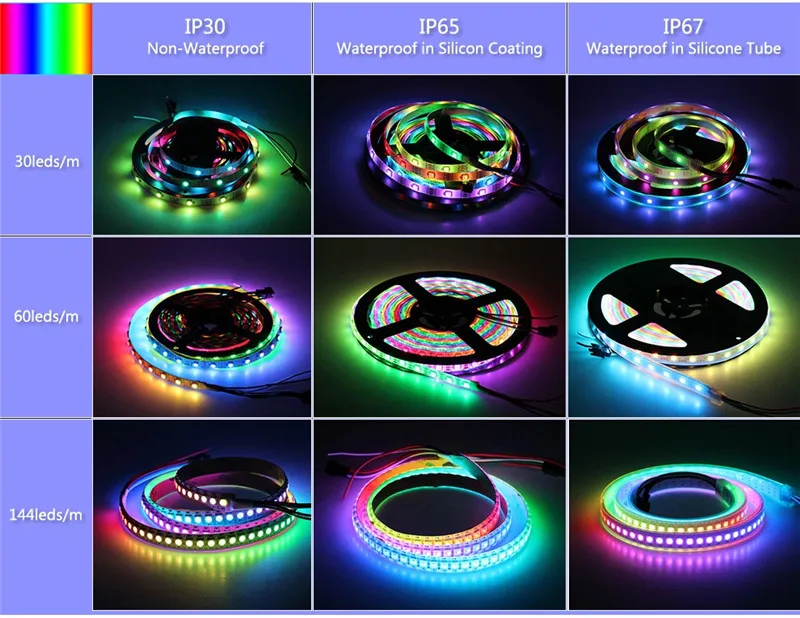

* Protection grade: IP20/IP65/IP68 optional

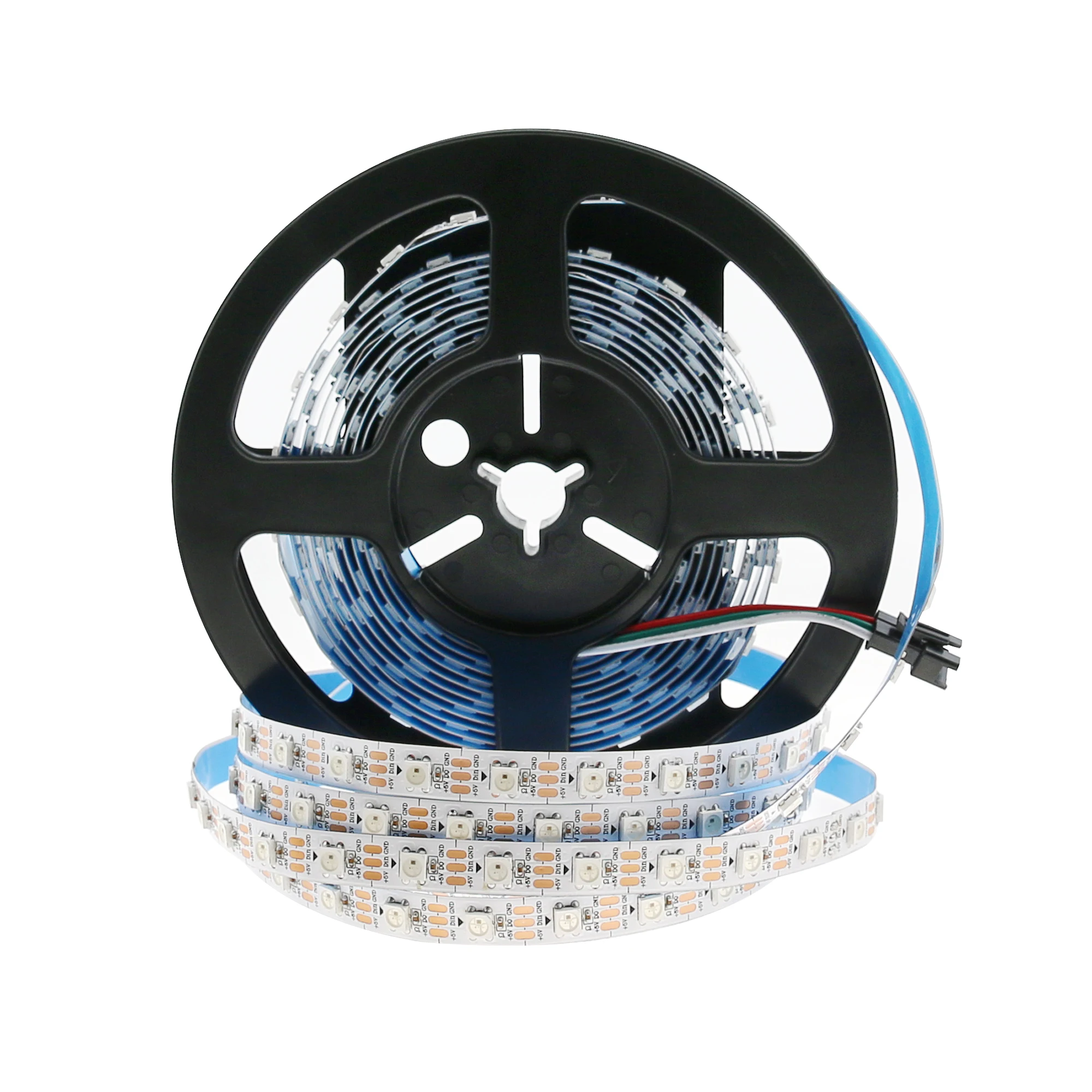

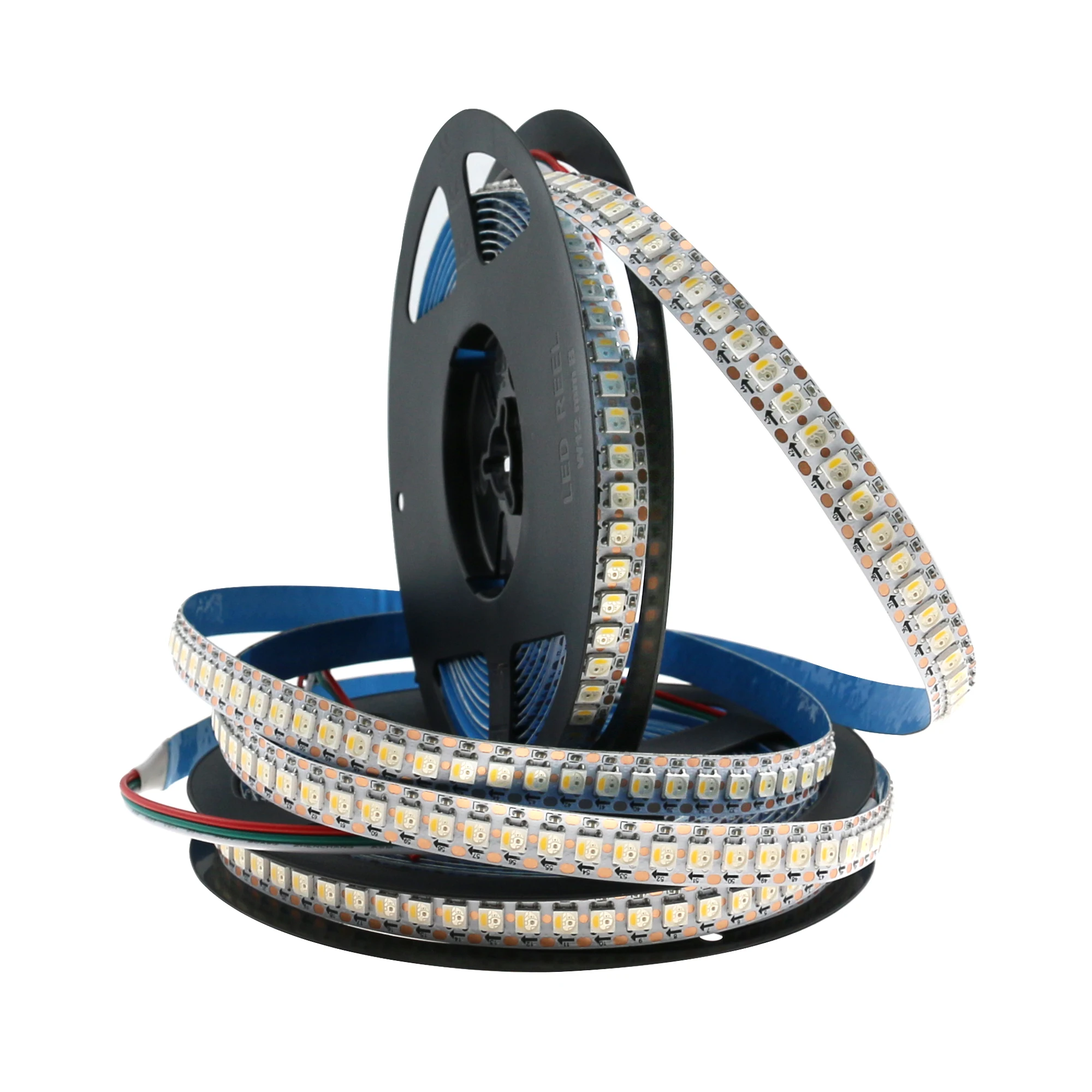

* Packing: each 5 meters a roll of packing into an anti-static bag.
* Per meter built-in 60/96/120/144 pixels (144LED built-in 144IC/meters, Each LED controlled by 1IC); connection controller can achieve more than 1200 kinds of patterns, through ingenious combination can achieve fantastic results (including water, chase, and scan based effect).
* Working voltage and power: DC5V/57.6W/M
* LED working current：2400mA/M
* LED angle beam:120°/Flood beam 160°
* Protection grade: IP20/IP65/IP68 optional
* Packing: each 5 meters a roll of packing into an anti-static bag.

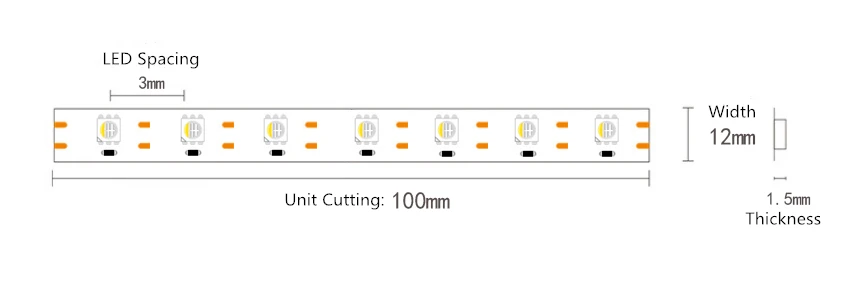

Product size chart：
* Extremity parameters（Ta=25℃）：
Item | Code | Extremity parameters | Unit |
Positive working current | IF | 4800mA/m | mA |
Power | PD | 57.6/m | W |
Antistatic voltage | ESD | 800 | V |
Working temperature | Topr | -35~+55 | ℃ |
* Electrical / optical properties (Ta=25℃)
Product No. | Color | LED quantity | Working current | NM Wavelength | Lumen/M | Packing |
HTD-60IC-5050RGB | Red | 60PC/M | 4800mA/m | 625-630nm | 600-1200lm | 5M/Reel |
Blue | 465-470nm | |||||
Green | 515-520nm |
*Note：
1. The lumen flux measurement tolerance of ±15%;
2. LED lumen flux, wavelength, color temperature parameters according to customer specified production.
1. The lumen flux measurement tolerance of ±15%;
2. LED lumen flux, wavelength, color temperature parameters according to customer specified production.
Instructions：

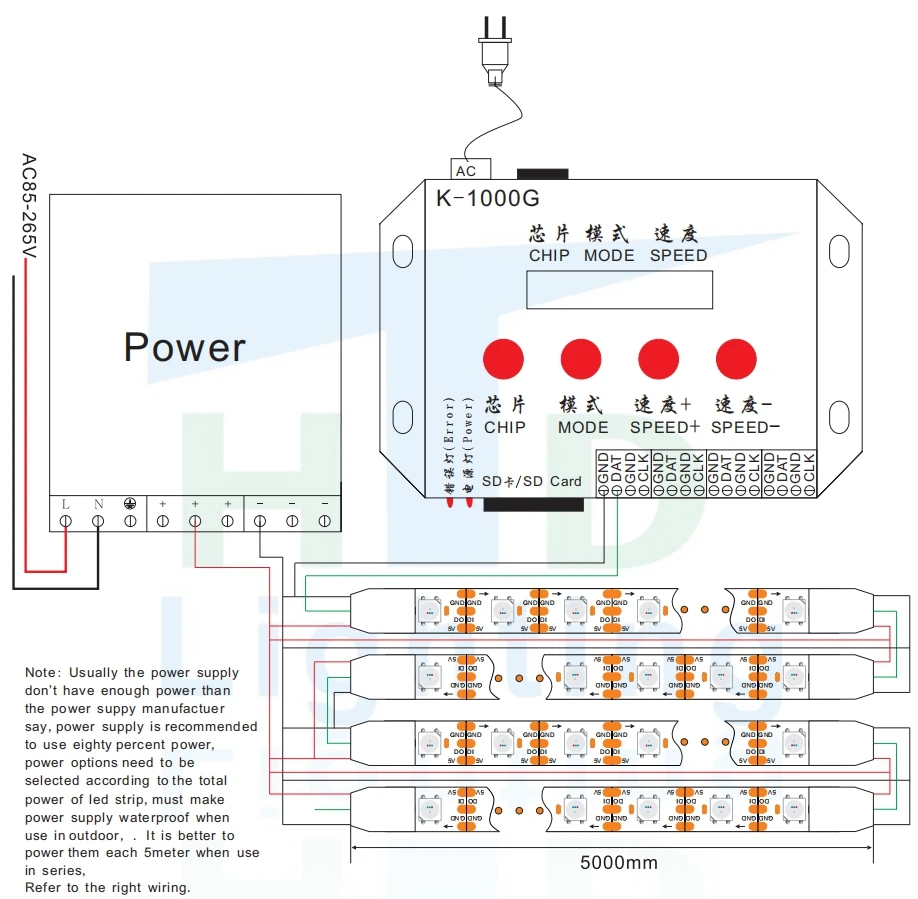

*Wiring instructions: Strip light wirings have two groups: one group was used for the power lines connect LED power supply, other group was used for signal lines connect controller. See figure below:
*Wiring instructions: Strip light wirings have two groups: one group was used for the power lines connect LED power supply, other group was used for signal lines connect controller. See figure below:
* Note: Our Company can provide free animation program design and provide the wiring diagram required by the project. If need to achieve DMX control, need match the right controller and the decoder, the master console needs to match at least 1; if the custom DMX IC lamp, can be removed from the decoder.
* Installation instructions：IP20 and IP65 glue strip light installation by 3M,tube IP65 and IP68 strip used clips to fixed, each 2pcs clips per meters standard configuration, each installation chip fixed need with two M3 screws (some clips only need 1 screw). The installation clip was injected made by transparent PC environmental protection material, with excellent weather resistance. If you need to install reinforcement, available glass glue or silicone adhesive attached on the edge.
* Installation instructions：IP20 and IP65 glue strip light installation by 3M,tube IP65 and IP68 strip used clips to fixed, each 2pcs clips per meters standard configuration, each installation chip fixed need with two M3 screws (some clips only need 1 screw). The installation clip was injected made by transparent PC environmental protection material, with excellent weather resistance. If you need to install reinforcement, available glass glue or silicone adhesive attached on the edge.
Similar Product
Applications
* Full-color advertising letters or signs;
* Hotel lobby or entertainment place dark trough, ladder, handrail and any contour trim.
* All kinds of landscape lighting and creative lighting engineering assistant;
* Combined into a screen to display a simple picture and text, etc...
* Hotel lobby or entertainment place dark trough, ladder, handrail and any contour trim.
* All kinds of landscape lighting and creative lighting engineering assistant;
* Combined into a screen to display a simple picture and text, etc...
