Заводская цена, герметичный усиленный неасбестовый композитный лист прокладки двигателя
- Category: Gaskets >>>
- Supplier: Hengshui,Aohong,Technology,Co.,Ltd.
Share on:
Product Overview
Description

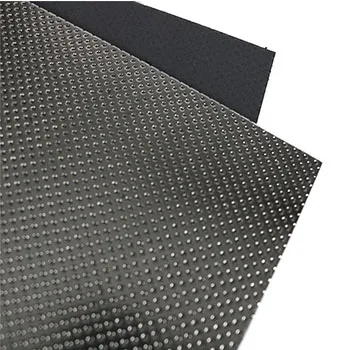

Heat and corrosion resistance non-asbestos composite gasket sheet material
Product introduction
Product Properties
Project | Index | ||
Density/(g/cm3) | 2-3 | ||
Compressibility | 30-40% | ||
Recovery | >15% | ||
Temperature | 400ºC | ||
Max. pressure | 100bar | ||
Performance after immersing IRM903 oil at 149±2℃, 5h | Weight gain rate% | 30 | |
Thickening rate% | 20 | ||
Performance after immersing ASTM fuel B at 21-30℃, 5h | Weight gain rate% | 30 | |
Thickening rate% | 20 | ||

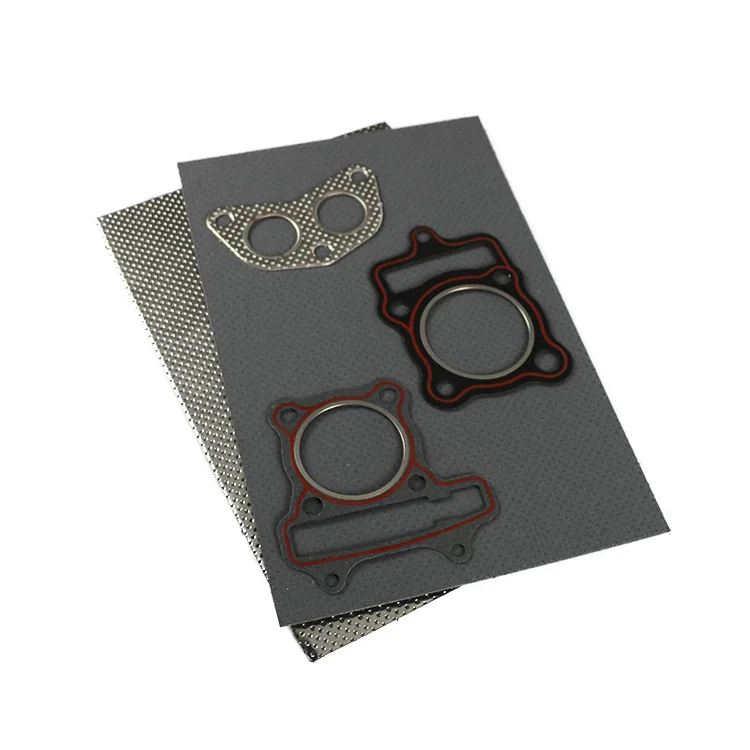

It is made of paper and 0.18-0.25mm tinned iron sheet, and is mainly used to make gaskets for various engines, water pumps and air conditioners. The product has good swelling, sealing and long life performance. Mainly used in automobiles, agricultural machinery, motorcycles, engines, water pumps and air conditioners, etc., but also in high-strength gaskets and cylinder gaskets.
Item | Composite gasket sheet |
Place of Origin | China |
Brand Name | Aohong |
Material Type | beater paper+tinplate+beater paper |
Application | Cylinder head gasket,compressor gasket |
Size | 500*1000mm,500*1500mm |
Thickness | 1mm-3mm |
Maximum width | 1000mm |
Color | black,grey |
Product Size
400mm x 1000mm, 500mm x 1000mm,
500mm x 1200mm,500mm x 1500mm,
510mm x 1016mm, 1000mm x 1000mm.
1: carbon steel + asbestos beater sheet + carbon steel.
2: carbon steel + non asbestos sheet + carbon steel.
3: carbon steel + non
asbestos sheet.
asbestos sheet.
4: carbon steel + flexible graphite sheet + carbon steel.
We are a supplier factory, environmentally friendly products, customized sizes, and cheap prices.
Related Products
Why Choose Us

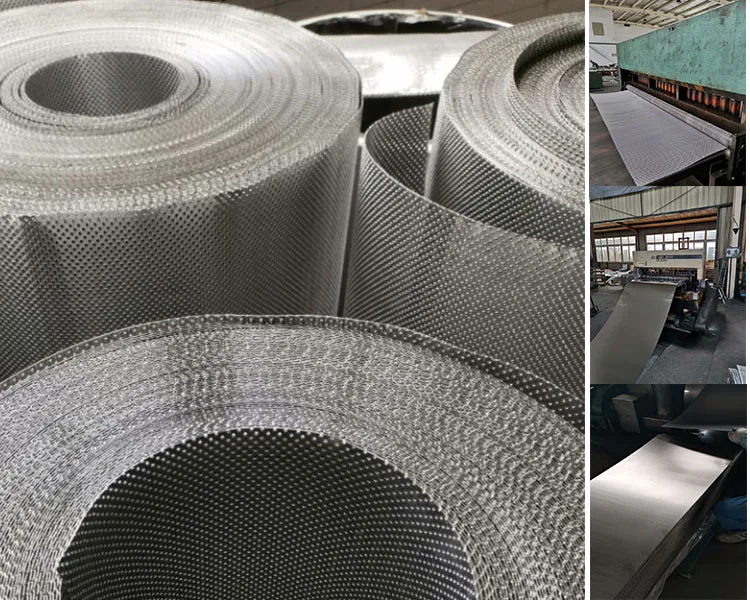

Process flow & Quality inspection
After the production is completed, we will conduct various tests (tensile test, aging test, oil seal test, compression rebound test) and other tests on the products to ensure that you receive qualified products.

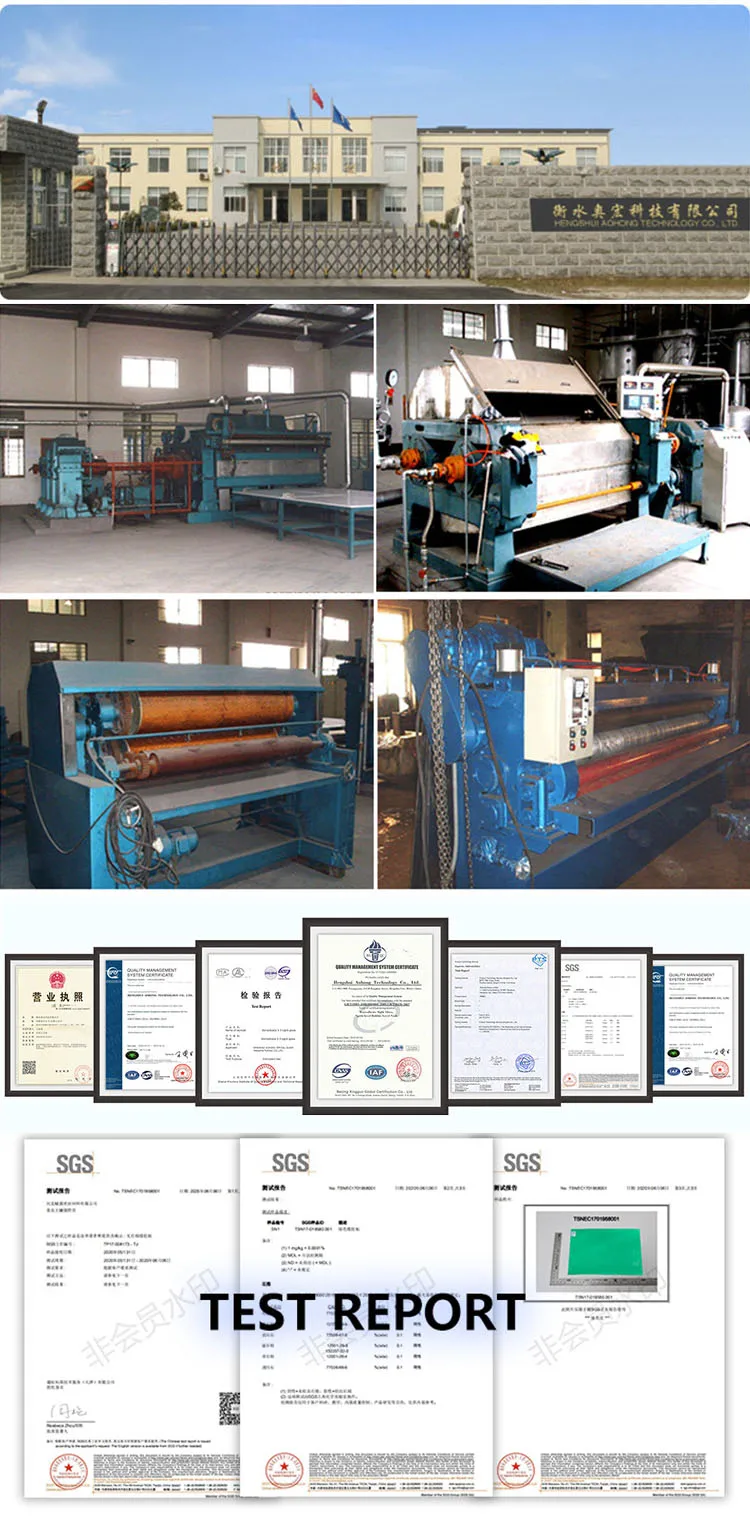

Company Profile
Hengshui Aohong Technology Co., Ltd is a modern high-technology enterprise specialized in production and sales of sealing and heat insulation material with an experience of more than twenty years. We are equipped with the most advanced and complete machines and test facilities to produce high quality various kinds sealing material.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our products are sealing material series products, mainly sealing gasket sheet, sealing braided packing, Heat Insulation cloth,tape, rope, etc. As sealing material, they're widely used in water,steam, the joints of pipeline, automobile and motorcycle; and in rotary pumps,valves, piston pumps, food, chemical and petrochemical, power station, steel mills and other areas.
Our Client
Packing and Delivery
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei.
Q:How does your factory do regarding quality control?
A:We do leak test for 3 times before packing.
Q:Could I get some samples, and how?
A: Sure, free sample can be provided for testing quality. Please contact us for samples.
Q:Can we do printing or label printing on the gasket?
A:Yes, we provide OEM service, please inform us in advance if you need to print brand.
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
A: Factory, and our factory is located in Wangtong town, Jing county, Hengshui, Hebei.
Q:How does your factory do regarding quality control?
A:We do leak test for 3 times before packing.
Q:Could I get some samples, and how?
A: Sure, free sample can be provided for testing quality. Please contact us for samples.
Q:Can we do printing or label printing on the gasket?
A:Yes, we provide OEM service, please inform us in advance if you need to print brand.
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
