Custom manufactured Stainless Steel Woven Wire Mesh For Cabinet
- Category: >>>
- Supplier: Hebei Qunkun Metal Products Co. Ltd.
Share on (1600729475746):
Product Overview
Description
Decorative Wire Mesh Wall Cladding Stainless steel Architectural Cable Rod Woven Wire Drapery
Product Description

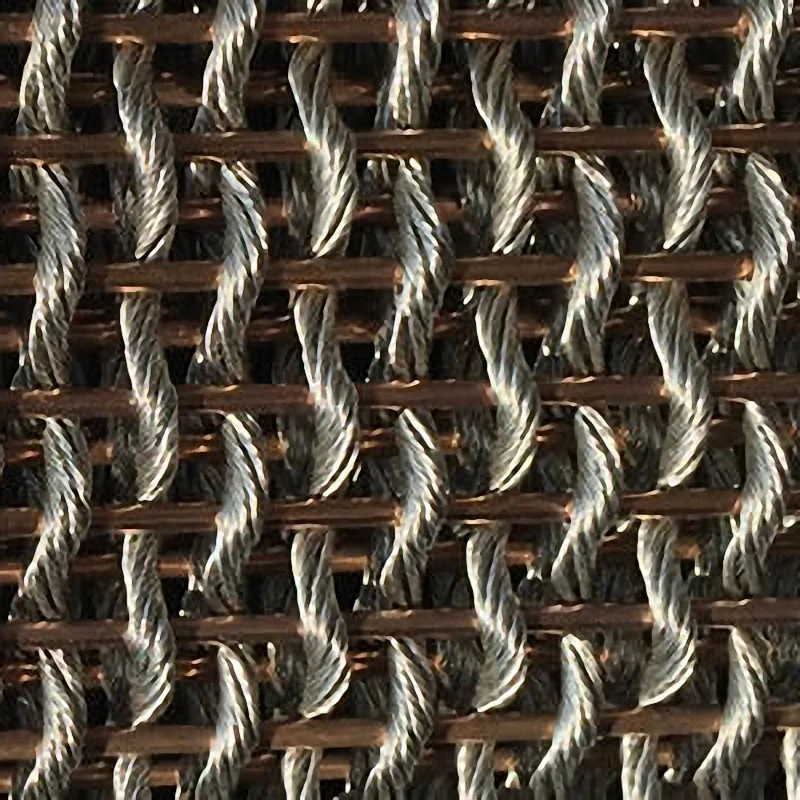

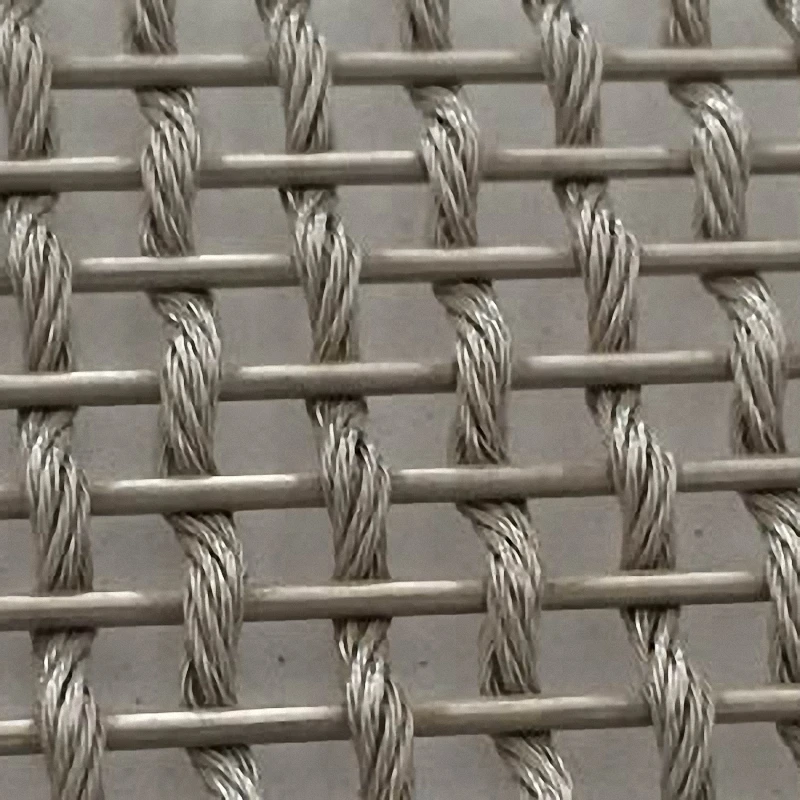

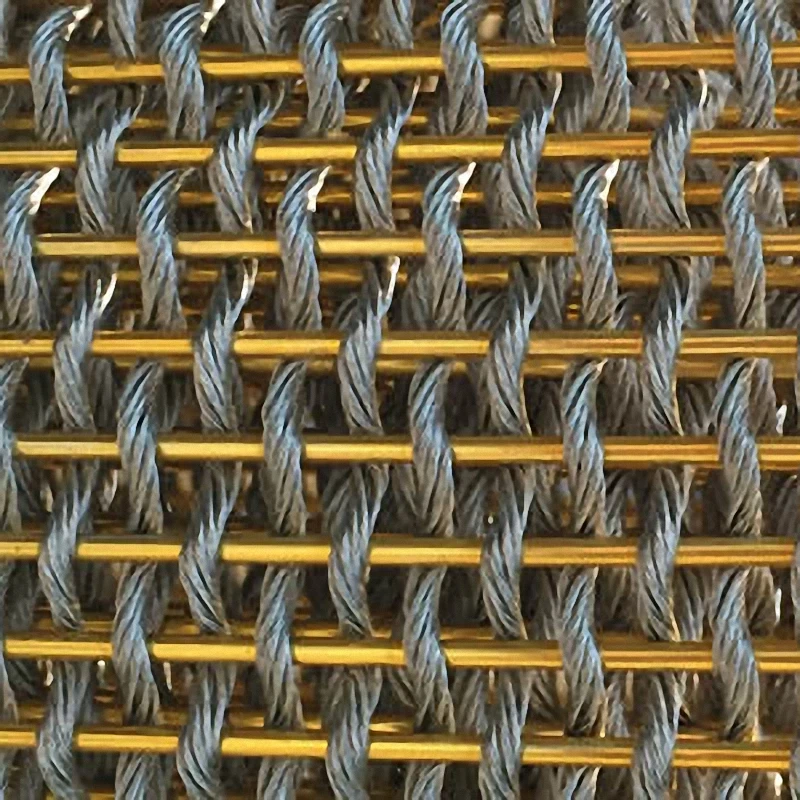

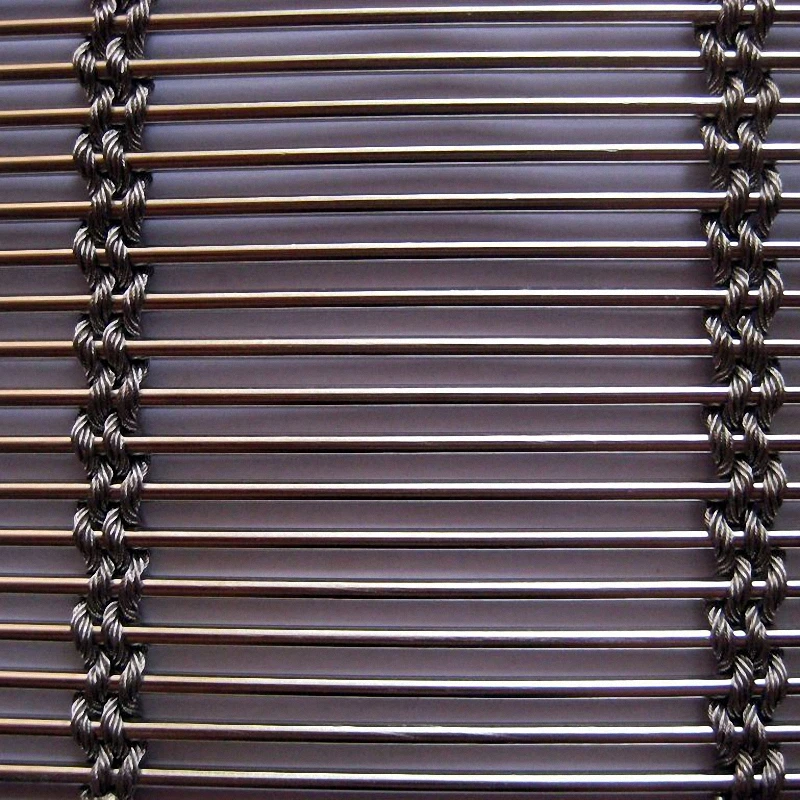

Architectural Woven Drapery also called Cable metal mesh or architectural mesh, is a kind of decorative metal meshes. The cable metal mesh is made with braided cable ropes across the metal rods. Commonly the warp wire is steel cables and the weft wire is steel rod. The material of steel rod can be stainless steel wire, brass wire or copper wire, and other materials can also be customized.Stainless steel material has the best reflectivity and durability, so we mainly use stainless steel material.
The cable metal mesh has various styles and specs, we can customize it according to the customers' requirements.
The cable metal mesh has various styles and specs, we can customize it according to the customers' requirements.
Specification
Cable Diameter | Cable Pitch | Rod Diameter | Rod Pitch | Weight | ||||
2mm x1 | 17.5mm | 1.5mm | 1.5mm | 11kg/m2 | ||||
2mm x1 | 3.1mm | 1.2mm | 5mm | 10kg/m2 | ||||
2.5mm x1 | 6mm | 2mm | 8mm | 9.8kg/m2 | ||||
2mm x1 | 17.5mm | 1.5mm | 3.5mm | 5.53kg/m2 | ||||
2mm x1 | 17.5mm | 1.5mm | 3.75mm | 5.26kg/m2 | ||||
2.75mm x1 | 17.5mm | 3mm | 3mm | 21.8kg/m2 | ||||
2.75mm x2 | 40m | 4mm | 14.5mm | 9.41kg/m2 | ||||
1.5mm x3 | 5mm | 2.5mm | 7.5mm | 8.15kg/m2 | ||||
2.5mm x3 | 8mm | 2mm | 13mm | 16.8kg/m2 | ||||
0.45mm x3 | 3.5mm | 0.5mm | 1.6mm | 2.3kg/m2 | ||||
2mm x3 | 80mm | 3mm | 10mm | 6.67kg/m2 | ||||
0.75mm x4 | 26.4mm | 1.5mm | 3mm | 5.3kg/m2 | ||||
1mm x4 | 36mm | 2mm | 4mm | 7kg/m2 | ||||
2mm x4 | 50mm | 3mm | 6mm | 11.56kg/m2 | ||||
1mm x4 | 72mm | 2mm | 7mm | 3.98kg/m2 | ||||
2mm x5 | 50mm | 3mm | 10mm | 4.4kg/m2 | ||||
Material: Stainless steel 304, 316, iron wire, copper, brass | ||||||||
Noted: Can be customized according to customer requirements | ||||||||

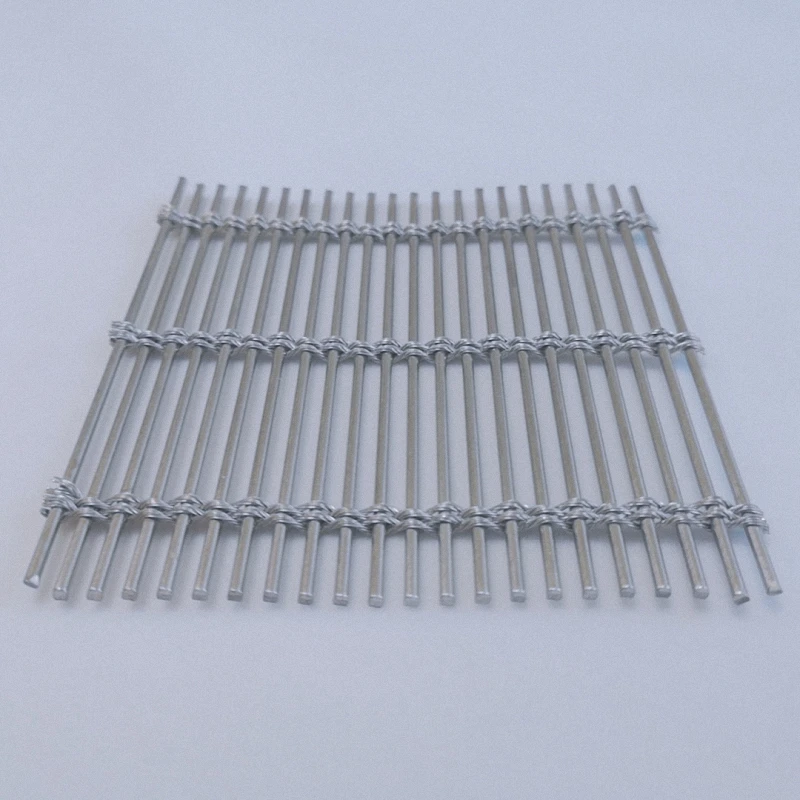

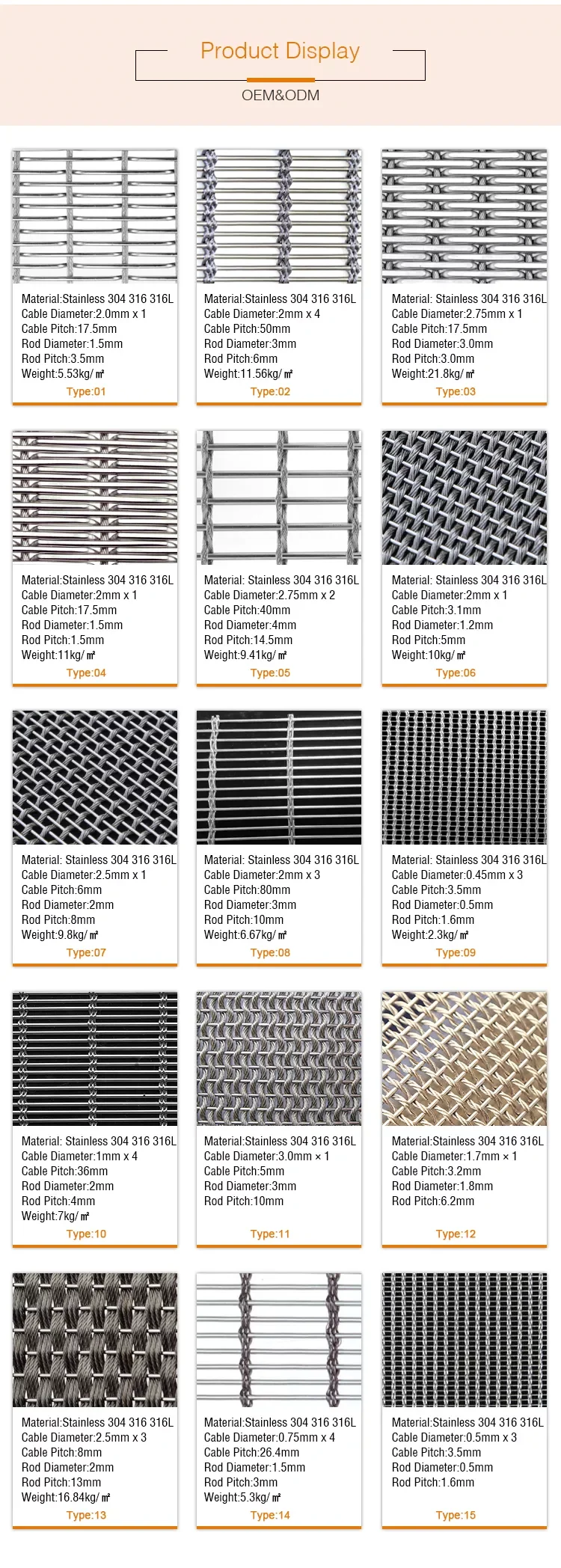

Product Display

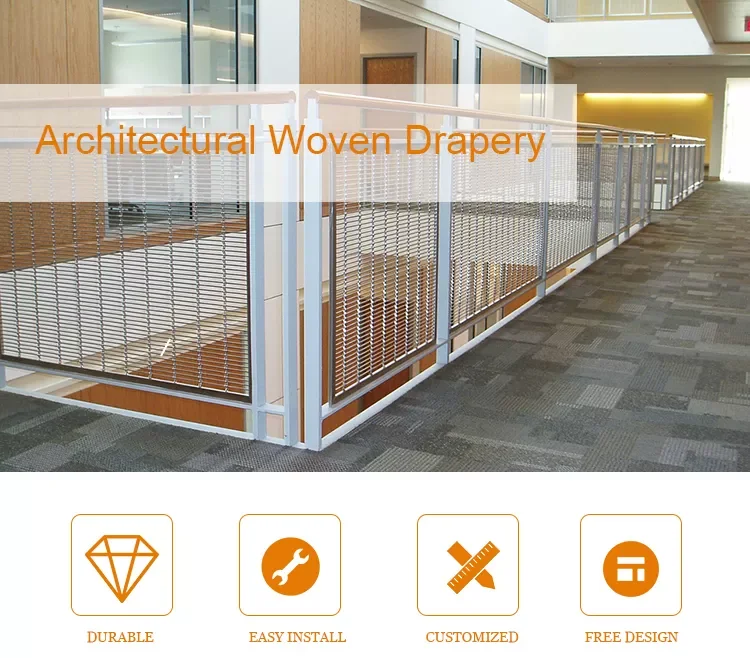

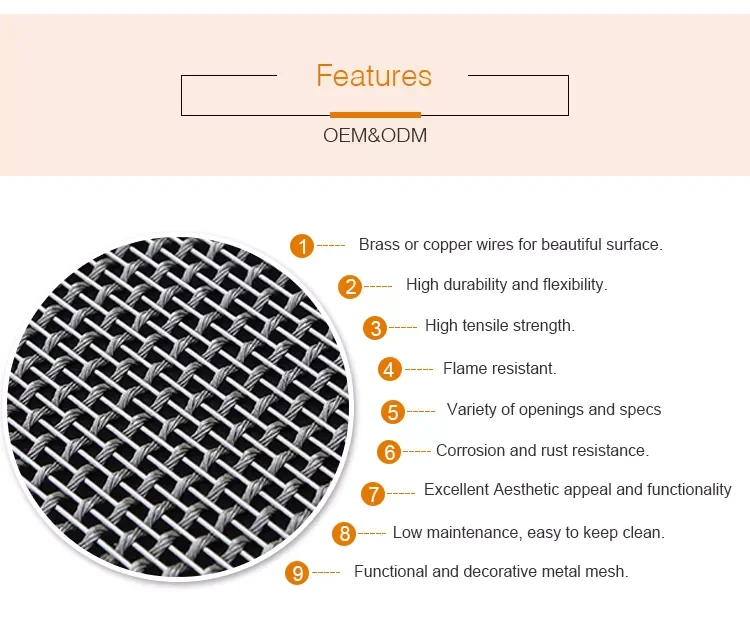

Features

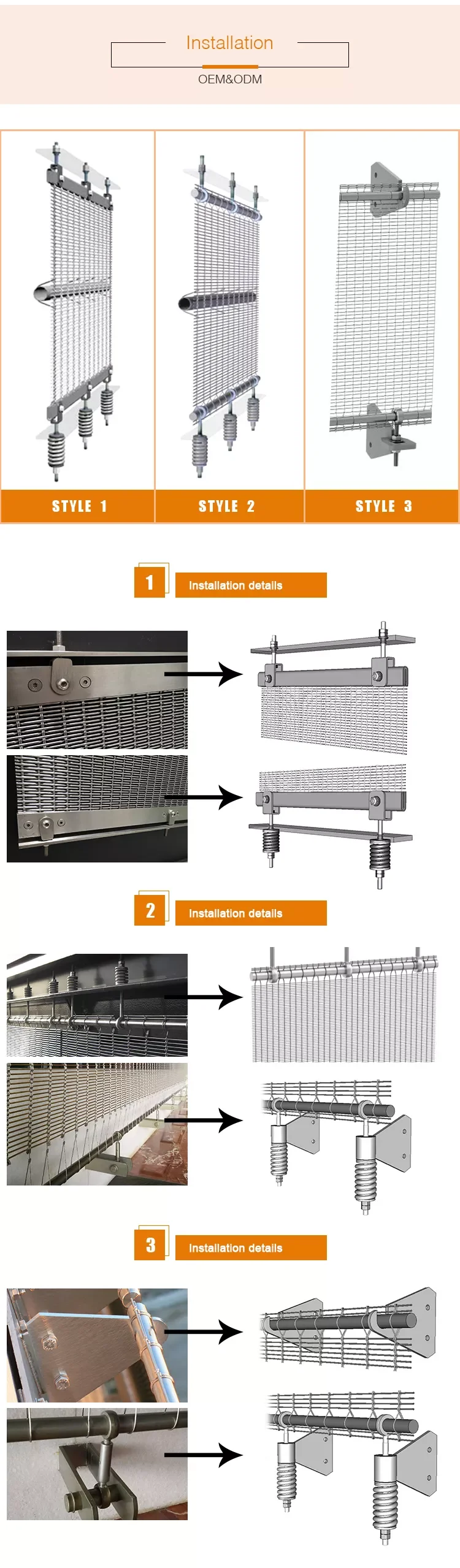

Installation
Application

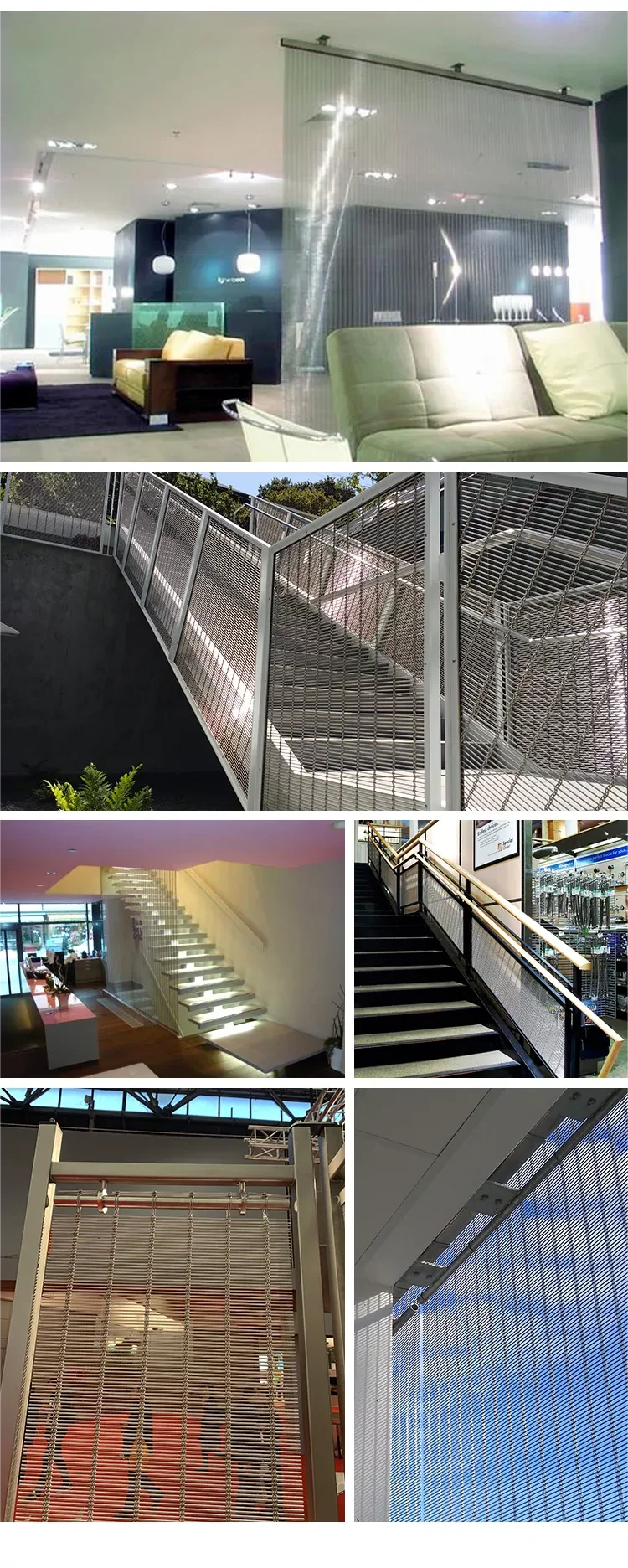

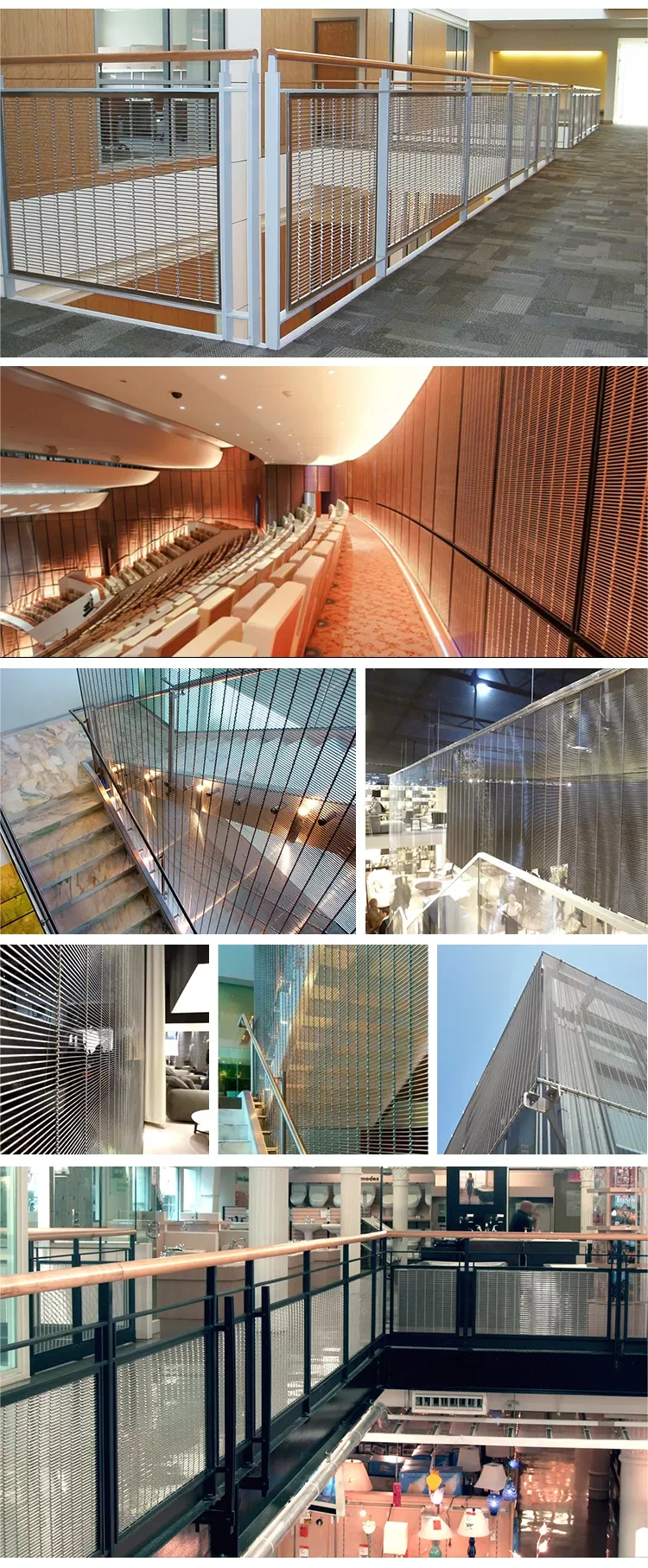

Architectural Woven Drapery with various types and beautiful surface is widely used in interior and exterior ornamentation. For the interior, it can be used as room dividers, decorative curtains, and ceiling curtains. For exterior application, it is an ideal alternative for building a facade, column cladding, wall coverings. Due to its narrow space between two neighboring wires, it is also a superior choice of protective device for stairs, elevator cabs, rails, and balustrades.
Company Profile
Hebei Qunkun Metal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and metal fabricating for about ten years and have accumulated rich experiences in this field.
Our Products:
Qunkun offers the following decorative mesh products with experienced technology and good quality: Spiral weave mesh, Metal coil drapery, woven wire drapery, decorative crimped woven mesh, laminated glass metal mesh, woven metal interiors, wire rope mesh, ring mesh curtain, chain link curtain, decorative expanded metal and decorative mesh accessories. Our products are widely used in exhibition halls, living rooms, restaurants, hotels, bathroom, wall covering, facades,stairs, elevator cabs, rails and other decorative items.
Qunkun has the expertise, the technical force, the advanced processing and inspection equipment, and the experience to establish good business relationship with world customers. Qunkun has adopted modern management system to ensure product quality and reasonable price.
Most of our wire mesh products are for export to Europe, the United States, the Middle East, Southeast Asia, and many other countries and regions. We can offer quality products at good price and timely delivery. Welcome to contact us.
Our Products:
Qunkun offers the following decorative mesh products with experienced technology and good quality: Spiral weave mesh, Metal coil drapery, woven wire drapery, decorative crimped woven mesh, laminated glass metal mesh, woven metal interiors, wire rope mesh, ring mesh curtain, chain link curtain, decorative expanded metal and decorative mesh accessories. Our products are widely used in exhibition halls, living rooms, restaurants, hotels, bathroom, wall covering, facades,stairs, elevator cabs, rails and other decorative items.
Qunkun has the expertise, the technical force, the advanced processing and inspection equipment, and the experience to establish good business relationship with world customers. Qunkun has adopted modern management system to ensure product quality and reasonable price.
Most of our wire mesh products are for export to Europe, the United States, the Middle East, Southeast Asia, and many other countries and regions. We can offer quality products at good price and timely delivery. Welcome to contact us.
FAQ
Q. Can you provide customized services?
A:Yes, we can produce according to your specification.
Q. What about the delivery time?
A: Customized samples needs 5-7 days, mass production time needs 2-3 weeks.
Q:What is your terms of payment?
A:TT (telegraphic transfer), PayPal, Western Union, L/C, etc.
Q. How do you ship the goods and how long does it take to arrive?
A: According to your quantity,we use DHL, FEDEX/ UPS or sea shipping, by express shipping usually take 5-7days to arrive, about 30 days for sea shipping.
Q. How to proceed an order for the products?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A:Yes, we can produce according to your specification.
Q. What about the delivery time?
A: Customized samples needs 5-7 days, mass production time needs 2-3 weeks.
Q:What is your terms of payment?
A:TT (telegraphic transfer), PayPal, Western Union, L/C, etc.
Q. How do you ship the goods and how long does it take to arrive?
A: According to your quantity,we use DHL, FEDEX/ UPS or sea shipping, by express shipping usually take 5-7days to arrive, about 30 days for sea shipping.
Q. How to proceed an order for the products?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
