Horizontal mini CNC Lathe Machine Slant Bed TCK50A CNC Lathe With System cnc mini metal lathe machine
- Category: >>>
- Supplier: Shandong,Shanyi,Cnc,Machine,Tool,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
TCK50A CNC Slant bed lathe is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.
TCK50A CNC Slant bed lathe Features:
1.Higher accuracy Taiwan linear guideways
2.Higher speed spindle unit,Optional 3.homemade spindle
4.Higher rigidity cast iron
5.Integrated automatic lubrication
6.One-piece Casting slant bed CNC lathe
1.Higher accuracy Taiwan linear guideways
2.Higher speed spindle unit,Optional 3.homemade spindle
4.Higher rigidity cast iron
5.Integrated automatic lubrication
6.One-piece Casting slant bed CNC lathe
Product Paramenters
Item | Unit | TCK50A |
Max.swing over bed | mm | Φ560 |
Swing over cross slide | mm | Φ260 |
Maximum processing length | mm | 350/500 |
Spindle unit | mm | Φ200 |
The spindle nose (optional chuck) | A2-6 | |
The spindle motor power | kw | 7.5/11 |
Highest spindle speed | rpm | 3000 |
Spindle bore | mm | Φ66 |
Bar Capacity | mm | Φ55 |
The X/Z axis screw specifications | 3210/4010 | |
The X-axis limit stroke | mm | 240 |
The Z axis stroke limit | mm | 400/540 |
X/Z axis repeatability | mm | ±0.003 |
Hydraulic Quill dia | mm | 70 |
Turret center high dimensions | mm | 100 |
Net. weight (about) | Kg | 2800/3000 |
Machine dimension(L×W×H) | mm | 2500×1700×1890/2600×1850×2000 |
Details Images
Why Choose Us

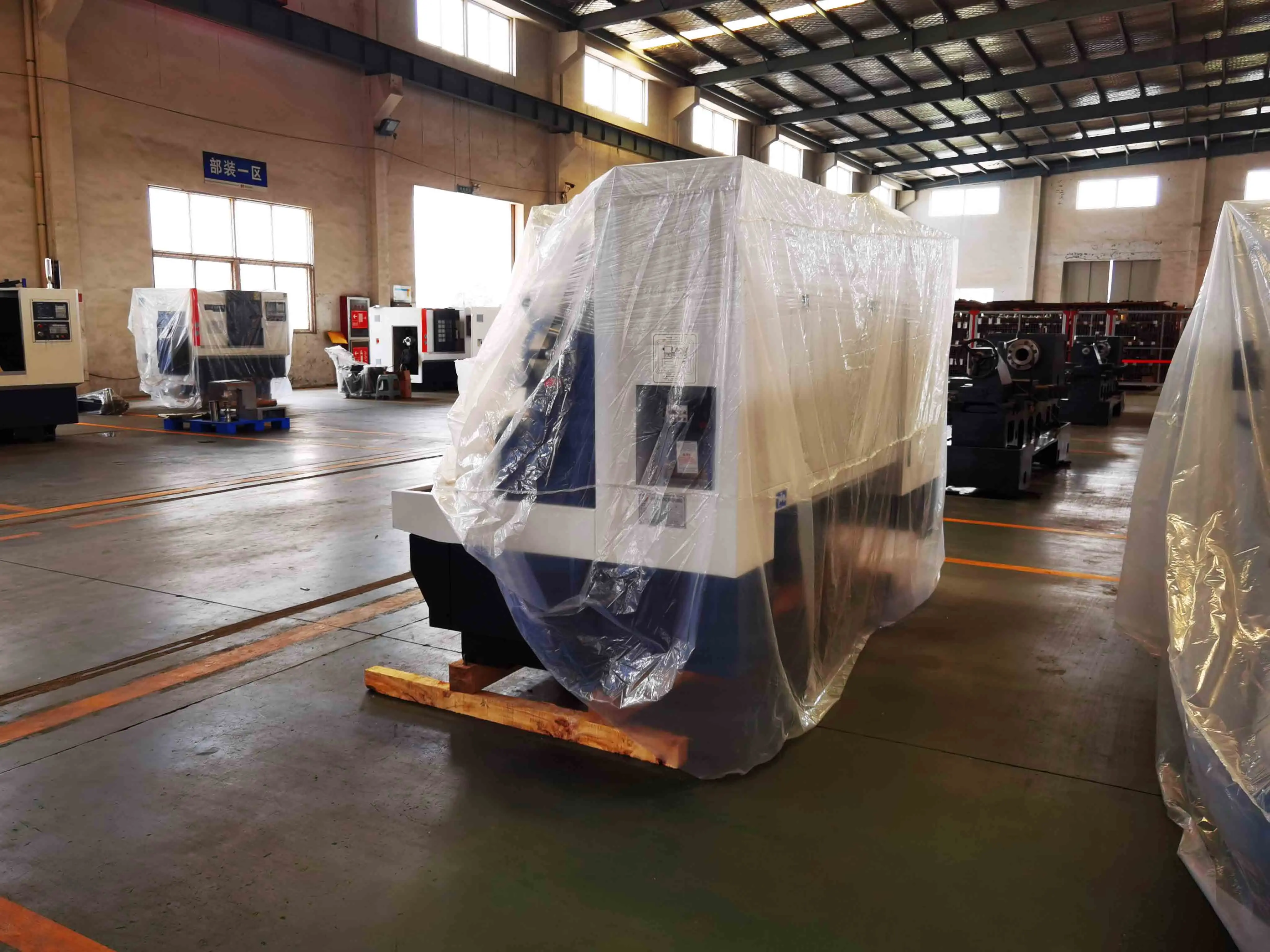

Packing & Delivery
FAQ
Q: How about your after sale service?
A: Our high efficiency CNC Lathe machine for sale quality Warranty time is 12 months and We can Provide Technical support online service and Machine operation Video . We also can provide on-site training and commissioning Video
Q:How about your machine quality?We are worry about the quality.
A: WODA is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 60 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
A: Our high efficiency CNC Lathe machine for sale quality Warranty time is 12 months and We can Provide Technical support online service and Machine operation Video . We also can provide on-site training and commissioning Video
Q:How about your machine quality?We are worry about the quality.
A: WODA is a mature brand in China. through our several years research in technology , our design including strcture and detailed sercurity and precision has enhanced greatly, and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 60 countries where there are metal plate industry.And where there are our machines, there are good reputation and terminal user satisfaction.
Q:Why Choose your company?
A:We can provide customized services according to customer requirements. We also have professional R &D team and fast response sales team. Strictly control each step of QA &QC system processes. We have an after sale service team than can quickly solve any problem you may have in the use.
