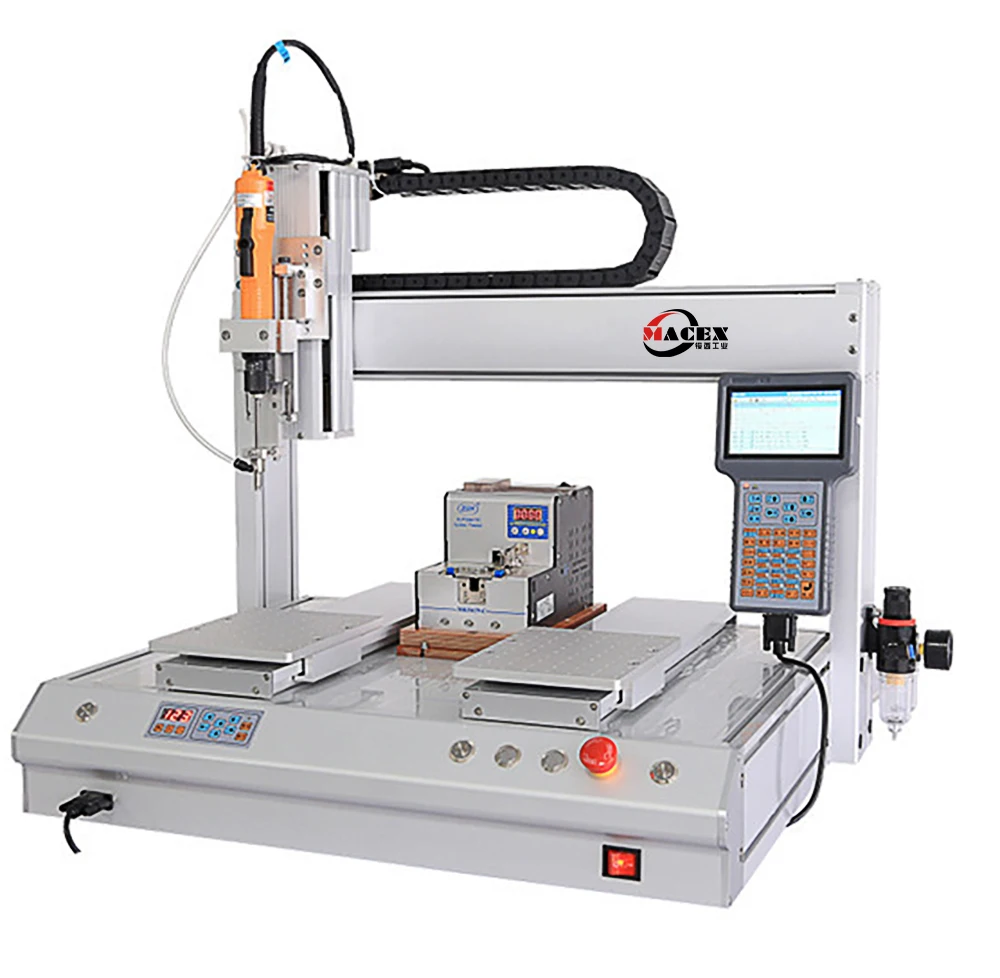

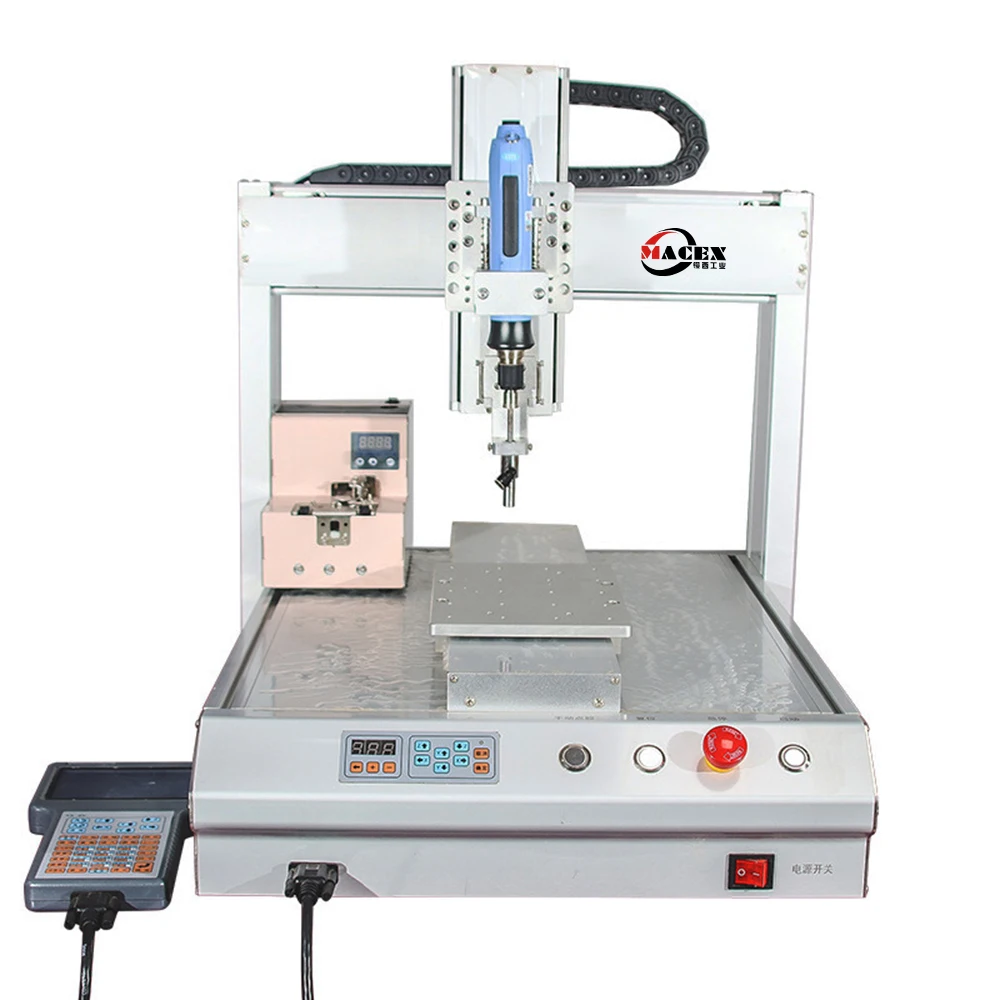

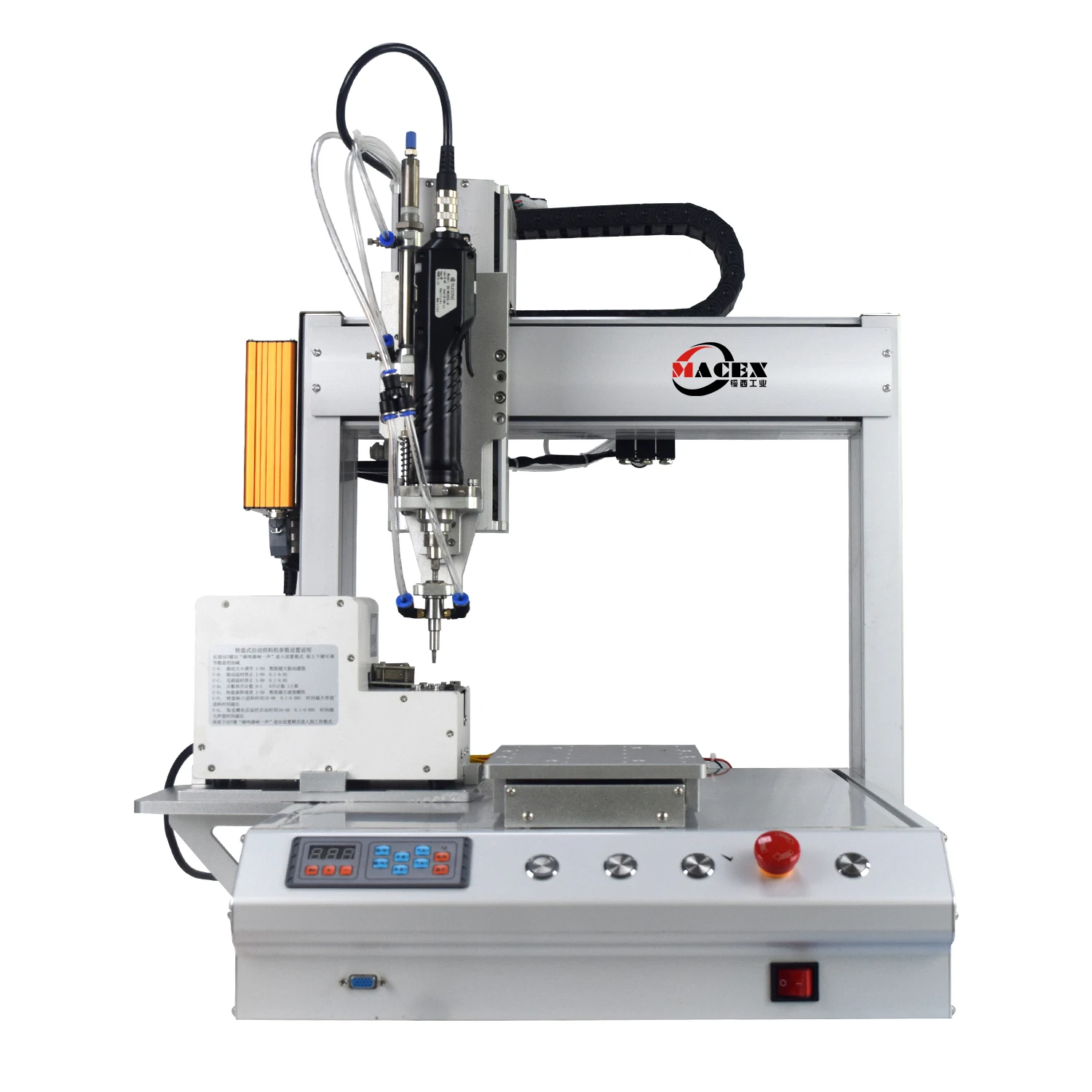

Hot Popular Best Price Fast Shipping On Site Installation automatic screw fixing autonomous robot, Factory China
- Category: >>>
- Supplier: Shenzhen Macex Industry Co. Ltd.
Share on (1600729540772):
Product Overview
Description
Product Description
Model | MACEX-DL-T3311CQ | MACEX-DL-T4411CQ | MACEX-DL-T5511CQ | MACEX-DL-T53311CQ | MACEX-DL-T54411CQ | MACEX-DL-T6441CQ | MACEX-DL-T7441CQ | MD-DL-T8441CQ | |||||||
Stroke X | 300mm | 400mm | 500mm | 500mm | 500mm | 600mm | 700mm | 800mm | |||||||
Stroke Y1 | 300mm | 400mm | 500mm | 300mm | 400mm | 400mm | 400mm | 400mm | |||||||
Stroke Y2 | no | no | no | 300mm | 400mm | 400mm | 400mm | 400mm | |||||||
Stroke Z | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm | |||||||
Material size | 300*300 | 400*300 | 500*500 | 170*300 | 170*400 | 210*400 | 250*400 | 300*400 | |||||||
Rated speed | 500mm/s (X-Y-Z) ,Max:1000mm/s | ||||||||||||||
Screwer No. | Default 1 PC(optional 2 PCS) | ||||||||||||||
Drive | Precision stepping motor/servo motor+synchronous belt/ball screw | ||||||||||||||
Motion mode | Point to point; line; circle | ||||||||||||||
Positioning accuracy | +- 0.02(mm) | ||||||||||||||
Program | Control Teaching Box/PC | ||||||||||||||
Screw feed mode | air blow | ||||||||||||||
Screw feed speed | 60PCS/Min | ||||||||||||||
Screw driver | SDL series Servo motor screw driver(optional others) | ||||||||||||||
External | RS232 | ||||||||||||||
Screw size | M1.0-M5.0 | ||||||||||||||
Screw length | 4-16mm | ||||||||||||||
Torque range | 0.03-45kgf.cm | ||||||||||||||
Lock speed | 1.5s/ PCS | ||||||||||||||
Program storage | 100groups/1000points per group | ||||||||||||||
Power | 2*220V50Hz | ||||||||||||||
Air | 0.5Mpa | ||||||||||||||
Dimension L | 580mm | 580mm | 780mm | 680mm | 680mm | 680mm | 680mm | 680mm | |||||||
Dimension W | 520mm | 620mm | 720mm | 620mm | 720mm | 830mm | 930mm | 1000mm | |||||||
Dimension H | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | 603mm | |||||||
Weight | 60kg | 70kg | 80kg | 75kg | 80kg | 95kg | 100kg | 105kg | |||||||
All products are non-standard customized, please contact our engineers for more product parameters.
Product description

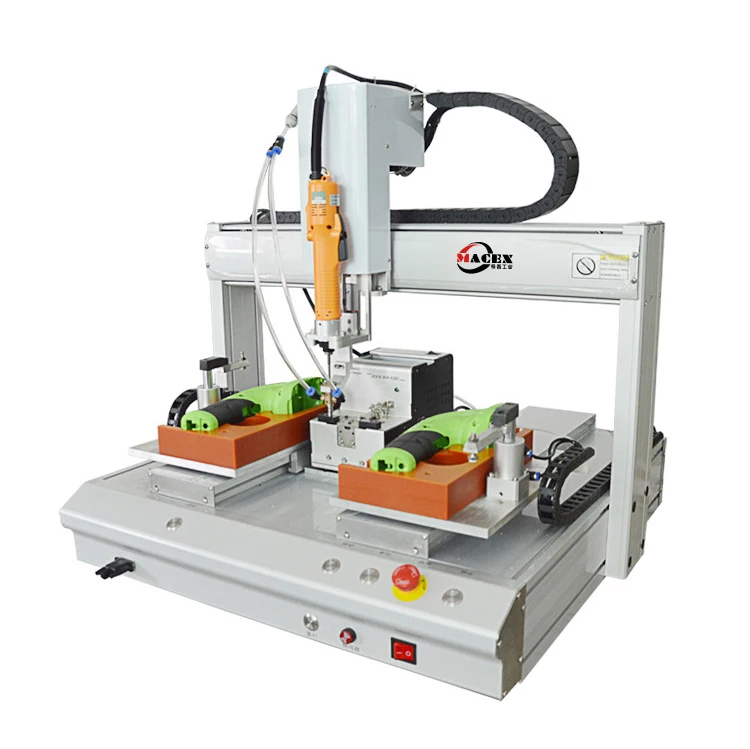

The double electric screwdriver alternately locks the screws, with high efficiency and fast speed. It is possible to lock two types of screws with one product, and the two screws are completed alternately, and there is no need to lock and pay twice. Japan HIS0 electric screwdriver, precise control of torque, stable and durable. Special feeder, 12 years of experience in feeder production. Aluminum profile die-casting structure, solid, beautiful, high temperature and high precision. SCM controlled handheld box programming, simple and practical, complete functions, efficient use. Closed-loop servo motor, Taiwan silver guide rail, Germany Omron Optoelectronics, Japan three star belt, research and control drive, Hongbo switch, high configuration parts, durable.
Details Images

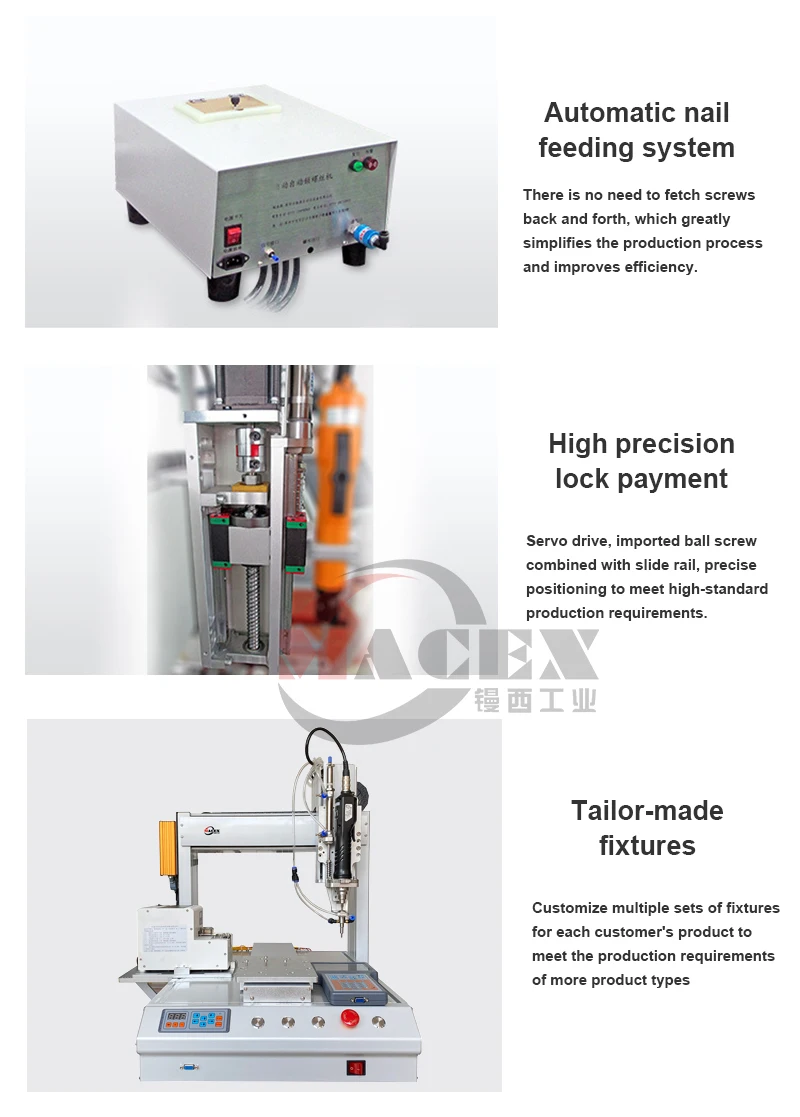

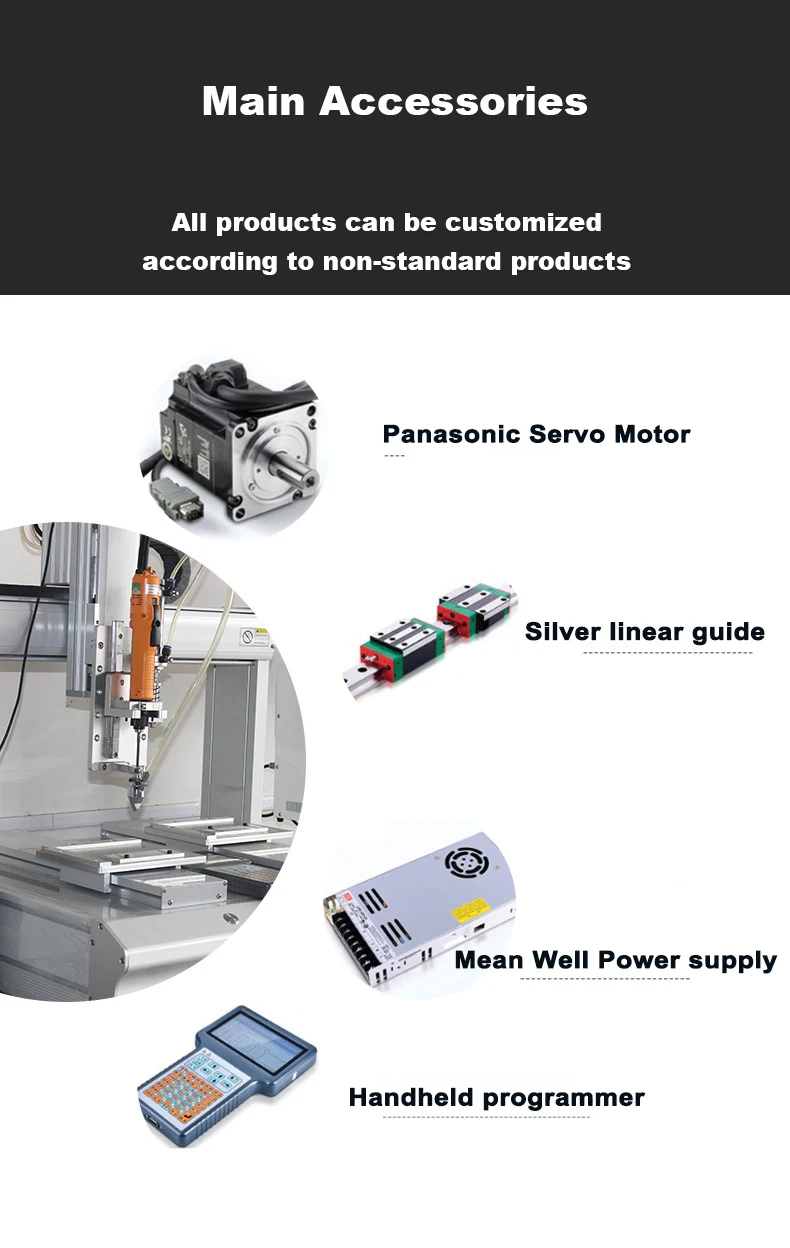

Main configuration.

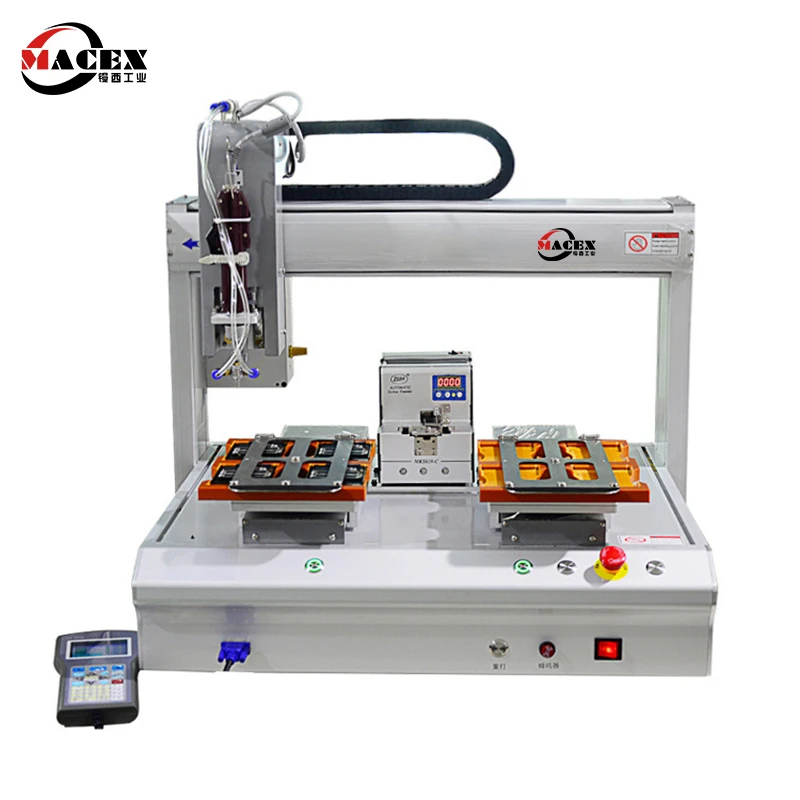

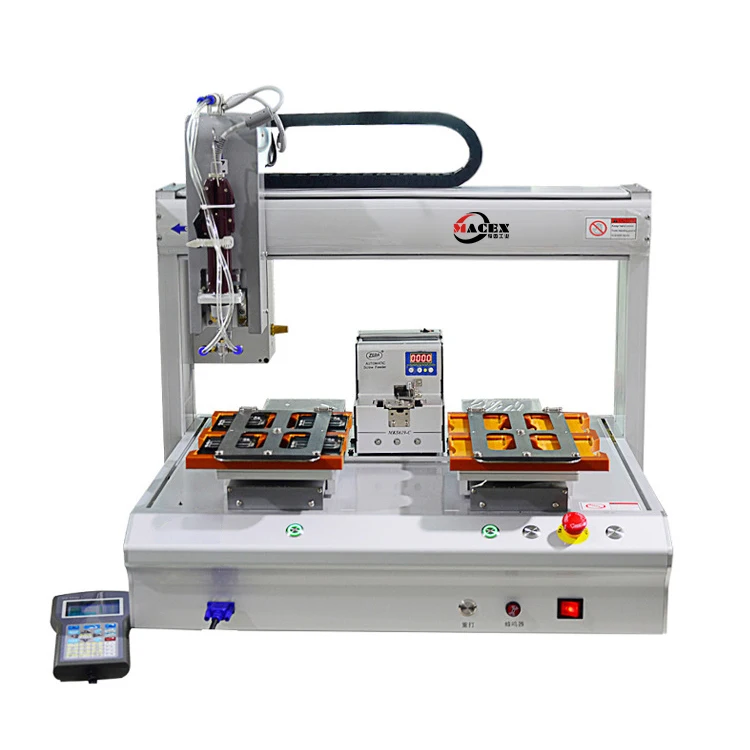

●Double Y-axis working platform , aluminum profilemodule structure

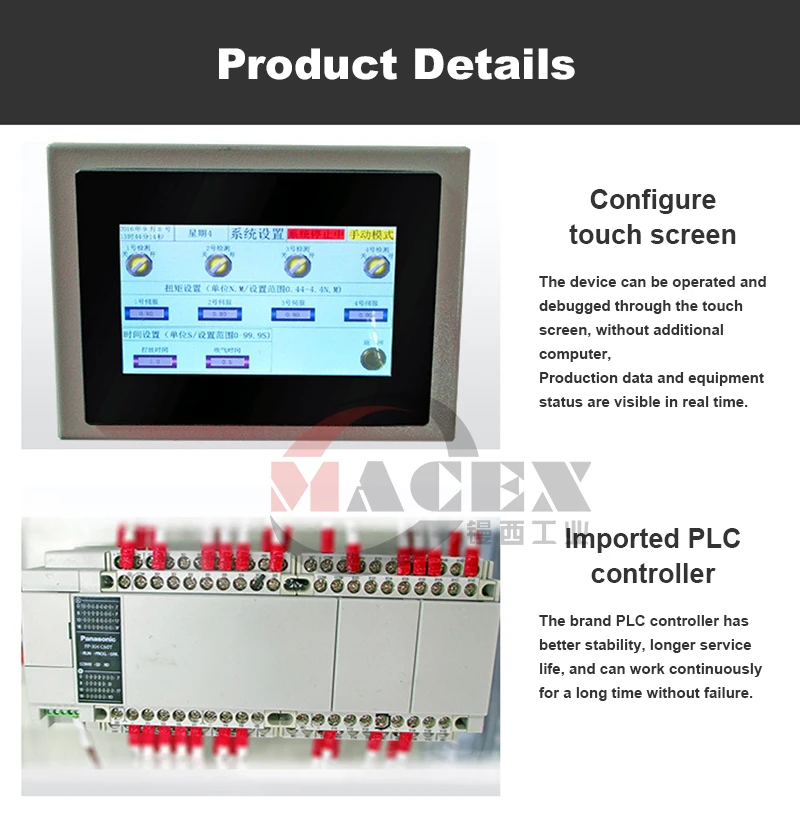

●Manual type teaching programmable controller issimple and easy to usee
●Japan imported HIOS electric screwdriver for accuratelock payment.
●Z axis screw , laiwan silver guide rail
●Closed loop servo motor
●Manual type teaching programmable controller issimple and easy to usee
●Japan imported HIOS electric screwdriver for accuratelock payment.
●Z axis screw , laiwan silver guide rail
●Closed loop servo motor
1. Strong versatility
The coordinate lock screw machine is controlled by PLC, and the screwing action is performed point by point according to the position of the screw hole of the product. N sets of locking schemes can be edited and stored to realize automatic screw screwing of a variety of products.
The coordinate lock screw machine is controlled by PLC, and the screwing action is performed point by point according to the position of the screw hole of the product. N sets of locking schemes can be edited and stored to realize automatic screw screwing of a variety of products.
2. Efficient production
The equipment has functions such as automatic screw feeding, automatic screwing, screening, and detection, which can greatly simplify the production process and save labor and man-hours.
The equipment has functions such as automatic screw feeding, automatic screwing, screening, and detection, which can greatly simplify the production process and save labor and man-hours.
3. precise positioning Hongjie coordinate lock screw machine passed X) Y\\Z three-dimensional control, positioning accuracy ±0.02mm, higher production standards, greatly reduced product defect rate, and high-speed assembly line operation.
Related Products
Packing&Shipping

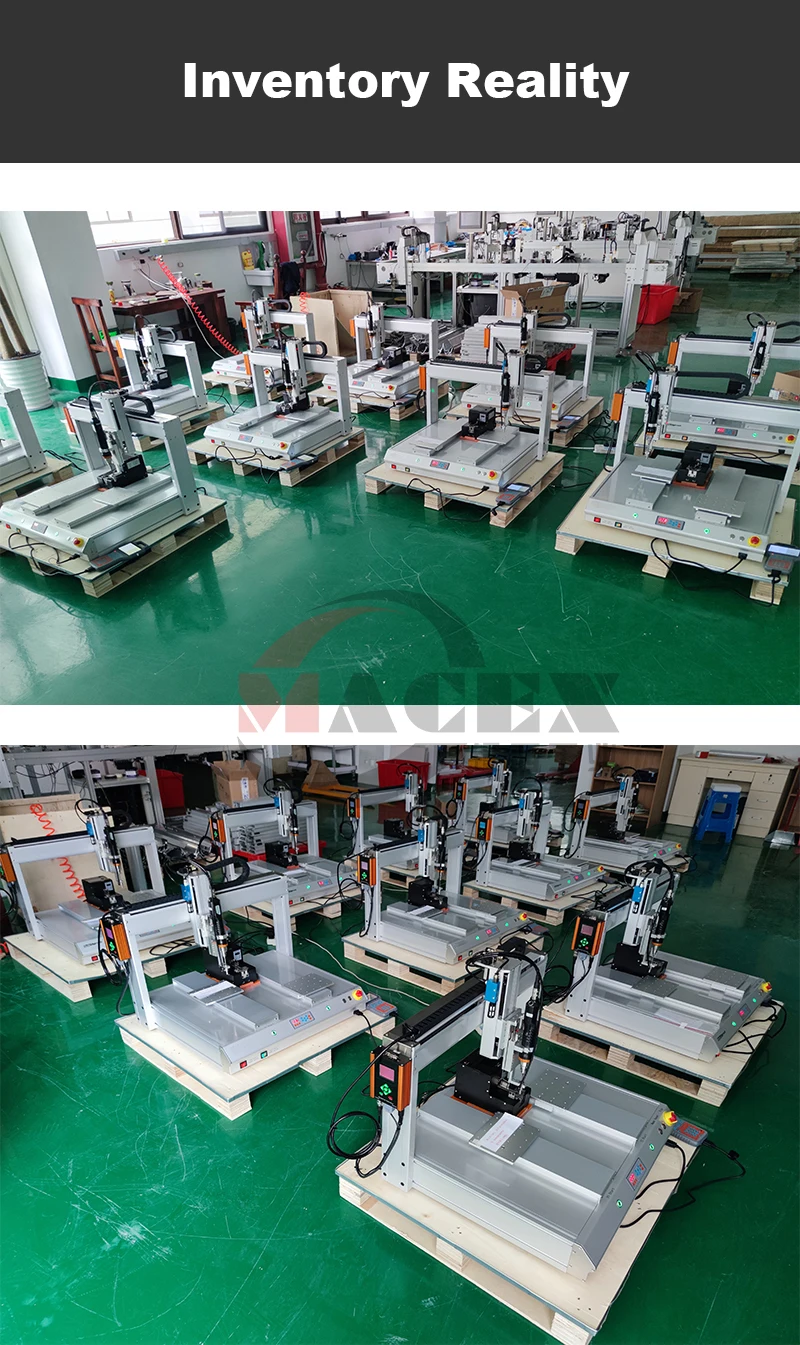

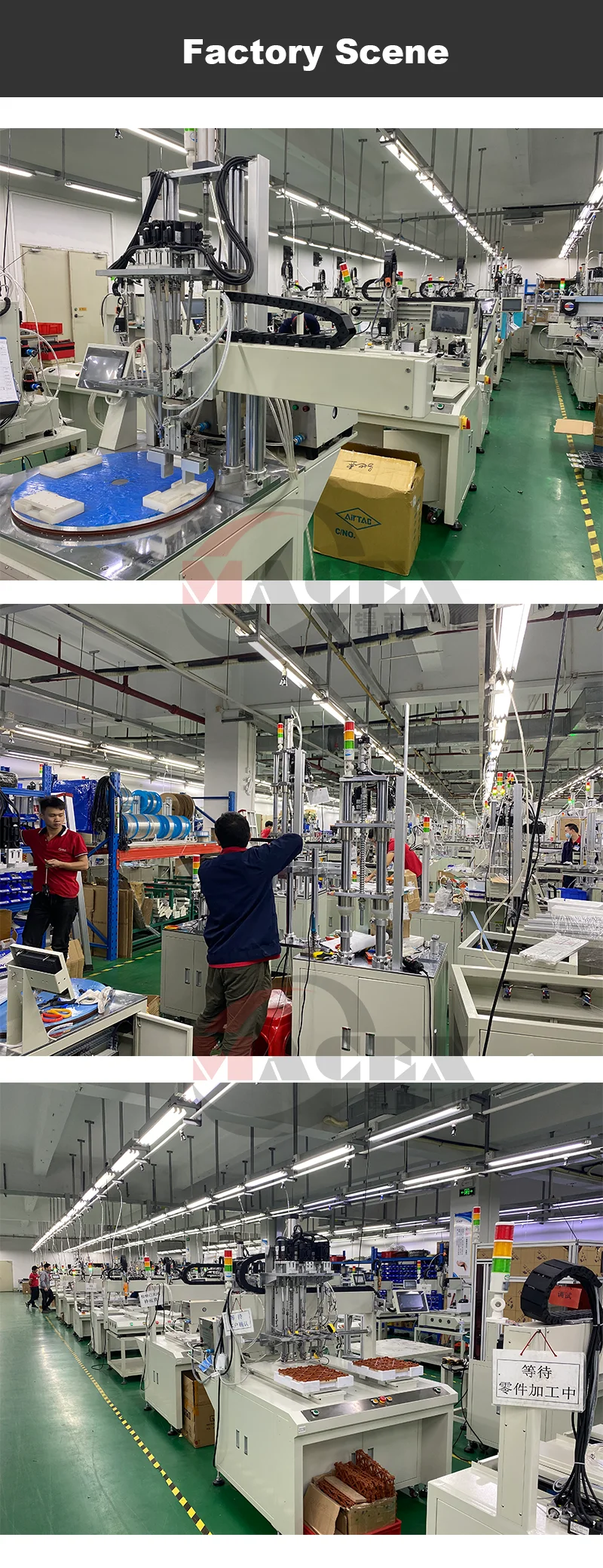

Factory
Our Service
FAQ
1. Are you the manufacturer?
Yes, our factories located in Guangzhou and Shenzhen .We can offer OEM and ODM services..
Yes, our factories located in Guangzhou and Shenzhen .We can offer OEM and ODM services..
2. What's your MOQ?
We have no MOQ for this item, we can customize for one piece order according your requirment.
We have no MOQ for this item, we can customize for one piece order according your requirment.
3. What's your payment terms?
Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal.
Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal.
4. Your products have certificates?
Most our products are complied with CE.
Most our products are complied with CE.
5. How to make an order? What's the lead time?
Our standard machines takes 7-15 days, Customized Item takes about 20-30 days..
Our standard machines takes 7-15 days, Customized Item takes about 20-30 days..
6. Can I visit your factory before order?
Yes, welcome to visit our factory.
Yes, welcome to visit our factory.
7. Can you provide sample before a regular order?
Sure, we accept sample order.
For more details or catalogs, please contact our sales engineer.
Sure, we accept sample order.
For more details or catalogs, please contact our sales engineer.
