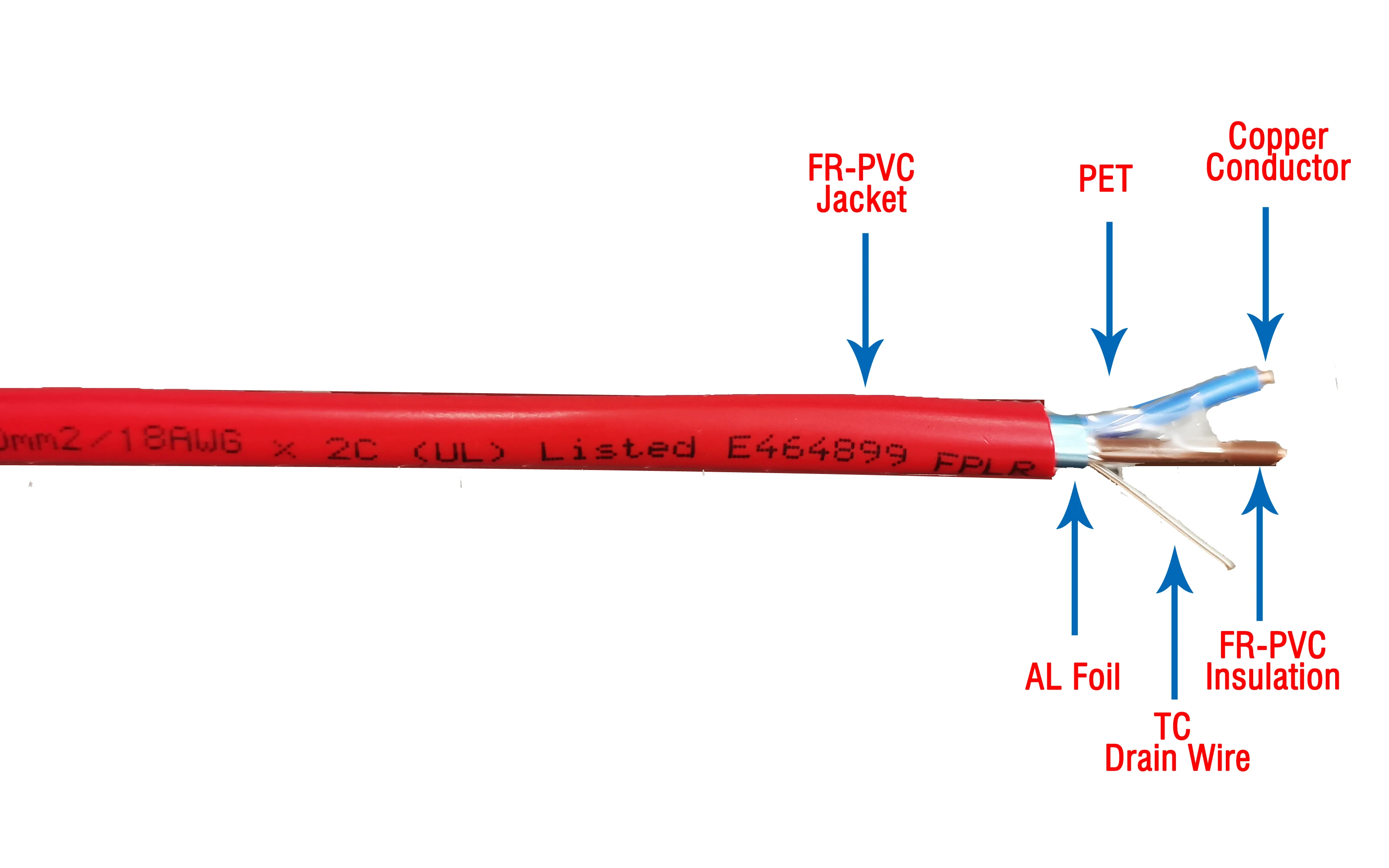

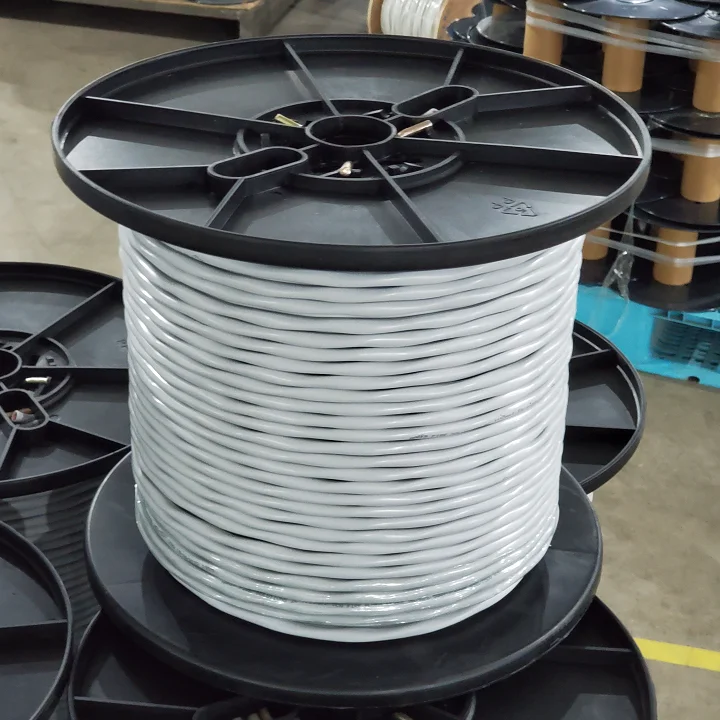

UL listed FPLP CMP Shielded 16AWG STRANDED bare Copper 2Core Security Fire Alarm Cable
- Category: >>>
- Supplier: Zhejiang Tianjie Industrial Corp.
Share on (1600729547697):
Product Overview
Description
Wiring Solution for Intelligent Fire Alarm System
The fire alarm system is composed of a trigger device, a fire alarm device, a linkage output device and other auxiliary function devices. It can take effective measures in time to extinguish the initial fire and minimize injuries, death and property damage and loss caused by the fire.

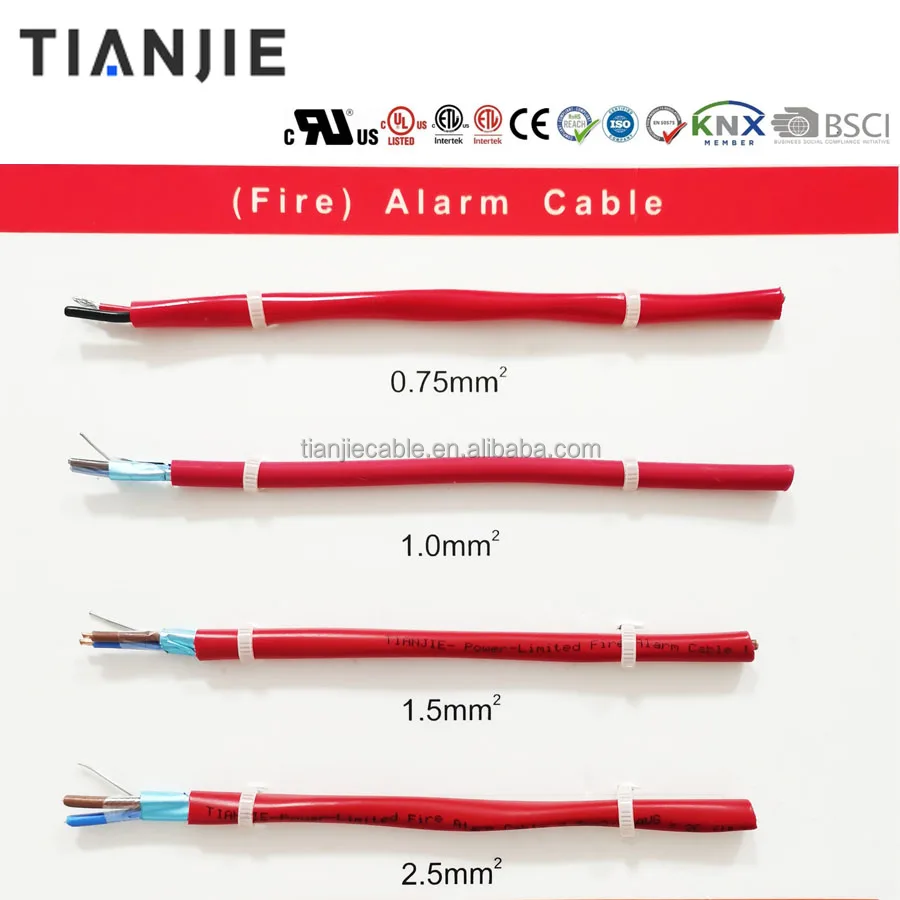

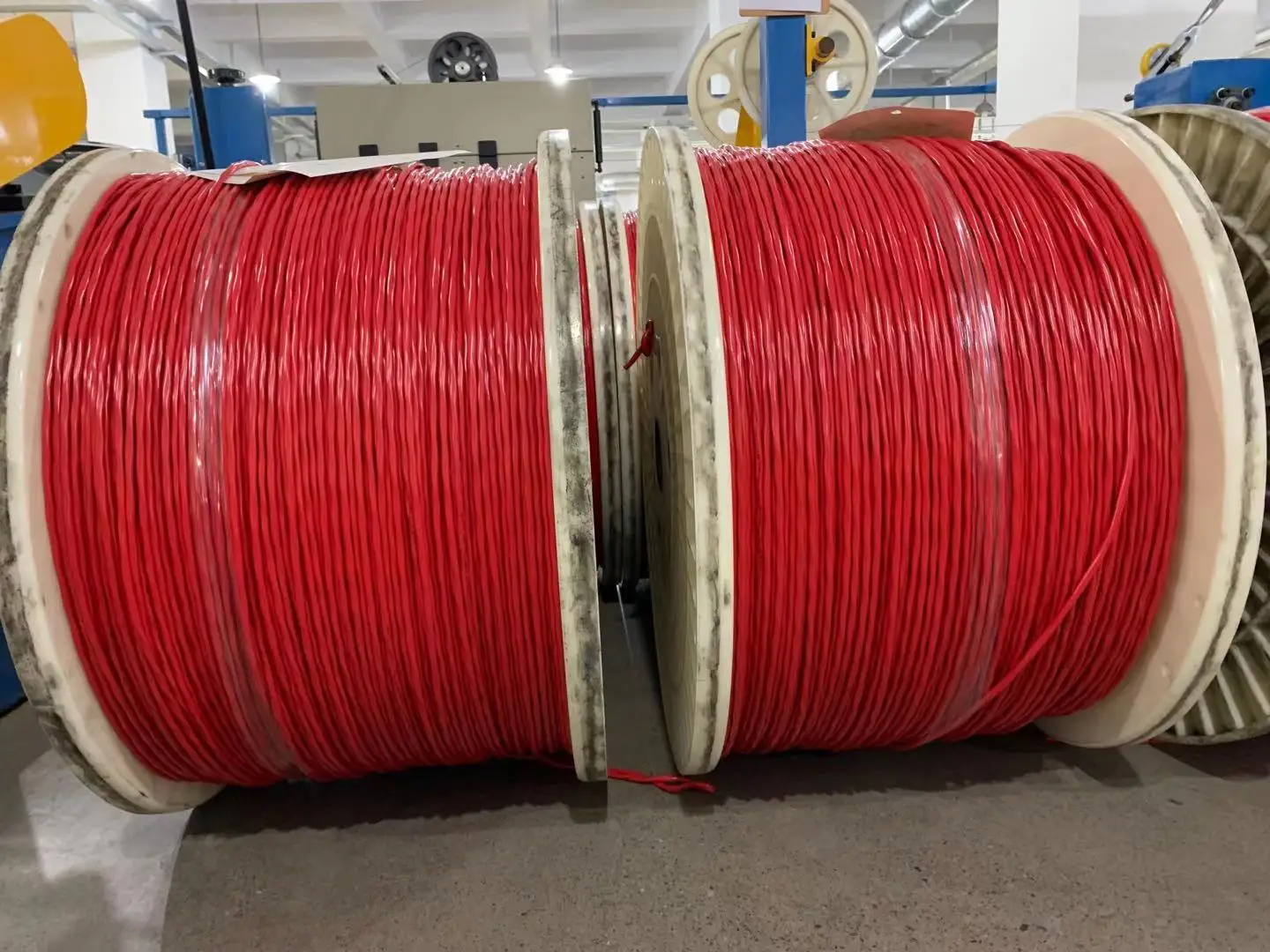

Fire Alarm Cables
Working Principle:
The fire detector turns into an electric signal, which is transmitted to the fire alarm controller, and at the same time informs the evacuation of the entire floor in the form of sound or light. The controller records the location and time of the fire.
Application:
Widely used in various alarm systems, fire protection systems, anti-theft systems, smoke and dust control systems, and other communication systems.
Widely used in various alarm systems, fire protection systems, anti-theft systems, smoke and dust control systems, and other communication systems.
Products Description
Feature
1. High-purity oxygen-free copper, stable transmission, low loss, excellent fire resistance, and safty use.
*NEC: 725 & 760
*UL Standard: UL 13 & UL 1424 & UL 444
*Flame Rating: UL 1666 Riser c(UL) FT4
*RoHS: Compliant Directive 2011/65/EU
This cable complies with VW – 1 Flame Test requirements.
Product Paramenters

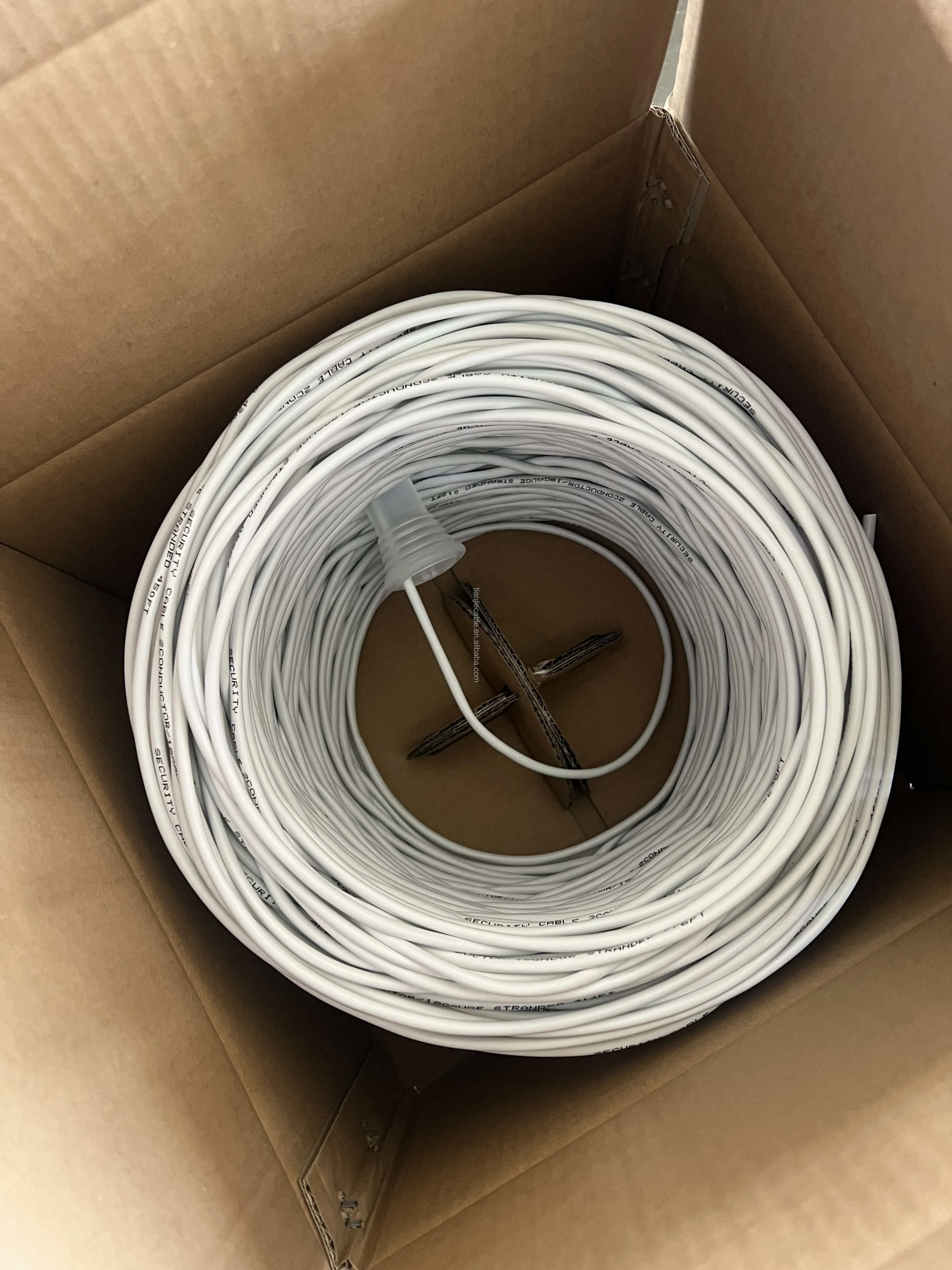

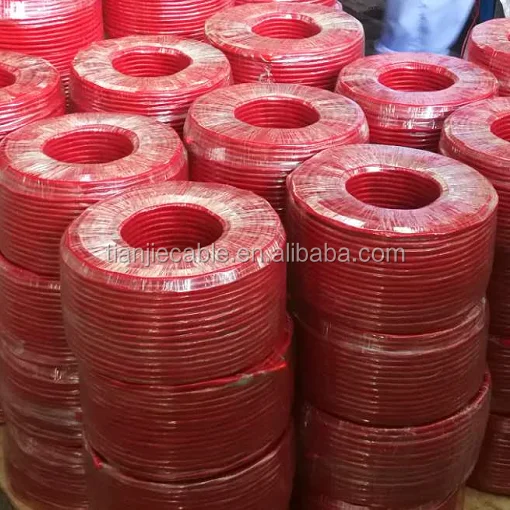

Product packaging
Similar Products
#CODE | #SIZE/COND | STR/ SOL | NOM. CAP. (PF/FT) | |||

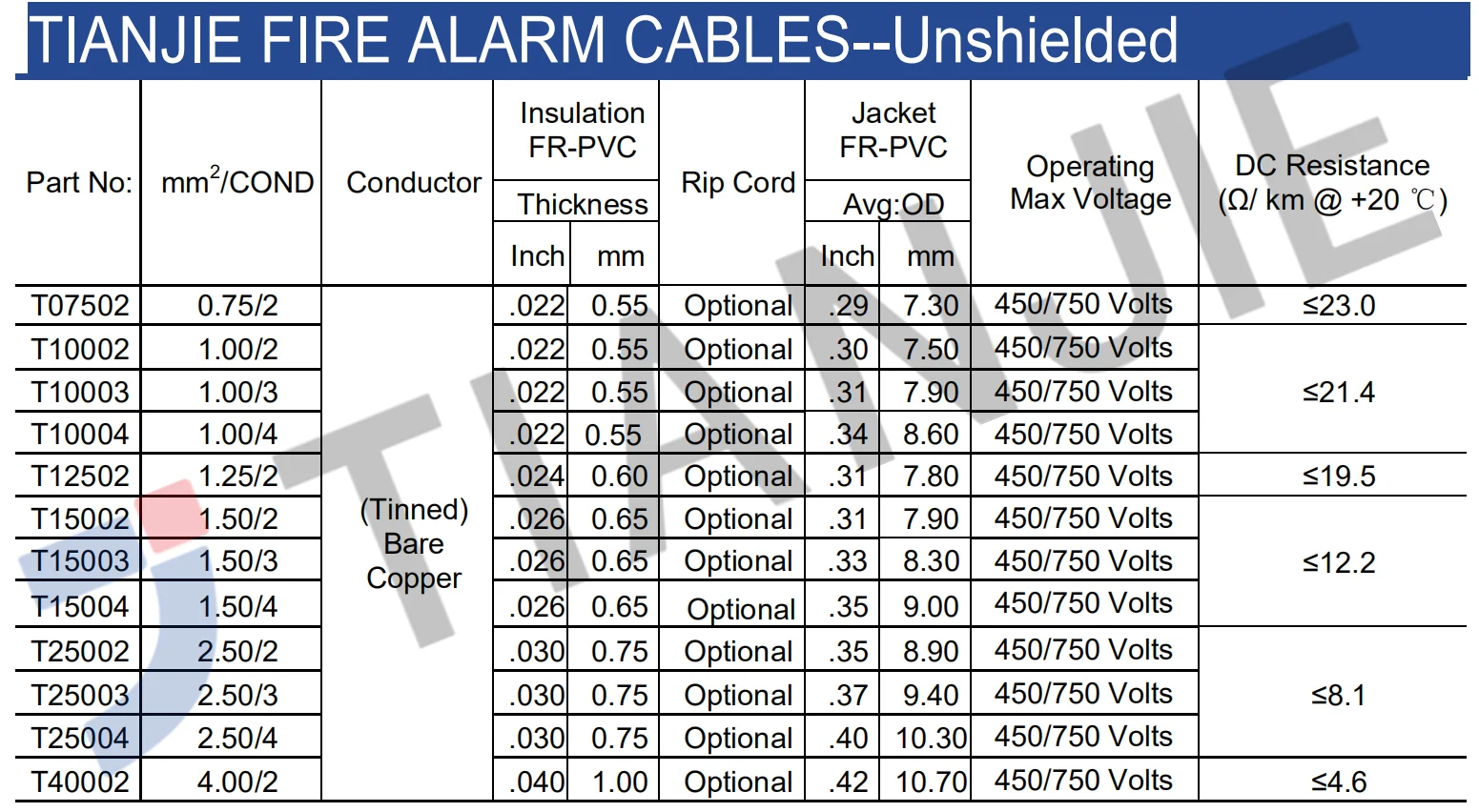

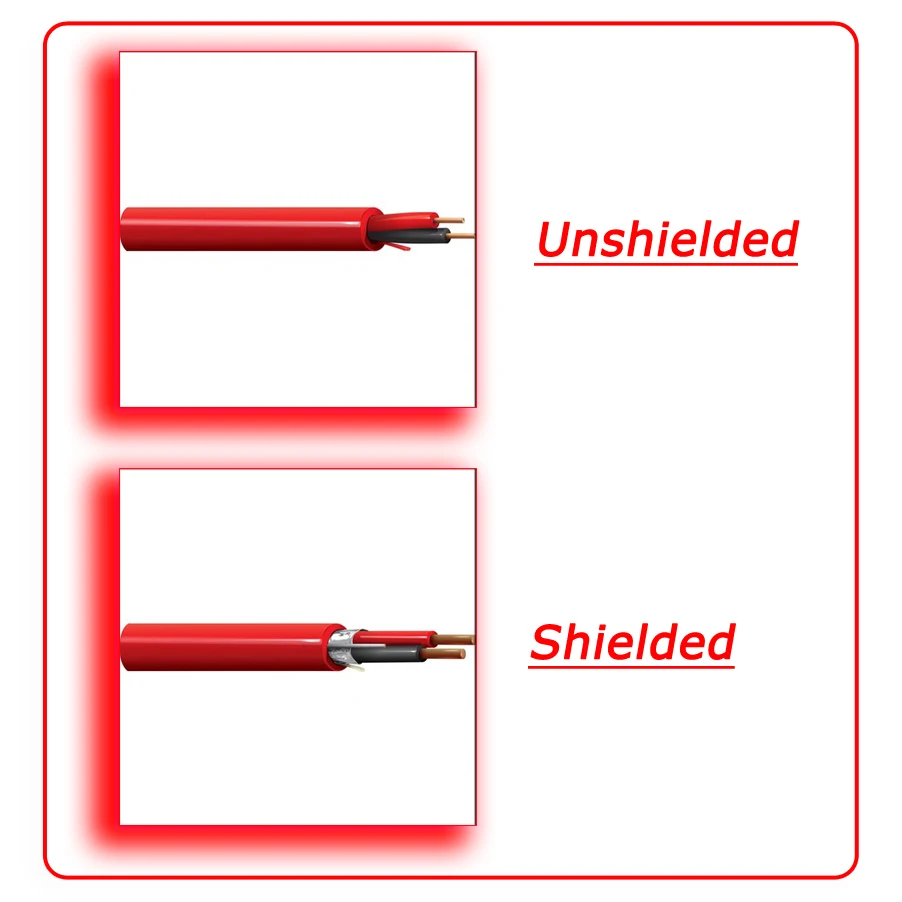

FPL,FPLR UL LISTED UNSHIELDED TYPE | ||||||
18/2 | SOL (Tinned) Bare Copper | 32 | ||||
18/3 | SOL (Tinned) Bare Copper | 32 | ||||
18/4 | SOL (Tinned) Bare Copper | 32 | ||||
18/6 | SOL (Tinned) Bare Copper | 32 | ||||
16/2 | SOL (Tinned) Bare Copper | 28 | ||||
16/4 | SOL (Tinned) Bare Copper | 28 | ||||
14/2 | SOL (Tinned) Bare Copper | 25 | ||||
14/4 | SOL (Tinned) Bare Copper | 25 | ||||
12/2 | SOL (Tinned) Bare Copper | 20 | ||||
0.75/2 | SOL (Tinned) Bare Copper | 30 | ||||
1.00/2 | SOL (Tinned) Bare Copper | 26 | ||||
1.00/3 | SOL (Tinned) Bare Copper | 26 | ||||
1.00/4 | SOL (Tinned) Bare Copper | 26 | ||||
1.25/2 | SOL (Tinned) Bare Copper | 24 | ||||
1.50/2 | SOL (Tinned) Bare Copper | 22 | ||||
1.50/3 | SOL (Tinned) Bare Copper | 22 | ||||
1.50/4 | SOL (Tinned) Bare Copper | 22 | ||||
2.50/2 | SOL (Tinned) Bare Copper | 18 | ||||
2.50/3 | SOL (Tinned) Bare Copper | 18 | ||||
2.50/4 | SOL (Tinned) Bare Copper | 18 | ||||
4.00/2 | SOL (Tinned) Bare Copper | 10 | ||||

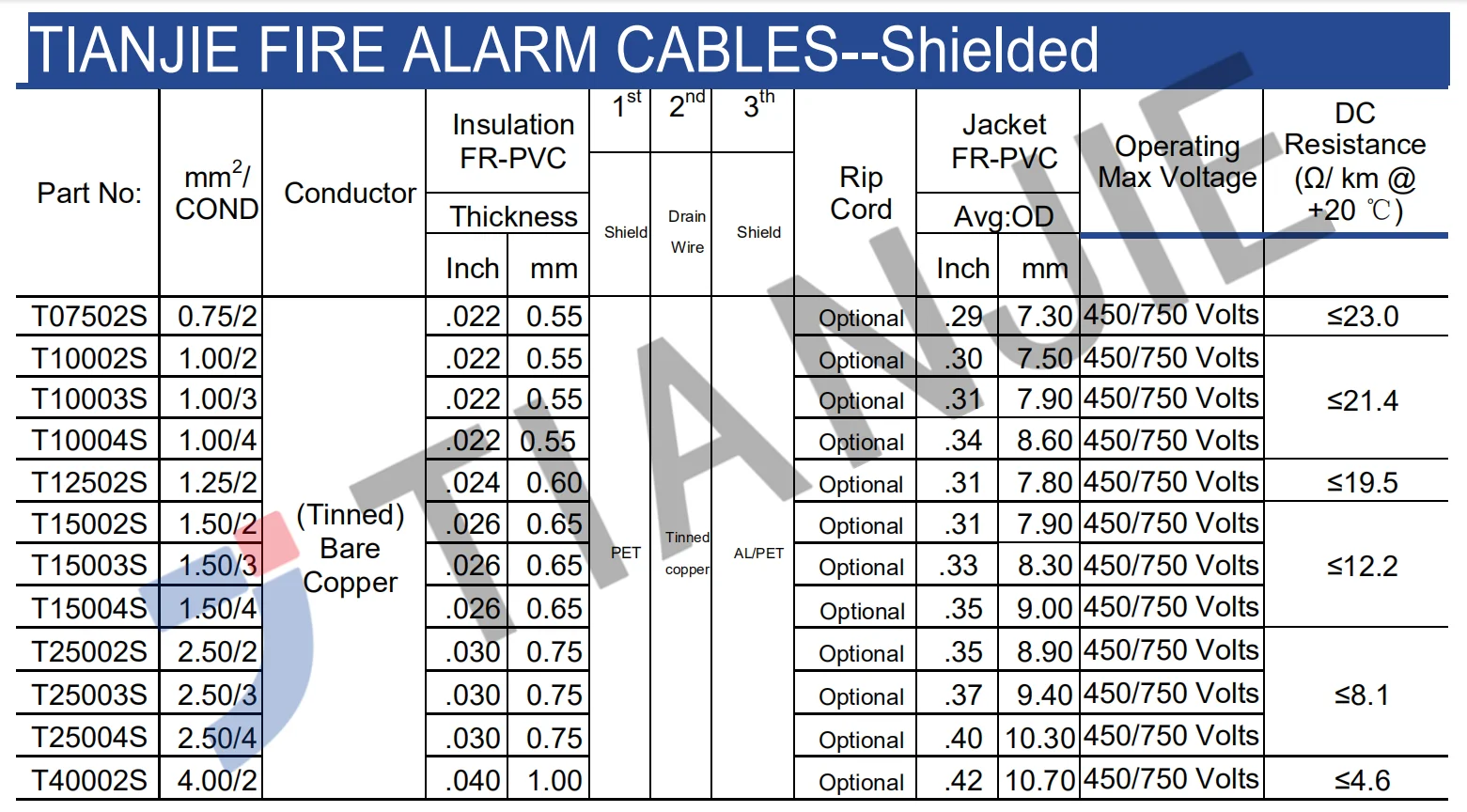

FAS(60,90,105℃) FT1, FAS(60,90,105℃) FT4 UL LISTED SHIELDED TYPE | ||||||
18/2 | SOL (Tinned) Bare Copper | 32 | ||||
18/3 | SOL (Tinned) Bare Copper | 32 | ||||
18/4 | SOL (Tinned) Bare Copper | 32 | ||||
18/6 | SOL (Tinned) Bare Copper | 32 | ||||
16/2 | SOL (Tinned) Bare Copper | 28 | ||||
16/4 | SOL (Tinned) Bare Copper | 28 | ||||
14/2 | SOL (Tinned) Bare Copper | 25 | ||||
14/4 | SOL (Tinned) Bare Copper | 25 | ||||
12/2 | SOL (Tinned) Bare Copper | 20 | ||||
0.75/2 | SOL (Tinned) Bare Copper | 30 | ||||
1.00/2 | SOL (Tinned) Bare Copper | 26 | ||||
1.00/3 | SOL (Tinned) Bare Copper | 26 | ||||
1.00/4 | SOL (Tinned) Bare Copper | 26 | ||||
1.25/2 | SOL (Tinned) Bare Copper | 24 | ||||
1.50/2 | SOL (Tinned) Bare Copper | 22 | ||||
1.50/3 | SOL (Tinned) Bare Copper | 22 | ||||
1.50/4 | SOL (Tinned) Bare Copper | 22 | ||||
2.50/2 | SOL (Tinned) Bare Copper | 18 | ||||
2.50/3 | SOL (Tinned) Bare Copper | 18 | ||||
2.50/4 | SOL (Tinned) Bare Copper | 18 | ||||
4.00/2 | SOL (Tinned) Bare Copper | 10 | ||||
Our Advantages
Company Profile
Founded in 1993, Zhejiang Tianjie Industrial Corp. locates in the Green Beryl of Yangtze River Delta-Lin’ an Hangzhou,with superior location connected by convenient transportation.
With more than 300 employees including a professional R&D team of technology, and a modern standardized workshop of 33,000m³ including international advanced equipments. We are a science and technology innovated enterprise , which is specialized in designing, manufacturing and selling coaxial cables, combined fiber electrical cables, alarm and security cables, smart control cables, signal cables and other electronic communication products.
Sampling Room
After more than 27 years of pioneering and innovation, the company has been well-known at home and abroad for its technological innovation, brand quality and first-class service.
With excellent product quality, customer-satisfactory service and fast response capabilities, Tianjie Cable is exported to more than 40 countries and regions on six continents including Europe, North America, South America, Asia, Africa and Oceania, and has won widespread praise and trust from customers.
Hornors Room
The company takes professional innovation as the concept, focuses on the world, and strives to innovate and develop in the fifield of coaxial cable development and manufacturing, and wholeheartedly provide fifirst-class products and services to international and domestic customers.
* Won the Zhejiang Famous Brand Product in 2007
* Won the national key support high-tech enterprise in 2007
* Won the AAA credit of Zhejiang industrial and commercial
enterprises in 2010
* Won the national key support high-tech enterprise in 2007
* Won the AAA credit of Zhejiang industrial and commercial
enterprises in 2010
Smart Manufacturing
Zhejiang Tianjie Industrial Corp. has an enterprise technology center recognized by Zhejiang Province, an industry-leading UL bunched combustion test laboratory, and a CNAS certification laboratory.
Tianjie products are widely used in power management systems, public address and alarm systems, integrated wiring systems and other fields. Among them, the coaxial cable is the first in the industry to pass the "Made in Zhejiang" certification.
The company has authorized 43 patents and 6 invention patents.
QUALITY CONTROL
Tianjie has advanced production lines for coaxial cables, data cables, security cables, smart home cables and other production lines as well as the Internet of Things online detection system.
Set up an independent CNAS testing center, the center has advanced UL beam combustion, aging, high and low temperature, EMC electromagnetic compatibility, ROHS and other testing equipment.
Advanced testing equipment, professional testing personnel, and standardized testing methods provide a solid hardware platform for Tianjie product quality.Among them, there is currently the only UL combustion laboratory of a Chinese cable industry enterprise.
Advanced testing equipment, professional testing personnel, and standardized testing methods provide a solid hardware platform for Tianjie product quality.Among them, there is currently the only UL combustion laboratory of a Chinese cable industry enterprise.
