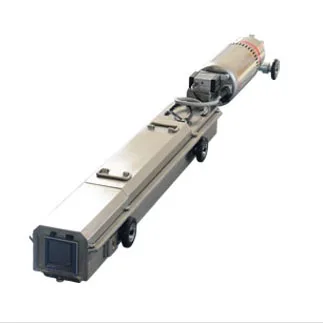

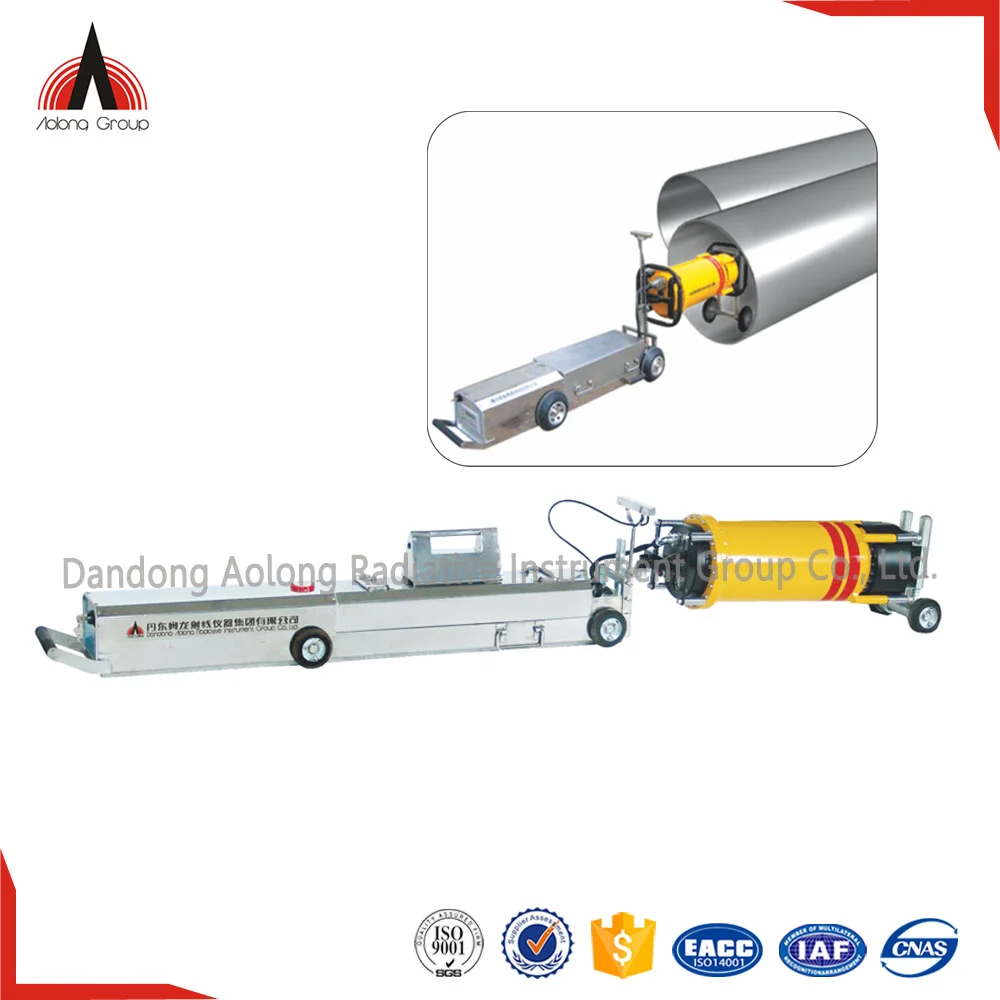

AL 100D X Ray Pipeline Crawler for pipeline inspection
- Category: >>>
- Supplier: Dandong Aolong Radiative Instrument Group Co. Ltd.
Share on (1600729620347):
Product Overview
Description
Main Performance of AL-100D Pipeline Crawler
1) Default 2 drive, mandatory all-wheel-drive;
2) Forward positioning exposure, backward without exposure;
3) In the crawling process, the running speed can be automatically adjusted according to the pipe
slope (up and down), and the positioning is accurate;
4) Functions of fault detection (" water encounter ", "resistance", "power failure" (overcurrent, overvoltage), "overheating detection of components", "low mA", etc.) are provided during
crawling and exposure. After detecting a fault, the tractor will reverse immediately to realize
real-time protection and controllable fault reversing.
1) Default 2 drive, mandatory all-wheel-drive;
2) Forward positioning exposure, backward without exposure;
3) In the crawling process, the running speed can be automatically adjusted according to the pipe
slope (up and down), and the positioning is accurate;
4) Functions of fault detection (" water encounter ", "resistance", "power failure" (overcurrent, overvoltage), "overheating detection of components", "low mA", etc.) are provided during
crawling and exposure. After detecting a fault, the tractor will reverse immediately to realize
real-time protection and controllable fault reversing.
5) Pipe external adjustment: The exposure time can be adjusted outside the pipe.
Parameter of AL-100D X-ray Crawler
Model | AL-100D X-ray Crawler | ||
Range of Pipe Diameter | Φ219mm—Φ510mm | ||
Max. Penetration (A3 Steel) | 24mm | ||
Tube (Cone) | Max. Output Voltage | 200kv | |
Max. Output Current | 3mA | ||
Focal Size | 1.0×2.3mm | ||
Beam | 360°×30° | ||
Environment Temperature | -30 ~ 80° | ||
Relative Humidity | ≤90% | ||
Energy Capacity of Battery | 96V,10Ah | ||
Crawling Ability | 35°-40° | ||
Location Accuracy | ±5mm | ||
Crawling Distance | 6km (round trip) | ||
Crawling Speed | 16~18m/min | ||
Turning Radius | ＞70° | ||
Vehicle Weight | 45kg | ||
Crawler dimension | 1600×140×140mm | ||
X-ray generator dimension | φ198×635mm | ||

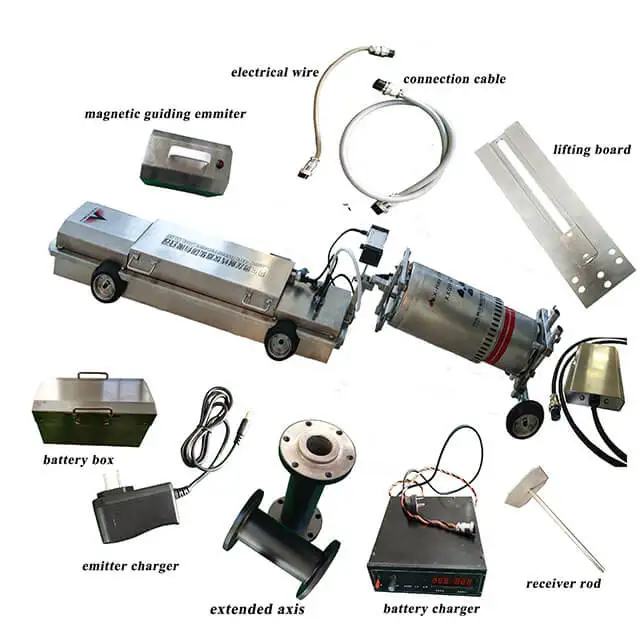

Packing List |
X-ray generator |
Crawler |
Axis extension |
Battery |
Battery charge |
Wheels |
Receiver |
Locator |
Axis extension for receiver |
Locator Charger |
Holder for generator |
Screws |
Fuses |
Documents(Manual/Training CD) |
Convincing Inspection Solution Supplier
Over 50 years, Aolong Group focuses on the Non-destructive Testing technologies and gives our customers the best inspection solutions with the high quality radiographic equipment with simple operation and complete functions.
China Radiographic equipment R&D Center
Aolong Group contributed to performing NDT for Chinese lanched “Shenzhou spaceship” system, and built the Academician experts workstation in the factory, which made us being awarded as the Chinese radiographic equipment R&D center.
Global Non-destructive testing service pioneer
Our industrial X-ray equipment have been sold to over 60 countries and built our agents and after sale service centers in Europe, U.S, Africa, and Asia. We can supply both high quality products and good after sale service.
