Automatic Waste Recycled Plastic PP PE Film Bags Recycling Line Plant Washing Machine

Product Overview

Description

Description:

Material: Plastic PP PE Film/PP PE Woven Bags/HDPE LDPE PP PE Bottles/Nylon bags

Product size: 30-100mm or customized

Moisture content: <3%



Specifications of machine:

Capacity(KG/H)	300	500	1000
Crusher motor(KW)	30	45	55
Total power(KW)	120	150	250
Water content	Less than 3%	Less than 3%	Less than 3%
Total length(M)	20	26	38



Process flow:

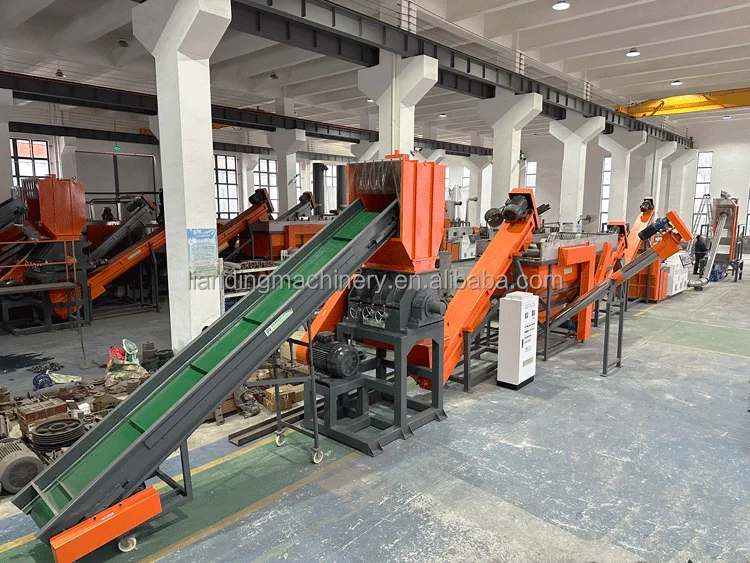

♦ Belt conveyor: conveying dirty plastic film or bags into crusher. If too much scrap iron, metal detector may be needed.

♦ Crusher: can crushing with water, cutting plastic film or bags into small pieces.

♦ Screw loader: load film pieces into the next step

♦ High-speed friction washing machine: wash out the sand, soil and loading the material

♦ Washing tank: separate the sand, soil and other dirties

♦ Squeezing drying machine/Horizontal dewatering machine/squeezing drying pelletizing machine: remove the water from the material

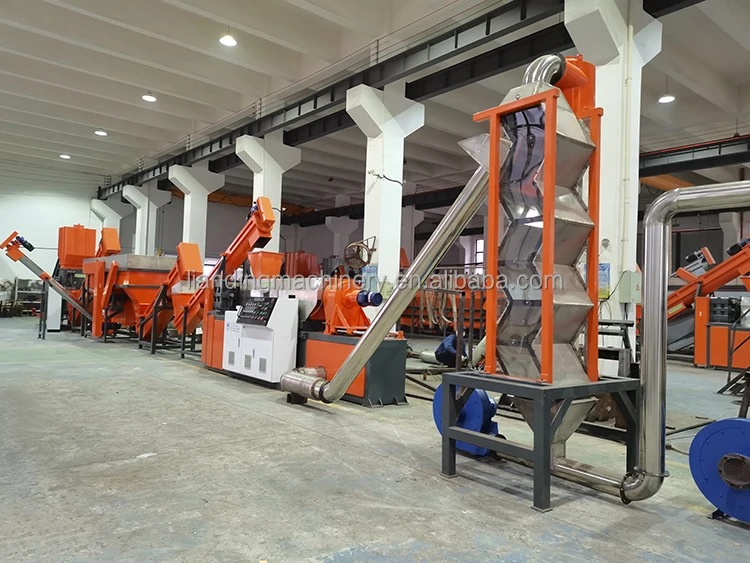

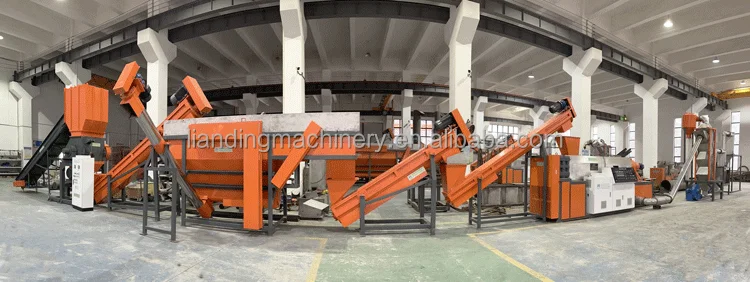

 More pictures of machine:

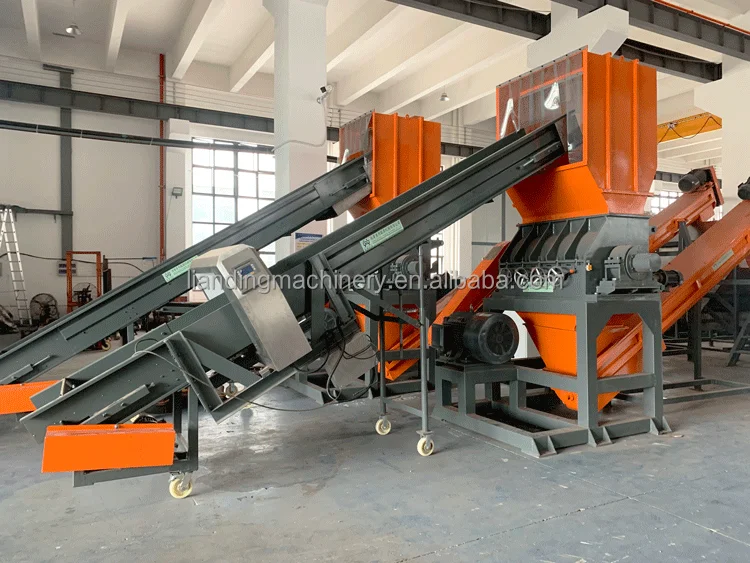

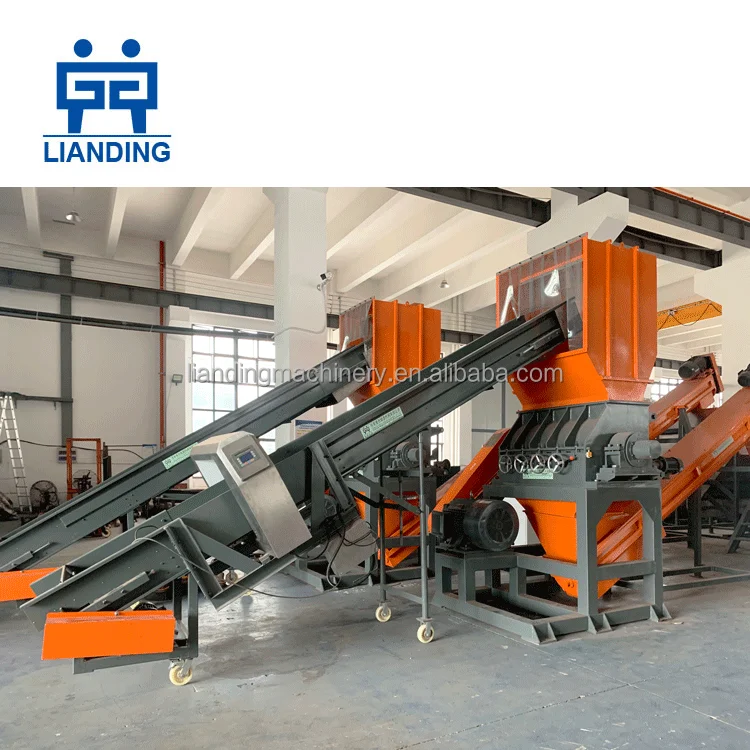

Crusher: can crushing with water, cutting plastic film or bags into small pieces.

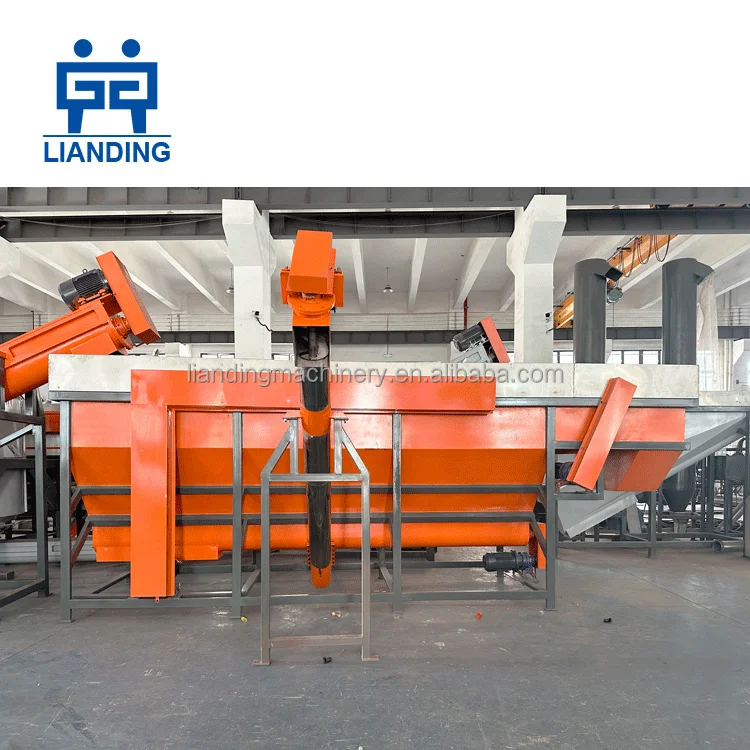

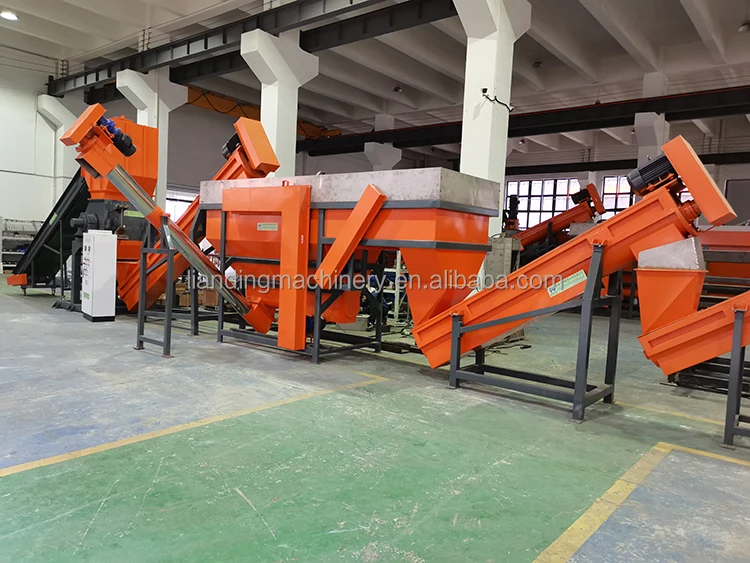

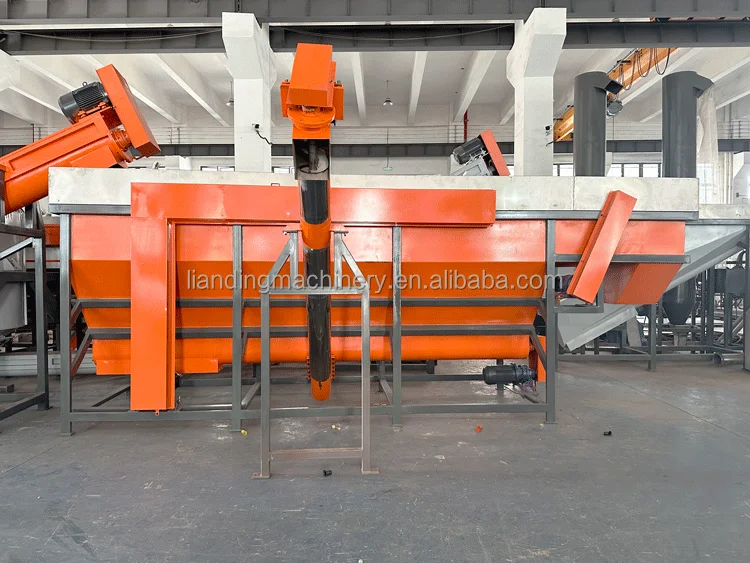

Washing tank(with up screw loader):  cleaning flakes; density separation dirt from flakes; transporting flakes out by rolling drums.

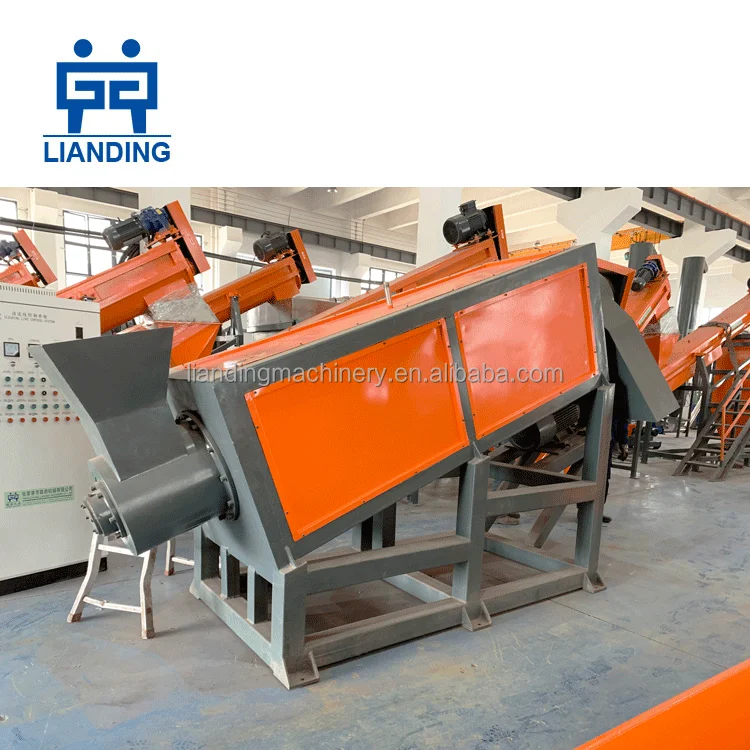

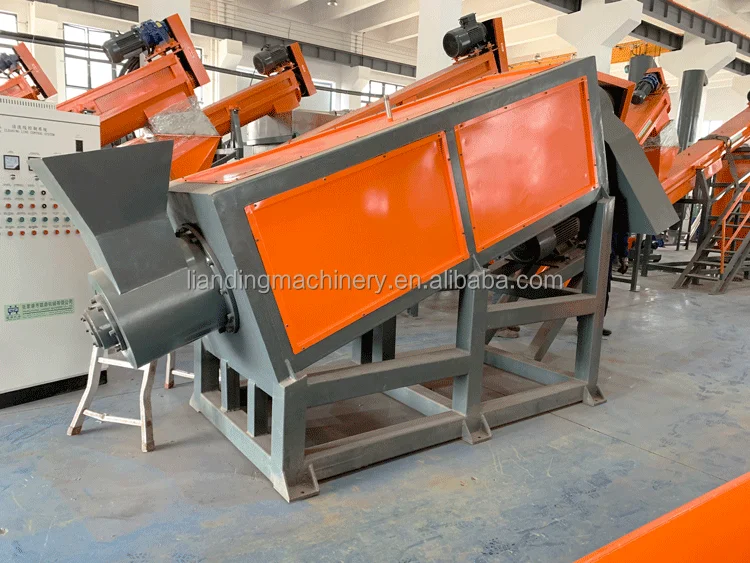

 High-speed friction washing machine: wash out the sand, soil and loading the material

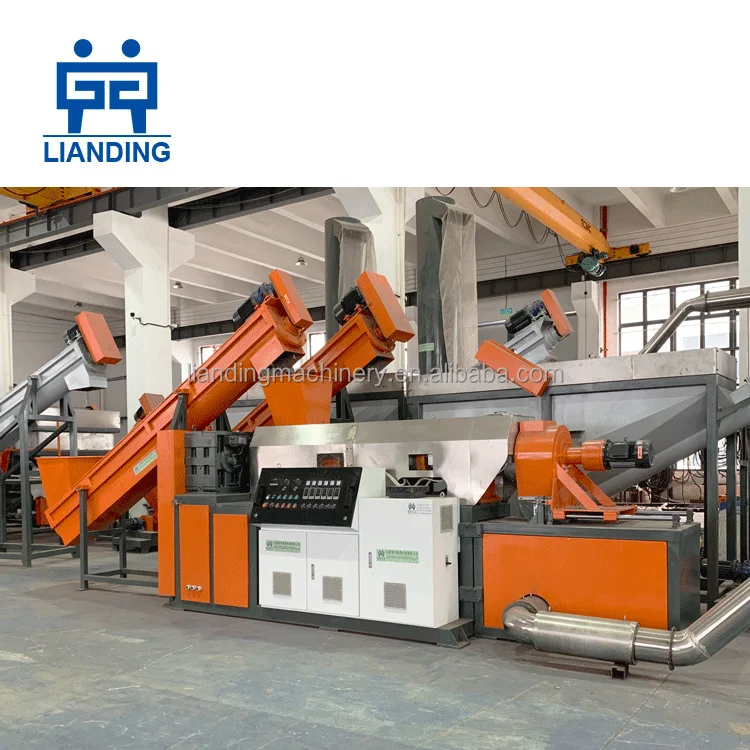

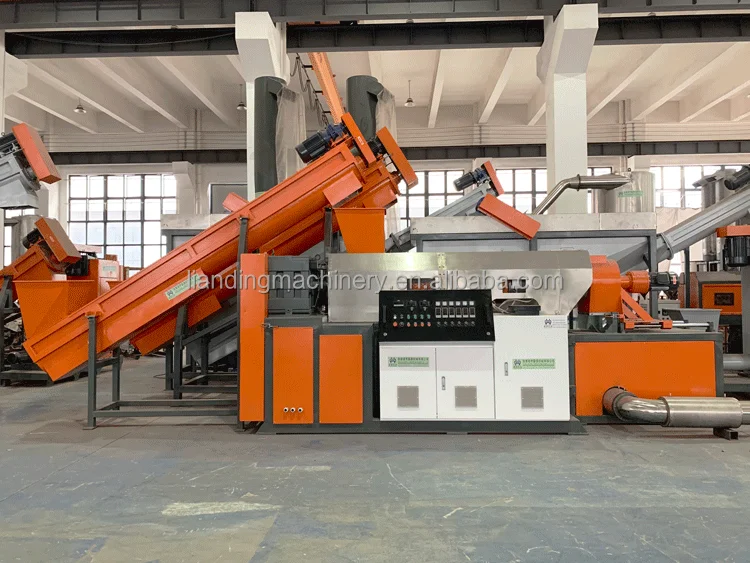

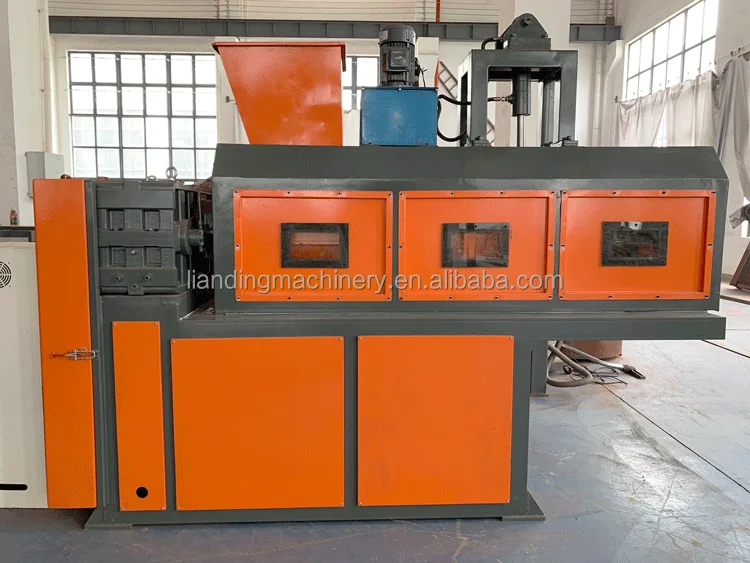

Squeezing drying machine/Horizontal dewatering machine: remove the water from the material

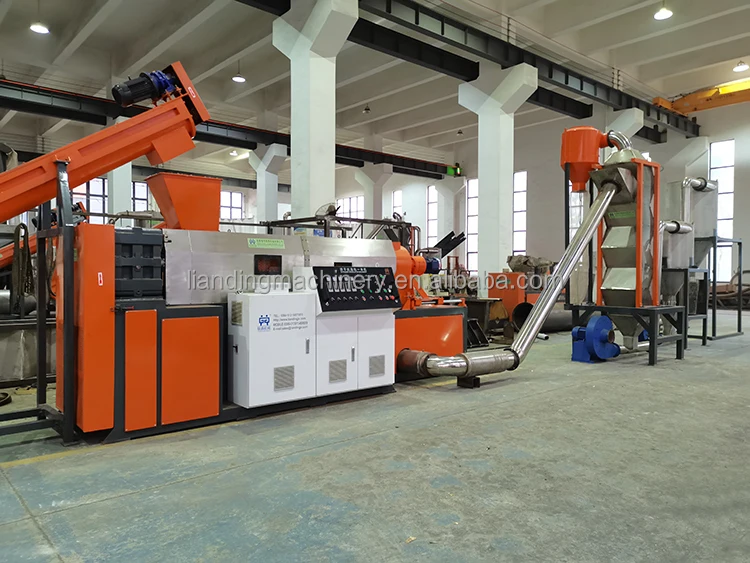

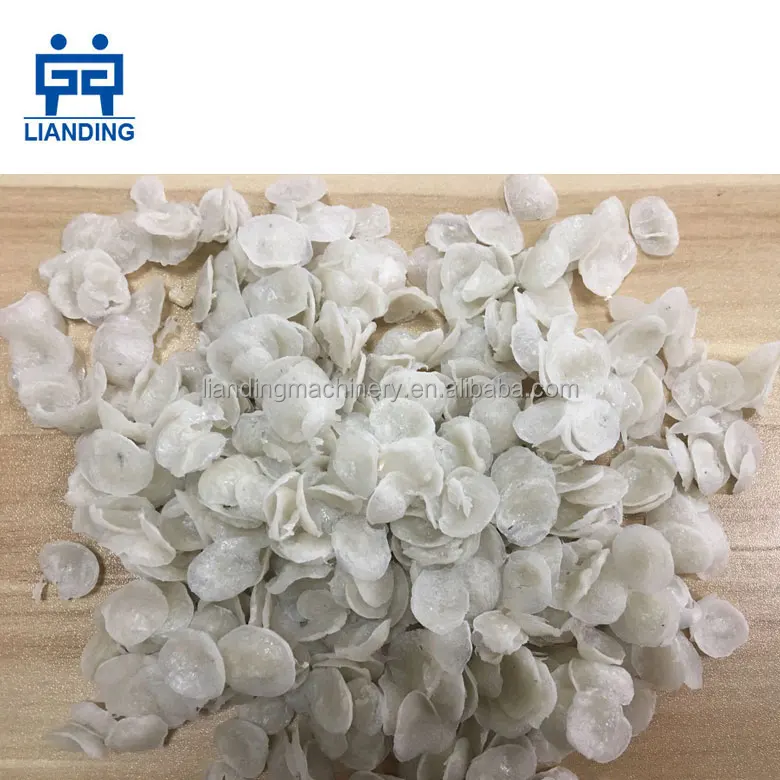

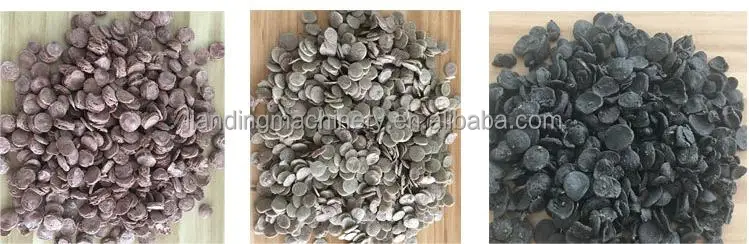

You can also choose plastic squeezing drying pelletizing machine: not only can dewater, but also can make semi-plasticized granules.

Features:

1) This machine is our new designed machine, specially screw pressing design;

2) And we have our own patent of this squeezing machine, which is different from other companies.
3) This machine is especially for plastic film, plastic bags, woven bags, jumbo bags, solving the drying problem in the past.
4) Instead of the dewatering machine, hot blower in the recycling line and energy saving equipment.
5) Easy to operate.

6) It makes materials easier to be granulated and dry, and if you use it, you will do not need following three machines: dewatering machine, pipe drying system and agglomerator. And only needing to add one extruder after this squeezing machine, will become standard granules.

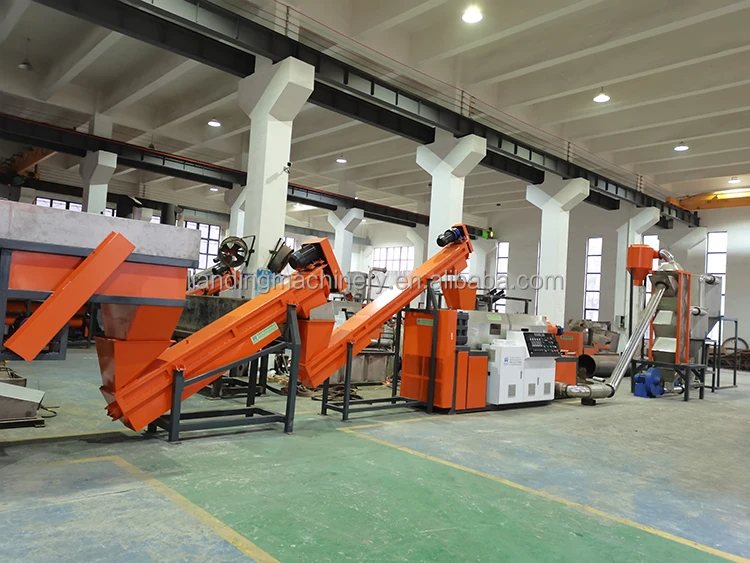

Plastic Pelletizing Machine:

1. Single/double stage water-ring cutting/noodle cutting pelletizing line

2. Compacting water-ring cutting pelletizing line/noodle cutting pelletizing line:



More pictures of machines:
