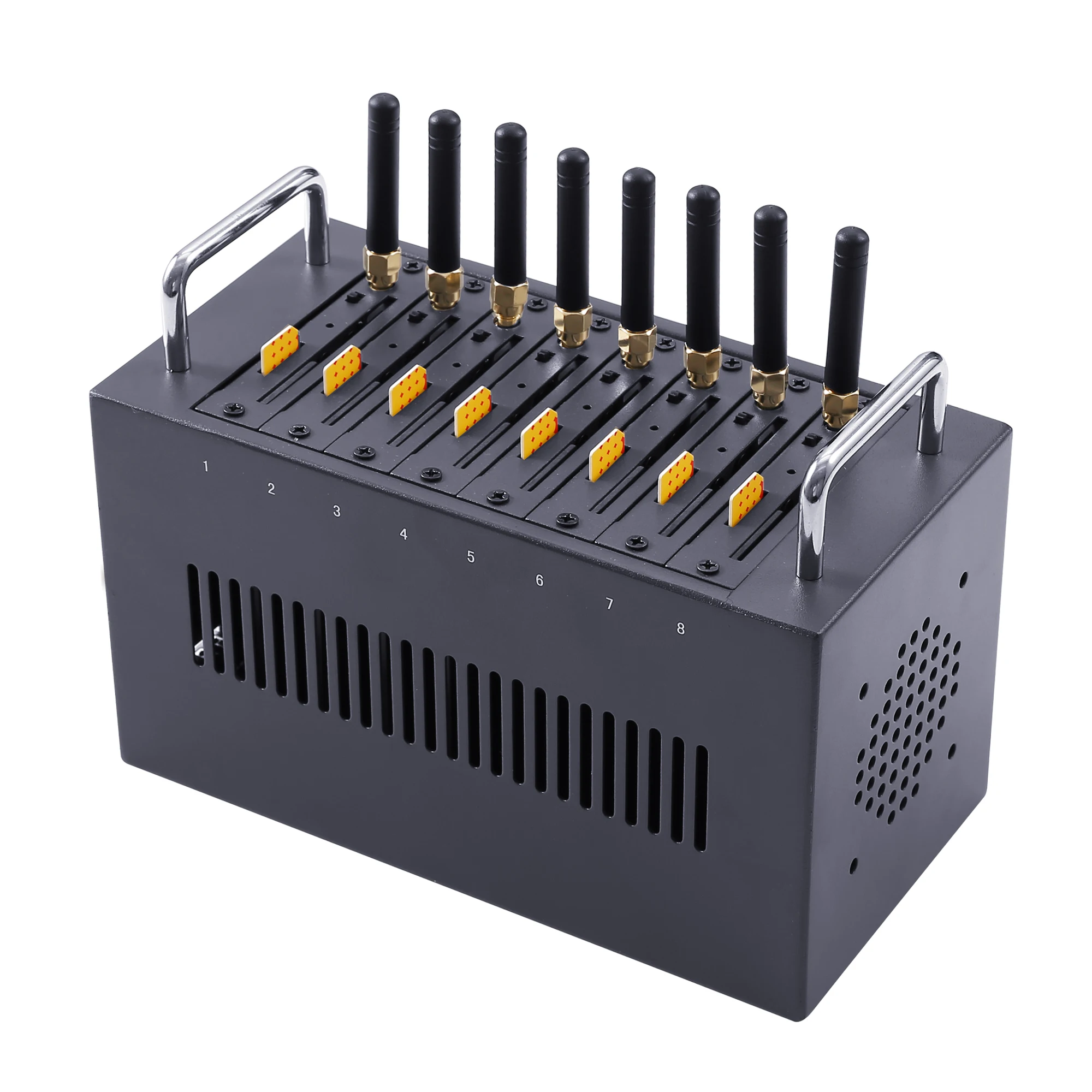

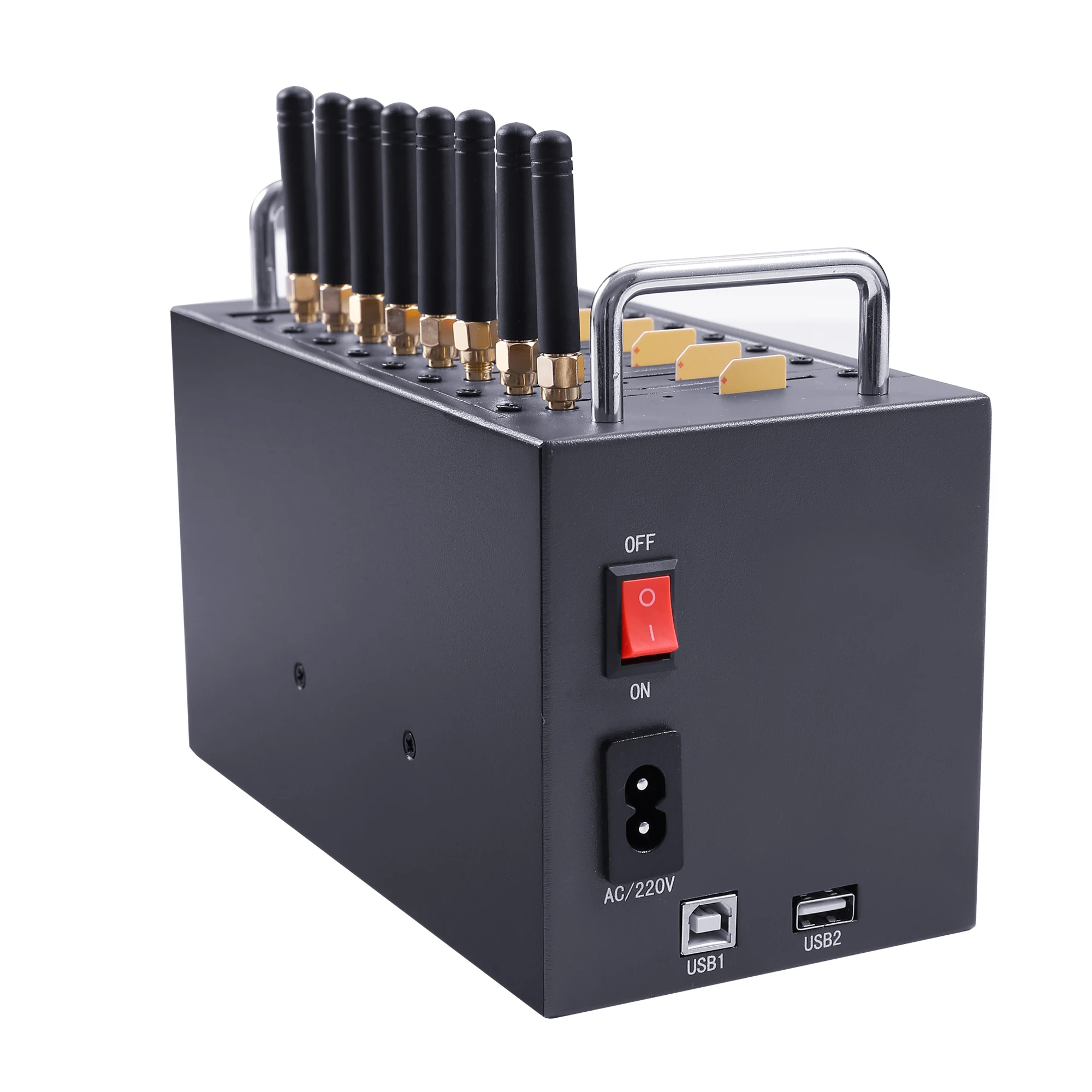

Fast Sending Speed LTE 4G SMS Modem 8 Ports 4G Bulk Sms Modem Sms Broadcast Gateway Gsm Modem
- Category: >>>
- Supplier: Shenzhen TYH Technology Co. Ltd.
Share on (1600729641279):
Product Overview
Description

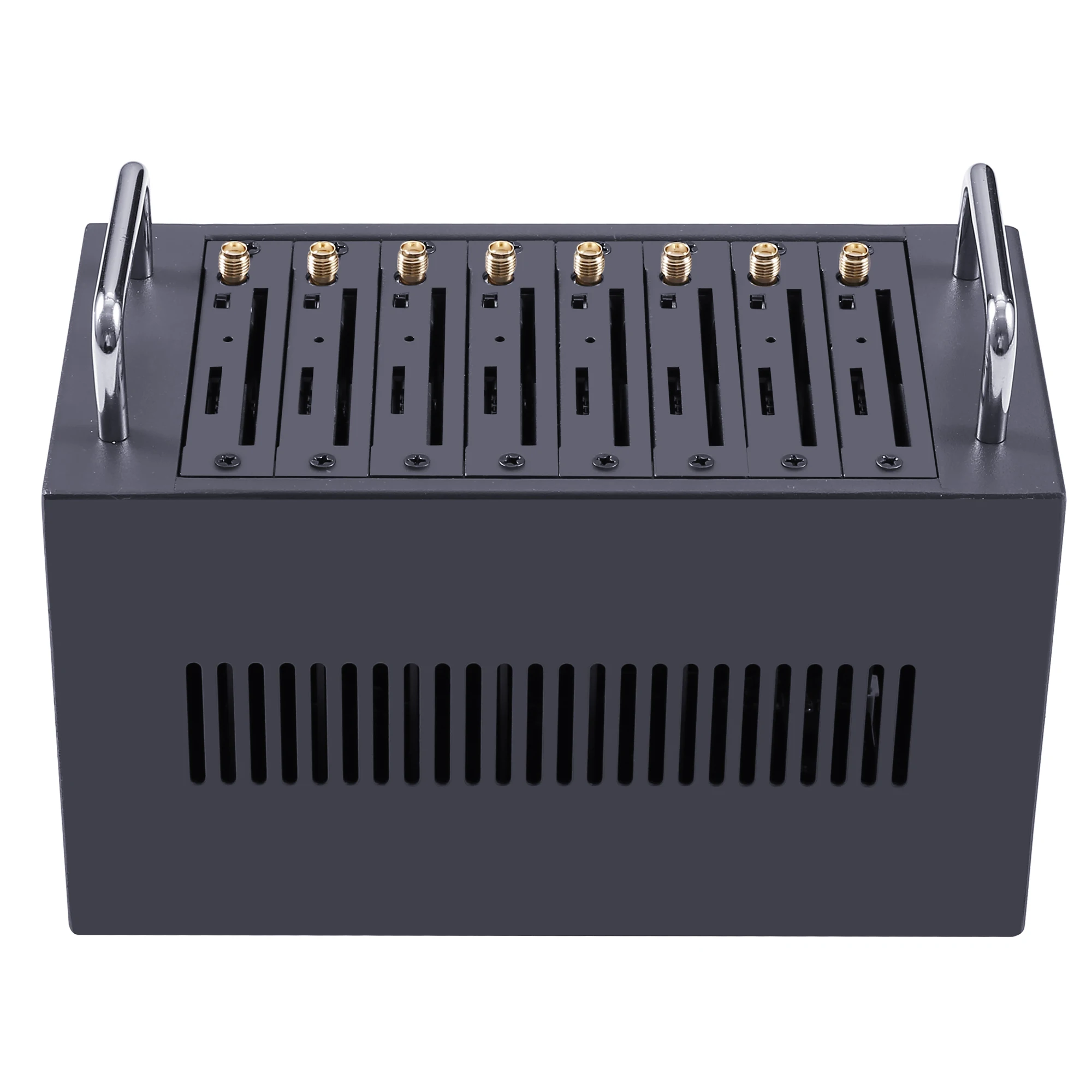

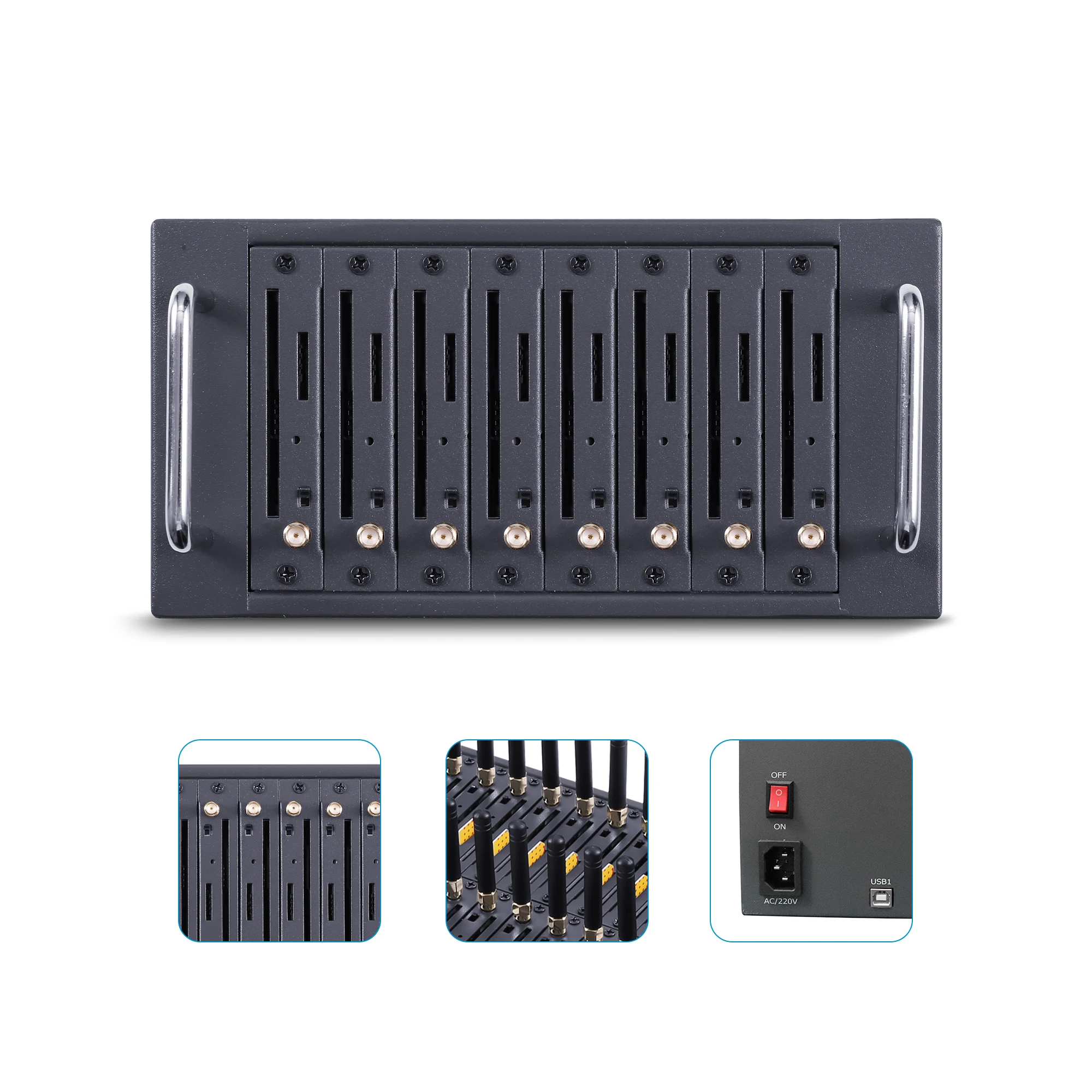

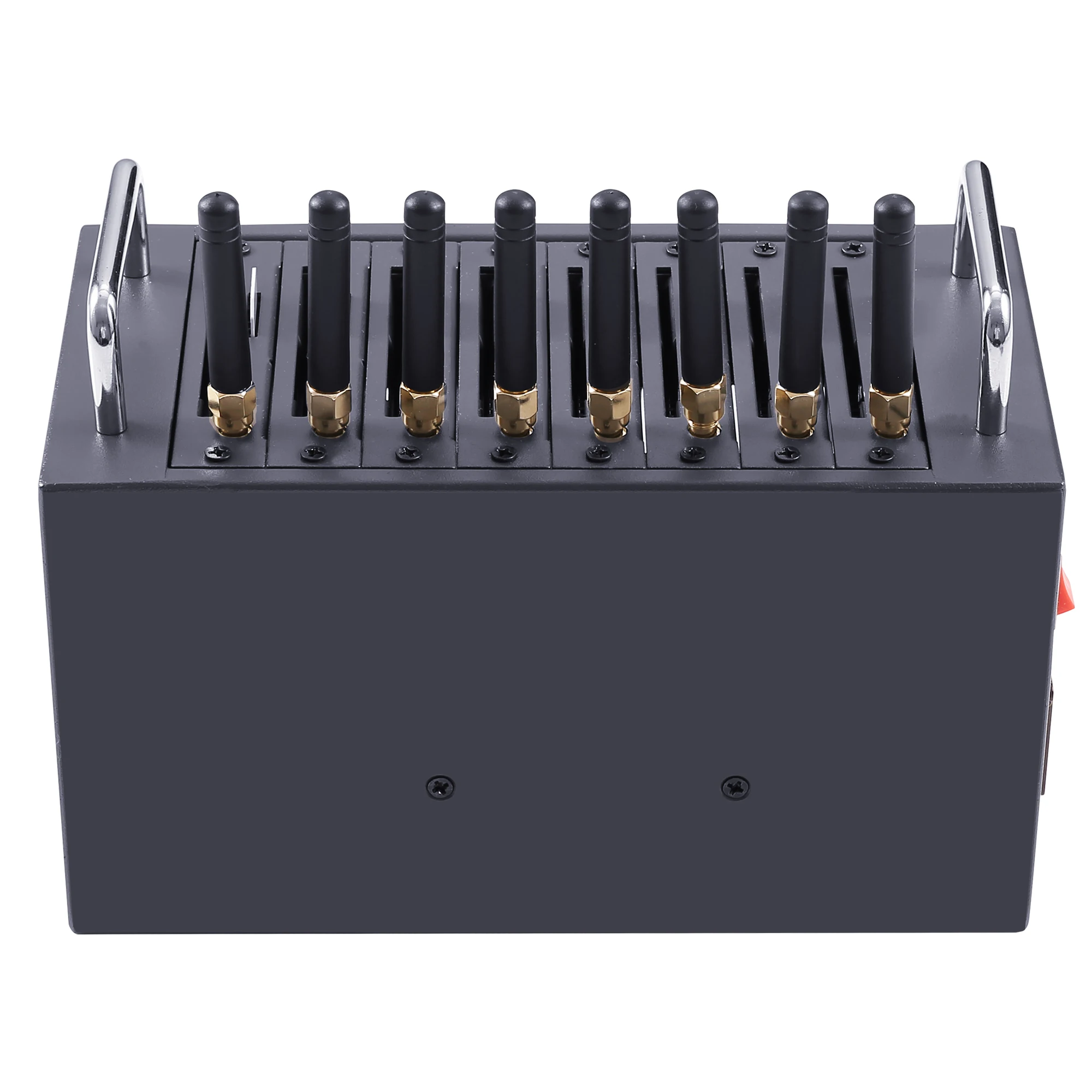

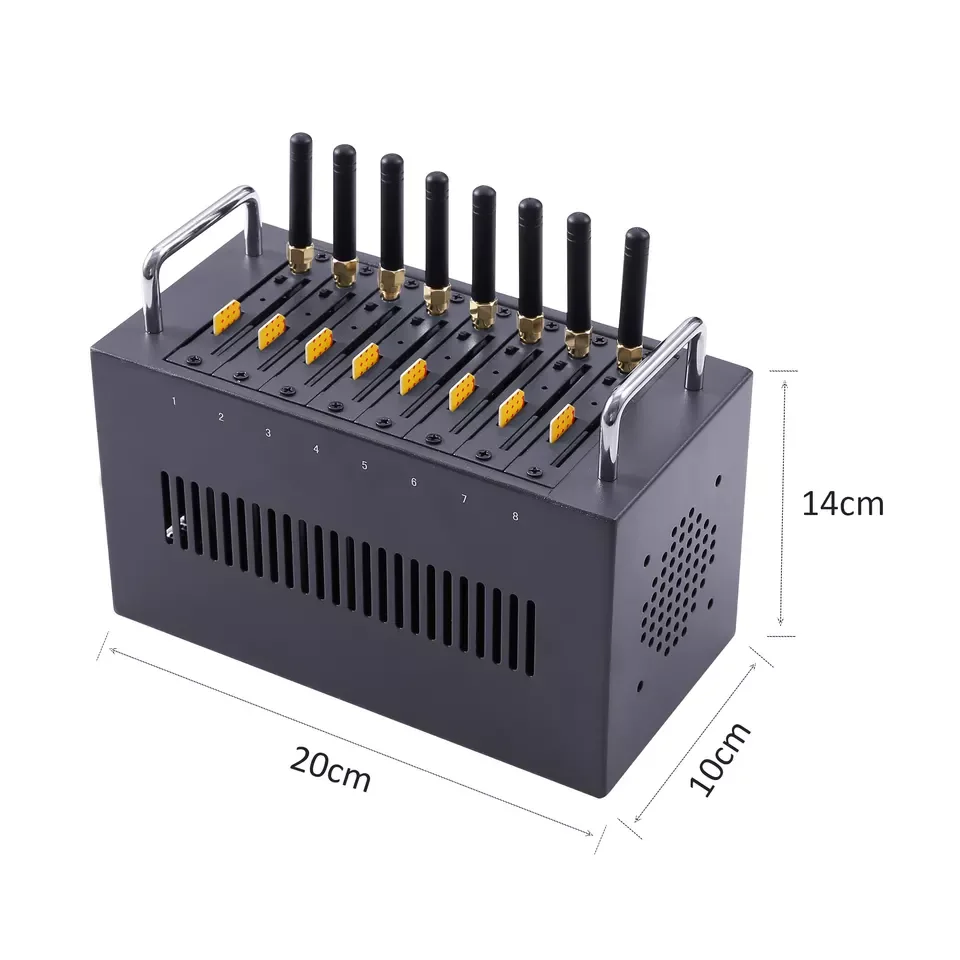

Fast Sending-Speed LTE 4G SMS Modem 8 Ports 4G Bulk Sms Modem Sms Broadcast Gateway Gsm Modem
GSM MODEM 8 Port is actually a kind of equipment used for sending and receiving Message. It needs a mobile phone card to support just the same as we use cellphone. In the need to send Message, put card into the device, link power and connect a pc through the USB cable. Then we can realize the function of the sending and receiving Message by using the relevant computer management softwarewe.
Highlights
• 8 x card (big/small)
• Receive/ Send Message
• IMEI Changeable
• AT Command, Voice Call via AT Command
• 2G/3G/4G network Optional, 1/8/16/32/64 Ports Optional
• Free Software ( Caster)
• 8 x card (big/small)
• Receive/ Send Message
• IMEI Changeable
• AT Command, Voice Call via AT Command
• 2G/3G/4G network Optional, 1/8/16/32/64 Ports Optional
• Free Software ( Caster)
Model | 4G GSM 8 Port Modem |
Module | EC25 EG91 |
Simslot | 8 |
Weight | 2KG |
Software | Caster(free) |
Quectel | 2G 3G 4G |
Sending Speed | 2G: 1000sms/hour/port 3G: 2000sms/hour/port 4G: 2800sms/hour/port |
Name | LTE 4G 8 Port modem |
Optional Model | 1,8, 16, 32.64 Ports |
Send & Receive Message IMEI Change AT Command Send USSD Voice Call | |
2G: M26 M35 3G: UG96, UC20 4G: EC25-AUX/EUX/AFX/EG91 | |
SMS | Support Text and PDU mode |
Power consumption | Voltage : 3.6V Class4(2W@850/900MHz) Class1(1W@1800/1900MHz) |
Input | 110~240AC/50~60HZ |
Interface | USB 2.0 & USB 3.0 |
Protocol | TCP/UDP/PPP/MMS/HTTP/HTTPS/SMTP/ SMTPS/FTP/NTP/NITZ/PING/SSL |
Compaitible System | windows 2008 R2, Windows 7, Vista, XP, 2006/2000, 98SE/CE, LINUX. |
Key Feature
● 8 channels work at the same time
●Insert 8 cards (big or small)
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●Wireless access to internet
●Comply with GSM phase2 standard
●USB interface
●Optional data, voice function
●Send and receive English SMS/MMS in bulk
●Connection with the computer through a data line be integrated with Serial 8
●Each channel with separate power switch
●Each individual module be demolished
●Industrial chassis, elegant shell
●Wireless access to internet
●Comply with GSM phase2 standard
●USB interface
●Optional data, voice function
●Send and receive English SMS/MMS in bulk
●Asynchronous, transparent or non-transparent, to a maximum 14400bits/s
●Baud Rate: 300-115200bits/s
●Baud Rate: 300-115200bits/s
●Automatic baud rate:2400-19200 bits/s
Basic Feature
● Message, Long content , Flash , MMS (Picture content /Voice content ),Need Software Support
● GSM 07.07,07.05 and other AT Extended instruction
● Support for software development based on AT instructions
●AT Instruction GSM 07.07,07.05 and other AT Extended instruction
●Support for software development based on AT instructions
●Fax support three ●Switched voice and fax
●V. 42, V. 42bis ●GPRS compatible
●Wap compatible
● Support for software development based on AT instructions
●AT Instruction GSM 07.07,07.05 and other AT Extended instruction
●Support for software development based on AT instructions
●Fax support three ●Switched voice and fax
●V. 42, V. 42bis ●GPRS compatible
●Wap compatible

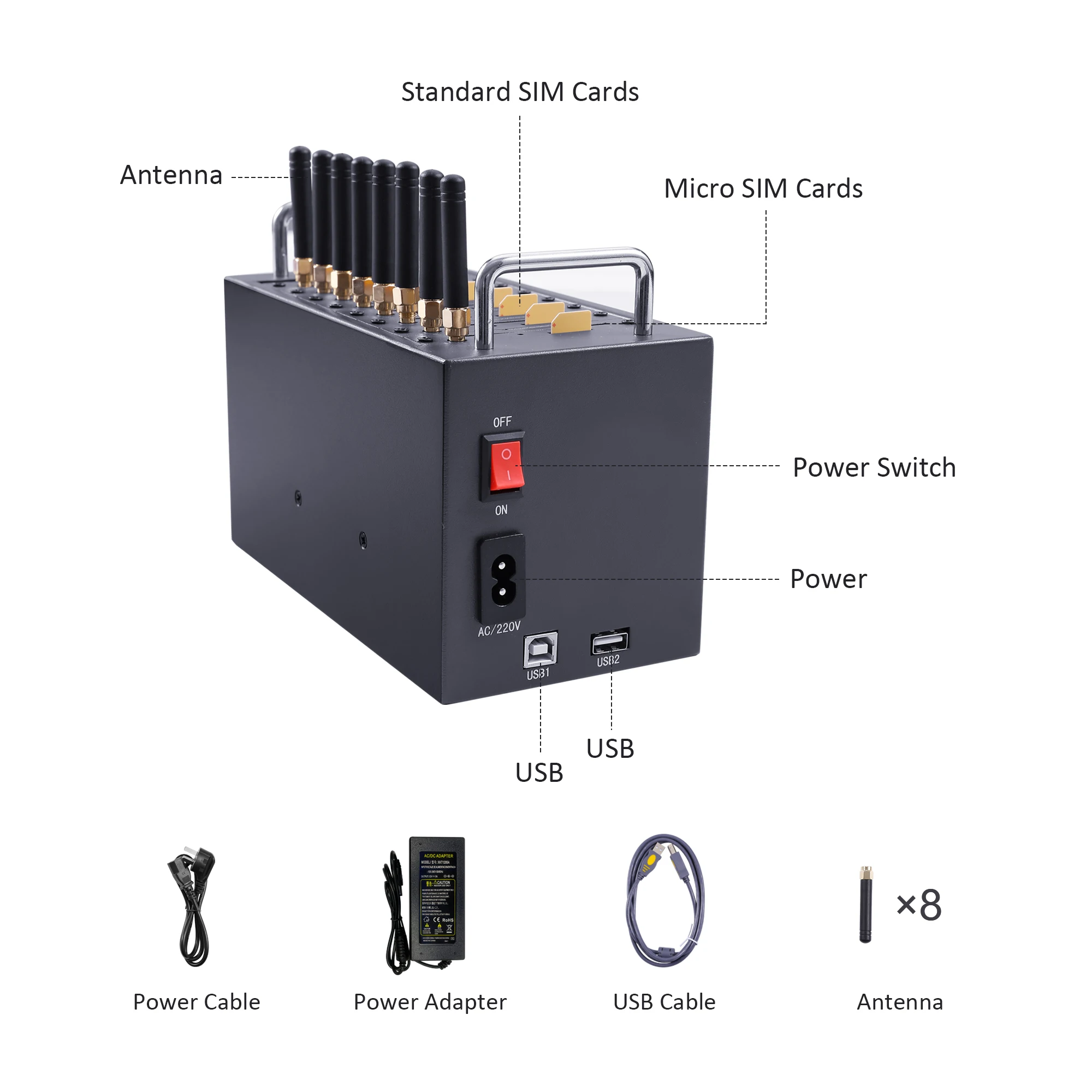

●SMA Antenna Interface
●SIM Card Outlet
●SIM Card Outlet
●Power connector
●RS-232, the Mini-dB-9 connector
●RS-232, the Mini-dB-9 connector
Applications
* Large shopping malls, supermarkets
* Professional market, large wholesalers
* Large hotels, large-scale entertainment
* Large agencies
* Transport, logistics industry
* Large enterprises, and institutions
* Large hospitals, large bookstore
* Newspaper, television and radio stations
* Oil Company ( other chain business model)
* Government agencies or large township
* Professional market, large wholesalers
* Large hotels, large-scale entertainment
* Large agencies
* Transport, logistics industry
* Large enterprises, and institutions
* Large hospitals, large bookstore
* Newspaper, television and radio stations
* Oil Company ( other chain business model)
* Government agencies or large township
Funtion
* Using test Marketing for your Business
* APP OTP code
* Broadcast your marketing text messages
* Broadcast your marketing text messages
* Send Message to promotions products
* Send your customer a notification when their order is being delivered
* Send your customer a notification when their order is being delivered
* Message is a way for businesses to keep in touch with their customers. It costs very little and can be used as a great tool to get new business leads.
What is Message in marketing?
Message is a way for businesses to keep in touch with their customers. It costs very little and can be used as a great tool to get new business leads.
Is Message marketing effective?
With a clear Test marketing strategy, you can enjoy a higher customer retention rate, and grow your audience at an incredible speed.
How do I start marketing?
Getting started with Test marketing is simple. You only need a few things Like
GSM Modem , card , Internect , PC , which will help you easy to start it come up.
1: Every day, about Over 2 billion call and text are sent all over the world Over 80% of mobile phone users use Message or text, making
2: it the most common cell phone activity. Text messages have a 98% open rate, 45% response rate ,
2: it the most common cell phone activity. Text messages have a 98% open rate, 45% response rate ,
90% of all text messages are read
3: in under 3 minutes. A whopping 75% of people would like to have offers sent to them via Message.
3: in under 3 minutes. A whopping 75% of people would like to have offers sent to them via Message.

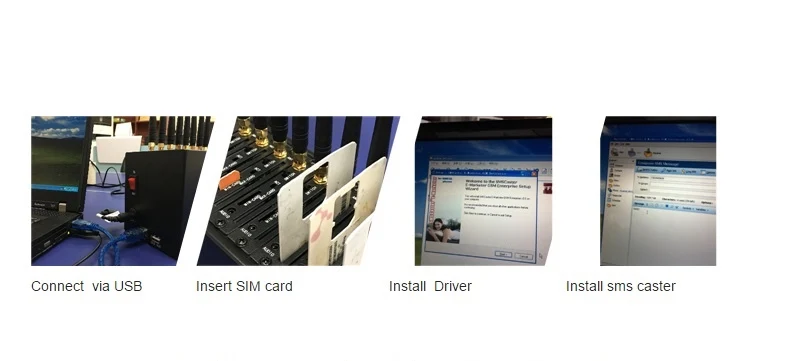

How to use
1. Connect via USB ,Install Caster like common software and close it after installing successfully
2.Connect the GSM MODEM to
computer correctly, and then there will be a prompt
from computer to install driver. Instill simcard
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting Caster program, all ports will be found.
computer correctly, and then there will be a prompt
from computer to install driver. Instill simcard
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting Caster program, all ports will be found.
platform Features | Batch send, multitasking, port split send, Intermittent send, Timed Send, Send Failed will try again(Limit the number of try) |
Support contact import, batch import of information, merge the same contacts, Contact grouping | |
Failed test view/export, unfinished task export/save, Outbox and inbox export | |
Code: GSM 7-bit,UCS2 16-bit | |
Auto reply (requires keyword setting) | |
nattended send |
▲Change IMEI/Send USSD/Call/Put in PIN/PUK code(AT command)

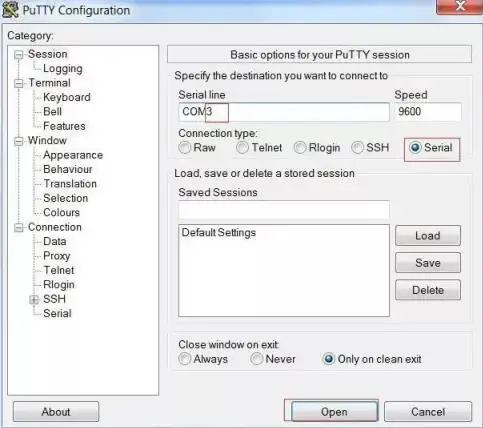

Download putty(we will send file to you), and open it, put in COM number, open it.
According to the following text instructions
●open Putty
●click " Serial"
● Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cgsn"//check IMEI
●at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134" if you put in imei is wrong ,it will reset or
keep old IMEI
●put in "at+cgsn"//check new IMEI
● Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cgsn"//check IMEI
●at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134" if you put in imei is wrong ,it will reset or
keep old IMEI
●put in "at+cgsn"//check new IMEI
●open Putty
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "ate1"
●put in "atd number;" for example: atd 0976006161;
●put in"ATH" hung off call
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "ate1"
●put in "atd number;" for example: atd 0976006161;
●put in"ATH" hung off call
3. Send USSD
●open Putty
●open Putty
●click " Serial"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cusd=1,"USSD command""
for example: at+cusd=1,"*097#"
●Input the com port in "Serial line" such as COM 1
●PUT IN "at&f"
●put in "at+cusd=1,"USSD command""
for example: at+cusd=1,"*097#"
4. Put in PIN/PUK code
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Product details
FAQ
Q1. How about our service??
A:We have professional engineers to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
Q2. What are the additional expense for the whole system operation except the modem?
Network, cards, Computer ,
Q3: How is the quality and after-sale service?
A: The warranty of all our products last 12 months. Were there any problems about our products quality, we could change a new product for you in any circumstance.
Q4: When can I get the goods?
A: We’ll deliver the product withindays after received payment. Besides, we have several delivery company you can choose.
Usually, you can receive the product within a week.
Q2. What are the additional expense for the whole system operation except the modem?
Network, cards, Computer ,
Q3: How is the quality and after-sale service?
A: The warranty of all our products last 12 months. Were there any problems about our products quality, we could change a new product for you in any circumstance.
Q4: When can I get the goods?
A: We’ll deliver the product withindays after received payment. Besides, we have several delivery company you can choose.
Usually, you can receive the product within a week.

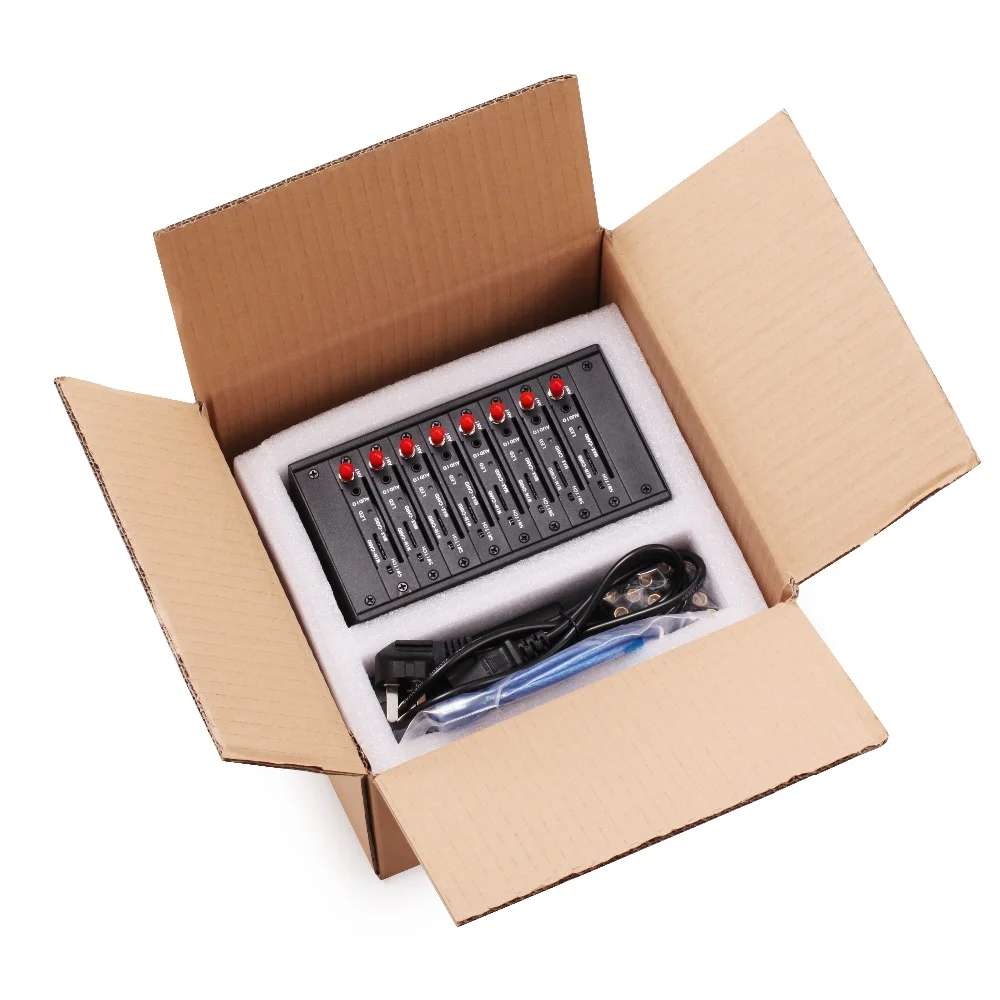

Packing & Delivery
Shipment | DHL, FedEx, UPS, EMS, TNT, Aramex, Special Line... We can recommend the suitable one as our experience |
Payment | Credit Card, E-checking, Visa, USDT, T/T, WebmoneyWe can try to arrange your local country account for payment conveninetly |
Delivery Time | 0-3 days after payment received |
Arrival Time | One week about |
