Product Overview
Description
Product Description

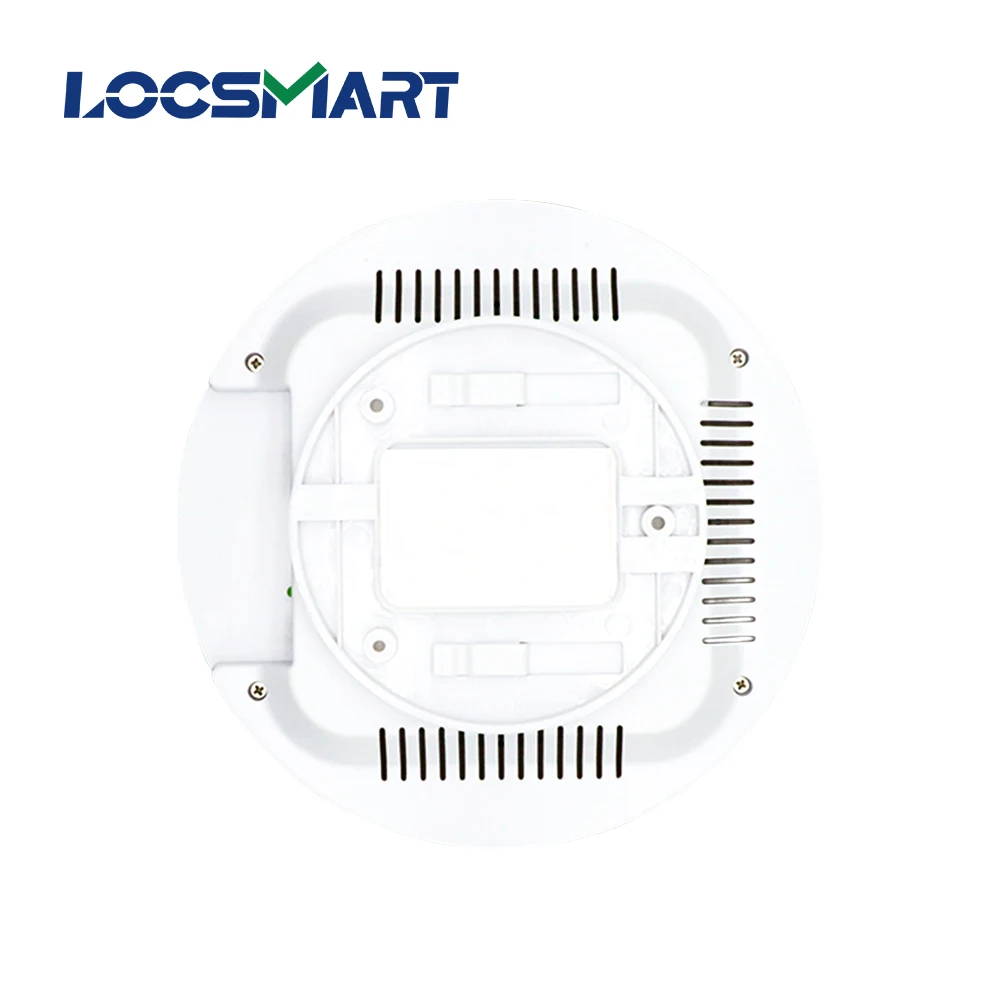

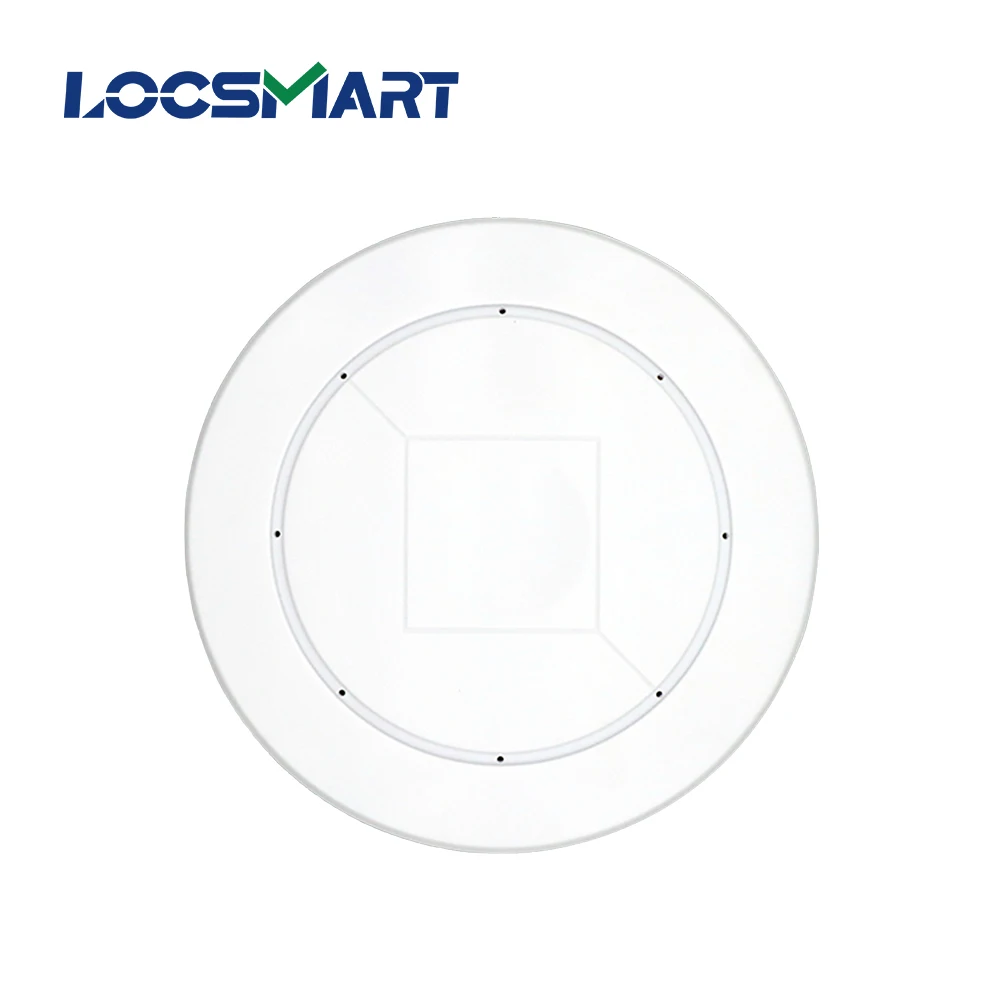

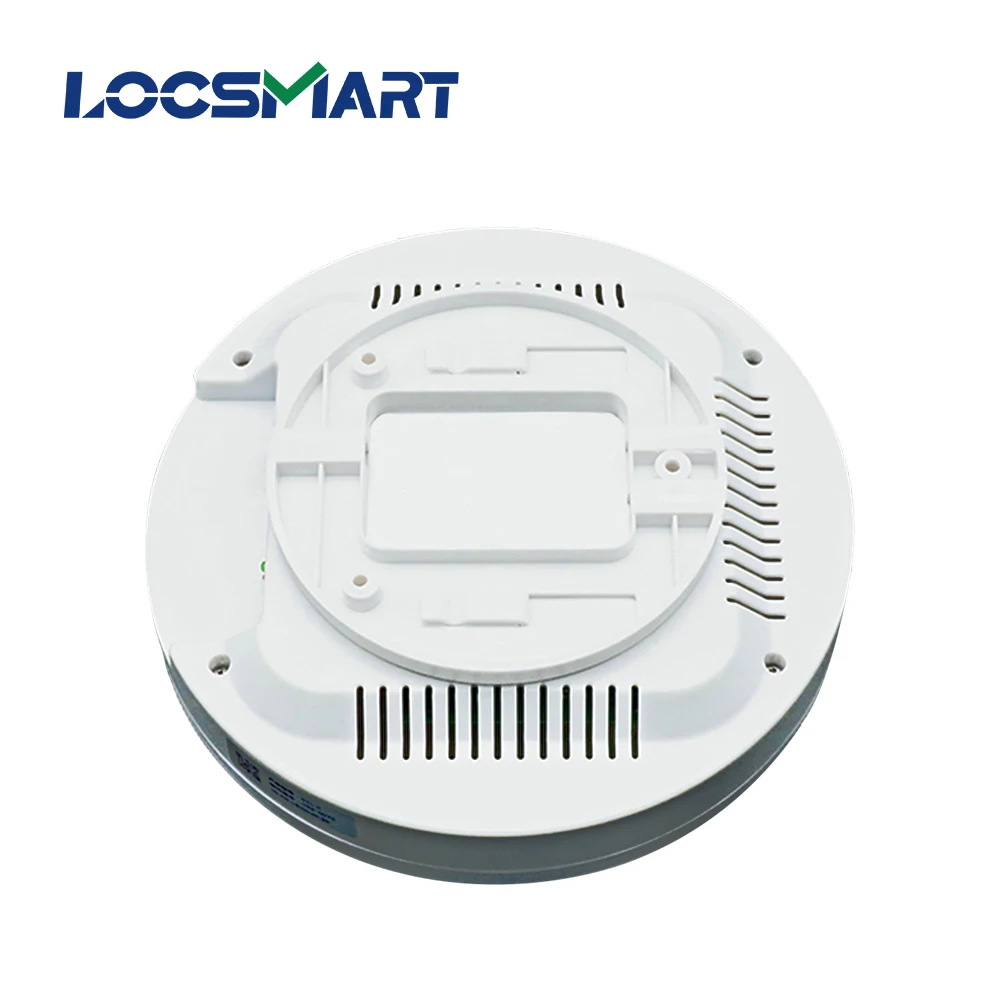

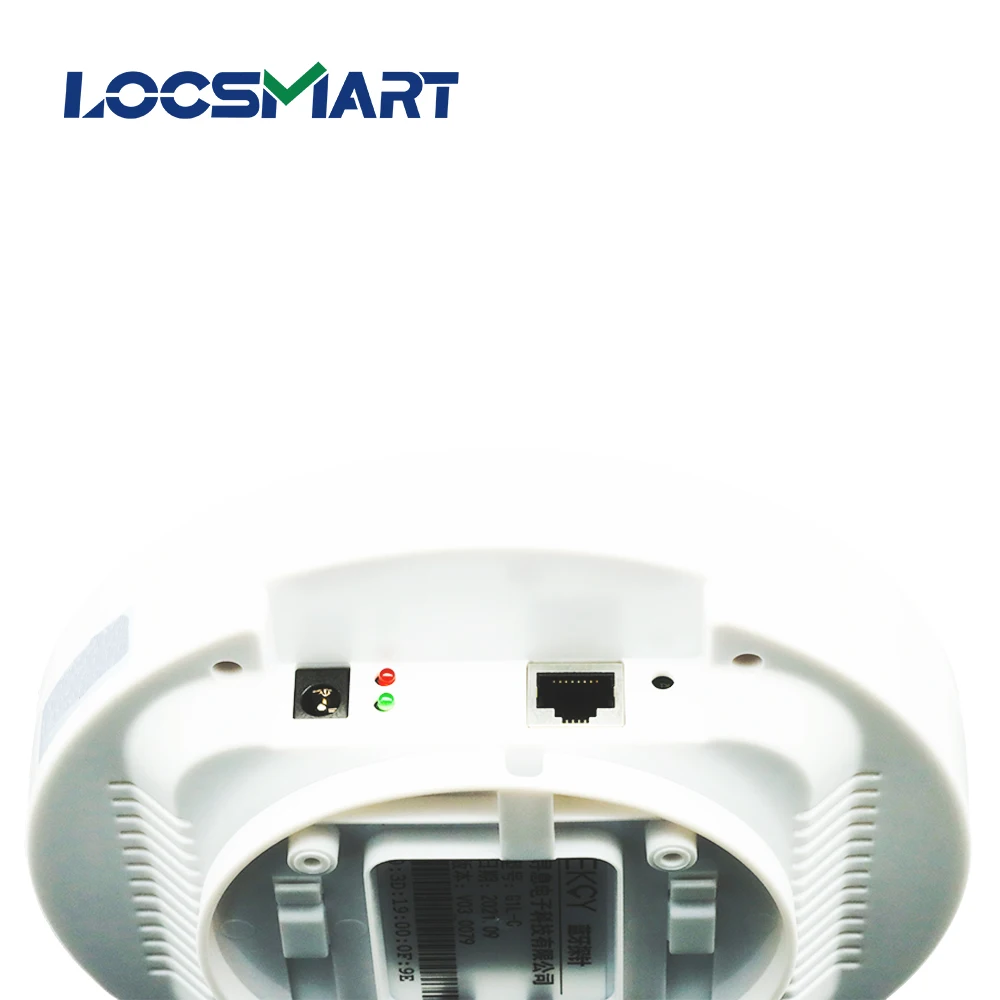

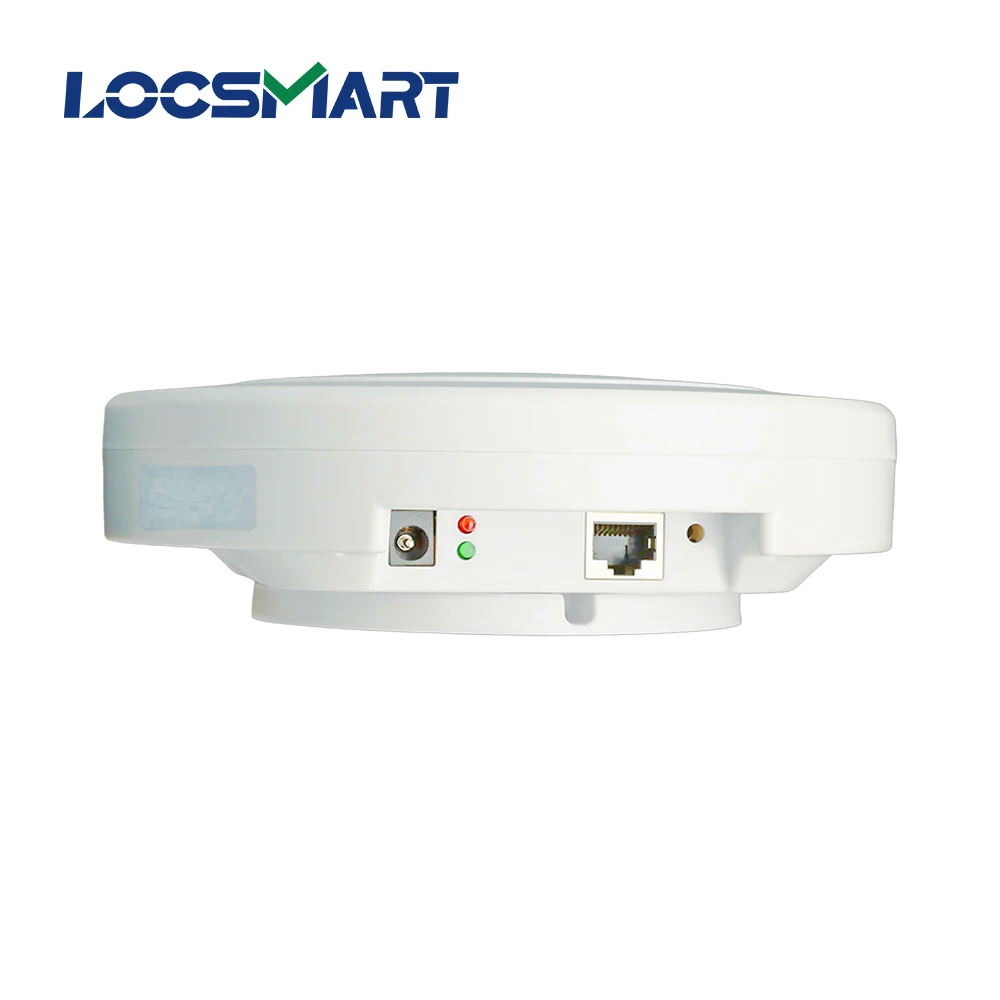

The G3 gateway is a Bluetooth low-power gateway for the detection and data acquisition of BLE devices. It connects the network through Ethernet and transmits data to help users quickly access the cloud server, avoiding the security and privacy problems caused by data flow.
The G3 gateway is designed to help users quickly achieve high-value location-based services and achieve special equipment for personnel or item positioning based on Bluetooth tags.
It can be widely used in warehousing, medical, retail and industrial applications to reduce costs and increase efficiency.
Specification
chip | TI CC2640R2 |
Bluetooth protocol | BLE 4.2 |
Battery parameter | battery-free |
Endurance time | There is no standby limit |
Operating voltage | DC 5V-1A |
Transmission current | 300mA |
Broadcast range | 50m |
antenna | PCB onboard |
Sensor parameter | NA |
Waterproofing class | IP53 |
Specification and size | 168mm*52mm (Φ*H) |
Weight (including battery) | About 210g |
Type of certificate | TBD |
color | White |
other | Accessories: Adapters, screws |
Installation mode | Power type: Power over Ethernet, which complies with the IEEE 802.3af POE standard |
Scenario application
1.Monitor and manage BLE Bluetooth devices and their wireless broadcast signals within signal coverage. 2. Parsing and identifying the data of BLE Bluetooth devices.
3.Used in Bluetooth indoor positioning system as a relay.
4.Collect or collect Bluetooth sensor data information ( such as temperature and humidity, illumination, CO2 concentration, etc. ), issued instructions ( switches, etc. ) to the sensor.
