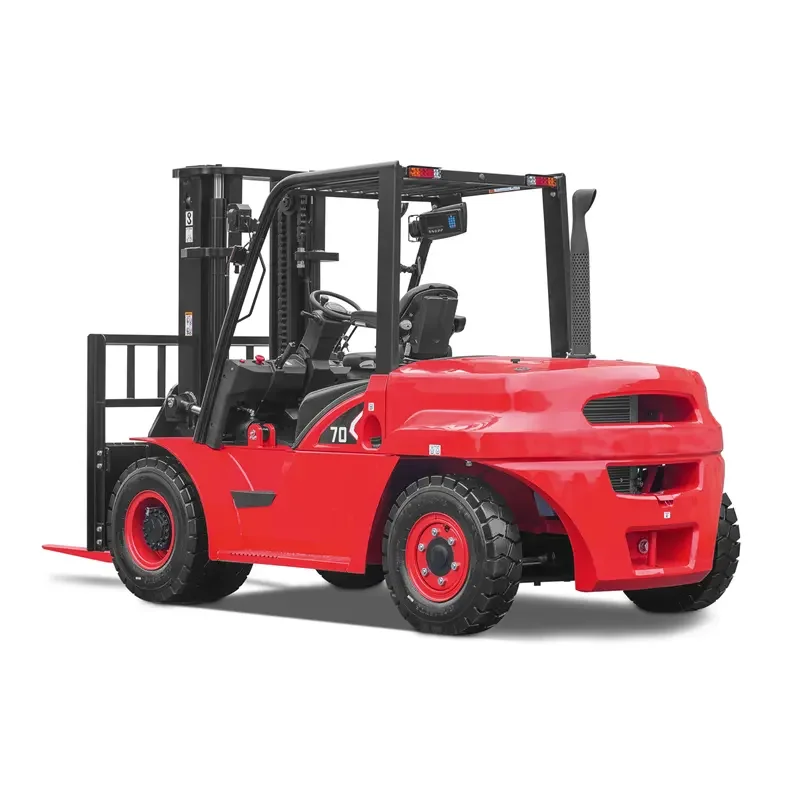

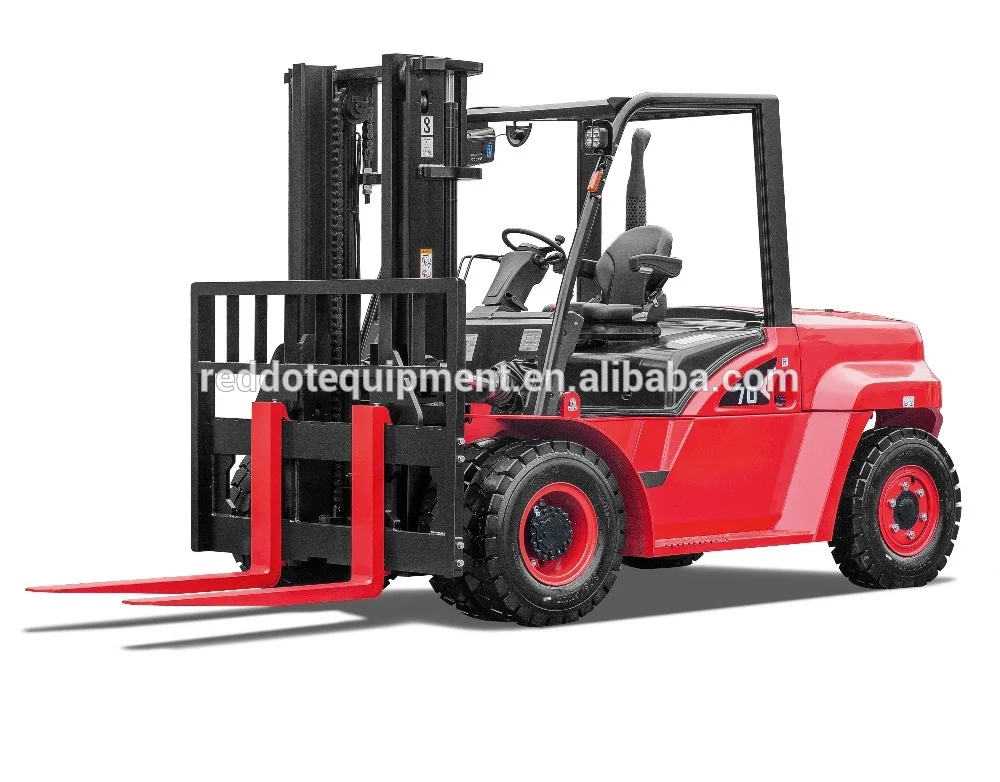

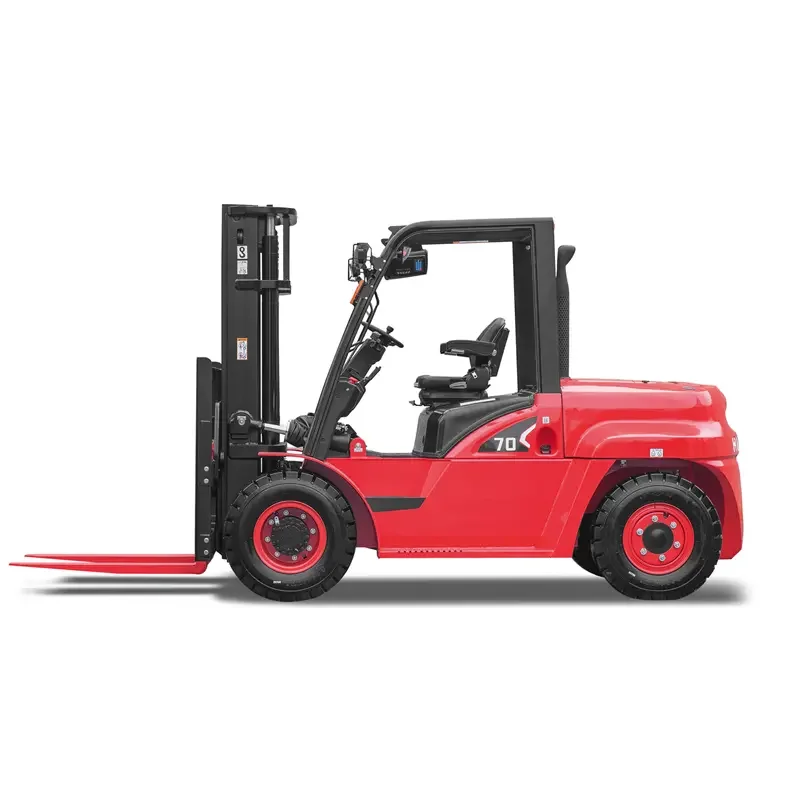

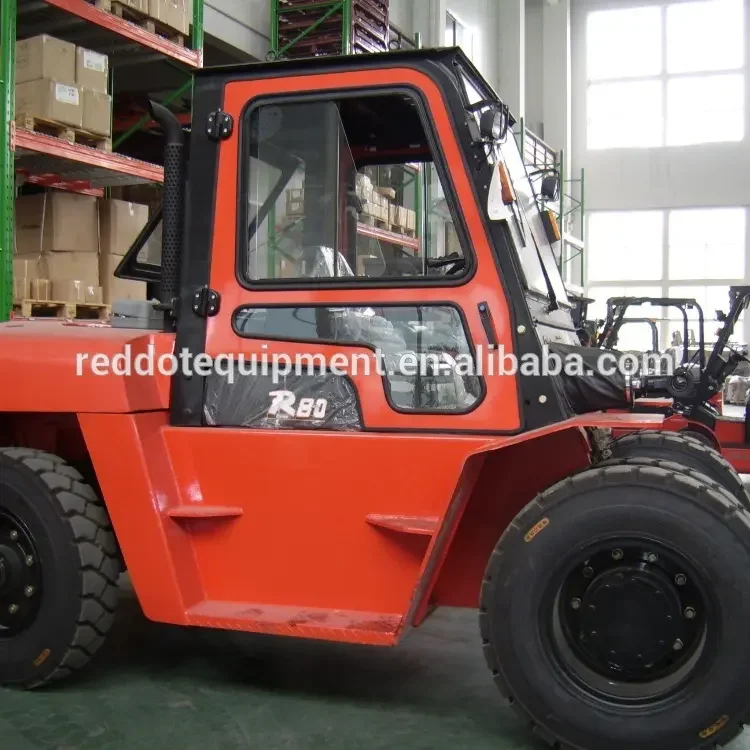

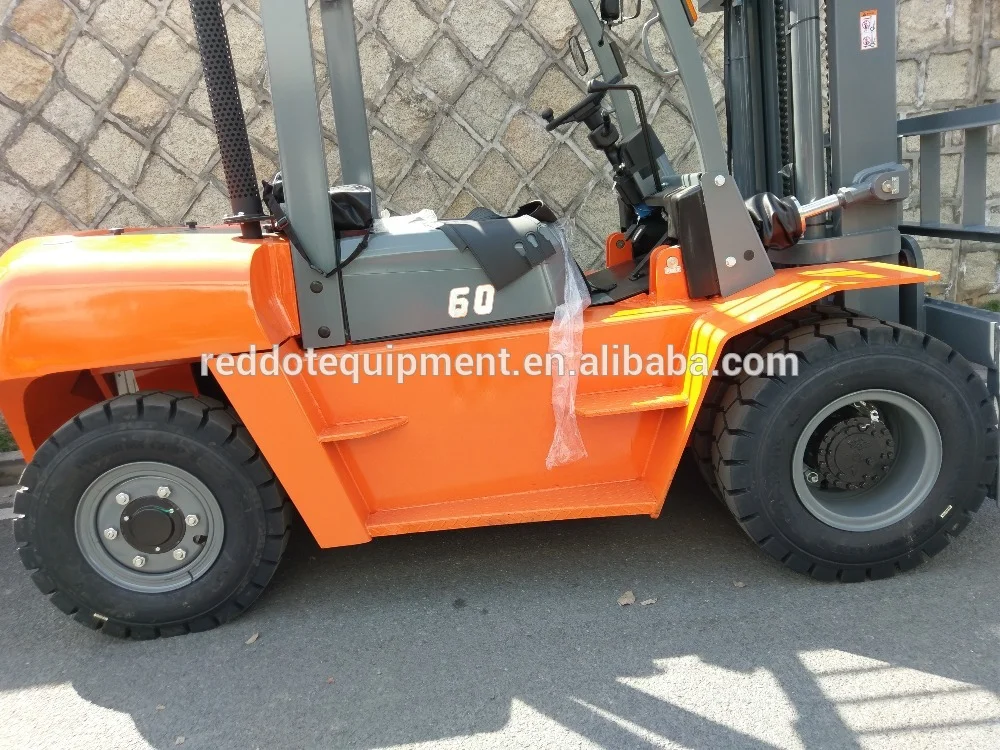

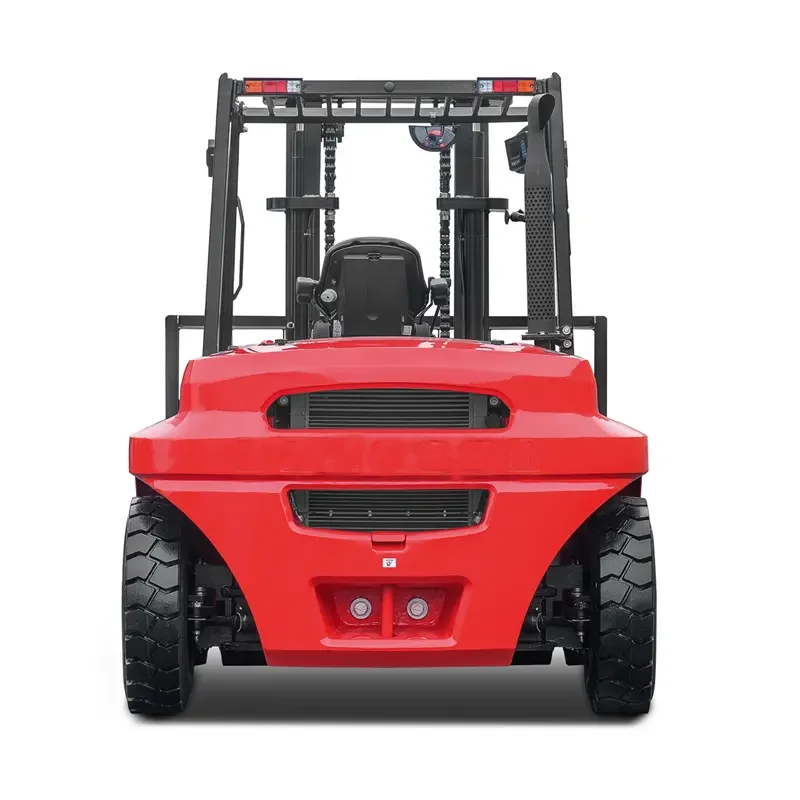

Factory Price 6 Ton Japan Engine 8000mm Lift High 6000kg Diesel Forklift Truck
- Category: >>>
- Supplier: Hangzhou Reddot Equipment Co. Ltd.
Share on (1600729649150):
Product Overview
Description
Product Description
Introduction-- The new generation R series forklift is combined with durability and ergonomics, providing productivity enmatched by other forklifts and the comfort for hours of tireless operation, Add friendliness to the environment, simple servicing, effciency on the job, high standards of safety---it' s the perfect tool for the most demanding application. Efficiency-- Thanks to the long wheelbase design, the longitudinal stability of whole truck is much better, the hoisting capacity at same lift height are enhanced by an average of 100kg ∞mpared with former truck. At the same time, it prolongs work time of rear wheel as the reduced rear axle's load. Increasing the hard proportion of hydraulic pipe, adopting right angle connector or straight through connector, that reduce the pressure loss of pipeline, and raise the lifting speed of mast, the speed is increased by an average of 10% compared with former truck. Turning radius and width of right angle stacking aisle are decreased through reducing the dimensions of whole truck, that raise the effiiciency of storehouse. Transmission & Engine-- The EP transmission(made in China with the Japanese technique) ,applies advanced structure and dependable function. The engine can be chosen among ISSUE, YANMAR and XINCHAI diesel engine. | Servicing-- Easy opened engine cover and one-touch removal of the floorboard get you right to service operation, and reduces down-time. The reasonable arrangement of fuse and installation of instrument, enable the replacing for fuse and maintenanæ for instrument more easy. Environment friendly-- The environment friendly engines all meet related emission control regulation. The noise emission also comes up to EU standard. The Metal hood and molding sound insulation matches environmental protection demands. Safety-- A throttling deviæ is set in pipe system, the mast won't result in failing ∞ntrol of mast even some pipes broke. By using a built-in hood lock deviæ, the safe level of the truck has been raised. Appearance-- The latest appearance design method was used to create the R series fluent and aesthetic outline , that matches the latest appearance trend. The large engineering plastic covering enables the whole truck looks friendly and natural. |
Operation-- Adopted advanced ergonomic technology optimizes the design of control system, improves the comfortable of operation much more. Adopted advanced vibration-reduction technology designs each part's vibration reduction, reduces the whole truck vibration. Among them, the hood is designed to full floating type, and vibration reduction device for steering axle enables the operation more comfortable. The torque converter models adopt electronic-hydraulic forward-reverse control technology, meaning less effort and less total time used during this often-performed function. Adopted recently developed redirector decreases the steering wheel force to 6-8N only ,that reduce 50% compared with former truck. The grease fittings and bushes added around the shaft of control mechanism decreases the force of pedal, that are reduced 30% compatred with former truck. | Cooling system-- Newly adopted combined type aluminum radiator improves the radiator cooling performance greatly. Advanced heat dissipation technology improves heat dissipation channel, that enhances the truck heat dissipation capability further, the water temperature is reduced 15% compared with former truck. Cylinder-- Oil seal rings used for tilting cylinder lifting cylinder and tuming cylinder all adopt the first class intemational product, the sealing performance has been proven through ten of thousands fatigue test. The soft landing system for lifting cylinder decreases the level of noise and shock when the mast lowered to termination phase. Brakes-- The 1-1. 8t forklifts all adopt the new type drum brake. waterproof slot on the brake drum and framework oil seal on the axle tube avoid water or oil entering the brake drum, enable the dependability of brake to raise consumedly. |
| Model | CPCD60-RG41 | CPCD60-RW14 | CPCD60-RW14B | CPCD60-RW38 | |
| Capacity | kg | 6000 | 6000 | 6000 | 6000 |
| Length to face of fork | mm | 3560 | 3510 | 3510 | 3510 |
| Overall Width | mm | 1990 | 1990 | 1990 | 1990 |
| Overhead Guard height | mm | 2340(2370*) | 2340(2370*) | 2340(2370*) | 2340(2370*) |
| Engine | CHINA,YUCHAI-YC4A115Z | ISUZU-6BG1QP | ISUZU-6BG1QP | CUMMINS-QSB3.3 | |
| Travel (No load) | km/h | 26 | 23 | 26 | 23 |
| Lifting (Full load) | mm/s | 400 | 400 | 400 | 400 |
| Min. right angle stacking aisle width | mm | 3860 | 3810 | 3810 | 3810 |
| (Add load length and clearance) | |||||
| Service weight | mm | 8400 | 8400 | 8400 | 8400 |
| Turning Raduis | mm | 3250 | 3200 | 3200 | 3200 |
| Min.right angle aisle width | mm | 2860 | 2810 | 2810 | 2810 |
| Ma×.gradeability ( Full load)* | % | 20 | 20 | 20 | 20 |
| Model | CPCD60-RW38B | CPCD60-RW19A | CPCD60-RW28 | |
| Capacity | kg | 6000 | 6000 | 6000 |
| Length to face of fork | mm | 3510 | 3510 | 3560 |
| Overall Width | mm | 1990 | 1990 | 1990 |
| Overhead Guard height | mm | 2340(2370*) | 2340(2370*) | 2340(2370*) |
| Engine | CUMMINS-QSB3.3 | NISSAN-TD42AA | CUMMINS-QSB4.5 | |
| Travel (No load) | km/h | 26 | 29 | 22 |
| Lifting (Full load) | mm/s | 400 | 400 | 400 |
| Min. right angle stacking aisle width | mm | 3810 | 3810 | 3860 |
| (Add load length and clearance) | ||||
| Service weight | mm | 8400 | 8400 | 8400 |
| Turning Raduis | mm | 3200 | 3200 | 3250 |
| Min.right angle aisle width | mm | 2810 | 2810 | 2860 |
| Ma×.gradeability ( Full load)* | % | 20 | 20 | 20 |

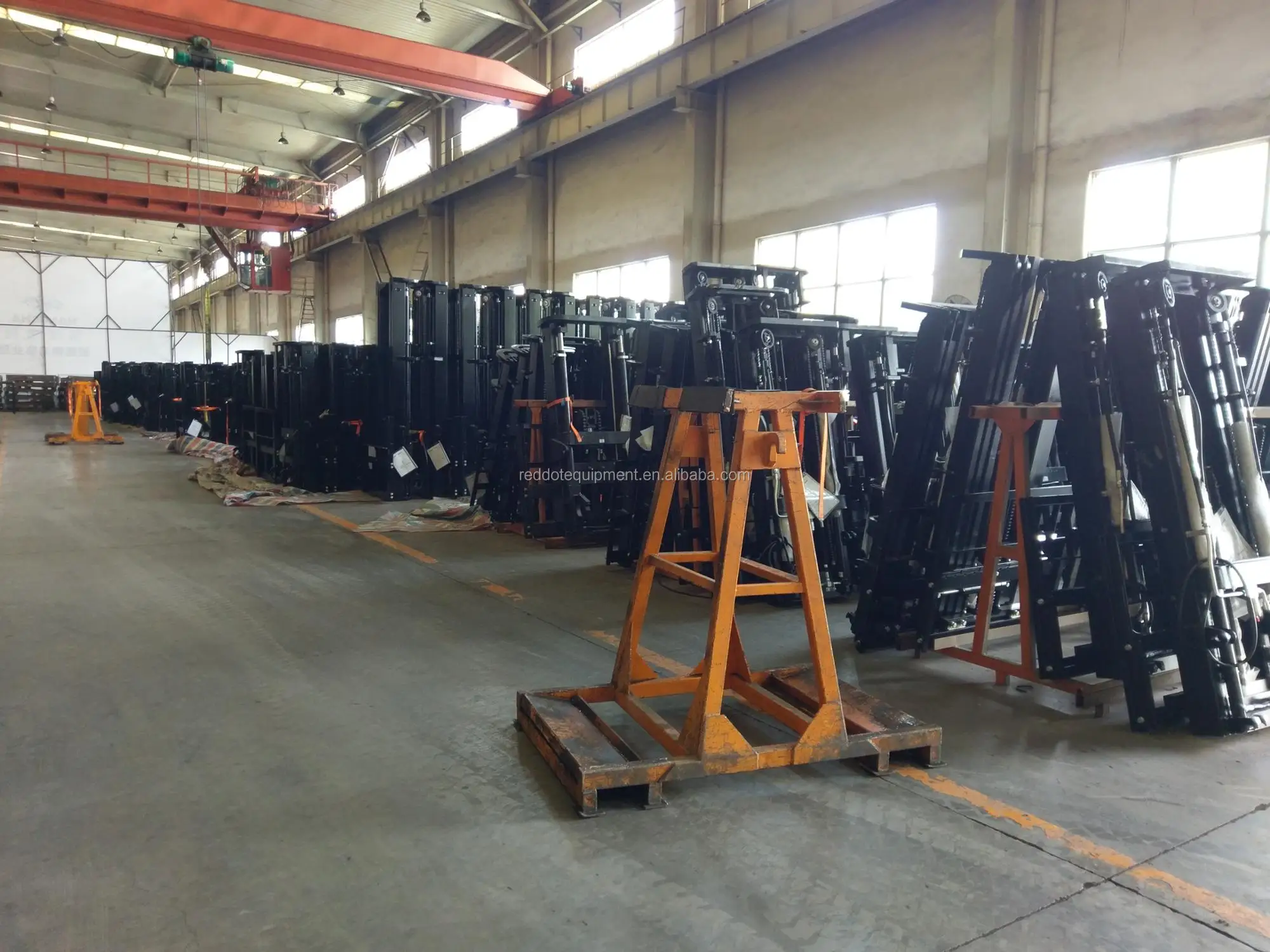

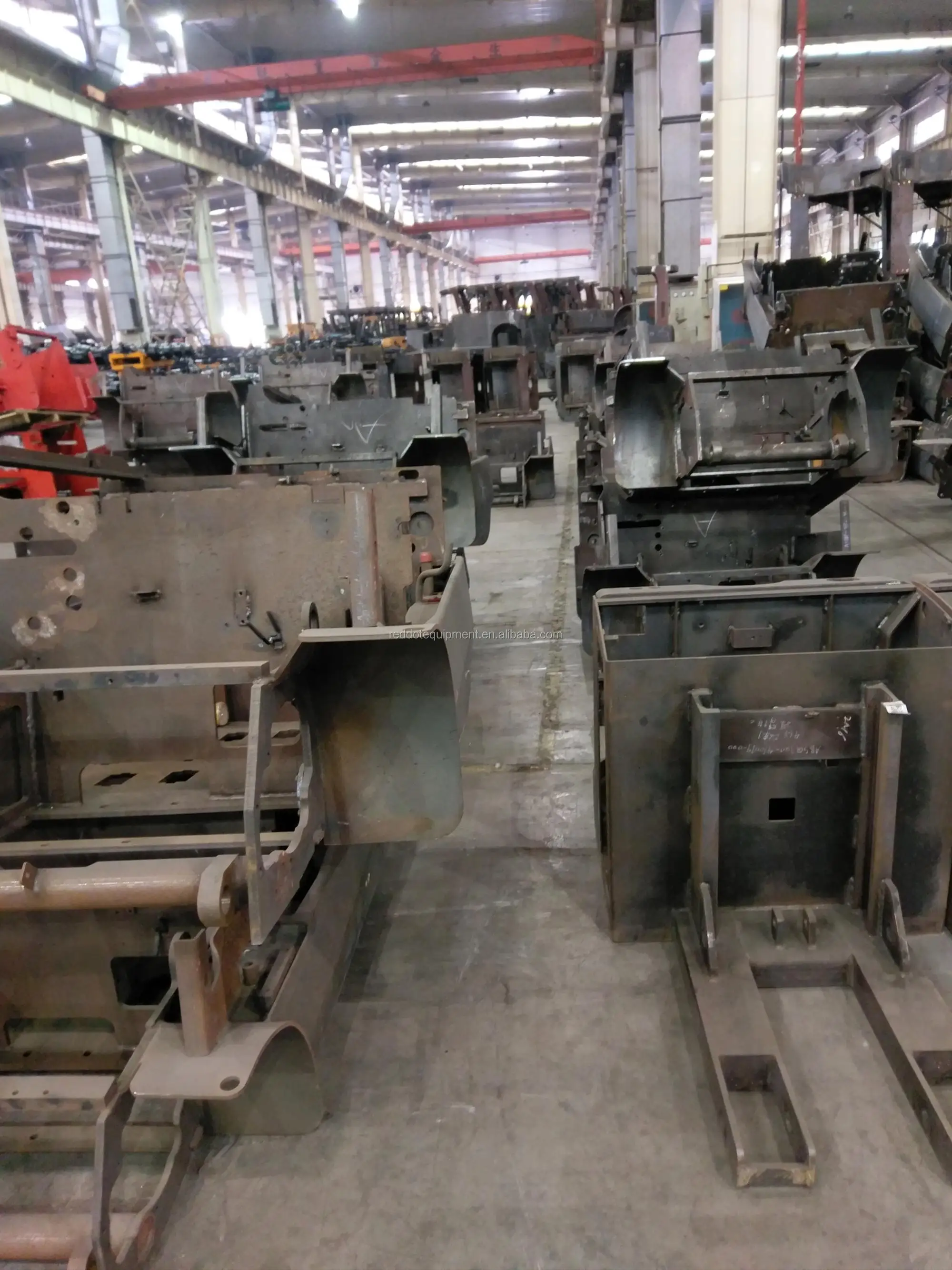

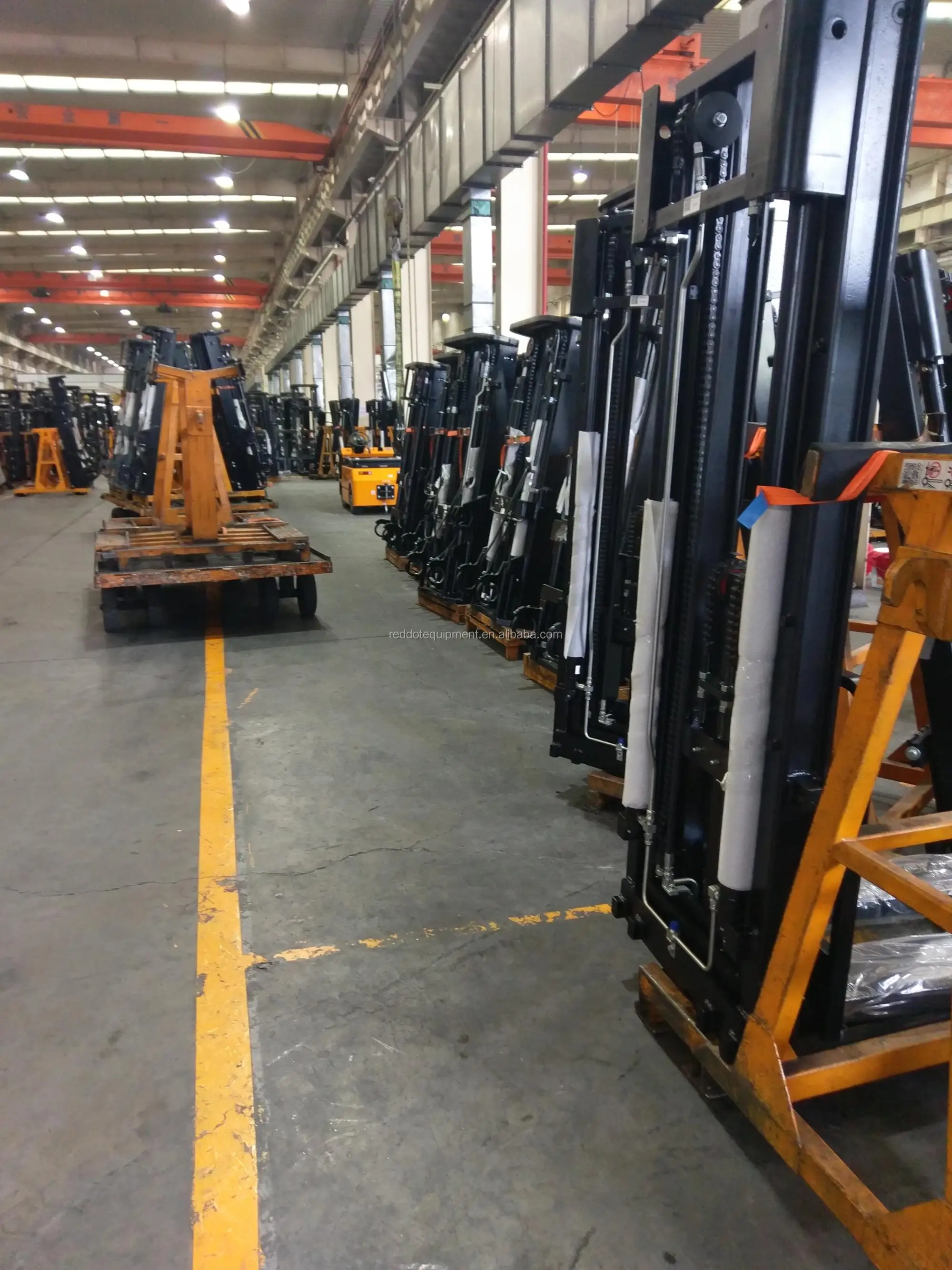

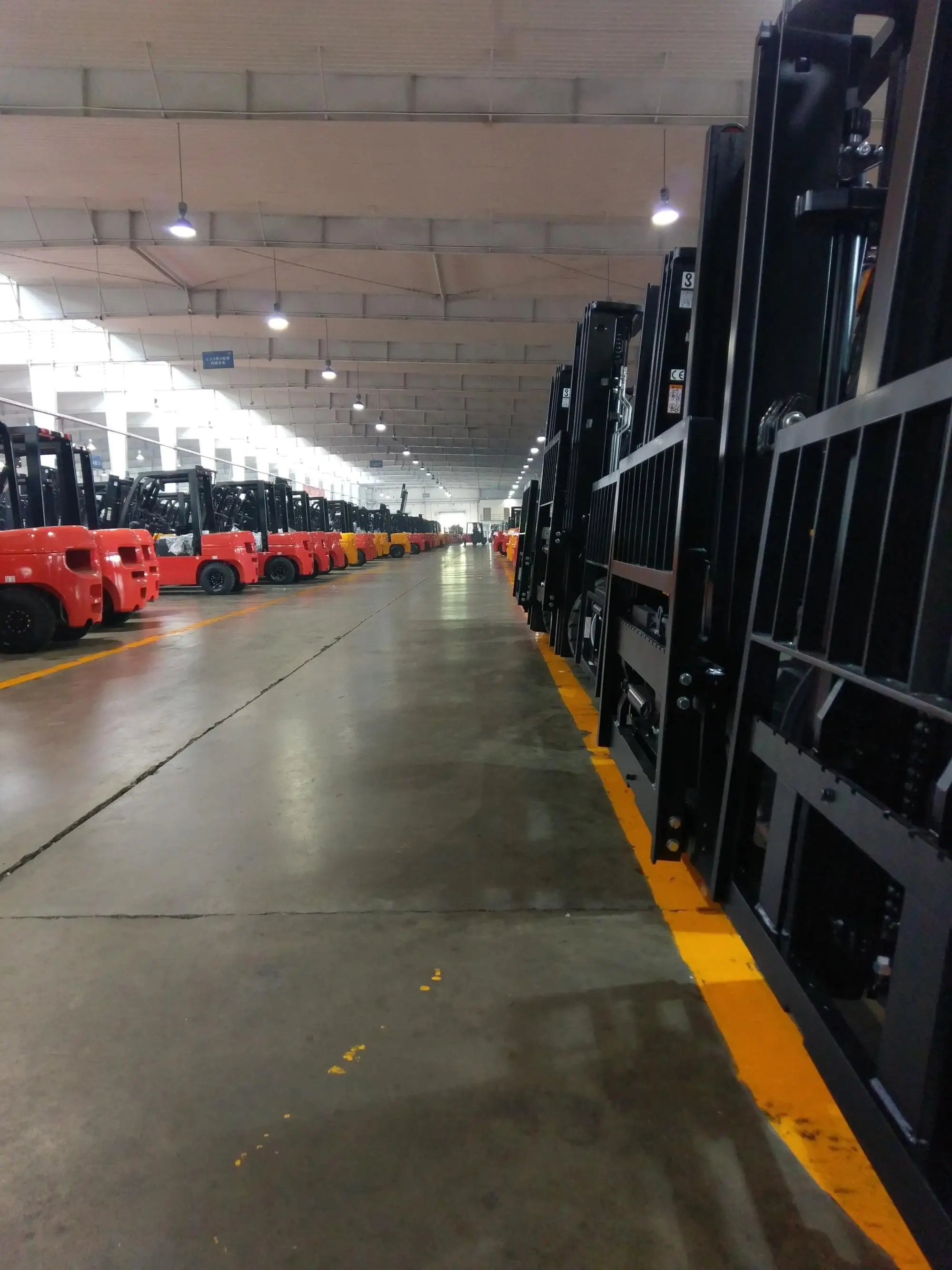

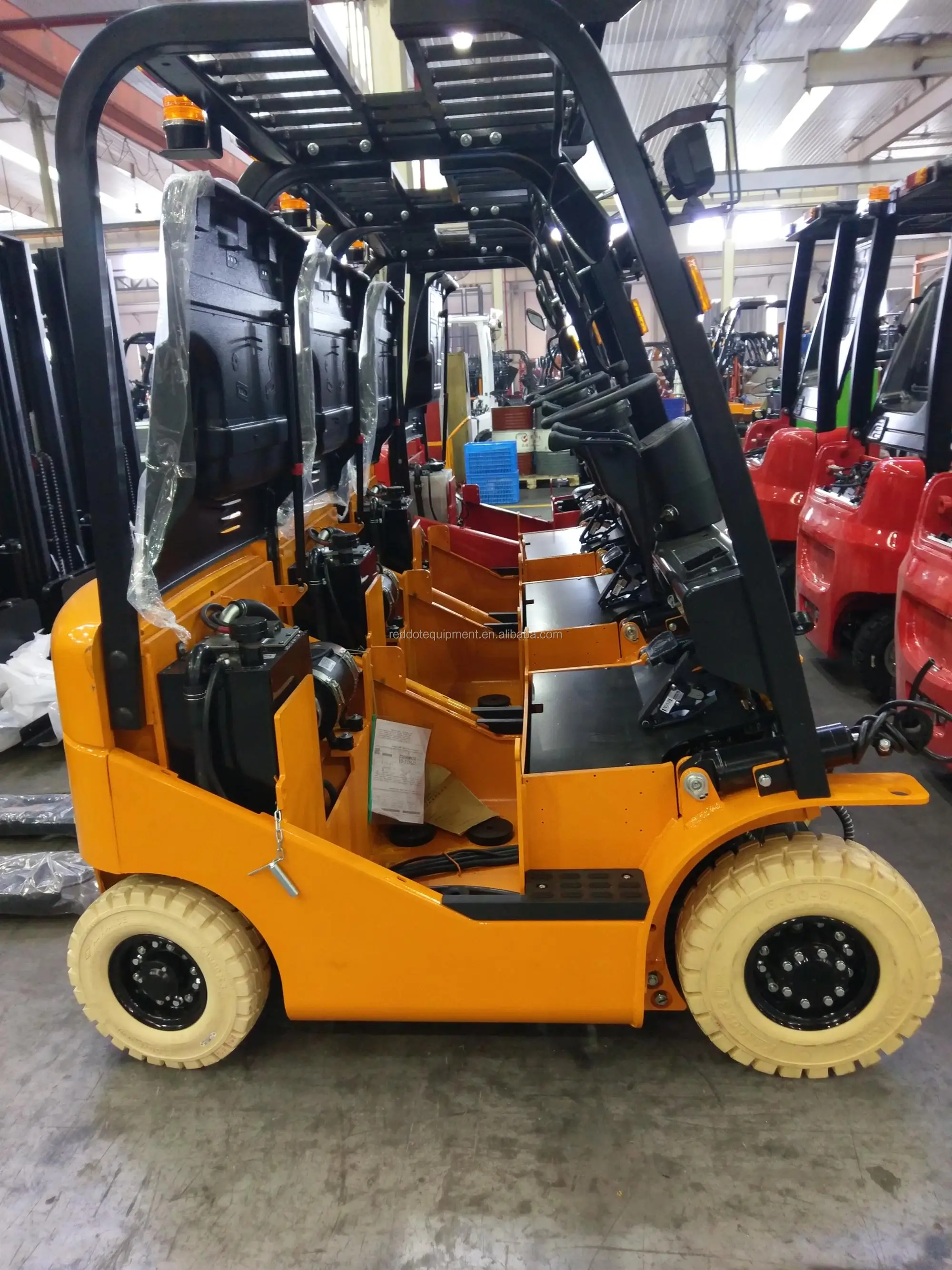

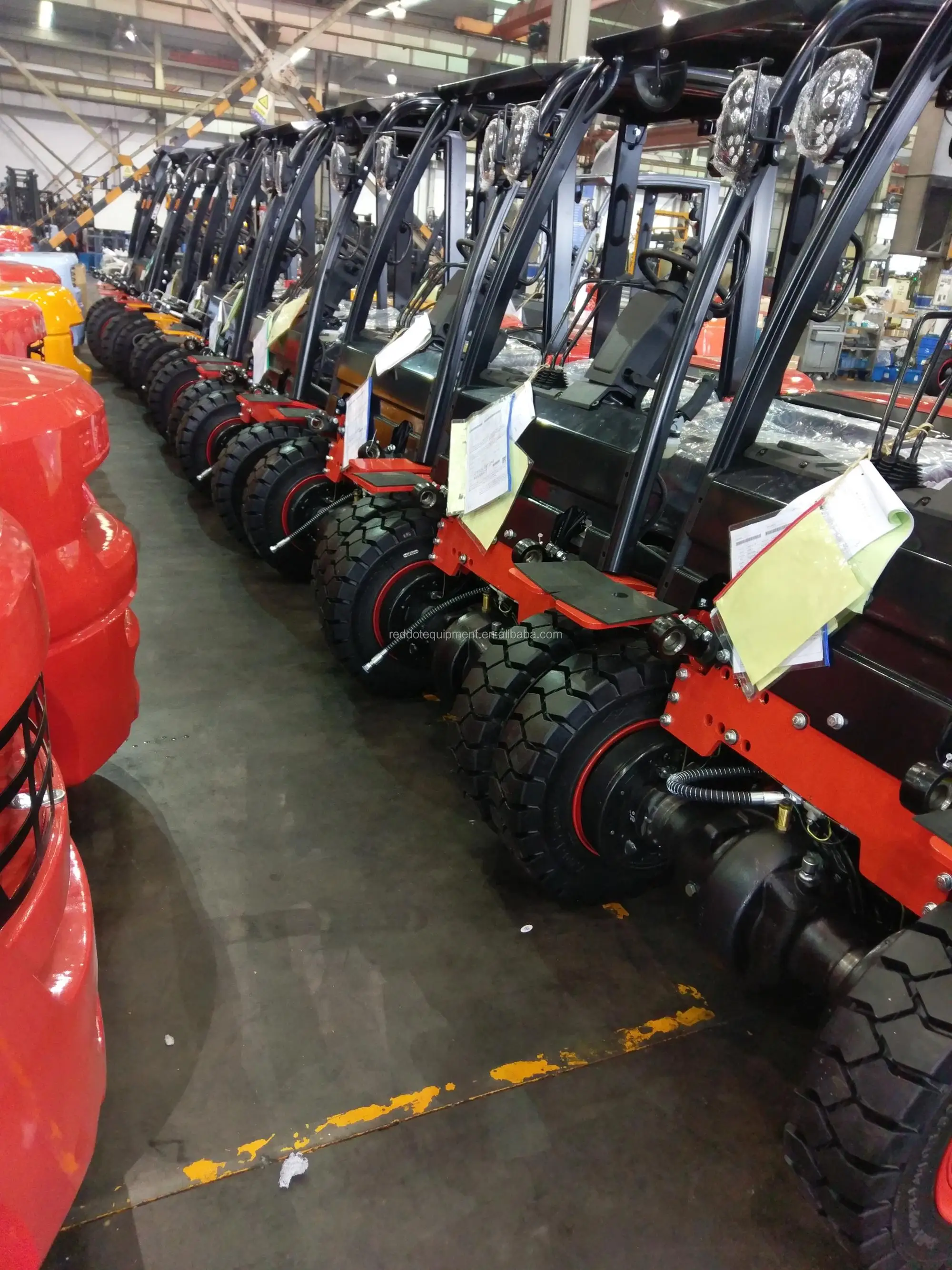

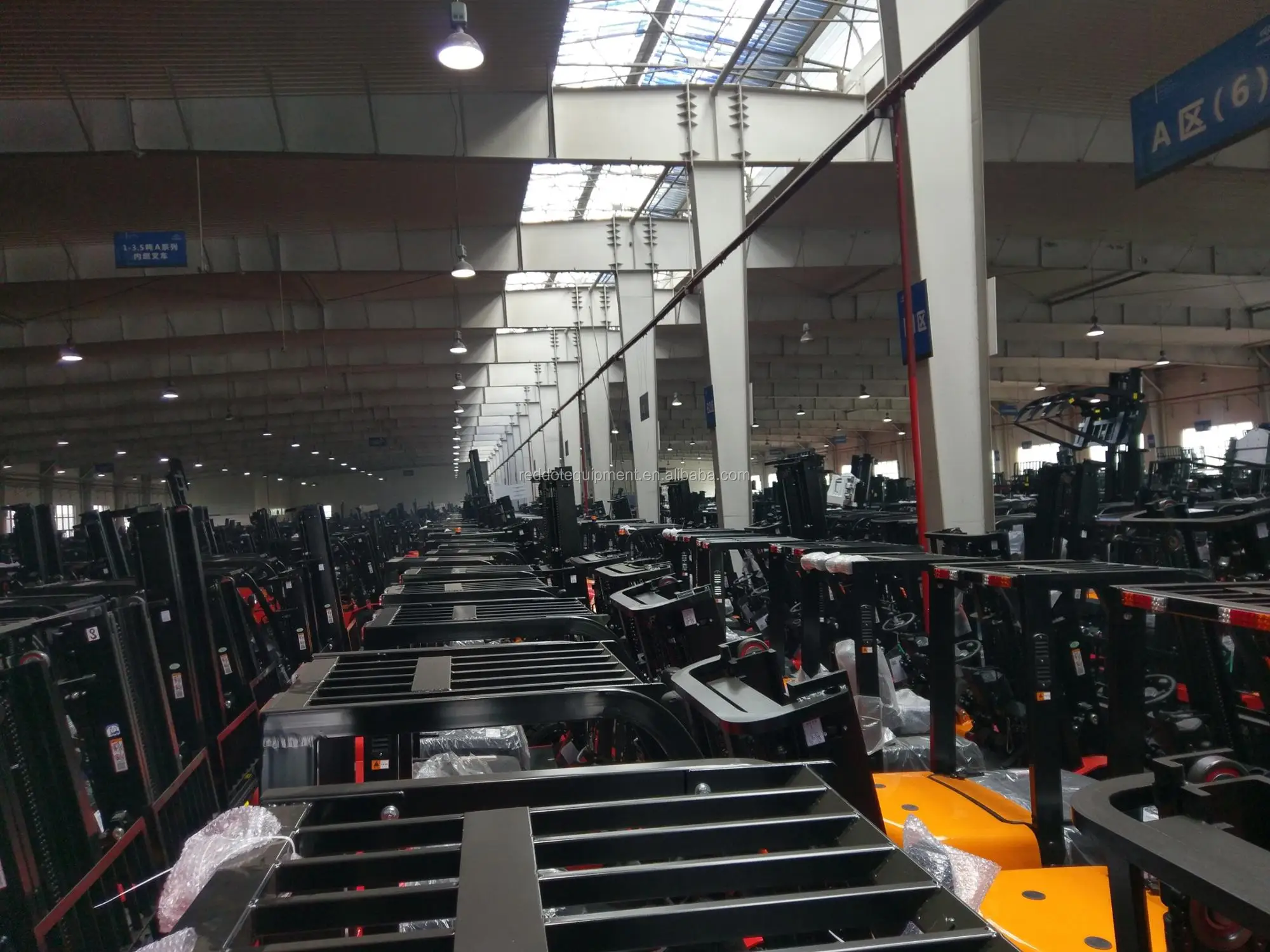

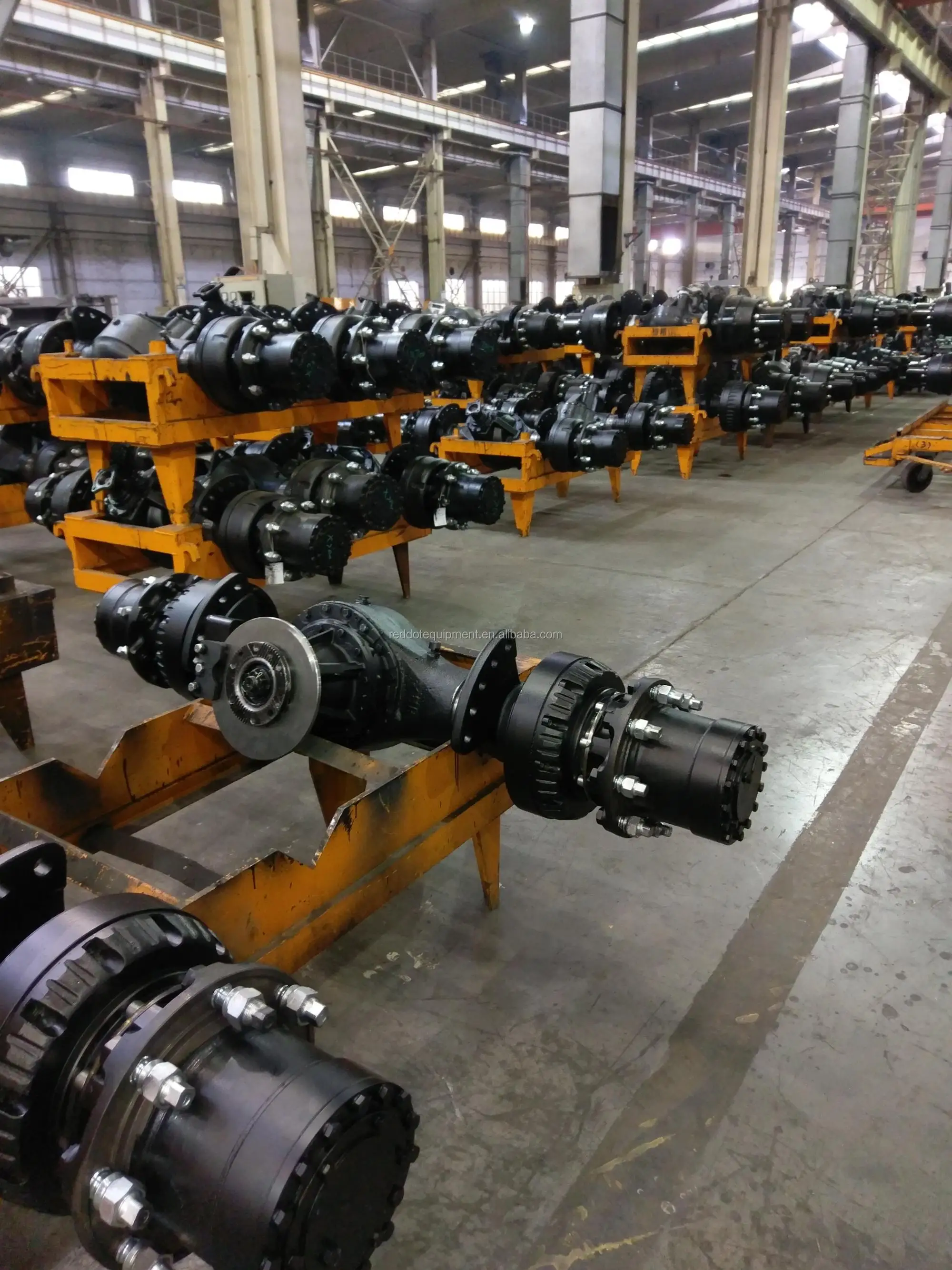

Factory ability
LogiMAT 2019
REDDOT Equipment attended the Logimat Exhibition in Stuttgart, Germany.
We have shown our potential products, including Forklifts, High Lift Stackers, Pallet Trucks, Powered Platforms, Lift Tables, attracted the attention of many customers and got a lot of good redponses.
REDDOT welcome your join, let’s provide the better material handling equipment market!
FAQ
Q:What are the main products of REDDOT?
A:REDDOT offers mainly Forklifts, Warehouse Equipment and Solution goods. We provide complete range of industrial solutions.
Q:What are the main markets of REDDOT?
A:Approx.30% Europe, 25% North and South America, 10% Oceania, the rest from domestic and other external market.
Q:What exhibitions has REDDOT taken part in?
A:In order to build good reputation in the world, REDDOT is always a guest of CEMAT, LogiMAT and BAUMA exhibitions.
Q:What are price terms does REDDOT usually offer?
A:EXW, FOB, CFR, CIF, DDP and so on.
Q:How is the warrenty system of REDDOT?
A:2 years or 1000 hrs using for Electric forklifts, IC forklifts, Lithium warehouse equipment. Mainly 1 year for spare parts and manual goods. Final explaining rights by Reddot Equipment Limited.
Q:How is the annual revenue of REDDOT?
A:Due to the wide cooperation with overseas dealers, we makes more than $100 million revenue every year.
Q:How is the delivery period like?
A:Above level. For some samples as soon as 2 weeks, for forklifts generally less than 30 days.
