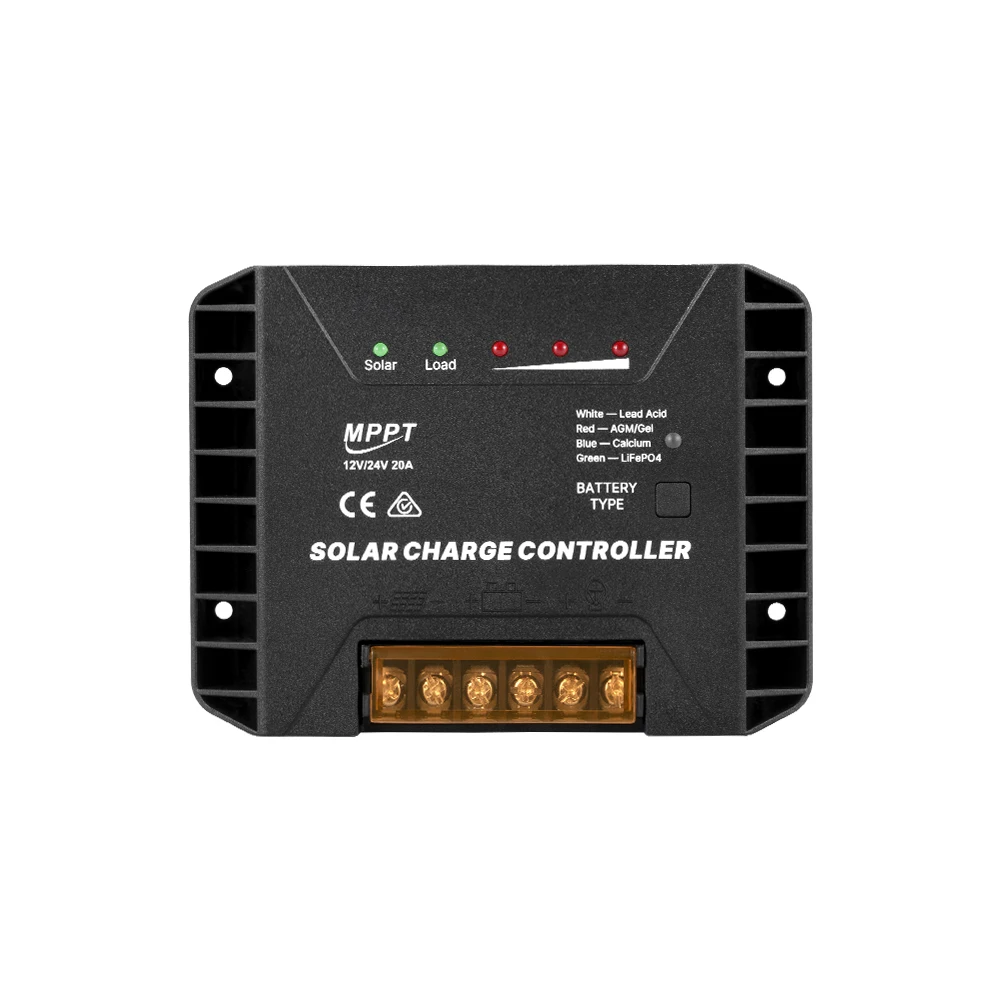

12V 24V 20A Solar MPPT Controller Solar Panel Regulator Battery MPPT Controller
- Category: >>>
- Supplier: Ningbo Zhong Xin Electronic Technology Co. Ltd.
Share on (1600729653186):
Product Overview
Description
Specification

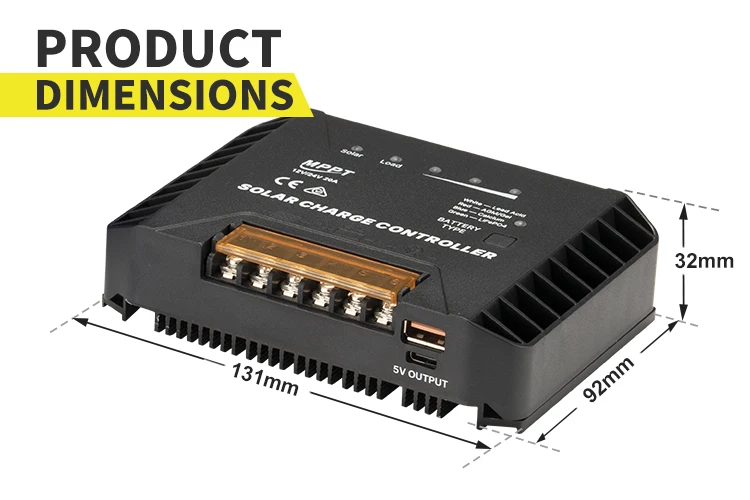

Product Dimension | 131*98*33mm |
Battery Voltage Range | 12V/24V |
Max. PV Open Circuit Voltage | 50V |
Max. Solar Input Voltage | 50V |
Rated Charge Current | 20A |
Rated Discharge Current | 20A |
Max. PV Input Power | 500W |
Discharge Circuit Voltage Drop | ≤0.3V |
Self Consumption | ≤8ma |
No Load Current | ＜10ma |
Tracking Efficiency | 99% |
Conversion Efficiency | ≤ 98% |
USB Output | Type A+Type C; 5V/2.4A |
Operation Temperature | -20℃~50℃ |
Storage Temperature | -30℃~70℃ |
Relative Humidity | ≤90% |
Warranty | 1 Year |
