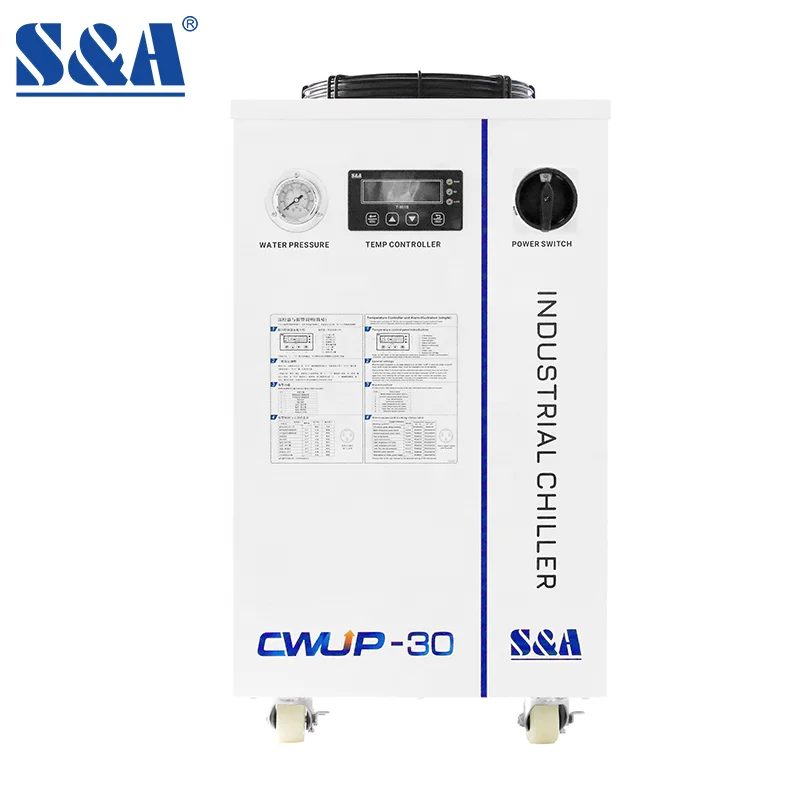

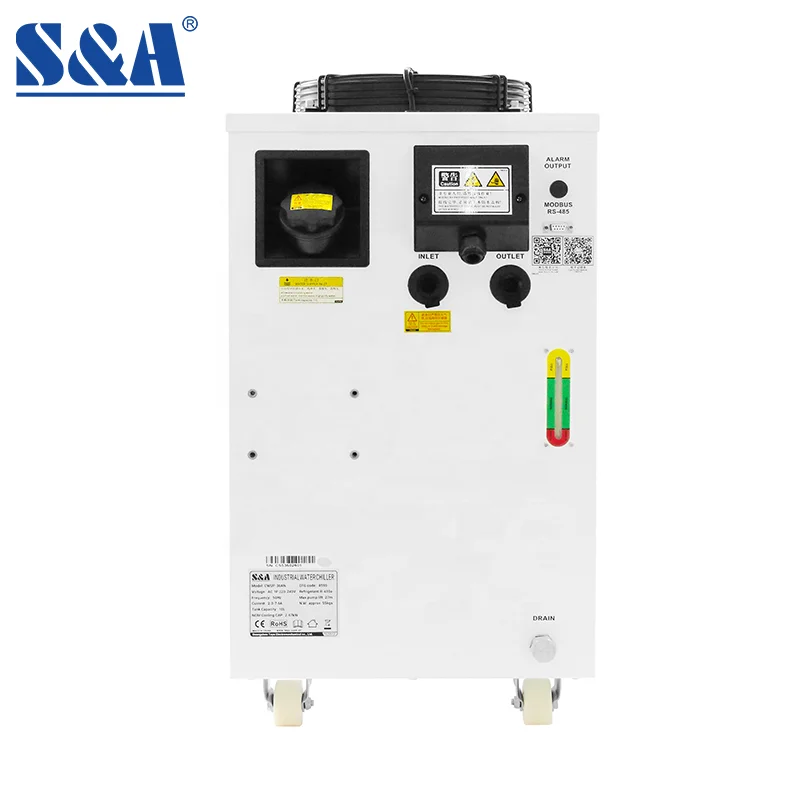

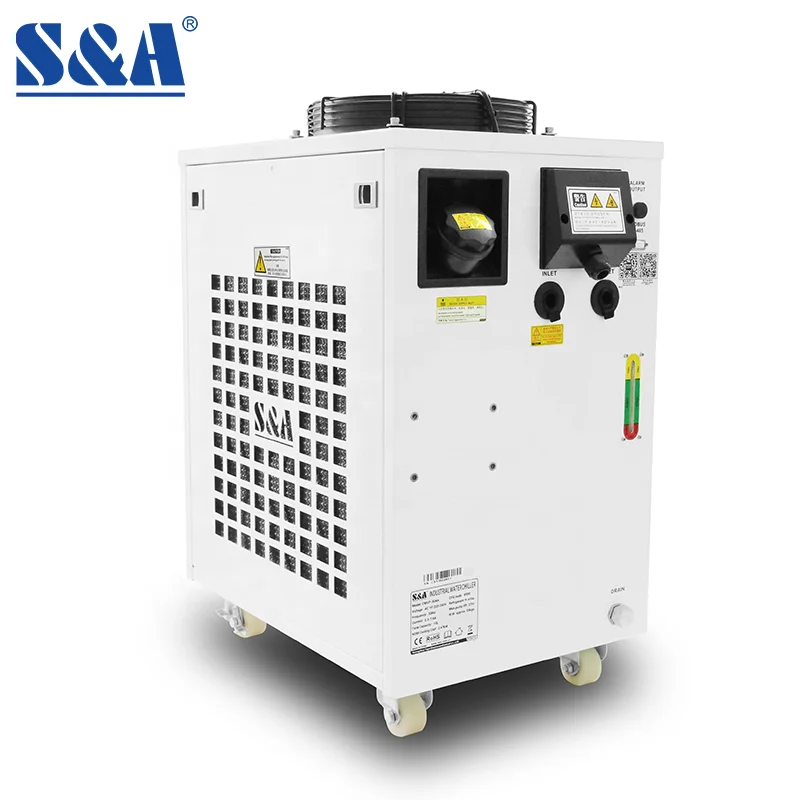

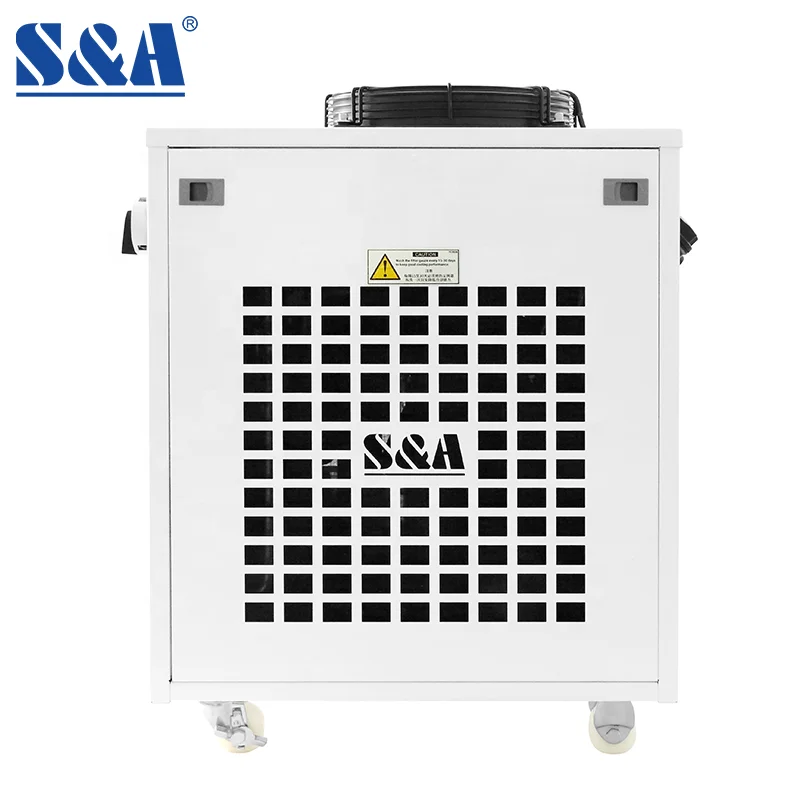

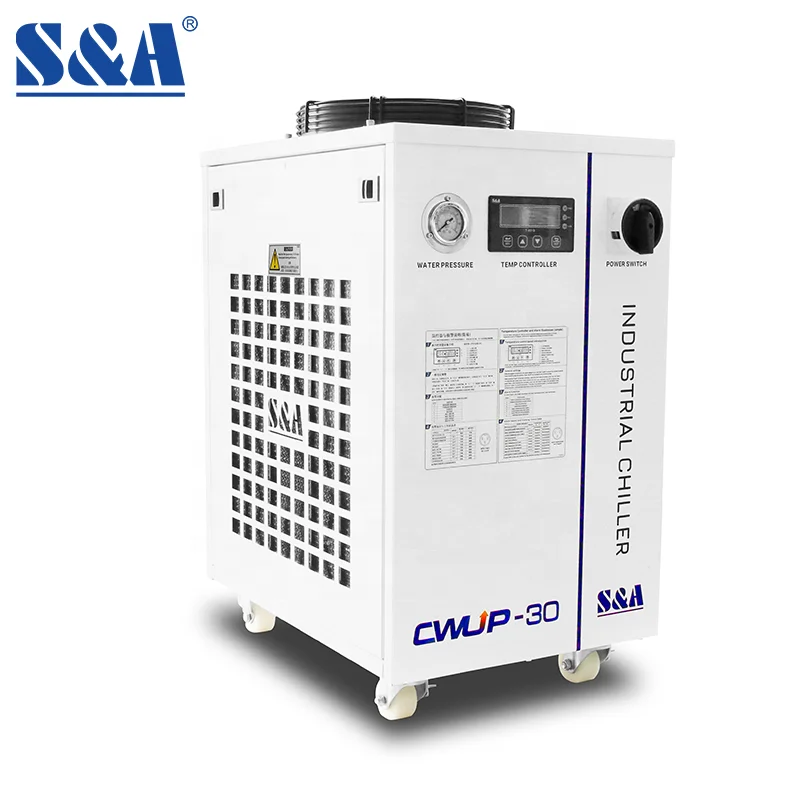

S&A CWUP 30 Air Cooled Inverter 2.48KW Adsorption Industrial Water Chiller With UV Laser System
- Category: >>>
- Supplier: Guangzhou Teyu Electromechanical Co. Ltd.
Share on (1600729662252):
Product Overview
Description
PRODUCT SPECIFICATIONS
Model | CWUP-30 | ||
CWUP-30AN | CWUP-30BN | ||
Voltage | AC 1P 220~240V | ||
Frequency | 50Hz | 60Hz | |
Current | 2.3~6.6A | 2.1~6.4 A | |
Max. power consumption | 1.89kW | 1.31kW | |
Compressor power | 0.87kW | 0.88kW | |
1.17HP | 1.18HP | ||
Nominal cooling capacity | 8461Btu/h | 8632Btu/h | |
2.48 kW | 2.53 kW | ||
2132Kcal/h | 2175Kcal/h | ||
Refrigerant | R-410a | ||
Precision | ±0.1℃ | ||
Reducer | Capillary | ||
Pump power | 0.37kW | ||
Tank capacity | 10L | ||
Inlet and outlet | Rp1/2” | ||
Max. pump pressure | 27M | ||
Max. pump flow | 75L/min | 75L/min | |
N.W | 52Kg | 55Kg | |
G.W | 58Kg | 61Kg | |
Dimension | 59X38X74cm (L X W X H) | ||
Package dimension | 66X48X92cm (L X W X H) | ||
Intelligent functions | * Low tank water level detecting * Low water flow rate detecting * Over water temperature detecting * Heating of the coolant water at low ambient temperature | ||||||
Self-check display | * 12 types of alarm codes | ||||||
Easy routine maintenance | * Toolless maintenance of dustproof filter screen * Quick-replaceable optional water filter | ||||||
Communication function | * Equipped with RS485 Modbus RTU protocol | ||||||
Q1.Is S&A Chiller a trading company or a manufacturer?
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
We are professional industrial chiller manufacturer since 2002.
Q2.What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
Q3.How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
Q4.What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45 degree C.
Q5.How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team
