CCI GROUP aluminium window and door making machinery for UPVC plastic windows and door profile manufacturing CNC cutting machine
- Category: >>>
- Supplier: Shandong CCI Co. Ltd.
Share on (1600729674035):
Product Overview
Description
Warranty period is 14 months after BL time
Name: digital display aluminium and pvc double head cutting saw machine
Model: LJZ2X-450X3700
Function:
- LJZ2X-450*3700 is the double head aluminum cutting machine for cutting aluminum and upvc doors & windows Profile.
- The aluminium and pvc cutting saw machine is used for cutting off aluminum and upvc window door profile and curtain wall profile. The cutting precision has reached the advance level all over the world.
- Germany Daedalus special hard-metal saw blade features the high precision and efficiency for cutting aluminum alloy doors and windows profile and curtain wall profile.
- Siemens/ Zhenyang motor are installed on the cutting machine.
- HIWIN linear lead rail & bearing pair and,which can ensure the feeding effection smooth.
- The high-precision main shaft box makes the saw stable and the cutting surface smooth.
- The protecting cover can open and close automatically, which can make the aluminum door and window making machine operation more safety.
- Two dimensional clamping device can hold the profile against on the workbench.
- Pnemuatic Parts are adopts SMC/ Easun/ Airtac brand, which are with high quality in heavy work.
- Electric Parts are adopts France brand Schneider, which can ensure this aluminum door and window making machine electric route safety.
- This aluminium and pvc cutting saw machine is suitable for large production work.
Technical Parameters
| 1 | Power Supply | 380V 50Hz/ 220V 60Hz |
| 2 | Motor Power | 2.5Kw*2 |
| 3 | Rotary Speed | 2800RPM |
| 4 | Saw Blade Size | 400*4.0*30mm T=120 |
| 5 | Air Pressure | 0.5-0.8Mpa |
| 6 | Air Consumption | 200L/min |
| 7 | Cutting Angle | 90/45 degree |
| 8 | Cutting Length | 580-3700mm |
| 9 | Maximum Cutting Width | 100mm |
| 10 | Maximum Cutting Height | 200mm |
| 11 | Feeding Speed | 0-3m/min |
| 12 | Overall Dimension | 5000*1400*1650mm |
| 13 | Weight | 1500Kg |
Product Description

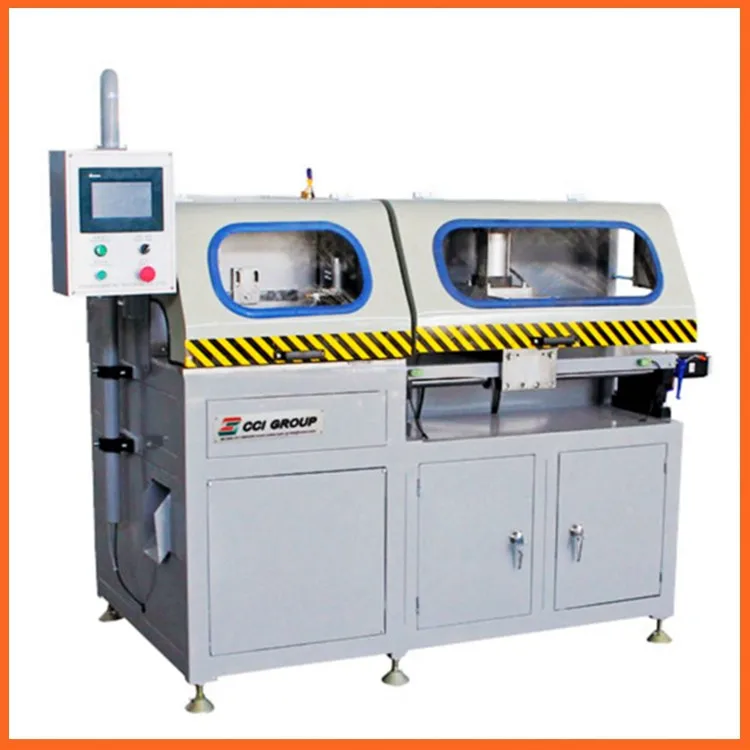

LJZ2X-450*3700 double head aluminum cutting machine
operating panel
LJZ2X-450*3700 double head aluminum cutting machine
heavy duty workbench
LJZ2X-450*3700 double head aluminum cutting machine

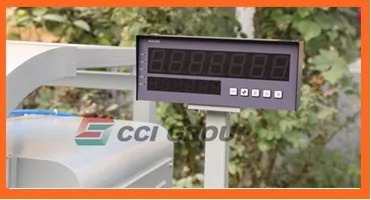

Digital Display Device
LJZ2X-450*3700 aluminium and pvc cutting saw machine
Shneider/ CHNT electric control box
LJZ2X-450*3700 aluminium and pvc cutting saw machine
Easun pneumatic parts
Our Services
Company and Products Advantage:
Delivery time is guaranteed
15000m3 lequipment processing workshop.
100-150 cutting machines are inspected and accepted every month.
Reasonable production management process to ensure the machine quality.
110 Professional and technical workers.
Every front-line production worker has undergone strict pre-job training.
One worker only completes one process of product production to ensure the production of high-quality products. Each process is inspected to ensure the accumulative accuracy of the product.
Supports ODM and OEM.
12 technical R&D persons.
We provide different solutions for different industries, so as to meet the technical requirements of different industries as much as possible.
Complete pre-sale service network.
CCI GROUP pre-sales consulting team will wholeheartedly provide you with machinery consulting, solutions and other services. 86 pre-sales engineers are distributed in all corners of the world, providing different solutions for users in all walks of life.
Perfect after-sales service system.
35 after-sales service personnel with more than ten years working experience will be on standby 7*24 hours, all year round, fully guaranteeing the worry-free use of your products and the stable operation of your business.
2-3 engineers are responsible for one area to ensure the professional and timely debugging work, so that users can put into production as soon as possible. Every year we hold a quality journey, visit new and old users everywhere, help them to check the machine and listen to the actual needs of customers, so as to do a good job of market research for our product technology upgrade.
1. Guarantee for the whole machine: 12-24 months
2. Providing professional service to customers, any call for technical help will be solved in 24 hours
3. Free training, free maintenance and free technical support within warranty period
4. We supply life-long free service in technical upgrading.
Packaging & Shipping
+ Our factory pay more attention to our machine package and shipping.
+ Package type: Wooden Case and Wooden Pallet.We do not suggest using the plastic cover only on our machines.
+ Shipping type: Sea transportation and Express transportation. We do not suggest using the land transportation.
Company Information
CCI GROUP·Global Window Door Smart Solution Expert
CCI Group has been deeply engaged in the manufacturing of intelligent equipment for 19 years. It is headquartered in Jinan, China and has two wholly-owned subsidiaries.
CCI GROUP has established branches and service outlets in 20% of the countries and regions around the world to promote the process of global intelligence and has more than 100 patents and certificates.
CCI GROUP adheres to the quality route and forms 89 production and inspection procedures higher than the industry standard. With the mission of "Smart technology serves for user production, supplying complete solutions, improving user working way", its high-quality products and after-sales service have won high praise from customers, and repurchase rate >95%.
Wish cooperating with you to create a better future!
CCIGROUP Production and Quality Inspection
CCIGROUP Qualification Certification
CCI Factory Exhibition Photo
+ As you known, our factory has several oversea offices all over the world. Normally, our marketing manager and distributor join the local market exhibition by ourselves.
+ If you have chance to be together with us on exhibition, welcome to contact us our marketing manager face to face if you have any demand about machine or after service for machines.
Factory picture
FAQ
CCI is the best choice you can choose.
A. Question: What kind of our company is CCI?
Re: CCI is window door machines and insulating glass machines manufacturing expert since year 1991. We passed CE european standard on year 2002.
B. Question: How is digital display aluminium and pvc double head cutting saw machine guarantee?
Re: b1. digital display aluminium and pvc double head cutting saw machine warrenty period is 24 months after BL time;
b2.12 hours technical support feedback;
b3. Own window factory supply window fabrication support;
b4. Own machining factory, which can control the spare parts quality at high quality;
b5. Own accessories warehouse and user can enjoy the agent price.
C.Question: How is delivery time?
Re: We can delivery the machines within 7 days if we have the machines in stock.
The common machine fabricating time is 3-7 days and CNC machine fabricating time is about 7-12 days.If you have customized products, the delivery time will be given after confirmation.
D. Question: How is payment?
Re: 30% of amount as deposit and the balance should be paid by T/T or LC at sight before seller delivery the machines to loading port.
E.Question: How is our package?
Re: Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
F. Question: Why is price higher than other supplier?
Re: f1. We have our own machining factory and the high quality technical quality is our aim;
f2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
f3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
f4. Our warrenty period is 24 months after BL time. It can support the new comer client going well in the beginning time.
Customer Care
CCIGROUP Product quality has been well received by the international market.
CCIGROUP products have been exported to more than 160 countries and regions and have been well received by users.
We establish offices in the United States, Brazil, India, Russia, Spain, Turkey, Thailand, Malaysia and other countries.
In order to adapt to the continuous expansion of the company's business and further improve the quality of after-sales service, we sincerely invite local distributors to join our sales and service system, and work together to support perfect sales and after service for users.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact us-China CCI GROUP!
1. What is your output of a year?
2. Which window door do you need to making? Pvc or Aluminum or Both?
3. What is your details requirement?
Quality is our culture! Your satisfaction is our motivation!
Need more information please feel free to contact us-CCI GROUP!
Right Now!!
