Bluetooth Amplifier Board 10W 3.7V MP3 Bluetooth MP3 Player Module For Trolley Pull Rod Sound Speaker
- Category: >>>
- Supplier: Shenzhen Aiyinyuan Technology Co. Ltd.
Share on (1600729708455):
Product Overview
Description
Bluetooth Amplifier Board 10W 3.7V MP3 Bluetooth MP3 Player Module For Trolley Pull Rod Sound Speaker
Product Description
Product Name | Trolley Speaker Bluetooth Amplifier Board |
Power Input | DC 5V , 3.7V Battery |
Functions | Bluetooth TWS/wire wireless Microphone/Microphone record/FM radio/AUX/TF card/USB/LED light/amplifier 10W |
Power Amplifier | 10W |
Using Scenarios | audio speakers/mp3 player/portable speaker/amplifier speaker/Trolley Speaker 2x10W |
Warranty Period | 2 years |
Common Products MOQ | 2 pcs |
Function Introduction:
Support :Amplifier 2x10W,Wireless bluetooth Amplifier,wireless Microphone and wire Microphone,double decoding MP3/WMA/WAV/APE formats music,record,TWS,reading USB disk, read tf card,radio FM,infrared remote control,power off memory,Battery 3.7V，Micro USB charging DC 5V.
Major Functions:
1,Double decoding,support MP3/WMA/WAV/APE formats music;
2,Support bluetooth music;
3,support wire Microphone and wireless Micophone;
4,Support USB/TF card;
5,Power off memory functions;
6,Support 5-10 meters distance infrared remote control operation;
7,Support FM(87.5MHZ-108.0MHZ);
8,Buttons:MIC/REC/VOL-/ AUTO / VOL+ / MODE;
9,Support LINE-IN;
10,Support EQ by remote.
11,The highest volume level is 30 level(support changing 50 volume level);
12,Support TWS;
13.Input battery 3.7V as power input/DC 5V for charging, Amplifier 10W .Control knob echo,volume,microphone volume.
Support :Amplifier 2x10W,Wireless bluetooth Amplifier,wireless Microphone and wire Microphone,double decoding MP3/WMA/WAV/APE formats music,record,TWS,reading USB disk, read tf card,radio FM,infrared remote control,power off memory,Battery 3.7V，Micro USB charging DC 5V.
Major Functions:
1,Double decoding,support MP3/WMA/WAV/APE formats music;
2,Support bluetooth music;
3,support wire Microphone and wireless Micophone;
4,Support USB/TF card;
5,Power off memory functions;
6,Support 5-10 meters distance infrared remote control operation;
7,Support FM(87.5MHZ-108.0MHZ);
8,Buttons:MIC/REC/VOL-/ AUTO / VOL+ / MODE;
9,Support LINE-IN;
10,Support EQ by remote.
11,The highest volume level is 30 level(support changing 50 volume level);
12,Support TWS;
13.Input battery 3.7V as power input/DC 5V for charging, Amplifier 10W .Control knob echo,volume,microphone volume.

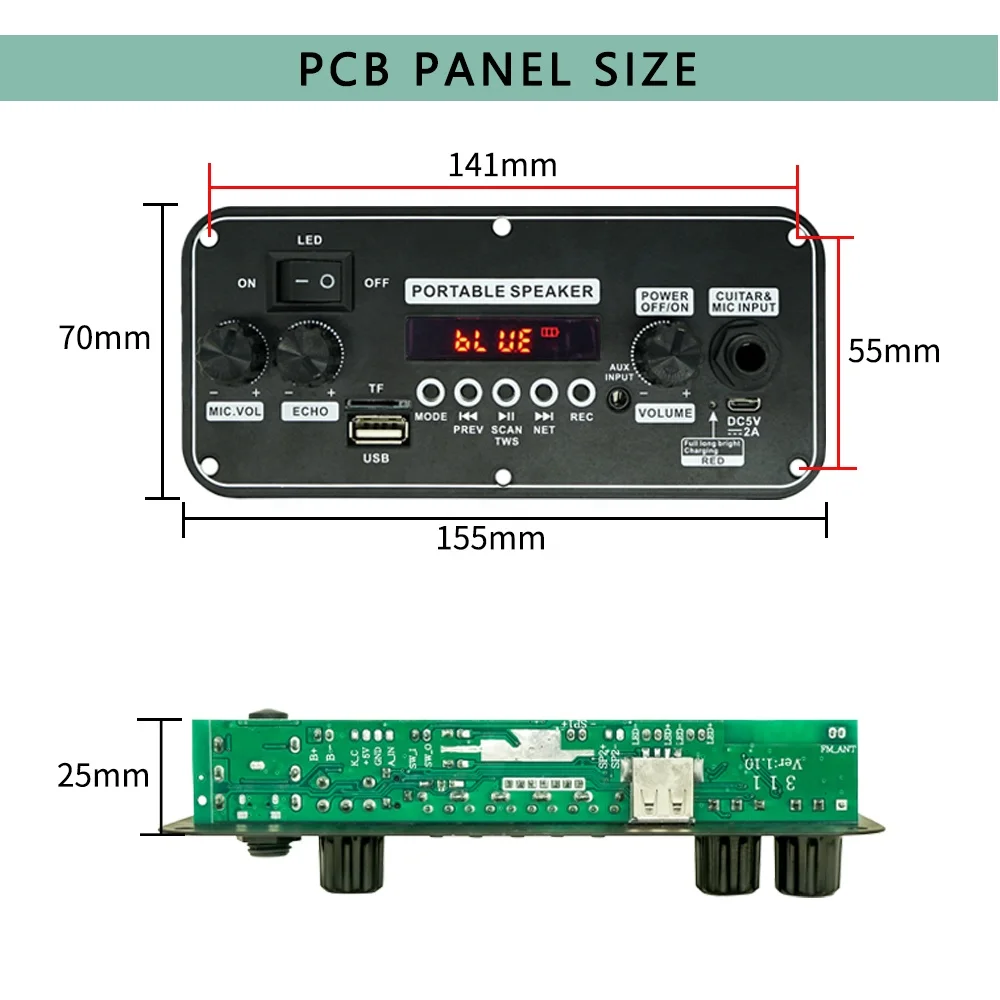

14,panel size:155x70mm;

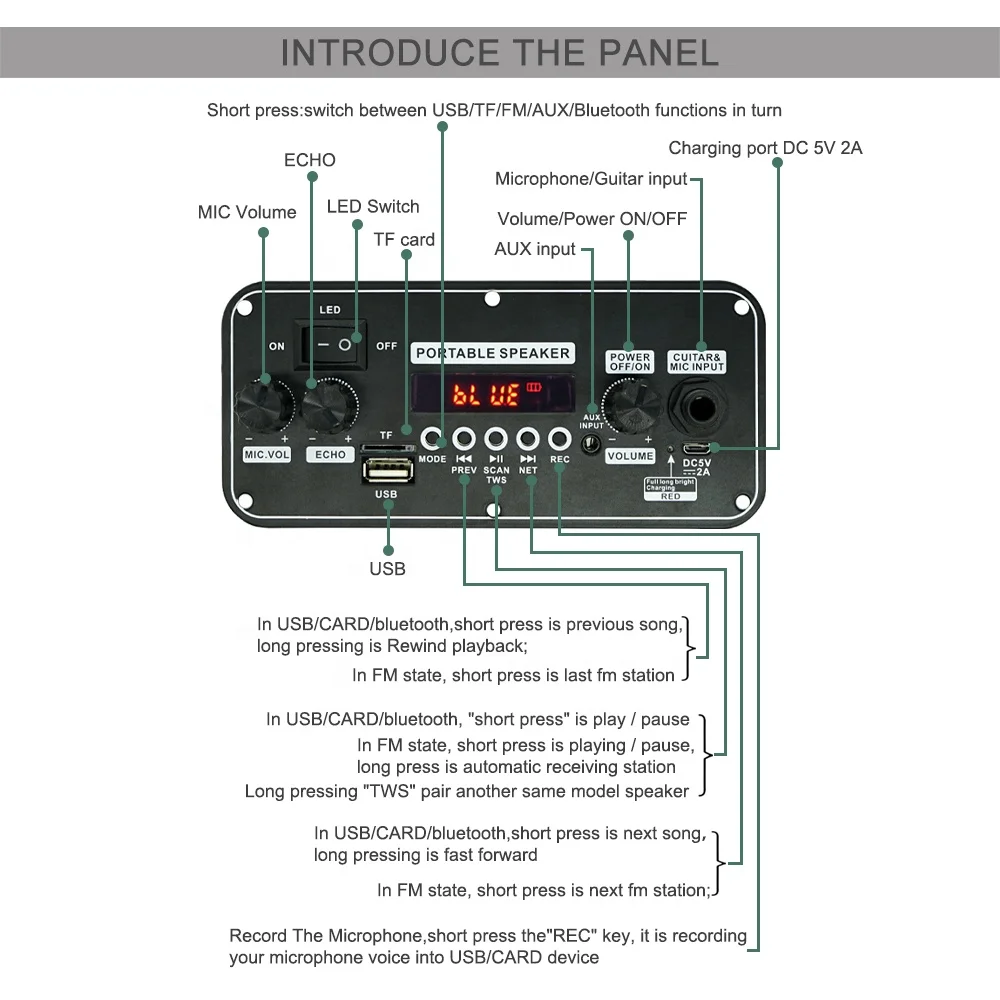

Button Operation Instructions:
1,MODE button:
switch between USB/TF/FM/AUX/Bluetooth/MIC functions in turn.(MIC priority player)
2,Vol- button (last song / volume reduction):
in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under bluetooth function, short press is bluetooth one, long press is volume reduction;
3,Auto button (play / pause):
in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving
station; in bluetooth function, short press is playing / pause;
Long pressing "TWS" pair another speaker.
4,Vol+ button (next song / volume increase):
in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number;
Button Operation Instructions:
1,MODE button:
switch between USB/TF/FM/AUX/Bluetooth/MIC functions in turn.(MIC priority player)
2,Vol- button (last song / volume reduction):
in MP3 state, vol- is short pressed for the last one, long press for volume reduction; in FM state, short press is to increase one stage number; under bluetooth function, short press is bluetooth one, long press is volume reduction;
3,Auto button (play / pause):
in MP3 state, auto is short to play / pause; in FM state, short press is playing / pause, long press is automatic receiving
station; in bluetooth function, short press is playing / pause;
Long pressing "TWS" pair another speaker.
4,Vol+ button (next song / volume increase):
in MP3 state, Vol is short pressed for next, long press for volume increase; in FM state, short press is to lower a stage number;
under bluetooth function, short press is Bluetooth next song, long press is volume reduction;
5,REC button：
input The wire Microphone,short press the"REC" key, it is recording your microphone voice into USB/CARD device.
5,REC button：
input The wire Microphone,short press the"REC" key, it is recording your microphone voice into USB/CARD device.
