1.28 Inch TFT Round Color LCD Display Module HD IPS Resolution 240X240 SPI Driver GC9A01 LCD Module
1.28 Inch TFT Round Color LCD Display Module HD IPS Resolution 240X240 SPI Driver GC9A01 LCD Module
1.28 Inch TFT Round Color LCD Display Module HD IPS Resolution 240X240 SPI Driver GC9A01 LCD Module
1.28 Inch TFT Round Color LCD Display Module HD IPS Resolution 240X240 SPI Driver GC9A01 LCD Module
1.28 Inch TFT Round Color LCD Display Module HD IPS Resolution 240X240 SPI Driver GC9A01 LCD Module

1.28 Inch TFT Round Color LCD Display Module HD IPS Resolution 240X240 SPI Driver GC9A01 LCD Module

Share on (1600729737027):


Price:$3.98

Quantity:


Product Overview

Description



1.28 Inch TFT Round Color LCD Display Module HD IPS Resolution 240X240 SPI Driver GC9A01 LCD Module


Products Details






Specification


Size
1.28 inches
Material
HD IPS LCD
Resolution
240(H)RGB*240(V)
Driver chip
GC9A01
Communication interface
4 Line SPI
Display color
Full color
Display area
Φ32.4mm
Panel size
38(H)*45.5(W)mm
Pixel pitch
0.135(H)*0.135(V)
Number of pins
7 Pin (2.54mm pitch single row of pins)
Viewing direction
All View
Operating voltage
3.3V
Working current
20mA
Backlight Type
2 White LED Parallel
Working temperature
-20~70°

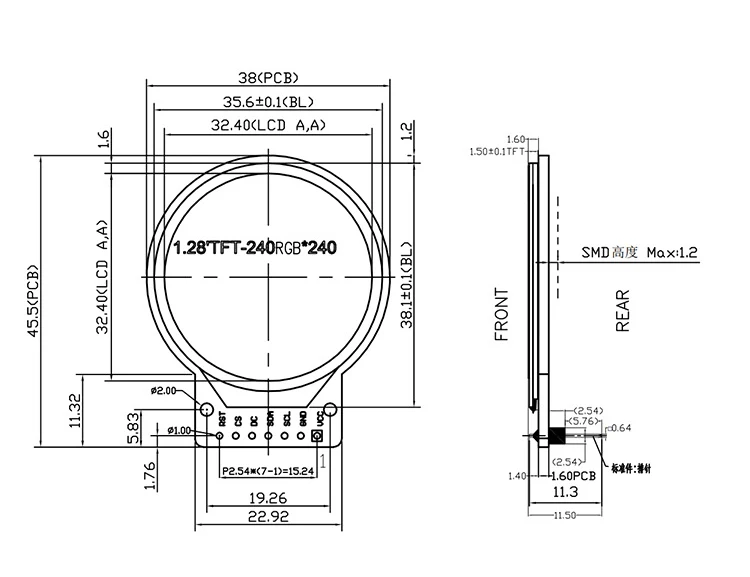

Structure Display

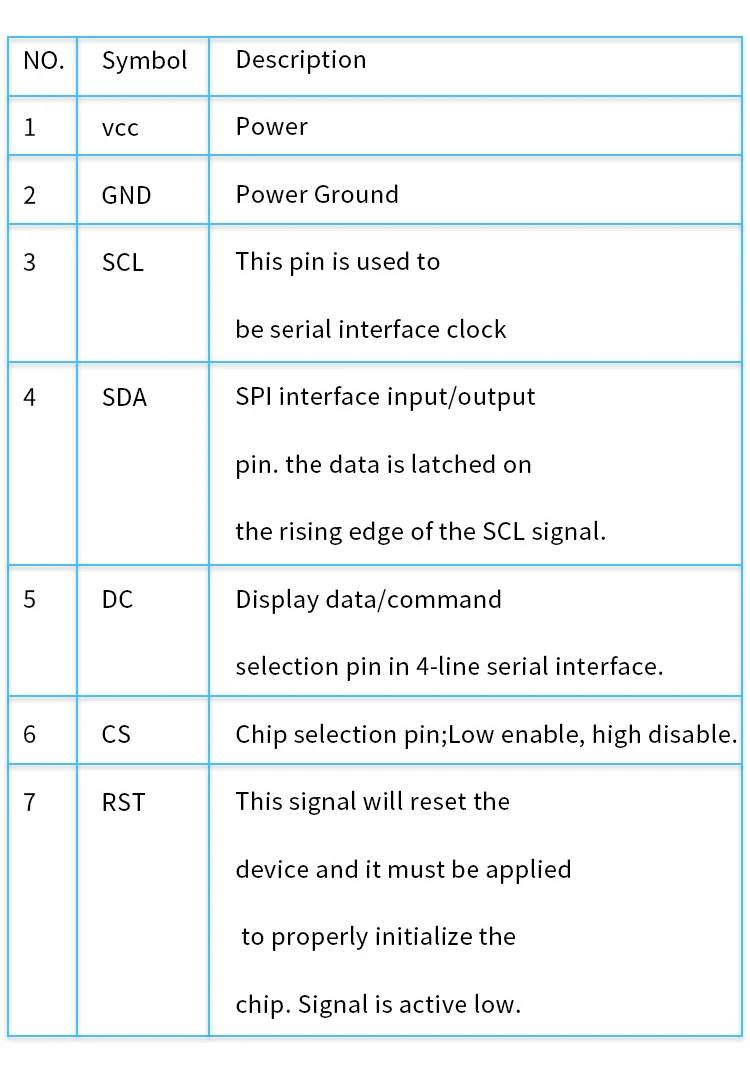

Pin Description




Pictures show
